Why are you reviving this topic even though we've reached the consensus that the current (P0) prototype has no weapon bays as it is only a ground-test article made airworthy (essentially a technology demonstrator).

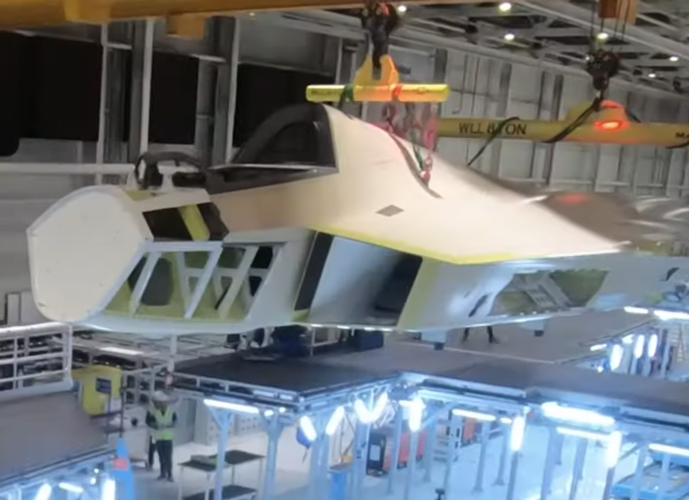

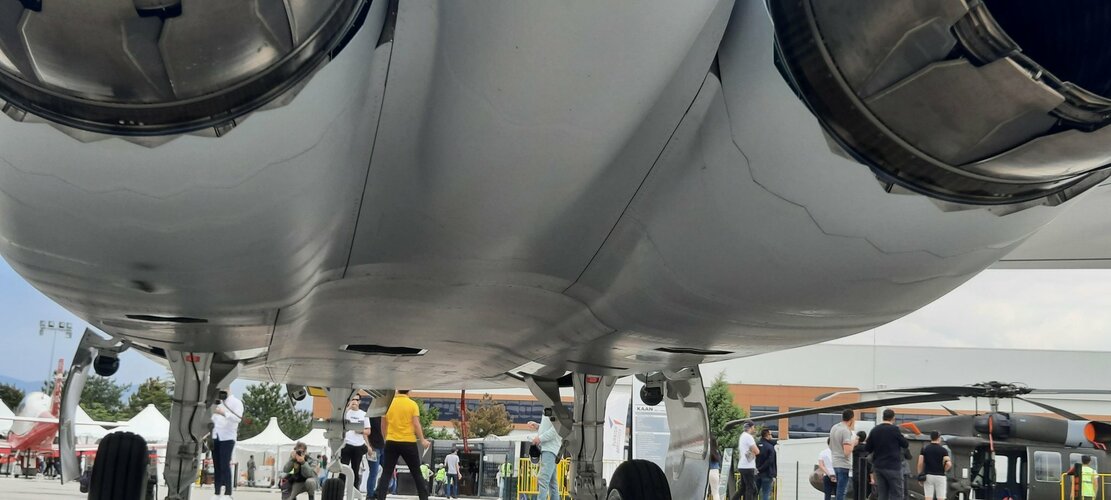

I couldn't find the exact picture that shows how deep the underbody bay is but even from the angle of the second pic that you've attached, it is visibly not that deep as there's a support structure occupying the majority of the space inside.
View attachment 751132View attachment 751133
View attachment 751138

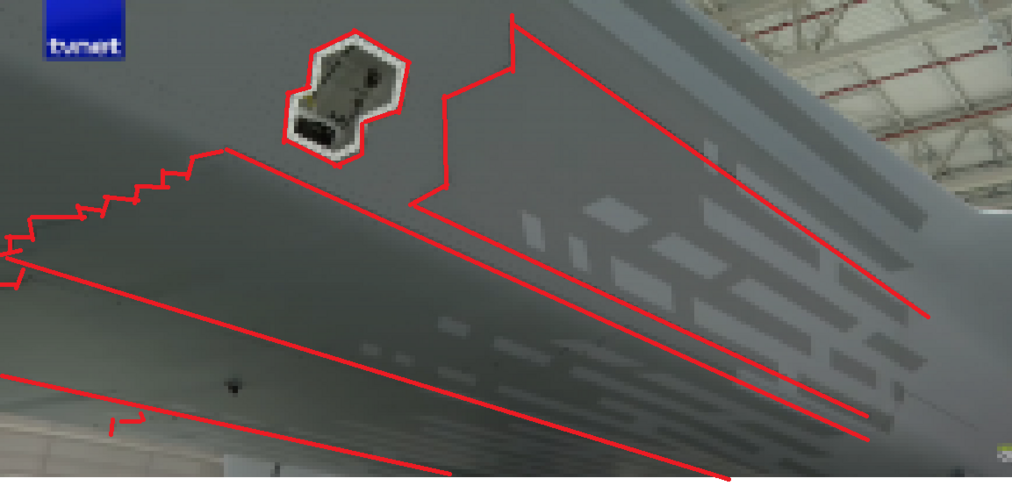

(I'm currently on the road so considering the circumstances this is the best I could draw on my laptop)
View attachment 751137

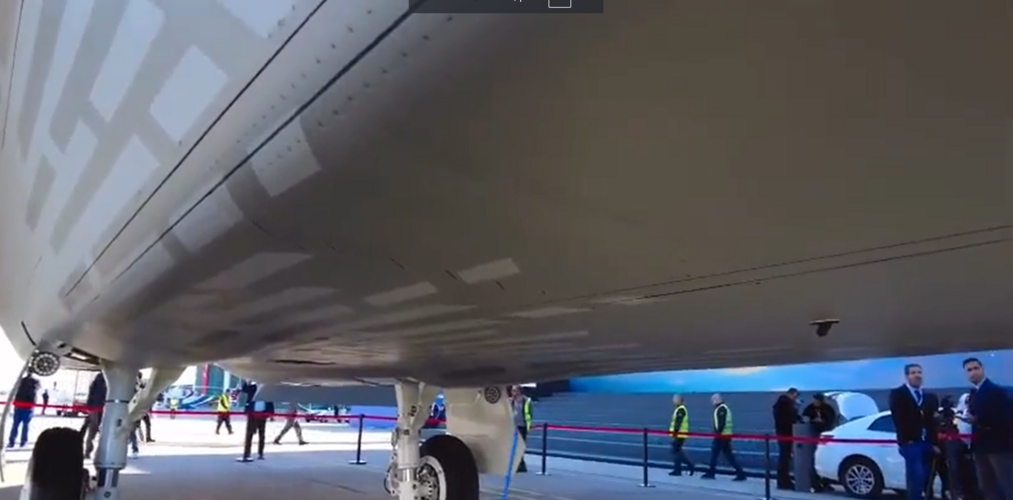

Moreover, you can see from the pics above that there are clearly no weapon bay doors, those are just regular maintenance panels on the first prototype.
View: https://x.com/SavunmaTR/status/1653812863641825303
I think
@Radonislav had shared that in here before it got deleted.
------
Recently, we've also heard that the second prototype (P1) looks almost nothing like the first (P0, demo) prototype.
View: https://x.com/ssysfakb/status/1860007055228305700?t=2EWyfmCFzxqcTj7BytitSA&s=19
We even have confirmation from multiple officials that the weapon integration and testing activities are only going to begin in 2025 with the roll out of P1.
