TAI TF-X / Milli Muharip Uçak MMU Kaan

[helmutkohl]

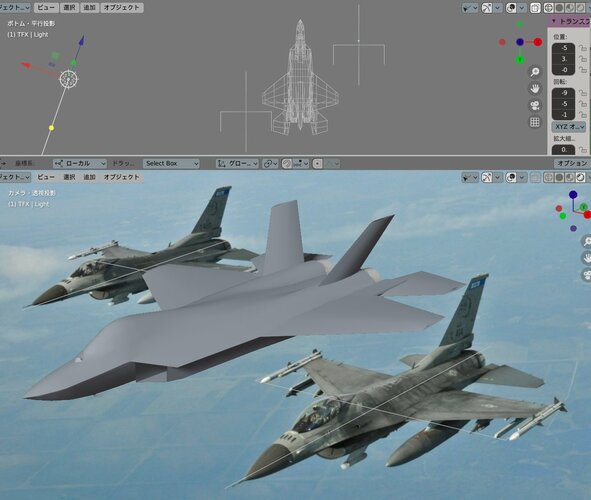

a comparison of the TFX size with the F-22 via Butchmaru.
he's been working the past week to get the 3D model to match all the new pics.



[paralay]

If he is right, then the "Turk" weighs at least forty tons



[VTOLicious]

a comparison of the TFX size with the F-22 via Butchmaru.
he's been working the past week to get the 3D model to match all the new pics.

Massive airframe... Would like to see how it compares to an F-15 (with F110 GE129 engines)



[red admiral]

Massive airframe... Would like to see how it compares to an F-15 (with F110 GE129 engines)

Well with the same engines in a much bigger, heavier and draggier aircraft then performance is going to go down



[VTOLicious]

Massive airframe... Would like to see how it compares to an F-15 (with F110 GE129 engines)

Well with the same engines in a much bigger, heavier and draggier aircraft then performance is going to go down

That's why a size comparison would be interesting to see



[VTOLicious]

In terms of size, F-15C is the most closest to it; or, if we're looking for a comparison from the current TurAF inventory, F-4E 2020's.

Basically it's a stealthy F-15EX which is more than enough for Turkey's needs.

It's design elements remind me of not only the American 5th gens but also the Su-57. The stabilizers are like that of the F-35, the overall fuselage shape is just like that of an F-22 with a slight LERX, and the weapon bays are like that of the Su-57 or the YF-23.

View attachment 687109

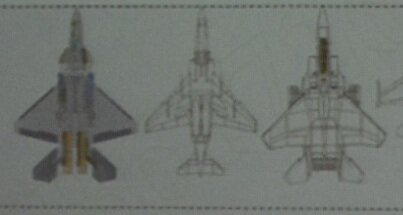

On this image, TF-X appears pretty much the same size as the F-15...



[Canardzz]

Back when design activities weren't finalized. Probably outdated. The aircraft is massive.



[eagle]

a comparison of the TFX size with the F-22 via Butchmaru.
he's been working the past week to get the 3D model to match all the new pics.

The F119 is larger in diameter than the F110 so I don't think this model got the scale right.



[Canardzz]

His calculations are based on available real life pictures of the aircraft. And as far as I know the F-110 is only shorter than the F-119, but is in strike contrast larger in diameter.



[djfawcett]

View attachment 687109

On this image, TF-X appears pretty much the same size as the F-15...
View attachment 696684

The F-15 is 19.43 meters long, and the TF-X is supposedly 21 meters long. So the image above is apparently out of scale. The two airframes are significantly different in length, but the image show them as being almost identical.



[Bounce]

It's easy to scale correctly, we have the dimensions of the horizontal stabs.

There are two Horizontal Stabilizers on the aircraft. A single one of these control surfaces is as large as the wing of an F-16. It is 2.9 meters wide, 4.1 meters long, 0.4 meters high, and weighs 235 kilograms.

There are two Horizontal Stabilizers on the aircraft. A single one of these control surfaces is as large as the wing of an F-16. It is 2.9 meters wide, 4.1 meters long, 0.4 meters high, and weighs 235 kilograms.



[helmutkohl]

how about weight wise? I am guessing a safe estimate would be between 17,000kg to 22,000kg, in line with the other large 5th gen planes (J-20, F-22, Su-57).



[Canardzz]

how about weight wise? I am guessing a safe estimate would be between 17,000kg to 22,000kg, in line with the other large 5th gen planes (J-20, F-22, Su-57).

The aircraft could be lighter than the F-22. Don't quote me on that.



[helmutkohl]

how about weight wise? I am guessing a safe estimate would be between 17,000kg to 22,000kg, in line with the other large 5th gen planes (J-20, F-22, Su-57).

The aircraft could be lighter than the F-22. Don't quote me on that.

that's why I put 17,000. the F-22 is around 19,000, and J-20 is claimed to be 17,000.
22 is probably on the higher end. but I definitely don't think its 40 tons as claimed earlier. This is the TFX, not the Tu-22.



[Radonislav]

If he is right, then the "Turk" weighs at least forty tons

Definitely not, and empty airframe weight should actually be lower than the F-22s.



[Trident]

I think paralay was referring to MTOW, and (assuming that the size comparison is accurate, as he said) that'd be a fair assessment. F-22 MTOW is 38t already, and (again, IF the comparison was correct) MMU would be considerably larger. In that case it would also not be plausible for OEW to be lower.



[paralay]

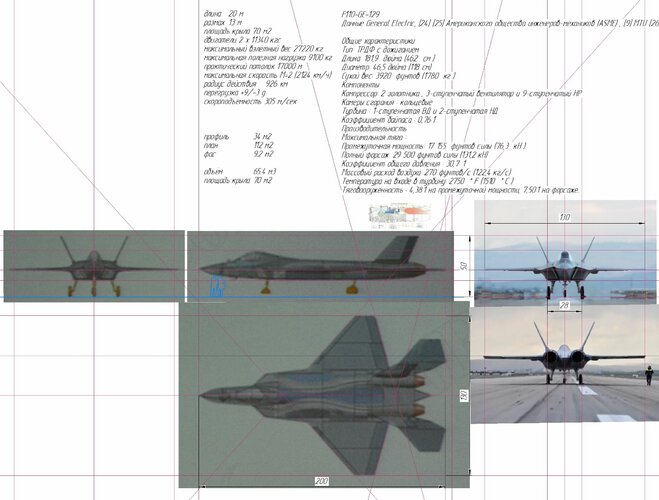

Length 20 m
Wingspan 13 m
Height 5 m
Wing area 70 m2
Profile 34 m2
Plan 112 m2
Fas 9.2 m2
Volume 65.4 m3
Maximum weight 33000 kg



[djfawcett]

Length 20 m
Wingspan 13 m
Height 5 m
Wing area 70 m2
Profile 34 m2
Plan 112 m2
Fas 9.2 m2
Volume 65.4 m3
Maximum weight 33000 kg

Paralay, where did you get these numbers? They are different by as much as one meter than all previously released or published specs.



[paralay]

I adjusted the existing scheme to the wing area of 70 m2



[Canardzz]

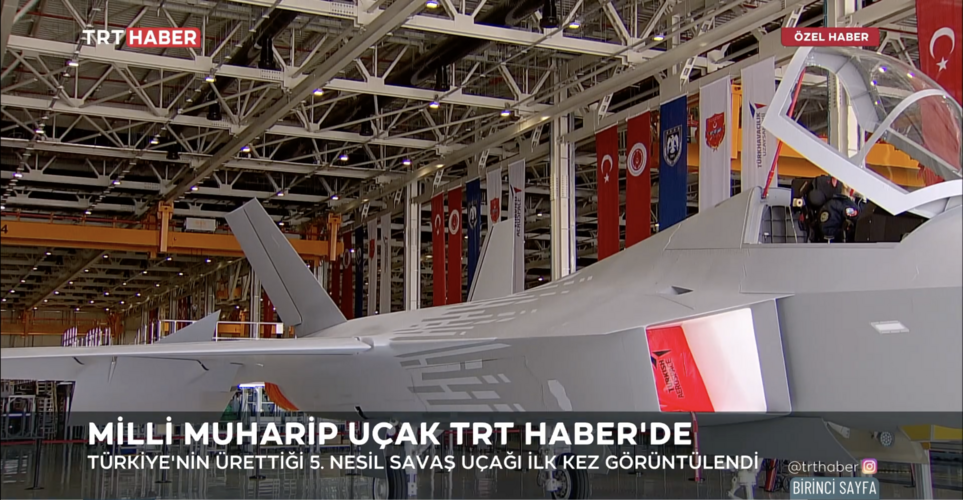

TF-X



[Canardzz]

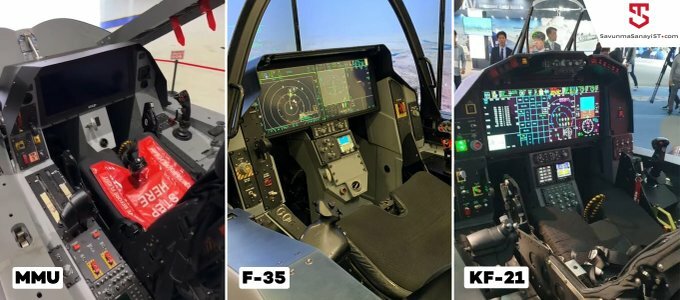

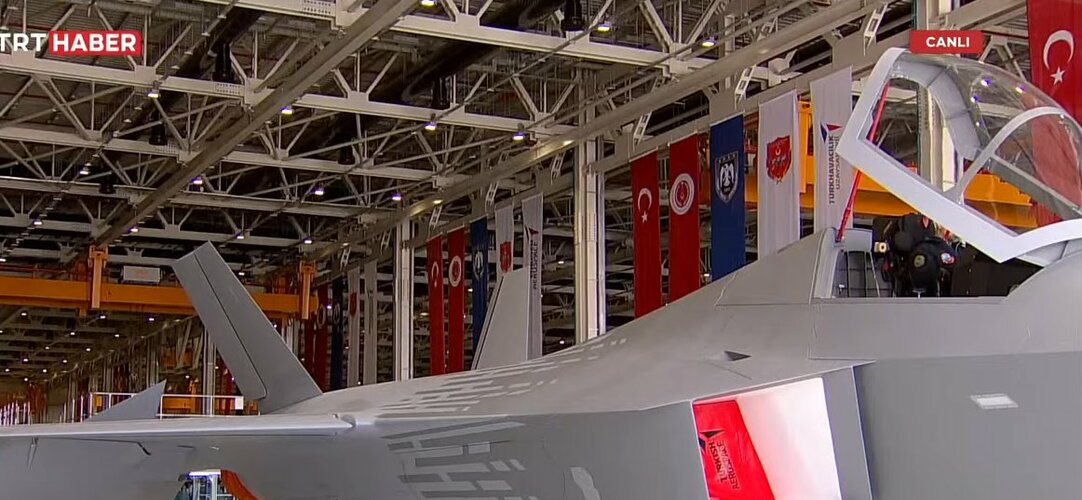

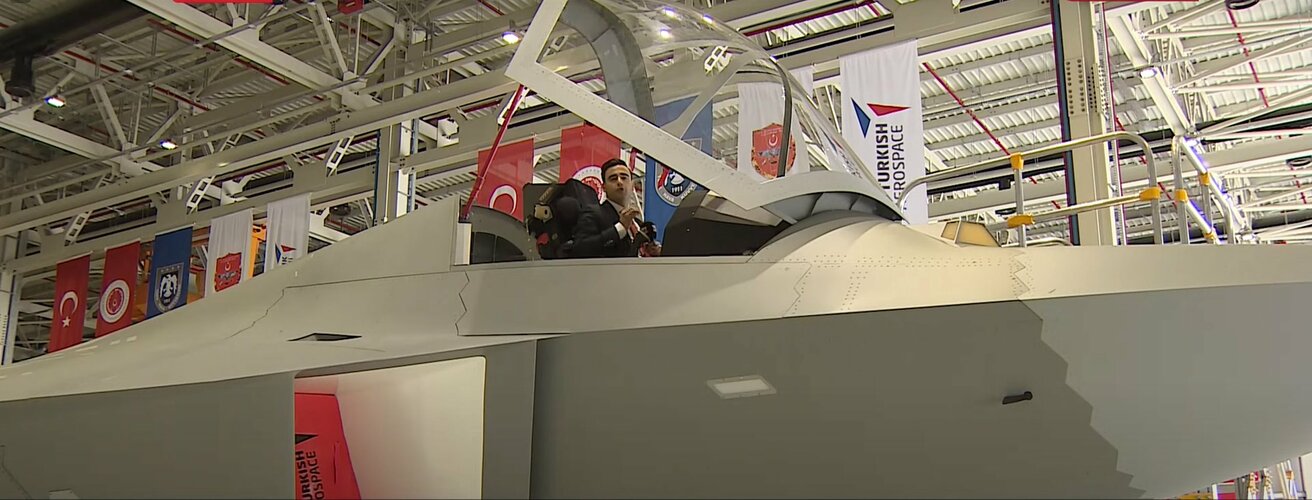

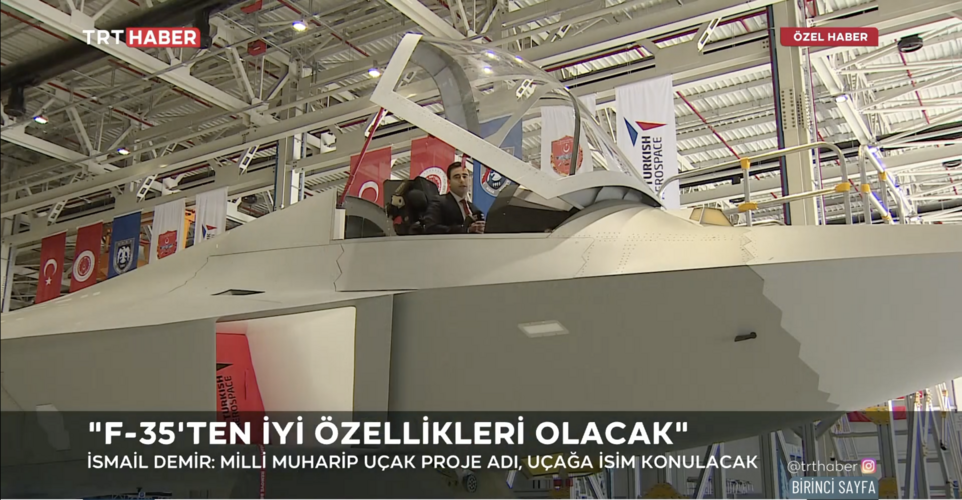

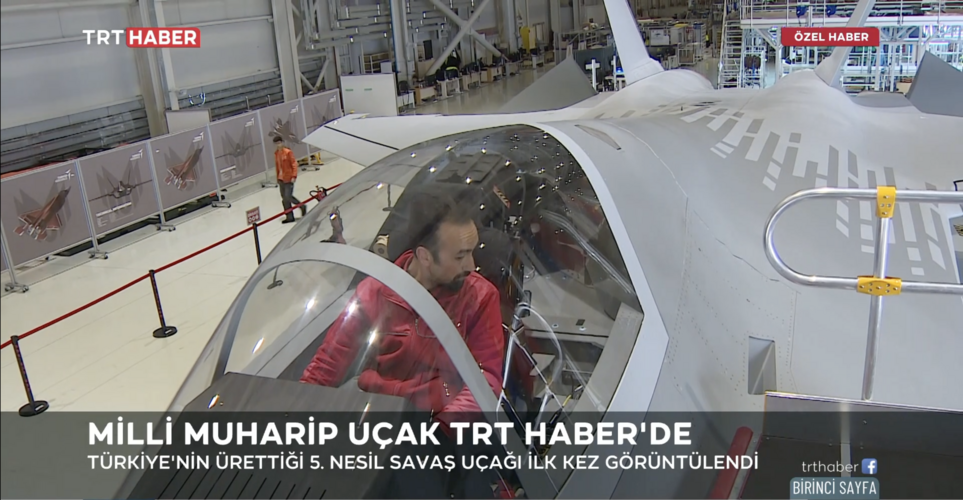

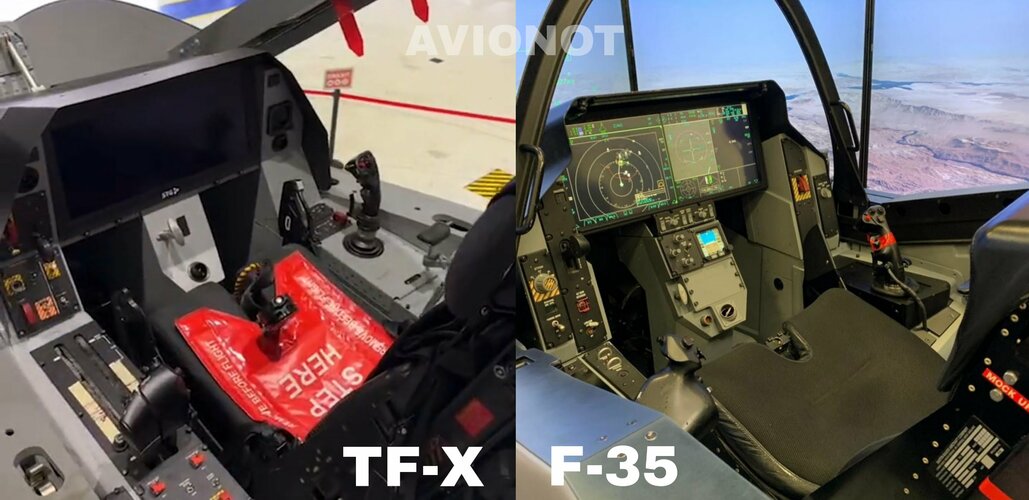

TF-X's cockpit



[snne]

TF-X's cockpit

View attachment 697116

View attachment 697117

https://twitter.com/x/status/1643221772202803200

View: https://twitter.com/SavunmaSanayiST/status/1643221772202803200?s=20



[Canardzz]

View this content on Instagram

View this content on Instagram



[snne]

this video has a better footage

View: https://youtu.be/aZAvKTCCrss



[Canardzz]

@snne I kinda like the raw sound on the other video



[snne]



[helmutkohl]

The YouTube video posted by SNNE might be the closest we can get to seeing the bays
but I could not find any outlines on the outer edges.
so I guess its true that its likely two tandem bays in the middle.



[snne]

View attachment 697127



[Umigami]

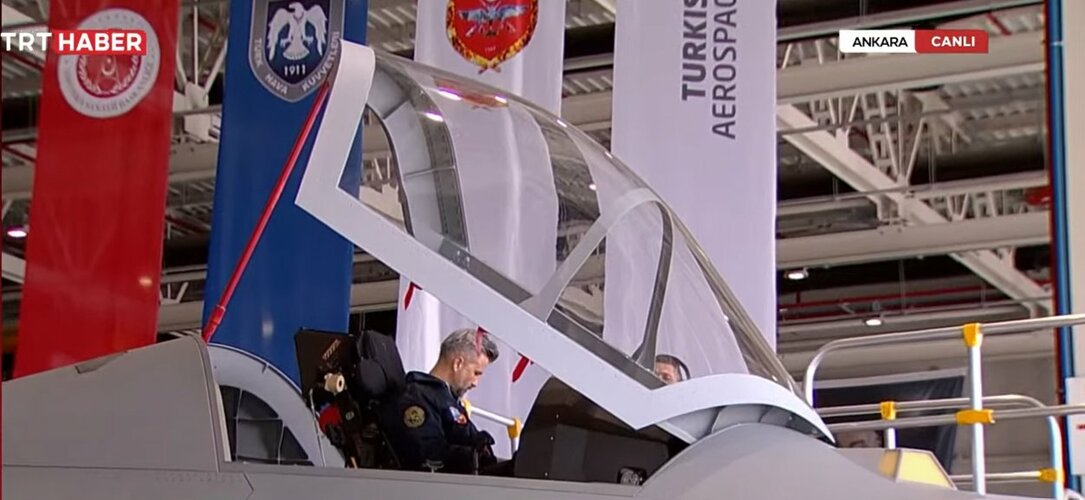

TF-X's cockpit
View attachment 697117

That empty part behind the cockpit looks ugly.



[Deino]

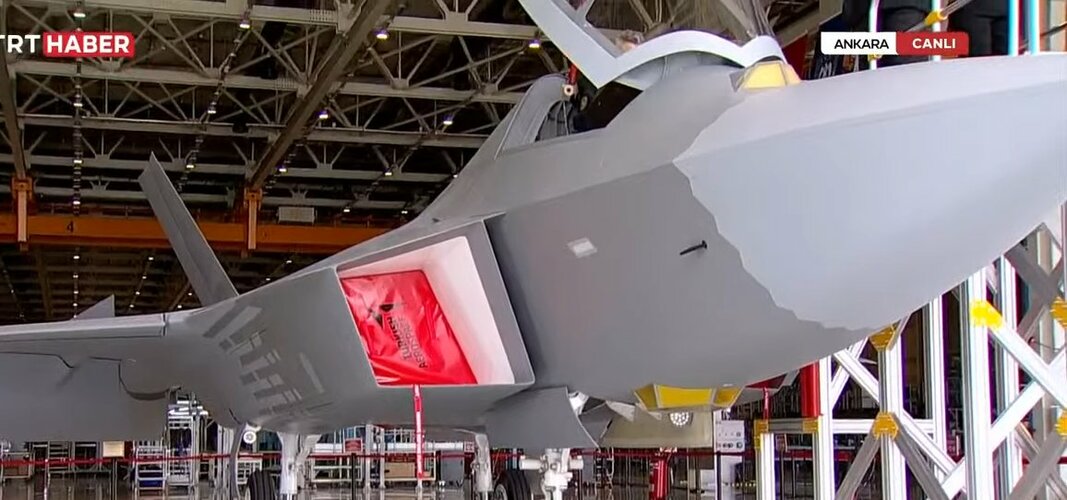

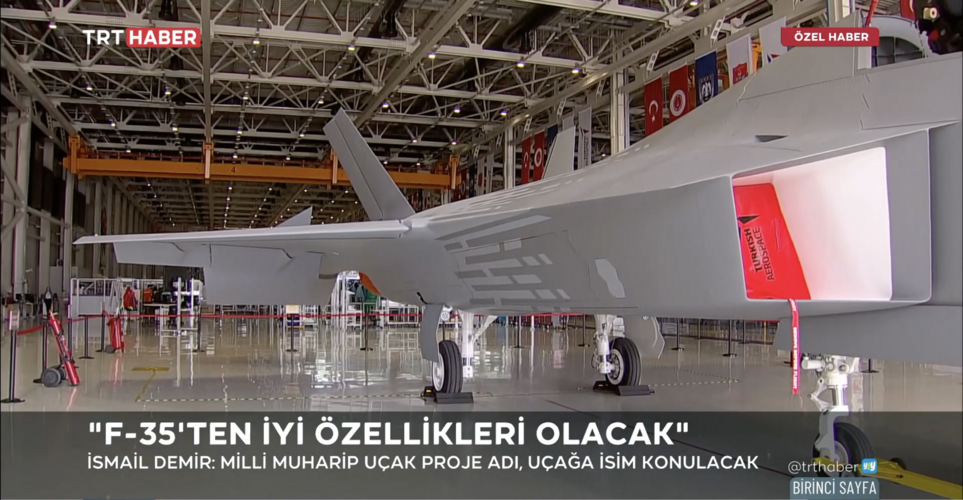

The side weapon bays



[snne]

The side weapon bays

View attachment 697182

Is it just me or does it seem like the bays have enough length to possibly be able to carry an AMRAAM-sized missile? Although we don't know how deep the bay is, this seems theoretically possible.



[snne]

Test shots of the national ramjet propelled air-to-air missile GÖKHAN begin

The first launch of GÖKHAN, the national ramjet-propelled air-to-air missile developed by Tübitak SAGE, will be carried out soon.

Türkiye is entering a new phase in air-to-air missiles. Developing Turkey's first national air-to-air missiles BOZDOĞAN and GÖKDOĞAN under the GÖKTUĞ project, TÜBİTAK SAGE is entering the test phase of the ramjet-propelled GÖKHAN air-to-air missile, which it continues to develop.

TÜBİTAK SAGE Manager Gürcan Okumuş made special statements to M5. Okumuş stated that the GÖKHAN missile is slightly ahead of schedule and that the first test firing from land will be carried out soon. In his statement, Okumuş said, “Work on the GÖKHAN project is at a very good point. Soon we will start with the first land shots and then move on to the platform shots. I can say that the GÖKHAN missile is ahead of its schedule, even slightly ahead of its schedule,” he said. GÖKHAN, which is planned to be used on various platforms, especially the F-16 and MMU, will provide the Turkish Air Force with a strategic capability. With the GÖKHAN, which can reach very high speeds, it will be possible to engage enemy aircraft from long ranges.

https://m5dergi.com/savunma-haberle...-hava-fuzesi-gokhanin-test-atislari-basliyor/

Used Google for quick translation.



[Canardzz]

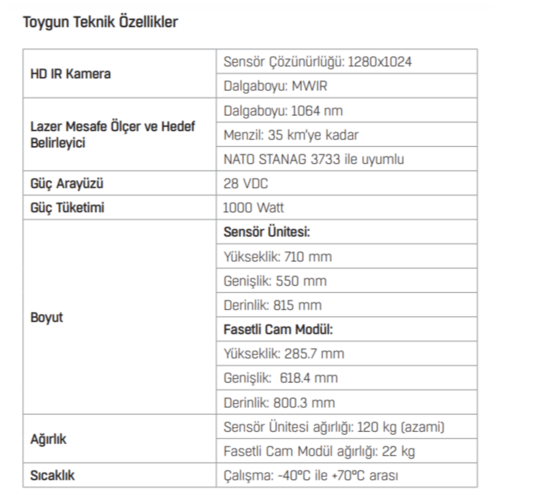

Aselsan Toygun Electro Optical Targeting System

Via @Radonislav



[Deino]

Test shots of the national ramjet propelled air-to-air missile GÖKHAN begin

View attachment 697210

The first launch of GÖKHAN, the national ramjet-propelled air-to-air missile developed by Tübitak SAGE, will be carried out soon.

Türkiye is entering a new phase in air-to-air missiles. Developing Turkey's first national air-to-air missiles BOZDOĞAN and GÖKDOĞAN under the GÖKTUĞ project, TÜBİTAK SAGE is entering the test phase of the ramjet-propelled GÖKHAN air-to-air missile, which it continues to develop.

TÜBİTAK SAGE Manager Gürcan Okumuş made special statements to M5. Okumuş stated that the GÖKHAN missile is slightly ahead of schedule and that the first test firing from land will be carried out soon. In his statement, Okumuş said, “Work on the GÖKHAN project is at a very good point. Soon we will start with the first land shots and then move on to the platform shots. I can say that the GÖKHAN missile is ahead of its schedule, even slightly ahead of its schedule,” he said. GÖKHAN, which is planned to be used on various platforms, especially the F-16 and MMU, will provide the Turkish Air Force with a strategic capability. With the GÖKHAN, which can reach very high speeds, it will be possible to engage enemy aircraft from long ranges.

https://m5dergi.com/savunma-haberle...-hava-fuzesi-gokhanin-test-atislari-basliyor/

Used Google for quick translation.

RAMJET?? Do I miss something on these images?



[Canardzz]

Test shots of the national ramjet propelled air-to-air missile GÖKHAN begin

View attachment 697210

The first launch of GÖKHAN, the national ramjet-propelled air-to-air missile developed by Tübitak SAGE, will be carried out soon.

Türkiye is entering a new phase in air-to-air missiles. Developing Turkey's first national air-to-air missiles BOZDOĞAN and GÖKDOĞAN under the GÖKTUĞ project, TÜBİTAK SAGE is entering the test phase of the ramjet-propelled GÖKHAN air-to-air missile, which it continues to develop.

TÜBİTAK SAGE Manager Gürcan Okumuş made special statements to M5. Okumuş stated that the GÖKHAN missile is slightly ahead of schedule and that the first test firing from land will be carried out soon. In his statement, Okumuş said, “Work on the GÖKHAN project is at a very good point. Soon we will start with the first land shots and then move on to the platform shots. I can say that the GÖKHAN missile is ahead of its schedule, even slightly ahead of its schedule,” he said. GÖKHAN, which is planned to be used on various platforms, especially the F-16 and MMU, will provide the Turkish Air Force with a strategic capability. With the GÖKHAN, which can reach very high speeds, it will be possible to engage enemy aircraft from long ranges.

https://m5dergi.com/savunma-haberle...-hava-fuzesi-gokhanin-test-atislari-basliyor/

Used Google for quick translation.

RAMJET?? Do I miss something on these images?

Placeholder image



[Radonislav]

Test shots of the national ramjet propelled air-to-air missile GÖKHAN begin

View attachment 697210

The first launch of GÖKHAN, the national ramjet-propelled air-to-air missile developed by Tübitak SAGE, will be carried out soon.

Türkiye is entering a new phase in air-to-air missiles. Developing Turkey's first national air-to-air missiles BOZDOĞAN and GÖKDOĞAN under the GÖKTUĞ project, TÜBİTAK SAGE is entering the test phase of the ramjet-propelled GÖKHAN air-to-air missile, which it continues to develop.

TÜBİTAK SAGE Manager Gürcan Okumuş made special statements to M5. Okumuş stated that the GÖKHAN missile is slightly ahead of schedule and that the first test firing from land will be carried out soon. In his statement, Okumuş said, “Work on the GÖKHAN project is at a very good point. Soon we will start with the first land shots and then move on to the platform shots. I can say that the GÖKHAN missile is ahead of its schedule, even slightly ahead of its schedule,” he said. GÖKHAN, which is planned to be used on various platforms, especially the F-16 and MMU, will provide the Turkish Air Force with a strategic capability. With the GÖKHAN, which can reach very high speeds, it will be possible to engage enemy aircraft from long ranges.

https://m5dergi.com/savunma-haberle...-hava-fuzesi-gokhanin-test-atislari-basliyor/

Used Google for quick translation.

RAMJET?? Do I miss something on these images?

Yeah Ramjet.

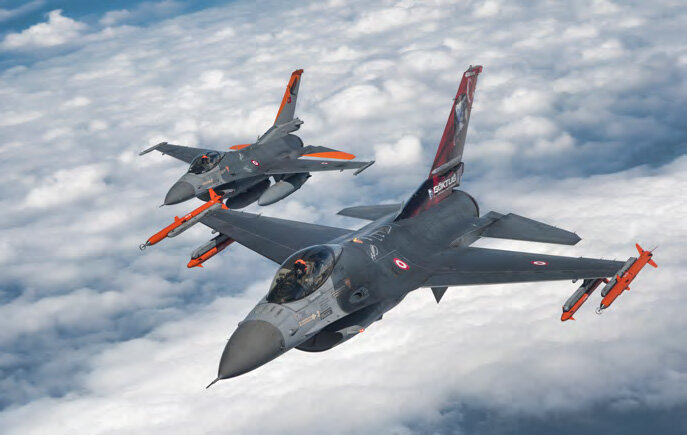

On those images there are Bozdoğan and Gökdoğan. There is not a single photo of Gökhan and Akbaba available to public



[Nart]

Ironically, someone actually photographed AKBABA on a 401st F-16 during take-off and unknowingly shared the pictures on a Facebook spotter group (he doesn't know anything about missiles or weapon stuff) More than a thousand people saw it, yet not a single soul leaked the images (me as well). People warned him, then he immediately deleted the pictures.



[Canardzz]

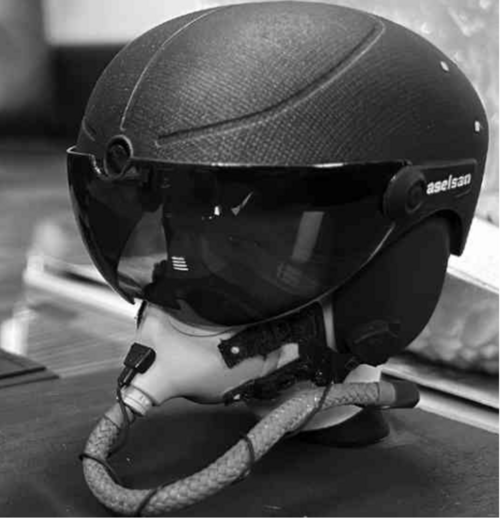

So another name reveal. ASELSAN's HMDS will be referred to as Tulgar.



[Canardzz]

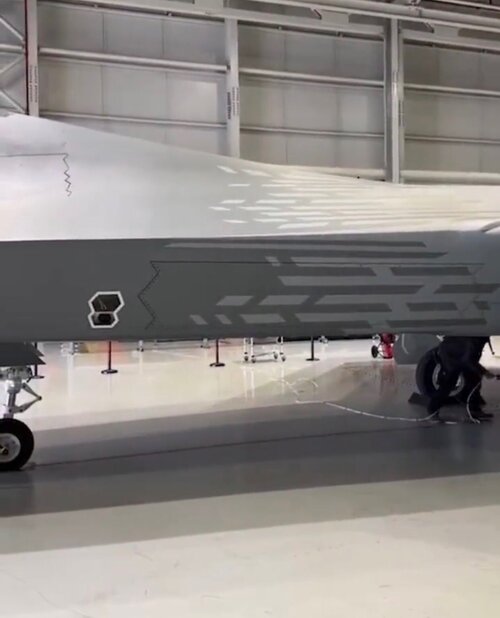

She is big



Initially captured by @1savasansahin on Twitter



[Canardzz]

https://twitter.com/x/status/1644440541214437404
