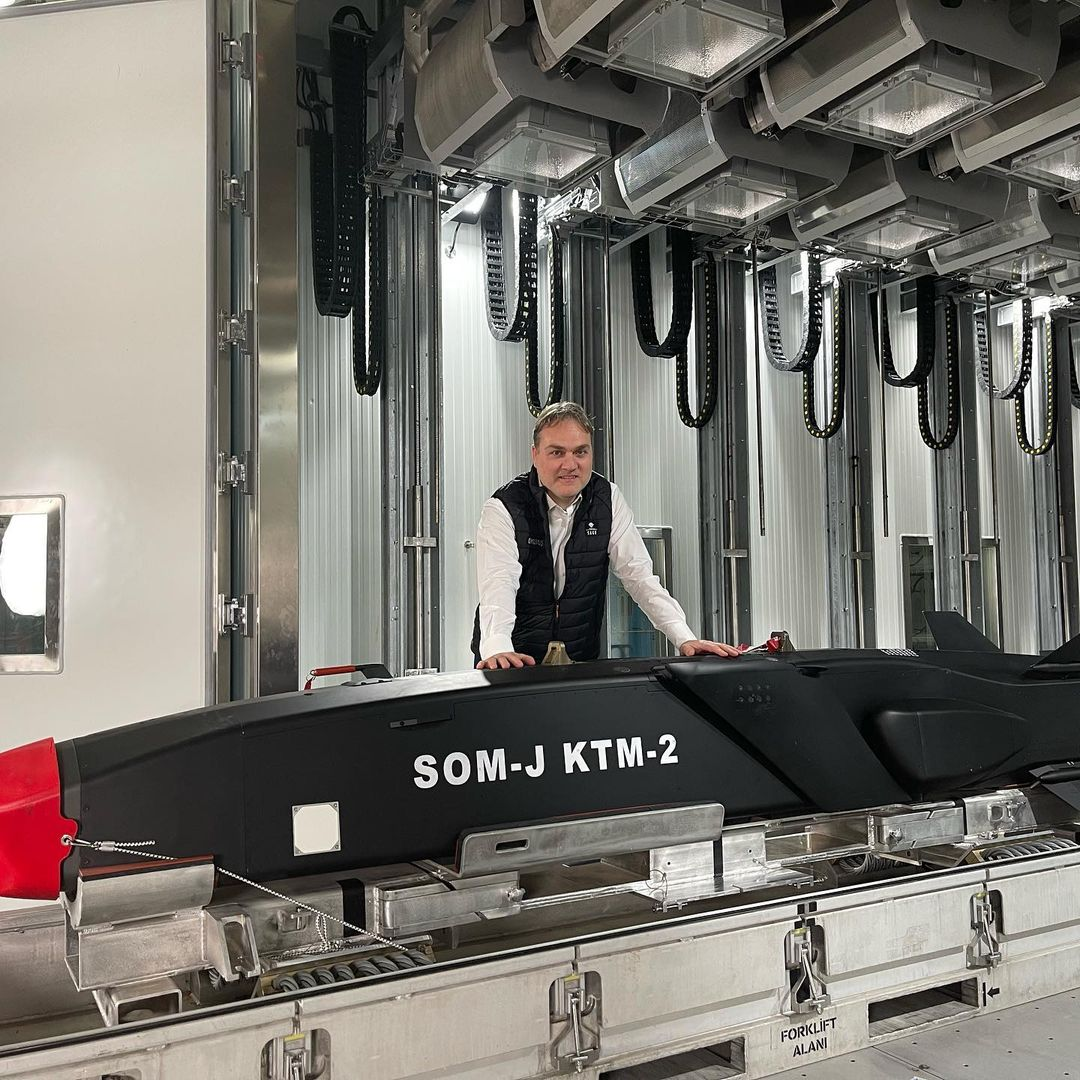

SOM-J cruise missile developed specifically for internal weapons bay
1682421039271-png.56576


Head engineer:

-In the near future, our plan is to fly our first prototype aircraft within the year. Then we will design 7 prototypes on the way to mass production. Then there will be tests of aircraft and systems, flight and ground tests. Besides, we will have some flight test platforms. We will also perform our tests on some platforms. We plan to deliver our aircraft to our Air Force by 2028.

-You see examples of this all over the world. The first prototype we produced will be in this geometry, and the second will be in the same way. We aim to reach a solution by going step by step in the face of the problems we have seen and encountered in ground tests and flight tests. These 7 tests are already planned to support these activities on our aircraft. We have a very short calendar. A plane to be delivered to the Air Force in 2028 means a very short timetable in terms of delivery, if you look at the examples all over the world. In this calendar, we need to do a lot of prototypes and experiments. These trials do not only need to be in flight, the aircraft will also be prepared with wind tunnels, ground tests, 'Iron Bird' tests and static tests. Maybe we'll have one static test too. We will produce another one of the same aircraft and perform our tests that will statically tire and force it. Besides, maybe we will have a fatigue test. We will produce it from the same plane and subject it to fatigue tests for a certain hour. We will perform these tests by constantly loading under revolutionary loads. We will try to clear a certain flight time and plan to hand it over to our forces as such.

-There is a design team of 1500 people, and a total of nearly 3,000 people are working on the aircraft.

-We are trying to establish a master-apprentice relationship. We are enlarging our team by recruiting new journeymen and apprentices, by using our experienced friends from HÜRKUŞ, HÜRJET, GÖKBEY and ATAK as masters and new graduates as apprentices. This growth took place at a really fast pace. At the moment, we have come across a certain plateau and we are planning to produce prototypes of these aircraft within 3-5 years and take the prototypes to flight, while maintaining our team on that plateau.

-We will have a surprise about MMU on May 1st. I won't explain now, let's just say wait for our surprise.

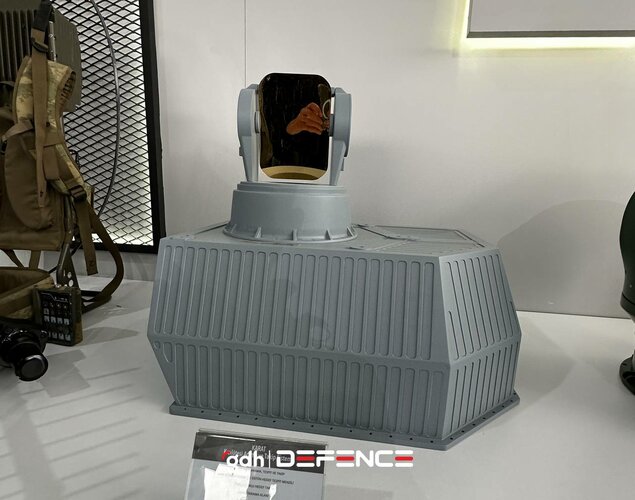

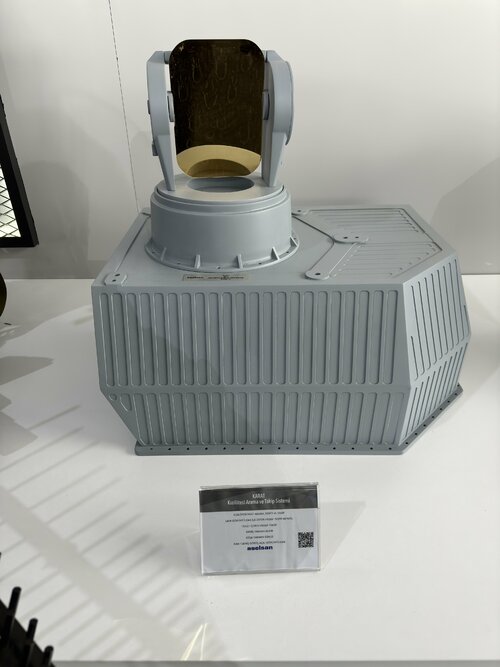

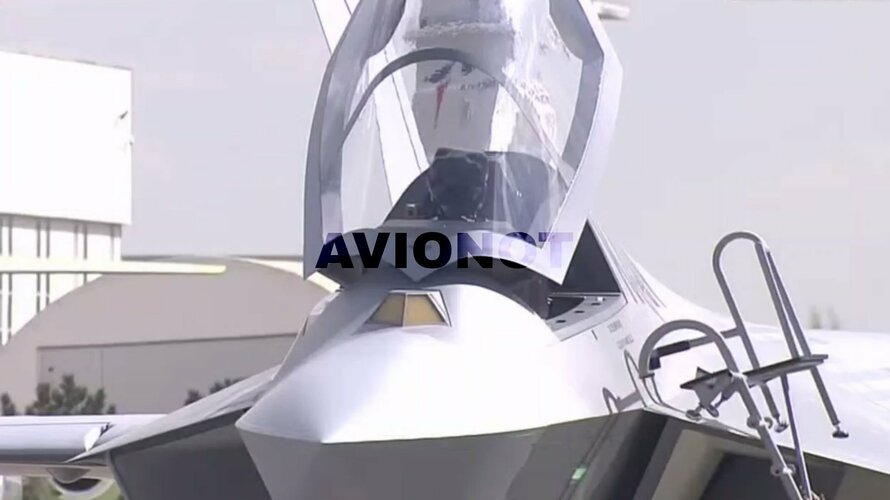

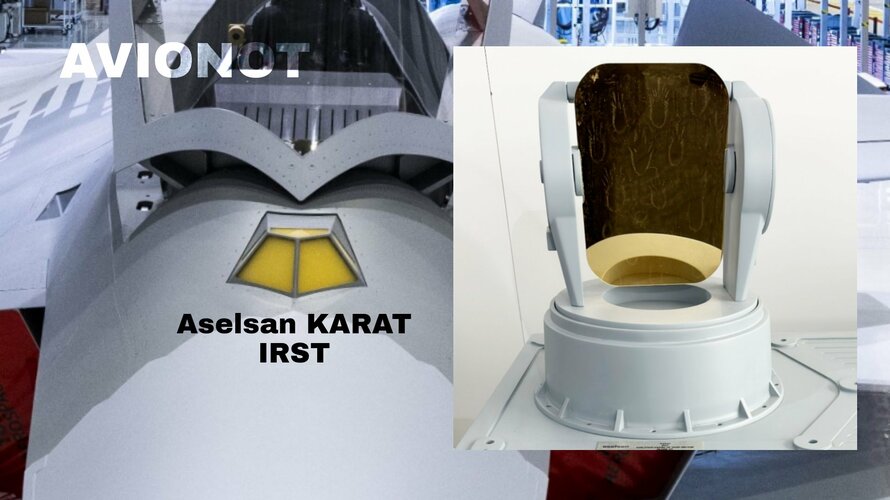

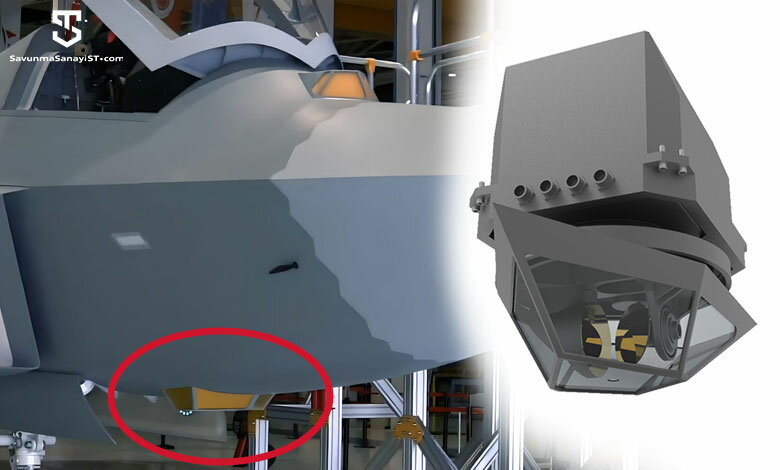

BTW TF-X's IRST


2023-04-27 12.15.09.jpg

Combat-Master said:
snne said:
View attachment 698606
View attachment 698608
View attachment 698607
Click to expand...
Was expecting IRST to be mwir, interesting they chose lwir.
Click to expand...
LWIR is better for an IRST system. It is less sensitive to thermal noise in the environment and has better performance than MWIR in fog conditions because its waves are closer to true infrared. LWIR is also better than MWIR for imaging through smoke or aerosols. One more thing is LWIR sees negligible solar effects (sun immunity, direct exposure) while MWIR does, and LWIR provides more consistent images between daytime and nighttime. So, if you want to "detect" things further, especially in adverse weather, LWIR is the better option. Think of it like S-Band and X-Band radars. One is better suited for long-range search, while the other is better for tracking detected targets.

Canardzz said:
helmutkohl said:

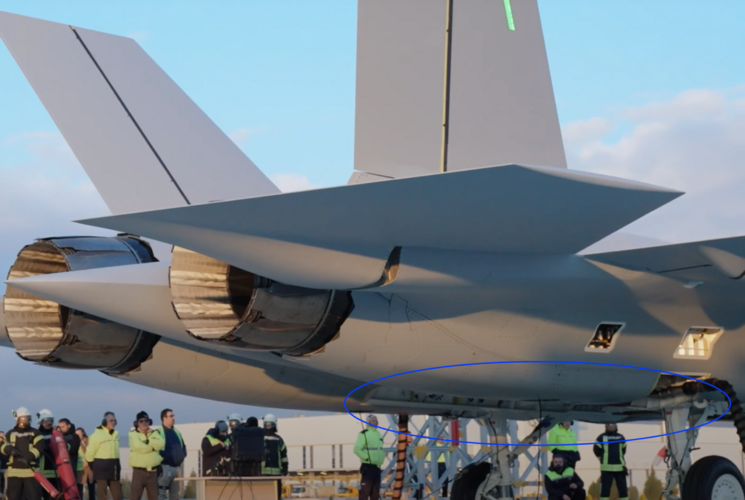

question, is there anything in the tail section between the engine, like a rear facing radar?
Click to expand...
As far as I know, TAI is planning to integrate a rear facing AESA radar.
Click to expand...

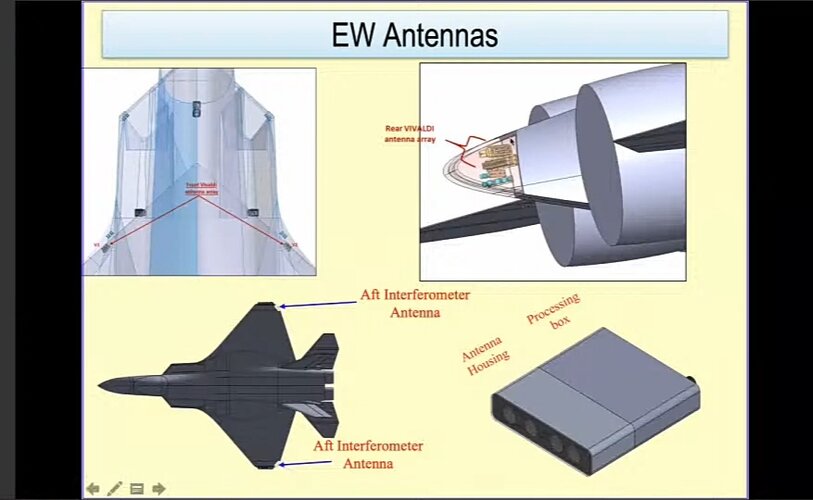

More like EW and Countermeasures like in the case with AMCA. At least that's what I remember the CEO stating as such.

I tried to find the exact quote but it is really hard to find considering how many statements they give each week about this plane..

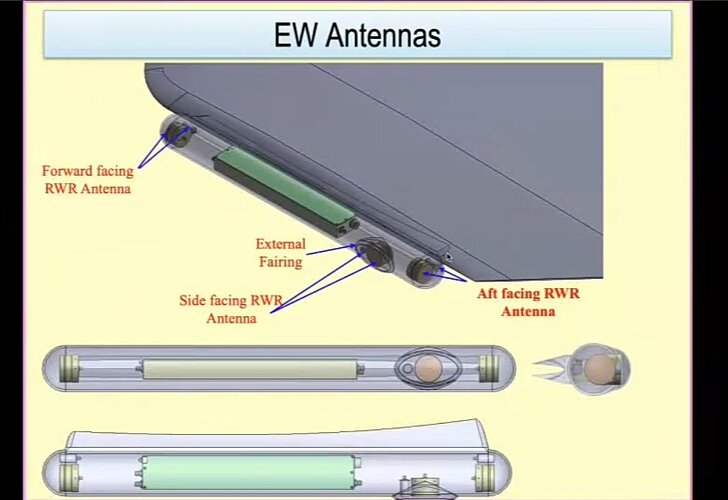

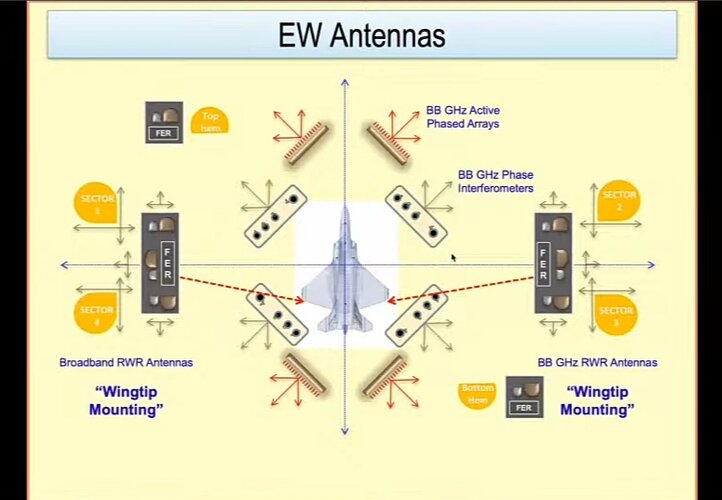

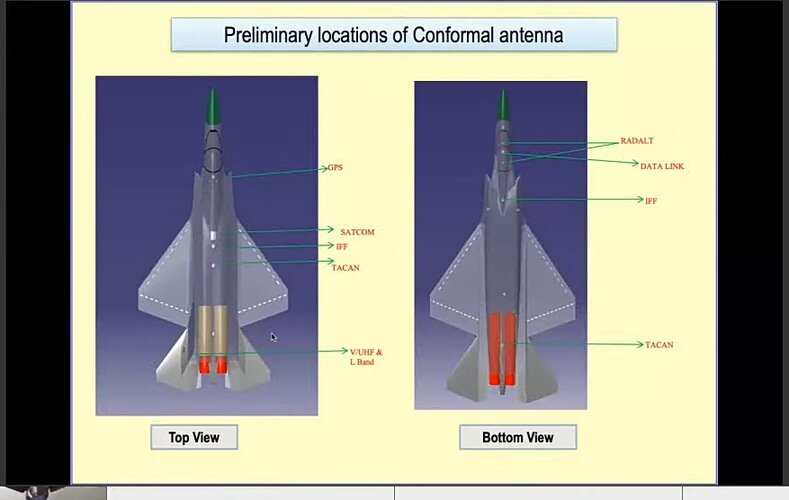

Here are some slides about their placement on the AMCA.

IMG_20230226_110048.jpg IMG_20230226_110427.jpg IMG_20230226_110525.jpg

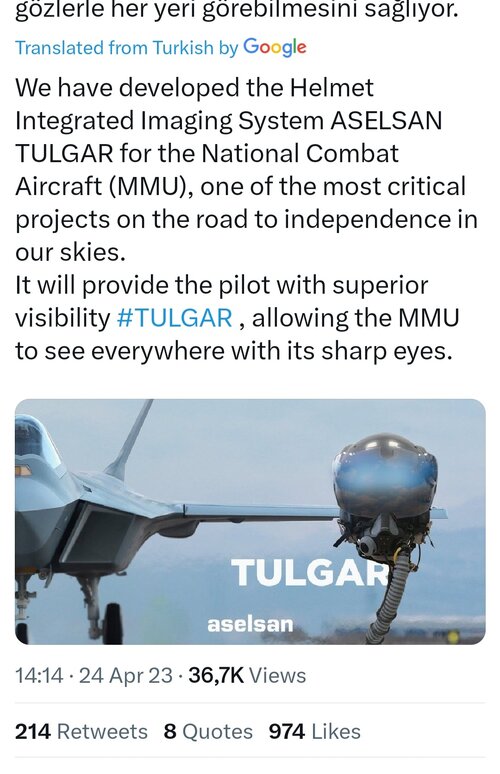

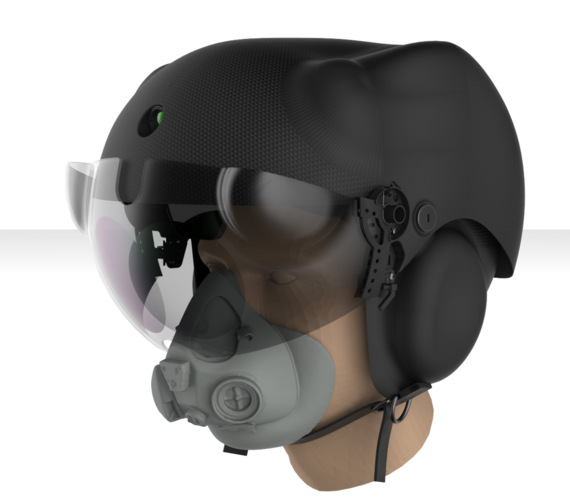

TULGAR System is a helmet-mounted display system designed by ASELSAN for fixed-wing platforms. It incorporates digital night vision, color display, and precise head tracking technologies to enhance the pilot's awareness of the aircraft's capabilities and the mission area.

System Subunits:
• Helmet Unit
• Electronic Unit
• Head Tracking Module

Thanks to its advanced optical design, the TULGAR system provides a wide field of view and high-resolution images reflected onto the visor to support pilots during the mission. The helmet unit is made of lightweight composite materials and an inner shell customized for the user to provide an ergonomic solution to pilots. Active and passive noise-canceling capabilities prevent noise from the platform and other sources from reaching the pilot.

The integrated digital night vision capability of the system enables it to be used without requiring any changes to the helmet unit during both day and night missions.

The TULGAR System is suitable for fixed-wing platforms and is ready for use in challenging environmental conditions due to its durable design.


General Specifications:
• Lightweight helmet unit
• Color display
• Interior helmet structure shaped according to pilot's head
• Digital night vision
• Hybrid head tracking system
• Active noise cancellation
• Compatibility with wearing glasses
• 3D sound compatibility
• 40°(Y)-32°(D) field of view

Interfaces:
• ARINC-818-2 Video Interface
• Display Port Digital Video I/O Interface
• Serial Interfaces (RS-232/RS-485/RS-422)
• Discrete I/O Interface
• MIL-STD-1553 Interface

Physical Specifications:
• Helmet Unit Weight: < 2.1 kg (including oxygen mask)
• Electronic Unit (EU) Weight: < 5 kg

Technical Specifications:
• Power Input: 28 VDC (Nominal)
• Power Consumption: 140 W (Nominal)/190W (Maximum)

Environmental Conditions:
• Operating Temperature (EU): -40°C/+70°C (Fan Cooled)
: -55°C/+95°C (Climate Controlled Air Cooled)
• Storage Temperature (EU): -55°C / +95°C

Qualifications:
• MIL-STD-810G W/Change 1
• MIL-STD-461G
• MIL-STD-1472G
• DO-254
• DO-178C

3D Audio Technology is a technology that enables communication channels and voice warnings to be transmitted to stereo headphones with spatial cues in avionics intercom systems.
ASELSAN's 3D Audio Technology is based on HRTF (Human Related Transfer Function). 3D Audio is created spatially based on the location information of the warning and the head movements of the pilot. So the sound is transmitted as if it is coming from above, below, right or left.
Thanks to 3D Audio technology, the pilot's environmental awareness increases, response time and workload decrease.
Radio separation is created using 3D Audio. Communication channels are transmitted to the pilot from different angles so that the pilot can easily distinguish between channels.

3D Audio Features
• Real-Time Operation
• Radio Separation
• Directional Warning
• Global Positioning
• Reduced Response Time
• Reduced Workload
• Increased Environmental Awareness

Looks like this will be more of a light bomber project. Sure it will shoot AAMs but focus appears on range and forward signature.

Combat-Master said:
MadRat said:
Looks like this will be more of a light bomber project. Sure it will shoot AAMs but focus appears on range and forward signature.
Click to expand...

They are going for a cross between air superiority fighter and multirole fighter.
Click to expand...
which is where fighter jet is trending toward anyway. They maybe able to own that market if they can create basically larger f-35 or stealthed f-15E. I'm surprised it's not 2 seater

donnage99 said:
Combat-Master said:
MadRat said:
Looks like this will be more of a light bomber project. Sure it will shoot AAMs but focus appears on range and forward signature.
Click to expand...

They are going for a cross between air superiority fighter and multirole fighter.
Click to expand...
which is where fighter jet is trending toward anyway. They maybe able to own that market if they can create basically larger f-35 or stealthed f-15E. I'm surprised it's not 2 seater
Click to expand...
There will be (or it was in the plans) a twin seater

Radonislav said:
donnage99 said:
Combat-Master said:
MadRat said:
Looks like this will be more of a light bomber project. Sure it will shoot AAMs but focus appears on range and forward signature.
Click to expand...

They are going for a cross between air superiority fighter and multirole fighter.
Click to expand...
which is where fighter jet is trending toward anyway. They maybe able to own that market if they can create basically larger f-35 or stealthed f-15E. I'm surprised it's not 2 seater
Click to expand...
There will be (or it was in the plans) a twin seater
Click to expand...
There are some ambiguous statements made by the officials, that is why it is as of yet unclear. They first need to experiment enough with MUM-T to settle whether a single pilot is enough for the job. But I'd not be surprised if they view a two seater as a possible option on the roadmap.

“KAAN”


Attachments

  • 71EF98FB-4322-4432-BC16-57E12DB2AA59.jpeg
    80.4 KB · Views: 89
  • 57F20AD5-D342-4CC8-B609-7C412F5DB83D.jpeg
    66.8 KB · Views: 91
  • FA80A27F-B66C-4741-A286-2C2E02C3CB7D.jpeg
    899.8 KB · Views: 88
  • 4315AC89-E168-479A-8AF0-38849F8368CE.jpeg
    125.1 KB · Views: 81
Last edited:

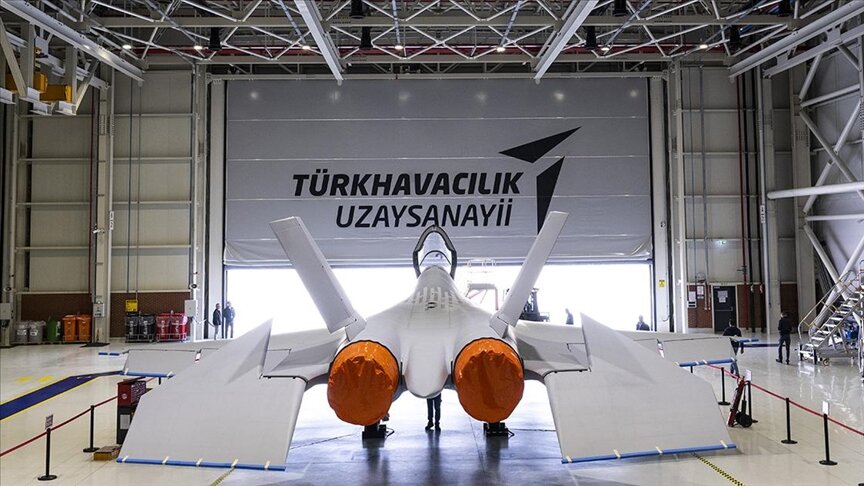

20230501_165655.jpg 20230501_165513.jpg 20230501_165515.jpg

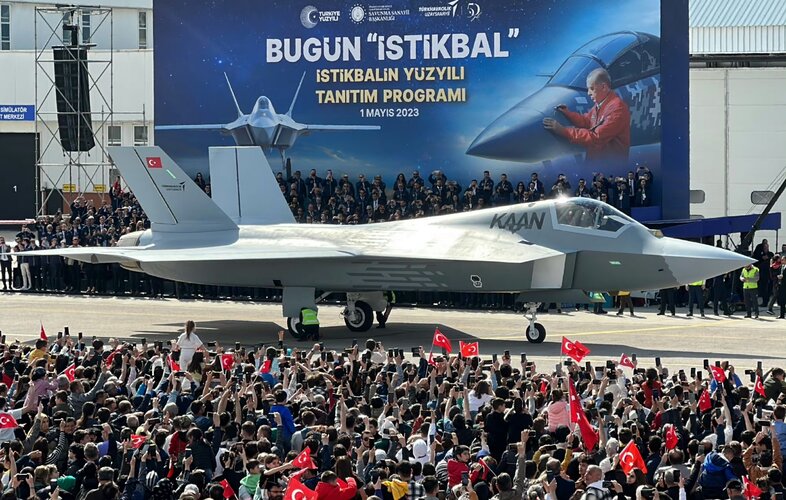

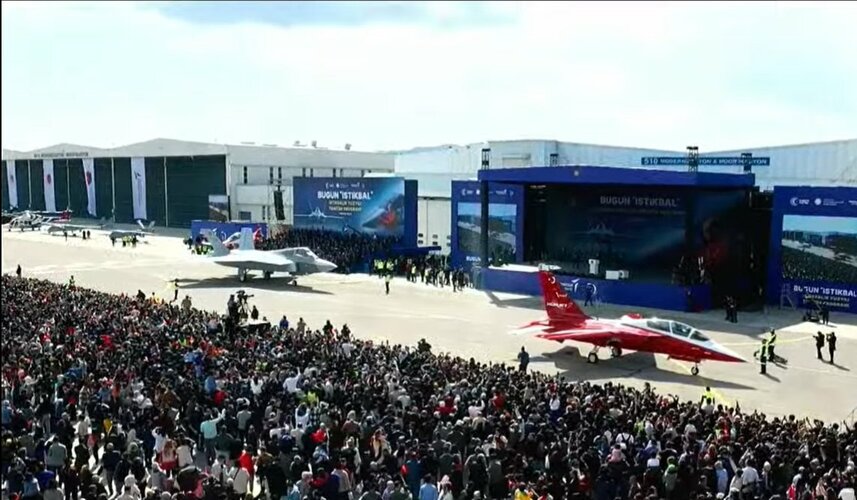

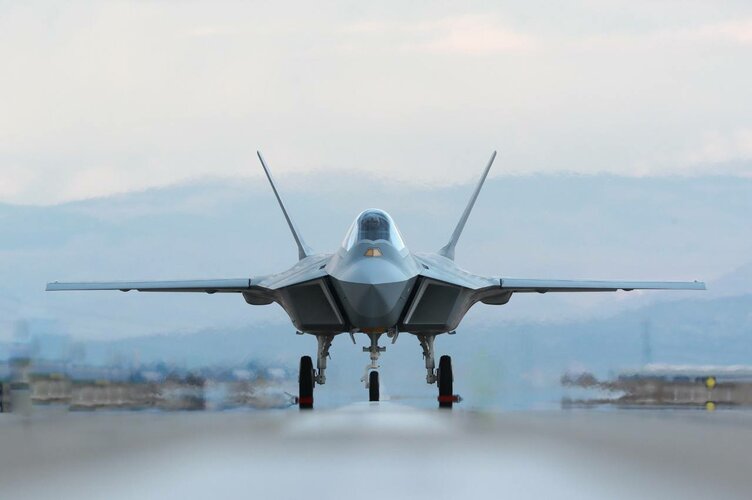

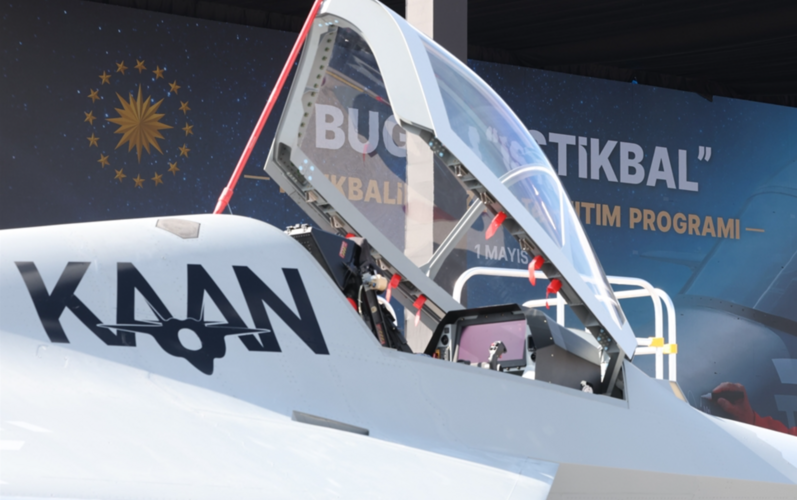

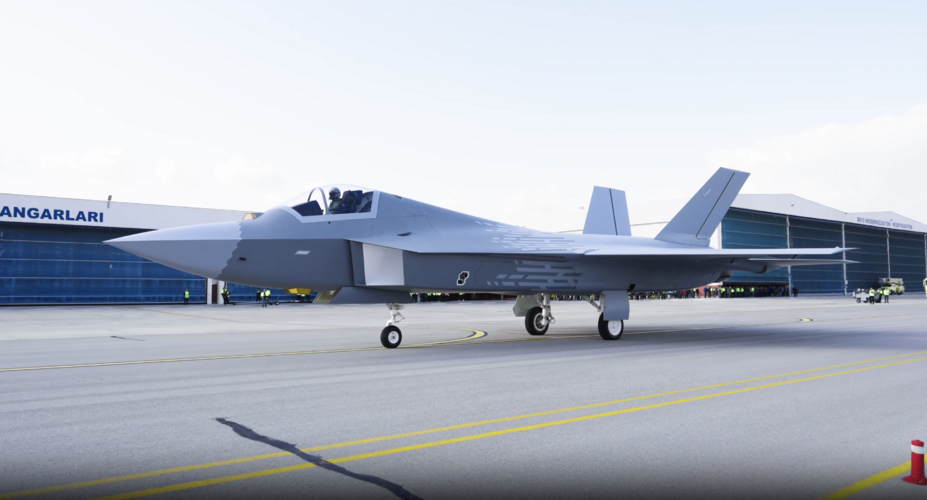

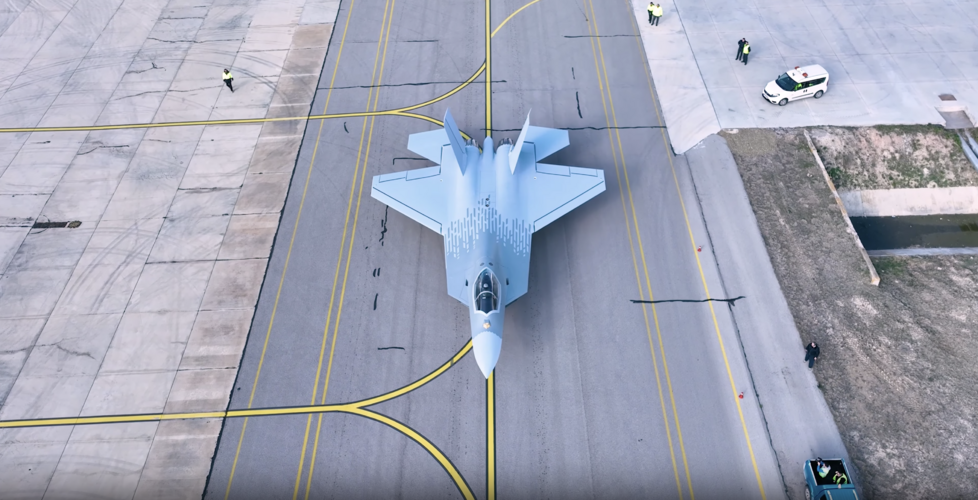

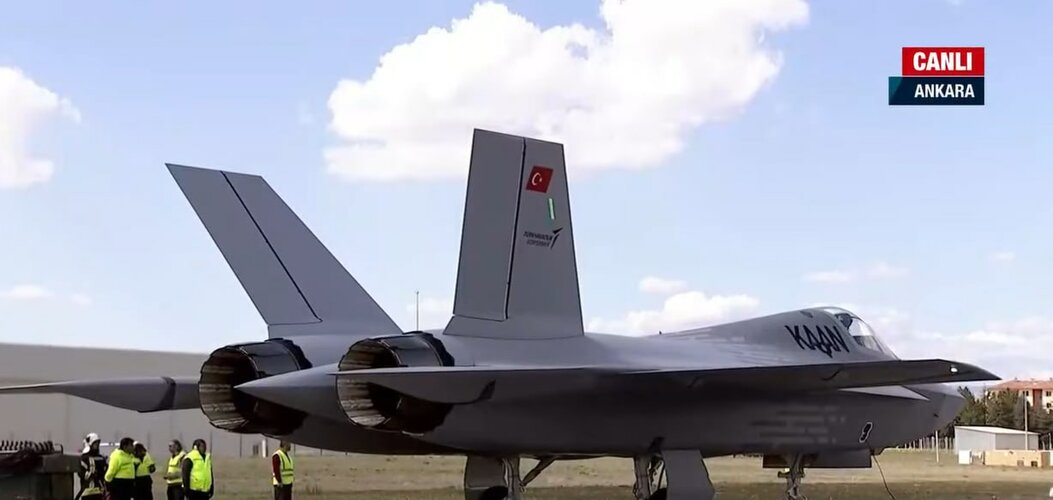

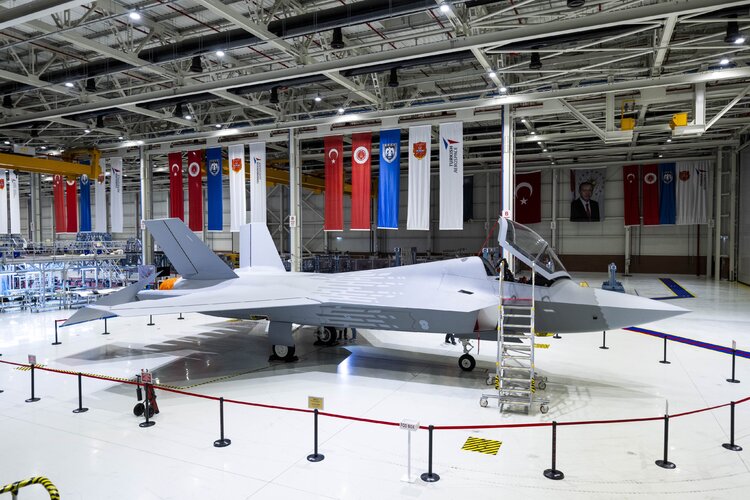

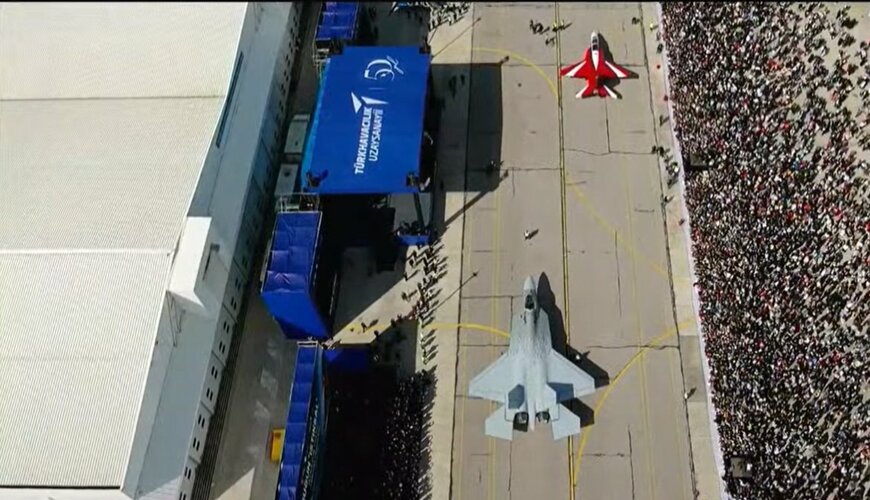

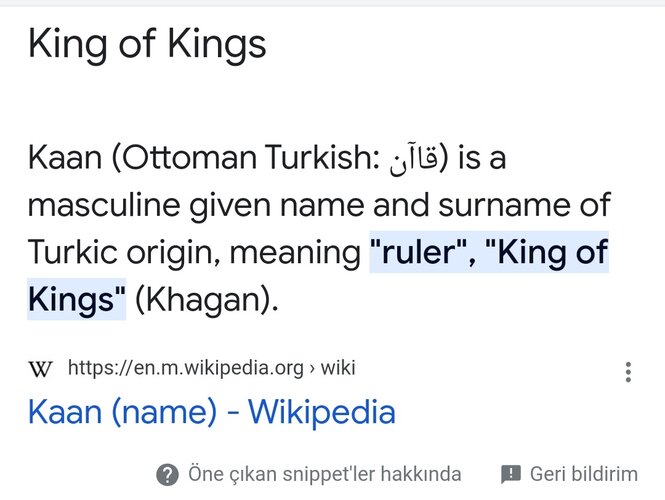

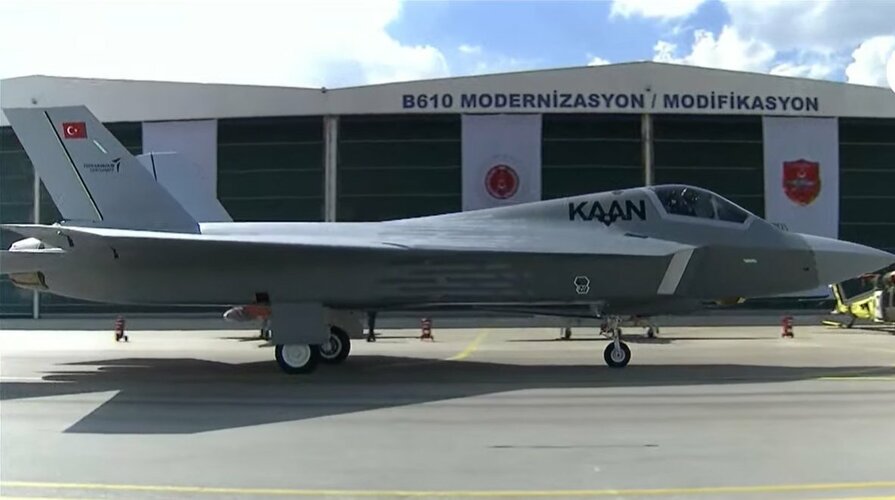

Erdogan announced the name of the fifth generation Turkish fighter MMU (TFX) ️ The fighter was named "KAAN", which means "Ruler" from the ancient Turkic. ️ Kaan (or Kagan) is a title given to rulers in the ancient Turkic states. The fifth-generation Turkish fighter KAAN will make its first flight at the end of this year. In the future, KAAN, KIZILELMA and ANKA-3 will fly autonomously.

Aselsan just released systems they are developing for KAAN via their Twitter account;
https://twitter.com/x/status/1653066660364840962
View: https://twitter.com/aselsan/status/1653066660364840962?s=20


Electro Optic section was especially interesting,

Integrated EO System (BEOS)
  • KARAT-100: Infrared Search and Track System
  • TOYGUN-100: Integrated Electro-Optical Targeting System ASELSAN Systems
  • IRIS-300: Infrared Missile Warning and Imaging System
  • LIAS-300: Laser Warning System •
  • YILDIRIM-300: Directed Infrared Countermeasure System
