RAP said:
Don't think I've ever seen anything on the drawing in the lower left hand corner.
Click to expand...
As it's described as an 'artist's concept', the picture may be everything on that particular stopped-rotor concept. Since it features the other wonder-tech of 1980s aeronautics, the forward-swept wing, an artist's (or marketeer's) fancy seems quite likely to me.

Interesting nuggets of information about the SV-22 on there. It could have been a very capable aircraft, and could conceivably have got some export orders.

The D-340 gets my vote on sheer adorableness, even without a specific application for it!

From; A history of U.S. Coast Guard aviation.


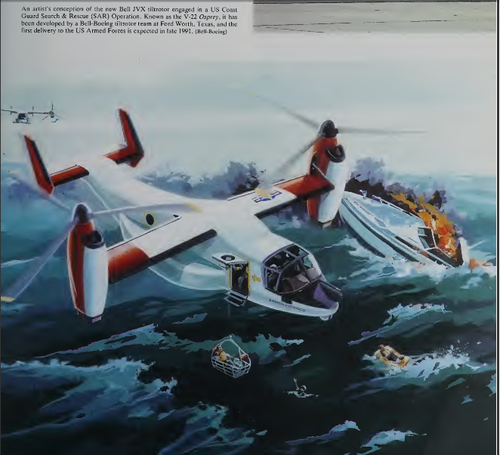

Attachments

  • 1.png
    625.2 KB · Views: 618

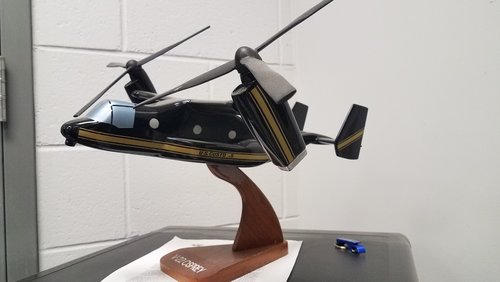

Yet another interesting possibility. Lots of potential uses for the older and inaccurate V-22 kits (in 1/72, essentially any kit but Hasegawa's - note that the picture of the Blackdog engine nacelle details for this one have the bottom access doors hinged on the wrong side, they are hinged on the bottom and have struts holding them open; in 1/48 I do believe Italieri updated theirs to be reasonably accurate but check carefully).

yasotay said:
Then there is this Bell pipe dream.
Click to expand...

Unless you have read Dale Brown’s Hammerheads and the subsequent novels involve The Border Security Force , disbanded US cUstoms Service (sounds familiar decade and half after publication when USBP and Customs formed CBP) and UsCG , in Storming Heaven. The fictional BSF flies the V-22 Osprey In his books.

Cheers

Slightly digressing the first pair of JGSDF V-22 Ospreys have arrived by ship. Prior to this the Japanese air and ground crew worked up and trained with the Marine Corps at MCAS New River with their V-22.



RavenOne said:

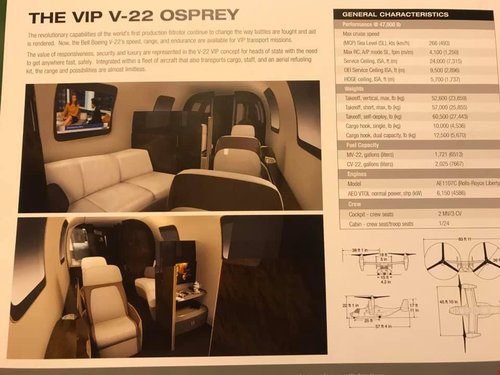

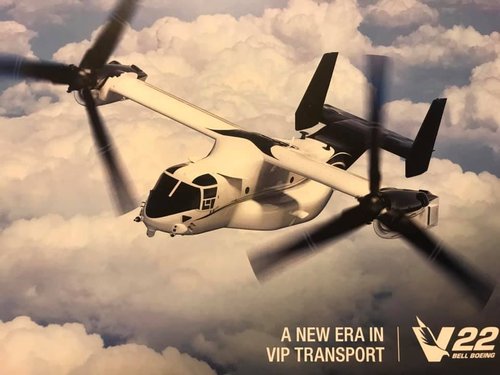

Btw attended International Military Helicopter conference last week and came across the Bell booth. They Are advertising VIP configuration for V-22 But nothing like HMX-1 birds

Cheers.

View attachment 628450View attachment 628451
Click to expand...
Current HMX-1 birds are primarily cargo haulers with passenger capacity rather than executive transporters. There were proposals for a "White Top" VM-22B but there were some drawbacks that didn't see it compete (engine exhaust impingement on the ground is more problematic for VIP aircraft, as one concern). ISTR that the back ramp was replaced by a stairway.

Another article about the armed V-22

foxtrotalpha.jalopnik.com

The V-22 Osprey Finally Gets The Missiles And Rockets It Needs

The Osprey has always lacked firepower in its forward hemisphere. Beyond its ramp-mounted gun, various concepts have been tested and fielded in an attempt to provide fire towards where the aircraft is headed, not just where it has been. This issue is compounded by the fact that the Osprey...
foxtrotalpha.jalopnik.com foxtrotalpha.jalopnik.com

Well, most of that is old news, like four years old as the airframe loaned for the ATTR has been returned to the USMC some time ago after being returned to close to the stock condition it was received in (it was an old airframe from early LRIP production and showed it). The cheek weapons stations work with existing structure and, really, unless you are dropping something that doesn't need to hasten forward, they are the only location for weaponry. Now, if you are just dropping something, you could likely carry *that* behind the prop-rotors.

yasotay said:
aonestudio said:
https://twitter.com/x/status/1405125505704030211
View: https://twitter.com/1stMAW_Marines/status/1405125505704030211
Click to expand...
I am happy to see that the system is still being worked. I had thought it not is use after the initial test.
Click to expand...
Its been in the fleet since at least 2016, saw it in Iraq at the time.

But its mostly left out cause its heavy and cumbersome. So they often drop the gun but keep the sight since that thing is too useful.

Heard many pilots say that all military copters need a similar optic set up if they dont have one.

Firefinder said:
yasotay said:
aonestudio said:
https://twitter.com/x/status/1405125505704030211
View: https://twitter.com/1stMAW_Marines/status/1405125505704030211
Click to expand...
I am happy to see that the system is still being worked. I had thought it not is use after the initial test.
Click to expand...
Its been in the fleet since at least 2016, saw it in Iraq at the time.

But its mostly left out cause its heavy and cumbersome. So they often drop the gun but keep the sight since that thing is too useful.

Heard many pilots say that all military copters need a similar optic set up if they dont have one.
Click to expand...
Interesting! Goes against the common perception that military folks want guns, guns, and more guns.

Aero Scouts tend to prefer to let others do the shooting after they have found something worthy of being shot. Targets tend to shoot at those shooting at them.

As mentioned above, most lift pilots are ecstatic at getting any sensor beyond the Mark 1 eyeball, to help them see the environment around them.

I thought the MV-22 had a FLIR turret as standard? At some point a setup with a GAU-19 under the nose was envisioned, does anyone here know why was that idea abandoned?

Colonial-Marine said:
I thought the MV-22 had a FLIR turret as standard? At some point a setup with a GAU-19 under the nose was envisioned, does anyone here know why was that idea abandoned?
Click to expand...
It does, though, IIRC, the armed ATTR testbed had a different one fitted that included designation capacity. I suspect that, as yasotay says, weight and center of gravity concerns, as well as structural loads from the gun lead to that being delayed and then the necessary real estate for it in the fuselage got taken by other systems.

Notice that the ammo pack rest exposed without any armor, probably restricting the kind of shells you can load.


Intrepid Tiger II takes first flight on MV-22B Osprey | NAVAIR

The U.S. Marine Corps’ newest Intrepid Tiger II (IT II) Electronic Warfare (EW) capability flew for the first time on an MV-22B Osprey June 15. “The significance of this developmental test flight was two-fold,” said U.S. Navy Capt. Michael Orr, Airborne Electronic Attack (AEA) Systems...
www.navair.navy.mil www.navair.navy.mil

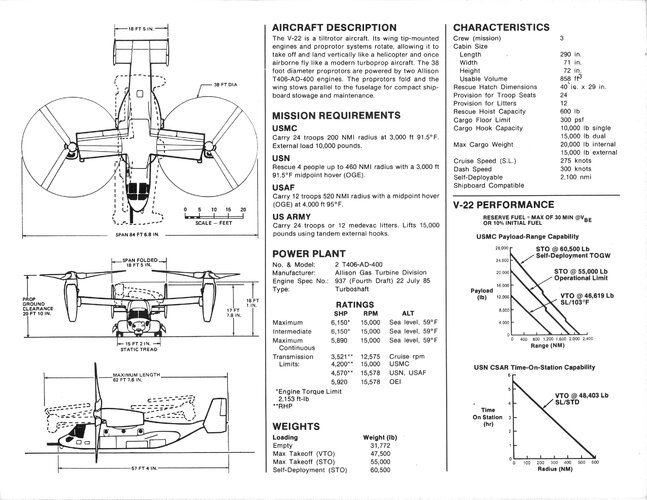

A recent donation to the Museum from the widow of a Boeing Vertol/Boeing St. Louis Engineer netted the attached brochure and cut sheet. Also a number of tie tacks, pins and other internal Rah-Rah epherma...

Enjoy the Day! Mark


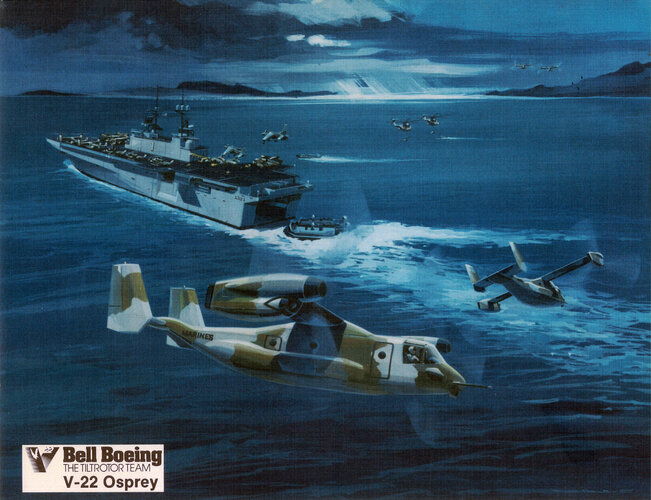

Attachments

  • zBell Boeing V-22 Osprey Cut Sheet - 1.jpg
    zBell Boeing V-22 Osprey Cut Sheet - 1.jpg
    1.7 MB · Views: 324
  • zBell Boeing V-22 Osprey Cut Sheet - 2.jpg
    zBell Boeing V-22 Osprey Cut Sheet - 2.jpg
    734.5 KB · Views: 406
  • Bell-Boeing V-22 Brochure 1993.pdf
    4.9 MB · Views: 110
"Because..."
Never doubted it, even for a moment...
;-)

TomS said:
Seems more elegant than the finished product. But then, isn't that always the case?
Click to expand...
Often, though not always. The early JVX had a more conventional aircraft shape to the cockpit; it got squarer as it developed as that allowed the pilot better vision, kinda important for a VTOL. Almost surprised it didn't end up with a bug-eyed OV-1 style cockpit. Then fuel tanks get bigger, it starts sprouting antenna and ECM lumps and flare dispensers and beer volcanoes and stripper factories...

From Aviation magazine 1986.


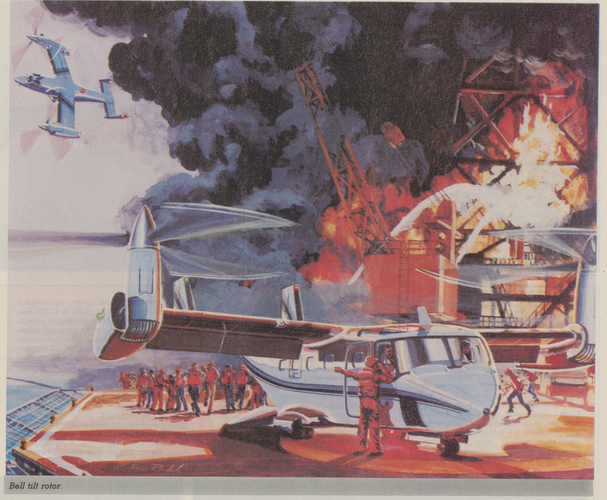

Attachments

  • 4.png
    3 MB · Views: 208
From Aviation magazine 1988.


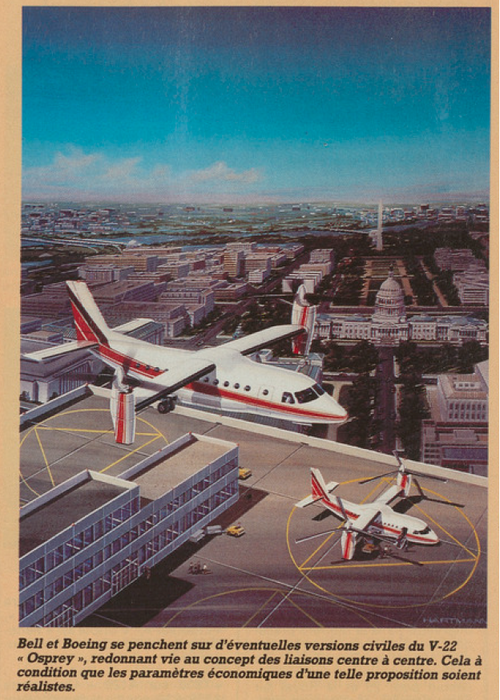

Attachments

  • 14.png
    1.2 MB · Views: 148
hesham said:
From Aviation magazine 1988.
Click to expand...
Well, here is to hoping that Leonardo has more success with commercial tilt rotor aircraft.

Given the lethargy of the US and European aeronautical approval agencies I am not as optimistic as I would like to be.

Now that the V-280 has won the US Army contract, I could see a development of that installation concept applied to new wings as a Mid-Life Update of the V-22B into the V-22C. It would eliminate some problems the V-22B encounters.

Last edited:
While it is feasible that a new wing could be developed that moves the engines to a permenant horizontal position, the wing could not be made straight like the V-280 due to the relative position of the prop rotors to the ceter of gravity in helicopter mode. Someone with more aerospace engineering background will have to remark if there are any other aerodynamic issues associated with the modification of the wing to accept a non-rotating engine component.

yasotay said:
Cordy said:
www.defense-aerospace.com

End of V-22 Production Signals Failure of Pentagon's Wishful Thinking

The V-22 tiltrotor production line is slated to shut down in 2026, given the lack of Pentagon orders for more of them in next year’s budget. Its fate ...
www.defense-aerospace.com www.defense-aerospace.com
Click to expand...
It would appear that 700,000 hours and over a decade of combat operations later, a tilt-rotor ...disliker, feels vindicated.
Click to expand...
Arbitary metric, 700,000 hrs/464 V-22 equals an average of only ~1,500 flight hrs per aircraft to date, for a $56 billion program cost plus its O&M costs and at first glance it doesn't appear a great return for the treasure heaped on it.
