No, this book rarely talks about ship information, most of which are navy personnel files, procurement contracts, and government documents
Imperial and Nationalist China Warship Projects
- Thread starter Tzoli
- Start date
Boer van Seven
Soulstar Ship
- Joined
- 19 February 2021
- Messages
- 24
- Reaction score
- 11
Sorry, I didn't find it. I thought it was transferred to the civil shipyard soon or dismantled immediately. After all, her tonnage is too small, it may also be used as a small transport ship or patrol boat.

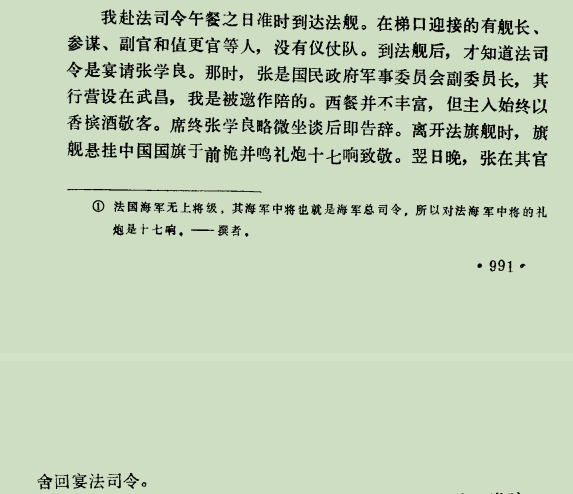

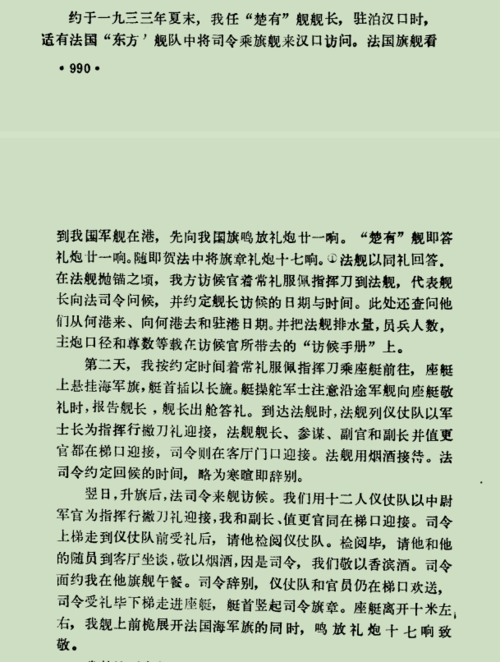

I can only find a description of the visit of the French Far East fleet in 1933.
Mainly about mutual respect and banquets,no mention of the transfer of ships.
cattalonX says right,there's little about parameters of various ships and no drawings...
Records of 1933 didn't mention it...It's a pity.
I can only find a description of the visit of the French Far East fleet in 1933.
Mainly about mutual respect and banquets,no mention of the transfer of ships.
cattalonX says right,there's little about parameters of various ships and no drawings...
Records of 1933 didn't mention it...It's a pity.
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
Here is one of the Harima Shipyard's offer for China for a Heavy Cruiser
www.deviantart.com
The design had the following characteristics:
Dimensions: 149,35 (pp) x 158,5 (wl) x 161,54 (oa) x 15,24 x 4,88 meters
Displacement: 6.000tons (standard)
Engines: 38.000shp Kampon Steam Turbines, 2 shafts
Range: 14.800km at 22km/h (8.000nm at 12knots)
Speed: 52km/h (28knots)
Armour: 25mm Deck, 51mm (25+25mm) over Machinery, 19mm over Magazines Belt
Armaments:
3x2 20cm/50 Type 3 / 3rd Year Type Guns or 20,3cm Type 90 No.2 Guns,
2x2 14cm/50 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
2x Seaplanes, Aichi AB-3
Harima Shipyard Heavy Cruiser Design for China by Tzoli on DeviantArt
www.deviantart.com
The design had the following characteristics:
Dimensions: 149,35 (pp) x 158,5 (wl) x 161,54 (oa) x 15,24 x 4,88 meters
Displacement: 6.000tons (standard)
Engines: 38.000shp Kampon Steam Turbines, 2 shafts
Range: 14.800km at 22km/h (8.000nm at 12knots)
Speed: 52km/h (28knots)
Armour: 25mm Deck, 51mm (25+25mm) over Machinery, 19mm over Magazines Belt
Armaments:
3x2 20cm/50 Type 3 / 3rd Year Type Guns or 20,3cm Type 90 No.2 Guns,
2x2 14cm/50 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
2x Seaplanes, Aichi AB-3
Last edited:
Boer van Seven
Soulstar Ship
- Joined
- 19 February 2021
- Messages
- 24
- Reaction score
- 11
Here is one of the Harima Shipyard's offer for China for a Heavy Cruiser
Harima Shipyard Heavy Cruiser Design for China by Tzoli on DeviantArt
The design had the following characteristics:
Dimensions: 149,35 (pp) x 158,5 (wl) x 161,54 (oa) x 15,24 x 4,88 meters
Displacement: 6.000tons (standard)
Engines: 38.000shp Kampon Steam Turbines, 2 shafts
Range: 14.800km at 22km/h (8.000nm at 12knots)
Speed: 52km/h (28knots)
Armour: 25mm Deck, 51mm (25+25mm) over Machinery, 19mm over Magazines Belt
Armaments:
3x2 20cm/50 Type 3 / 3rd Year Type Guns or 20,3cm Type 90 No.2 Guns,
2x2 14cm/50 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
2x Seaplanes, Aichi AB-3
Amazing,good sharing.
20cm ahead and 14cm behind?Oh,considering tonnage and capital,to ROCN, that's good enough.
Commanding on volleying together may be chaotic,why not replace 2x2 14cm/50 Type 3 / 3rd Year Type Guns into 1x2 20cm/50 Type 3 / 3rd Year Type Guns or 20,3cm Type 90 No.2 Guns?Maybe they(refer to 14cm guns) have other uses?
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
Anti Destroyer and anti chaser guns I presume. The 20cm ones had great firing arcs though. And this is an official Harima proposal.
A 4th 20cm twin turret would had been too costly bot monetary, and displacement wise and might had been not kindly looked at by the IJN providing such powerful ship to a likely enemy.
A 4th 20cm twin turret would had been too costly bot monetary, and displacement wise and might had been not kindly looked at by the IJN providing such powerful ship to a likely enemy.
Last edited:
Boer van Seven
Soulstar Ship
- Joined
- 19 February 2021
- Messages
- 24
- Reaction score
- 11
Agree.
Dilandu
I'm dissatisfied, which means, I exist.
Love this interesting cruiser! I'm thinking about some AI story, involving it.
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
What you desire was offered by Mitsubishi's Nagasaki Shipyard:
smallest being on 5.500tons:
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
And now the Modified Design offered by Harima with 12cm aft guns and minor superstructure alterations:
www.deviantart.com
The design had the following characteristics:
Dimensions: 149,35 (pp) x 158,5 (wl) x 161,54 (oa) x 15,24 x 4,88 meters
Displacement: 6.000tons (standard)
Engines: 38.000shp Kampon Steam Turbines, 2 shafts
Range: 14.800km at 22km/h (8.000nm at 12knots)
Speed: 52km/h (28knots)
Armour: 25mm Deck, 51mm (25+25mm) over Machinery, 19mm over Magazines Belt
Armaments:
3x2 20cm/50 Type 3 / 3rd Year Type Guns
2x2 12cm/45 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
2x Seaplanes, Aichi AB-3
Harima Shipyard Heavy Cruiser Design 2 for China by Tzoli on DeviantArt
www.deviantart.com
The design had the following characteristics:
Dimensions: 149,35 (pp) x 158,5 (wl) x 161,54 (oa) x 15,24 x 4,88 meters
Displacement: 6.000tons (standard)
Engines: 38.000shp Kampon Steam Turbines, 2 shafts
Range: 14.800km at 22km/h (8.000nm at 12knots)
Speed: 52km/h (28knots)
Armour: 25mm Deck, 51mm (25+25mm) over Machinery, 19mm over Magazines Belt
Armaments:
3x2 20cm/50 Type 3 / 3rd Year Type Guns
2x2 12cm/45 Type 3 / 3rd Year Type Guns,
4x1 76mm/40 Type 3 / 3rd Year Type DP-AA Guns,
4x1 12,7mm or 13,2mm AA Guns
2x3 533mm Torpedo Tubes
30x Depth Charges
2x Seaplanes, Aichi AB-3

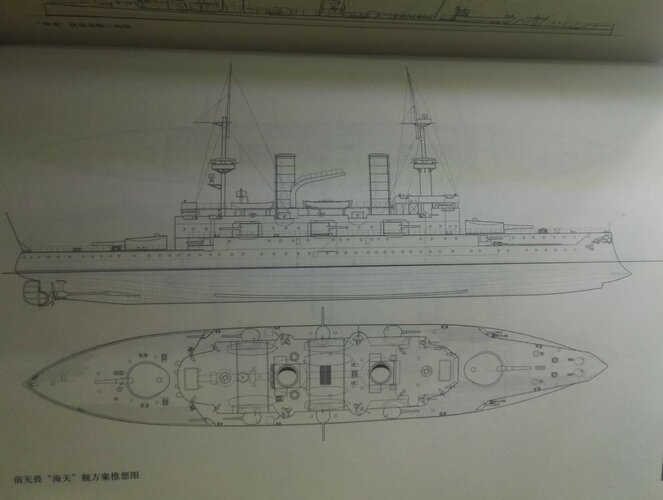

The German design battleship I posted before
The ship was designed after the first Sino-Japanese War, when the fleet was destroyed by the Japanese
The Empire wants to rebuild the fleet，The Germans gave three designs at the end of 1895。
first is a Protected cruiser, the Hai Yung Class。

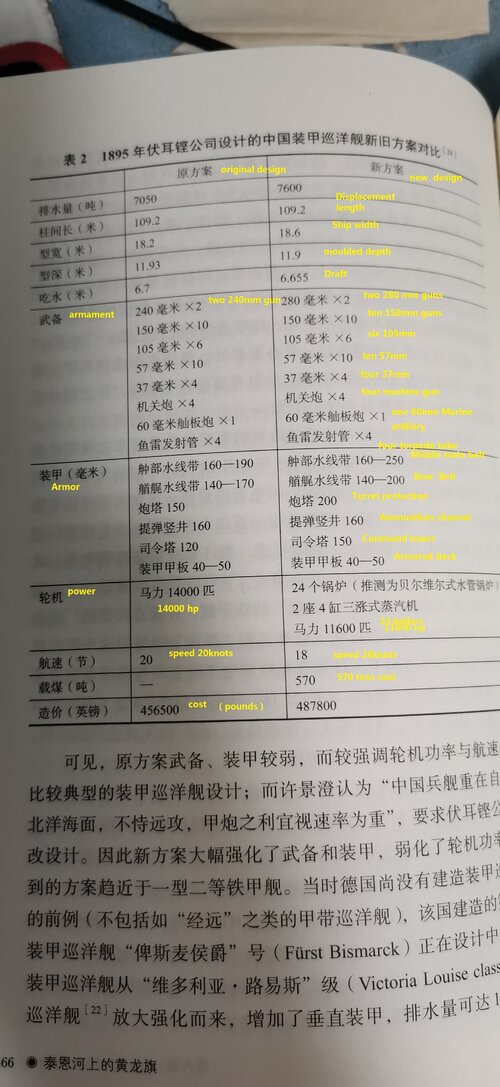

second，a 11,000-ton battleship with a speed of 18.5 knots and an armor belt of 10 inches，no more information（£620,000 is too expensive for the Chinese）
The third is this picture A 7,600-ton battleship（The original design was an armored cruiser with a 7050-ton, 240-mm main gun。but Chinese request to strengthen firepower and protection and lower the speed，Finally got a ship Install two single 280mm guns）
But this ship was not built, the Chinese chose the British-built Protected cruiser
The ship was designed after the first Sino-Japanese War, when the fleet was destroyed by the Japanese
The Empire wants to rebuild the fleet，The Germans gave three designs at the end of 1895。
first is a Protected cruiser, the Hai Yung Class。
second，a 11,000-ton battleship with a speed of 18.5 knots and an armor belt of 10 inches，no more information（£620,000 is too expensive for the Chinese）
The third is this picture A 7,600-ton battleship（The original design was an armored cruiser with a 7050-ton, 240-mm main gun。but Chinese request to strengthen firepower and protection and lower the speed，Finally got a ship Install two single 280mm guns）
But this ship was not built, the Chinese chose the British-built Protected cruiser
AG vulcan stettiner，builder of Dingyuan
David Chessum
ACCESS: Restricted
Interesting document - where did you find this?
The Taiwanese archive·····
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
Which I've posted here:
David Chessum
ACCESS: Restricted
Thank you.
Dilandu
I'm dissatisfied, which means, I exist.
The first is small battleship. Interesting - I thought all her turrets were supposed to be single-gun, but on scheme the secondaries are dual.
Dilandu
I'm dissatisfied, which means, I exist.
140-mm (most likely 138-mm) guns.

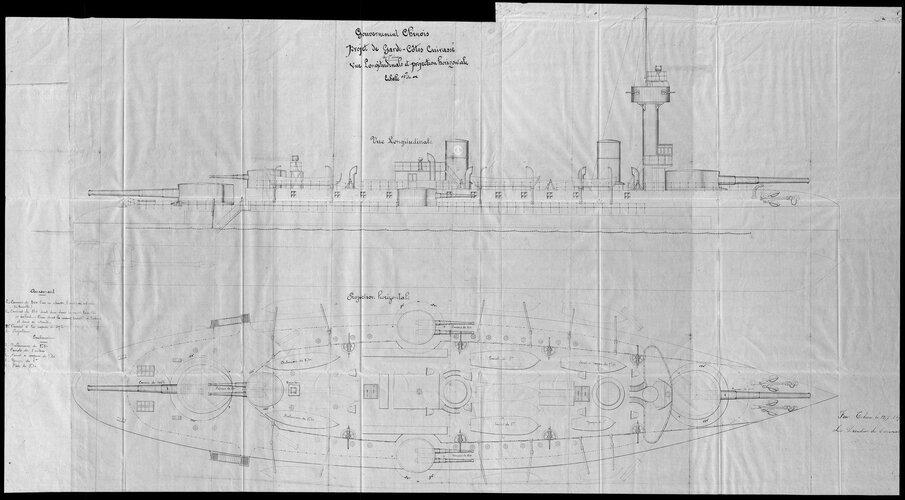

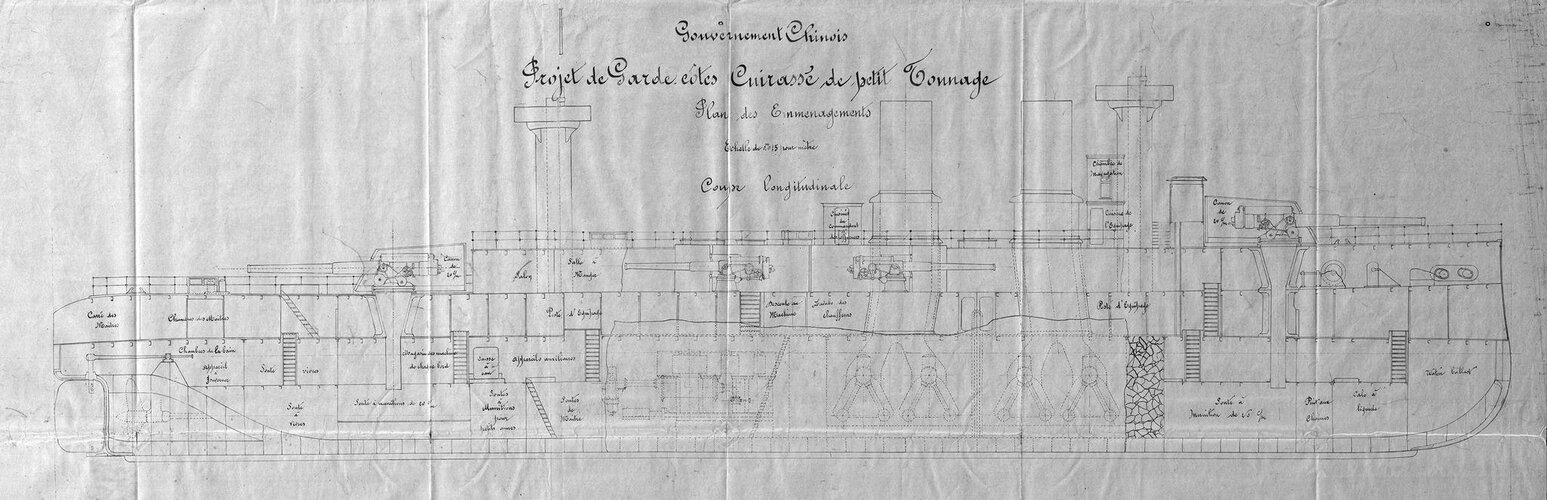

Coastal defense ships posted before
I just found better pictures
The author has equipped different pictures at different places······
Last edited:
First one，5600 tons 88 meters long, 18 meters wide, and 6.1 meters deep.
8200HP,16knots
armament，two 300mm and six 140mm，eight 3-pounder
belt， 210~105mm
the second，2900 tons 70 meters long, 14.1 meters wide and 5 meters deep
4200HP,16knots
armament， two 200mm guns and four 150mm
belt，220~120mm
Thanks!
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
Can you please post in the original resolution or link to it?

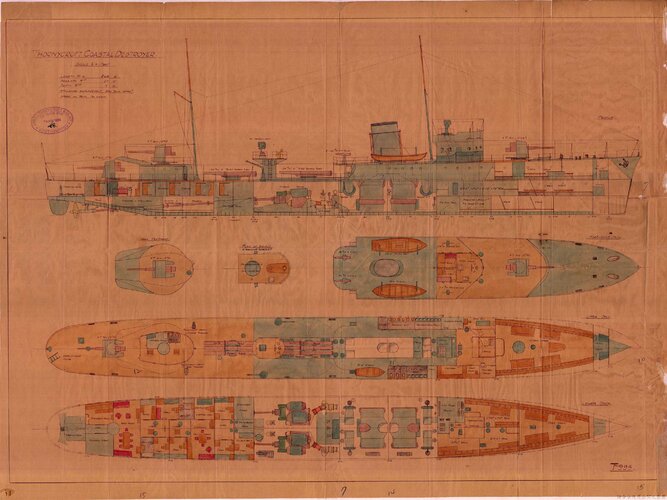

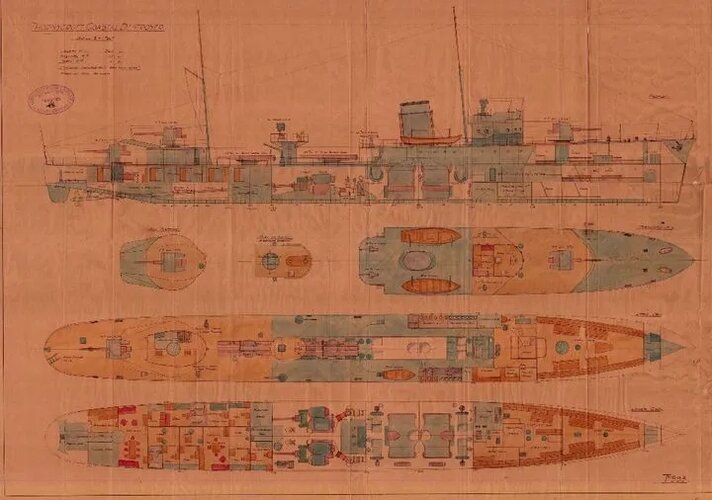

I have the original construction drawing, not this coloured one and that is 15x times larger then this!
10409 x 7817 pixels!
I have the original construction drawing, not this coloured one and that is 15x times larger then this!
10409 x 7817 pixels!
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
At the bottom of the page it tells:
来源：aa.archives.gov.tw
I've only found two directories there when I've posted this thread:
As I'm no chinese I cannot read the texts nor search for other archives.
Maybe you can search for other other then these two?
I will try，but you konw. even to Chinese.At the bottom of the page it tells:
来源：aa.archives.gov.tw
I've only found two directories there when I've posted this thread:
As I'm no chinese I cannot read the texts nor search for other archives.
Maybe you can search for other other then these two?
I will try, but even for Chinese , searching on this website is very difficultAt the bottom of the page it tells:
来源：aa.archives.gov.tw
I've only found two directories there when I've posted this thread:
As I'm no chinese I cannot read the texts nor search for other archives.
Maybe you can search for other other then these two?
- Joined
- 1 February 2011
- Messages
- 2,813
- Reaction score
- 3,190
Erm... What???
You do know this topic discuss about pre-PLAN projects, right? even if China buy a Kirov, they would only re-arm her (what would they want her to be, a pure anti-surface ship or retain old ASW role?), overhaul engine (conventional very likely rather than nuclear).
A my bad, it before the PRC took over.
At the bottom of the page it tells:
来源：aa.archives.gov.tw
I've only found two directories there when I've posted this thread:
As I'm no chinese I cannot read the texts nor search for other archives.
Maybe you can search for other other then these two?
page7
Last edited:
There were plans to sell/give a Pr. 26bis (Molotov) class cruiser to the PLAN pre Sino-Soviet split, but that's outside the bounds of this thread.
At the bottom of the page it tells:
来源：aa.archives.gov.tw
I've only found two directories there when I've posted this thread:
As I'm no chinese I cannot read the texts nor search for other archives.
Maybe you can search for other other then these two?
page7

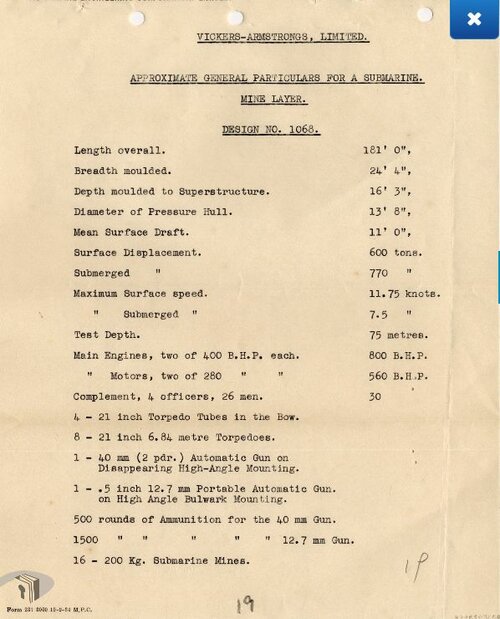

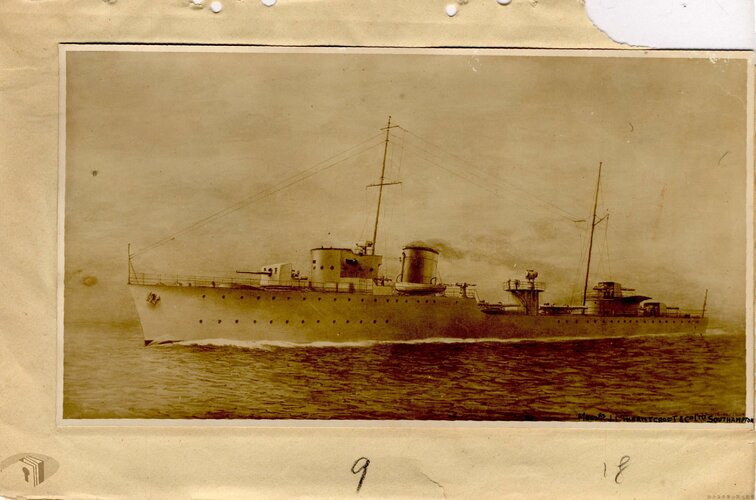

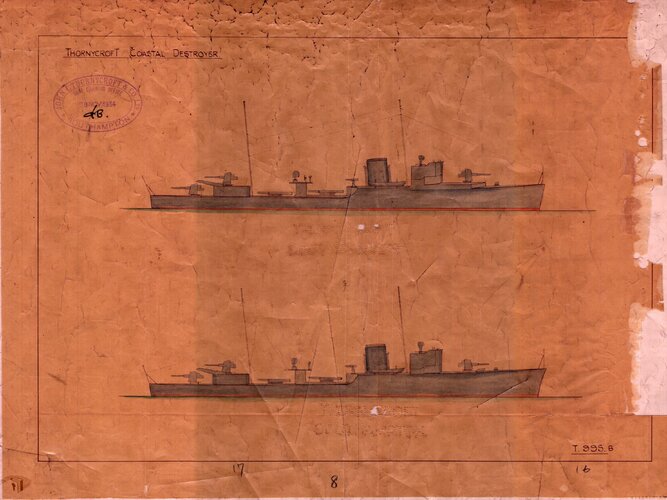

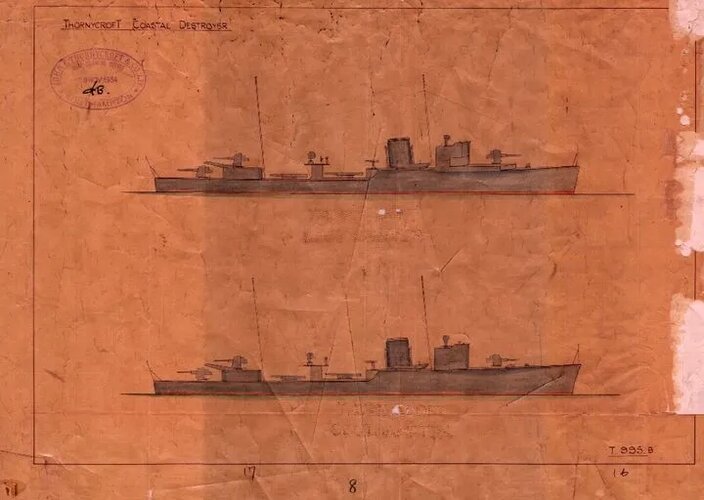

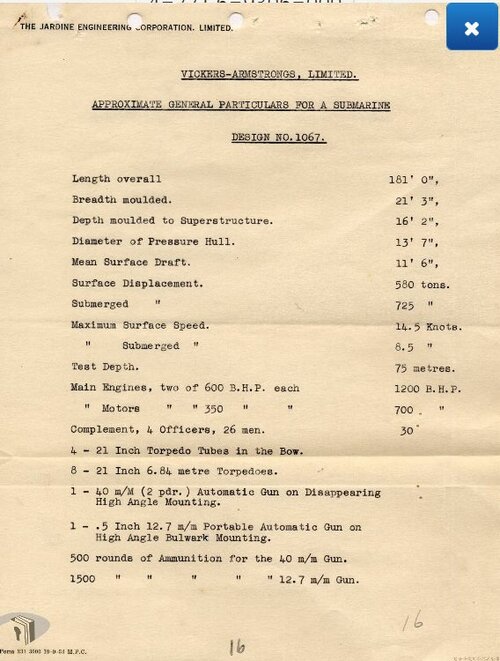

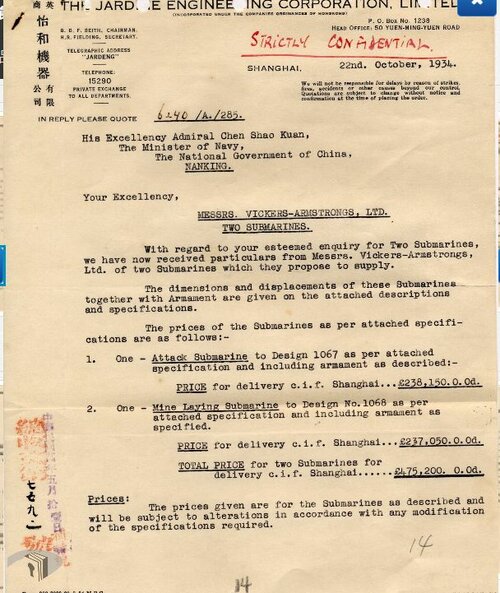

View attachment 662312View attachment 662313View attachment 662314
EXCELLENT FIND!! great work
