Il-60 (02.1960)
Heavy military transport powered by four 8,500-9,500 -ehp turboprops.
MTOW -129,2t.
Its pressurised cargo hold measured 4,0 x 4,0 m in cross-section, had a length of 30 m
(98 ft 5 in) and featured a rear cargo hatch closed by a loading ramp and a three-section
door. The IL-60 was intended for transporting cargoes with a total weight of up to
40 tonnes (88,190 Ib) over a distance of 3,600 km (2,237 miles)according to other sources 4130 km); with a 10-tonne (22,045-lb) payload its range was 8,700 km (5,407 miles) or 400 soldiers with equipment..
Competitors:
KB - Antonov - VT-22 (which eventually emerged as the An-22).
KB - Beriev - Be-16
KB - Tupolev - Tu-115.
KB - Myasischev - M-26 (the second with this designation)
pictures via E.Chernikov "On the 120th anniversary of S.Ilyushin,


Attachments

  • Resize of Il-60 (low-wing).jpg
    Resize of Il-60 (low-wing).jpg
    36.6 KB · Views: 1,435
  • Resize of Il-60-.jpg
    Resize of Il-60-.jpg
    40.1 KB · Views: 1,438
  • Resize of Il-60 s.jpg
    Resize of Il-60 s.jpg
    80.6 KB · Views: 1,420
  • Resize of Il-60 e-.jpg
    Resize of Il-60 e-.jpg
    55.3 KB · Views: 1,380
  • Resize of Il-60 a.jpg
    Resize of Il-60 a.jpg
    45.2 KB · Views: 1,352
Hi,

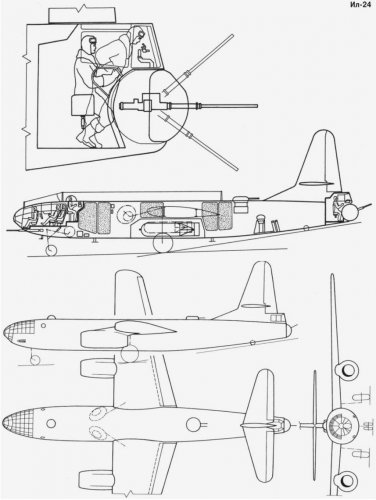

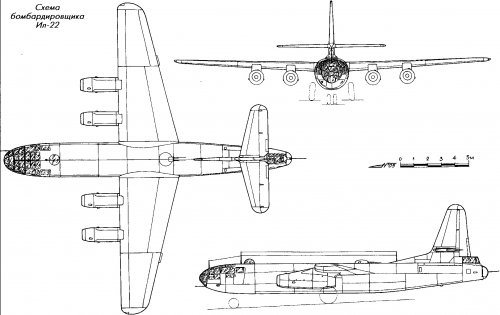

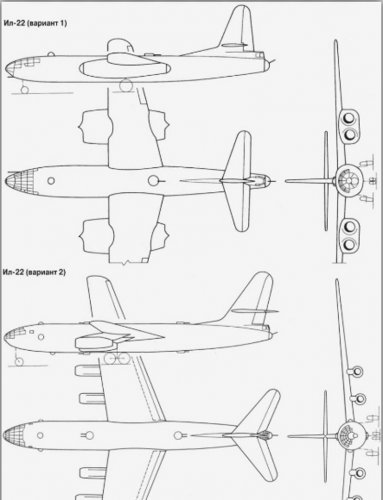

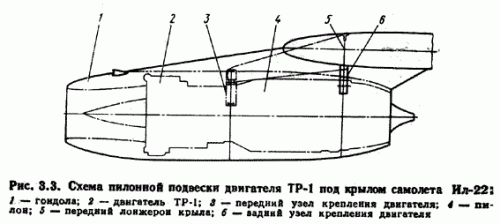

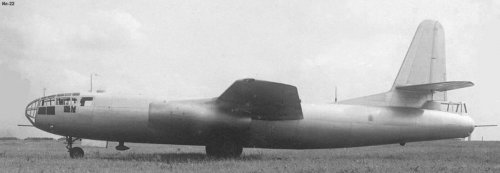

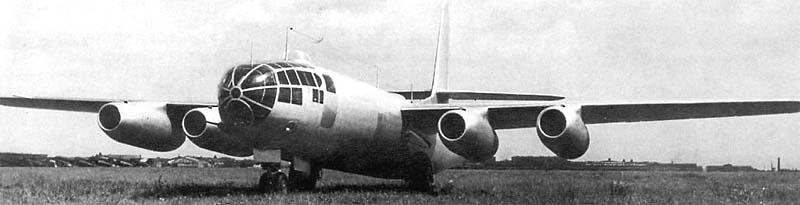

here is a darwings to Ilyushin Il-22 & Il-24 in details.


Attachments

  • Ilyushin.JPG
    87.1 KB · Views: 362
hesham said:
in a Russian book about Ilyushin Il-78,I found one unknown aircraft and some projects,
for the unknown design, Il-783 and maybe they meant Il-78Z

Not a "three", not a "zee", but an "E"...

One of the little known iterations of Il-22 with FSW


Attachments

  • Il-22 (2)FSW.jpg
    Il-22 (2)FSW.jpg
    38.2 KB · Views: 330
  • Resize of IL-24.jpg
    Resize of IL-24.jpg
    53.5 KB · Views: 345
Thank you Skyblazer,


and for my dear Borovk,it's new for me about Il-22 FSW ?!,thanks.

Hi,

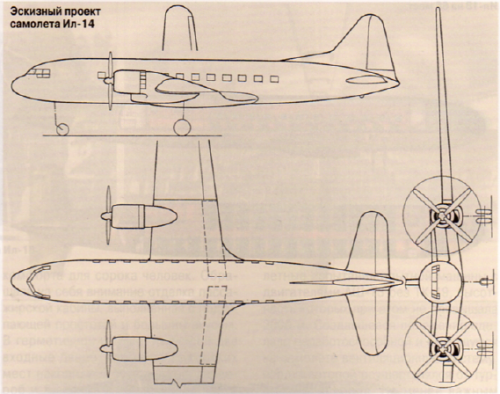

here is the Il-14 bomber project.

http://coollib.net/b/290375/read


Attachments

  • Il-14.jpg
    21.7 KB · Views: 314
Hi,

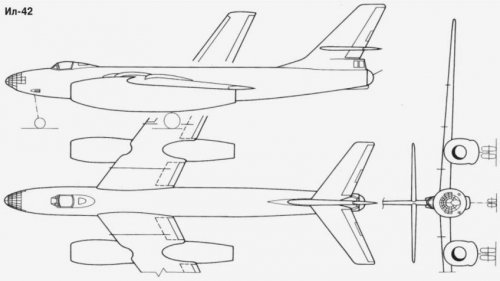

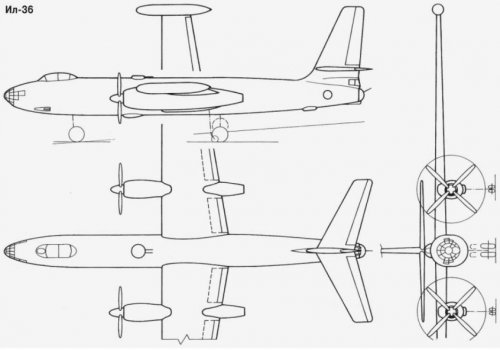

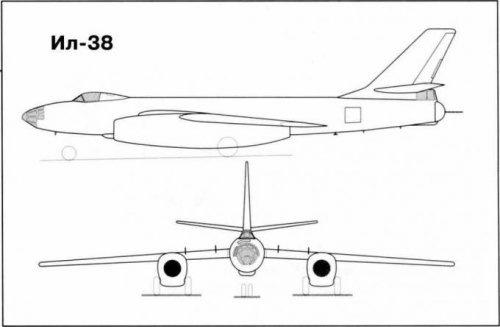

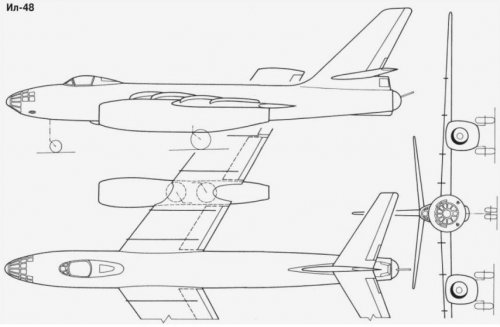

here is a 3-view to Ilyushin Il-36,Il-38,Il-42 and Il-48 Projects.


Attachments

  • Il-36.jpg
    54.1 KB · Views: 323
  • Il-38.jpg
    52.8 KB · Views: 326
  • Il-42.jpg
    47.3 KB · Views: 309
  • Il-48.jpg
    54.2 KB · Views: 335
In my opinion when editing the magazine made a mistake, namely: confused signatures depicting IL-38 and IL-48.
That is the last picture in Reply # 127 given IL-38 (with characteristic only to him landing gear)

Also in my files,

the Ilyushin Il-16 light transport aircraft,had a version with turret gun and some
changes in its fuselage (not the early concept).

athpilot said:

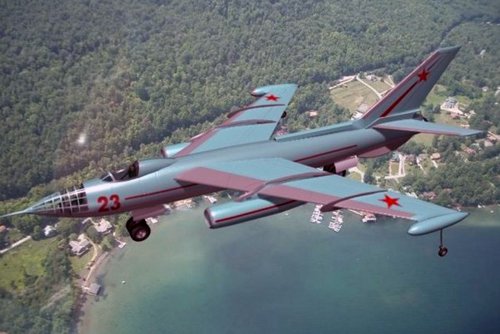

Here are some nice IL-40 artworks by world of warplanes. very nice.

Also the Ilyushin IL-42 had two variants,similar to Il-40.

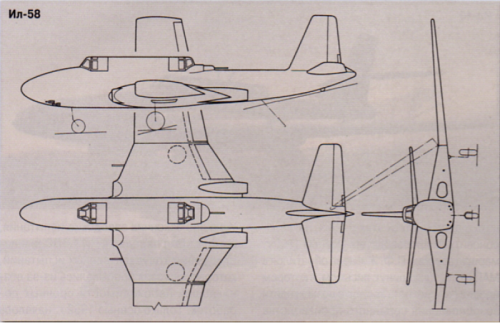

Hi,

here is anther two Ilyushin Projects,Il-44 and Il-58 drawings.

Авиация и Космонавтика 4/2015


Attachments

  • Il-44.png
    687.1 KB · Views: 335
  • Il-58.png
    755.6 KB · Views: 352
Hi,

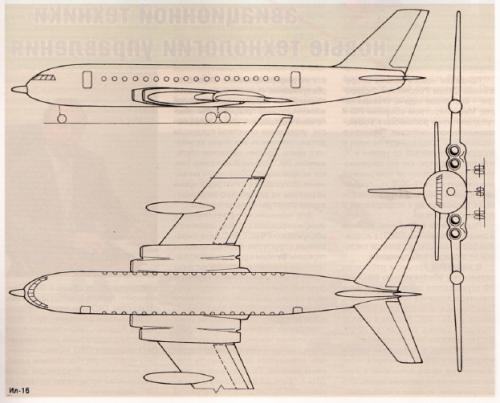

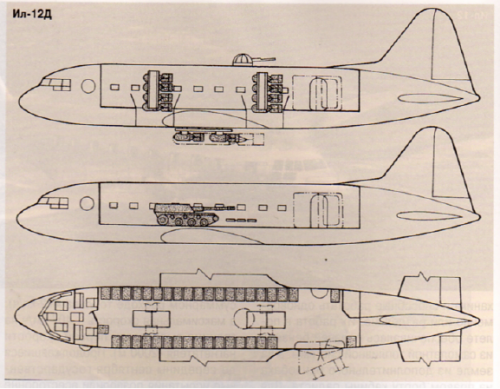

here is Ilyushin Il-12D drawing,a military version of Il-12,actually built,and unknown
for me,Ilyushin Il-14 Project ?,also a good drawing to Il-16.

Авиация и Космонавтика 10/2014


Attachments

  • Il-16.png
    591.8 KB · Views: 267
  • Il-14.png
    505.8 KB · Views: 246
  • Il-12D.png
    531.4 KB · Views: 235

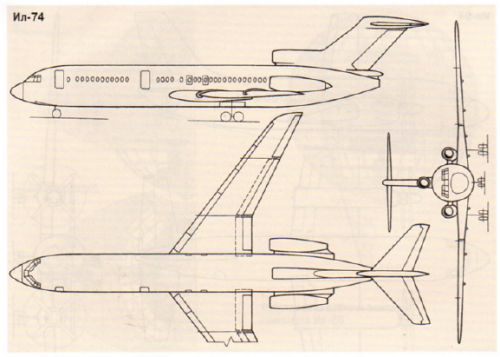

From Авиация и Космонавтика 11/2014,

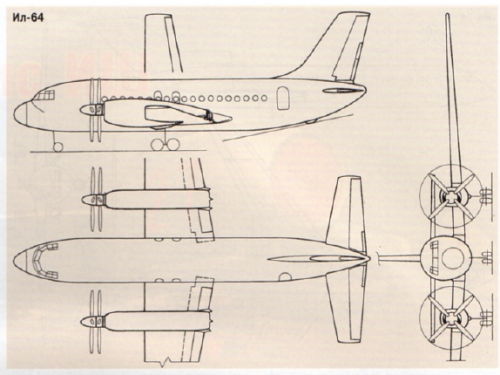

here is a good drawings to Il-64 and Il-74.


Attachments

  • Il-64.png
    464.3 KB · Views: 242
  • Il-74.png
    445.5 KB · Views: 350
hesham said:
here is anther two Ilyushin Projects,Il-44 and Il-58 drawings.

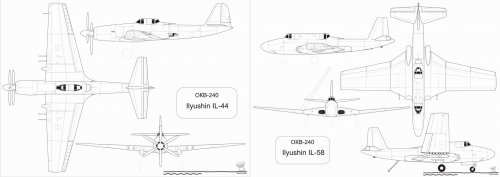

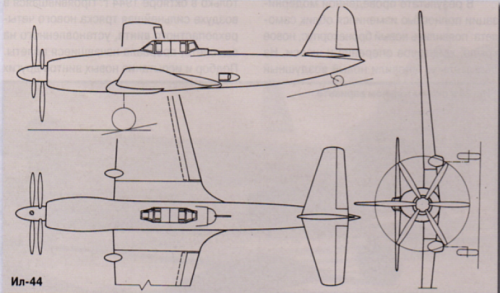

IL-44 project (1951) with turboprop VK2
IL-58 carrier-based attack aircraft project proposed in the initiative order Ilyushin Design Bureau in 1952. Competitor Tu-91.


Attachments

  • Resize of Il.jpg
    Resize of Il.jpg
    117 KB · Views: 605
Maveric said:
Any technical data....
No data. These planes remained at the preliminary projects were not even brought to the stage of demonstration models ...
It is also known that Il-44, except turboprop VK-2 had an alternative embodiment with a powerful piston engine Dobrynin VD-4K.
As for Il-58, after Stalin's death and her subsequent revision of military doctrine, the interest of the customer to the construction of aircraft carriers, and with them, and planes for their weapons, long disappeared in the Soviet Union.

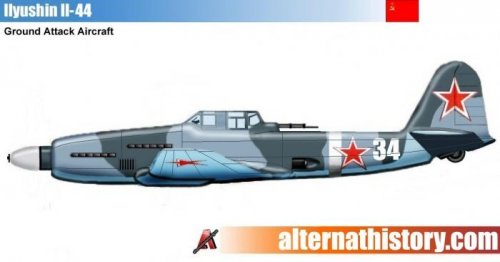

Il-44 or a rielaboration of Il-2 with turbo prop : http://alternathistory.com/proekt-shturmovika-il-44-sssr-1950-god


Attachments

  • IL-44_0-700x366.jpg
    26 KB · Views: 1,448
My dear Airman,

we spoke about it here;


ucon said:
Hi, guys!

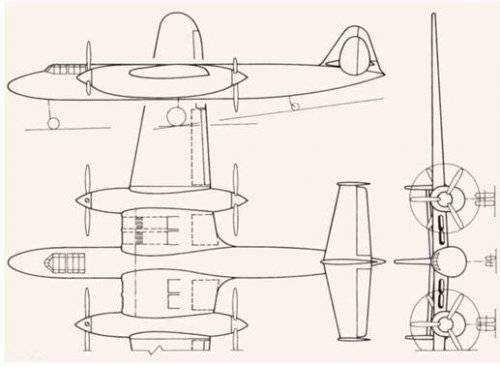

One of the very early Il-12 double-tailed project with ACh-31 engines. Note the shape of the fuselage nose part - it was used than in Il-18 (1947)

My dear Ucon,

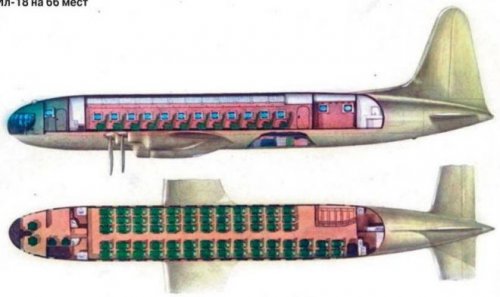

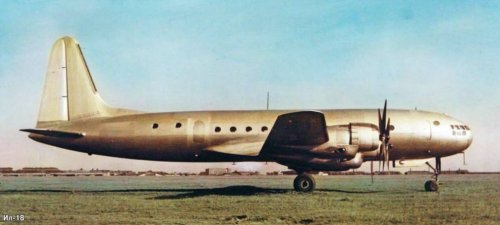

we can say that,the early Il-18 was appeared in two variants,the first was a four engined airliner
(ACh-72),Project of 1945,and the second was a twin engined (ASh-73TK) experimental airplane
of 1946.

Hi,

there was earlier Project to Il-62 in 1960,powered by four RD-23-600 engines.

hesham said:
My dear Ucon,

we can say that,the early Il-18 was appeared in two variants,the first was a four engined airliner
(ACh-72),Project of 1945,and the second was a twin engined (ASh-73TK) experimental airplane
of 1946.

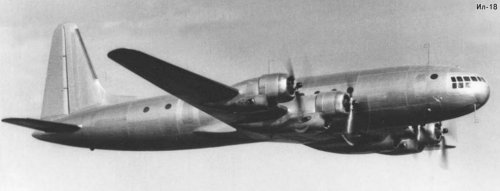

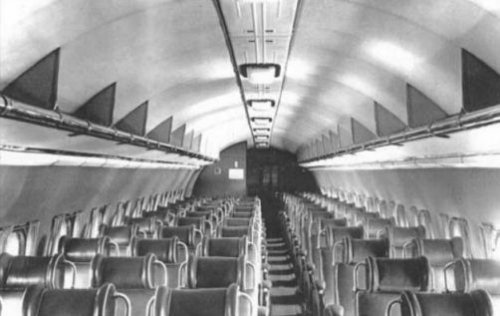

Any Il-18 never was twin-engined. The Il-18 of 1946 was four-engined, and it was 66-seat airliner prototype, not experimental aircraft.

The 1945 project with diesel engines was early version of the same aircraft. The diesels themselves are mentioned as "ACh-72" in some sources, but such an engine never existed; most probably it's a misprint and ACh-32 would be correct. But they weren't ready to fly in 1946 (actually, ACh-32 never reached "flyable" stage), so the project was modified for ASh-73TK radials.


Attachments

  • 12-3.jpg
    45.1 KB · Views: 278
  • 12-2.jpg
    39.1 KB · Views: 685
  • 10-3.jpg
    46.9 KB · Views: 704
  • 10-4.jpg
    66.4 KB · Views: 746
My dear Redstar,

I am sure from my source,and it was twin engined,but I don't remember the name
of the magazine now.

Dear Hesham,

If any source proclaims Il-18 was twin-engined, that source gives wrong info. The Il-18 of 1946 was actual aircraft, and you can count its engines by yourself. The 1946 project of twin-engined 48-seat airliner with ASh-73 engines actually existed, but it was called Il-14. That's the Il-14 which is mentioned in your post http://www.secretprojects.co.uk/forum/index.php/topic,4933.msg269206.html#msg269206.


Attachments

  • Il-54 model.jpg
    Il-54 model.jpg
    58.4 KB · Views: 265
  • early design.jpg
    early design.jpg
    54.5 KB · Views: 240
  • Il-54.jpg
    19.2 KB · Views: 209
Hi,

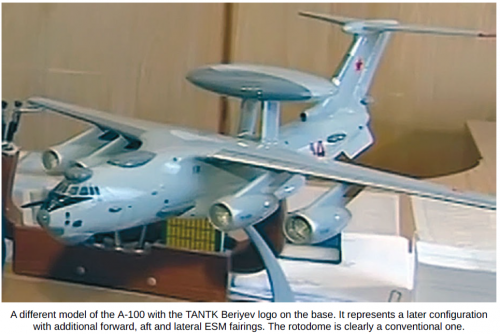

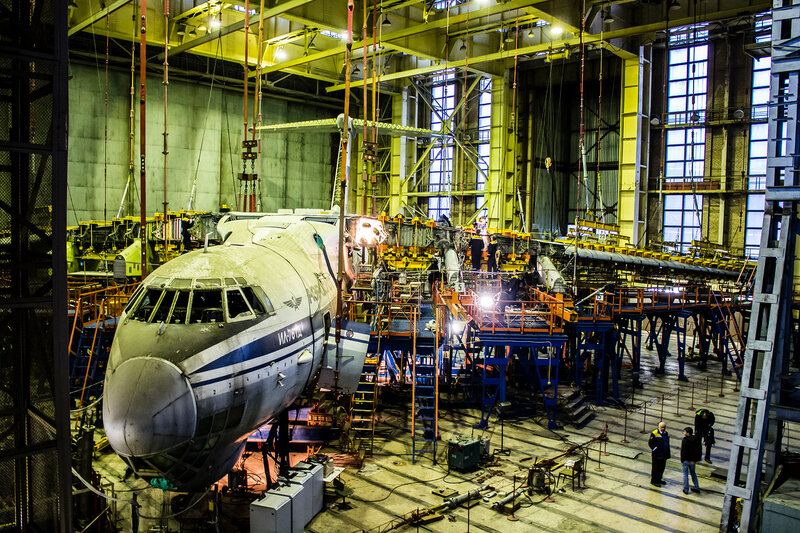

by the way,the Ilyushin Il-76MD-90 was also called Il-150.

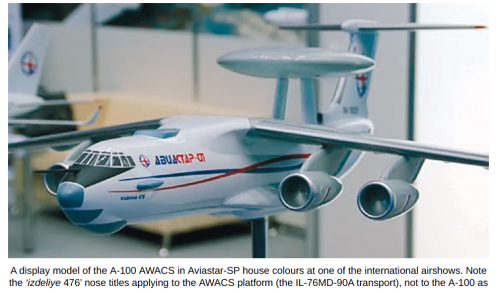

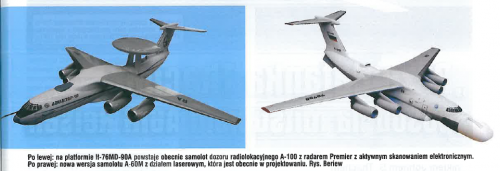

Two models for A-100,was in two different shapes.


Attachments

  • 2.png
    1 MB · Views: 939
  • 1.png
    840.5 KB · Views: 1,052

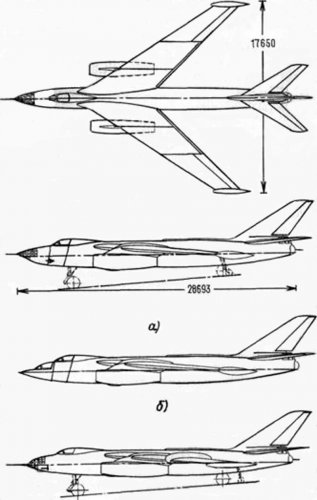

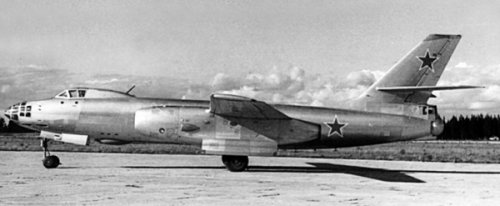

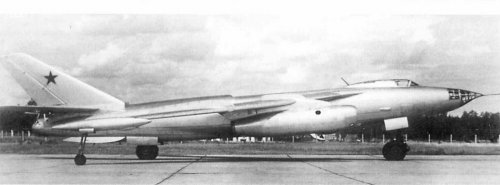

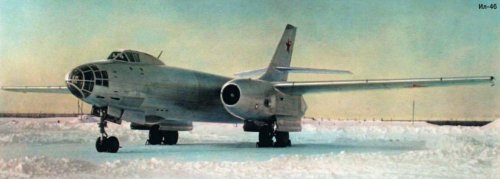

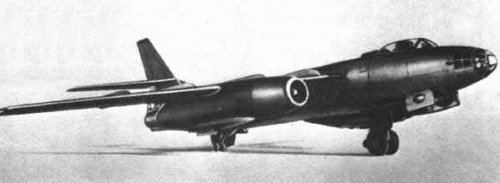

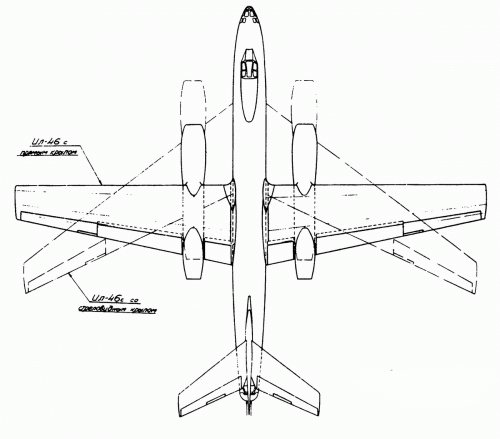

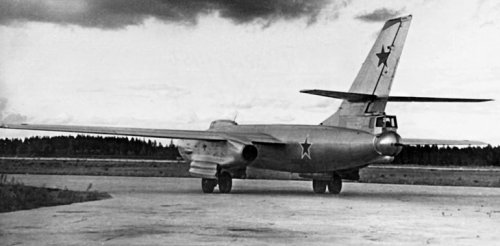

Hi! Il-46.



"SV Ilyushin received a task to develop a medium-range high-speed jet bomber (with twice the maximum combat load and range of flight, as compared to Il-28). Then they made an unusual decision: when creating the IL-46 (as it was called) to build for a full-scale complex comparative evaluation, two different experienced ones: one with a layout close to Il-28, with a straight wing, and the second with a swept one. Indeed, the aerodynamic and structural layout of the IL-28 has proven itself in the process of operation. This scheme did not allow to reach the preset maximum speed of flight (1000 km / h), but it ensured the achievement of a long flight range with minimum geometric dimensions and mass of the aircraft, and therefore a much lower cost of its manufacture and operation. The development of the preliminary design project was completed in October 1951.
The second prototype Il-46S ("C" - with a speed of flight of 1000 km / h should have a wing with a sweep of 35degree. Its main feature was a thickened root part for strength and rigidity and placing a significant part of the fuel. On Il-28, all the fuel was placed in the fuselage.The swept wing has several worse load-bearing properties than the straight wing, so its area and mass for Il-46C were increased.The draft design was approved by Ilyushin in December 1951. The first prototype of the Il-46 was a Twin-motor All-metal midplane with a straight wing and a swept plumage.Externally very similar to the IL-28, the "forty-sixth" was significantly larger and twice as heavy as it was. The turbojet engines with an axial compressor AL-5 (another designation TR-3A) with take-off thrust of 5000 kgs , Developed under the leadership of AM Ljulka.They were located under the wing in the front parts of the nacelle, far removed also beyond the front edge of the plane to balance the mass of the heavy two-gun movable stern And the mass of the cab of the radio arrowhead with its heavy armor. Hot gases were thrown at the rear edge of the wing through the long, five-meter tailpipes. The outer contour of the motor gondolas on the wing section was made taking into account the "area rule" for reducing the interference resistance at the junction of the wing and the gondola. "

"During the factory flight tests, the maximum speed of horizontal flight was reached - 928 km / h at an altitude of 5000 m and the maximum flight range - 4845 km with a combat cargo of 5,000 kg dropped on the half way. State tests conducted in the summer of 1952 confirmed the compliance of the flight-technical data with the specified ones. IL-46 was created as an alternative to the Tu-16 bomber. In the same year of 1952 it was decided to launch the second production in series production, and the IL-46 program stopped work, including the construction of the second pilot IL-46S with a swept wing. "

Wingspan, M 29.00
Length, M 24.50
Height, M 4.78
Area of wing, M2 105.00
Mass, kg ; Empty aircraft 26300, Normal Flight 41840, Maximum Flight 52425
Type of Engine 2 turbojet al-5, Traction, CSC 2 x 5000
Speed, km/h ; Maximum 928, Cruising 700
Flight range, km 4970
Practical Ceiling, M 12700
Crew, person 3
Adopted:
4 x 23 mm HP-23: For the protection of the front hemisphere, two stationary front cannons mounted near the left board of the fuselage under the cabin of the navigator; In the tail of the fuselage, the stern cannons the installation of the Il-K8 with a remote hydraulic drive of two mobile cannons (2 x 320 rounds).
Internal suspension bombing: normal-3000 kg, maximum-6000 kg.


Attachments

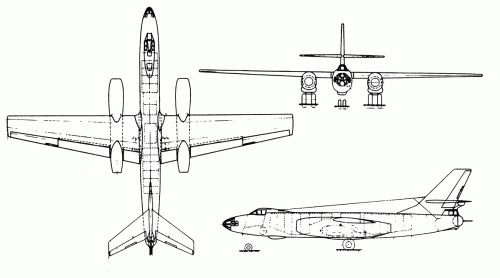

  • 596348_cdf5777633d75d8418af3f4cfc262a15.gif
    66.3 KB · Views: 713
  • 596349_ca24476b2e1d02a282da7d0f8c120820.gif
    108.6 KB · Views: 693
  • i_081.jpg
    47.4 KB · Views: 633
  • i_080.jpg
    44.2 KB · Views: 176
  • Il-46.jpg
    85.2 KB · Views: 172

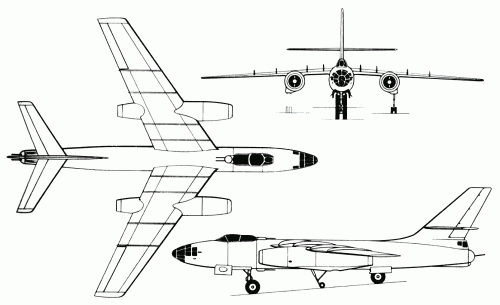

Hi! Il-30.
http://en.avia.pro/blog/il-30

https://en.wikipedia.org/wiki/Ilyushin_Il-30
"The Ilyushin Il-30 was a Soviet turbojet-powered tactical bomber designed as a higher-performance, swept wing version of the Ilyushin Il-28, in the late 1940s. Its thin wing and engine nacelles necessitated the use of tandem landing gear, the first Soviet aircraft to do so. It was apparently canceled before the prototype made its first flight, although sources disagree with this."
General characteristics(Il-30)
Crew: four
Length: 18 m (59 ft 1 in)
Wingspan: 16.5 m (54 ft 2 in)
Wing area: 100 m2 (1,100 sq ft)
Empty weight: 17,033 kg (37,552 lb)
Gross weight: 22,967 kg (50,634 lb)
Powerplant: 2 × Lyulka TR-3 turbojet, 45.1 kN (10,100 lbf) thrust each
Performance
Maximum speed: 1,000 km/h (621 mph; 540 kn)
Cruise speed: 850 km/h (528 mph; 459 kn)
Range: 3,500 km (2,175 mi; 1,890 nmi)
Service ceiling: 13,000 m (43,000 ft)
Armament
Guns: 6 × 23 mm (0.91 in) Nudelman-Rikhter NR-23 autocannon
Bombs: 4,000 kilograms (8,800 lb)

General characteristics(Il-28) https://en.wikipedia.org/wiki/Ilyushin_Il-28
Crew: Three (pilot, bombardier, gunner)
Length: 17.65 m (57 ft 11 in (excluding cannon))
Wingspan: 21.45 m (70 ft 4½ in (excluding tip tanks))
Height: 6.70 m (22 ft 11¾ in)
Wing area: 60.80 m² (654.5 sq ft), Airfoil: TSAGI SR-5S[13], Aspect ratio: 7.55:1
Empty weight: 12,890 kg (28,417 lb)
Loaded weight: 18,400 kg (40,565 lb)
Max. takeoff weight: 21,200 kg (46,738 lb)
Powerplant: 2 × Klimov VK-1A turbojets, 26.5 kN (5,952 lbf) each
Performance
Maximum speed: 902 km/h (487 knots, 560 mph) at 4,500 m (14,760 ft)
Cruise speed: 770 km/h (415 knots, 478 mph)
Range: 2,180 km (1,176 nmi, 1,355 mi) at 770 km/h (415 knots, 478 mph) and 10,000 m (32,800 ft)
Service ceiling: 12,300 m (40,350 ft)
Rate of climb: 900 m/min (2,950 ft/min)
Armament
Guns: 4 × Nudelman-Rikhter NR-23 cannons (2 in nose and 2 in tail barbette)
Bombs: 3,000 kg (6,600 lb) of bombs in internal bay (1,000 kg (2,200 lb) normal)


http://www.aviastar.org/air/russia/il-30.php


Attachments

  • il30_1.jpg
    58.1 KB · Views: 198
  • il-30.gif
    29.9 KB · Views: 224

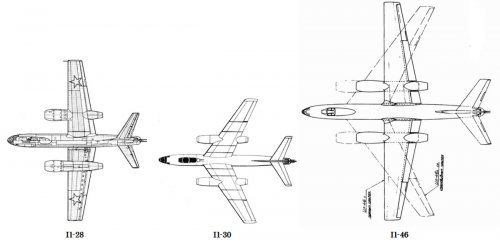

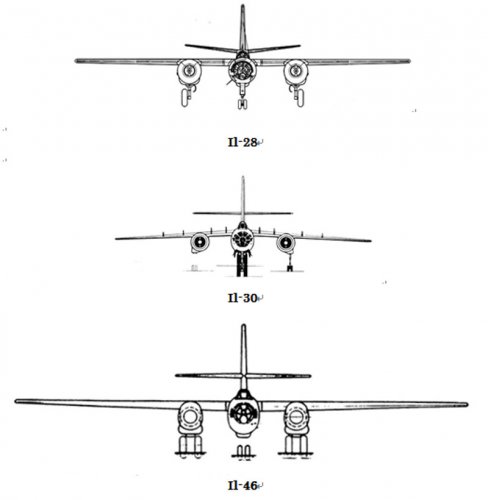

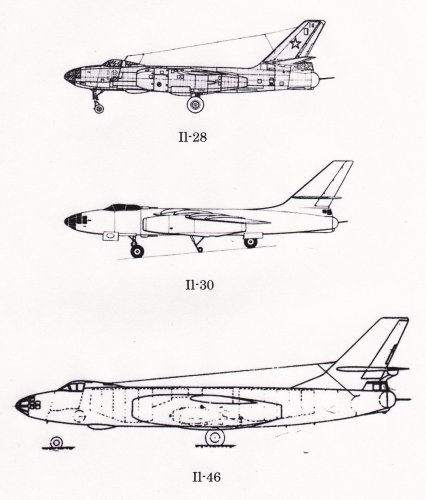

Hi! Il-28, Il-30 and Il-46 side view,plan view and front view comparison.


Attachments

  • Side view (almost same scale).pdf
    114.8 KB · Views: 35
  • side view comparison.jpg
    side view comparison.jpg
    381.8 KB · Views: 218
  • plan_view_comparison.jpg
    72.1 KB · Views: 236
  • front_view_comparison.jpg
    38.9 KB · Views: 209

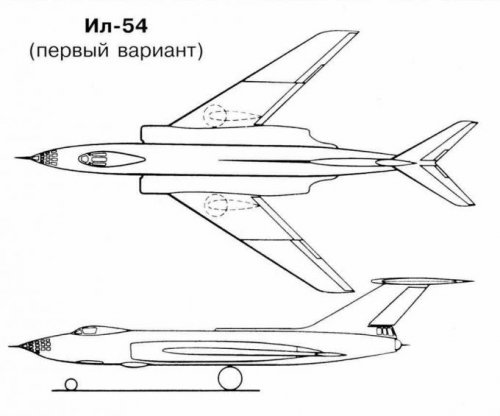

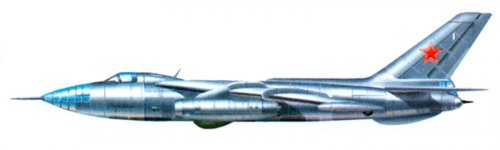

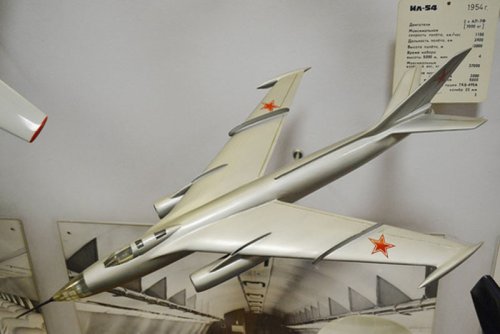

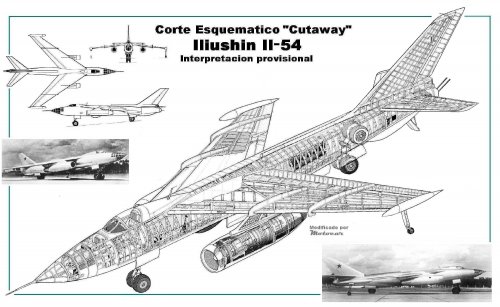

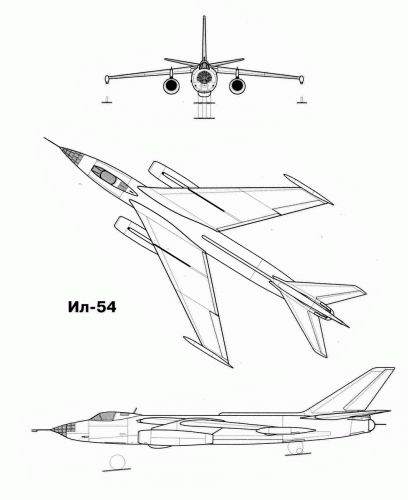

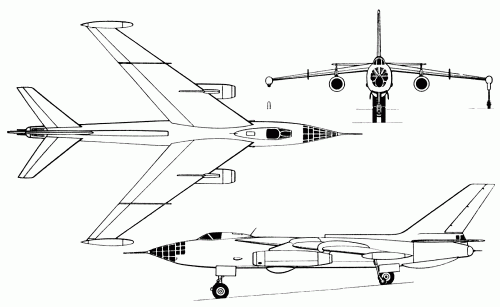

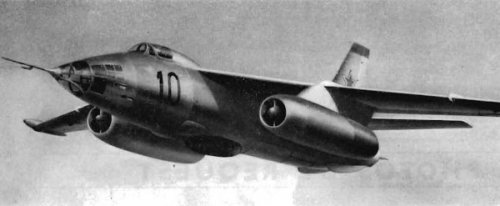

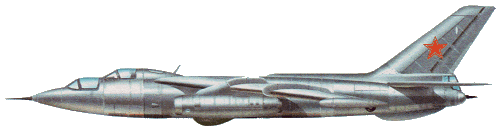

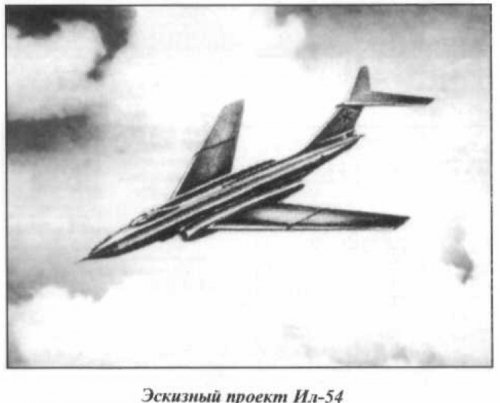

Hi! Il-54.

http://avia.pro/blog/il-54
http://www.diseno-art.com/encyclopedia/strange_vehicles/ilyushin_il-54_blowlamp.html
http://www.airwar.ru/enc/bomber/il54.html
https://en.wikipedia.org/wiki/Ilyushin_Il-54
"Because the wings and engine nacelles were too small to house a conventional undercarriage, the Il-54 used a bicycle undercarriage arrangement, with nose and main gear units on the centreline of the aircraft, at each end of the bomb bay. This arrangement meant a conventional rotating takeoff would be impossible. To enable the Il-54 to take off, in a reasonable runway length, the main gear knelt and the nose gear extended to give the ideal angle of incidence for takeoff (10 degrees)." (Il-30 had same concept?)

General characteristics
Crew: three
Length: 28.963 m (95 ft 1/4 in)
Wingspan: 17.65 m (57 ft 11 in)
Wing area: 84.6 m2 (910.7 ft2)
Empty weight: 26,505 kg (58.443 lb)
Gross weight: 41,600 kg (91,728 lb)
Powerplant: 2 × Lyulka AL-7 with water injection, 84.34 kN (18,960 lbf) thrust each
Performance
Maximum speed: 1,100-1,150 km/h (683-715 mph)
Maximum speed: Mach 1.15
Range: 2,057 km (1,278 miles)
Service ceiling: 13,630 m (44,720 ft)
Rate of climb: 25.25 m/s (4,924 ft/min)
Armament
1 × 23 mm Nudelman-Rikhter AM-23 cannon in the port forward fuselage.
2 × 23 mm Nudelman-Rikhter AM-23 cannon in the remotely controlled tail barbette
6,000 kg (13,200 lb; maximum load) or 3,000 kg (6,600 lb; normal load) of bombs

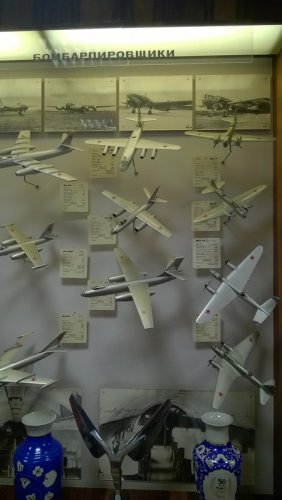

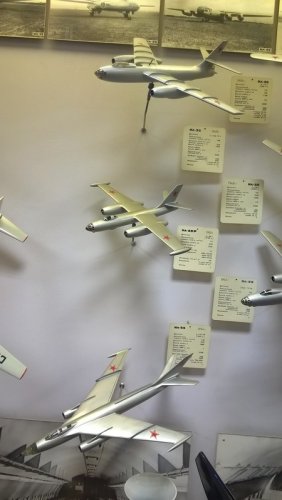

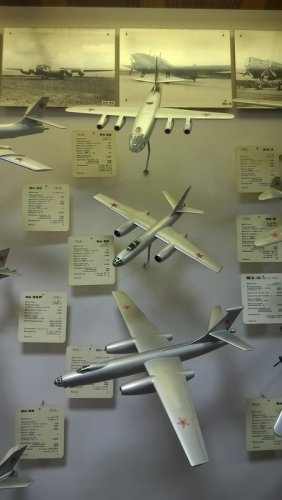

Model pictures.
http://www.ussr-airspace.com/index.php?main_page=document_general_info&cPath=28_39_109&products_id=2733


Attachments

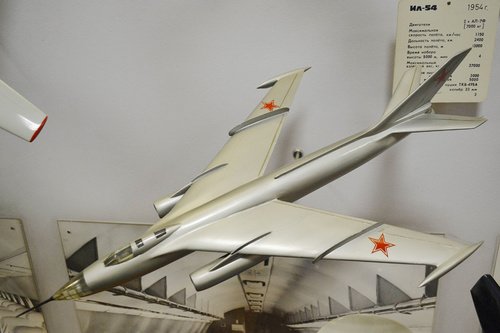

  • il-54.gif
    28.8 KB · Views: 210
  • Perhaps unbuilt trainer version.gif
    Perhaps unbuilt trainer version.gif
    18.9 KB · Views: 175
  • Ilyushin-Il-54-1.jpg
    51.5 KB · Views: 163
  • il54_2.gif
    27.6 KB · Views: 159
borovik-san"s contribution is excellent.
http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=4933.0;attach=120597;image

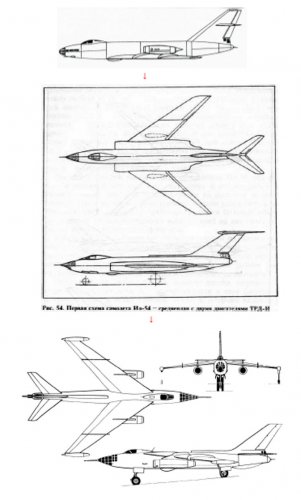

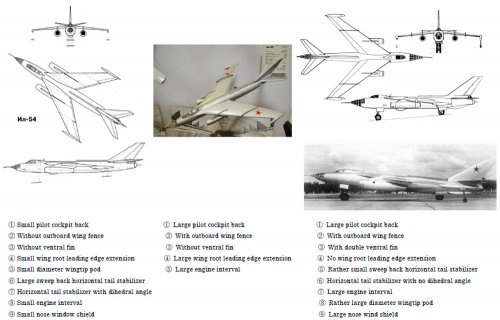

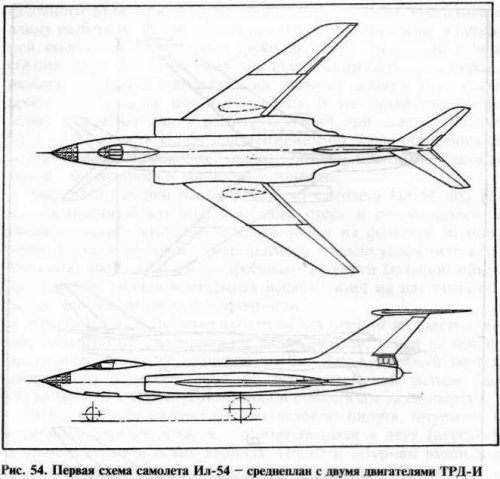

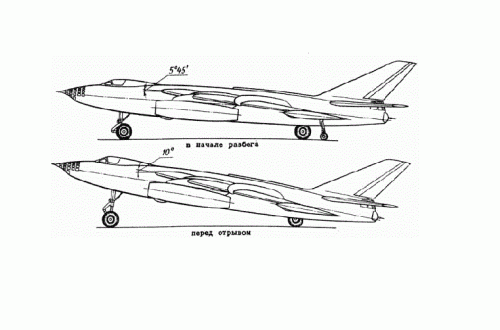

"Option assembly scheme of IL-54 / low-wing / (23,03,1953) with engines TRD-I. Probably the first project with this designation.
IL-54 / midwing / powered by AL-7 dated (16,11,1953)"


Attachments

  • Il-54_evolution.jpg
    107.6 KB · Views: 214

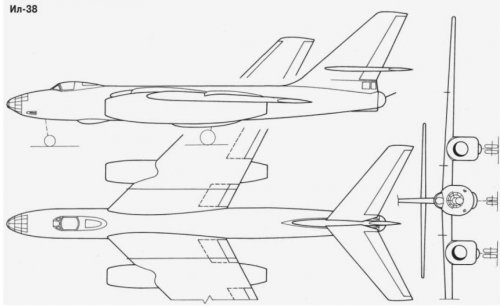

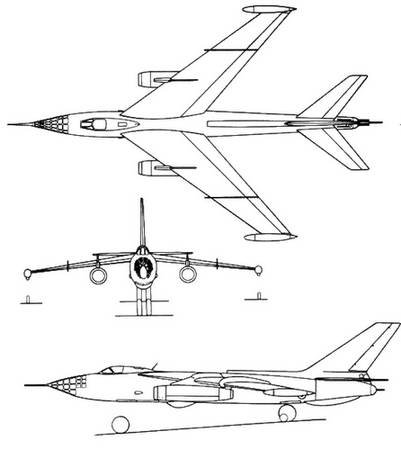

Hi! Il-38 and Il-42.
http://alternathistory.com/proekty-frontovykh-bombardirovshchikov-il-38-i-il-42-sssr
Il-38.
"The experience of creating the IL-30 and operating the IL-28 was taken into account in the development of the design of the IL-38 jet bomber with two turbojet engines TR-3, which was considered as a further development of the IL-30. The new bomber retained the bomb load and the outer forms of the IL-30, but was smaller in size and smaller in weight, with a composition of defensive weapons and with the use of a normal tricycle landing gear.

Il-42 bomber
In accordance with the wishes of the customer and the government decree of July 10, 1950, the design of the IL-38 aircraft was reworked for the installation of engines TP-3A (AL-5) with a take-off thrust of 5000 kgf. With a normal bomb load of 2,000 kg (maximum bomb load of 4,000 kg), the aircraft was to have the same flight range as Il-28, a range of 2,400 kilometers and based on the same airfields as the IL-28. The new aircraft was assigned the designation Il-42, and the OKB began work on producing working drawings and preparing the production for the construction of an experimental machine.

But already in half a year, when more than 50% of the drawings were produced, and the construction of the experimental car began, the customer made a new requirement to increase the flight range by almost half, and the weight of the maximum bomb cargo - by one and a half. This requirement was fixed by a government decree of March 24, 1951, according to which S.V. Ilyushin was obliged to begin factory tests in a year, and in July 1952 to show for state tests an aircraft with the specified flight-technical data. This new aircraft was an experienced front - line bomber Il-46 . "


Il-46
http://aviadejavu.ru/Site/Crafts/Craft33869.htm


Attachments

  • 32-5.jpg
    54.2 KB · Views: 183
  • 32-4.jpg
    47.3 KB · Views: 174
  • 30-3.jpg
    52.8 KB · Views: 166

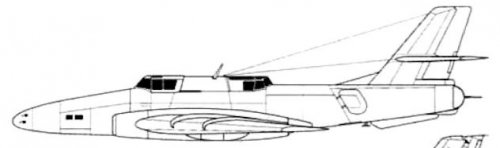

So I have two Il-38 drawings. Landing gear shape is different.
Explanation of top drawing is as follows. http://alternathistory.com/proekty-frontovykh-bombardirovshchikov-il-38-i-il-42-sssr
"At the insistence of SV Ilyushin, IL-38 was carried out in triple. Defensive weapons were the same as Il-28: two HP-23 guns protected the front hemisphere, and the Il-K6 feeder with two HP-23 covered the rear hemisphere. The main support of the chassis was four - under each of the nacelles there were two supports. They had one wheel each and retracted one forward, the other back. At the same time, the wheels were rotated 90 ° and laid flat into the lower part of the nacelle.
The bomber project received a positive evaluation from the customer, who, however, deemed it necessary to improve the aircraft's take-off data by installing more powerful engines."


Attachments

  • Il-38_first-01-680x444.jpg
    23.9 KB · Views: 146
  • 30-3.jpg
    52.8 KB · Views: 184

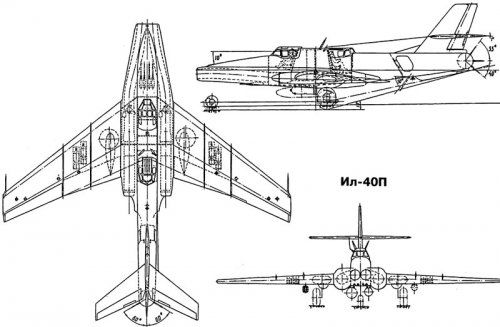

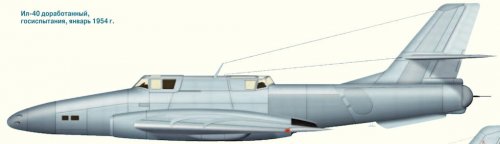

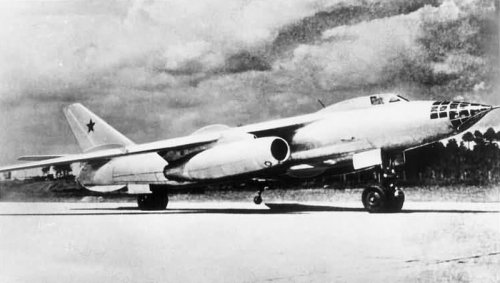

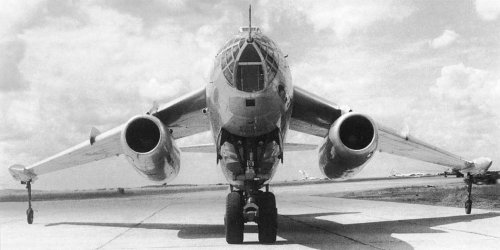

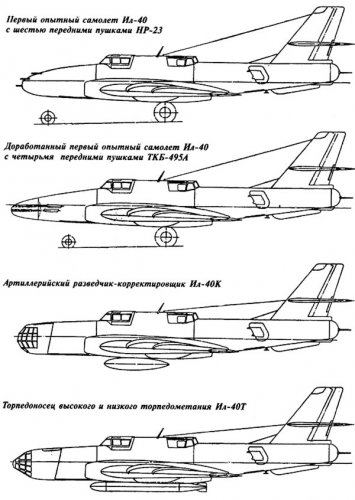

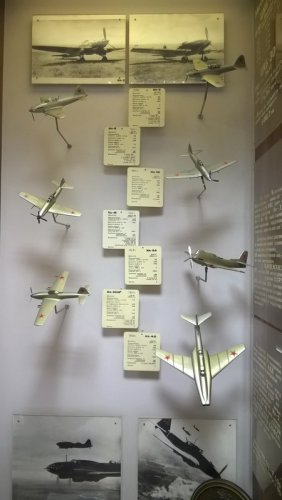

Hi! Il-40.
http://militaryrussia.ru/blog/topic-248.html

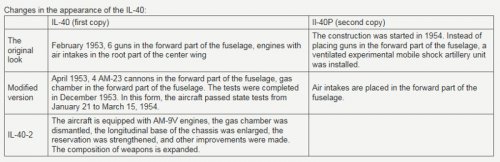

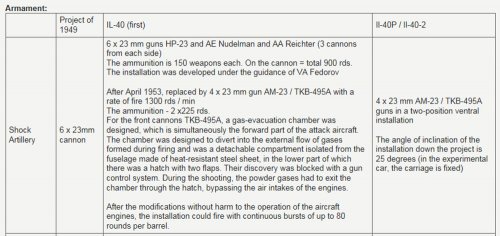

"IL-40 / IL-40P - BRAWNY
Stormtrooper. The proposal for the development of a new Il-40 attack aircraft with TVD-2 (VK-2) was put forward by OKB-240 (OKB SV Ilyushin) at the USSR MAP in the summer of 1949 with the release of a prototype for tests in September 1950. The proposal of OKB- 240 was initially rejected. Later in 1950-1951 gg. On the initiative and under the guidance of SV Ilyushin, the layout of the attack aircraft with two AM-5 turbojet engines was developed. At the end of 1951, a technical proposal for the creation of an attack aircraft was developed. In January 1951 the proposal was presented to the MAP of the USSR. The decision of the Council of Ministers of the USSR on the creation of the aircraft was nevertheless adopted on February 1, 1952 and, since the work on the project was carried out even before the adoption of the resolution, on February 23, 1952, the protection of the draft project was defended. The model of the aircraft was presented to the Air Force Commission in May 1952 and approved.

The first prototype was built in February 1953. Plant tests were started on March 7, 1953 and the first flight was made on March 17, 1953 (pilot - VK Kokkinaki, engineer - APVinogradov). At the end of March 1953, during the test shooting of a ground target at the "Faustovo" test site, the phenomenon of engine stop was observed for salvo firing from nasal guns for the first time. A program has been launched for the development of a gun installation to reduce the effect of propellant gases on the operation of engines. Tests under this program started on April 1, 1953. Based on the test results, it was decided to replace 6 HP-23 cannons with 4 AM-23 / TKB-495A guns of the same caliber, but with a higher rate of fire and place a gas outlet chamber in the nose of the fuselage. The changes were implemented on the first flight prototype Il-40. Later, the design of the gas outlet chamber was refined. The test document, signed by VK Kokkinaki on December 29, 1953, states that with the continuous release of 320 rounds from the bow thruster, there is no engine malfunction.

IL-40P - the second copy of the aircraft with air intakes carried in the bow of the fuselage and a mobile strike artillery installation. Construction started in 1954. (top drawing)

Il-40K is an artillery reconnaissance scout (a prototype was being built). In the forward part of the fuselage a transparent lantern with a cabin of the third member of the crew - navigator-spotter is installed. The navigator's workplace was protected by armor, the front, bottom and side windows of the lantern were made of armor glass. The RD-9V engines had conventional side air intakes, as on the first test car, guns were supposed to be installed in the wing on the site of the wing bombs. The first experimental IL-40K was already under construction - the assembly of the fuselage was finished, when the order for the termination of all work on the Il-40 was received.

Il-40U - training modification (project).

Il-40R - reconnaissance aircraft (project).

Il-40T - torpedo carrier (project). The navigator was located in the forward part of the fuselage with a transparent lantern (similar to Il-40K), which had flat upper and lower windshields for aiming at torpedometanii. The location of RD-9V engines and cannon armament is similar to Il-40K. Work on IL-40T was stopped at the initial design stage. "

"Serial production . Apparently in 1954, at the plant No. 168 in Rostov-on-Don, the first series of 40 aircraft of the IL-40 standard was laid, and later the IL-40P. The first 5 fuselages of serial aircraft are assembled in the pilot production of OKB-240. In 1955 it was planned to put the first 15 aircraft in the Air Force, then in February 1956 the Minister of the USSR MAP wrote that since the state tests were not completed in 1955 and there is no standard airplane model accepted by the Air Force, the first 15 aircraft of the plant series No. 168 in 1955 could not deliver. By the spring of 1956, the first 5 Il-40P tanks were assembled at the plant No. 168, with which they were working on the flight-test aerodrome of the plant. The armored hull for the first serial IL-40 is made of ordinary steel - i.e. These aircraft could only be used for flight crew training. Unexpectedly, by resolution of the Council of Ministers of the USSR of April 13, 1956, the IL-40P aircraft is withdrawn from mass production and work on it is terminated "in connection with equipping the USSR SAS with new types of weapons." The reserve for the Il-40P series at the plant No. 168 has been destroyed. Order of the Minister of Defense of the USSR of April 20, 1956 abolished assault aircraft. "

http://aviadejavu.ru/Site/Crafts/Craft21910.htm


Attachments

  • 35-1.jpg
    42.3 KB · Views: 198
  • 40-1.jpg
    22.2 KB · Views: 177
  • ARMAMENT.jpg
    173 KB · Views: 145
  • ENGINE.jpg
    35.4 KB · Views: 131
  • Changes_in_the_appearance_of_the_IL-40.jpg
    92 KB · Views: 174
  • Aia1n.jpg
    88 KB · Views: 201
  • GL88Z.jpg
    70.1 KB · Views: 200
  • 35-2.jpg
    46.3 KB · Views: 246

Similar threads

Please donate to support the forum.

Back
Top Bottom
