Hi,

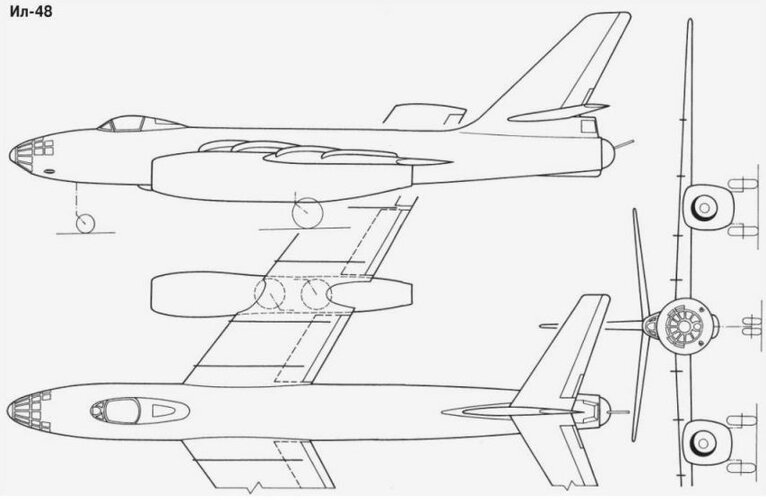

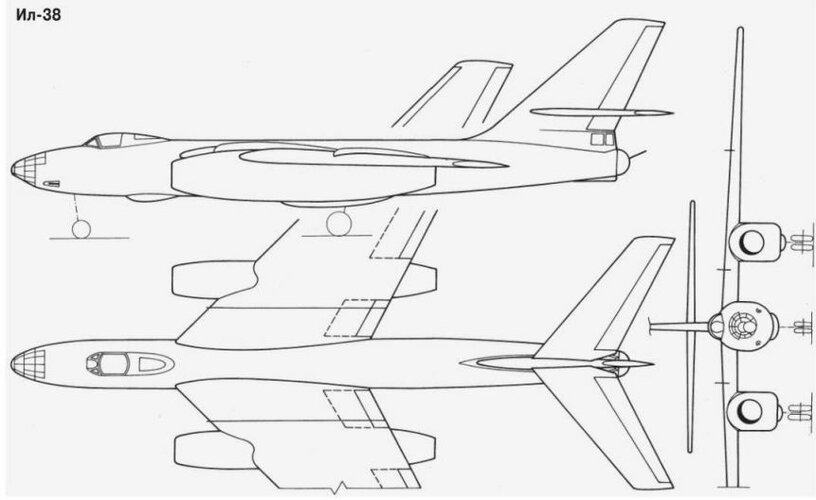

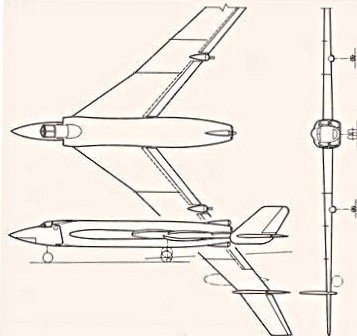

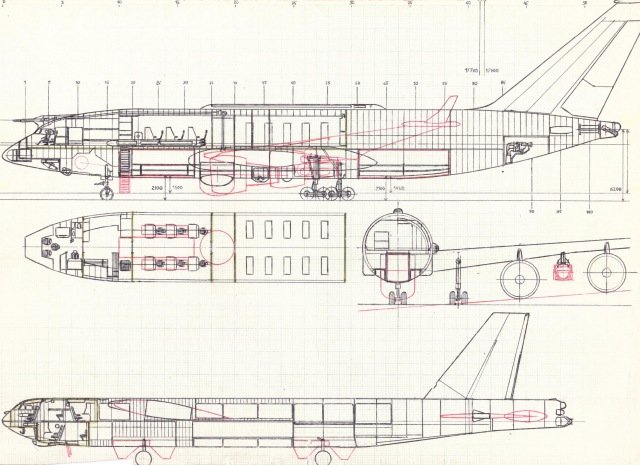

here is a 3-view to Ilyushin Il-36,Il-38,Il-42 and Il-48 Projects.

In Flieger Revue 12-2022,you will find these two drawings exactly,but the problem I
don't remember from where I got them ?.
Diagrams from the magazine "Aviation and Cosmonautics" No. 7 of 2014


Attachments

  • 7_01.jpg
    42.2 KB · Views: 195
From this book.


Attachments

  • 2.png
    143 KB · Views: 139
  • 0.png
    202.3 KB · Views: 163

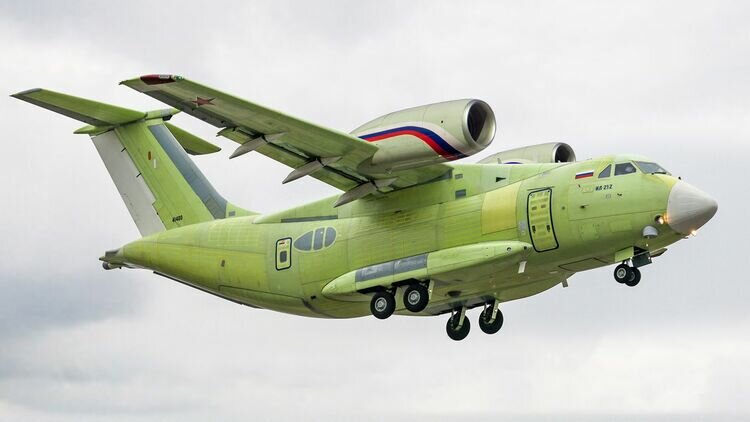

The German magazine Flug Revue reports, that the re-engined Il-212 might have an engine layout for STOL operations, just like its replacement Antonov An-72/74. This attached picture is photoshopped.
Source / Link: https://www.flugrevue.de/militaer/russischer-militaertransporter-aus-der-iljuschin-il-112w-wird-eine-neue-an-72/#amp_tf=Von %1$s&aoh=16975358102881&csi=0&referrer=https://www.google.com&ampshare=https://www.flugrevue.de/militaer/russischer-militaertransporter-aus-der-iljuschin-il-112w-wird-eine-neue-an-72/


Attachments

  • image-bigMobileWideGallery2x-f77467a1-2045012.jpg
    31.7 KB · Views: 128
