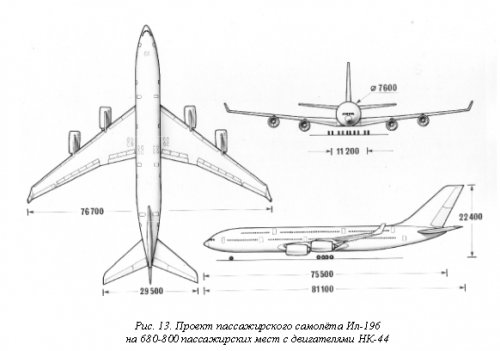

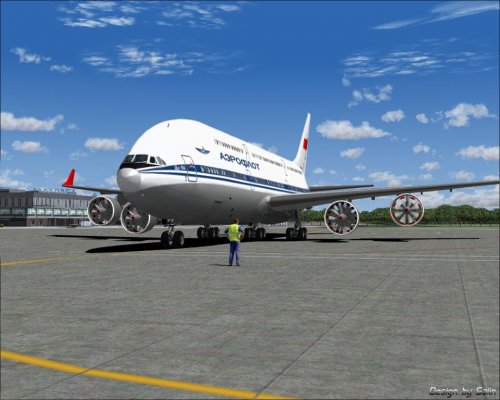

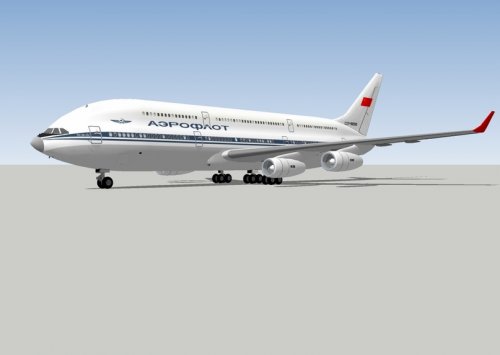

Il-96-550 with NK-93 and PS-90A-20 engines.

Note: Il-96-550 is a medium-range aircraft.


Attachments

  • il-96-550.jpg
    92.8 KB · Views: 401
  • il-96-550-1.jpg
    37.5 KB · Views: 395
Hi,


here is the Russian new AWACS aircraft,the Ilyushin/Alexeyev A-100,intended to appear in 2016.


Attachments

  • A-100.jpg
    81.4 KB · Views: 302
That is not A-100, atleast certainly not in its current form.

flanker said:
That is not A-100, atleast certainly not in its current form.


Hi Flanker,


but they called it Il-476 or A-100 ?.

hesham said:
but they called it Il-476 or A-100 ?.

The A-100 Premier (А-100 «Премьер») is an airborne warning and control system based on the Il-476 with PS-90A engines, with delivery to Russian Air Force scheduled to begin in 2016. It is indeed the aircraft depicted by stashandr.

An A-100E version (А-100Э) has also been quoted, but I do not know the details thereof.

I had both listed under Beriev. Is there evidence that these would be done by Alexeyev, as hesham suggested?

E=Export version
there's no Alekseyev bureau for ages
both are TANTK Beriev

flateric said:
E=Export version
there's no Alekseyev bureau for ages
both are TANTK Beriev


Thank you my dear Flateric,,and I read it on Internet before,but I don't know it was a mistake.

Hi,


the Il-96 was early development of convertible passenger/cargo aircraft project ,based on Il-76,later
re-allocated to airliner aircraft,has anyone a drawing to it ?.

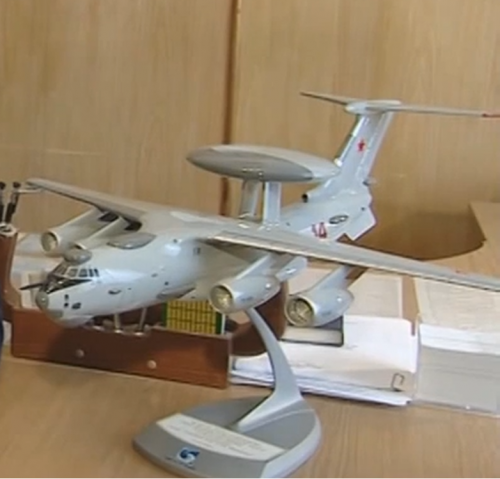

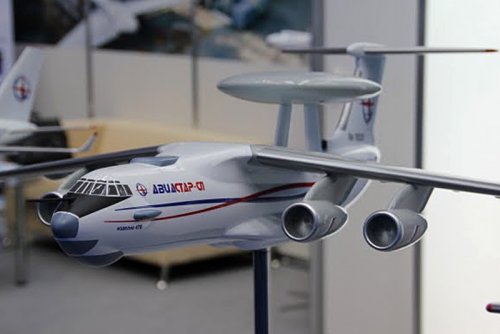

In the latest issue of Air International, June 2014, there are two pictures at page 51 showing first a model of the Beriev A-100 AWACS and second an impression of the Beriev A-60M laser-gun derivative under development.

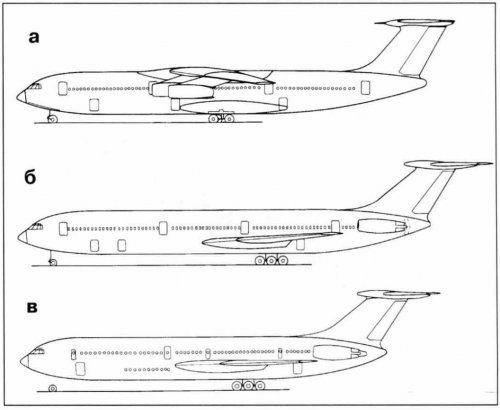

First variants of IL - 86 a) on the basis of the Il-76. two other schemes on the basis of the Il-62. In addition, the project goes back to January 1967 Airbus Il -76 for 250 passengers. from the book: Yu.Egorov ". The aircraft design Bureau Ilyushin"

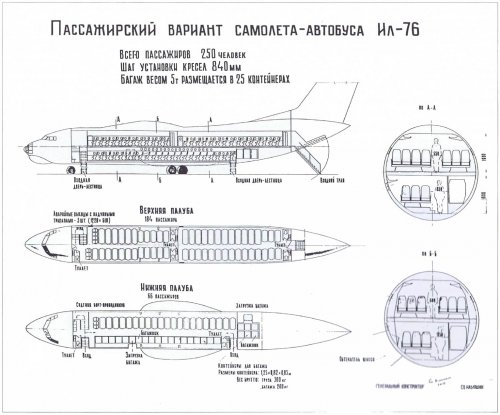

the Il-96 was early development of convertible passenger/cargo aircraft project ,based on Il-76,later[/size]re-allocated to airliner aircraft,has anyone a drawing to it ?.


Attachments

  • pre Il-86.jpg
    pre Il-86.jpg
    75.2 KB · Views: 723
  • Il-76 P.jpg
    Il-76 P.jpg
    197.2 KB · Views: 701
Excellent my dear Borovik,many thanks.

Hi!

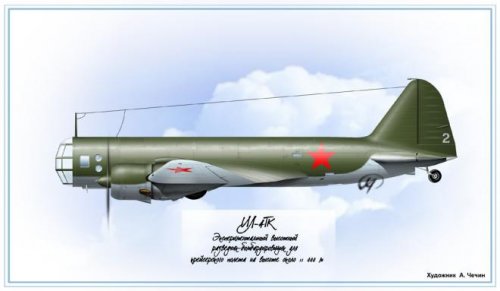

Heres the Il-4 TK high altitude version of this well known bomber.

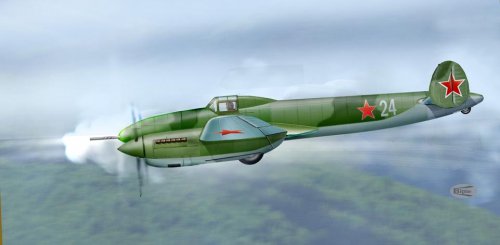

And a shturmovik project IL-60.

Regards
Athpilot


Attachments

  • IL-60 art.jpg.jpeg
    IL-60 art.jpg.jpeg
    33 KB · Views: 380
  • il4tk_aviationartprofile_0-660x383.JPG
    25.9 KB · Views: 502
Thank you Athpilot,


but I think you meant Il-6,and not Il-60.

My dear maveric,


the ZKB.60 was also called Il-6.

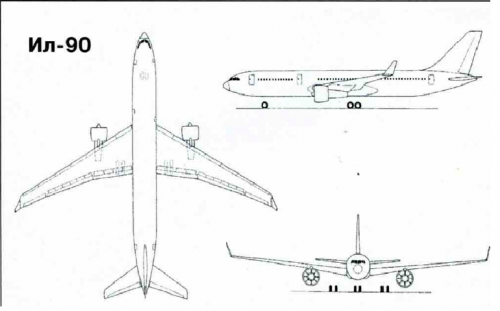

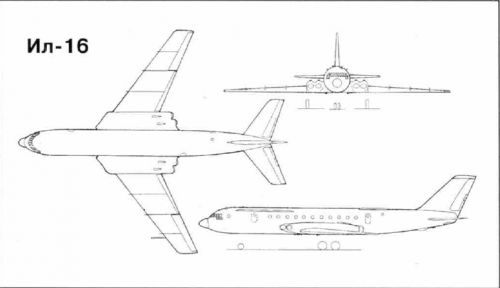

Here is a 3-view to Ilyushin Il-16 and Il-90 airliner projects.


Attachments

  • Il-16.png
    76.8 KB · Views: 1,216
  • Il-90.png
    105.5 KB · Views: 1,201

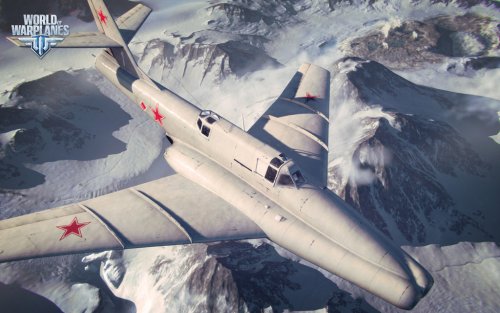

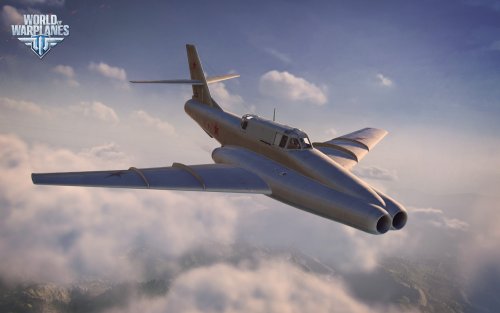

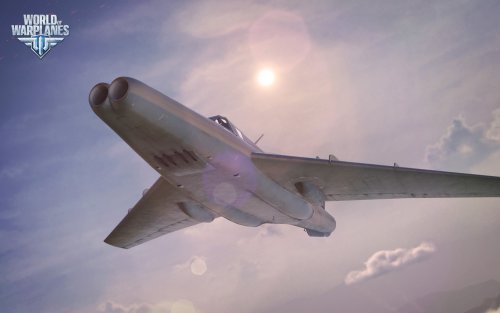

Here are some nice IL-40 artworks by world of warplanes. very nice.


Attachments

  • IL.jpg
    173 KB · Views: 1,152
  • IL_05.jpg
    160.9 KB · Views: 1,093
hesham said:
Here is a 3-view to Ilyushin Il-16 airliner projects.

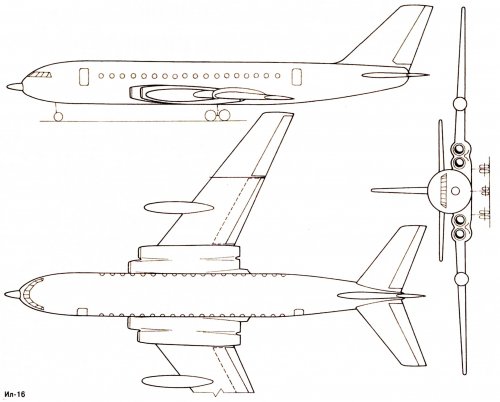

Another iteration of the airliner IL-16 (project 1954)


Attachments

  • Il-16 (1954).jpg
    Il-16 (1954).jpg
    171.7 KB · Views: 1,008
Nothing concrete regarding the configuration of the nose.,
only guesses, inclined to the first version, that is just radome.

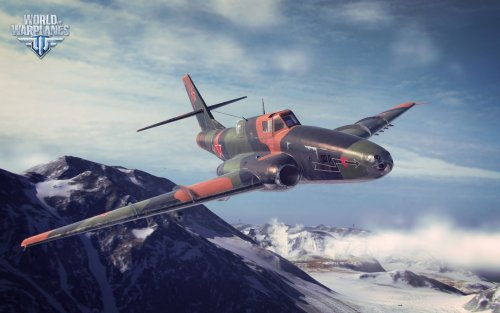

Some more nice IL-40 artworks by world of warplanes. Enjoy


Attachments

  • il-40p.jpg
    236.4 KB · Views: 345
  • il40p.jpg
    209.3 KB · Views: 297
These splendid pics almost make that ugly beast look good! ;D

hesham said:
here is a three different versions of Il-64,am I right ?.

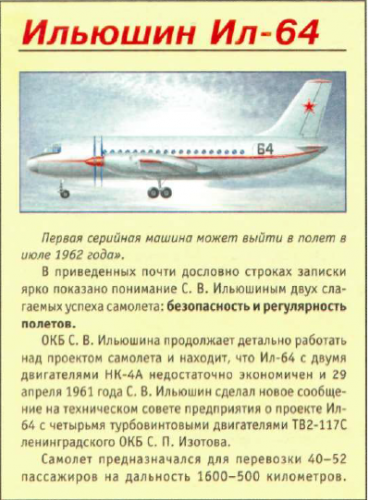

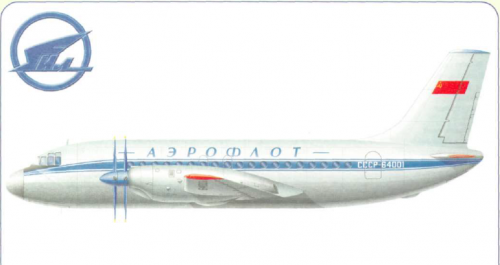

Also from Kryl'ya Rodine 8/2003,


the Ilyushin Il-64.


Attachments

  • 1.png
    366.6 KB · Views: 216
  • 2.png
    207.6 KB · Views: 229
  • 3.png
    215.3 KB · Views: 256
Hi,

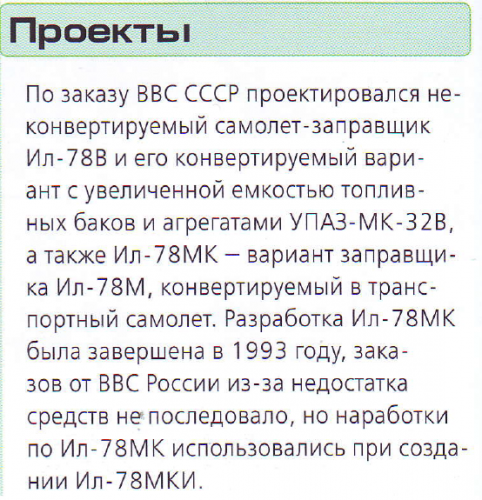

in a Russian book about Ilyushin Il-78,I found one unknown aircraft and some projects,
for the unknown design, Il-783 and maybe they meant Il-78Z,also little known projects,
what was them ?.


Legendarniye 106


Attachments

  • a.png
    325.9 KB · Views: 159
  • b.png
    410.8 KB · Views: 164

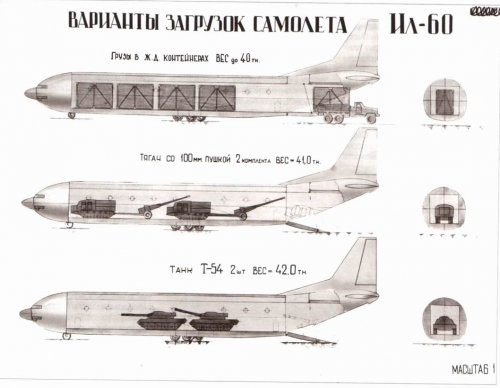

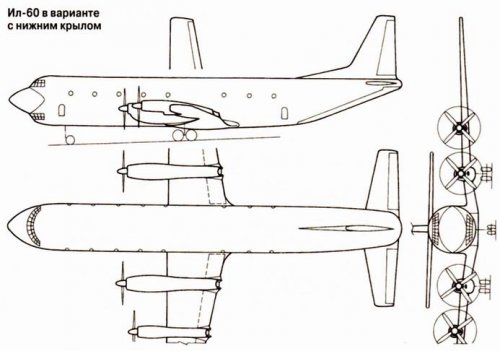

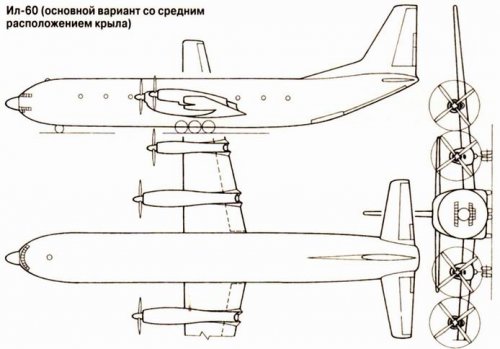

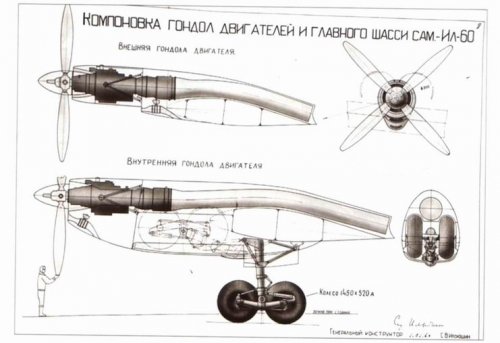

Il-60 (02.1960)
Heavy military transport powered by four 8,500-9,500 -ehp turboprops.
MTOW -129,2t.
Its pressurised cargo hold measured 4,0 x 4,0 m in cross-section, had a length of 30 m
(98 ft 5 in) and featured a rear cargo hatch closed by a loading ramp and a three-section
door. The IL-60 was intended for transporting cargoes with a total weight of up to
40 tonnes (88,190 Ib) over a distance of 3,600 km (2,237 miles)according to other sources 4130 km); with a 10-tonne (22,045-lb) payload its range was 8,700 km (5,407 miles) or 400 soldiers with equipment..
Competitors:
KB - Antonov - VT-22 (which eventually emerged as the An-22).
KB - Beriev - Be-16
KB - Tupolev - Tu-115.
KB - Myasischev - M-26 (the second with this designation)
pictures via E.Chernikov "On the 120th anniversary of S.Ilyushin,


Attachments

  • Resize of Il-60 a.jpg
    Resize of Il-60 a.jpg
    45.2 KB · Views: 1,369
  • Resize of Il-60 e-.jpg
    Resize of Il-60 e-.jpg
    55.3 KB · Views: 1,390
  • Resize of Il-60 s.jpg
    Resize of Il-60 s.jpg
    80.6 KB · Views: 1,431
  • Resize of Il-60-.jpg
    Resize of Il-60-.jpg
    40.1 KB · Views: 1,449
  • Resize of Il-60 (low-wing).jpg
    Resize of Il-60 (low-wing).jpg
    36.6 KB · Views: 1,450
Hi,

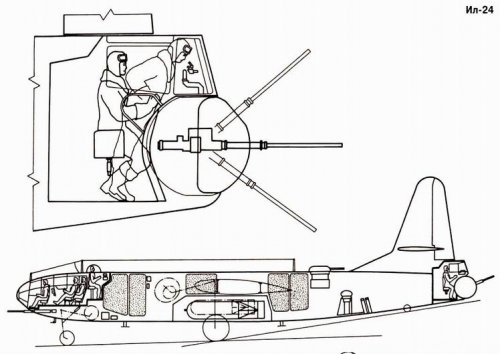

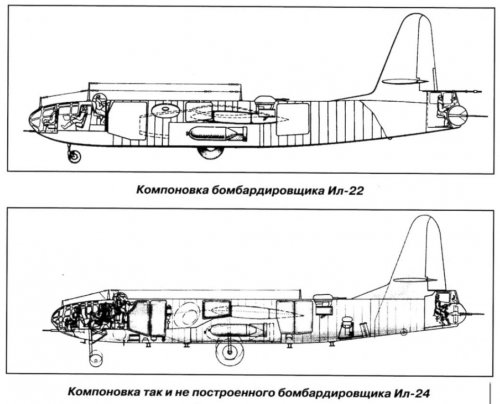

here is a darwings to Ilyushin Il-22 & Il-24 in details.


Attachments

  • Ilyushin.JPG
    87.1 KB · Views: 380
hesham said:
in a Russian book about Ilyushin Il-78,I found one unknown aircraft and some projects,
for the unknown design, Il-783 and maybe they meant Il-78Z

Not a "three", not a "zee", but an "E"...

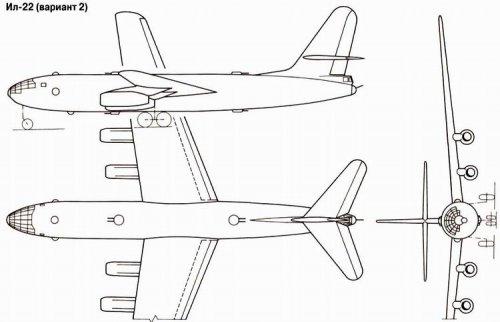

One of the little known iterations of Il-22 with FSW


Attachments

  • Il-22 (2)FSW.jpg
    Il-22 (2)FSW.jpg
    38.2 KB · Views: 349
  • Resize of IL-24.jpg
    Resize of IL-24.jpg
    53.5 KB · Views: 362
