Westland Whirlwind Variants and Projects

[kitnut617]

In an Air-Britain AeroMilitaria article some years ago on the Welkin, it said it was first referred as 'The Whirlwind Development Fighter'



[HoHun]

Hi JFC,

I have been meaning to post this for a while. This is the proposed fuel layout for the Whirlwind Mk.II which as the document makes clear was substantially improved over the Mk.I. I would also note that this is also not the final configuration, that had a further revised nose with the 25 gallon tank replaced with a 30 gallon tank so the total in that case would have been 199 gallons.

Thanks a lot, that's a very interesting diagram!

It's worth noting that the values used for range calculation assume a consumption of about 94 imperial gallons per hour for "action" and patrolling at 310 mph, while the Pilot's Notes for the type state it consumes 115 imperial gallons per hour at maximum cruise power (rich), and 151 imperial gallons per hour at "all-out level", which probably would be the preferred power setting for combat.

The Pilot's Notes might include a safety margin in their consumption figures, but I guess you'd want to have that same safety margin in your range and endurance calculations when assessing the tactical suitability of the type ...

Regards,

Henning (HoHun)



[HoHun]

Hi again,

So, I'd say this guy behind DAWA has identified an interesting aspect of Whirlwind performance, and maybe one where the propeller the series-production Whirlwinds received did in fact harm the type's performance, but my preliminary impression is that the detailed reasons for this are probably not reflected perfectly accurately on the DAWA page.

I just noticed that there's a new article up on the same topic available on the (re-launched, it seems) Whirlwind project page:

When the Wind Won't Whirl - or the real reason the Whirlwind suffered at height. - WFP

The Whirlwind was said to have been let down by its engines. This never added up to the WFP's Matt Bearman and in an article originally published in The Aviation Historian quarterly Matt unearths some surprising facts,

www.whirlwindfp.org

It seems to be a more conventional explanation this time around, though I'm not entirely sure of this as the use of the term "hunting" and the mention of an "intermittently windmilling" propeller sound a bit odd to me:

Furthermore, wildly varying dynamic pressures would be passed into the ram-air intakes, which sit immediately behind the blades.8 The system becomes what a physicist would call “chaotic”. The intermittently windmilling prop produces fluctuating boost pressures on top of reduced r.p.m.

However, there's a footnote reference though the website shows no footnote reference, so maybe that's just a poorly worded summary of something that actually makes more sense.

There's also an interesting visitor comment below the article:

Richard Turner
10/11/2023 04:08 PM

A recent exchange of letters published in "Aeroplane" magazine also referred to a whirlwind that was returned to Rolls Royce in an attempt to improve the power of the peregrine engines. Rolls Royce found that the air intakes to the engines were too small and followed a convoluted path , they modified the aircraft sent to them and gained a considerable increase in power. Apparently the modifications were dismissed by Westland because Rolls Royce were just car engine people and knew nothing about aeroplane construction.

That's a bit like what Stanley Hooker of Rolls-Royce also diagnosed for the Spitfire intake, I believe. I also read that Jiro Horikoshi found a similar intake problem as the cause of the A6M3's disappointing performance at altitude, which was cured with a redesigned intake of increased size.

Regards,

Henning (HoHun)



[_Del_]

It seems to be a more conventional explanation this time around, though I'm not entirely sure of this as the use of the term "hunting" and the mention of an "intermittently windmilling" propeller sound a bit odd to me:

Usually used in the context of a transmission. I had an old Chevy with automatic transmission that would "hunt" right about 35mph. Couldn't decide which gear it wanted, and would cycle between them seemingly endlessly until you added speed or slowed to make the decision easier on it.

Here he's talking about the constant-speed unit on a variable-pitch prop. When you get drag on the props, the shaft speed starts to slow because drag increases torque. A governor will tell the prop pitch control unit to get finer to lower the drag so the rpm does not drop.

So after a quick scan of the section, I'd summarize it by saying, they were getting into a drag regime it (the CSU) wasn't designed for. The author doesn't do a good job of explaining how a CSU works, and might be conflating a few things in the section (he mentions shockwaves across the prop surface blanking it, severely affecting thrust negatively, but that doesn't have much to do with the CSU -- just the drag).

Drag increases as a square to velocity. Here we seem to have found a transonic regime where that CSU "hunts".

The CSU can usually be set to different settings, trading RPM for efficiency. But within some varience, it is given a best rpm for the engine health, and it tries to keep it.
The way it can do that is by fining the prop or increasing the bite to keep the shaft at a constant speed. More drag means more torque, which will slow the shaft speed. Less drag, less torque, and the shaft can spin more freely. There is a governor wants the shaft to stay at constant speed. Changing the bite is essentially how it is done.

Here the PCU is taking the blade to minimums, hence windmilling -- ie, not creating thrust, flat to the incoming flow -- to keep the governor happy with the shaft speed -- because transonic flow is creating too much drag on the prop. Less bite, less drag says the PCU, and it takes it all the way to flat. If it goes flat, no thrust is produced.
No thrust, slower speed, less drag, results in a faster shaft. Well, the CSU quickly says, hey, too much shaft speed and the PCU changes the pitch for more bite.

So the CSU system is caught in a cycle "hunting" for the appropriate blade pitch for that flight regime and RPM setting. Sometimes getting no thrust (intermittent windmilling), sometimes getting small bite which is low thrust. Neither situation good for high-speed flight.

TL;DR -- Basically too much drag at high speed increasing torque at whatever specific velocity to hold the RPM they designed the CSU to hold in the highest healthy RPM setting.



[HoHun]

Hi Del,

Less bite, less drag says the PCU, and it takes it all the way to flat. If it goes flat, no thrust is produced.
No thrust, slower speed, less drag, results in a faster shaft.

Well, I mostly agree with your description, but the act of the aircraft slowing down is comparatively slow while the pitch change is quite rapid, so I don't think that the cycle you describe would appropriately be described as "hunting", and with the engine running at full speed the entire time, there wouldn't be any boost pressure fluctations either.

Considering that there's often some kind of hysteresis effect to compressiblity phenomenons, maybe that could induce actual hunting? The propeller speeds up, increases pitch, the critical Mach number drops, drag increases in a leap, the propeller slows down, drag decreases but stays high, propeller decreases pitch and slows down further, suddenly angle of attack decreases critical Mach number below the lower hysteresis threshold, drag decreases in a leap, propeller speeds up, cycle repeats.

Problem with that is that's not going to be the entire propeller that undergoes the sudden drag rise, as local angle of attack and Mach number are different everywhere along the radius. And if the process is more gradual, the leap is averaged out, so I'm skeptical it could happen like that in practice. (And no boost pressure fluctuations with my explanation, either.)

What do you think?

Regards,

Henning (HoHun)



[_Del_]

Well, I mostly agree with your description, but the act of the aircraft slowing down is comparatively slow while the pitch change is quite rapid, so I don't think that the cycle you describe would appropriately be described as "hunting", and with the engine running at full speed the entire time, there wouldn't be any boost pressure fluctations either

Drag is going to change instantaneously as the bite changes across the entire prop because the bite/thrust/"lift"(if you will) creates it's own drag.
Wherever the flow is supersonic locally, you'll see a massive change in the drag. And that change can be quite sudden. The whole flow does not need to be supersonic, just small areas of the local flow.
It will onset at the tips because the tip has the fastest rotational velocity (and there is small spanwise flow, like a wing). That's why you see thin, swept tips these days on high performance props.
Shockwaves, sudden significant drag, sudden significant less thrust. Slightly lower speed, no shockwaves, much more thrust, much less drag.

Problem with that is that's not going to be the entire propeller that undergoes the sudden drag rise, as local angle of attack and Mach number are different everywhere along the radius

Yes, but also the tip has the fastest rotational speed. If the propeller tip reaches the critical mach number for it's airfoil, massive drag, massive thrust loss with the shockwave. Not sure how the rest of the slower prop evens that out. And we seem to be in an area of performance where the critical number is creeping up the span of the blades. The main airfoil is curved less aggressively across the middle. If you get supersonic flow across that, you could have a large section affected fairly rapidly

I have no idea about the boost pressure fluctuations he talks about. Could there have been shockwaves impinging on the intake from the props? Shockwaves with sudden onset and then disappearing as the PCU dances trying to keep the governor happy? Would definitely affect pressure through the inlet.



[Schneiderman]

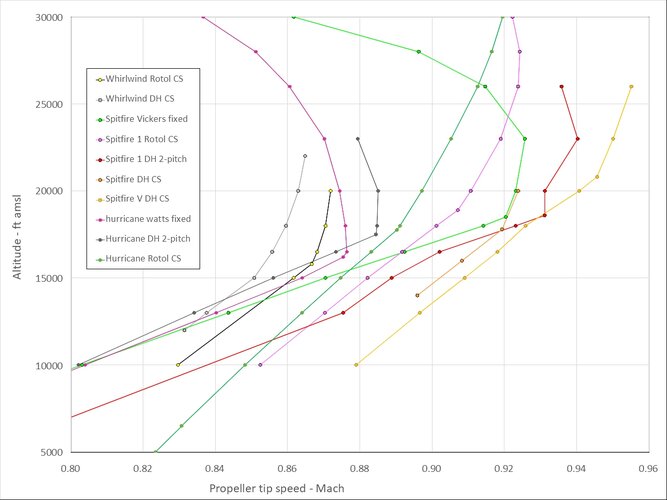

Compiling data from official flight test reports I came up with this........



[HoHun]

Hi,

Compiling data from official flight test reports I came up with this........View attachment 748290

Quite interesting. With regard to the interpretation, it's a bit difficult to tell Mach-related effects apart from power-related aspects. The latter of course mostly consist of boost pressure dropping off above full throttle height, but at least for the fixed-pitch propellers, RPM would probably also vary with altitude.

Would it be possible to add this to the diagram?

In any case, it looks like the Rotol was operating at the lower end of the range, compared to the Hurricane and Spitfire.

Where's the Whirlwind data from? Usually, all the good stuff is on Mike William's wwiiperformance.com, but it looks like he hasn't covered the Whirlwind

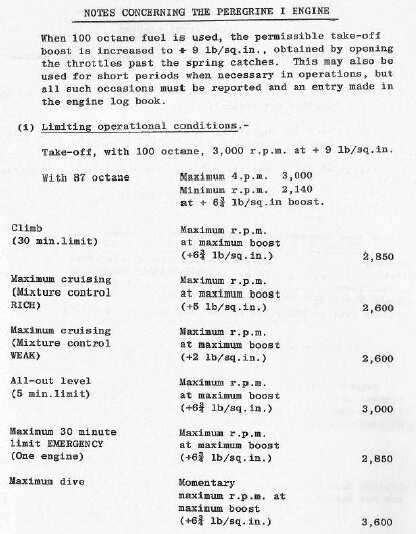

From the Pilot's Notes for the type, it seems that the "All-out level" rating was 3000 rpm, +5 3/4 lbs/sqin [though 5 and 6 look almost the same on the poor scan I have, and there's another, more general limit statement that I'd read as "+6 3/4 lbs/sqin"], but the Pilot's Notes also state that with 100 octane fuel, it was permissible to use up to 3000 rpm/+9 lbs/sqin "for short periods when necessary in operations".

Regards,

Henning (HoHun)



[Schneiderman]

The Whirly data came from the guy that came up with the theory regarding the prop being the at the heart of the performance issues. He obtained them from The National Archive at Kew. Personally I doubted his conclusions and wished to check against other aircraft of that era.
Unfortunately I only put the height, speed and rev data into the spreadsheet, along with gear ratio and prop diameter, and omitted boost. I'll see if I can add that.
Personally I have always considered the air intake configuration to be the more likely culprit.



[Dagger]

From the Pilot's Notes for the type, it seems that the "All-out level" rating was 3000 rpm, +5 3/4 lbs/sqin [though 5 and 6 look almost the same on the poor scan I have, and there's another, more general limit statement that I'd read as "+6 3/4 lbs/sqin"], but the Pilot's Notes also state that with 100 octane fuel, it was permissible to use up to 3000 rpm/+9 lbs/sqin "for short periods when necessary in operations".



[Schneiderman]

Hi,

Would it be possible to add this to the diagram?

Regards,

Henning (HoHun)

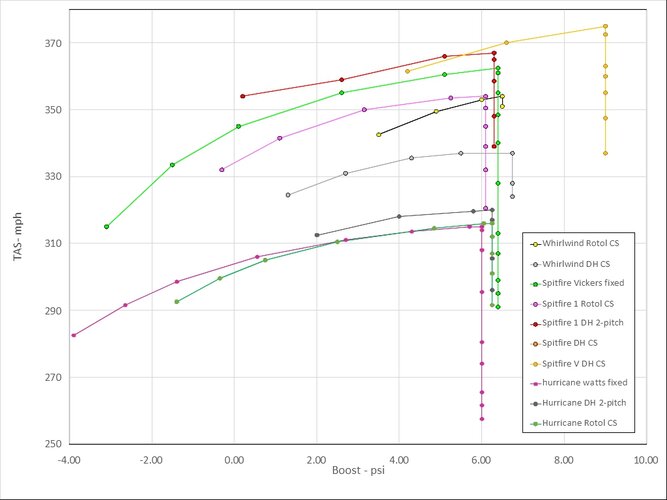

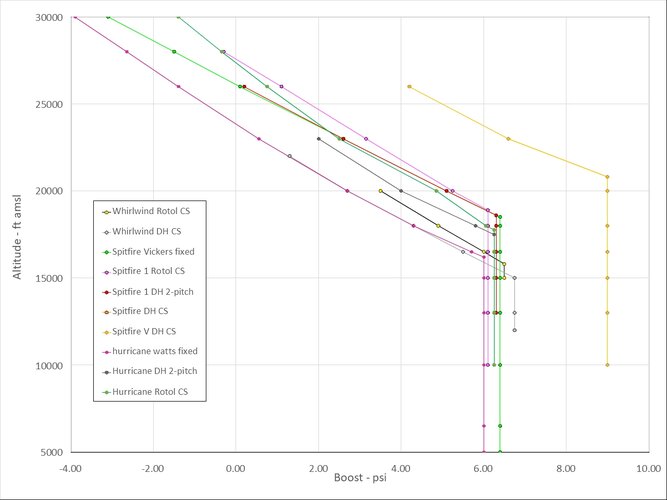

Well, this is what I could add. One plot Altitude v Boost, the other TAS v Boost.
