hesham said:
Also from my files,until I remember the source,

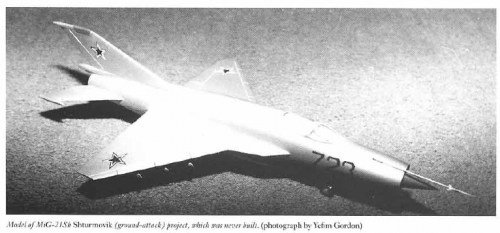

MiG Aircraft-723 was a project for MiG-21bis with increased wingspan and 6 underwing
suspension units.
See Reply #23

Also in my files;

the MiG-21M was re-allocated to a side air intakes VTOL aircraft project,with lift
engines ?.

In my files,

The MiG I-7K was a project developed from I-7U,with different radar.

Hi,

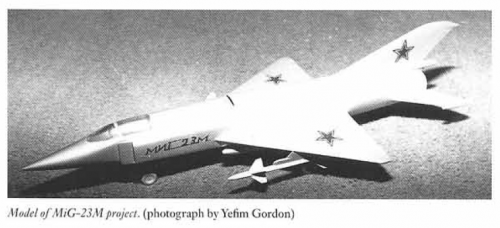

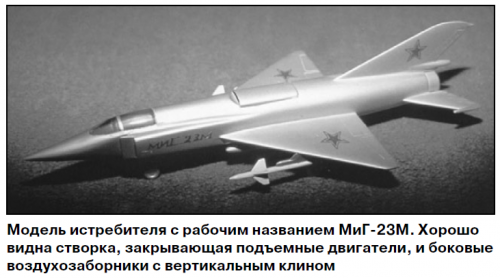

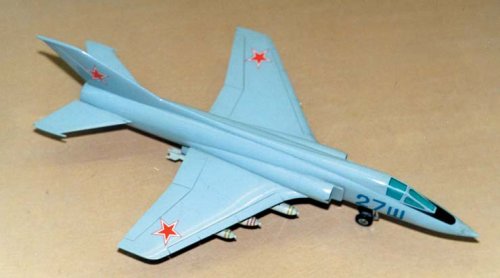

here is the MiG-23M STOL aircraft project Model.


Attachments

  • MiG-23M.png
    270.3 KB · Views: 1,674
I can't translate well,

is it a MiG Aircraft-721 ?.

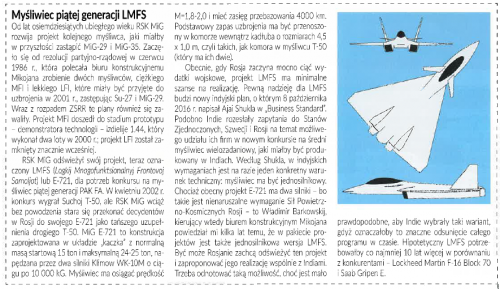

Lotnictwo AI 2016-11


Attachments

  • 1  Lotnictwo 2016-11.png
    1 Lotnictwo 2016-11.png
    155.6 KB · Views: 1,383
  • a.png
    198.9 KB · Views: 1,361

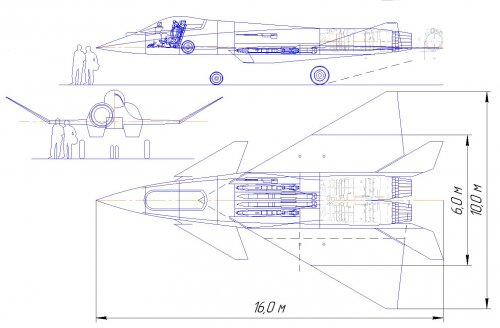

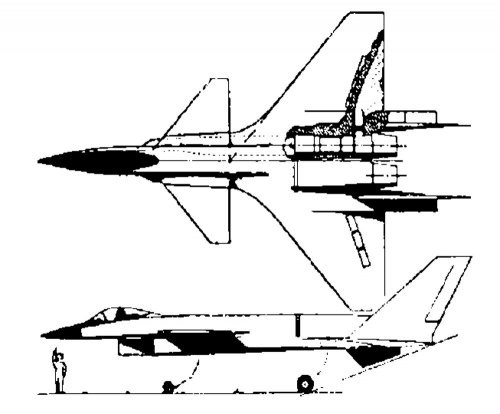

Hi! 1.42 early design? Early design had BLC jet flap?

Source
http://www.paralay.com/mfi.html

And
http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http%3A%2F%2Fwww.hitechweb.genezis.eu%2FfightersSF02.htm&sandbox=1

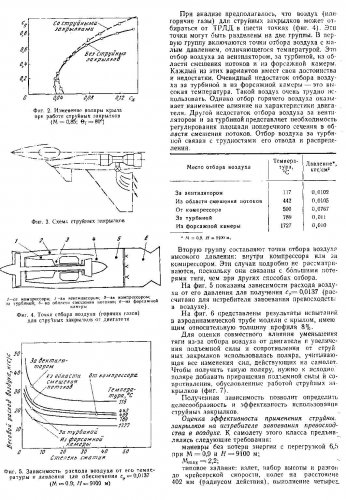

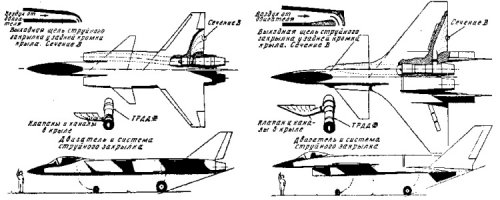

"1:42 MiG MFI / MiG-39 ...

Engineers also considering the use of jet aileron. In the first case, the function should take the compressed air from the high pressure compressor motor and distribute along the wing trailing edge. An alternative variant was hot while collecting exhaust gas outlet chamber of the afterburner. Such a solution would entail a significant increase buoyancy produced (for example, usable during takeoff), effective maneuverability."

"As work progresses on the prototype slowly rozbiehala 1.44 and 1.42 in the production version of the standard design, but all work has stopped. Everything in fact went to the inevitable end, which many people have long been predicted - the Soviet Union fell apart. In terms of the MFI program at that time it was a considerable preparatory stage prototype and 1:44 also have been done two fuselage sections of the standard design 1:42 from the main landing gear legs jets after engine cover plus some parts of the wings."


Attachments

  • MiG_MFI_early_1.jpg
    84.4 KB · Views: 1,397
  • MiG_MFI_proposals.jpg
    89.1 KB · Views: 1,380
  • Perhaps 1.42 early design pic2.jpg
    Perhaps 1.42 early design pic2.jpg
    62.2 KB · Views: 1,391

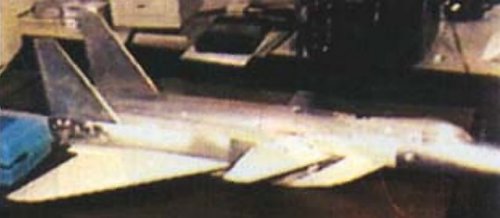

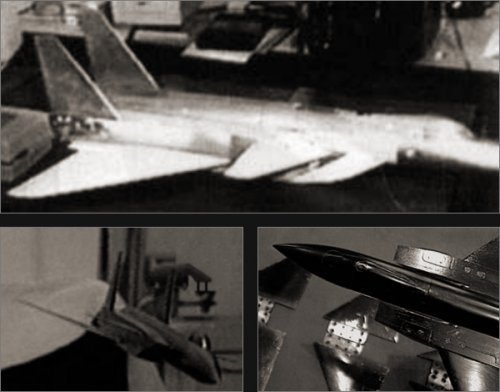

  • Perhaps 1.42 early design wind tunnel test model.jpg
    Perhaps 1.42 early design wind tunnel test model.jpg
    31.2 KB · Views: 1,375

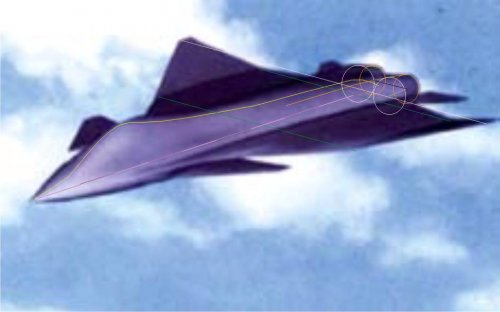

  • Perhaps 1.42 early design pic1.jpg
    Perhaps 1.42 early design pic1.jpg
    56.8 KB · Views: 1,399

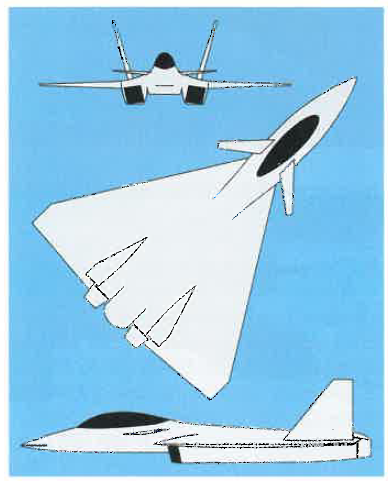

3 views surely not. They are even not Soviet designs


Attachments

  • 56130_65855653_05.jpg
    322.3 KB · Views: 312
  • 56130_42335774_04.jpg
    276.7 KB · Views: 272
  • 56130_53881890_03.jpg
    314.6 KB · Views: 237
  • 56130_49391729_02.jpg
    340.9 KB · Views: 236
  • 56130_395133799_01.jpg
    359 KB · Views: 281
A hypothetical designs,was that right my dear Flateric ?.

Hesham, I don't know what 'hypotetical design' means for you.

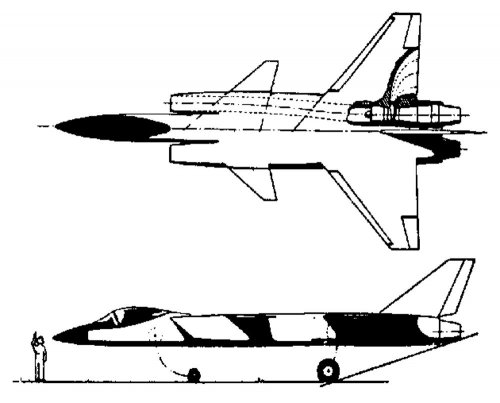

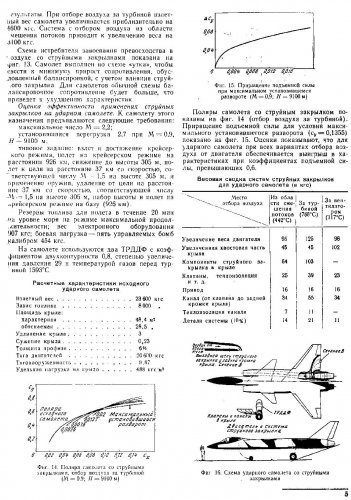

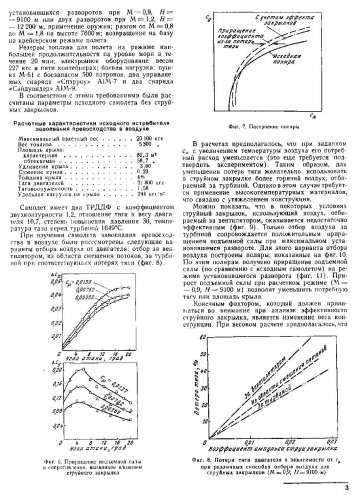

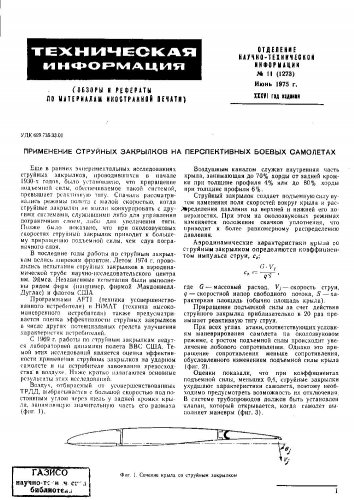

These are Air Force AFDL sponsored studies made by McDonnell Douglas at NASA Ames in 1969-1974 timeframe.

I hope this is the last time they pop-up in MiG MFI topic again (and we have own MiG MFI topic here, Blackie).

Thank you my dear Flateric,

I just want explanation,now I remember,and I think I have this report.

In my files,

the MiG Ye.8 was projected to carry TsD-30TP radar and K-13 missiles,remained a Project and maybe
called Ye.8-3

Also until remeber the source;

the MiG-15 had a version with remote-controlled,remained a Project only,maybe intended
for test ?.

hesham said:
Also until remeber the source;

the MiG-15 had a version with remote-controlled,remained a Project only,maybe intended
for test ?.

Sorry hesham, I don't know anything about your 'MiG-15 with remote-controlled weapons system; but I do know of the MiG-17SN

Regards
Pioneer


Attachments

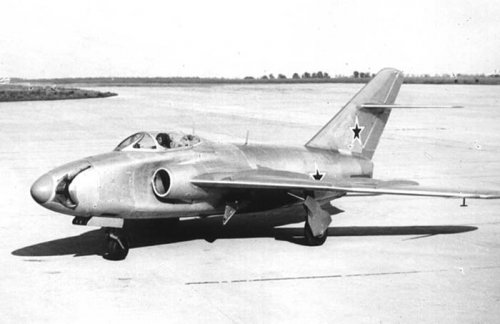

  • MiG-17SN.jpg
    27.8 KB · Views: 315

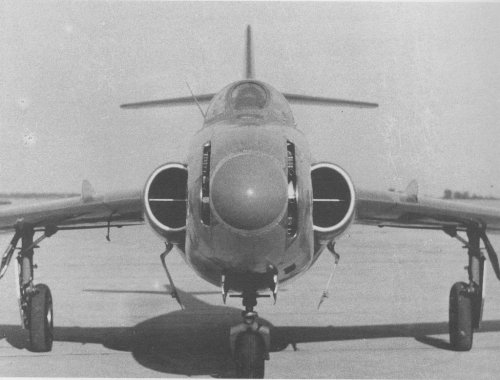

  • MiG-17SN (head-on).jpg
    MiG-17SN (head-on).jpg
    134.9 KB · Views: 329
  • Drawing of MiG-17SN.jpg
    Drawing of MiG-17SN.jpg
    8.9 KB · Views: 372
Thank you my dear Pioneer,but my memory is not good this days,

also in my files,until remember the source,The MiG-19 had a Project for ship board fighter,
no more details are known ?.

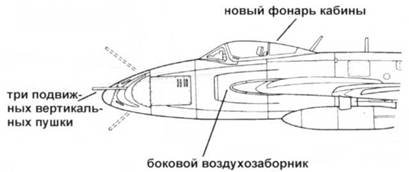

Hi,

I don't know if that's Info was real or not,there was a developed version of MiG-21
with side intakes and lift engines as a VTOL Project ?.

dan_inbox said:
Hesham, maybe you are thinking of Ye-7 aka изделие (izdeliye) 23-01.
Check out the site http://www.tailsthroughtime.com/2010/11/experimental-stol-variant-of-mig-23.html

No my dear Dan,

I know this aircraft very well,it's actually built by 1967,but what I meant; was a ground
attack Project from 1969/70 as I remember,and maybe its configuration was a mixed between
those designs ?.


Attachments

  • 1.png
    242.6 KB · Views: 407
  • 2.jpg
    44 KB · Views: 436
Pioneer said:
hesham said:
Also until remeber the source;

the MiG-15 had a version with remote-controlled,remained a Project only,maybe intended
for test ?.

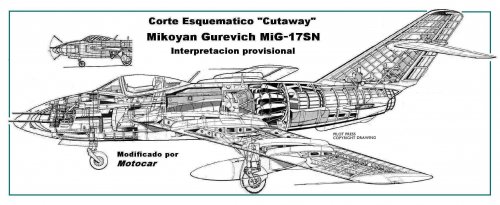

Sorry hesham, I don't know anything about your 'MiG-15 with remote-controlled weapons system; but I do know of the MiG-17SN

The cutaway speculative MiG-17SN modified by Motocar

Regards
Pioneer


Attachments

  • Cutaway MiG-17SN Ok.jpg
    Cutaway MiG-17SN Ok.jpg
    365.9 KB · Views: 1,920

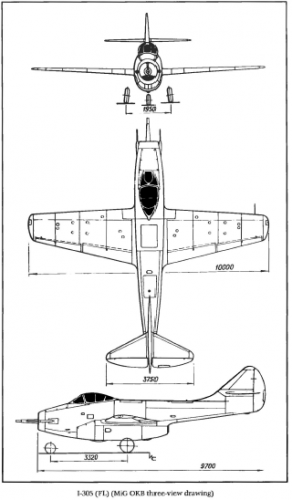

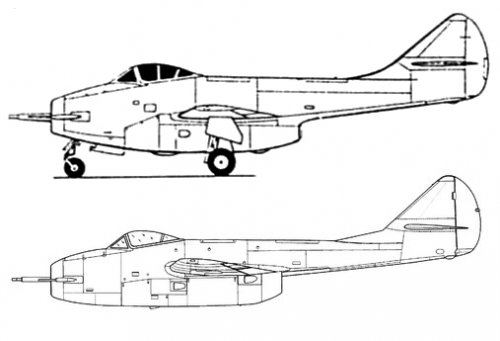

I-305
Which is the right drawing?


Attachments

  • mikoyan-gurevich-i-305.jpg
    67.3 KB · Views: 1,548
hesham said:
I don't know if that's Info was real or not,there was a developed version of MiG-21
with side intakes and lift engines as a VTOL Project ?.

Maybe this one was I meant,to be honest,I don't know.

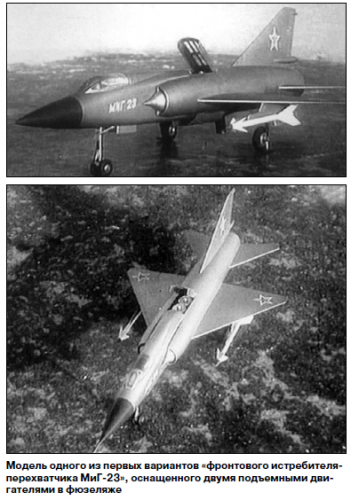

Истребитель МиГ-23. На защите неба Родины


Attachments

  • 1.png
    217.2 KB · Views: 1,375
hesham said:
hesham said:
I don't know if that's Info was real or not,there was a developed version of MiG-21
with side intakes and lift engines as a VTOL Project ?.

Maybe this one was I meant,to be honest,I don't know.

Истребитель МиГ-23. На защите неба Родины

As you see the main difference between it and MiG-23M.


Attachments

  • a.png
    186.5 KB · Views: 1,255

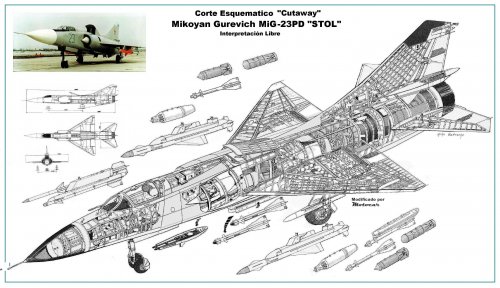

Cutaway MiG-23PD STOL, author M. Badrocke and modified by Motocar


Attachments

  • Cutaway MiG-23PD STOL.JPG
    Cutaway MiG-23PD STOL.JPG
    3.9 MB · Views: 651
Can't help but ponder, with its lift engines removed, and replaced by a rear cockpit and additional fuel, the MiG-23PD derivative might have made an interesting long-range interceptor.

Regards
Pioneer

Pioneer said:
Can't help but ponder, with its lift engines removed, and replaced by a rear cockpit and additional fuel, the MiG-23PD derivative might have made an interesting long-range interceptor.

Regards
Pioneer
That would make it - an Su-15, essentially.

Pioneer said:
Can't help but ponder, with its lift engines removed, and replaced by a rear cockpit and additional fuel, the MiG-23PD derivative might have made an interesting long-range interceptor.

Regards
Pioneer

Such idea was after it became clear that MiG-23PD an unsuccessful and deadlock branch of evolution MiG. But in OKB MiG have considered that such plane won't have any superiority. In fact before emergence of modification MiG-23MLD at MiG-23 according to characteristics of range, maneuverability and that the most ridiculous to runway characteristics was almost not superiority over the last modifications MiG-21. At least so about it it is written in the book about MiG-23.
It seems to me that from MiG-23PD without good engine and completion I covered on type as Chinese have made on J-7 the normal fighter wouldn't turn out. Are even more interesting as on me, theoretical options of crossing with a wing from the Analog144, but it is already obviously alternative story about the Soviet analog the Mirage III.

Best regards
Serge

I'm sorry but I have literaly no idea what you are saying. If you are saying the aircraft is no better than a late build Mig 21 I can see the point, almost.

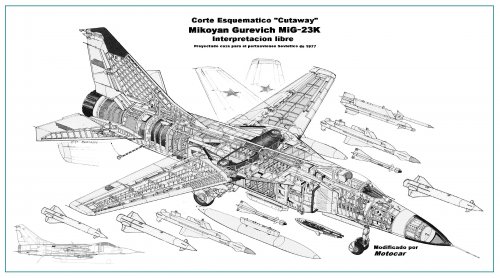

Cutaway Mikoyan Gurevich MiG-23K project for Soviet Navy, author M. Badrocke and modified by Motocar


Attachments

  • Cutaway MiG-23K retocado.JPG
    Cutaway MiG-23K retocado.JPG
    1 MB · Views: 617

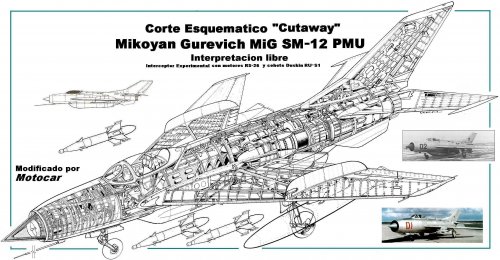

Cutaway MiG SM-12, author WEAL and modified by Motocar


Attachments

  • Cutaway_Mi_G_SM-12_PMS.jpg
    605.5 KB · Views: 590
