South African missiles/rockets/PGM's - Prototypes, Projects, Concepts, etc.

tyrin said:
Forgot to mention, if it goes through there would also be a chance of it being an air defense system in different versions not unlike the IRIS-T

Only problem is, Germans cant produce enough to deliver on time because of Ukraine and the UAE has better financing ability though its banks.

View attachment 745499
Click to expand...

Funny enough the land version as pictured above, of the IRIS-T was actually tested and qualified out in South Africa at our Denel Overberg test range...

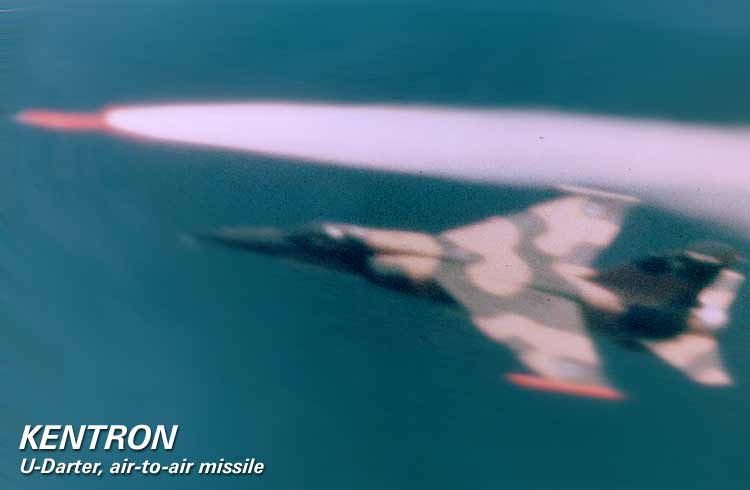

There was a fair amount of talk of doing the same thing with A-Darter, in terms of turning it into a SAM at the time. The problem I suspect, is that it would have overlapped into UmKhonto's territory, which is suspect is a lot cheaper, uses the previous generation seeker head (U-Darter) - but is still very accurate and effective (search up Finnish real life tests of UmKhonto under very difficult conditions - they were very happy with it's successful results afterwards).

I agree that the Cheetah missile would be a much better bet - developed in South Africa, based on the existing Mongoose armour APS missile (under a contract placed on Denel by Rheinmetall Germany) - Denel developed it much faster and very, very much cheaper than what Rheinmetall are used to. So it's a cheap, but very effective C-RAM type missile.

To either lengthen the Cheetah, or perhaps much easier to add some sort booster to it would certainly improve it's range quite a bit from the current 8 Km max range. It's actually a very cheap 'Iron Dome' setup - with a shorter range, much more ready to launch missiles (60), and at a fraction of the cost..

​


Last edited:
tyrin said:
As far as I know, yes. There isn't much left to save there but Astros/MTC-300 IP and their rocket production is still very valuable.
Click to expand...

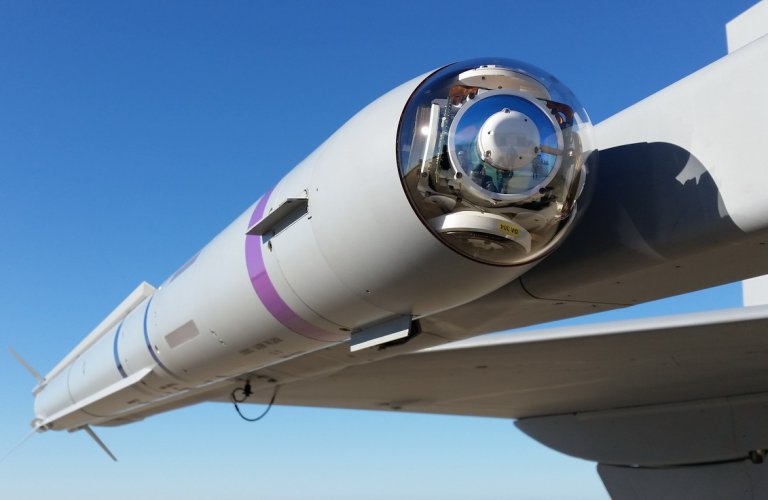

If all the IP is still intact it shouldn’t be super hard to get A-Darter back up and running faster.


A-Darter motor test



View: https://youtu.be/Zanm3AYbJdc?feature=shared




And of course, if EDGE is interested in the A-Darter there’s a good chance they’re interested in the Marlin as well

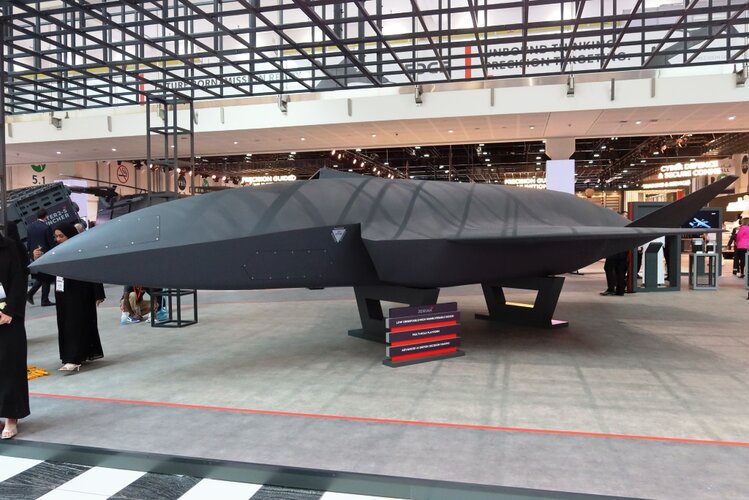

They’re stealth UCAV program is running smoothly with mainly Brazilian(ex Embraer mostly as well as Akaer) and some South African expertise but they don’t have the A2A missiles required for it to be a revolutionary system yet.


Last edited:

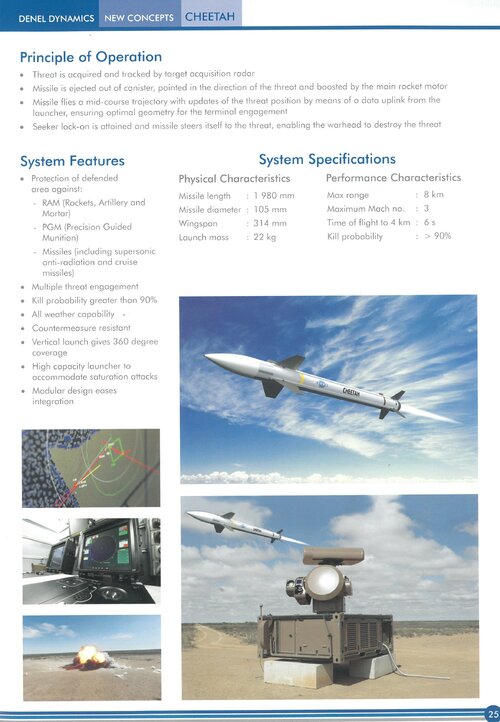

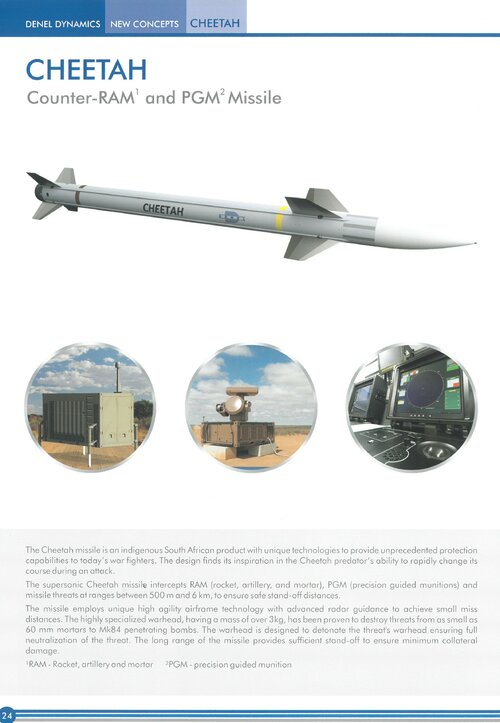

The latest Cheetah brochure - it adds in a lot more specs than the Rheinmetall one in my post #219 - it is from the latest Denel brochure pack, so Denel clearly still has the right and necessary IP to sell this missile..


Attachments

  • SKM_C25824101116390- A.jpg
    SKM_C25824101116390- A.jpg
    899.7 KB · Views: 95
  • SKM_C25824101116390- B.jpg
    SKM_C25824101116390- B.jpg
    1.2 MB · Views: 92
Graugrun said:
The latest Cheetah brochure - it adds in a lot more specs than the Rheinmetall one in my post #219 - it is from the latest Denel brochure pack, so Denel clearly still has the right and necessary IP to sell this missile..
Click to expand...

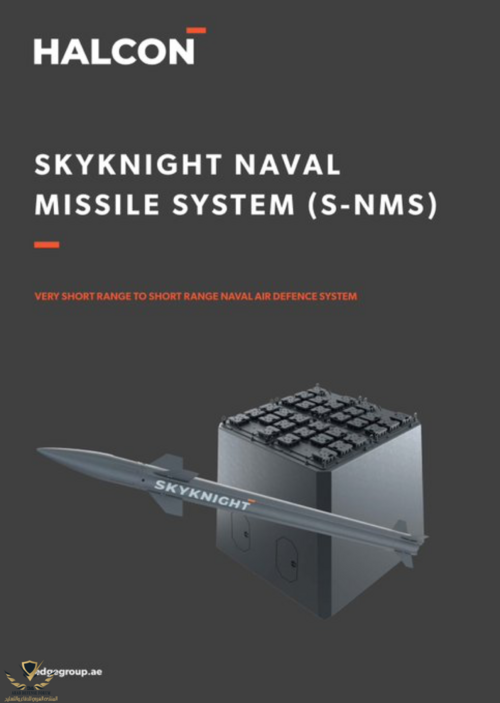

Which is super odd, will it be produced in both countries? They have different weights as well and dimensions.

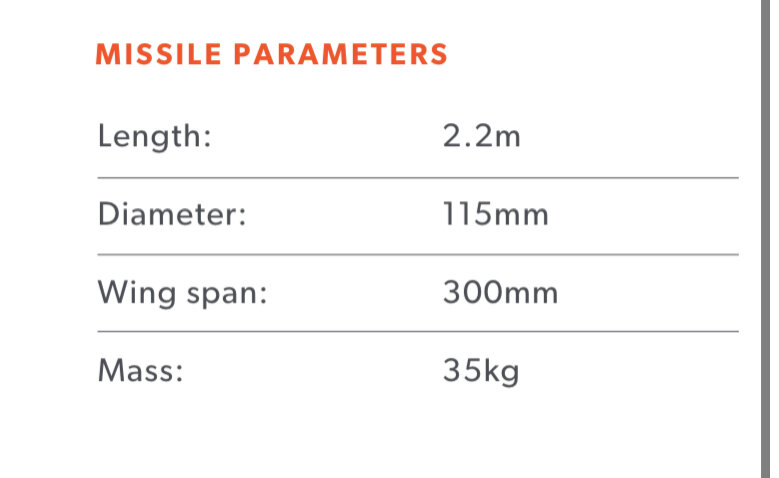

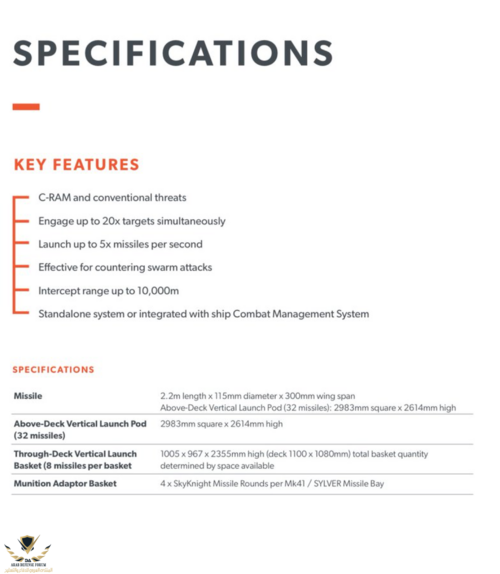

Skyknight dimensions


tyrin said:
If all the IP is still intact it shouldn’t be super hard to get A-Darter back up and running faster.


A-Darter motor test



View: https://youtu.be/Zanm3AYbJdc?feature=shared




And of course, if EDGE is interested in the A-Darter there’s a good chance they’re interested in the Marlin as well

They’re stealth UCAV program is running smoothly with mainly Brazilian(ex Embraer mostly as well as Akaer) and some South African expertise but they don’t have the A2A missiles required for it to be a revolutionary system yet.

View attachment 745605
Click to expand...

Well it would be great news to me if it gets a good kickstart to get going again - I was very pleased when Brazil first joined the A-Darter program, and very dissapointed when it fell apart (I'm still not sure today what the actual reason for that was) - I certainly think that we have a lot of synergy and a lot to offer each other as countries, and not just from a weapons point of view..!

tyrin said:
imo solutions like the Cheetah/Skyknight are the best solution. See @Graugrun post above about cost.

Keep up with the cost, probably not but with enough production you could get the missile down to a good price.
Click to expand...
And i don't believe it until i see an prove that they can do it. In the end bullets would allways be the cheaper option

kqcke for you said:
More like they more or less just finnished development at the time ukraine war started with then only 1 customer. Can't produce 1000s of missiles out of nothing but there pushing for increased production which should get to (i think) ~400 a year
Click to expand...
I don’t think that supplying the current conflict is an immediate consideration for Brazil, South Africa or the UAE. There is no obvious demand for 1000s let alone 400 A-Darters per year.

TinWing said:
I don’t think that supplying the current conflict is an immediate consideration for Brazil, South Africa or the UAE. There is no obvious demand for 1000s let alone 400 A-Darters per year.
Click to expand...
I do agree, 400 is quite high although I wouldn’t be surprised if they could produce around 200 a year.

UAE needs weapons for Rafale and their stealth UCAV Jeniah

Brazil needs for Gripen

South Africa needs for Gripen

As well as if the system is developed into a SAM with commonality to the AAM (E.G NASAMS)

If they could also integrate missile into other countries jets there is even more export potential there, Israel integrated Python variants into many other countries aircraft including Singapore. Most recently it integrated the Python-5 on RSAF F-16 C/D.



And no, they will never export it to Ukraine considering the governments of all 3 nations all have great relations with Russia and wouldn’t risk that to sell some missiles

Graugrun said:

General Atomics to integrate EDGE smart weapons with MQ-9B​


https://www.flightglobal.com/milita...-edge-smart-weapons-with-mq-9b/155802.article
Click to expand...

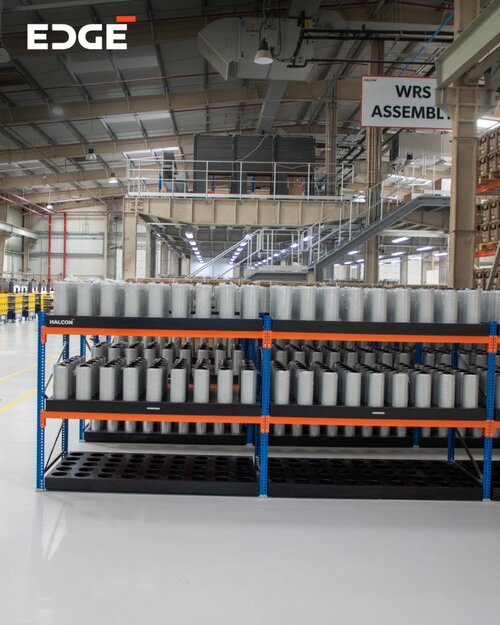

The DS-16 is in full production, an order for 7,000 units having been bagged, half of which in the SAL variant.

With the current production layout HALCON is capable to produce 50 DS-16 per shift

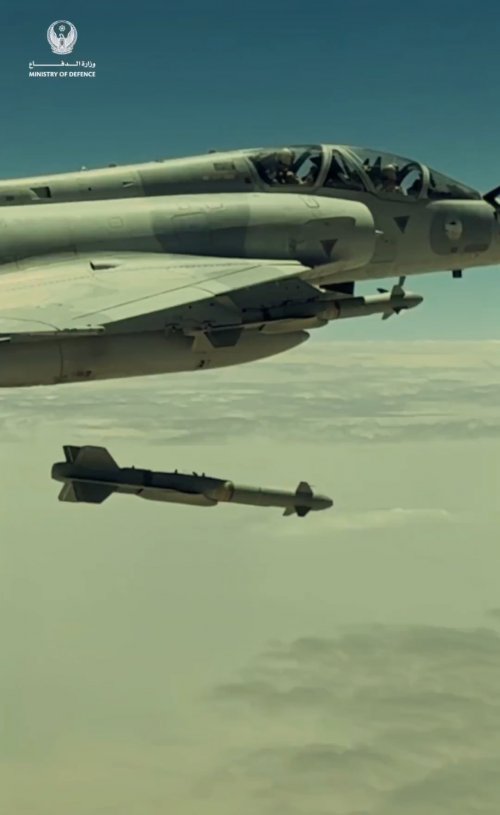

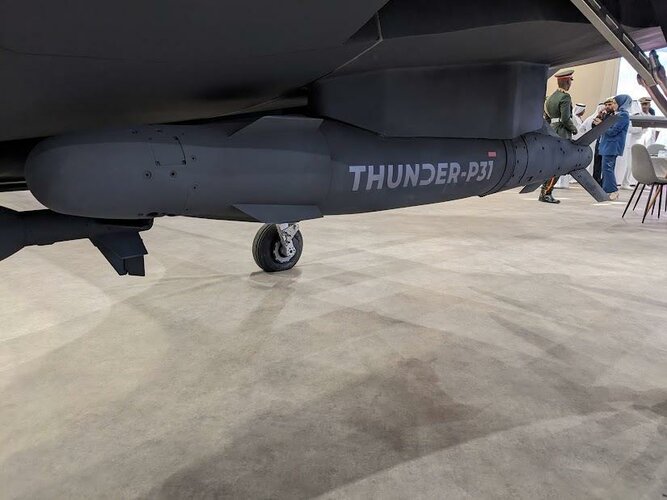

P3 bomb guidance kit, for Mk-81 250 lb bombs, named P-31, and Mk-82 500 lb bombs, P-32. The GNSS assisted INS version is in production at a pace of 27 per shift;

-

This is a metric fuckton even considering how much UAE uses UCAVs

They’re rumored to have one of the biggest PGM stocks in the world

If recent world events are a reference, you will never have enough guided munitions


6979294



tyrin said:
The DS-16 is in full production, an order for 7,000 units having been bagged, half of which in the SAL variant.

With the current production layout HALCON is capable to produce 50 DS-16 per shift

P3 bomb guidance kit, for Mk-81 250 lb bombs, named P-31, and Mk-82 500 lb bombs, P-32. The GNSS assisted INS version is in production at a pace of 27 per shift;

-

This is a metric fuckton even considering how much UAE uses UCAVs

They’re rumored to have one of the biggest PGM stocks in the world

If recent world events are a reference, you will never have enough guided munitions
Click to expand...

Crickey - That is some monster production! I know there was intergration testing done on the South Korean T-50 and obviously completed on the Mirage 2000, F-16 and the Tejas - the Turkish Bayraktar and Denel Seeker 400 too. So they might actuallt have some big foreign orders ruuning as well..

Do you know of any others?

Graugrun said:
Crickey - That is some monster production! I know there was intergration testing done on the South Korean T-50 and obviously completed on the Mirage 2000, F-16 and the Tejas - the Turkish Bayraktar and Denel Seeker 400 too. So they might actuallt have some big foreign orders ruuning as well..

Do you know of any others?
Click to expand...

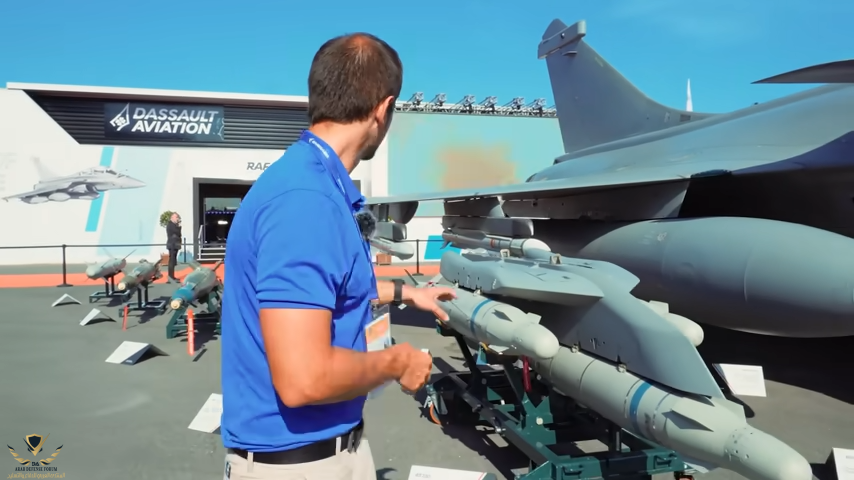

Rafale is using Denel designed munitions as well so that opens up other customers and especially the Egyptian air force

Tri racked


Foreign orders not sure, UAE needs are probably extremely high

IDEX is very soon, I’m sure we will see things that blow our mind.

When South Africans have access to virtually unlimited money they can create wonders.

Will update this forum.

xena said:
I suspect their needs are high because they supply other armed forces through military aid.
Click to expand...
Well, the possibilities are endless especially with developing drones. Eliminates the need for aircraft development, or working with OEMs to integrate them.

They poached a metric shit ton of Embraer/Brazilian engineers for drone programs and also have Sourh Africans working on them as well.

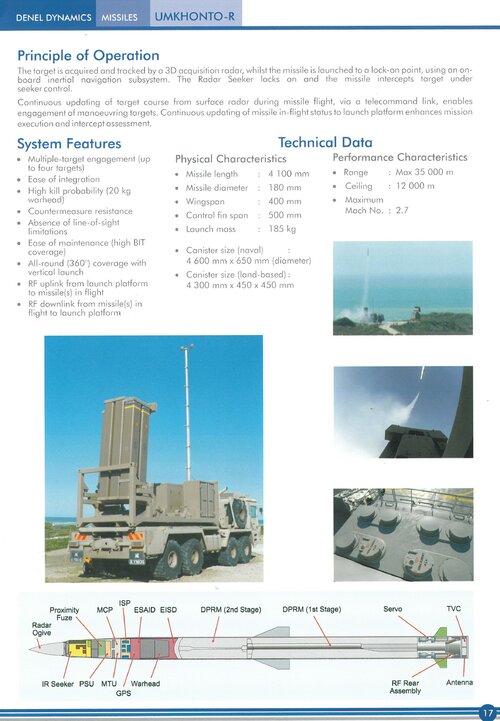

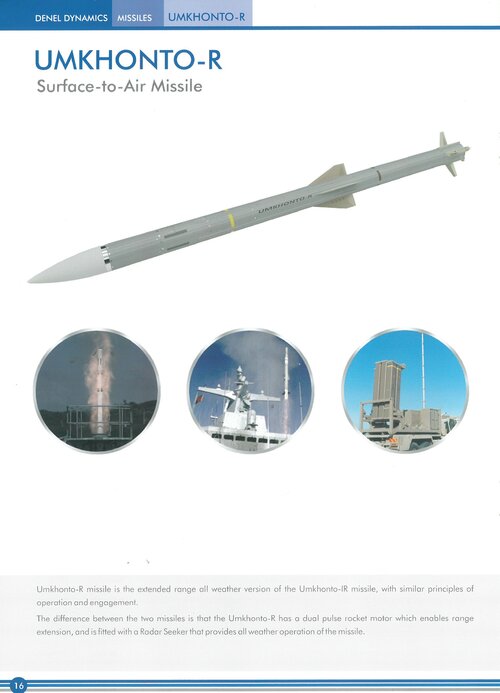

Denel upgrading Umkhonto missile​

https://www.defenceweb.co.za/industry/industry-industry/denel-upgrading-umkhonto-missile/​


"Denel is upgrading its Umkhonto surface-to-air missile (SAM) from the current Infra-Red (IR) Block II version to a more powerful weapon with better intercept capabilities.

This will be good news for Denel’s customers, including the South African Navy (SAN), the Finnish Navy and the Algerian Navy, all of whom currently use the Umkhonto. Also, the SA Army is interested in the ground-based version to compliment its current Ground Based Air Defence System (GBADS).

Denel Project/Programme Manager Willem Maré explained to defenceWeb the system has a ground-based version, fired from Denel’s Ground Based Launcher or potentially in a missile silo. The original design was for the SA Navy’s Valour Class frigates as an advanced air defence system.

Upgrades will include extended range: a new rocket motor would extend range to 25 to 30 kilometres. Additionally, the IR seeker would be replaced by a radar seeker. The IR seeker can be affected by bad weather, which is especially relevant to the Finnish Navy, as infrared cannot see through clouds, but radar can. These upgrades will surely make the Umkhonto air defence missile more attractive to international clients, Denel believes.

Derived with assistance from the cancelled South African High Velocity missile programme, the Umkhonto surface-to-air missile was originally developed with a 12 km range but this was increased to 15 km and Denel has demonstrated it can reach out to 20 km, with a ceiling of 8 000 metres. It reaches speeds of around Mach 2.5. In 2013 Denel Dynamics for the first time fired the weapon from land – the system was originally developed for naval applications."
