Shadow on The Wall - Work in Progress by Jozef Gatial

[galgot]

will be on youtube


My first attempt: https://www.youtube.com/watch?v=RWDxxnl0lhw

Nice ! Metal finish is very nice.
Ever tried rendering your anims with an environment image mapped on a sphere ? You would save a lot of render time.



[PlanesPictures]

I used mapped picture on global sphere in PovRay. But when you fly over the clouds it is better solution layer of 3D clouds. Attached CL-400's video I will try in future rebuild due to missed clouds and real atmosphere. Problem was probably in non real size of CL-400 models. I'm learning



[PlanesPictures]

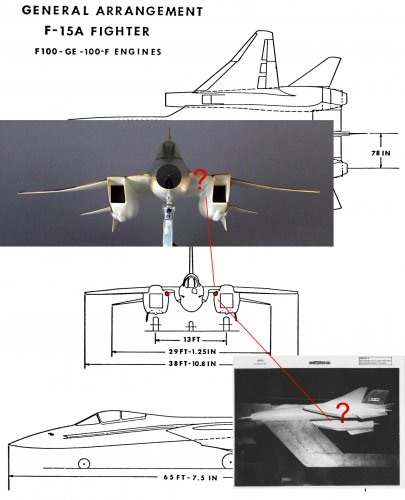

on drawings of Fairchild Republic F-15 ( FX) on inner side of engines it is detail not visible on models of it. Do you have more infos?



[PlanesPictures]

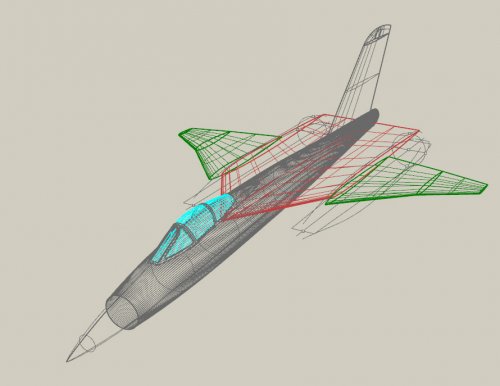

basic shape



[Sundog]

Cool! We definitely need to see more renderings of the Republic FX submission.



[covert_shores]

Aesthetically speaking there's something a bit sukhoi about it. Maybe how the Flanker might have turned out as a super-Flagon.

Great mideling skills



[PlanesPictures]

Time left: 244 hours



[overscan (PaulMM)]

on drawings of Fairchild Republic F-15 ( FX) on inner side of engines it is detail not visible on models of it. Do you have more infos?

Could possibly be some kind of sensors? Guns? Cooling intakes? Not sure we can resolve without new drawings.



[galgot]

Time left: 244 hours

These clouds are 3D ? Looks good !
But 244 hours !! Wow…
Dunno what could be that fairing on the Republic FX, Maybe engine accessories box fairing ?
What's strikes me is that the very front of the wing strakes seems to be air intakes.



[Pioneer]

Cool! We definitely need to see more renderings of the Republic FX submission.

Totally agree 100%!!!
Love the Fairchild-Republic 'FX' design


Regards
Pioneer



[Pioneer]

will be on youtube


My first attempt: https://www.youtube.com/watch?v=RWDxxnl0lhw

Congratulations!!
That's fantastic work and effort!!


Regards
Pioneer



[PlanesPictures]

small problem with fonts, so again

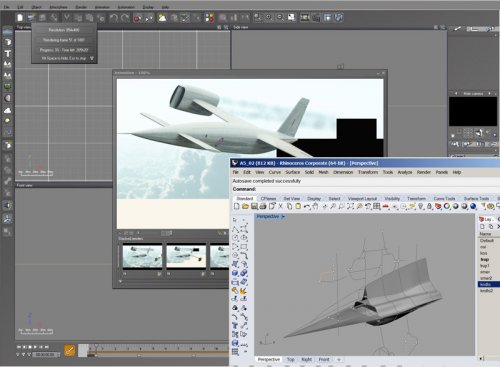

I'm rendering in background, long time is for me not critical

Clouds are true 3D. It will be visible on animation



[PlanesPictures]

Your help needed

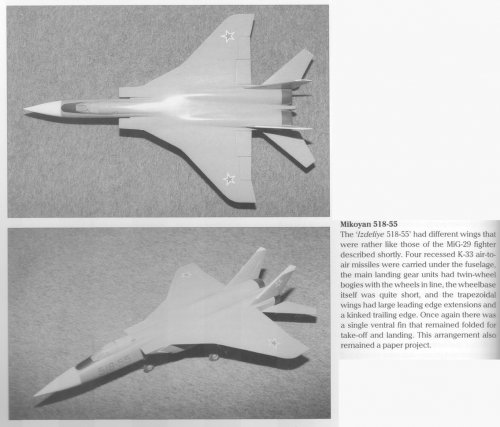

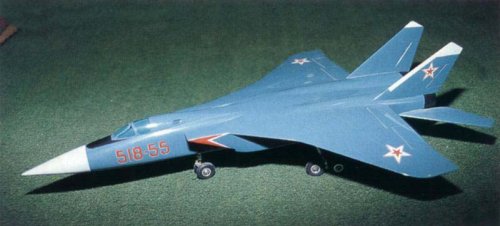

Do you have some simple sketch/drawing of Mikoyan 518-55



[blackkite]

Hmmm.....I can't find any more.

http://www.testpilot.ru/russia/mikoyan/mig/31/mp/e155m.htm
Auto translation
Another project, "product-55 518", rather like a future realizovannyjMiG-31. The plane was to carry four missiles r-33 under the fuselage, had a two-wheeled cart main landing gear with tandem wheel arrangement. Keystone wing was supposed to perform with big root Burl and turned the back edge. Work on the "product-518 55" not advanced beyond the schematic design.



[PlanesPictures]

Thank you very much. I have some infos that this plane was planned as russian navy version, too.



[PlanesPictures]

Do you know it?



[blackkite]

Hmmm......Convair or Vought high speed turbojet/ramjet recon? Fish alternative design?



[CiTrus90]

Too easy! ;D

Lockheed A-5 Archangel



[blackkite]

Ummm.........



[PlanesPictures]

Low pass



[sferrin]

NICE! That design makes me think of the "parasol" wings that were looked at at one point.



[Grey Havoc]

NICE!

Seconded.



[PlanesPictures]

It is eight years what our friend elider ask me to create model and some pictures of Convair Kingfish and he sponsored it, too. Now I started work on 3D printed model of Kingfish and when it will be closed I would like send it to elider because he wasn't very satisfied with his two scratchbuilds. Can you pls help me with contact on elider?



[PlanesPictures]

Do you know it?



[galgot]

AIM-54 missile or related ?



[PlanesPictures]

predecessor of AIM-54



[Steve Pace]

predecessor of AIM-54

Eagle for Douglas F6D Missileer?



[PlanesPictures]

That part of wing was unique what I know. Except todays T-50 PAK FA



[PlanesPictures]

Very unexpectedly meeting



[Sundog]

That is cool! B)



[PlanesPictures]

very complicated design



[galgot]

very complicated design

indeed. Nice modeling !
You need to have a minimum thickness to these parts isn't it, how much is that ?



[PlanesPictures]

after experiences on more 3D printers prefered thickeness for models in scale 1/72 is 1 mm, min. thickeness of sharp edges is 0.3 mm. For scale 1/48 I rescale 3D model 1.5x. Thickeness of parts is 1.5 mm but on non critical parts I take from material to 1 mm.



[galgot]

Thanks. Very informative.



[PlanesPictures]

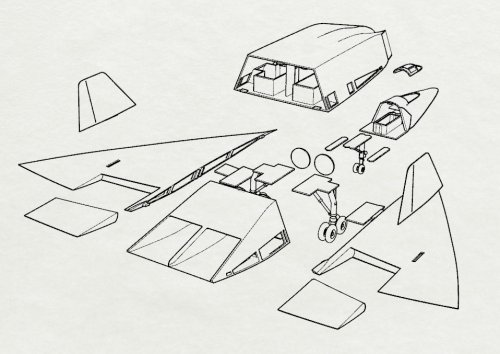

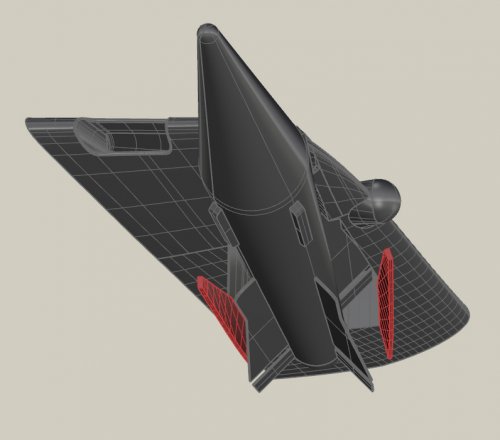

Small progress



[PlanesPictures]

and ready to 3D printing



[galgot]

Niiice !
Btw, just found this thread:
http://www.secretprojects.co.uk/forum/index.php/topic,1659.0.html
Beautiful too! like a lot the Braniff colors...



[Sundog]

and ready to 3D printing

What scale are you printing it in?



[PlanesPictures]

1/72. But with light rebuilt (5-10hours of work) 1/48 is possible, too



[Sundog]

1/72 works for me. Let me know when I can order mine.
