Motocar said:

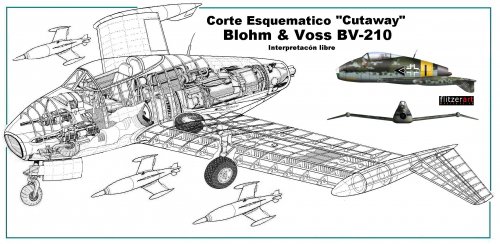

Cutaway Blohm & Voss BV-210, a Nazi tail-fighter project, designed by the firm Blohm & Voss powered by a BMW 003E1 axial-flow motor, its design was very advanced using splayed wings and horizontal stabilizers located on edge fairings Of leakage and pronounced negative dihedral, armed with cannons of 30 millimeters but also could be armed with other type of arms of smaller caliber, just as it could in the future carry the modern air-to-air missiles "X-4", its train Of tricycle landing whose nose wheel rotated 90 degrees to retract without interfering with the intake of air direct to the engine, the main wheels of retraian in a fairing under the fuselage designed for that purpose and that in turn allowed to store more fuel, even so Its radius of action was relatively short, thought for interceptions missions without leaving aside the possibility of facing the allied fighters, author Motocar with pallets of Peter Allen for flitzerart.
This cutaway does not look like the habitual B&V internal construction, but is more like a copy of what most other designers were doing. I assume that it is to a great extent fanciful, or, if not, what is its provenance?
For a start, the wing leading edge and main spar would have formed a steel D-section torsion box which doubled as the main fuel tank. This was how Vogt adapted his trademark cylindrical spar-cum-tank for a thin wing. Second, I would have expected the main air intake and wing transfer box to form a single integral sheet steel fabrication, from which the rest of the aircraft sprang. This was a feature of the subsequent designs. It took the structural loads away from the aerodynamic skinning and allowed large access panels with relatively few supporting ribs or stringers between them.
Otherwise, the overall form looks about right.
I'd like to know the provenance of the armament options too, are they genuine?

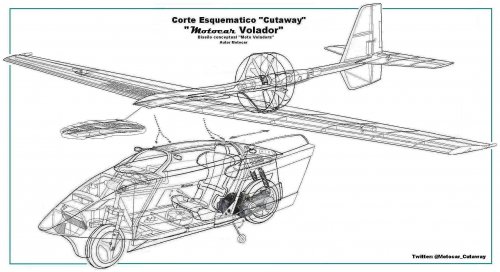

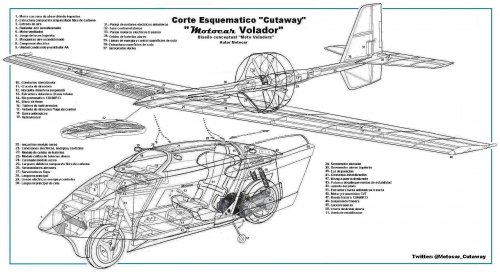

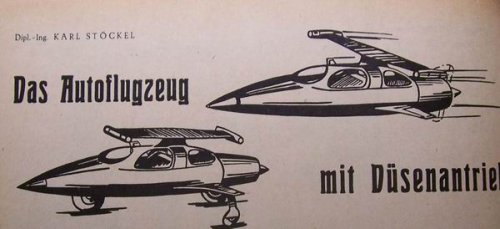

flying car, taking off as a helicopter with a tip jet
