Motocar's Cutaway drawings

[Motocar]

Cutaway Supermarine Spitfire DB-605, modified by Motocar, this image was not available in its original post so I repost it here and there for the enjoyment of the followers of the subject, original author Mike Badrocke



[Motocar]

Cutaway Mitsubishi A6M-8 autor Rigatto and retoched by Motocar



[Motocar]

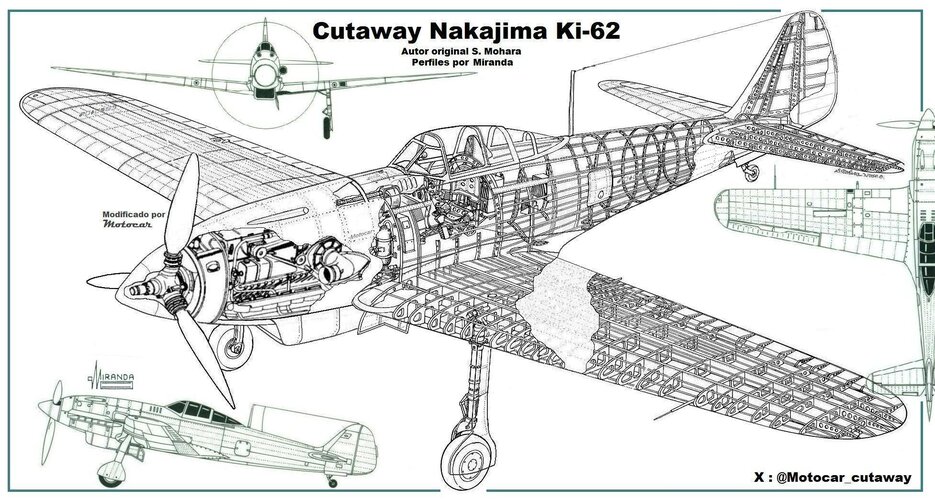

Cutaway Nakajima Ki-62, proposal of the Japanese firm to create the fighter equipped with the DB-601 engine built under license, the winner of the same was the Kawasaki Ki-61 fighter, the Nakajima model showed similarities with the maneuverable Ki-43 Hayabusa fighter, specifically its wings, the rudder instead shows an early vision of the next Nakajima fighter, the powerful Ki-84 Hayate, author S. Mohara, the profiles are by Miranda and the modification is by Motocar



[Motocar]

Cutaway Nakajima Ki-62 drawing light retoched...!



[Motocar]

Cutaway Cheranowsky BICh 21. The small racing aircraft designed by Cheranowsky, using his specialty "Flying Wing" but changing its characteristic parabolic leading edge wing for a simpler one with the center section with straight leading edge in a slight inverted gull wing (seen on the failed BIHc-17 fighter) and outer sections in trapezoidal plan, equipped with an MB-6A inverted cylinder engine, a Renault produced under license, this produced only 220 hp instead of the 240 hp of those officially offered, however managed to reach a speed of 417 km / h only 7 km below the performance offered in the original design, it was a small aircraft of only 6.5 meters of wingspan and a length of 4.70 meters and a weight of 417 kgs loaded, its fuselage of tubular construction and wings with wooden spars covered with plywood and fabric, retractable classic landing gear, speculative drawing to recreate this unique and original aircraft, Motocar



[Motocar]

Inside the Me-262 Jet Fighter | Inside the Me-262 Jet Fighter | By Yarnhub | Facebook

Inside the Me-262 Jet Fighter

www.facebook.com



[Motocar]

Cutaway Polikarpov Po-2, author unknow and retouched by Motocar



[Motocar]

Cutaway Mooney M-20 retoched by Motocar



[Motocar]

Cutaway MTGNET HM-14 Pou du ciel



[Motocar]

Cutaway Mitsubishi J1M1, retouched by Motocar



[Motocar]

Cutaway Mitsubishi J2M7 speculative interpretation retoched by Motocar



[Motocar]

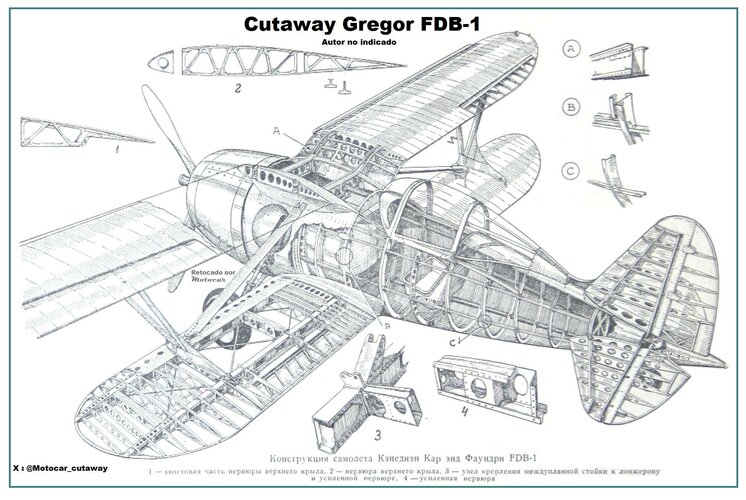

Cutaway Gregor FDB-1 light retouched by Motocar



[Motocar]

Cutaway Sukhoi Su-2, retouched enlarged by Motocar



[Motocar]

Cutaway Yakovlev Yak-15, retouched by Motocar



[Motocar]

Cutaway Aero 45 retouched by Motocar



[Motocar]

New te



[Motocar]

Cutaway Hafner Rotabuggy, Raoul Hafner its designer's proposal to specification 10/42, which called for a rotary wing fuselage designed around the Willys Truck 5cwt 4x4 Model MB. to provide greater forward mobility at lower costs than gliders, of the many projects that saw the light of day, mostly troop-carrying gliders, artillery pieces or light vehicles prevailed, designed to provide rapid movement and use the element of surprise to achieve advances. The Hafner Rotabuggy is an adaptation of an "Autogyro" structure to a Jeep that would allow it to be towed and released in front where it would land in a small area smaller than that needed for a cargo glider, it would use a large two-bladed rotor attached by a triangular tubular structure to a Jeep, behind which a square tubular fuselage would be attached, this was covered with plywood and horizontal surfaces with elevators and two huge fins, the project was presented and soon problems of yaw were observed so the surface of the fins was increased, this concept, project and evaluated prototypes do not cease to be striking, I have very little information about its functionality, the conclusions and decisions that were taken after their evaluations, speculative schematic section actually a work of "Aeronautical Archaeology" on one of the many aeronautical curiosities created during the Second World War. Something important to highlight is that although it seems very simple in reality they had many complications with the vibrations of the rotor shaft and the control shaft. In the end, the solution of the Horsa II and Hamilcar gliders prevailed. Motocar



[Motocar]

Please does anyone have more information on this proposed concept? I'll be very greatful Motocar de Popular Mechanics octuber1994, author Paul Dimare

I ask again, please, if any friend of the subject has more information about the SST concept of Engineer Leonard Greene.

Thanks Motocar



[Motocar]

Cutaway Nikitin-Shevchenko IS-4, whose image I slightly retouched to join both, replace missing areas and clean up details, retouched by Motocar



[Motocar]

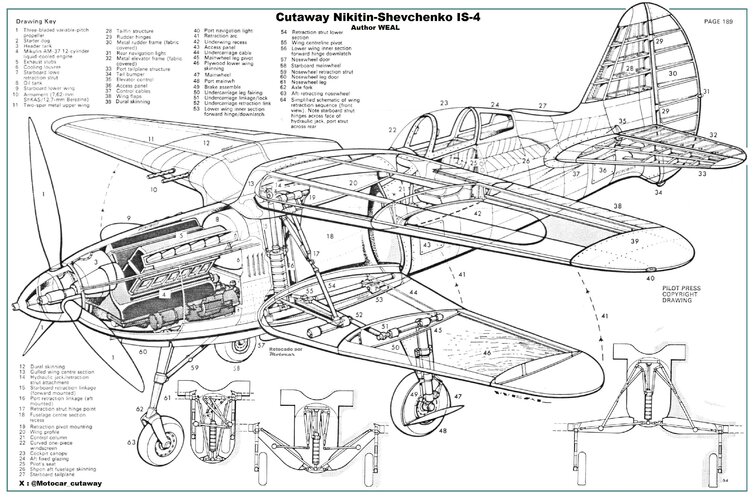

Repost Cutaway Nikitin-Shevchenko IS-4, author WEAL and new retouched by Motocar



[Motocar]

Cutaway Hirsch H-100, author Robert Roux and retouched by Motocar



[Motocar]

Cutaway Japanese submarine I-400, the Japanese Navy's massive submarine with a watertight hangar capable of holding three folded Aichi Seiran bomber/tripods, was equipped with a catapult at the front to facilitate the launching of attack seaplanes. Author illegible



[Justo Miranda]

Cutaway Japanese submarine I-400, the Japanese Navy's massive submarine with a watertight hangar capable of holding three folded Aichi Seiran bomber/tripods, was equipped with a catapult at the front to facilitate the launching of attack seaplanes. Author illegible

https://www.secretprojects.co.uk/threads/aichi-m6a1-%C2%AB-seiran-%C2%BB.13825/#post-233281



[Motocar]

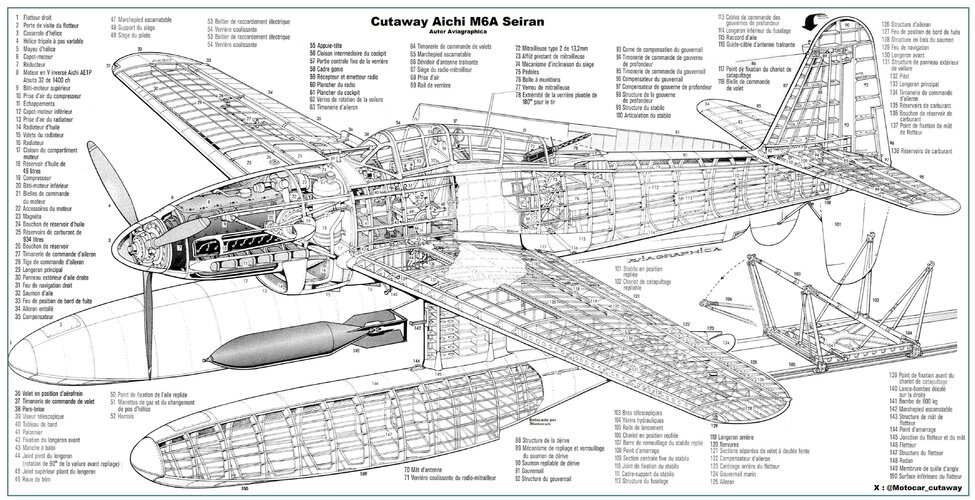

Repost Cutaway Aichi M6A "Seiran" author Aviagraphica retouched by Motocar



[Motocar]

Repost Cutaway Rotabuggy, now showing profiles and the pulley system that allowed the rotor to rotate and improve its performance during takeoff maneuvers whether towed by a plane or a truck



[Motocar]

Repost Cutaway Dassault Mirage 50 FAV, author Mike Badrocke and retouched by Motocar



[Foo Fighter]

Usual high standard, nicely done, SIr.



[Motocar]

It would be nice if a friend could give me the name or more information about the model of this proposal...? And thus make a light cutaway...!



[Motocar]

Usual high standard, nicely done, SIr.

Foo Fighter thank you very much for the opinion you have of my work...!



[Motocar]

Cutaway Aero Ae 270 Ibis, author Kamil Vecera and retouched by Motocar



[Motocar]

Ikarus 232 Lateral Cutaway, piloted in a prone position, author unknow and retouched by Motocar



[Justo Miranda]

Ikarus 232 Lateral Cutaway, piloted in a prone position, author unknow and retouched by Motocar

Patent drawing

Čeština: Ikarus 232 Pionir 3

Public domain photograph of experimental aircraft, prototype, aviation design and development, no copyright restrictions image - Picryl description
