Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF)

The USN won’t update the F-18E/F blk1 to blk3 for the same reading, though I think most of them are still retained as training aircraft.

Forest Green said:
Dragon029 said:
Found it, it's just the opinion / speculation of a Quora poster: https://www.quora.com/Can-the-F-35-...onic-Attack-abilities-Compare-contrast-Please (it's from the answer by "Abhirup Sengupta, Military Aviation Enthusiast").
Click to expand...
I couldn't find that specific bit.
Click to expand...

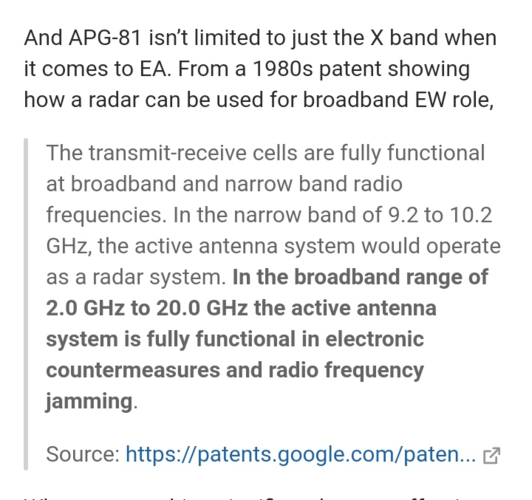

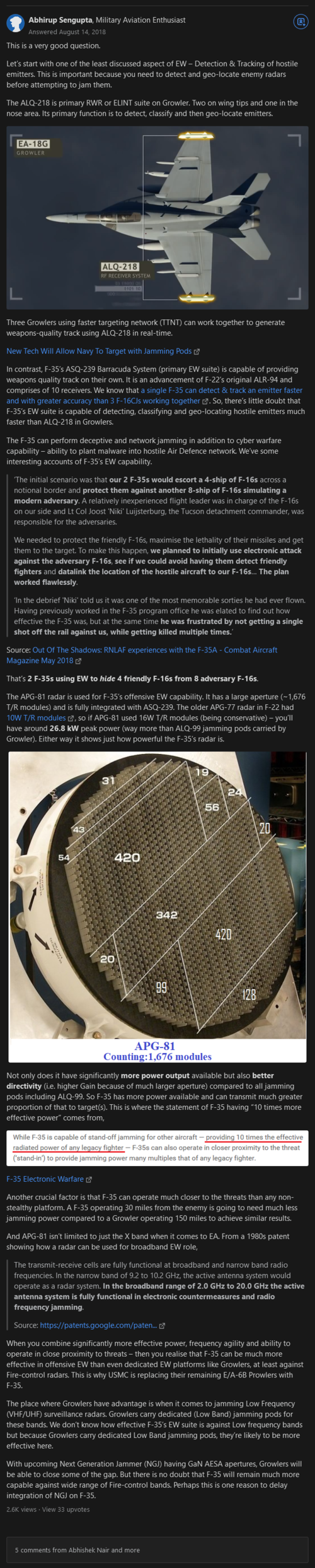

You have to expand their answer by clicking the "(more)" button near the bottom of their post. It expands into this:


The patent they linked to is to this one from Westinghouse:

US4823136A - Transmit-receive means for phased-array active antenna system using rf redundancy - Google Patents

An improved phased-array active antenna transmit-receive means utilizing a multiplicity of individual transmit-receive cells positioned in an array format upon a common wafer of semiconductor material. Each transmit-receive cell, comprises a multiplicity of redundant, integrated circuit...
patents.google.com

Forest Green said:
View attachment 658178

View attachment 658184
Click to expand...

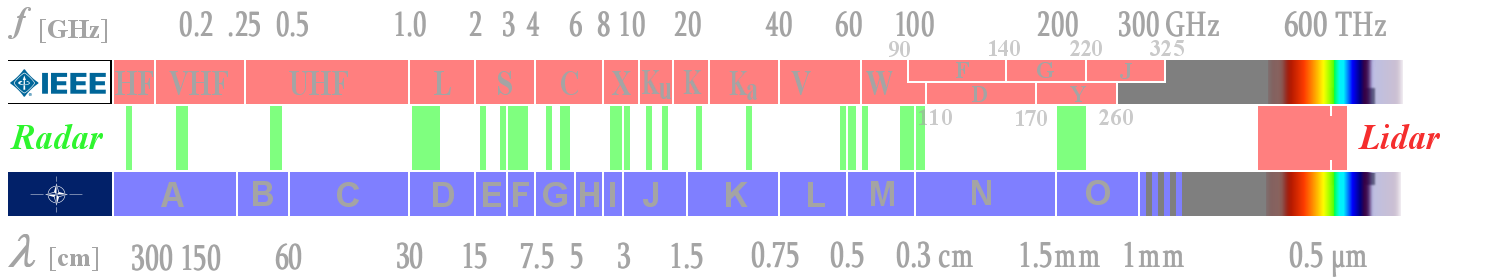

It really depends on if the TR modules of the AN/APG-81s are capable of such wideband transmission. I mean concerning the antenna element, sure it could be although I'm not confident to say if it would be capable of radiating lower frequency band compared to X-bands. Anyways, radiating is one thing, and radiating it in such way that it is effective enough is another. My take would be that the TR modules of the AN/APG-81 and the radar control OFP installed on the ICP are probably not capable of beamforming the radar transmission in such way that it is effective for any jamming apart from X-band bandwidth.

Also, considering the transmitter module design, especially the MMIC part of it, even the NGJ is divided into low-band, mid-band and high-band. What that Quora post seems to argue is that the AN/APG-81 could cover the bandwidth range of at least 2 or even 3 different NGJ system. That alone clears the possibility of AN/APG-81's TR module being capable of covering off such a large bandwidth I feel. The older ALQ-99, which the later models used phased array(probably Rotman lens based) design for its transmitters, were also divided into different bands as well. It really depends on which kind of antenna element the TR module uses, but at least afaik your typical Rotman lens based transmitter design is relatively easy to make it into a wideband antenna so there's my take.

Anecdotical but of some interest:
The first F-35 jet was unaware of the helicopter and passed over it at a distance of about 1,000ft (300m), the report said.
The second jet's sensors detected the AW139 and stopped descent before informing the third F-35, which enabled the aircraft to increase separation.
It was the second jet that passed the helicopter at 600ft, the report said.
The report said the pilot of the second jet should be "commended" for their "quick action in passing traffic information" to the third F-35.
Click to expand...

www.bbc.com

Helicopter reports near-miss with fighter jets over Norwich

One of the F-35 jets passed over the helicopter at a distance of 600ft, a report says.
www.bbc.com www.bbc.com

Belgian firms start production of F-35 horizontal tails (a former post mentioned the project):
La co-entreprise (joint venture) BeLightning, composée d'Asco Industries, de Sabca et de Sonaca Group, a officiellement démarré ses activités de fabrication d'empennages horizontaux et de composants connexes pour l'avion de combat de 5e génération de Lockheed Martin, le F-35 Lightning II, ont annoncé mardi les partenaires industriels. L'objectif du projet est de construire un minimum de 400 empennages horizontaux (en jargon des "Horizontal Tail Planes", HTP), représentant environ 400 millions de dollars américains de revenus estimés [...].
--------------------------------///----------------------
The BeLightning joint venture, made up of Asco Industries, Sabca and Sonaca Group, officially started manufacturing horizontal stabilizers and related components for Lockheed Martin's [...] F-35 Lightning II, the industrial partners announced on Tuesday. The objective of the project is to build a minimum of 400 horizontal tail planes, representing approximately 400 million US dollars of estimated income.
Click to expand...


www.lalibre.be

La Sonaca, la Sabca et Asco ont commencé à produire des éléments de l'avion F-35

Les trois entreprises de la joint venture BeLightning ont commencé à produire des éléments de l'avion F-35.
www.lalibre.be www.lalibre.be

Ebbing Air National Guard Base, Fort Smith, Arkansas selected as F-35 Lighting II training center for Foreign Military Sales:

The Department of the Air Force will conduct an environmental impact analysis to confirm the Ebbing site can support the new F-35 and F-16 missions. If it cannot, Selfridge ANGB, Michigan, has been named an alternate location.

The Department of the Air Force anticipates making the final basing decision in spring 2023.
Click to expand...

www.wthitv.com

Department of Air Force announces location of F-35 training center

The Department of the Air Force has selected its location for a new F-35 Lighting II training center for Foreign Military Sales that Terre Haute had a chance to have.
www.wthitv.com www.wthitv.com

TomcatViP said:
Italian AF's F-35s deployed in Estonia execute the first interception of the type in Continental Europe (to be confirmed) :
The Italian F-35A involved in the intercept belong to the 13° Gruppo (Squadron) of the 32° Stormo (Wing), from Amendola Air Base, in southeastern Italy, the first unit of the Aeronautica Militare to receive the Lightning in 2016 and the first in Europe to achieve IOC (Initial Operational Capability) in November 2018.
[...]
Although it’s the first time they operate from Estonia, the Italian Air Force F-35A jets have already supported NATO Air Policing mission in Iceland twice: the first time was in 2019, the second in 2020, when the Italian Lightnings scrambled for the first time to intercept a formation of three Russian Tu-142s.
Click to expand...
theaviationist.com

Italian Air Force Identifies Russian An-12 Off Estonia In First Ever Intercept By F-35 Supporting NATO BAP

The Italian F-35 jets deployed to Estonia, scored their first intercept under NATO command in the Baltic region. On May 14, 2021, the Italian Air Force
theaviationist.com theaviationist.com
Click to expand...
And we have a picture:

theaviationist.com

Here Are The Photos Of The First Ever Intercept Of A Russian Aircraft By F-35 Under NATO Command In The Baltics

We have obtained the photos of the first intercept by F-35s supporting NATO Baltic Air Policing mission last month. As already reported, the Italian Air
theaviationist.com theaviationist.com

Last edited:
i wonder if the Russians still keep anyone manned in those tail turrets.

Six Israeli Air Force (IAF) F-35Is (the Israeli-specific variant of the conventional take-off and landing [CTOL] F-35A) have joined an undisclosed number of Italian Air Force (Aeronautica Militare Italiana: AMI) F-35As, Royal Air Force (RAF) short take-off and vertical landing F-35Bs, and US Air Force (USAF) F-35As at Amendola Air Base in southern Italy.

“Our ‘Adir' Division has recently touched down in Italy as part of its first-ever overseas deployment and will begin training alongside our friends from the AMI, RAF, and the USAF,” the IAF said on its official Facebook page. “Throughout the exercise, the IAF will drill a wide variety of operational scenarios to enhance the operational capabilities of the F-35 while strengthening international co-operation”.
Click to expand...

Israeli F-35s undertake first overseas joint exercises

Israeli Lockheed Martin F-35I Adirs have flown their first overseas training exercises, operating alongside Italian, UK, and US aircraft during ‘Falcon Strike 2021'.
www.janes.com www.janes.com

And in effect, Hill Air Force Base, Utah, F-35s continue their training in Europe after the French AF during Exercise Trident 21.
www.airforcemag.com

F-35s from US, UK, Italy, Israel Integrate in Exercise | Air & Space Forces Magazine

F-35s from four nations, the US, UK, Italy and Israel, are coming together in exercise Falcon Strike 21 at Amendola Air Base, Italy, June 7-15.
www.airforcemag.com www.airforcemag.com

Last edited:
Somewhat F-35 related.. an F-35 carrier by Hyundai presented at MADEX 2021..


I posted more pics here in the Korean light carrier thread

Interesting they also went with the two island solution. I'm a little curious why the UK thought that was a superior solution, though I suspect it has something to do with the uptake of the exhaust of two separate engine rooms that doesn't translate to nuclear power.

EDIT: the model has a distinctively cylon look to it. :)

Also probably in both cases intended to help free up more available hull volume for consumables, fuel, spare parts, munitions storage, etc.

Last edited:
FMS, Naval Air System command, New foreign customer, End of July...!!

Since there is no known foreign demand for any C model, I guess it can only be for some F-35B... But where?

Lockheed Martin Corp. has been awarded a $137.7 million modification to a previously awarded firm-fixed-price contract.

This modification adds scope to provide continued support services, including program management, non-recurring unique requirements, and training in support of increment five integration of Foreign Military Sales (FMS) customers into the F-35 Lightning II Joint Strike Fighter program. Work will be performed in Fort Worth (60%); and an undisclosed locations outside the continental U.S. (40%). The work is expected to be completed in July 2021. FMS funds in the amount of $137,680,806 will be obligated at time of award, none of which will expire at the end of the current fiscal year. The Naval Air Systems Command, Patuxent River, Maryland, is the contracting activity.
Click to expand...
fortworthbusiness.com

Lockheed Martin awarded $137.7M contract for work primarily in Fort Worth

Lockheed Martin Corp. has been awarded a $137.7 million modification to a previously awarded firm-fixed-price contract.This modification adds scope to
fortworthbusiness.com fortworthbusiness.com

Last edited:
[Gen. Tod] Wolters [(NATO’s top general in Europe)] said the American fifth-generation F-35 jets have yet to reach their full potential in fusing customer nations’ military capabilities. Notably, he described the aircraft’s battle-support features — like early-warning and command-and-control — rather than the jets’ advertised combat or stealth prowess as the decisive force multiplier across national air forces. Wolters predicted European users would field a combined 450 F-35s by 2030.
“With each passing day we’re finding better ways to unite nations that possess F-35s to improve our speed and posture in the air domain,” he said.
Click to expand...
www.defensenews.com

Top NATO general urges ‘alignment’ between US and European sixth-gen fighter plans

Gen. Tod Wolters’ comments echo a sense of common purpose among NATO allies that sometimes gets lost in defense-industrial infighting.
www.defensenews.com www.defensenews.com

A Lockheed Martin official told reporters on 10 June at the company's F-35 production facility in Fort Worth, Texas, that the aircraft's cost per flying hour is USD33,000 in 2012 dollars: USD38,655 in 2021 dollars.

A former F-35 programme official, who was grated anonymity to speak freely, told Janes on 9 June that the original concept predicted that the aircraft would have a cost per flying hour between USD25,000–30,000 in 2021 dollars, once the programme reached the current stage: between initial operational capability (IOC) and full operational capability (FOC). This cost per flying hour was supposed to be somewhat comparable to newer Lockheed Martin F-16 Fighting Falcons.

www.janes.com

Difficult F-35 engine sustainment contributing to higher than expected cost per flight hour

Difficulty sustaining the engine on the Lockheed Martin F-35 Lightning II Joint Strike Fighter (JSF) is contributing to a higher cost per flying hour than originally...
www.janes.com

Don't forget the Mission Capable Rate which are now the best among other USAF fighters at 76%

(and the fact that the more 35s you use the smallest your mission Package needs to be, phenomenally decreasing the cost of a single mission at equal or better chances to reach mission objectives)

Last edited:
