Lockheed Martin F-22 Raptor

To ensure that it remains relevant for years to come, the Ogden Air Logistics Complex’s 574th Aircraft Maintenance Squadron, through collaborative efforts of the F-22 System Program Office along with partners Lockheed Martin and Boeing, recently completed the last aircraft to go through the F-22 Structural Repair Program that has been generating aircraft for the last 14 years.

“This is a great milestone for the program,” said Misty Stone, 574th AMXS director. “Since Hill Air Force Base gained the F-22 workload in 2006, the 574th AMXS team of 400 employees has remained focused and dedicated on expanding the combat capabilities of the F-22 weapon system,”

The program was responsible for increasing mission capabilities by performing structural modifications to increase total flying hour serviceability on each aircraft by 8,000 hours.

The maintenance team processed 247 F-22 Raptors through six unique maintenance machines for structural repair, modification, coatings restoration and aircraft damage repair while completing more than 8,645 Time Compliance Technical Orders totaling over 3,880,000 hours; approximately 1,550,000 hours were dedicated to coating restoration, with the remaining 2,328,000 hours focused on mitigating corrosion, aircraft modifications, modernization and repair.
Click to expand...
www.dvidshub.net

F-22 Raptor gets major upgrades courtesy of Hill AFB’s 574th Aircraft Maintenance Squadron

574th Aircraft Maintenance Squadron completes major F-22 Raptor upgrade.
www.dvidshub.net www.dvidshub.net

F-22 Structural Repair Program: Life Extension and Modernization (topwar.ru)

Almost the same as Tomcats source but has something like this in it which I do not know if its old info.

"The current electronics upgrade is part of the Raptor Agile Capability Release 1 (RACR 1) project, which runs until 2024. This project is reported to affect communications systems, electronic warfare and cockpit equipment. All these measures will expand the capabilities of aircraft, as well as relieve them of inherent problems.

In its current form, the F-22A communicate using its own IDL (Intraflight Data Link) protocol, and additional hardware is required for integration into the Link 16 circuits. As part of RACR 1, aircraft will receive communication equipment compatible with the Link 16 bus. In addition, they will introduce the Multifunction Information Distribution System-Joint (MIDS-J) system, with the help of which the fighter will be able to effectively operate in the same network with other aircraft, ships and ground forces.

In 2024, a new modernization program starts - Mid-Life Upgrade. The development of such an upgrade has not yet been completed. It is assumed that the updated F-22A will receive new radar and other means, a modern computer, new weapons, etc."

I love hearing news about F-16 production plans, modernization of F-15s and the best of all modernization for the F-22.

And a revised version on AF.mil

The 574th maintenance team processed 135 F-22 Raptors through six unique maintenance machines for structural repair, modification, coatings restoration and aircraft damage repair while completing thousands of hours of Time Compliance Technical Orders. In addition, hundreds of thousands of hours were dedicated to coating restoration, mitigating corrosion, aircraft modifications, modernization and repair.

With the program completed, the 574th AMXS will shift from a workload that was a structural based requirement to a 10-year reversion workload, which is a new sustainment modification that was first prototyped in 2019.
Click to expand...
www.wpafb.af.mil

F-22 Raptor gets major upgrades

The 5th-generation F-22 Raptor has been one of the world’s most dominant fighter aircraft since entering service and has defined what air dominance means to the U.S. Air Force.To ensure that it
www.wpafb.af.mil

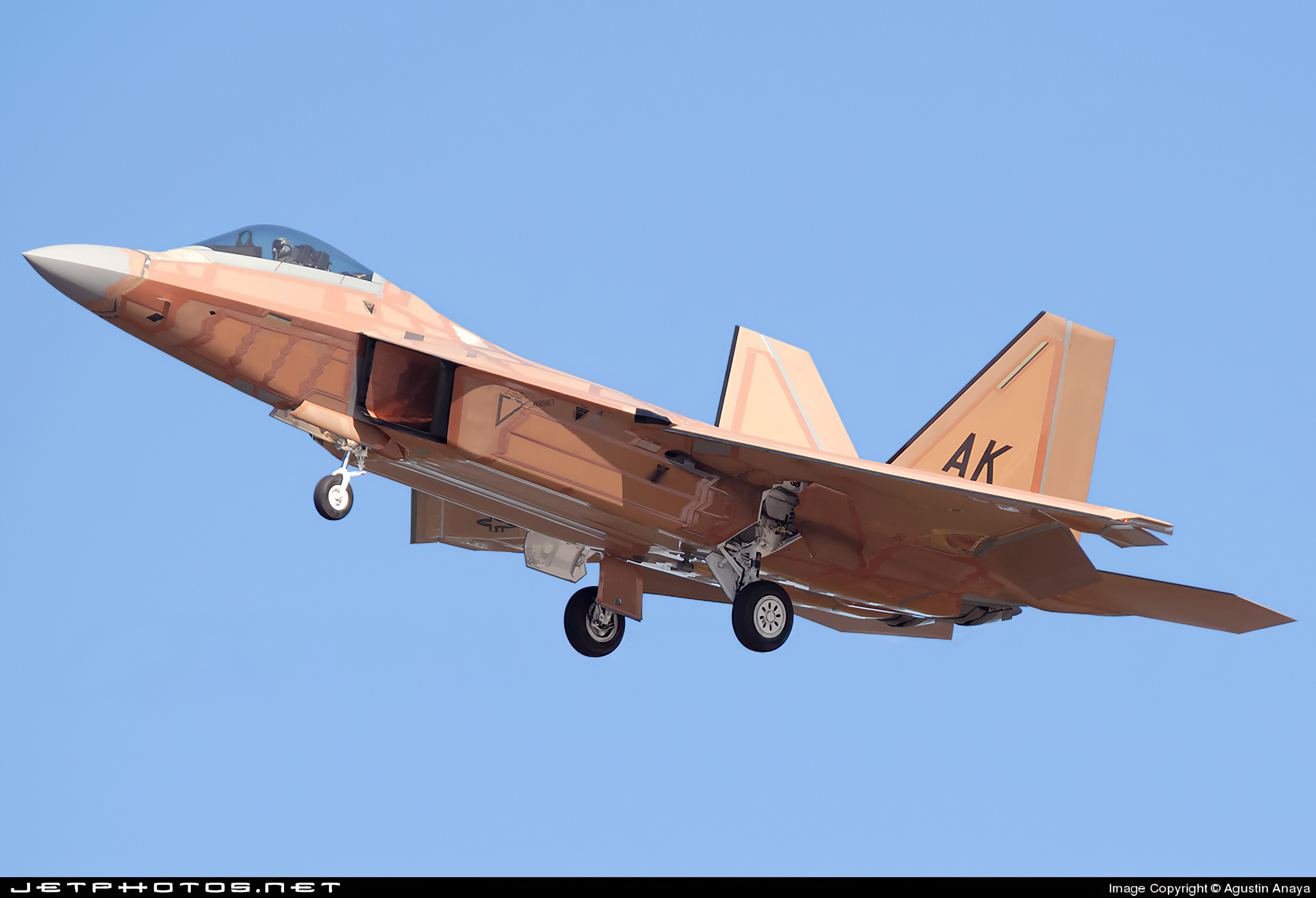

Good old photo, 2x upscaled



Originally here: https://www.jetphotos.com/photo/6084999

And two more, without upscaling:
www.airliners.net

Aviation Photo #1182411: Lockheed Martin F-22A Raptor - USA - Air Force

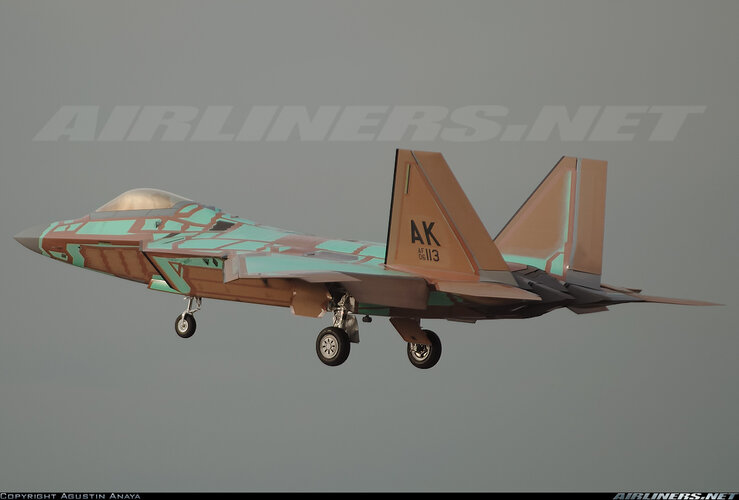

Do not adjust your monitor, its in primer. This guy was on test flight and was chased by an F-16. This Raptor will be delivered to the PACAF at Elmendorf Air Force Base, Alaska. - Photo taken at Marietta - Dobbins ARB (Atlanta NAS) (MGE / KMGE) in Georgia, USA on February 22, 2007.
www.airliners.net www.airliners.net

www.airliners.net

Aviation Photo #1324054: Lockheed Martin F-22A Raptor - USA - Air Force

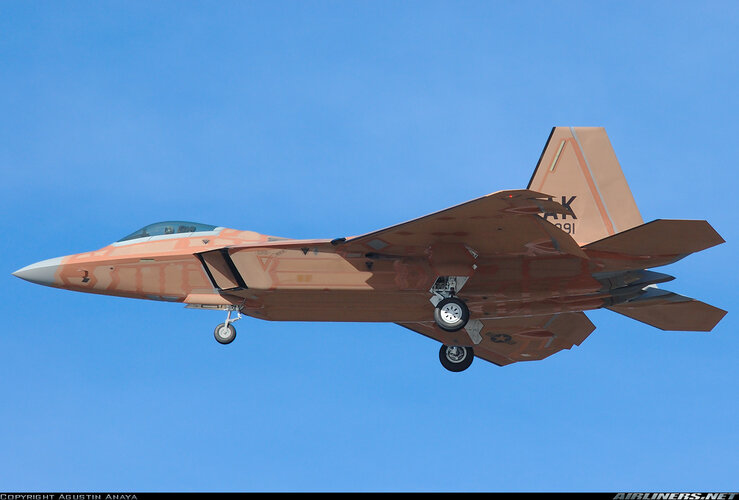

Another brand spanking new Raptor makes a test flight for Lockheed Martin Aeronautical Systems Inc. She will fly patrol over Alaska. - Photo taken at Marietta - Dobbins ARB (Atlanta NAS) (MGE / KMGE) in Georgia, USA on January 28, 2008.
www.airliners.net www.airliners.net

Last edited:
Still no one with additional info about non-experimental missile-carriage and -launches from the wing-stations?

awesome pic, kind of wish the F-22 would stay in that primer color

I've a question about primer

6YNlrU_2ZN3mUjfMVvJFJ83fYUCcJ_kLVaiuqRwn7YzLS6IScHwCXjhpXDf2QOewIjH9jKrJE7o8L1tr3xE24vL9oz7N1GmmIF8cUMR5724zr2f4rBO74AFWaTrYyazKpT8laMhX5L9v_S04qNG8kp_QhW_Xzt4


why do these three have different color primers? any specific reason or is it just a choice? or is it because of the specific type of composite leads to different coloring?

helmutkohl said:
awesome pic, kind of wish the F-22 would stay in that primer color

I've a question about primer

6YNlrU_2ZN3mUjfMVvJFJ83fYUCcJ_kLVaiuqRwn7YzLS6IScHwCXjhpXDf2QOewIjH9jKrJE7o8L1tr3xE24vL9oz7N1GmmIF8cUMR5724zr2f4rBO74AFWaTrYyazKpT8laMhX5L9v_S04qNG8kp_QhW_Xzt4


why do these three have different color primers? any specific reason or is it just a choice? or is it because of the specific type of composite leads to different coloring?
Click to expand...

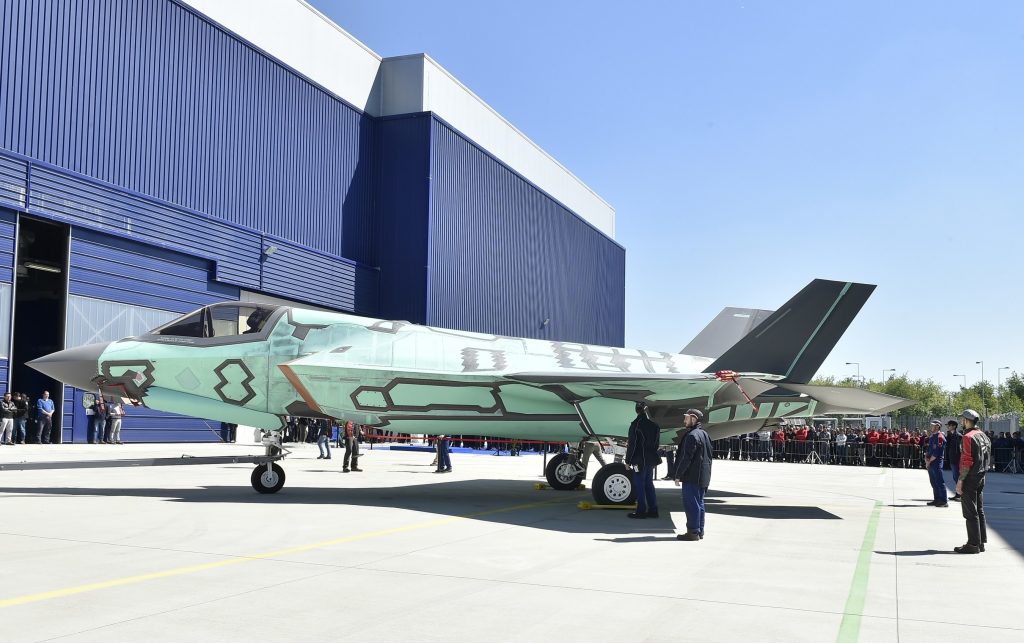

That brown isn't primer. The F-22 had the old Zombie green chromate, and the new mint whatever-it-is. The F-35 had the mint from the get go. Has absolutely zero to do with what it's painted on. Put it on titanium it's green. Put it on composite it's green.

Last edited:
drejr said:
The brown on the F-22 is just an expoxy primer that led to corrosion problems. The mint green now used has barium and strontium chromate corrosion inhibitors added. This isn't secret stuff, you can get it from any aerospace paint provider.
Click to expand...

View topic - F-22 Brown to Green Primer • F-16.net

Military aviation forum since 2003, with high quality discussion focusing on the F-16, F-35 and F-22 jet fighters and the C-130.
www.f-16.net

Had seen F-22s with mint and brown but had thought the brown was UNPRIMED area. :confused: It's all mint now though.

Last edited:
Resister1976 said:
It looks like a plane that could take off and land on an aircraft carrier?
(0v0)
Click to expand...

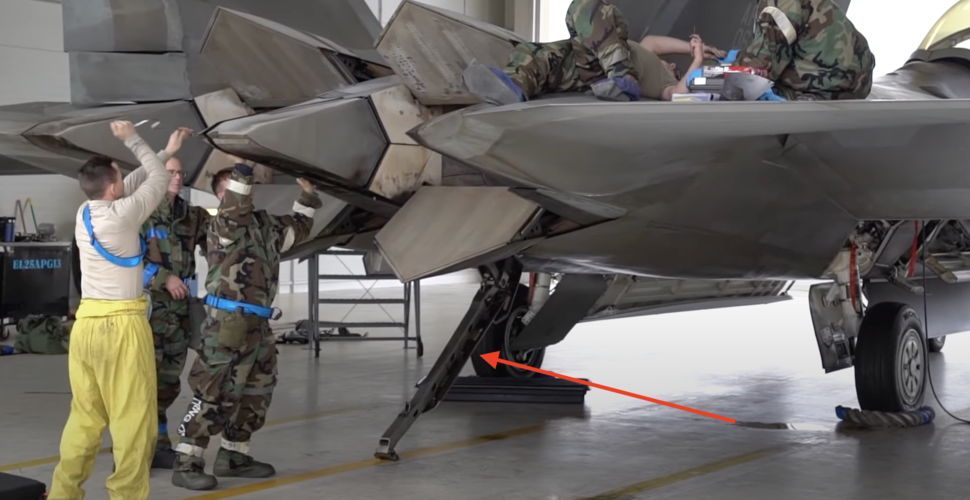

An emergency arrestor hook is carried on the F-16, F-15, and F-22 for emergency landings at air bases equipped with emergency use only arrestor cable setups. These aircraft are not intended to use this method for regular landings and are not structurally able to handle the violent deceleration of an arrested landing without significant problems.

defence-blog.com

U.S. Air Force shares impressive photo of joint flight of F-22, E-7A aircraft

The U.S. Air Force has released an impressive photo of a joint flight of Hawaii Air National Guard F-22 Raptor fighter jet and Royal Australian Air Force E-7A Wedgetail aircraft during the Pacific Edge 21 exercise. According to a recent service news release, total Force Airmen from Joint Base...
defence-blog.com defence-blog.com

Last edited:
The F-22 got caught in a horrible time period of tech and history. Super expensive to build and maintain without a threat. An quite honestly, without the range to deal with the primary adversary at this point. Hopefully the replacement has a better program and less expensive production/maintenance cost.

What is NGAD supposed to have, that cannot be installed in a potential F-22C? Or how is it going to be cheaper to develop it from scratch, than evolving an existing model? I mean, it is hard to understand that in the fleet they are proposing there is still space for the F-15, but not for the F-22, it does not really make sense.

There is only spaces for new airframe : 35, 15EX, NGAD and F-16 (new order?) or extra 35s
The obvious answer is then obsolescence and the lack of an open manufacturing line.
Building mass effect with a fighter available only in limited supply is a difficult and costly exercise.

Last edited:
LMFS said:
What is NGAD supposed to have, that cannot be installed in a potential F-22C? Or how is it going to be cheaper to develop it from scratch, than evolving an existing model? I mean, it is hard to understand that in the fleet they are proposing there is still space for the F-15, but not for the F-22, it does not really make sense.
Click to expand...
The biggest advantages would be a longer range, greater power and thermal capacity, possibly larger weapon bays, likely (slightly) larger-diameter adaptive cycle engines, as well as a more maintainable and likely more broadband low observability.

To make any of these modifications would require considerable structural work that would essentially require an F-22 production line to be re-opened. Between the RDT&E and the production line re-opening you'd be paying comparable money $$$ to what NGAD is likely to cost, but you'd be getting a vehicle pointlessly constrained by outdated design requirements.

The thing that has me rather intrigued is what kind of timeframe they'd be looking at retiring the F-22s and how this might affect the mid-life upgrade that's been loosely discussed over the years. If they're talking about F-22's being retired by the 2040s (ie maybe just a decade sooner than previously planned) then they'll likely still need to do a big MLU to keep the F-22 relevant through to that point. If they're talking about retiring it this decade however, they can probably avoid trying to upgrade the F-22 beyond maybe one or two more minor increment upgrades.

This could potentially be a big factor in the analysis because the F-22's avionics architecture is apparently not very conducive to upgrades and modifications. Like whereas the F-35's sensor fusion engine doesn't care what a sensor is, so long as it abides by its VSIM standards, the F-22's fusion engine is apparently based on a more low-level form of integration that'd make replacing its radar or adding EO/IR sensors more complicated. The F-22's core processors and cockpit are also somewhat badly in need of an upgrade, and it's my understanding that it'd also likely need the databuses / intra-vehicle networking upgraded, which is no easy task. Basically a proper F-22 MLU could make the F-35's ~$14 billion Block 4 program look cheap.

It is a good decision, the fleet of the F-22 is so small this is the time to build NGAD, B-21 and NGAD will be surely the ultimate fleet of air combat, I don't think there is a need now for enormous fleet of combat aircraft , 50 B-21 + 200 NGAD and F-35, hypersonic weapon , space weapon is enough to defeat any adversary in the futur.

Dragon029 said:
The biggest advantages would be a longer range, greater power and thermal capacity, possibly larger weapon bays, likely (slightly) larger-diameter adaptive cycle engines, as well as a more maintainable and likely more broadband low observability.
Click to expand...
Simply putting the adaptive engines would already yield substantial improvements in subsonic range compared to F119. A fuselage stretch (or just moving the engines which are very forward placed) would increase range at the expense of some agility, which seems not to be so important for USAF now.
Dragon029 said:
To make any of these modifications would require considerable structural work that would essentially require an F-22 production line to be re-opened. Between the RDT&E and the production line re-opening you'd be paying comparable money $$$ to what NGAD is likely to cost, but you'd be getting a vehicle pointlessly constrained by outdated design requirements.
Click to expand...
Upgrading the F-22 is said to be impossibly expensive, but Boeing modified the F-15 inside out for relatively little money. It is clear what the problem is IMHO.
Dragon029 said:
The thing that has me rather intrigued is what kind of timeframe they'd be looking at retiring the F-22s and how this might affect the mid-life upgrade that's been loosely discussed over the years. If they're talking about F-22's being retired by the 2040s (ie maybe just a decade sooner than previously planned) then they'll likely still need to do a big MLU to keep the F-22 relevant through to that point. If they're talking about retiring it this decade however, they can probably avoid trying to upgrade the F-22 beyond maybe one or two more minor increment upgrades.
Click to expand...
Clearly uncertain, but to me it sounds as a rather close decision, once they talk about still having the F-16 and F-15s. That makes it even more strange.
Dragon029 said:
This could potentially be a big factor in the analysis because the F-22's avionics architecture is apparently not very conducive to upgrades and modifications. Like whereas the F-35's sensor fusion engine doesn't care what a sensor is, so long as it abides by its VSIM standards, the F-22's fusion engine is apparently based on a more low-level form of integration that'd make replacing its radar or adding EO/IR sensors more complicated. The F-22's core processors and cockpit are also somewhat badly in need of an upgrade, and it's my understanding that it'd also likely need the databuses / intra-vehicle networking upgraded, which is no easy task. Basically a proper F-22 MLU could make the F-35's ~$14 billion Block 4 program look cheap.
Click to expand...
They need to change the whole avionics, that is clear. But that cannot be that expensive, see above. All over the world this is daily business for aircraft manufacturers.

LMFS said:
Simply putting the adaptive engines would already yield substantial improvements in subsonic range compared to F119. A fuselage stretch (or just moving the engines which are very forward placed) would increase range at the expense of some agility, which seems not to be so important for USAF now.
Click to expand...
It definitely would, but the reason I said they'd likely be larger diameter is that when P&W (or maybe it was GE) was talking about making an adaptive cycle engine for the F-35, they were uncertain if they could get one to fit in the same bay that the F135 fits, even though the XA100 and XA101 are designed to match the approximate dimensions of the F135. It does appear they're able to do this, hence why P&W is offering an adaptive cycle engine as part of their F135 "Growth Option 2" engine, but if they were concerned about matching the size of an F135, they'd presumably have even more trouble matching an F119 (which AFAIK has a similar sized engine core, but a thinner bypass duct and smaller fan module). As the tech matures I'm sure it'd be possible, but in a short-term timeframe I'm not sure it'd be feasible.
LMFS said:
Upgrading the F-22 is said to be impossibly expensive, but Boeing modified the F-15 inside out for relatively little money. It is clear what the problem is IMHO.
Click to expand...
The kind of modifications we're talking about for the F-22 are a fair bit more drastic than going from an F-15E to F-15EX. A lot of the new avionics being built for F-15EX have been under development for and funded for other F-15 variants as well. EPAWSS for example was originally being developed for the F-15C and F-15E; it's currently expected to cost $1.3B to develop and cost $4 billion to procure 361 sets through to 2024.
LMFS said:
Clearly uncertain, but to me it sounds as a rather close decision, once they talk about still having the F-16 and F-15s. That makes it even more strange.
Click to expand...
F-15EXs (being newly-built airframes) should be around for a long time as a bomb truck and ANG civil airspace defense jet, the F-16 is more of an unknown - with the recent SLEPs they should be safe to fly until 2048, but in contrast, the last USAF F-35A is theoretically meant to roll out of Fort Worth in 2044. I expect it'll all depend on how many F-35s the USAF can afford to sustain and what options are available by the 2030s. Maybe fewer F-35s get purchased and the F-16 fleet has to keep flying a little longer, through to the 2040s until some unmanned system is in service in sufficient quantities to take their place (and for some reason don't count towards the "4+1" airframes being discussed by Brown).
LMFS said:
They need to change the whole avionics, that is clear. But that cannot be that expensive, see above. All over the world this is daily business for aircraft manufacturers.
Click to expand...
Most fighters don't contain the same level of software and avionics complexity as an F-22. The F-35 is having >$14 billion spent on Block 4; a lot of that is in procurement of new hardware for several hundred jets, but I can't see the F-22's upgrade being any less than that, especially considering that you're starting from a less capable baseline. If you're building brand-new F-22s to facilitate the airframe modifications mentioned above then we're also talking about tens of billions more on top of that.

It has been feasible for them to have new build F-15 with new wings etc so how can they not build new F-22? Larger weapon bays, more pace and more range etc, what is not to like? New electronic capability could come from F-35 avionic, just a case of putting them in the fF-22 airframe, being bigger there are fewer issues making 'stuff' fit.

Almost any significant F-22 engine or avionics upgrade would involve so much work, new technology, and R&D that it simply be a new aircraft. It got caught in a technological and production dead end and most of its subcontractors don't exist any more. The F-15EX works because it *is* a new aircraft, even if the original airframe design is old. As someone noted, it has been in continual production with incremental improvements for four decades. I don't think it would be especially cost effective to upgrade the C's to to EX standard either, hence new builds.
