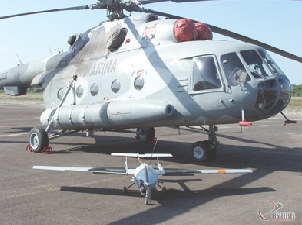

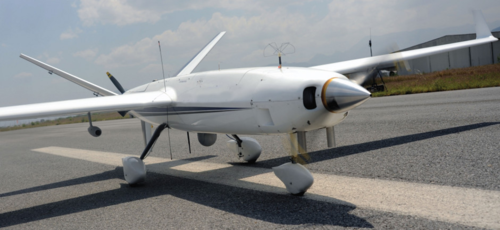

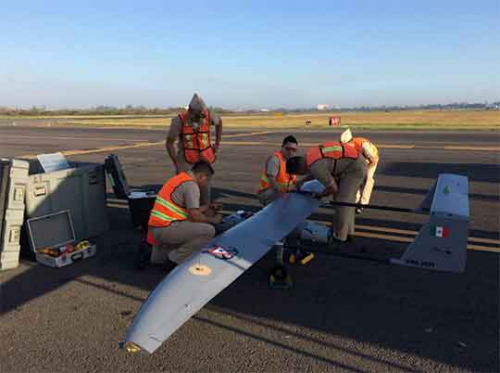

Sorry Dan my mistake that one is operated by SEMAR but its origin is American

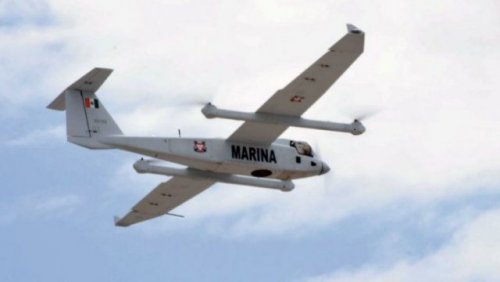

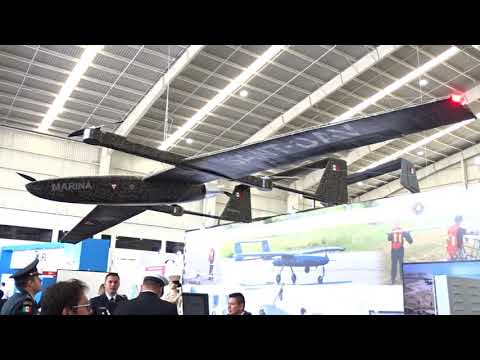

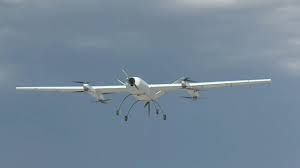

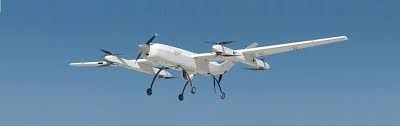

Semar has two models one is the Spartaam and another VTOL that is similar to the Arcturus T-20 JUMP but that one is an American one.

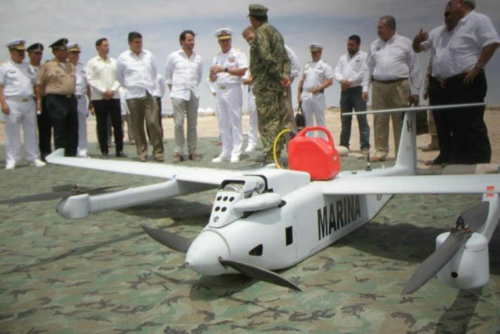

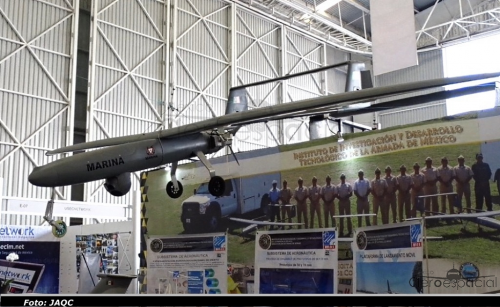

This one below is the Spartaam this is Mexican in origin and designed by the INIDETAM, that is the research branch of SEMAR it is the Instituto de Investigación y Desarrollo Tecnológico de la Armada de México, that means roughly speaking research institute of development of Technology of the Mexican navy

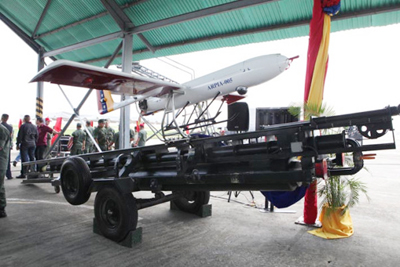

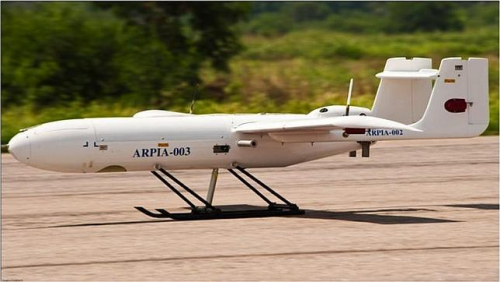

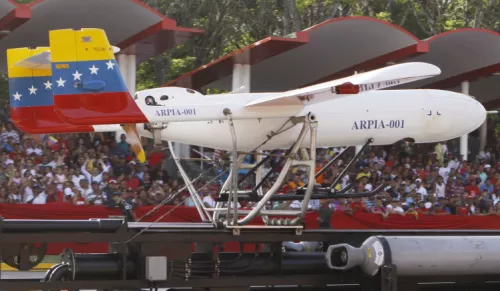

Venezuelan made uav based upon an Iranian Drone named Mohajer 2
The Minister of Popular Power for Defense, Admiral Diego Alfredo Molero Bellavia, the reports are prepared to deliver the Venezuelan Air Force (FAV) "two unmanned aircraft made with Venezuelan technology and support from other countries," as indicated in a note of the press office of the military office. He added that the aircraft will be used to provide "information to the different units of the National Force".
In that order, informs a press release of the state company C.A. Venezuelan Military Industries (CAVIM), military professionals of the Unmanned Aerial Systems Plant (SANT ARPIA-1), which started on the third floor of the school in the land of these systems to 41 members of the Intelligence Air Group, Surveillance and Recognition No. 8 of the FAV.
The training comprises nine weeks. .

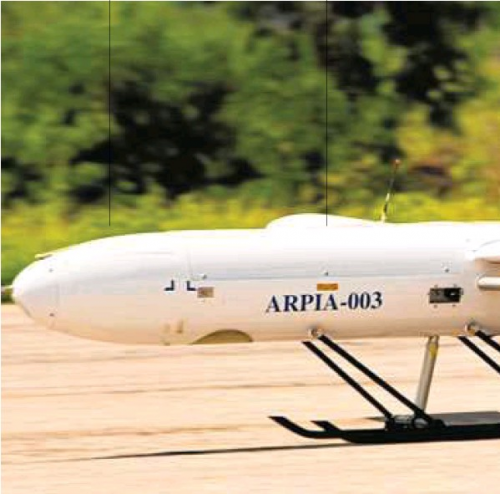

It is important to clarify that the Arpia 1 is the Venezuelan version of the unmanned aerial vehicle (UAV, for its acronym in English). within the framework of technical-military cooperation agreements signed by Venezuela and Iran.

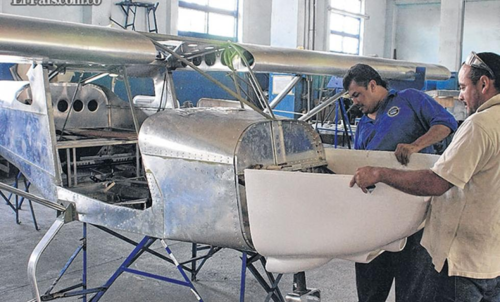

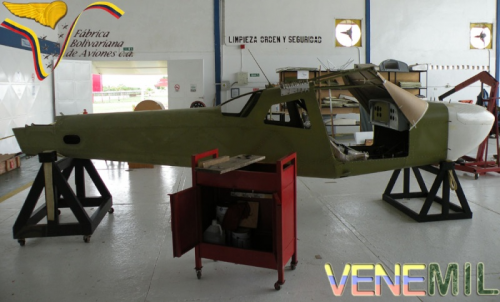

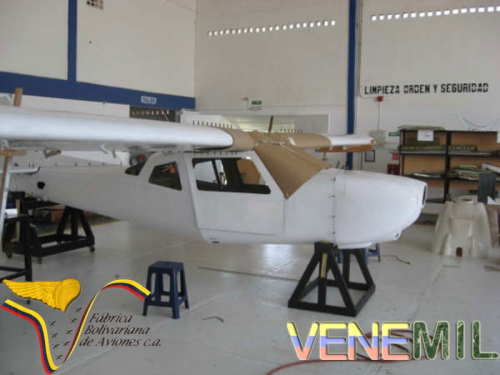

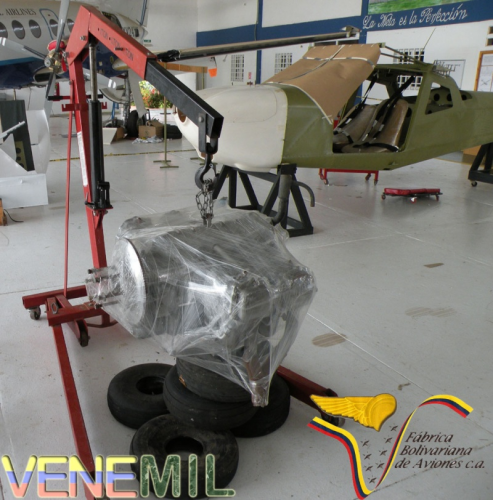

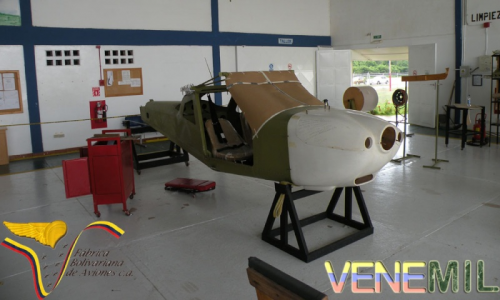

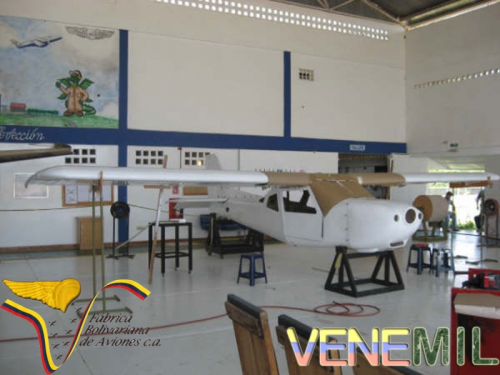

The Bolivarian Aircraft Factory CA, is a Venezuelan company that produces the ultralight aircraft Miura FBC-700 in its Standard, Stol and Superstol versions. This is a two-seater high-rise aircraft with a metal construction of 300 kg of empty weight and the possibility of motorizing between 80 and 120 HP. The standard engine is the Rotax 912S of 100 HP, but versions with Jabiru of 120 HP are also possible. The landing gear is tricycle and the cabin has a width of 1.12 meters. The cruising speed is 176kmh with a flight range of 3 hours expandable to 6 hours with optional tanks.

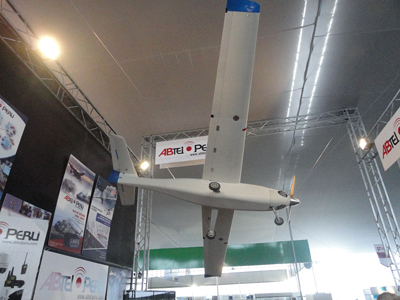

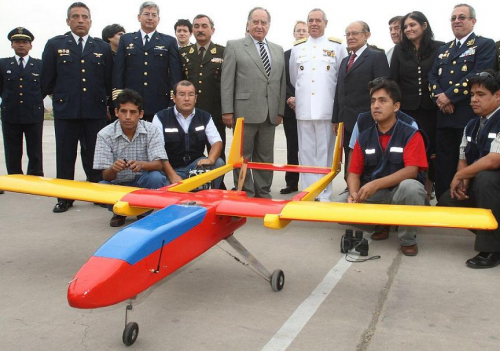

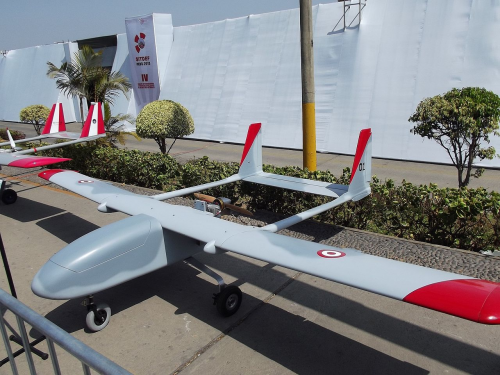

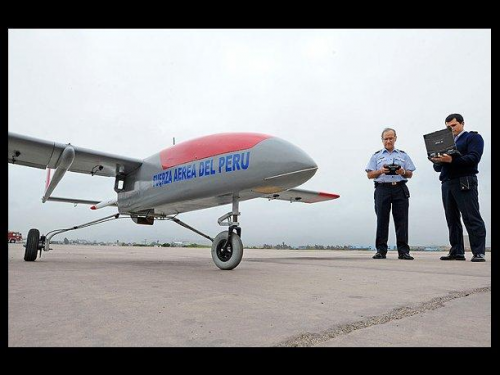

The Project Development Center of the Peruvian Air Force (CEDEP), on March 13, 2008 presented a prototype of what would be the unmanned aerial vehicle (UAV), a small ship that would capture images and information from inaccessible areas . This aircraft made its first test flight at the Las Palmas Air Base, starting a new stage in the development of aeronautical technology.

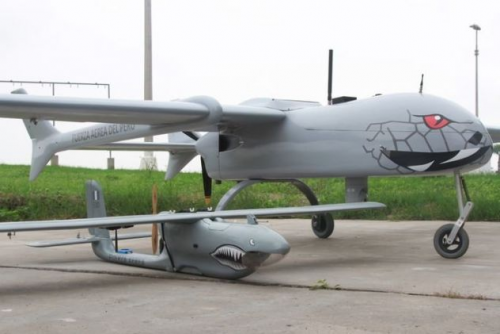

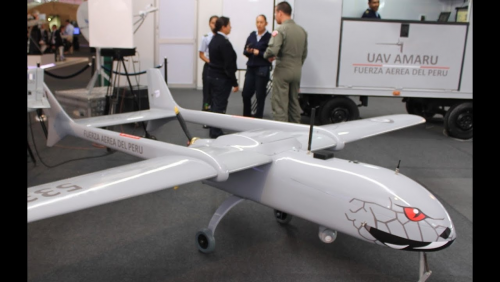

Ricuk and Amaru, the latest creations of CIDEP, are the result of different UAVs that have been improved characteristics and capabilities.
The Peruvian Air Force (FAP) has since 1993 the Center for Research and Development of Projects (CIDEP), which was created to develop simulators of Cessna A-37 aircraft. The project was in charge of the electronic service officers. After the successful result they continued with the development of a series of simulators that facilitate training and different exercises for aircraft, anti-aircraft systems, rifle shooting and parachutes.
In addition to UAVs, the EcoBox System is developed in CIDEP to facilitate communication between pilots, control towers and simulators.
Since then, CIDEP has grown and improved its capabilities over the almost 25 years it has as a unit of the FAP, especially from the new requirements, new technologies and the development of new capabilities of the staff of that unit . Thus, since 2010, they began to work on the development of drones or unmanned aerial vehicles (UAVs), which have been in continuous improvement until they reach the recent Ricuk ("Observer" in Quechua) and Amaru ("red-eyed snake" according to Inca mythology), which show all the knowledge acquired in the years that CIDEP has been operating.

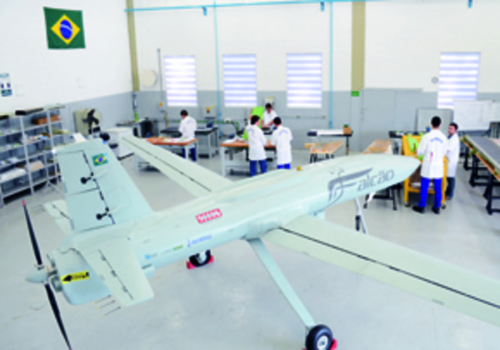

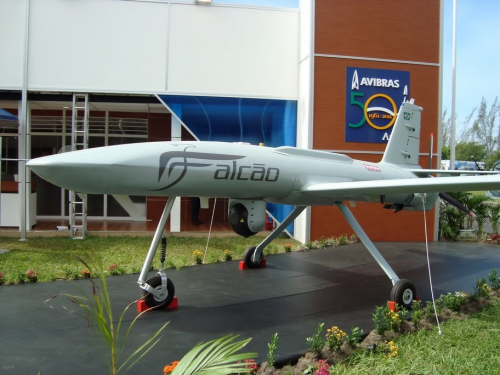

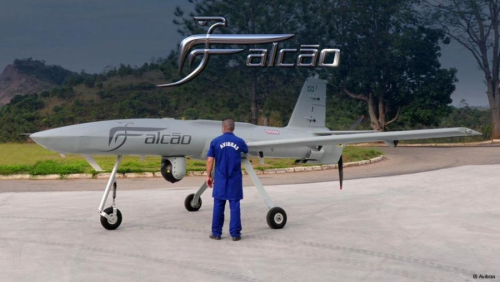

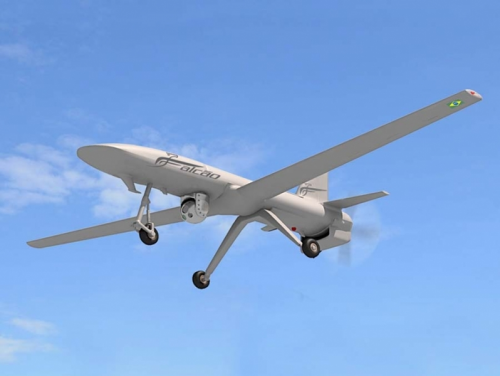

The falcão / hawk flight

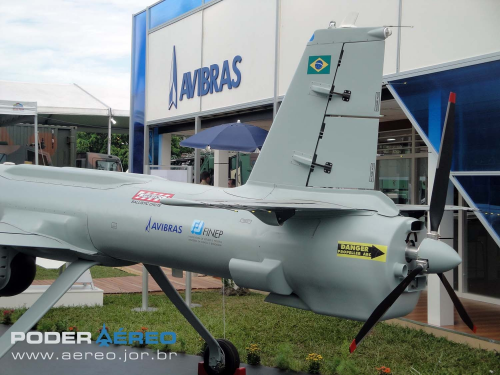

An ambitious project, developed for military purposes, may lead Brazil to become an important pole of research, development and production of new technologies related to unmanned aerial vehicles, the vants, also known as drones. Conceived for use in the Armed Forces, the Falcão [Hawk], as it was named, will be the largest national military vant. If the project advances, that aircraft will be 11 meters wide, from one end of the wing to the other, with a minimum autonomy of 16 hours of flight. May provide services in maritime and border surveillance operations, search and rescue missions, in the fight against drug trafficking and environmental crimes and in the security and monitoring of major events.

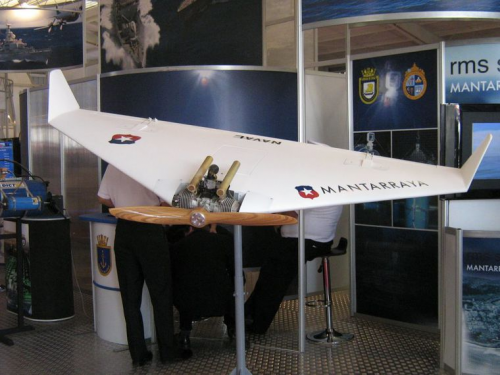

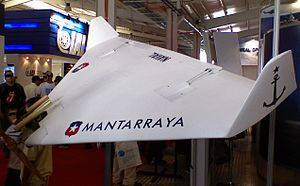

Manta I or "Mantarraya" is an unmanned aerial vehicle (UAV) produced by the Chilean company R.M.S. and operated by the Chilean Navy.
The operation of Manta I requires a launching system, a control station and five aircraft. The launch of the aircraft is carried out by means of a catapult or a take-off car, and when they finish their missions they are recovered with a parachute.2
The "Mantarraya" can be equipped with cameras or heat sensors, being able to fulfill surveillance functions within a radius of 30 kilometers. It can also be used as an aerial target in shooting exercises.1
The Chilean Navy has two units currently
General characteristics
Load: 5 kg (flares, radio altimeter, MDI)
Length: 1.40 m
Wingspan: 2.52 m
Empty weight: 40 kg
Maximum takeoff weight: 60 kg
performance
Maximum operating speed (Vno): 240 km / h
Scope: 100 km
Service ceiling: 3,000 m 9,842.5 feet
Avionics
Decoder, control receiver, telemetry transmitter, vertical rotation, altimeter, magnetic compass, servos, GPS, power box, battery.
From the interest of the MinDef to form the base of the Air Force Argentina in Chamical, Province of La Rioja as the first base exclusively of UAV's in the Argentine Republic, the Argentine Ministry of Defense developed the project of Unmanned Aerial Vehicles, Vigia 2A.

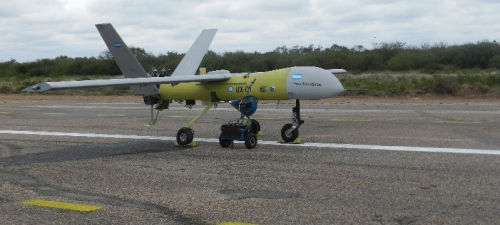

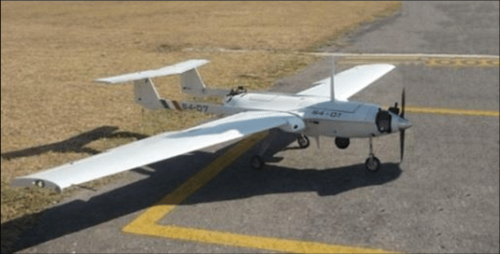

Originally as Project PAE-22365, Vigia 2A, was devised by the Center for Applied Research (CIA) dependent on the Aeronautical University Institute (IUA) under funding from the Ministry of Science and Technology. This military development is a demonstration of the intention of the FAA to develop a tactical medium apparatus of national design, unlike the SARA Project, addressed by INVAP and the Ministry of Security, from which dual and not specifically military applications arise. Then faced by the FAA, as project FAS-0091.
The Vigia 2A is a MALE device (Medium Altitude, Long Endurance / Medium Altitude, Long Range), Class II, with autonomous navigation capacity and via satellite link. Framed under the standard USAR (STANAG 4671 Annex IX) its development has evolved from a 1: 2 scale model (Class I) in which the concept of flight, command and control has been tested. Your navigation is controlled from an automatic pilot Cloud Cap Technology Piccolo II + GPS / INS with capacity for automatic takeoff and landing, it has the capacity of radial and satellite link, before the interruption of the same conventionally so you can return safely to your base. You can enter and process a maximum of 1000 waypoints, your on-board computer verifies flight conditions and operation of each of your systems, with the ability to detect anomalies and define emergency situations. This equipment is regulated by export controls of the United States.
For emergency situations, Vigia 2A has a ballistic parachute as standard equipment.
As a useful load, it has a usable space of 400x400x800 and up to 50kg. In the prototype, it is ballasted to maintain the center of gravity of the device.
Dimensions:
Wing Aerea Surface : 8 m2
Spread: 0 m
Total length: 1 m
Total Height: 92 m
Width of the fuselage: 45 m
Maximum takeoff weight: 330 kg
Propulsive Plant:
A Japanese made HKS 700E engine, four stroke two cylinders, electronic ignition.
Maximum power: 60 HP @ 6200 rpm
Reducer: 2.58: 1
Powerfin propeller 4 shovels type BT
TBO: 1000 hs
Navigation:
GPS / INS (Piccolo Autopilot 2+) with automatic take-off and landing capability and SAT link
Emergency:
Ballistic recovery parachute BRS 600 (optional)
Performances
Autonomy: 11 hours (4 hours in the 1st prototype)
Maximum Speed: 115 Kcas
Maximum mission altitude: 15000 ft
Ascent time up to 15000ft 20 min
Useful Load: 60 kg
Maximum take-off weight 330 kg
Available power: 1500 W (optional)
The Argentine Aircraft Factory -FAADEA- signed a contract with the LAVIASA company in Mendoza, for the manufacture under license of the agricultural aircraft PA-25 El Puelche.
The project will be developed in two stages, in the first the structures will arrive almost completed from Mendoza and FAdeA will assemble the complete aircraft, as well as the training of the personnel affected to the project. In the second phase, LAVIASA will provide parts and FAdeA will add the construction of the structures to complete the plane.
Keep in mind that the PA-25 El Puelche is built since 1998 by Latinoamericana de Aviación S.A. (LAVIASA) according to patent license for the manufacture of the Piper PA-25 Pawnee, one of the most successful agricultural aircraft.
The Puelche is a monoplane and low-wing single-seater, designed especially for the application by spraying pesticides and fungicides, the spraying of seeds and fertilizers, and fighting forest fires.

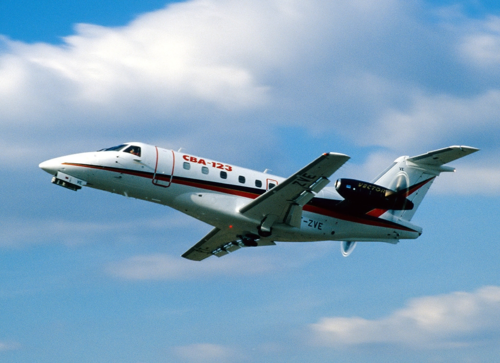

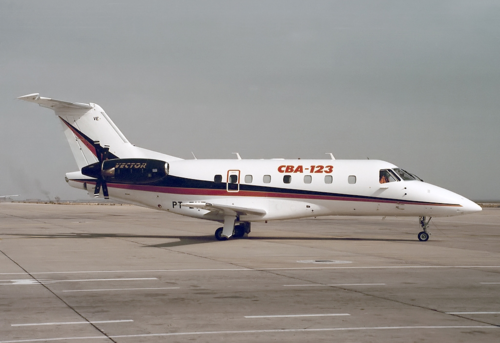

Technical Data (Commuter Only) Design Features. Cantilever low wing monoplane with T-tail section and retractable tricycle type landing gear. Engines are mounted on the empennage in pusher turboprop configuration. The supercritical wing is slightly swept (six degrees) and has an aspect ratio of 11.5. The fuselage is a shortened version of that used on the EMB-120 Brasilia.
Dimensions Metric US
Length overall 18.09 m 59.35 ft 10 Year Unit
Production Forecast 1996-2005 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 Years 0 Units 0000000000 No Production Forecast 5 10 15 Outlook CBA-123 development has been terminated. A total of three flyable prototypes were built. EMBRAER/AMC CBA-123 Vector, Page 2 Civil Aircraft Forecast August 1996
Height 5.97 m 19.59 ft
Wingspan 17.72 m 58.14 ft
Weights Max T-O weight 9,500 kg 20,944 lb Basic operating weight empty 6,230 kg 13,735 lb
Max payload 2,270 kg 5,004 lb
Performance(a) Max cruise speed at 24,000 ft 594 km/h 321 kt
Service ceiling 10,670 m 35,000 ft Range,
max cruise speed (ISA),
19 passengers, reserves 1,852 km 1,000 nm Seating. Standard commuter configuration for 19 passengers; 2 + 1 across, single aisle with 31-inch (79-centimeter) pitch.
Propulsion CBA-123 (2) AlliedSignal Engines TPF 351-20 or -20A centrifugal flow turboprop engines thermodynamically rated 1,492 kW (2,000 shp) and derated to 970 kW (1,300 shp); each driving Hartzell six-bladed constant speed, reversible-pitch, fully-feathering, composite propellers. (a) At maximum takeoff weight, unless indicated otherwise.

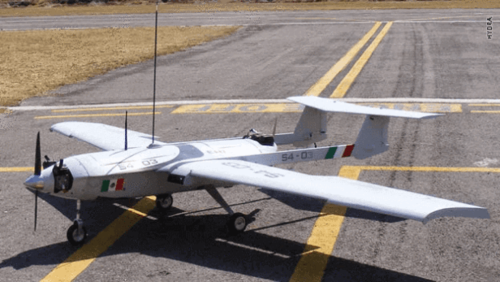

The S4 Ehécatl (in remembrance of the Aztec wind god) is a surveillance aircraft designed and manufactured in Mexico by Hydra Technologies of Mexico. The airplane is one of unmanned type, reason why the military version will be able to be lent to dangerous situations without putting in danger human lives.
The S4 Ehécatl was presented on June 19, 2007 in Paris, France by 'Hydra Technologies de México' at the International Aeronautics and Space Fair of Le Bourget, the largest aeronautical exhibition in the world with more than 275 exhibitors. Only one month after its presentation in Paris, the S4 Ehécatl received the Outstanding Contributor award, awarded by the International Association for Unmanned Vehicle Systems (AUVSI) on August 9, 2007, in Washington DC The award is given to the most important technological contribution of the year.

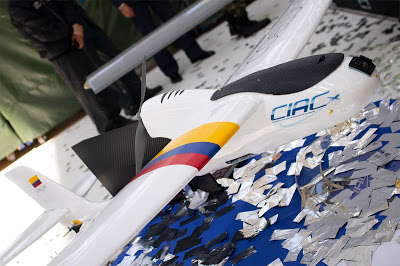

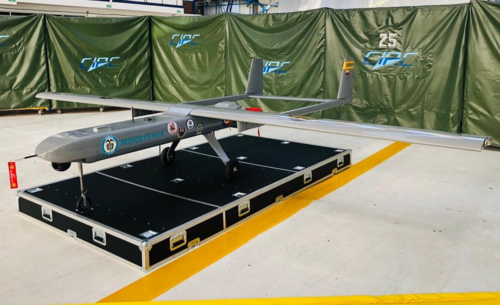

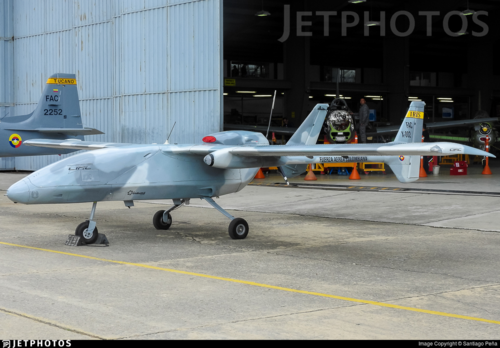

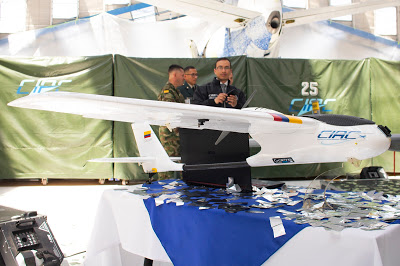

The Colombian Aeronautical Industry Corporation (CIAC) has presented in a workshop held on December 4 at the company's facilities in Bogota, Colombia, its new UAV the Qumbaya, of Colombian design with the which plan to start the production of this type of equipment for the Colombian Military Forces and potential civilian users in the country.
This thread is a general latin american topic, it is hard to see but during the 16th and 17th centuries our nations were part of the Portuguese-Spanish Empire, so for almost a century we were the same country in the early 10th and 11th century Galicia was a kingdom uniting the portuguese and Spanish kingdoms of Castille, so basically we are very homogeneous in origin so i wanted to use the latin american in general topic in aviation, why? well because as you can see many programs are duplicated, each country can develop UAVs, and light single engine propeller aircraft, Brazil and Mexico posses the most developed industries to the level of that a common Brazilian and Mexican program could lead to a much efficient line of aircraft, already Brazil and Argentina are partners in the KC-390, and Chile has been part of many embraer projects, it seems that Brazil is the leader in aerospace but the reality is Mexico via all the manufacturers building aircraft parts in its territory also makes parts for Embraer aircraft, regardless of what politicians and brands say, most modern aircraft are multinational projects FAdeA from Argentina Produces many parts for KC-390, and even Frisa Aerospace from Mexico build engine parts for Embraer aircraft, so names like Boeing in reality are more like Airbus, a composite of parts made and designed in many countries
ENAER from Chile builds some parts of the vertical stabilizer of ERJ-145
Frisa Forjados reported it has entered into a long-term agreement with Pratt & Whitney, to produce and supply forged rings and casings for the new PurePower PW1000G turbofan engines. Specific terms of the deal were not announced, though the forger indicated it carries a value above $150 million.
Pratt & Whitney’s PW1000G is a high-bypass geared turbofan engine that has been selected to power several commercial aircraft programs, including the Bombardier CSeries, Mitsubishi Regional Jet, and Embraer's redesigned E-Jet regional aircraft. It is offered as an option for the Irkut MS-21 and Airbus A320neo aircraft.
Brazil's Embraer agrees Mexico venture with Zodiac
Embraer to develop plane interiors with French seat maker
Mexico plant part of Embraer’s expansion beyond Brazil
June 12 (Reuters) - Brazil’s Embraer, the world’s largest regional jet maker, agreed on Tuesday to a joint venture in Mexico making cabin interiors with France’s Zodiac Aerospace , as part of an effort to expand manufacturing operations globally.
Embraer and Zodiac, which makes aircraft seating and already supplies plumbing, power and parts for Embraer’s jets, will jointly operate a facility in Mexico making interior elements of the E-170 and E-190 regional jets.
ART Coelum during his presentation.

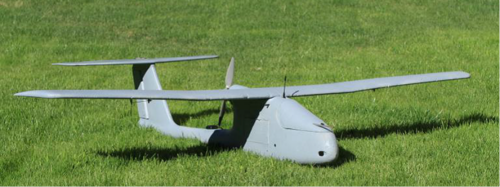

With 1.95 meters in length and 1.25 meters in span it can take off with a weight of up to 4.5 Kilograms, it is portable and the assembly of its modular system can be done in less than 5 minutes, together with its control system weighs 10 kilograms, which allows transport by Special Forces units in highly complex scenarios.

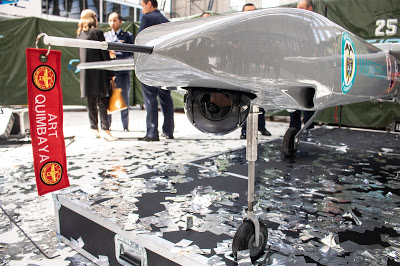

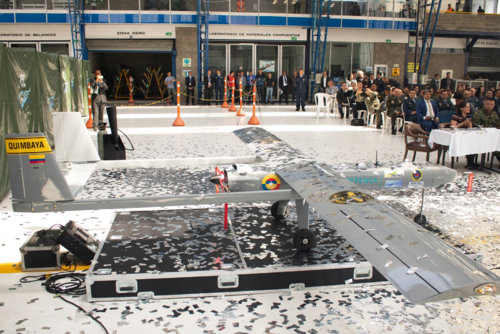

It does not require a runway since it has a Hand Lunch takeoff system and counts as the Quimbaya with an EO / IR bed, transmits data in the DataLink system and has a range of more than 60 minutes with an operating radius of 20 Kilometers operating up to 3,000 meters thanks to its electric motor.
The Coelum has already made its first flight and in the first semester of 2019 it will finish the verification and presentation flights to the different Colombian Military Forces. Currently there is an interest on the part of the Colombian Army to buy some units of the Coelum system.
El Gr Ulloa highlighted the great experience that the CIAC has acquired thanks to its work in different projects with composite materials such as the basic trainer T-90 "Calima" and the glider S-17 "Urubú" as well as the experience have developed the ARt "Iris", a project that failed to overcome the economic feasibility studies in the face of the competition of its sector but that left the experience that allowed to develop these two projects.
PRODUCTS
Manufacture of spare parts for landing gear (bearring carriers) for the Boeing 737, 767 and 777 programs
Manufacture for housing rings.
Currently working with Titanium and Stainless Steel.
Venezuelan made uav based upon an Iranian Drone named Mohajer 2
The Minister of Popular Power for Defense, Admiral Diego Alfredo Molero Bellavia, the reports are prepared to deliver the Venezuelan Air Force (FAV) "two unmanned aircraft made with Venezuelan technology and support from other countries," as indicated in a note of the press office of the military office. He added that the aircraft will be used to provide "information to the different units of the National Force".
In that order, informs a press release of the state company C.A. Venezuelan Military Industries (CAVIM), military professionals of the Unmanned Aerial Systems Plant (SANT ARPIA-1), which started on the third floor of the school in the land of these systems to 41 members of the Intelligence Air Group, Surveillance and Recognition No. 8 of the FAV.
The training comprises nine weeks. .
It is important to clarify that the Arpia 1 is the Venezuelan version of the unmanned aerial vehicle (UAV, for its acronym in English). within the framework of technical-military cooperation agreements signed by Venezuela and Iran.
In that order, informs a press release of the state company C.A. Venezuelan Military Industries (CAVIM), military professionals of the Unmanned Aerial Systems Plant (SANT ARPIA-1), which started on the third floor of the school in the land of these systems to 41 members of the Intelligence Air Group, Surveillance and Recognition No. 8 of the FAV.
The training comprises nine weeks. .
It is important to clarify that the Arpia 1 is the Venezuelan version of the unmanned aerial vehicle (UAV, for its acronym in English). within the framework of technical-military cooperation agreements signed by Venezuela and Iran.
you can do it but in my opinion latin America has not many aircraft programs, even Brazil has not many programs, Colombia has a few Cessna type aircraft and and a few UAVs same is Venezuela or Mexico, so in reality it will impoverish the topic and the possible conversations we can have in this thread

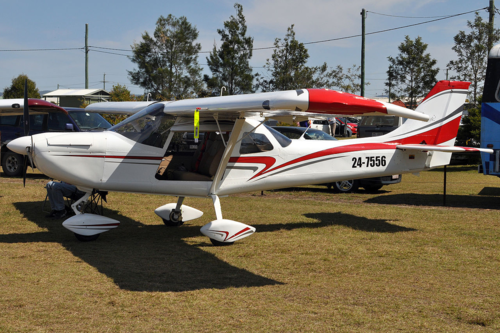

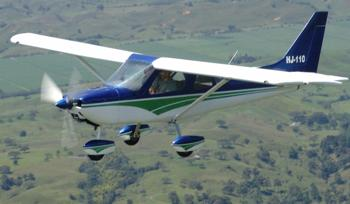

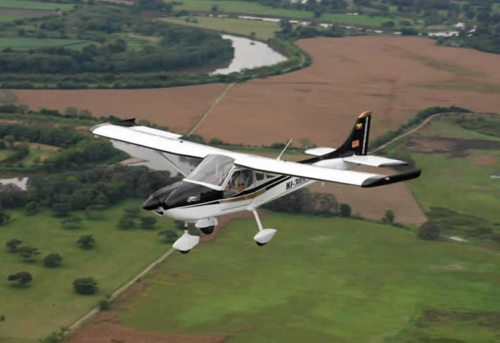

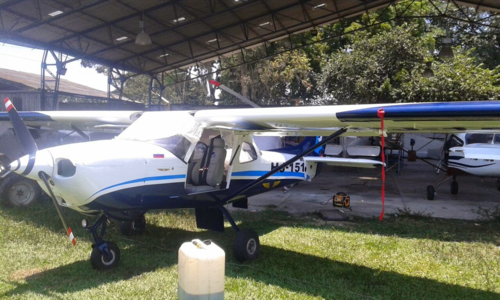

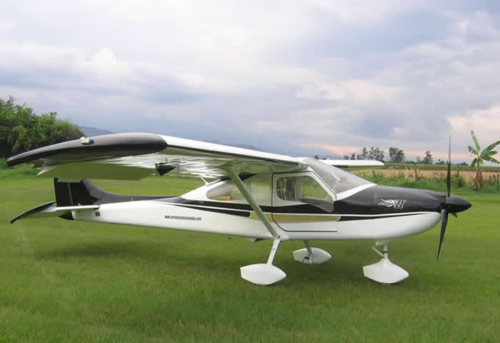

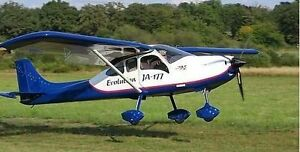

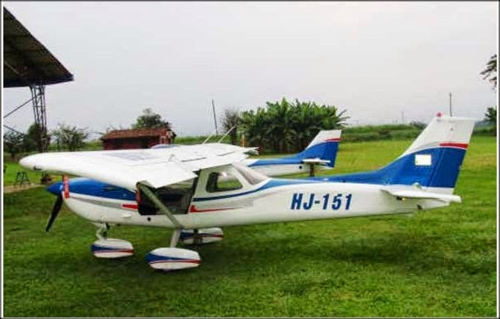

Ibis-Aerodynos alliance also designs and builds the GS700 in Colombia
The Cauca River Valley, located mainly in the Department of Valle del Cauca, has a series of advantages and potentials that are rarely gathered in such a relatively small area. In view of the fact that this region is in a privileged geostrategic position, providing a promising and successful future, the Colombian Air Force, in order to benefit from the region’s present and future advantages and potentials, has been dedicated to the creation and promotion of an Industrial Cluster devoted to the Aerospace and Defense Industry, known as the Cauca Valley Aerospace Cluster (CVAC).
For the Colombian Air Force, the Cauca Valley Aerospace Cluster is a strategic initiative that will have enormous and positive impact not only on the economic field, but in the quality of life of those who inhabit this area as well.
THE INITIATIVE
The Cauca Valley Aerospace Cluster is both an organization and a strategic initiative. The formation and structuring of the Cauca Valley Aerospace Cluster is a regional strategic initiative dedicated to the cultural, social and economic transformation of the Cauca River Valley, and is led by the Colombian Air Force along with the “Marco Fidel Suárez” Military Aviation School, through its Aerospace Technologies Research Center – CITAE and supported by the Cali Chamber of Commerce, the Department of Valle del Cauca and the Colombian Ministry of Defense.
The Colombian Air Force raised this initiative for the first time in 2006, but nothing could have been achieved without the concurrence of key factors who are able to understand the implications of such project and who are willing to face challenges. With the full support and commitment of the Valle del Cauca Department and the Cali Chamber of Commerce and with the active and decisive participation of 30 organizations, among which are private enterprises, higher education institutions, research and development centers, and various local, regional and national entities, the Cauca Valley Aerospace Cluster is aiming at transforming the Cauca River Valley into a significant industrial center.
MISSION
The Cauca Valley Aerospace Cluster is aiming to group, articulate, represent and promote the various public and private entities of the Cauca River Valley that have interests in the aerospace sector, as well as facilitate the economic, social and cultural development of the region, based on scientific, technological and aerospace activities.
As a regional strategic initiative, Cauca Valley Aerospace Cluster’s goal is the economic, social and cultural transformation of the region through a number of initiatives and a joint line of action.
VISION
The Cauca Valley Aerospace Cluster will not only provide the appropriate platform for business activities, but also a regional strategic initiative for the economic, social and cultural transformation of the region, aiming to encourage the creation of new work positions, as well as a scientific and technical development on a global scale.
LINE OF ACTION
The Cauca Valley Airspace Cluster is mainly aiming at:
Expanding the national aviation, aerospace and defense market internationally,
Strengthening the position of the participating companies nationally and internationally,
Creating alliances with international strategic partners of the civil aerospace market,
Generating the appropriate conditions (i.e. promotion, funding, infrastructure, social development technology, education, etc.), for the strengthening of the Cauca Valley Airspace Cluster,
Conquering a significant part of the global airline business,
Promoting industrial research development,
Providing certified products that are manufactured in the region at low cost, and as a result, ensuring regional economic development,
Investing in new technologies, in order to improve quality control and industrial performance.
Another result of the aerospace cluster is the establishment of the Aeroindustriales de Colombia Association, a result of the cooperation of Aerodynos de Colombia, Aeroandina, Ibis Aircraft and Caldas Aeronautica. The Association is engaged in the manufacture of ultra-light aircrafts and along with other companies that we have been identified for their significant knowledge in the field, it is able to strengthen business networks both within the country and globally.
Among the most prominent members of the Cauca Valley Aerospace Cluster are:
Ibis Aircraft,
Aeroandina,
Aerodynos de Colombia,
Caldas Aeronautica,
Pontificia Universidad Javeriana,
Universidad de San Buenaventura,
Universidad del Valle,
Departamento Administrativo de Ciencia, Tecnología e Innovación – Colciencias,
I'd strongly recommend to impose and maintain a clear distinction/separation between crewed aircraft and uncrewed air vehicles (i.e. drones) in this thread for clearer/easier separation of search results and technical accomplishments.
