Focke Wulf Fw 190 / Ta 152 Projects & Variants

[Justo Miranda]

View attachment 614329

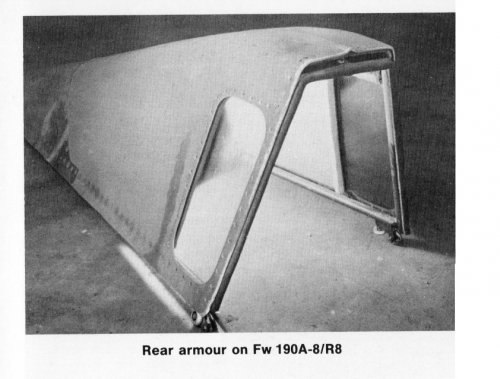

what is this canopy? were does this come from?

From "Focke-Wulf Fw 190 & Ta 152, by Heinz J. Nowarra, Aircraft & Legend, Haynes 1988.



[sgeorges4]

do you have more regarding the G1 with SC 1800?

also what book for those drawing?

From "Axis Suicide Squads" Fonthill Media Ltd.

I thoug it was from "the ultimate piston fighters of the luftwaffe"



[sgeorges4]

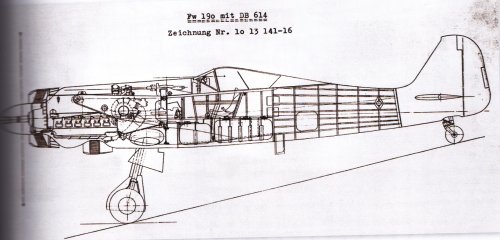

fw 190 with DB 603/DB 614



[sgeorges4]

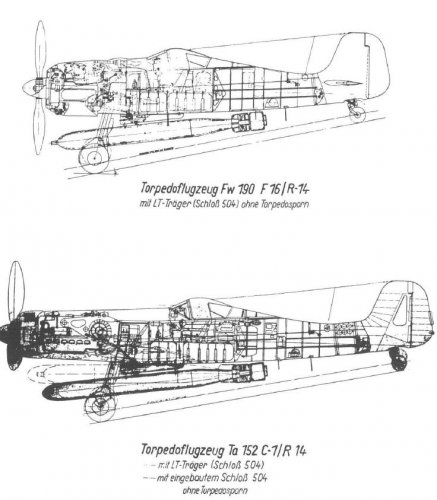

better view of the fw 190 F16/R14 and ta 152 C1/R14:



[sgeorges4]

SG 500 and SG 118 fw 190 (these were also considered for the Ta 152 C/E/H and the fw 190 D12/13):



[sgeorges4]

ta 152 E:



[sgeorges4]

do you have something on the MG 213 Ta 152? If so what variant were considered?

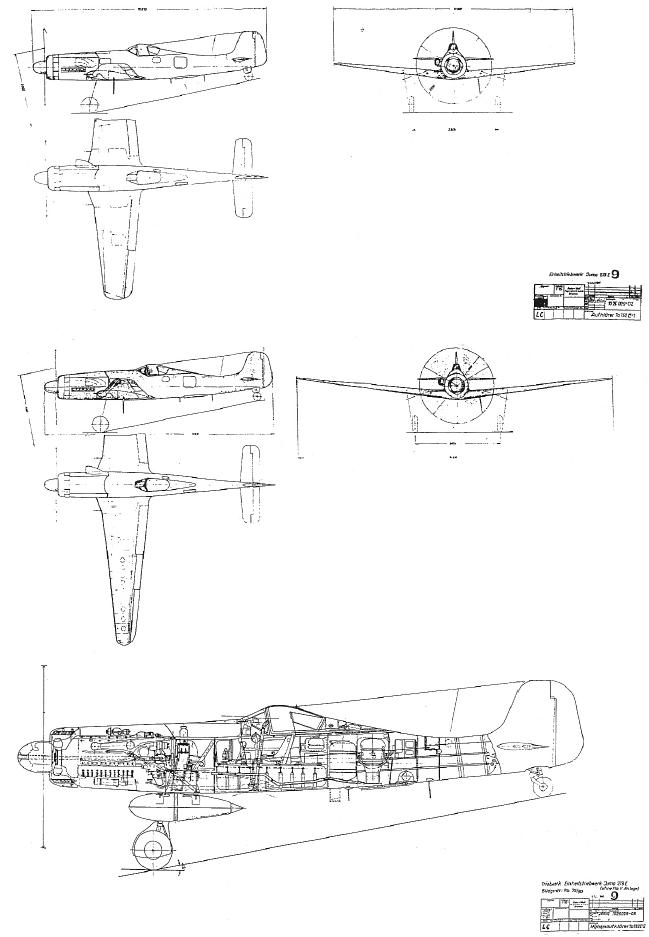

Fw 190 V32/U2

This plane is a redesigned Ta 152H-0 with Jumo 213E (instead of Jumo 213F of the last Ta 152H-0) A small number of Ta 152H-0s were delivered in the spring of 1945 to the Geschwader Stab of JG 301 According to this Ta 152H-0 was a Fw 190D/Ta 152 variants which was (unlike the D-12 or D-13) put in ...

forum.warthunder.com



[sgeorges4]

Ta 152 S-1



[sgeorges4]

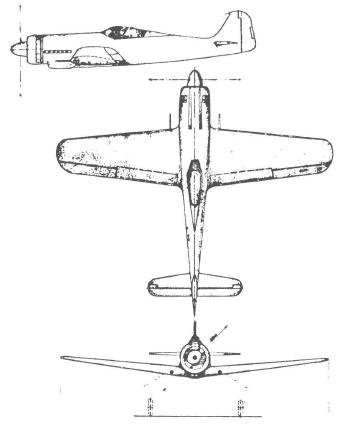

hohenjäger 2 drawing:



[sgeorges4]

Опытный высотный истребитель Focke-Wulf FW 190 Höhenjäger 2. Германия - Альтернативная История

Опытный высотный истребитель Focke-Wulf FW 190 Höhenjäger 2. Германия - Альтернативная История

alternathistory.com



[sgeorges4]

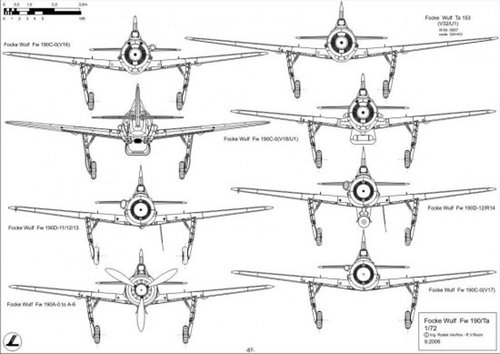

any other drawing and weapon combinaison for the ta 153?



[Fear_ze_Lemon]

So i found different sources and websites saying different kind rockets used on Ta 152 and the Fw 190 D variants. Can you please help me clarify which of theese models used rockets and other air to ground and or anti tank ordnances with possible sources even if it was in a book?



[Justo Miranda]

Hi



[Grey Havoc]

Japanese Focke-Wulf Fw 190

From " Nihon Kokuki Shoshyu Vol.6" (Encyclopedia of Japanese Aircraft Vol.6), Shupan Kyodo, January 1972: In 1943 the IJNAF imported one...

arawasi-wildeagles.blogspot.com

Japanese Focke-Wulf Fw 190 #2

Steve Mundt sent over a link to the post below (from here ), posted by "johnbr" as a follow up of the older post on the Japanese Focke-Wul...

arawasi-wildeagles.blogspot.com

Japanese Focke-Wulf Fw 190 #3

Following parts #1 and #2 Joe Falen send over a heads-up saying: "I was looking through some WWII American unit histories online and c...

arawasi-wildeagles.blogspot.com



[sgeorges4]

Regarding the retrofiting of panzerblitz and R4m under the wing of the fw 190 D11 ,would the wing be modifyed (per example no MK108)?

Focke-Wulf Fw 190 D 9 avec R4M

Bonsoir, Quelques photos intéressantes trouvées sur je ne sais plus quels forums : DOCUMENTS D'ORIGINE INCONNUE SERVANT A ALIMENTER UN DEBAT .

fw-190.forumgaming.fr

Also does anyone have a pic of the early panzerblitz 1 on fw 190? I can't find anything on google



[Grzesio]

Regarding the retrofiting of panzerblitz and R4m under the wing of the fw 190 D11 ,would the wing be modifyed (per example no MK108)?

Yes, outer wing guns and their hatches had to be removed if standarised Panzerblitz/R 4M launchers were to be installed.

Also does anyone have a pic of the early panzerblitz 1 on fw 190? I can't find anything on google

What do you mean, "early Panzerblitz 1"? A photo of Fw 190 with Pb 1s (consiting of 8 cm R.Sprgr with a faired Panzerschreck warhead) can be found e.g. on the LuftArchiv site.



[sgeorges4]

I'm talking about the "early" pb 1,I can only find pic of the later one



[Grzesio]

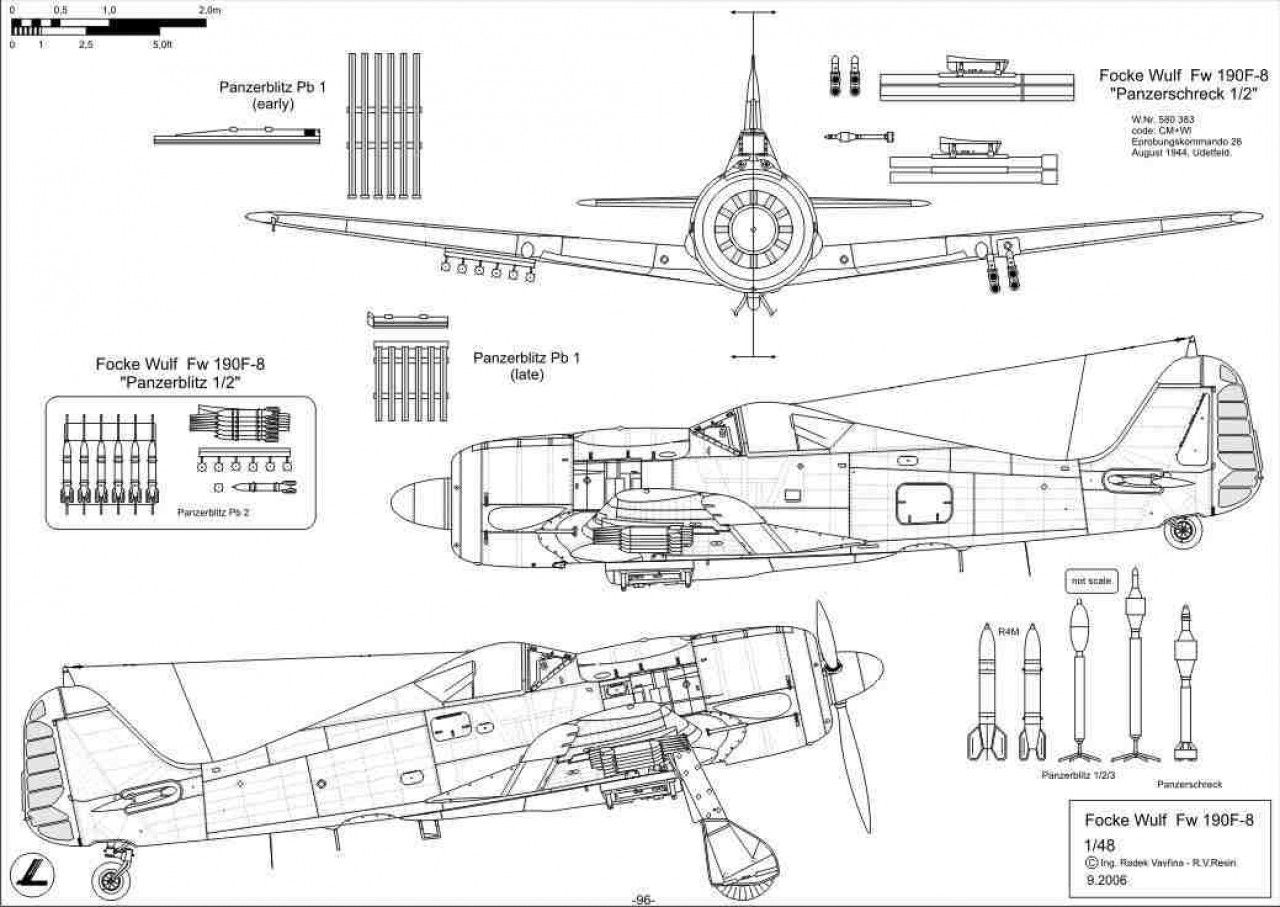

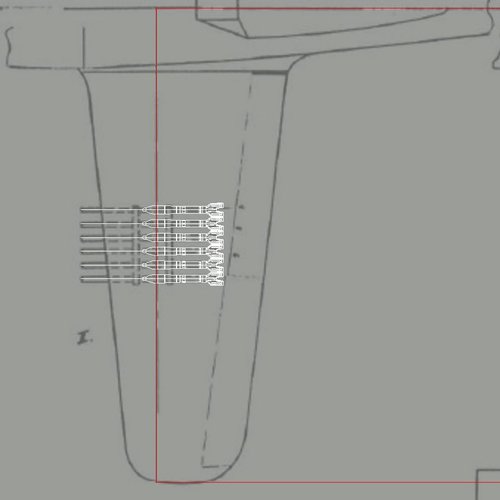

Ah, you mean the launcher, not the rocket. I think, there are no photos, just what-if reconstructions like the one above, based on written descriptions (i.e. rail length).
Notice, the author of the drawing had no slightest idea, how particular Panzerblitz variants, R 4 M and 8 cm R Sprgr actually looked like.



[sgeorges4]

ok so we don't know much about these launcher beside the description



[sgeorges4]

I posted a original drawing of the first launcher here : https://www.secretprojects.co.uk/threads/panzerblitz-and-panzerschreck-puzzle.6004/ is it me or we got a double wgr 21 fw 190?



[Grzesio]

O yes, there is the drawing.
There is a photo of Fw 190 A with twin 21 cm tubes indeed - I just think the installation was too heavy and too bulky for an effective use at a single engined fighter (some 500 kg loaded).

BTW - early Pb 1 launchers in this drawing are 150 cm long and spaced apart by some 15.3 cm. The short rails in the photo are of similar length as the Pb 1 fuselage, also approx 80 cm (according to published data the lengths were 147 and 70 cm respectively).



[sgeorges4]

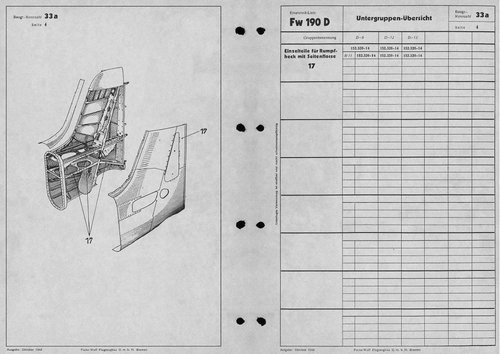

from the D9 ersatzteilliste ,it seem that the ta 152 tail was also considered for the D12/D13



[Airborne2001]

I have a few questions:
1. Does anyone have any data on the Ta-152B-3's weapon loadout plans? (Both primary and secondary.)
2. Does anyone have any info on the Jumo 222 powered Ta-152H and (I think if it was planned) Ta-152C?
3. Is a Ta-152B-7 with a Jumo 213J real or fake?



[hesham]

any other drawing and weapon combinaison for the ta 153?

Please see reply # 101.



[sgeorges4]

how accurate is this list? https://forum.warthunder.com/index....1may2017-fw-190-d-9-missing-ordnance-options/



[Grzesio]

Just one notice - the standarised R 4M/Panzerblitz/Panzerschreck launchers described in the German manual from March 1945 are not the ones seen in the photos of a rocket armed Fw 190 D. They differ with the number of rockets - 12 in the manual and 13 in the photos.



[sgeorges4]

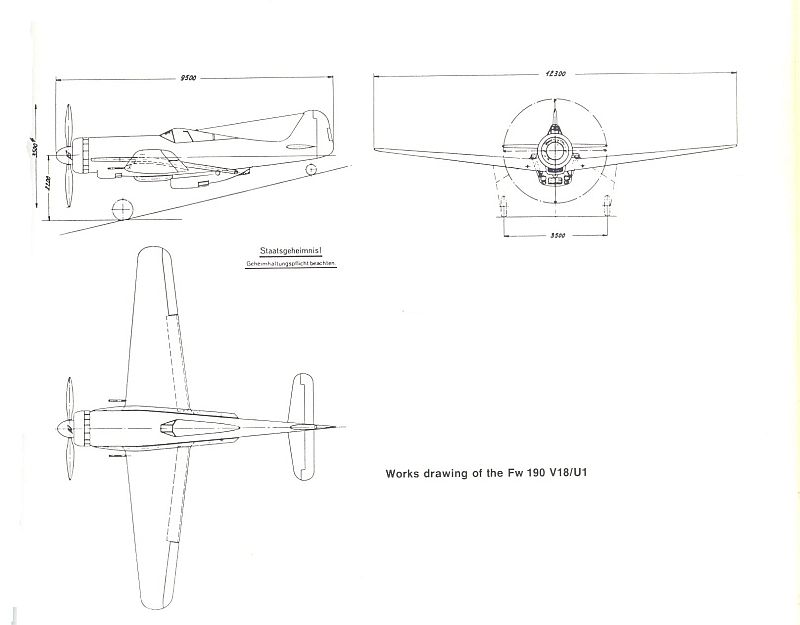

fw 190 V18 drawing, got to wonder why was the canopy different on the prototype and why did he got the V19 ta 152 tail

FW 190 V18 1:32 modified Dora

Hi, well I'm stuck to this Focke Wulf prototypes. This time I try to build The V18 with the exhaustdriven turbosupercharger. To make things a little easier this time I use the complete Newtool Dora kit from Revell. The original V18 U1 later U2 and at last after an accident one of the...

ww2aircraft.net



[Grey Havoc]

Component supply delays, perhaps?



[sgeorges4]

fw 190 D9/D10/D11/D12 jabo from the ersatzteilliste



[sgeorges4]

ineteresting build of the V18 https://www.britmodeller.com/forums/index.php?/topic/235070204-118-focke-wulf-fw190c-v18-känguruh/



[sgeorges4]

fw 190 V15 and other prototype here: http://alternathistory.com/opytnyj-vysotnyj-istrebitel-focke-wulf-fw-190-hohenjager-2-germaniya/ (from what I understand ,the V15 was used to test the exhaust of the Fw 190 Hohenjäger 2 with turbo right?)



[sgeorges4]

article on the fw 190 B/C and Hohenjäger http://luftwaffelovers.blogspot.com/2016/04/at-beginning-of-way-to-success-ta152.html



[Foo Fighter]

Does anyone have a link to part one please?



[blackkite]

This one?
http://luftwaffelovers.blogspot.com/2016/03/beauty-under-sky-ta152-part-1-begining.html



[Foo Fighter]

Thank you, Sir, much appreciated.



[blackkite]

You are welcome,Sir.



[sgeorges4]

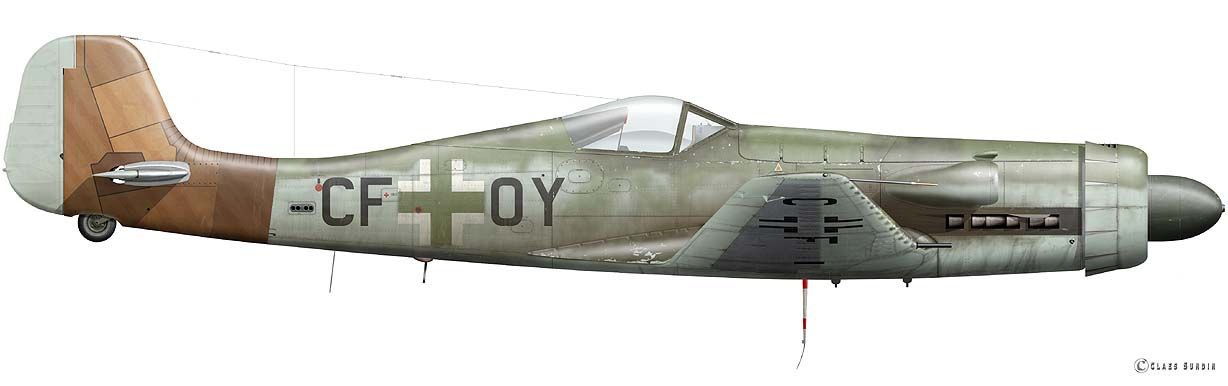

were does this profile come from? (it was a pinterest link)

didn't knew that the V18 got a wonden tail and ta 152 H wing



[Arjen]

As can be seen in the image, the artist is Claes Sundin.
His books can be found here: http://luftwaffeinprofile.se/ and here: http://centurabooks.com/index.php?route=product/category&path=59



[sgeorges4]

ok ,never seen the CF+OY being depicted like this before



[sgeorges4]

"It was planned to built 6 experimental models for the "Höhenjäger 2", four of them, the Fw190V18U1, Fw190V29, Fw190V30 and Fw190V31 were realised.
The changes referred primarily to the installation of the turbine. The Fw190V29-V31 got greater wings with a span of 12,3 m and a pressurized cabin.

-Dietmar Hermann "

from https://forum.warthunder.com/index.php?/topic/123593-fw-190-v18-variant/

I think I found some what if to do without having to modify my hobby boss V18 model (wich is not accurate for the V18 by the way ,the nose look more like the one of the V15 and I don't remember the V18/U1 carrying weapon )
