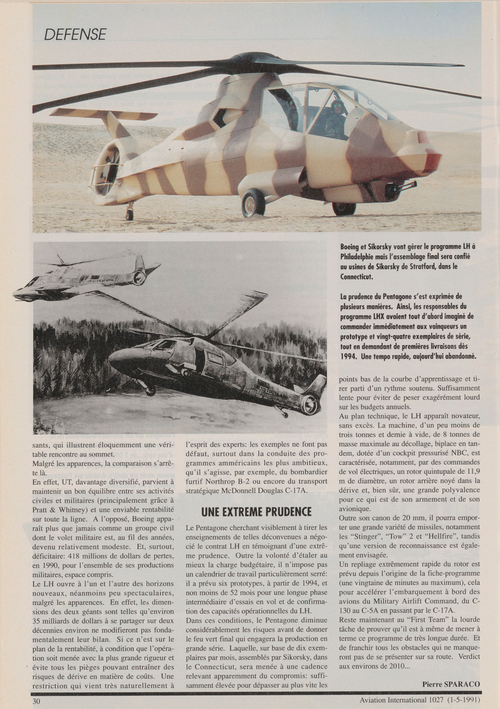

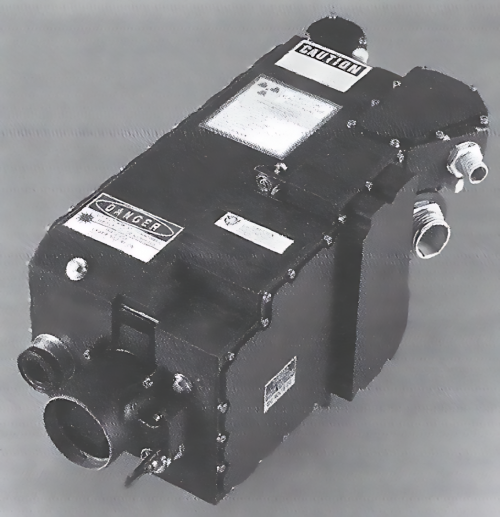

Boeing/Sikorsky RAH-66 Comanche

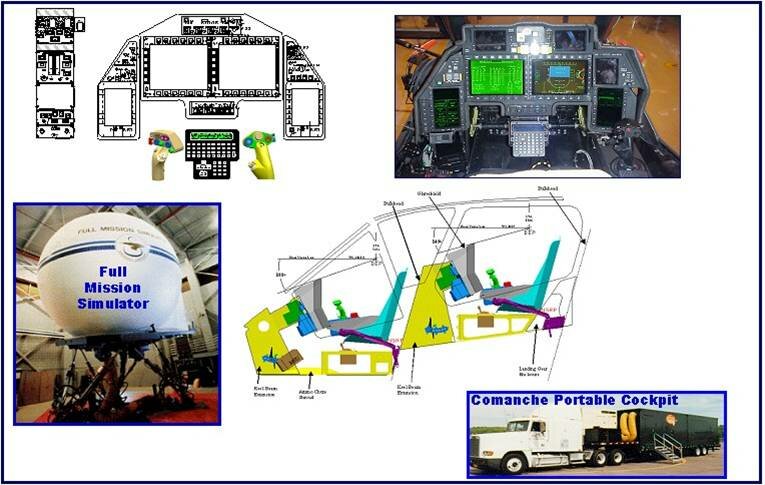

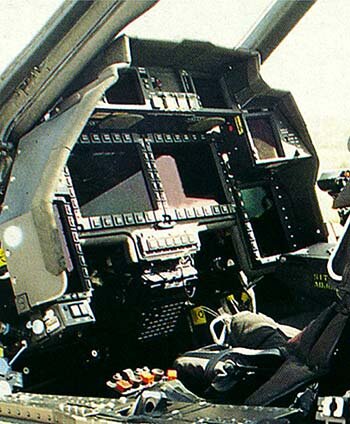

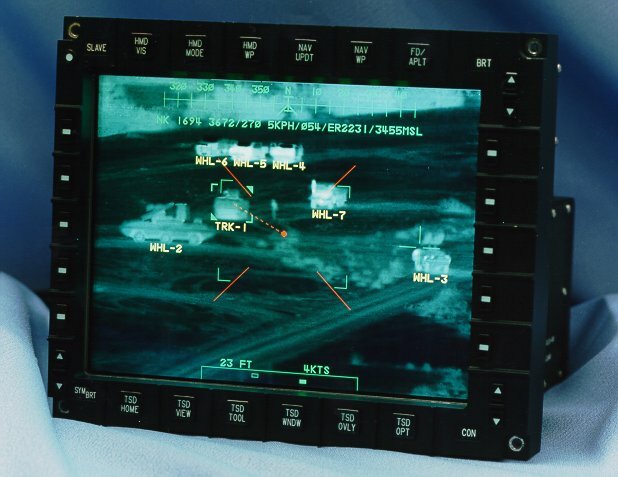

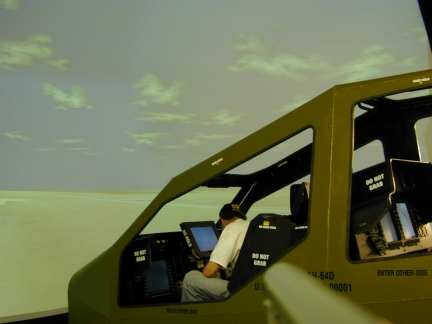

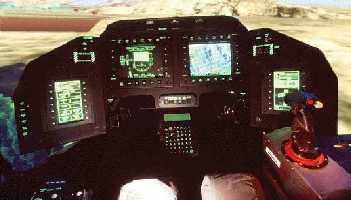

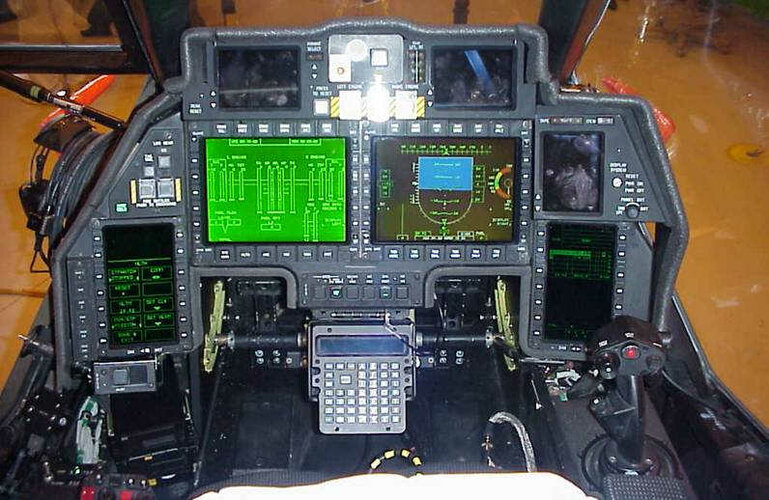

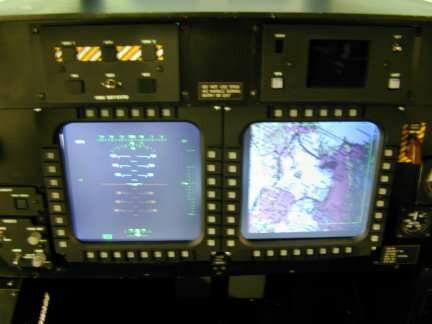

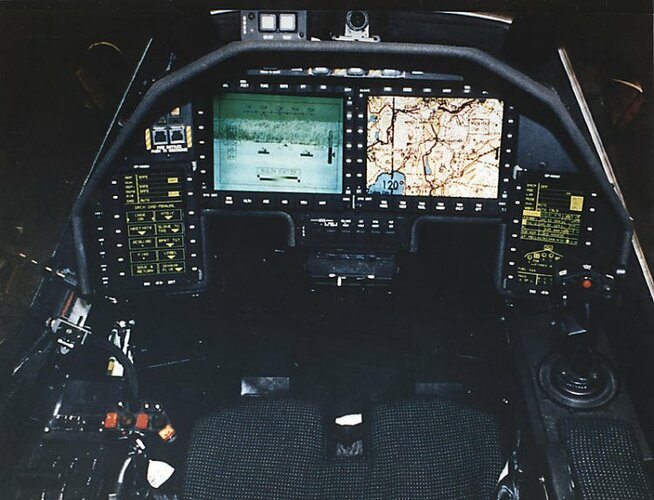

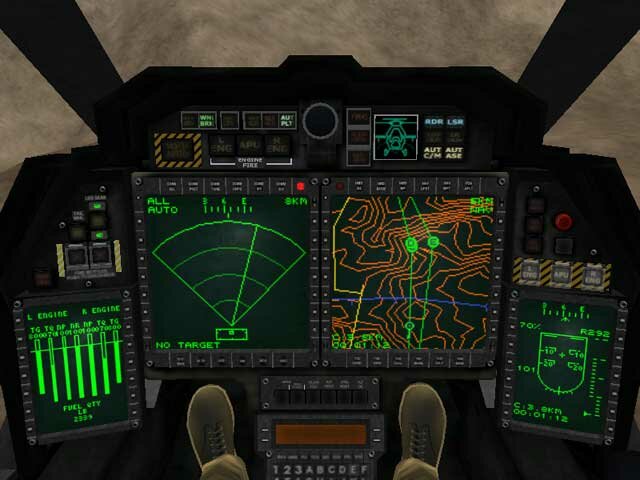

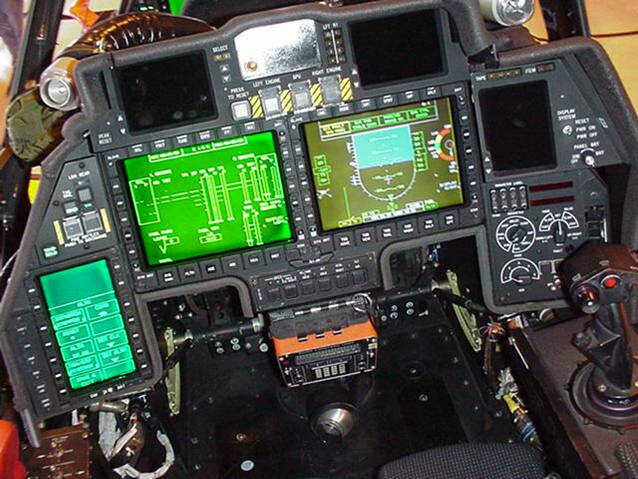

Cockpit.

Regards,


Attachments

  • cockpit_big.jpg
    87.3 KB · Views: 269
  • LBA_Dscn0663.jpg
    11.1 KB · Views: 112
  • LBA_dscn0667.jpg
    16.3 KB · Views: 80
  • LBA_dscn0718.jpg
    15.6 KB · Views: 75
  • Nbr03.jpg
    16.3 KB · Views: 71
  • Nbr04.jpg
    14.8 KB · Views: 67
  • Nbr16.jpg
    42.3 KB · Views: 66
  • Nbr17.jpg
    87.3 KB · Views: 61
  • Nbr18.jpg
    54.5 KB · Views: 58
  • LBA_Dcn0679.jpg
    14.8 KB · Views: 58
  • img003.gif
    54.8 KB · Views: 59

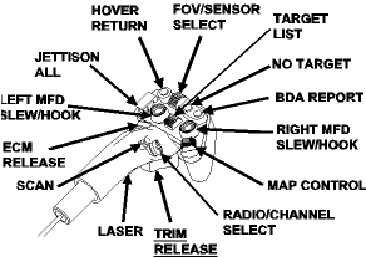

  • desc_grip_1.jpg
    17.9 KB · Views: 63

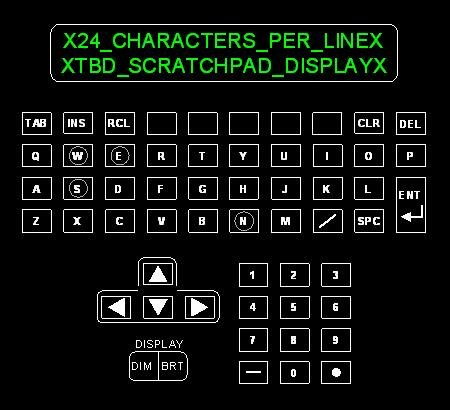

  • CockpitIntergratedKeyboard.jpg
    33 KB · Views: 68
  • Comanche_14.jpg
    67.8 KB · Views: 66
  • Comanche_15.jpg
    60 KB · Views: 67
  • Comanche_cockpit_big.jpg
    87.3 KB · Views: 55
  • Comanche_mfd_big.jpg
    54.5 KB · Views: 55

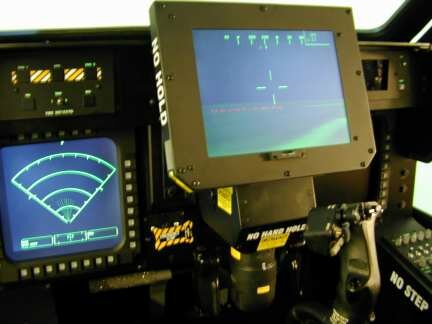

  • comanche1 Instrument Panel.jpg
    comanche1 Instrument Panel.jpg
    10.9 KB · Views: 56
  • comanche9.jpg
    42.3 KB · Views: 60
  • CPG Sta.jpg
    CPG Sta.jpg
    37.8 KB · Views: 75

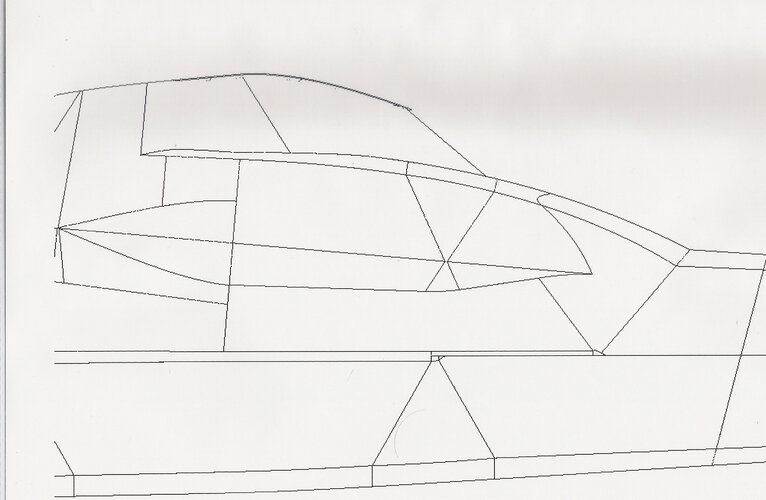

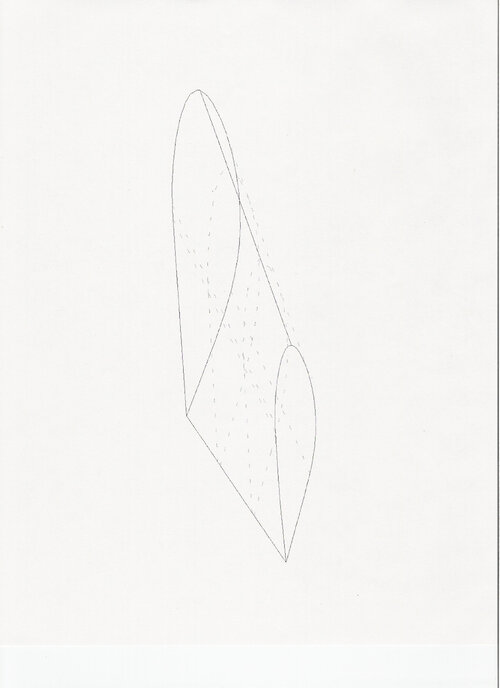

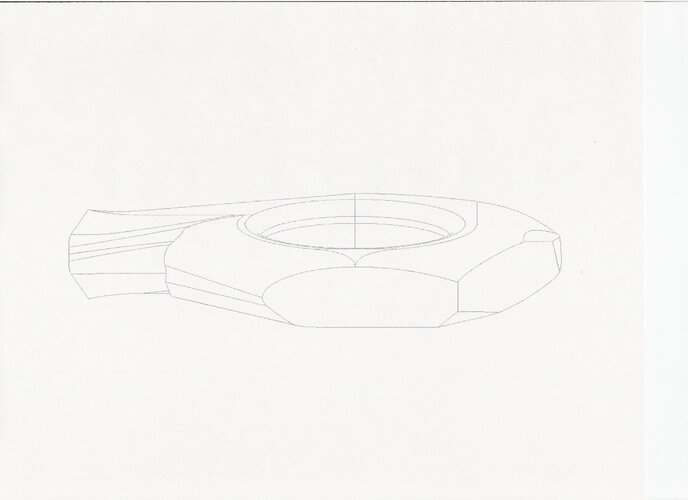

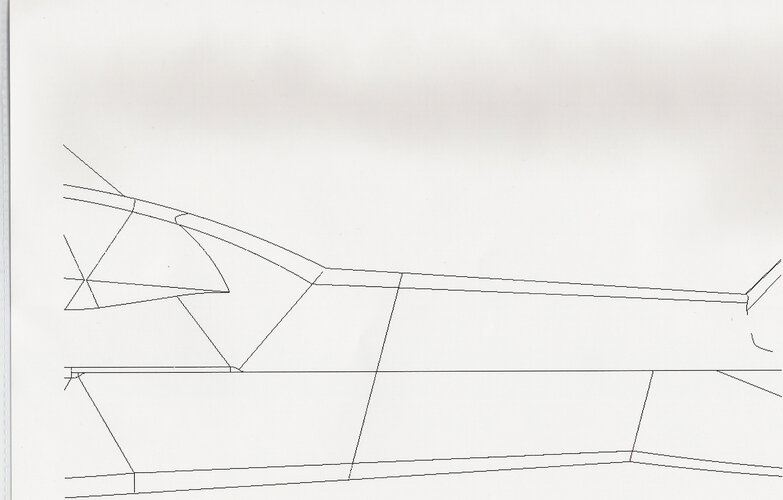

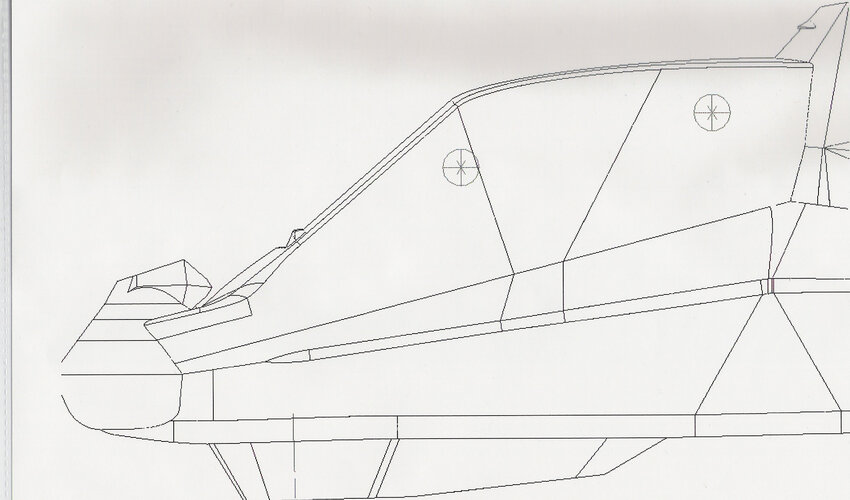

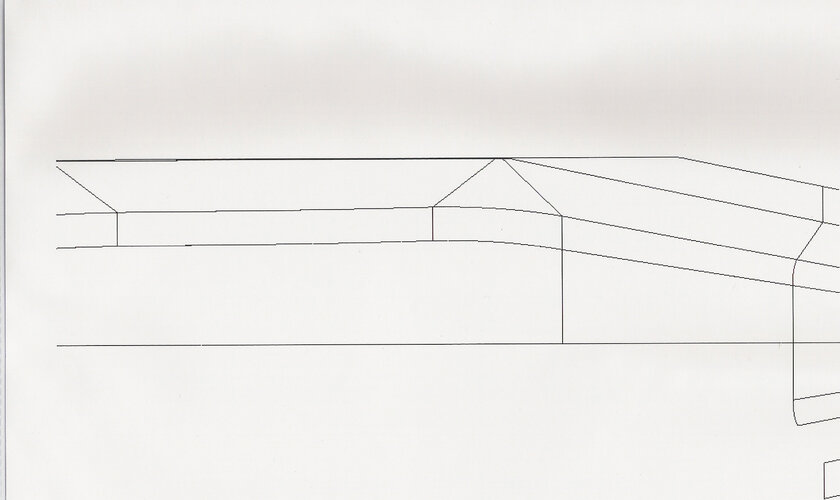

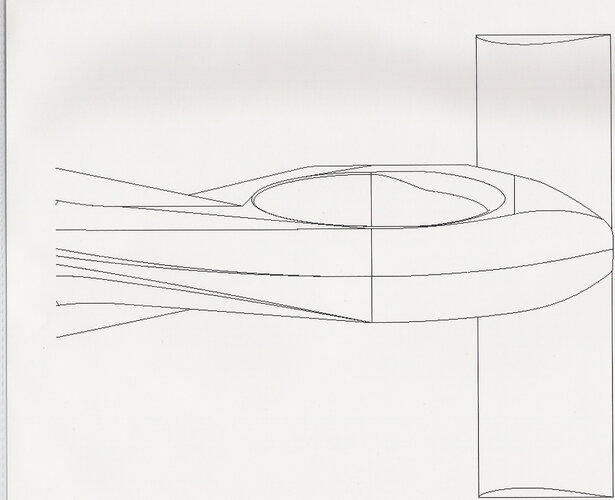

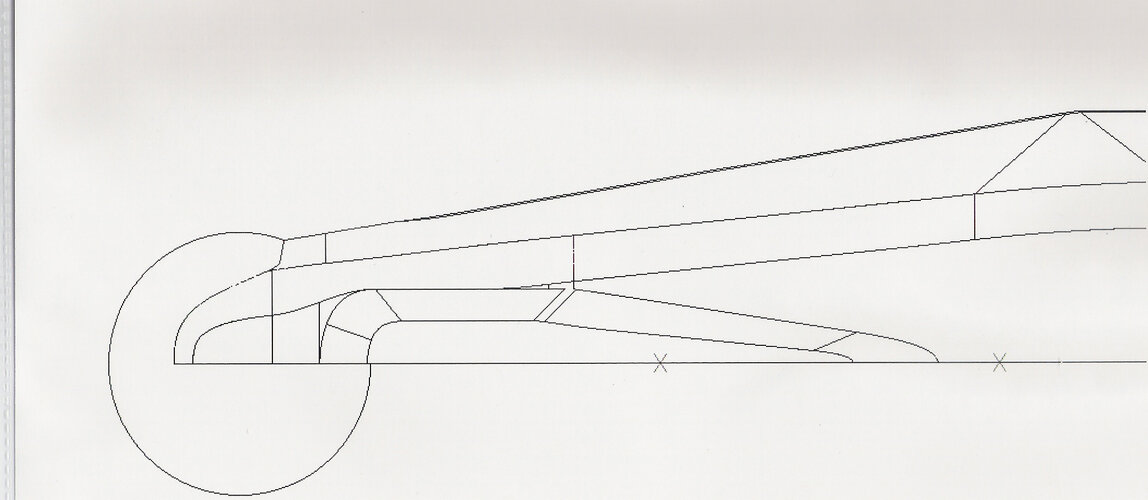

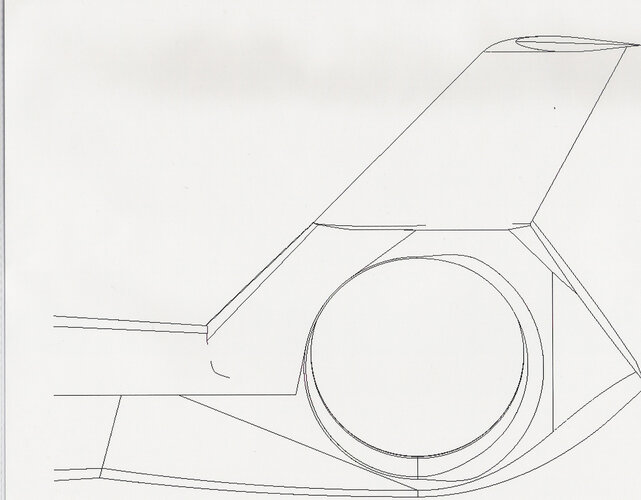

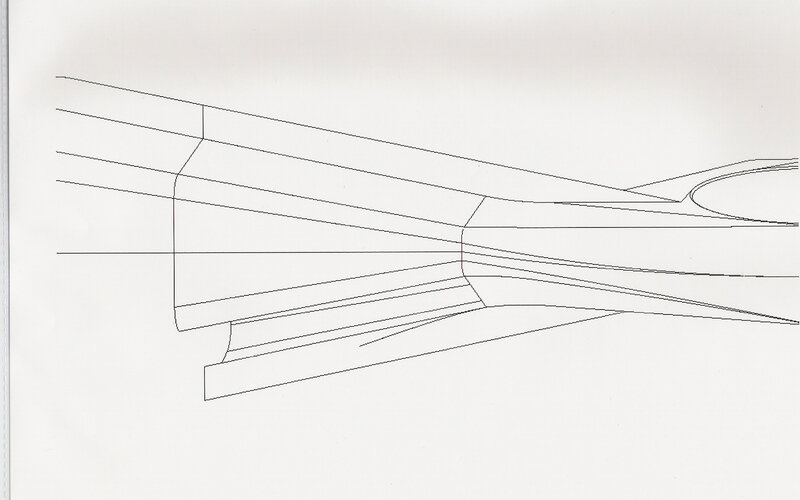

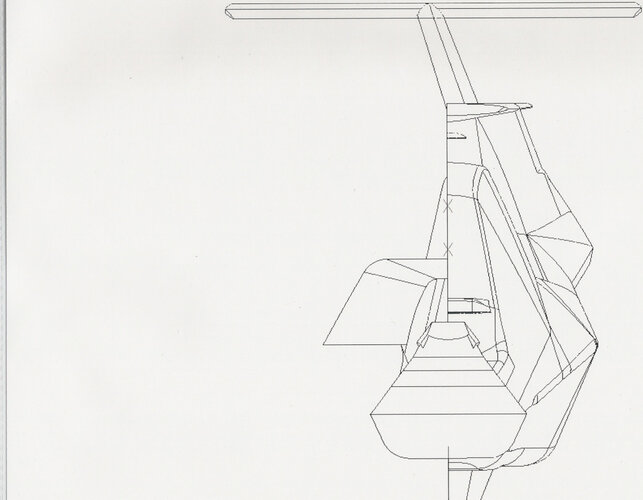

Fuselage drawings.

Regards,


Attachments

  • AC1 17.jpg
    AC1 17.jpg
    686.2 KB · Views: 70
  • AC1 15.jpg
    AC1 15.jpg
    713.1 KB · Views: 53
  • AC1 14.jpg
    AC1 14.jpg
    425.7 KB · Views: 48
  • AC1 13.jpg
    AC1 13.jpg
    518 KB · Views: 46
  • AC1 12.jpg
    AC1 12.jpg
    419.1 KB · Views: 43
  • AC1 11.jpg
    AC1 11.jpg
    348.7 KB · Views: 44
  • AC1 10.jpg
    AC1 10.jpg
    389.2 KB · Views: 47
  • AC1 4.jpg
    AC1 4.jpg
    530.3 KB · Views: 47
  • AC1 3.jpg
    AC1 3.jpg
    480.5 KB · Views: 46
  • AC1 2.jpg
    AC1 2.jpg
    508.9 KB · Views: 51
  • AC1 1.jpg
    AC1 1.jpg
    542.7 KB · Views: 74

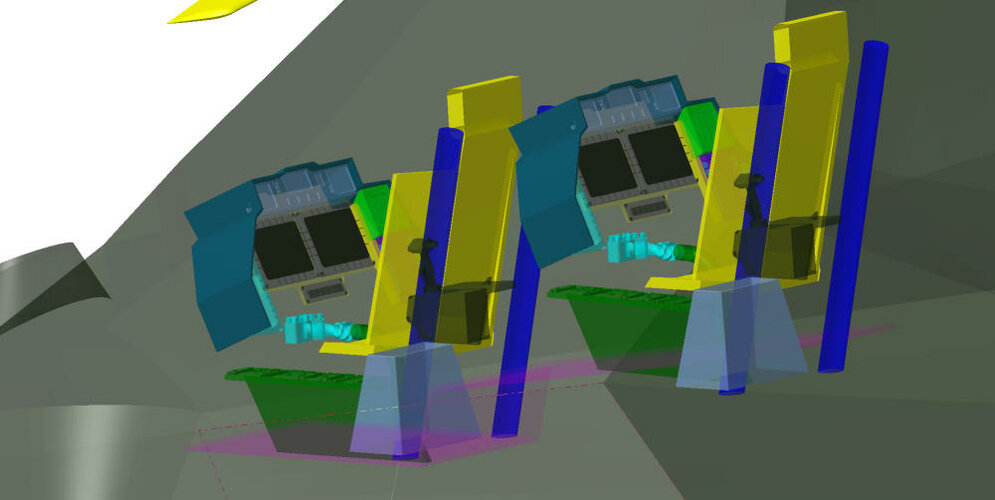

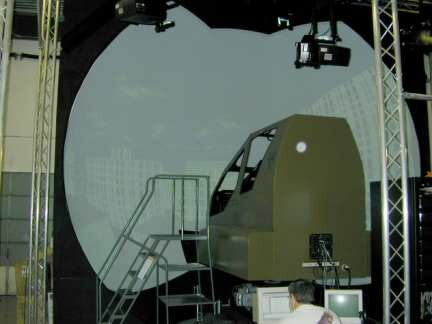

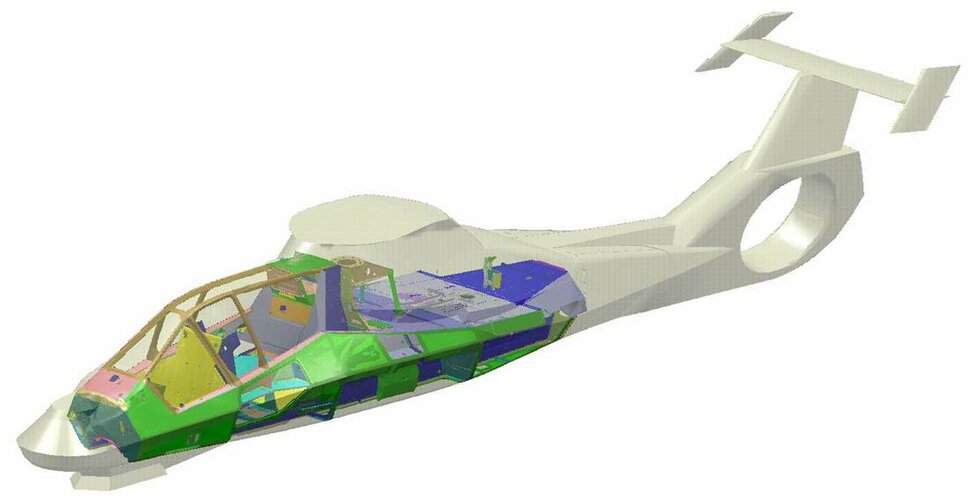

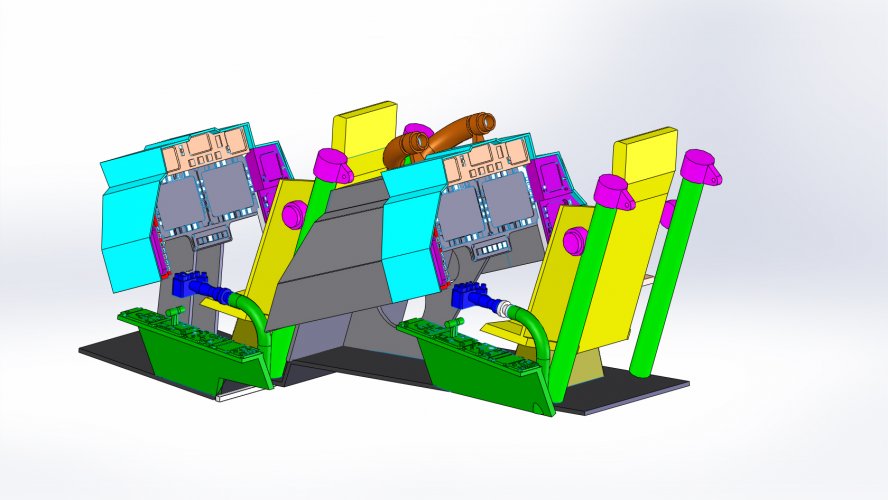

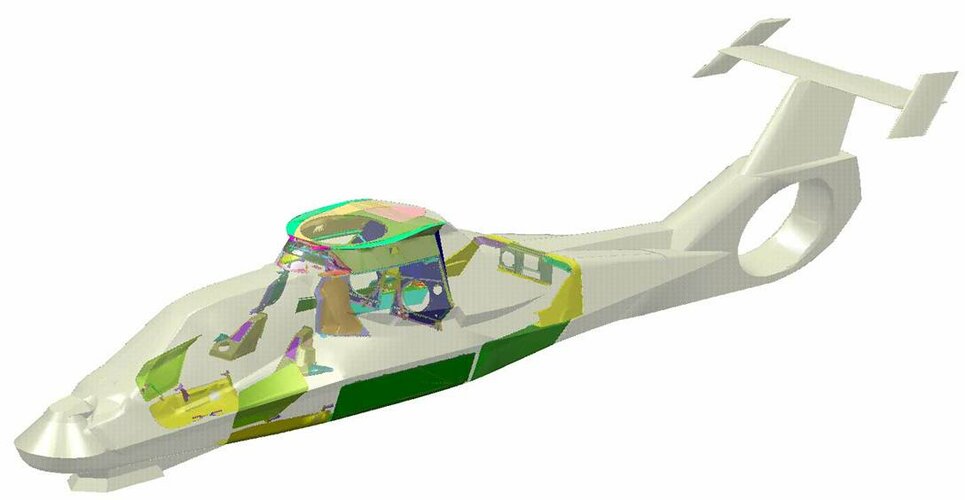

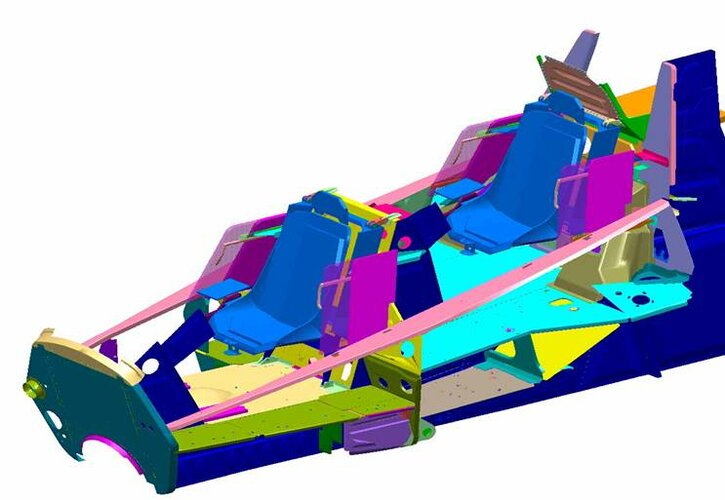

Fuselage and cockpit.

Regards,


Attachments

  • FWDFuselageCockpit.jpg
    43.5 KB · Views: 70

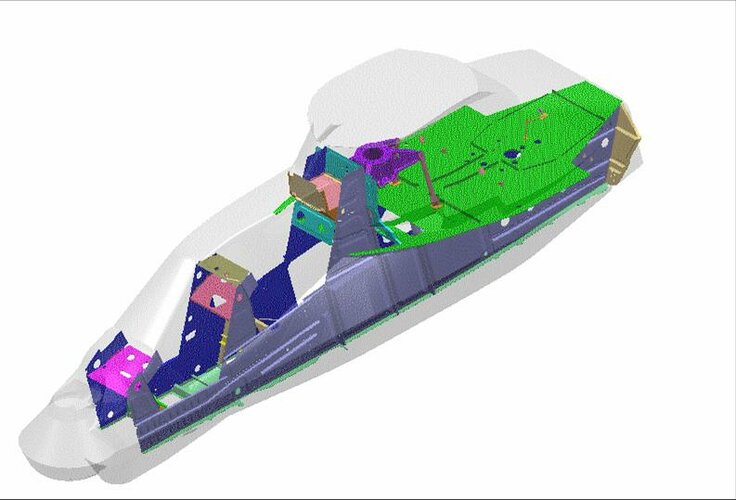

  • FwdFuselagePrimaryStructure.jpg
    36 KB · Views: 70
  • SecondaryStructure&NonstructualElements.jpg
    34 KB · Views: 66
  • Side_View_Cockpit-2.jpg
    43.2 KB · Views: 63
  • FwdFuselageCenterBeamAssembly.jpg
    44.3 KB · Views: 60
  • FwdFuselage.jpg
    43.5 KB · Views: 54

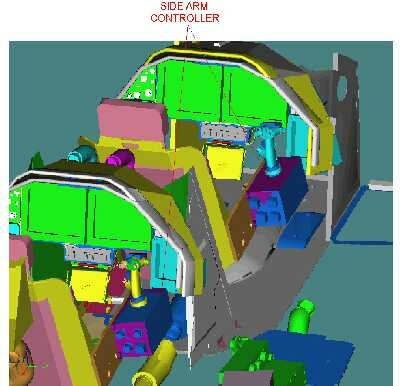

  • desc_side_arm_controller.jpg
    20.5 KB · Views: 57
  • CrewArmor.jpg
    39.3 KB · Views: 57
  • Stick.jpg
    6.4 KB · Views: 65
  • Cockpita.jpg
    66.8 KB · Views: 70
  • Cockpit.jpg
    37.6 KB · Views: 68

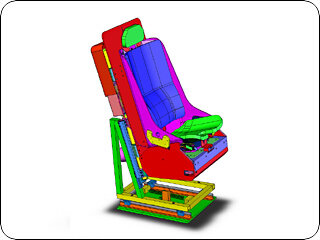

  • Acme_Project_RAH66_Seat3Db.jpg
    36.7 KB · Views: 61
  • Acme_Project_RAH66_Seat_Ren.jpg
    36.2 KB · Views: 79

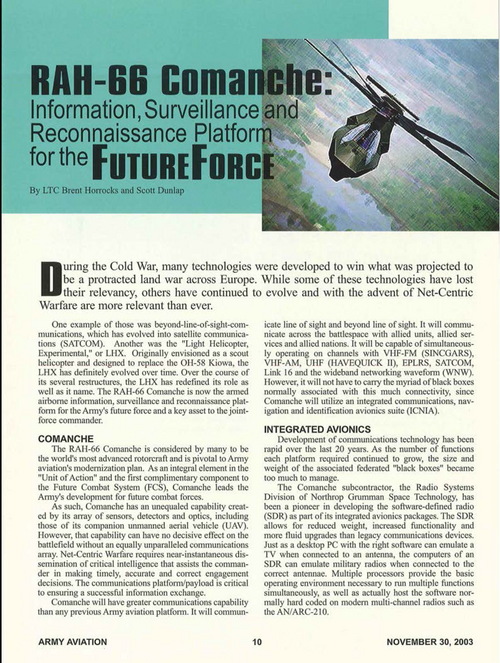

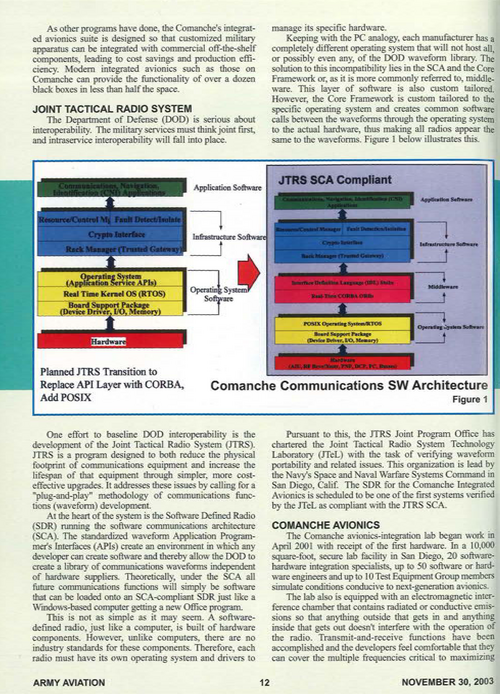

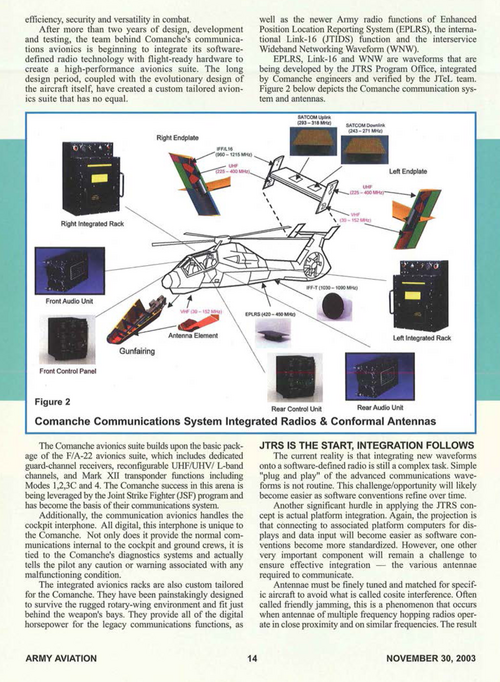

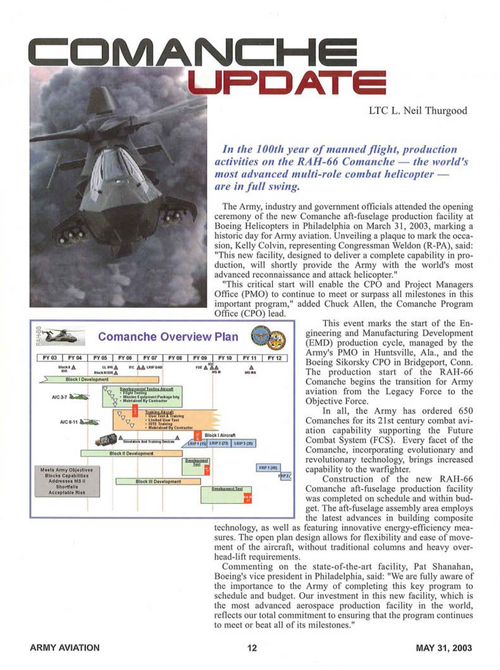

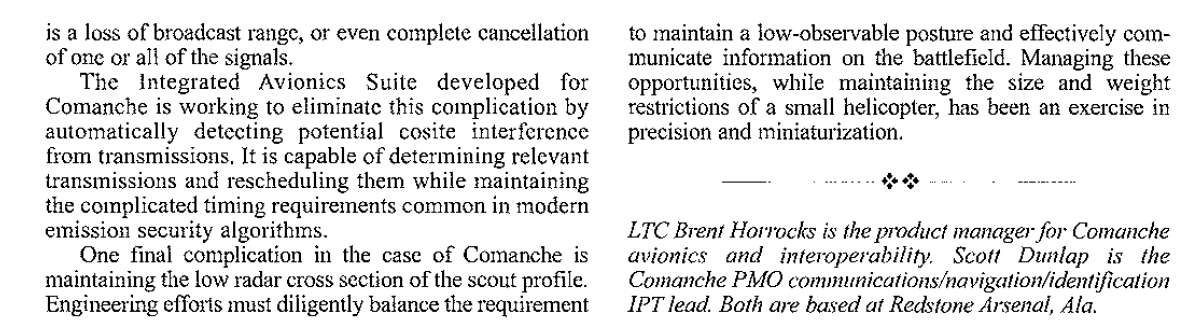

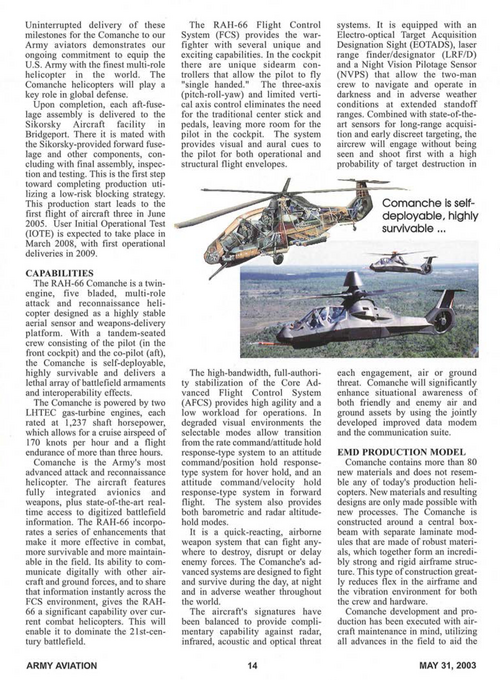

More details.

Regards,


Attachments

  • Screenshot 2024-10-09 171629.jpg
    Screenshot 2024-10-09 171629.jpg
    123.5 KB · Views: 92
  • Screenshot 2024-10-09 171534.jpg
    Screenshot 2024-10-09 171534.jpg
    176.4 KB · Views: 92
  • Screenshot 2024-10-09 171431.jpg
    Screenshot 2024-10-09 171431.jpg
    179.9 KB · Views: 91
  • Screenshot 2024-10-09 171407.jpg
    Screenshot 2024-10-09 171407.jpg
    227.1 KB · Views: 98
  • Screenshot 2024-10-09 171351.jpg
    Screenshot 2024-10-09 171351.jpg
    216.1 KB · Views: 93
  • Screenshot 2024-10-09 171329.jpg
    Screenshot 2024-10-09 171329.jpg
    239.7 KB · Views: 93
  • Screenshot 2024-10-09 171305.jpg
    Screenshot 2024-10-09 171305.jpg
    266.3 KB · Views: 102

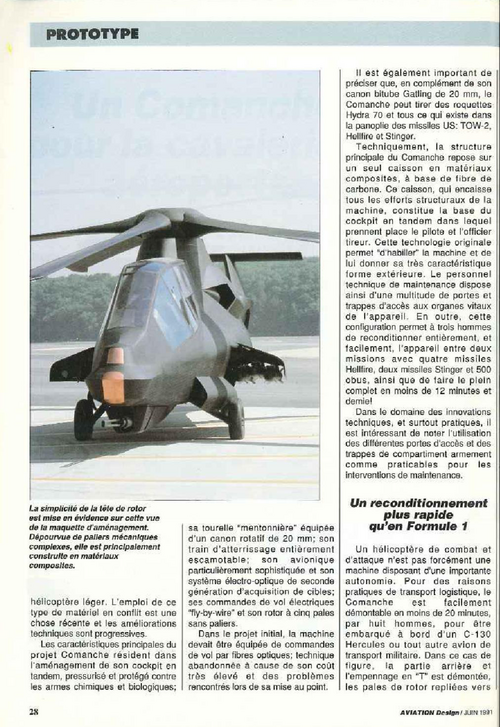

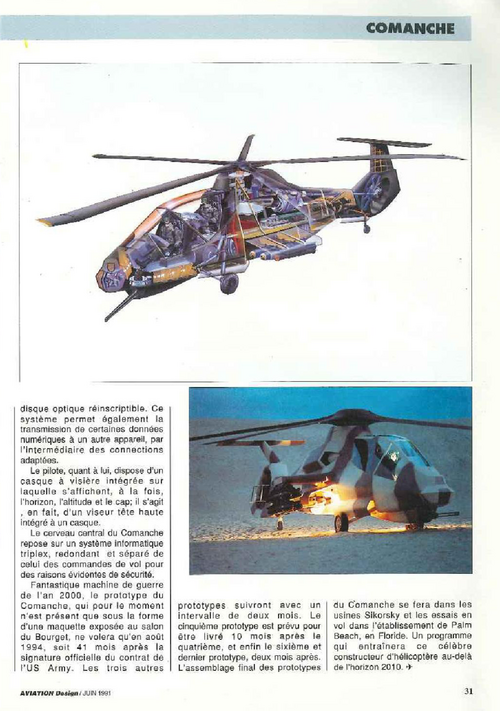

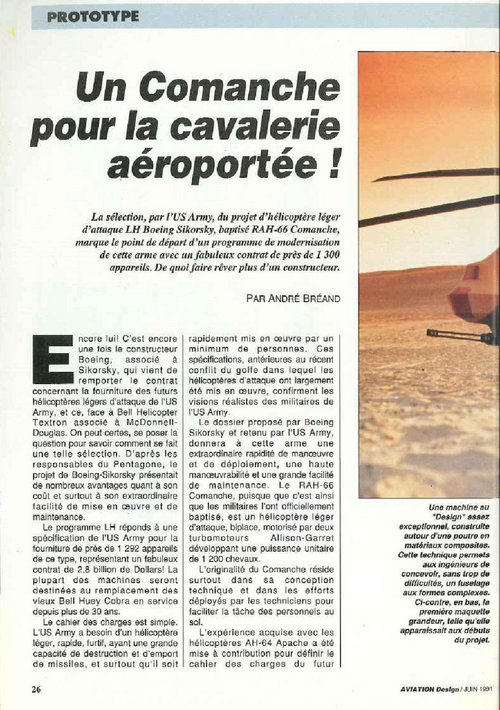

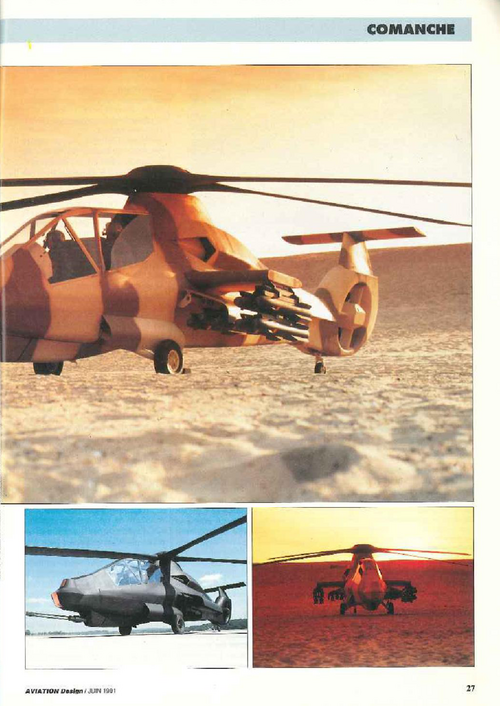

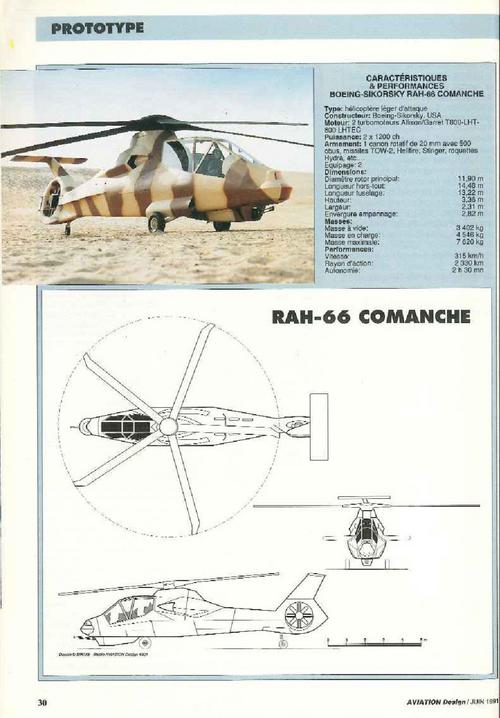

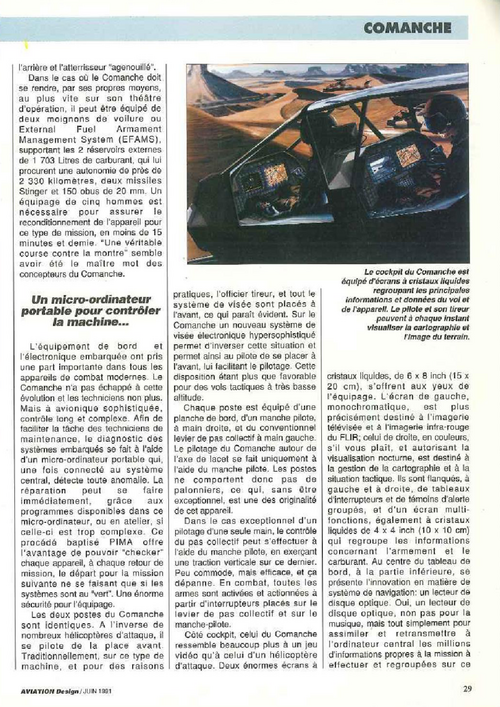

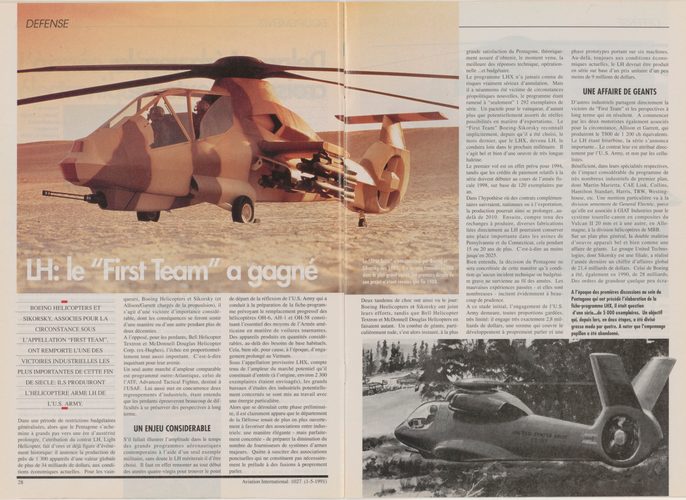

From Aviation Design 1991/6.


Attachments

  • 3.png
    2.4 MB · Views: 71
  • 4.png
    3.2 MB · Views: 65
  • 5.png
    2.4 MB · Views: 64
  • 6.png
    2.6 MB · Views: 65
  • 7.png
    1.9 MB · Views: 71
  • 8.png
    2 MB · Views: 93

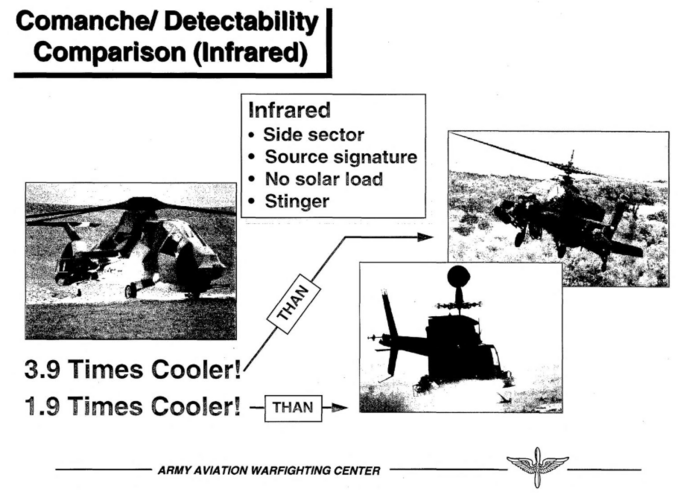

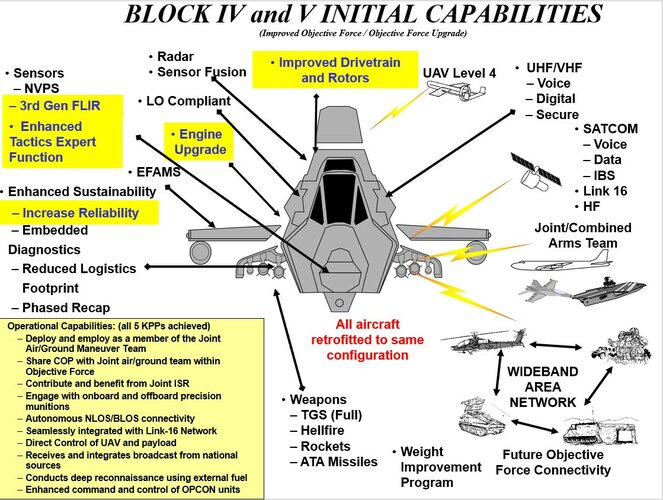

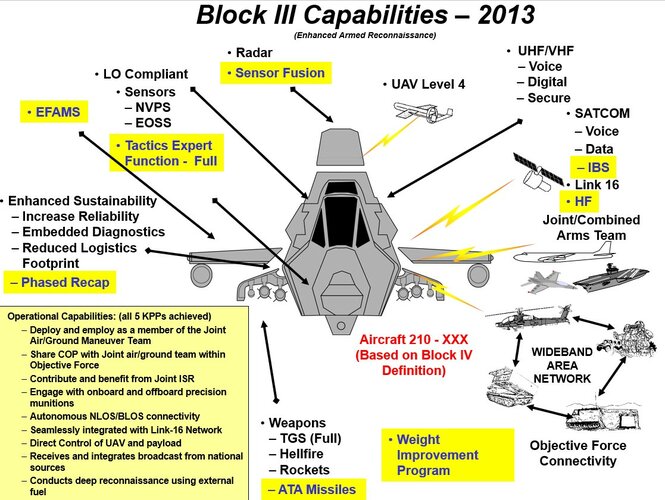

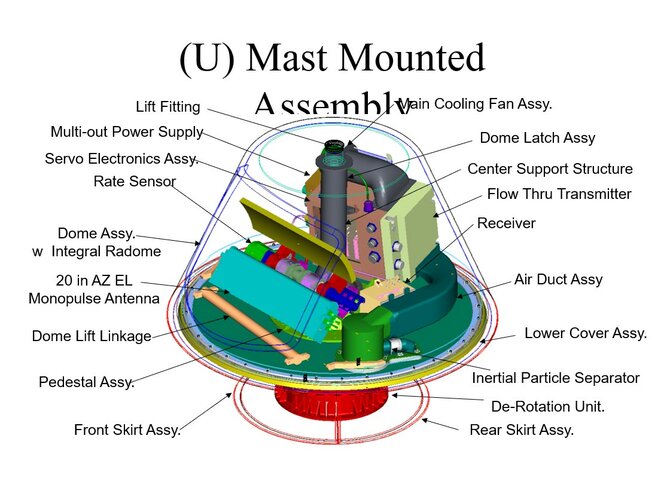

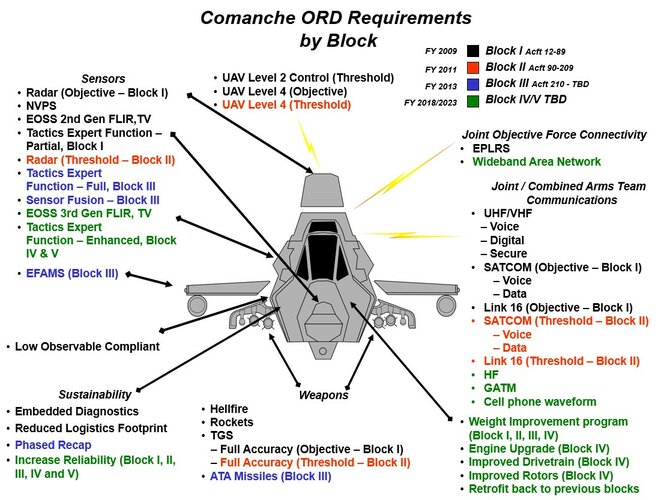

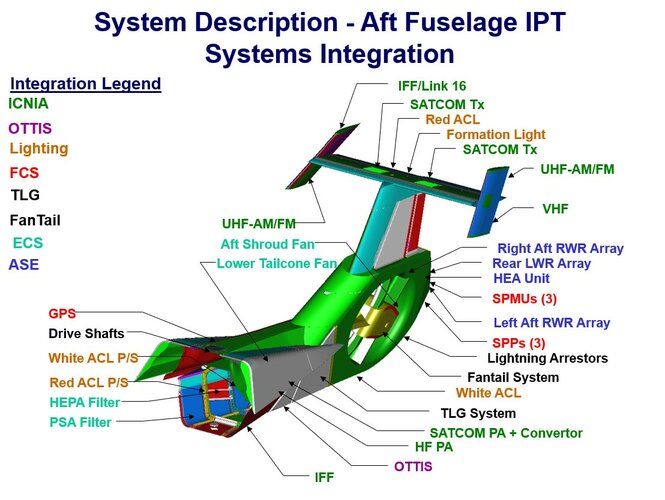

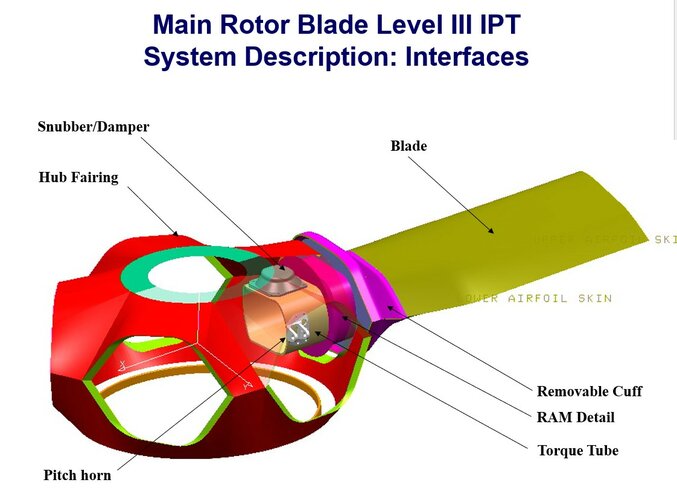

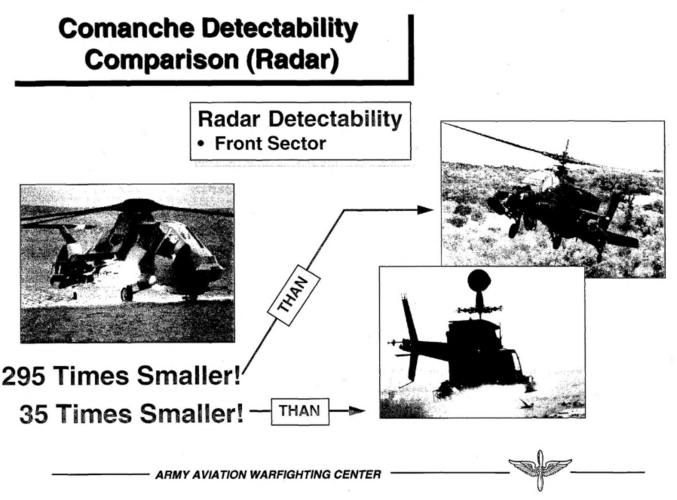

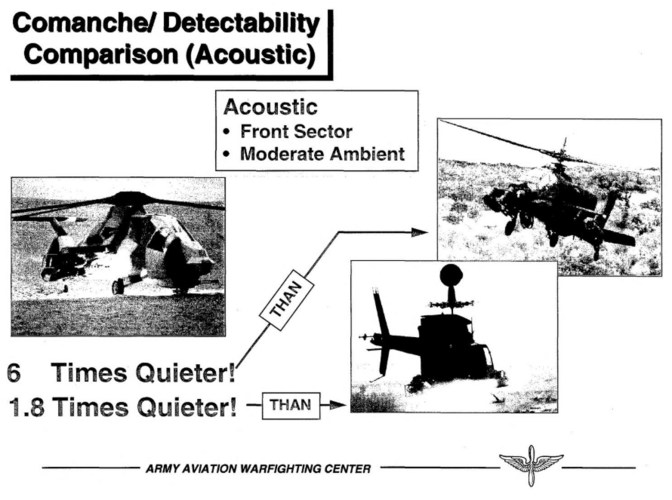

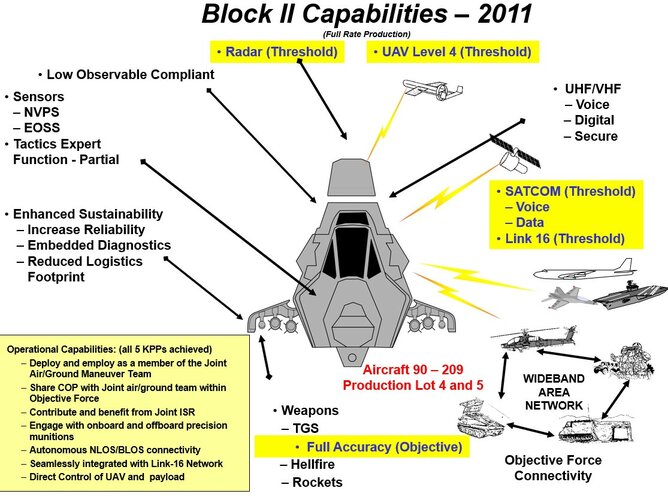

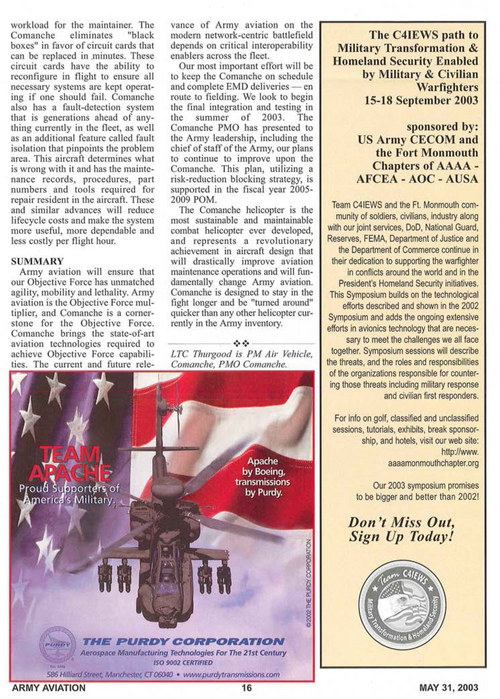

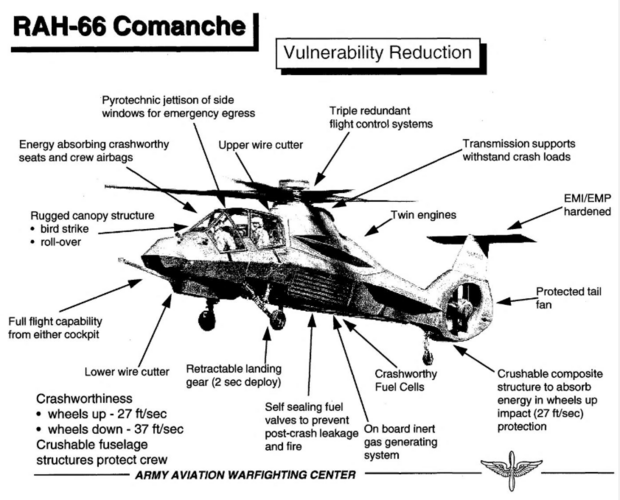

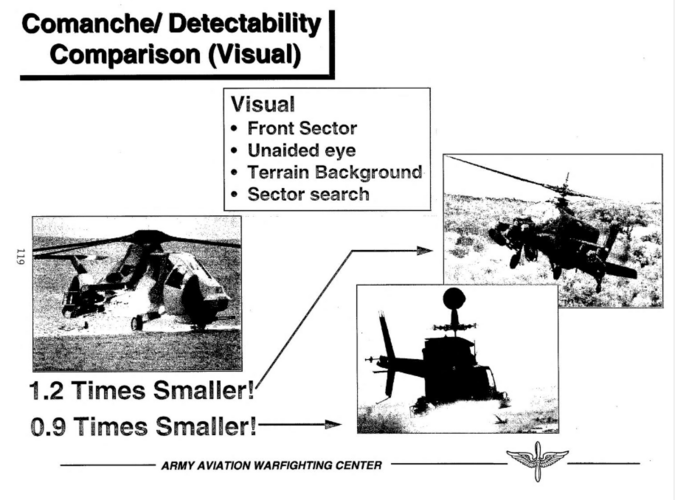

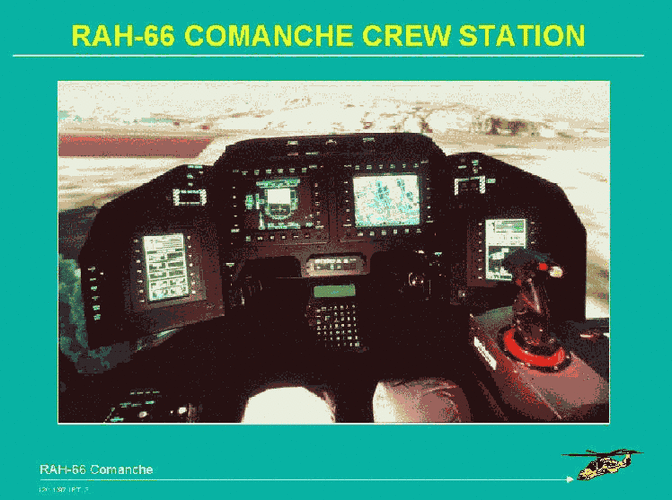

Some RAH-66 info from a US Army 1997 presentation.


Attachments

  • Screenshot (11574).png
    Screenshot (11574).png
    298.3 KB · Views: 119
  • Screenshot (11573).png
    Screenshot (11573).png
    300.8 KB · Views: 66
  • Screenshot (11572).png
    Screenshot (11572).png
    295.6 KB · Views: 65
  • Screenshot (11571).png
    Screenshot (11571).png
    300.4 KB · Views: 68
  • Screenshot (11570).png
    Screenshot (11570).png
    287.4 KB · Views: 71
  • Screenshot (11577).png
    Screenshot (11577).png
    214.2 KB · Views: 80

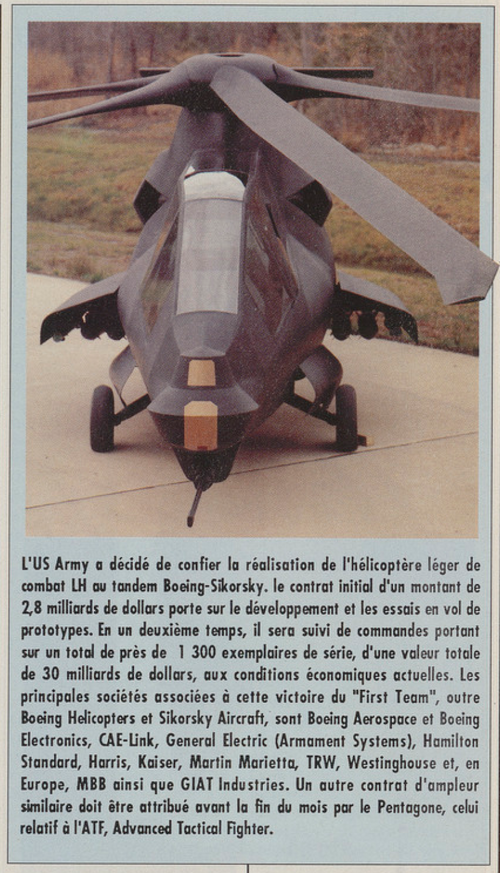

A recent donation include a tube with this poster nicely protected in it....

Had to chuckle at "Light Helicopter" though!

Enjoy the Day! Mark


Attachments

  • zBoeing Sikorsky Light Helicopter First Team Poster.jpg
    zBoeing Sikorsky Light Helicopter First Team Poster.jpg
    6.4 MB · Views: 123
Had to chuckle at "Light Helicopter" though!

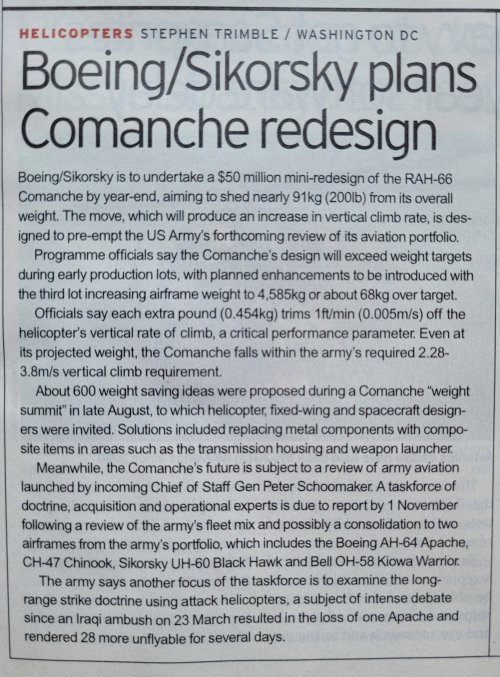

Indeed the original specification was for an aircraft that weighed only slightly more than the OH-58A/C that it was to replace.
I imagine that did not last past the first reading of the proposed specification. U.S. Army Aviation has a bad habit of ignoring physics when writing requirements.

Several Rockwell HIDE 'stealth' engineers went to Sikorsky on loan....

When the Rockwell crew arrived in Connecticut in 1991, Sikorsky had recently won a large Army contract. Sikorsky was in the very early phases of the RAH-66 Comanche helicopter design. The Comanche helicopter was being designed as the first low observable helicopter. Sikorsky, a world leader in helicopter design, had little or no experience in low observables. They must have benefitted greatly from the experience of the Tulsa engineers. Glen Hilderbrand recalled that the Sikorsky team was in some disarray at the beginning of the program, and the Rockwell team was often unsure what they were supposed to be doing.

Last edited:
Several Rockwell HIDE 'stealth' engineers went to Sikorsky on loan....
Honestly makes sense. If someone needs to either analyze their in-house design or get the in-house engineers up to speed, the fastest way would be to hire one of the companies that has solid stealth experience.

And while it's off-topic here, I'm starting to wonder if a modern graphics program could estimate an aircraft's return in real time. ... Unreal3 to name a current and affordable one, Lightwave if you've got money.
