There are a number of Hawker designs which had similar air intake designs as the X-32 (P.1214, P.1216 are the most known designs), does anyone know if they had any influence of the X-32 ?

sferrin said:
On the other hand they didn't scrap the entire X-35 design like they did with the X-32.


Not this again? We went through this years ago...


There were only minor changes to the X-32 design to change the tail. These were made because the USN changed their requirement for control in landing. The changes were not made because of any fault in the design. But rather because the customer changed their mind half way through the program. And the changes may make the plane look different on the outside but they were very minor on the inside.


I understand that when someone *believes* something very strongly no amount of factual refutation can change their mind. But if you want to criticise the Boeing JSF entry there are plenty of actual factual reasons to do so. Not this made up one of them "scrapping the entire design".

Abraham Gubler said:
sferrin said:
red admiral said:
On the other hand they didn't scrap the entire X-35 design like they did with the X-32.


Not this again? We went through this years ago...


There were only minor changes to the X-32 design to change the tail. These were made because the USN changed their requirement for control in landing. The changes were not made because of any fault in the design. But rather because the customer changed their mind half way through the program. And the changes may make the plane look different on the outside but they were very minor on the inside.


I understand that when someone *believes* something very strongly no amount of factual refutation can change their mind. But if you want to criticise the Boeing JSF entry there are plenty of actual factual reasons to do so. Not this made up one of them "scrapping the entire design".

Saying the difference between a delta and a conventional wing with a 4-tail is "minor" does not make it so just because you believe it so. Sorry.

sferrin said:
red admiral said:
sferrin said:
Consider that the X-32 had to go to a sea-level location and leave parts on the ground just to do a vertical landing.

Whereas X-35 left the entire weapon bays out and hence shedded loads of fuselage structural mass in addition to transonic drag...

Not a like with like comparison

On the other hand they didn't scrap the entire X-35 design like they did with the X-32.


Is that what you said about Northrop Grumman YF-23 when Lockheed Martin had to go back to the drawing board and completely redesign the YF-22?

sferrin said:
Saying the difference between a delta and a conventional wing with a 4-tail is "minor" does not make it so just because you believe it so. Sorry.


That is semantics. Definitions of words does not determine engineering. You might as well say the difference between the Dassault Mirage and Convair Hustler is "minor" because they are both pure delta wing aircraft.


If all you do in design change is truncate the chord of the cropped delta wing and graft a horizontal tail on the back of the fuselage the change is minor. Same wing structure, same fuselage, same fins, same mission systems.


Further if the only reason you make this change is because the customer change's their requirements it does not mean there was anything wrong with the original design. Something that you suggest in your original argument.


You are wrong in detail (design change) and wrong in meaning (value of the original design).

I'll give you point 2 (value of original design) though, given the required radical redesign of the OML, the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight. As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

The Navy really should have (or been forced to) overcome its aversion to blown flaps. Probably would have saved Boeing's original design and allowed
LM to reuse the CTOL/STOVL wing for the CV version.

sferrin said:
the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight.

This is not true. The control during landing approach is a series of absolute figures that must be reached. X amount of side force, Y amount of roll response. The X-32 meet these USN requirements. When they changed these requirements they had to change the design to meet them. The X-35 didn’t need to change because they had chosen a design that exceeded these requirements. The difference had nothing to do with being close to the “margins” of controllable flight but to do with how the wing generated lift in landing and takeoff and how the aircraft controlled its pitch. The difference between a tailless aircraft (aka delta) and one with a tail.

sferrin said:
As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

Put your aviation dictionary away and actually look at the design change and maybe you might understand the issue. See the attached graphic overlaying the X-32 to the F-32 designs. The change to the wing is an inboard slice is moved to the outboard and the trailing edge changed from forward sweep to aft sweep. Then an extra pipe was added to the tail from which was hung some new horizontal tails. The change to the aft is actually more major than the wing change and is so minor in itself that the slight change to wing centre of lift appears to completely compensate for it CG wise.

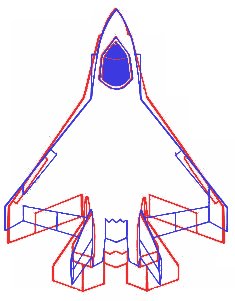

This is a minor change and has nothing to do with YF-22 to F-22. Minor as in it didn’t mean anything significant to the engineering and flight testing of the Boeing offer. Since you have conceded the main point of your argument (that this design change meant the X-32 was flawed) there is little reason for you to maintain this obstinate position.


Attachments

  • X-32_F-32.jpg
    73.3 KB · Views: 794
sferrin said:
I'll give you point 2 (value of original design) though, given the required radical redesign of the OML, the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight. As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

FYI, I wasn't talking YF-22 to F-22A, I was talking about how Northrop was held up flying their prototype that they didn't have to redesign while Lockheed completely redesigned their YF-22 submission. Of course, having said that, what I want to know is why the USAF wasn't able to figure out that the original YF-22 design was such a dog. Though it did look better than the YF-22 prototype they ended up flying. Granted, looks don't win the competition.


For reference, see their design proposal in the first image here.

Sundog said:
sferrin said:
I'll give you point 2 (value of original design) though, given the required radical redesign of the OML, the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight. As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

FYI, I wasn't talking YF-22 to F-22A, I was talking about how Northrop was held up flying their prototype that they didn't have to redesign while Lockheed completely redesigned their YF-22 submission. Of course, having said that, what I want to know is why the USAF wasn't able to figure out that the original YF-22 design was such a dog. Though it did look better than the YF-22 prototype they ended up flying. Granted, looks don't win the competition.


For reference, see their design proposal in the first image here.

Reading Aronstein and Hirschberg's ATF book, it seems like the USAF chose Lockheed not because its actual aircraft design but because if its effort in performing trade studies on operational requirements. So what Lockheed actually submitted as their design was somewhat irrelevant. I think the basic configuration of the F-22 was designed in something like a few months in 1987.

Sundog said:
sferrin said:
I'll give you point 2 (value of original design) though, given the required radical redesign of the OML, the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight. As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

FYI, I wasn't talking YF-22 to F-22A, I was talking about how Northrop was held up flying their prototype that they didn't have to redesign while Lockheed completely redesigned their YF-22 submission. Of course, having said that, what I want to know is why the USAF wasn't able to figure out that the original YF-22 design was such a dog. Though it did look better than the YF-22 prototype they ended up flying. Granted, looks don't win the competition.


For reference, see their design proposal in the first image here.

I wasn't responding to you.

RadicalDisconnect said:
Sundog said:
sferrin said:
I'll give you point 2 (value of original design) though, given the required radical redesign of the OML, the X-32 as actually flown was clearly closer to the margins than the X-35 in more than just weight. As for "minor change", I can't believe you would try to peddle that with a straight face. YF-22 -> F-22A yeah, those were a series of minor changes. Going from a delta wing to a standard swept wing and tail, no.

FYI, I wasn't talking YF-22 to F-22A, I was talking about how Northrop was held up flying their prototype that they didn't have to redesign while Lockheed completely redesigned their YF-22 submission. Of course, having said that, what I want to know is why the USAF wasn't able to figure out that the original YF-22 design was such a dog. Though it did look better than the YF-22 prototype they ended up flying. Granted, looks don't win the competition.


For reference, see their design proposal in the first image here.

Reading Aronstein and Hirschberg's ATF book, it seems like the USAF chose Lockheed not because its actual aircraft design but because if its effort in performing trade studies on operational requirements. So what Lockheed actually submitted as their design was somewhat irrelevant. I think the basic configuration of the F-22 was designed in something like a few months in 1987.

At the time they finalized it to LM and NG that seems to be the case. There was an interesting quote by one of the GD guys in an Airtime Publishing book (WAPJ probably) where they told LM "that thing won't even be able to fly" shortly after they became team mates after the down select. Then it was back to the drawing board.

I bet, it they had just got rid of the cleft chin design and gone for a more aggressive retro shark tooth edge - Would it really compromise performance. isn't this whole competitive pitch more about securing to contract and selling kit. So why not go and include the macho visual stuff too. it would make for some great fuselage art


Attachments

  • more_aggressive?.png
    1.2 MB · Views: 2,022
Zeppelin said:
I bet, it they had just got rid of the cleft chin design and gone for a more aggressive retro shark tooth edge - Would it really compromise performance. isn't this whole competitive pitch more about securing to contract and selling kit. So why not go and include the macho visual stuff too. it would make for some great fuselage art


The size of those serrations are controlled by the LO requirements. Changing their size actually would affect the radar signature. Though I would have liked to see the prototype with the production versions nose.

Yes I whole heartedly agree that the minimising the radar signature would be the top priority. I have to admit to taking elider's comment and image on page 4 and photoshopping the inlet. I'm approaching this from a totally left of field direction, more as a graphic designer, having to solve ( or sell ) the client a solution. That, and that old adage, or Bill Lear's. that "if it looks good it will fly good". A very wooly area here, but, I bet there was no budget allocated to explore such aesthetic considerations. With some testing, I bet, some solution to tick off a good RS plus a less ugly look, may have secured the vote to win the contract. Please, please contradict me with some more rational engineering argument why Boeing lost, but as a "what if". I wonder what other aircraft lost out and less favoured, to other designs because they were deemed ugly?. It's a shame that, costly as it would have been, both should have been built for service in small numbers and tested in the field. But then, I did grow up in that era when the British built all 3 V-bomber versions, instead of opting for one. I know, the exorbitant cost and time these days, to get any winner into production for armed service, and that it's totally unlike any earlier Hurricane v Spitfire production decisions and pilot/popular vote, but I do enjoy everyones contributions over such projects that could have been. [/size]Do keep it up. Regards to you all. Z[/size]

Zeppelin said:
Yes I whole heartedly agree that the minimising the radar signature would be the top priority. I have to admit to taking elider's comment and image on page 4 and photoshopping the inlet. I'm approaching this from a totally left of field direction, more as a graphic designer, having to solve ( or sell ) the client a solution. That, and that old adage, or Bill Lear's. that "if it looks good it will fly good". A very wooly area here, but, I bet there was no budget allocated to explore such aesthetic considerations. With some testing, I bet, some solution to tick off a good RS plus a less ugly look, may have secured the vote to win the contract. Please, please contradict me with some more rational engineering argument why Boeing lost, but as a "what if". I wonder what other aircraft lost out and less favoured, to other designs because they were deemed ugly?. It's a shame that, costly as it would have been, both should have been built for service in small numbers and tested in the field. But then, I did grow up in that era when the British built all 3 V-bomber versions, instead of opting for one. I know, the exorbitant cost and time these days, to get any winner into production for armed service, and that it's totally unlike any earlier Hurricane v Spitfire production decisions and pilot/popular vote, but I do enjoy everyones contributions over such projects that could have been. Do keep it up. Regards to you all. Z


In regard to what you're saying about looks, that's why I did this awhile ago. ;)


http://www.secretprojects.co.uk/forum/index.php/topic,9818.msg90735.html#msg90735


http://www.secretprojects.co.uk/forum/index.php/topic,1478.msg20114.html#msg20114

flateric said:
Mark Nankivil said:
The last one I've not been able to find any other drawing remotely similar to it.

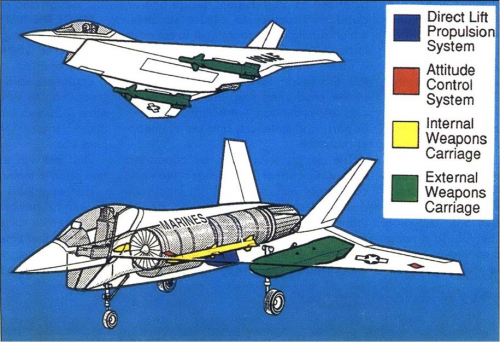

This is one of Boeing's multipurpose fighter studies from very early 90s. Pre-ASTOVL/CALF/JAST.

Hi,

http://archive.aviationweek.com/image/spread/19930719/33/2


Attachments

  • 1.png
    1,003.3 KB · Views: 1,334

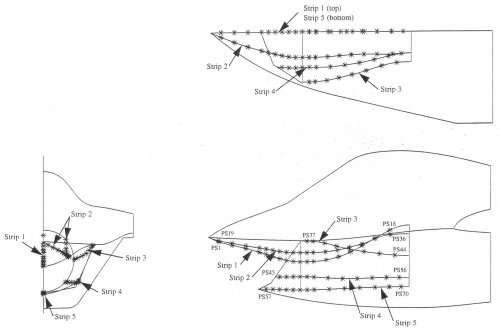

http://crgis.ndc.nasa.gov/historic/File:1996-01-25_-_Boeing_JAST_Inlet_-_Test_473.pdf


Attachments

  • Boeing JAST inlet 96.jpg
    Boeing JAST inlet 96.jpg
    134.5 KB · Views: 1,050
Thanks for sharing but FOD is still an engine killer. "Open mouth, insert dirt." LM was right with its cheek-type engine air inlets. -SP

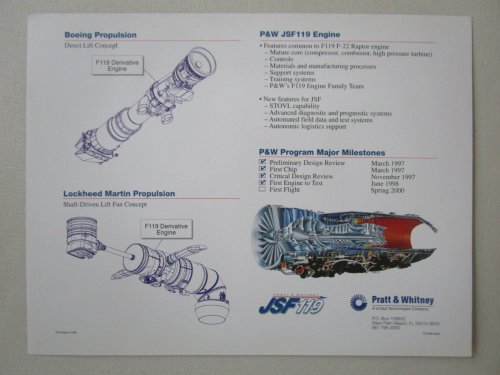

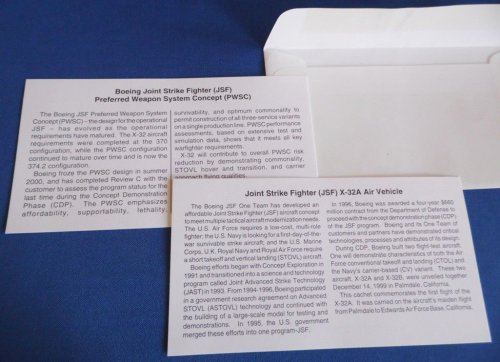

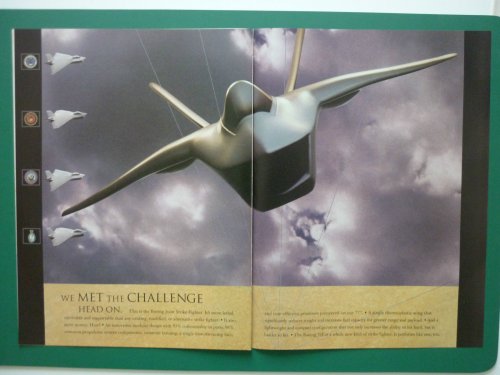

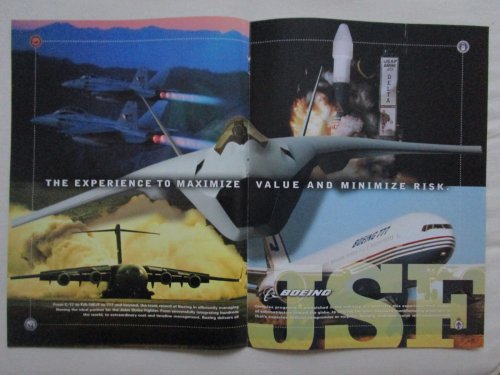

Various Boeing JSF items found on eBay.


Attachments

  • s-l1600 (10).jpg
    s-l1600 (10).jpg
    127 KB · Views: 324
  • s-l1600 (11).jpg
    s-l1600 (11).jpg
    119.6 KB · Views: 254
  • s-l1600.jpg
    299.5 KB · Views: 275
  • s-l1600 (8).jpg
    s-l1600 (8).jpg
    244 KB · Views: 302
  • s-l1600 (7).jpg
    s-l1600 (7).jpg
    276 KB · Views: 352
  • s-l1600 (6).jpg
    s-l1600 (6).jpg
    313.3 KB · Views: 331
  • s-l1600 (2).jpg
    s-l1600 (2).jpg
    254.3 KB · Views: 578
  • s-l1600 (1).jpg
    s-l1600 (1).jpg
    278.5 KB · Views: 600
Very nice!

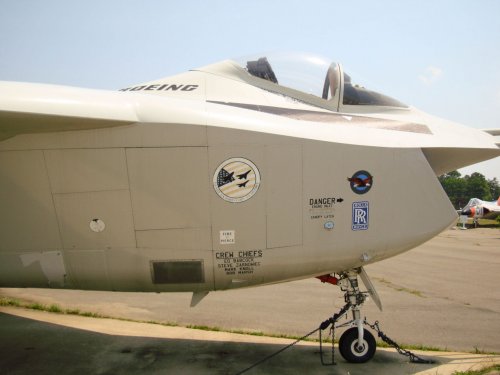

And a question for any aero guys out there---the sharp chine that starts at the nose curves upwards along the front edge of the wing, and then back down again, is this done for aerodynamic reasons or for stealth reasons. why not just a straight chine where the nose to wing chine flows?

does it help prevent airflow seperation at high AOA?

It is likely not straight because they were experimental planes and not prototype planes. The money and time of the design team was better spent in the system as a whole, rather than designing the plane to be stealthy. Of course, overall stealth shaping, such as edge alignment, needed to be demonstrated, but the minute details of panel and chine shaping was likely not a priority, as the aircraft selected would see major changes. If you look at the X-35 panels, they are not saw-toothed at all. The PWSC X-32, among other differences, has a straight chine.

ScrutorAudax said:
It is likely not straight because they were experimental planes and not prototype planes. The money and time of the design team was better spent in the system as a whole, rather than designing the plane to be stealthy.
sorry, this is plain BS


Attachments

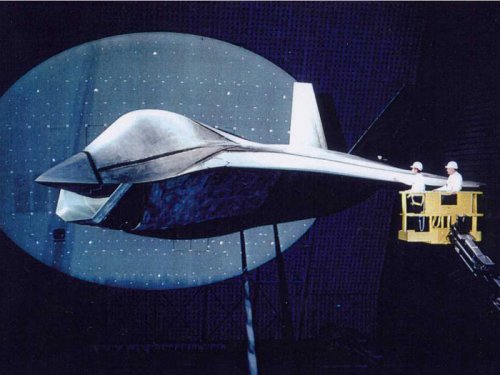

  • jsf-rcs-full-scale-model.jpg
    68.9 KB · Views: 923
Flateric, I have no doubt that RCS tests were performed. I am talking about further refinement of the chine shape.

Of course, overall stealth shaping, such as edge alignment, needed to be demonstrated, but the minute details of panel and chine shaping was likely not a priority, as the aircraft selected would see major changes.

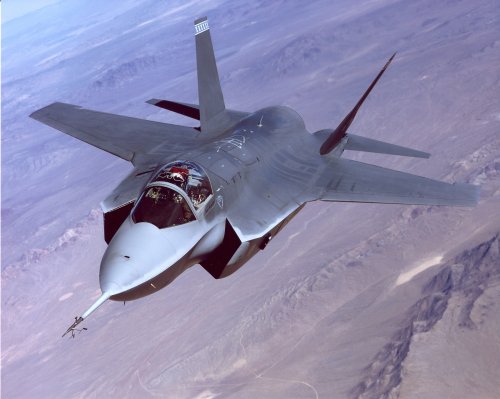

The differences between the X-35 and F-35 (included below) chine shape shows what I was trying to convey.


Attachments

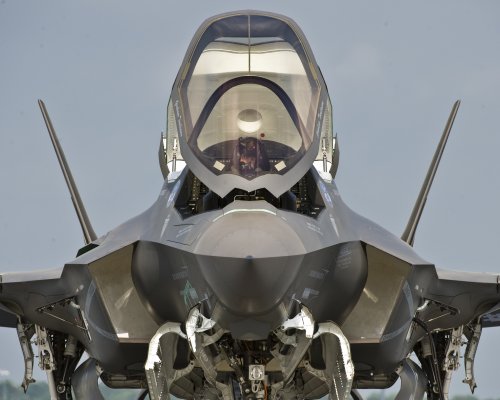

  • f-35-testing.jpg
    2.5 MB · Views: 800
  • X-35.jpg
    590.5 KB · Views: 812
Chine shape _evolution_ while moving from tailless delta to four-poster PWSC doesn't mean that designers were giving a low priority to LO at CDP stage as you suggest.
_Flying prototypes_ were never intended for RCS tests (just like ATF contenders) - tests were performed on high fidelity RCS models, including full size ones.
Read the question once more.

I think demonstrating the objective OML should be a goal of the flying prototype. Now, details of the panel edges don't affect aerodynamics, so there would be no problem using non-representative ones.

There were a lot of "directional changes (up, down, X-Y) of the continuous chine that runs through on the fore body and the wing.

Just wanted to know the intention, to keep air attached to the top of wing at AOA?

As Flateric says for Aerodynamic reasons mainly? but not necessarily for stealth.


Attachments

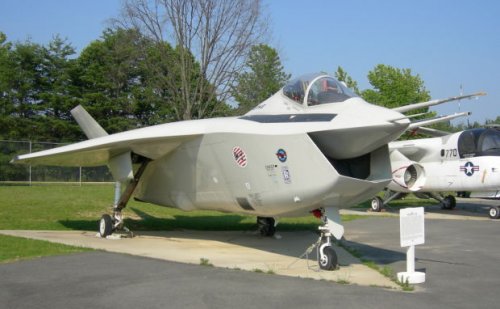

  • pax_x-32_29.jpg
    147.2 KB · Views: 600
  • 52434bdb8c0eb_image.jpg
    46 KB · Views: 610
I would expect that it's for aerodynamic and weight reasons; stealth-wise I don't see much disadvantage with straightening the chine (imagining that the cockpit canopy was properly designed for stealth and that the geometry changed to match the upper surface of the fuselage).

Aerodynamically on the other hand, if you straighten the chine (while maintaining the lower fuselage surface angles) you end up with a slightly wider fuselage beneath the cockpit, which means more supersonic drag and more weight, plus you might have to change the geometry of the nose to match the chine, which could cause intake issues, plus for cockpit visibility you'd probably have to raise the canopy higher which leads to more drag.

I would guess that the chine does much the same role as a lex, generating a vortex over the wing at high aoa

Chines typically produce vortices farther inward, but with the wide body of the X-32, it may function in that way to a limited extent.

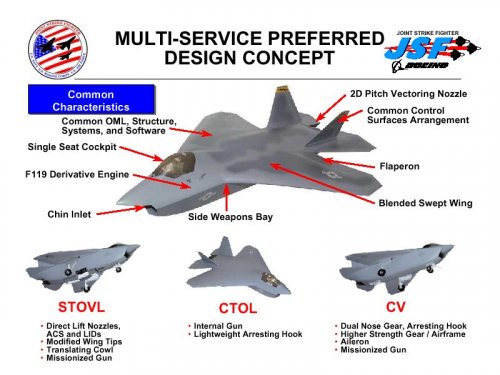

On a side note, does anyone know why some images of the PWSC X-32 have clipped wingtips and others (most of the images and the full-scale mock-up) have sharply pointed wingtips with the airfoil section showing at the wingtip?

Just a guess, but possibly these are different variants. The STOVL was going to need a smaller wing, so perhaps that's the clipped version?

ScrutorAudax said:
On a side note, does anyone know why some images of the PWSC X-32 have clipped wingtips and others (most of the images and the full-scale mock-up) have sharply pointed wingtips with the airfoil section showing at the wingtip?
Because PWSC was evolving. Clipped wingtip was at the early iterations.

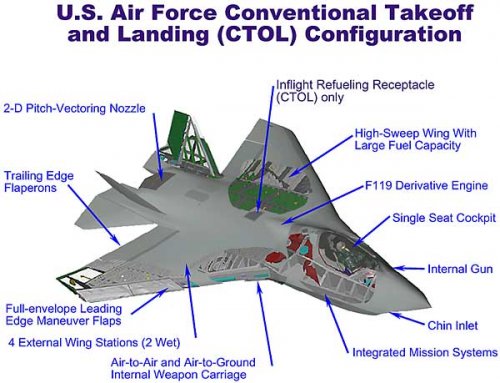

The clipped wingtip was for the STOVL variant and the swept tips were on the CTOL (USAF and Navy) variants.

Once more, final PWSC all were without clipped tips.
Sundog's description fits early PWSC iterations.


Attachments

  • CTOLconfig.jpg
    45.4 KB · Views: 1,581

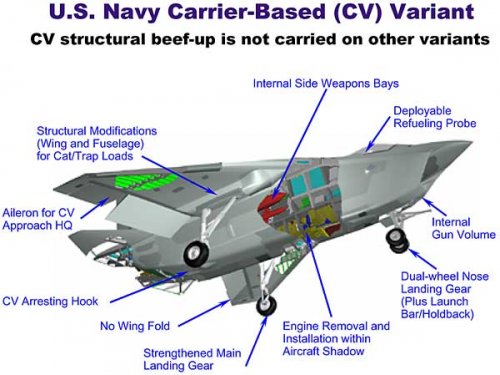

  • CV_config.jpg
    41.3 KB · Views: 1,524

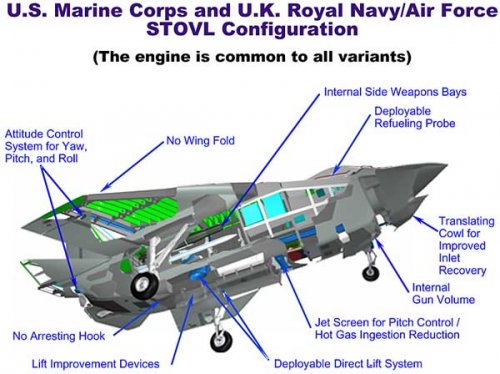

  • STOVL_config.jpg
    43.9 KB · Views: 1,472
  • x-32_jsf-boeing-chart2.jpg
    84.8 KB · Views: 1,508
