XFY-1 and XFV-1 competition

[Flogger15]

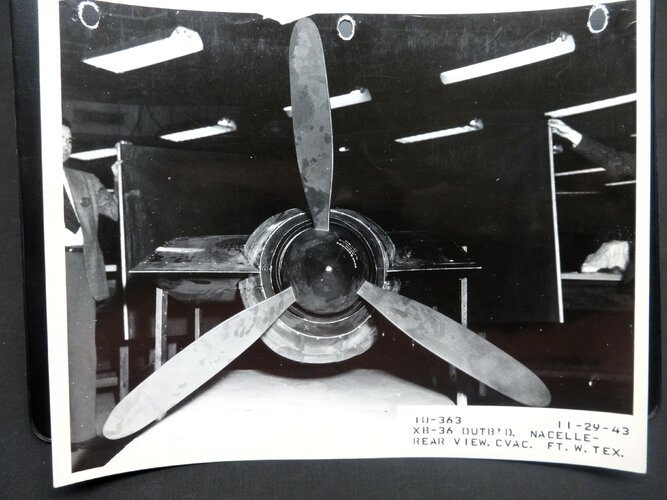

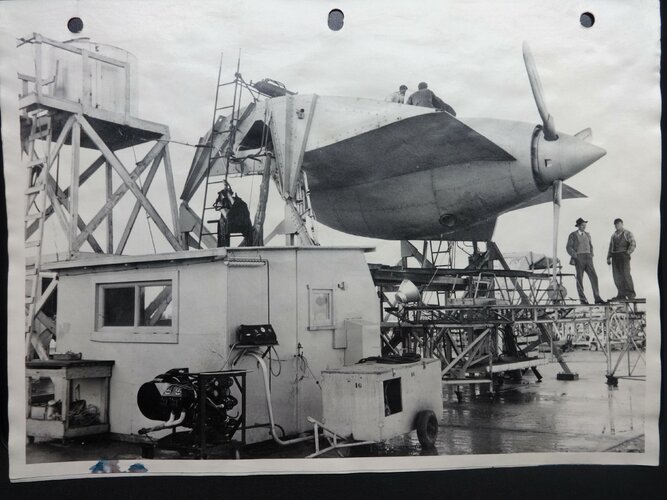

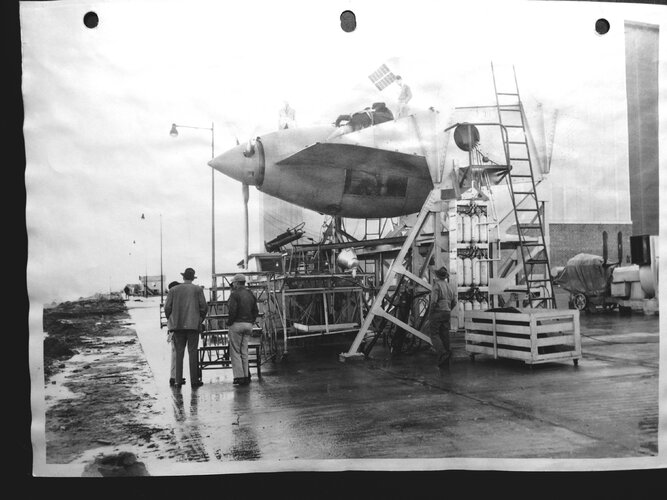

What the hell, these were in there too. XB-36 engine nacelle mockup model, notice guys holding up black background and hand-prints all over the props! Full size engine test stand, must have made a hell of a racket.



[hesham]

Don't tell me that,Bell and Ryan didn't involve in this competition !.



[Mark Nankivil]

What the hell, these were in there too. XB-36 engine nacelle mockup model, notice guys holding up black background and hand-prints all over the props! Full size engine test stand, must have made a hell of a racket.

Great photos - thanks for sharing. Have friend who recently delved into the vents and other external ports of the B-36 nacelle and spinner and the annular gap of the spinner/trailing edge of the nacelle - a complex method of moving air thru the nacelle and spinner for sure...

Enjoy the Day! Mark



[hesham]

We can say,

1- Convair Model 5--------------XFY-1
2- Lockheed Model 081-40-01---------XFV-1

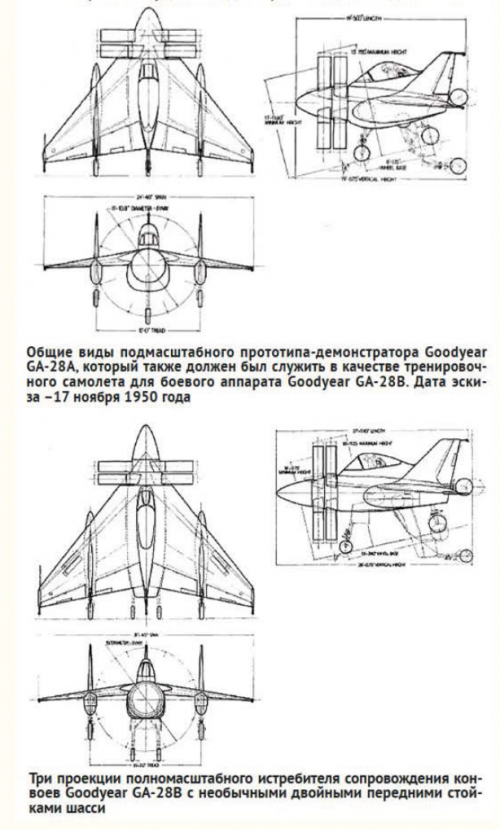

3- Goodyear Model GA-28A &B
4- Martin Model 262
5- Northrop Model 63A

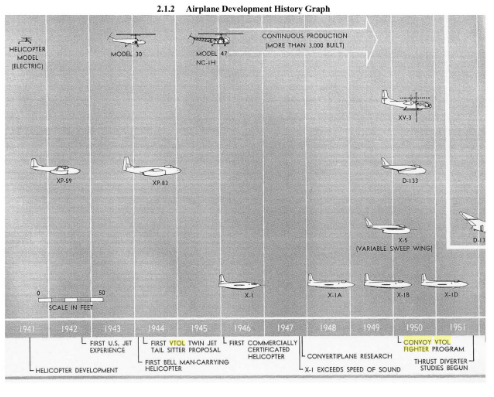

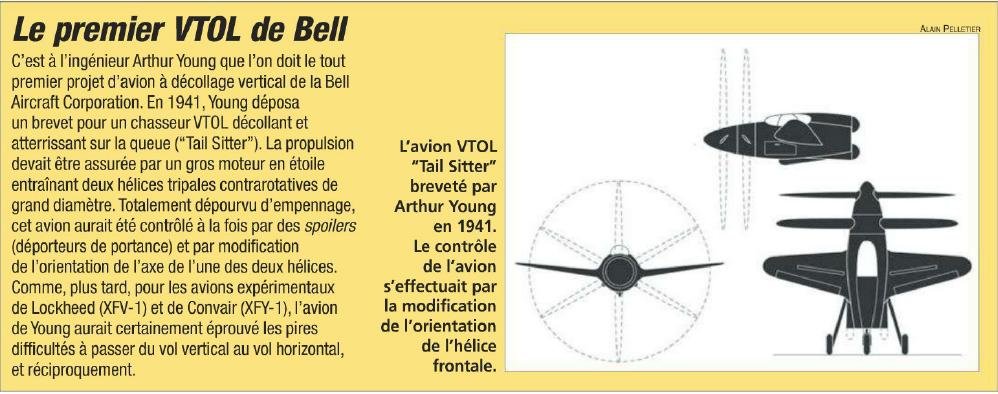

6- Bell D-? or Model-?
7- Ryan Model-?
8- Temco Model-28 ?
9- ------?
10- ------?



[Stargazer]

Great video footage of XFY-1 test hover and "Skeets" Coleman interview:

National Archives NextGen Catalog

The online portal to the records held at the National Archives, and information about those records.

catalog.archives.gov



[hesham]

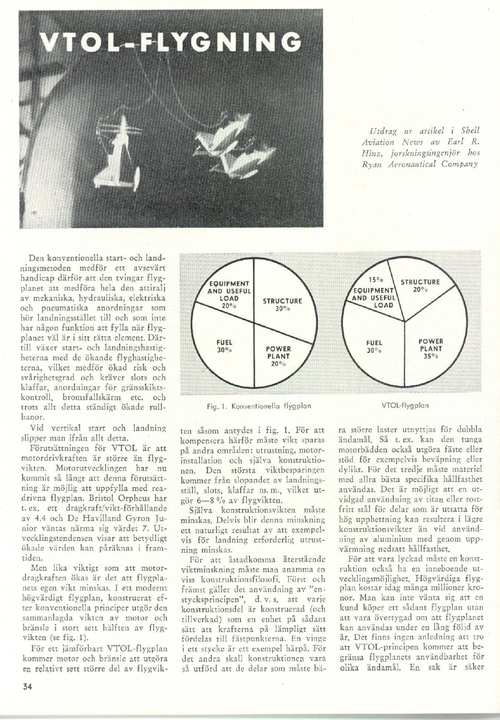

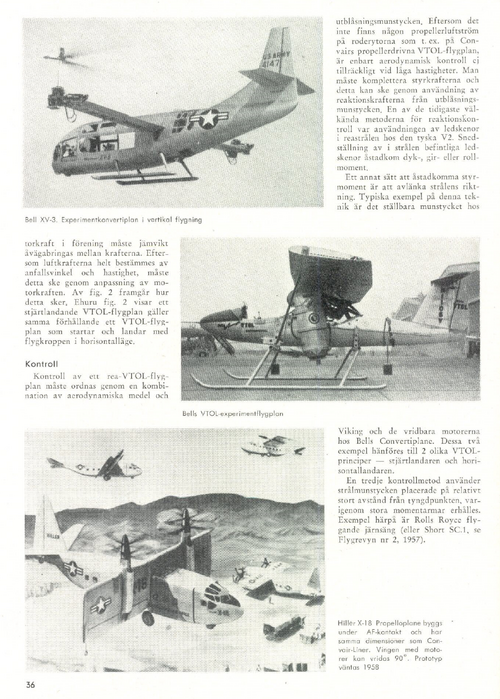

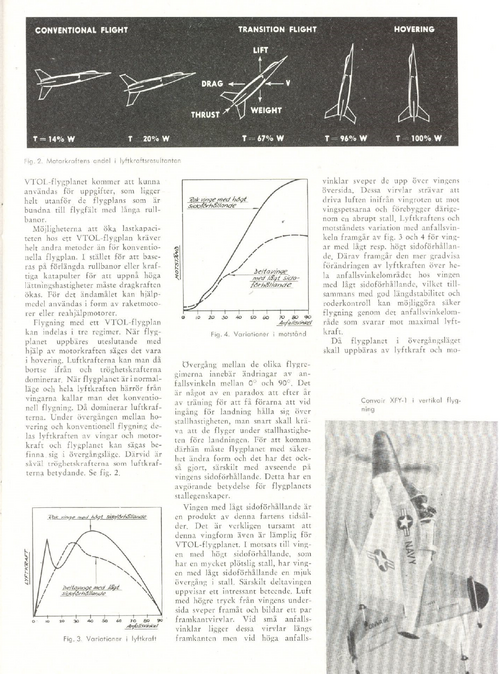

From, flygrevyn_1957-4



[RAP]

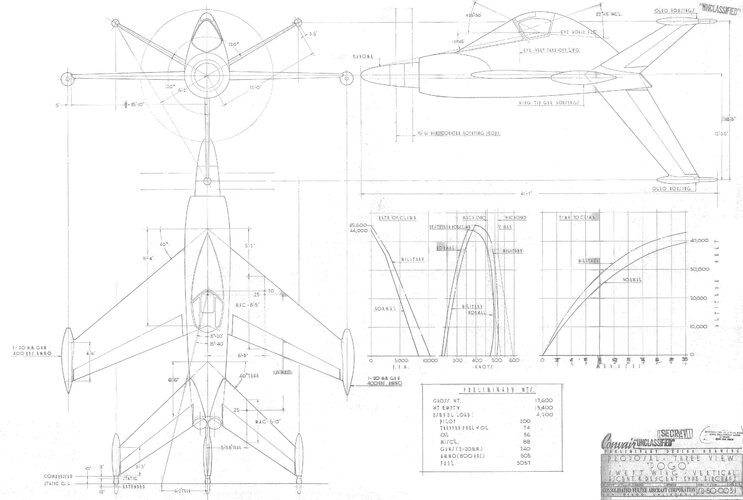

Convair swept wing Pogo configuraton, not sure if this has been posted before. Found on the SDASM Flickr site.



[fightingirish]

FYI, this picture showing the Convair XFY-1 Pogo standard aircraft characteristics was uploaded at the SDASM Flickr archive today.

https://flic.kr/p/2qvJcKk

View: https://flic.kr/p/2qvJcKk



[RAP]

Model of Convair swept wing design fround on the SDASM Flicker page.



[hesham]

Model of Convair swept wing design fround on the SDASM Flicker page.

https://www.secretprojects.co.uk/threads/tailsitters.42748/#post-645106



[Orionblamblam]



[Bill S]

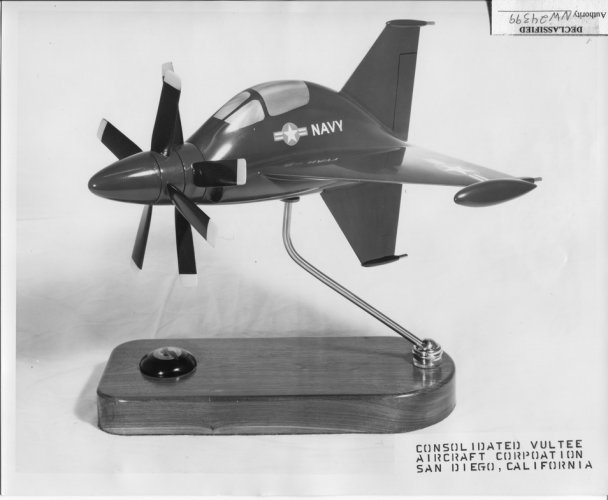

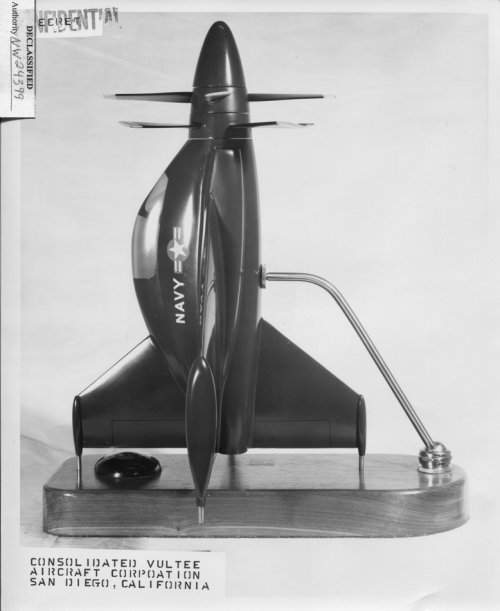

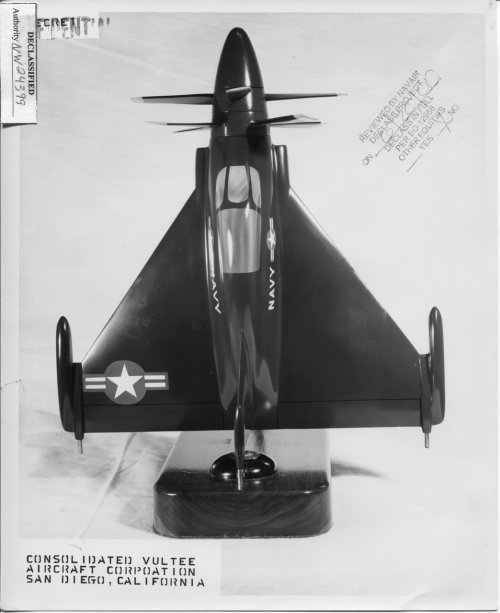

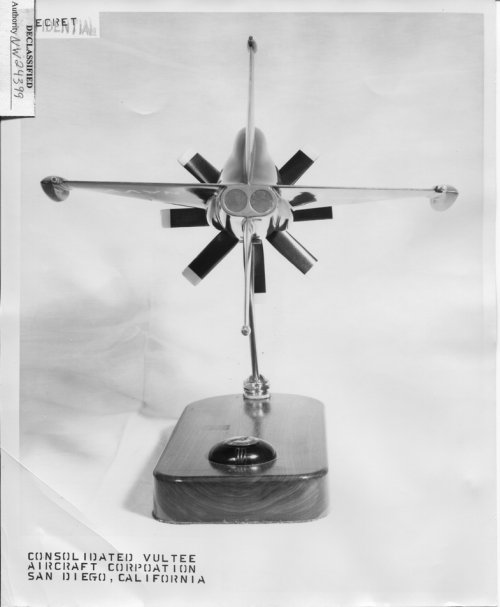

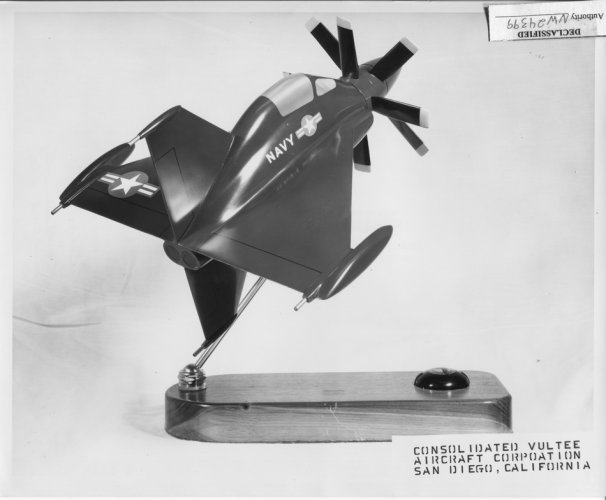

Photos of the Consolidated Vultee Convoy Fighter model that I scanned at NARA II.



[Bill S]

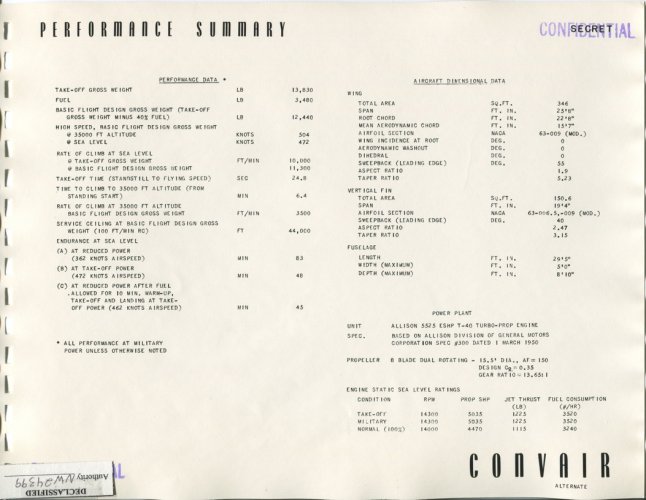

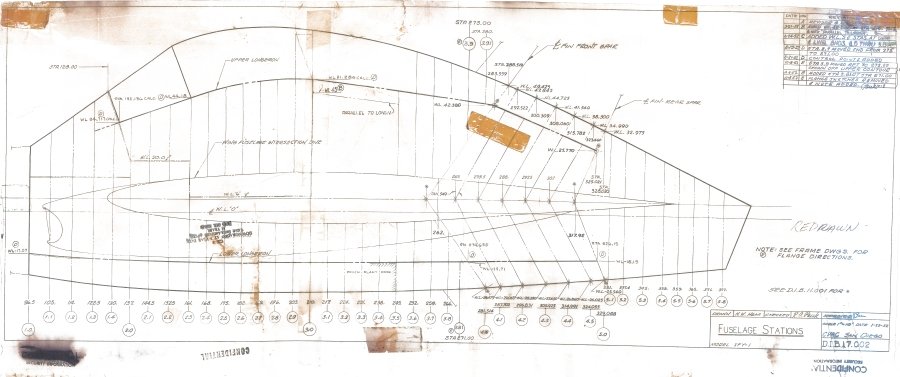

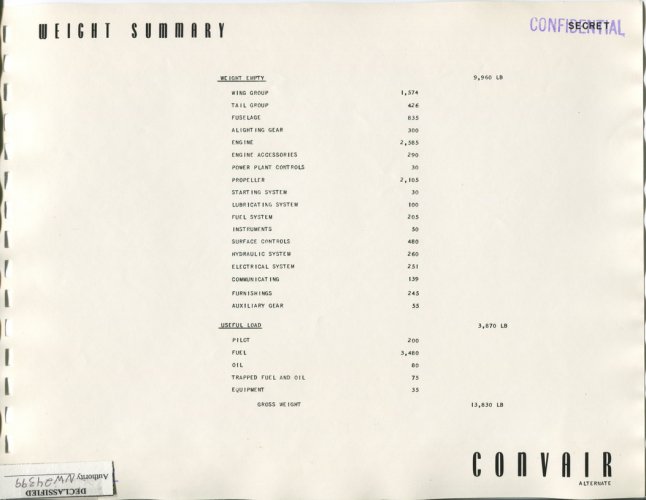

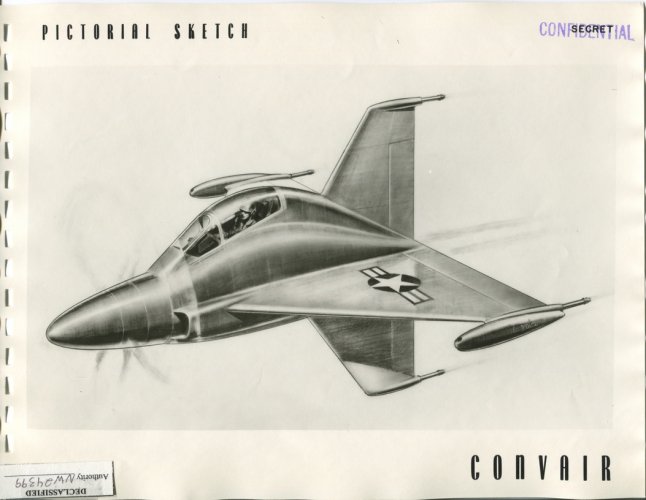

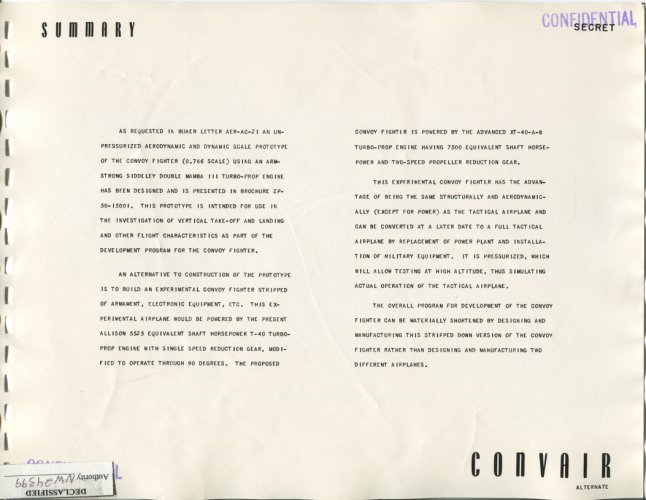

Several pages of Consolidated Vultee Report ZD-50-15903, pitching a Stripped Down Convoy Fighter with a T-40 Engine as an alternative to the Double Mamba. Source scans from NARA II
