X-37B Orbital Test Vehicle (OTV)

Article as regards the X-37B & its service module:

www.thedrive.com

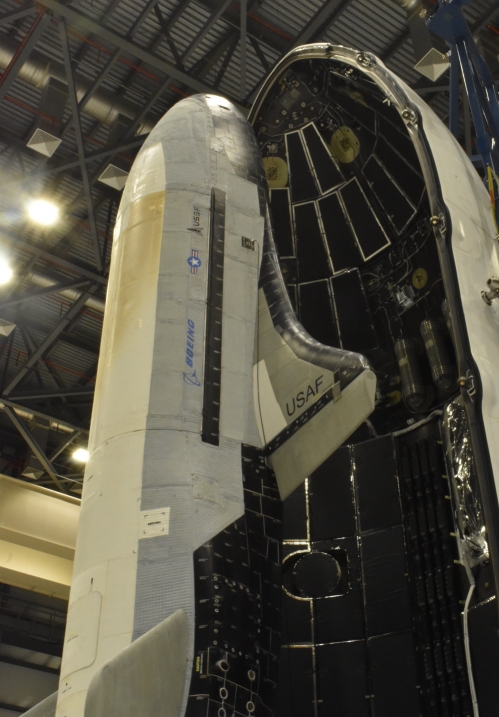

Look At An X-37B In Space With An Extended Payload Module

Space Force's secretive X-37B just launched on its seventh mission, which will be its most ambitious, aboard a SpaceX Falcon 9 Heavy rocket.
www.thedrive.com www.thedrive.com

Some footage of the combination in space from the previous flight was mixed into the coverage of this flight.

Flyaway said:
I’ve seen it suggested that the X-37 maybe in a Molyniya type orbit which would be hard for amateur observers to track.
Click to expand...

And yet someone found it. It does appear to be in a highly elliptical orbit inclined about 59 degrees. Not sure if it's technically a molniya or not, but it's in the ballpark.

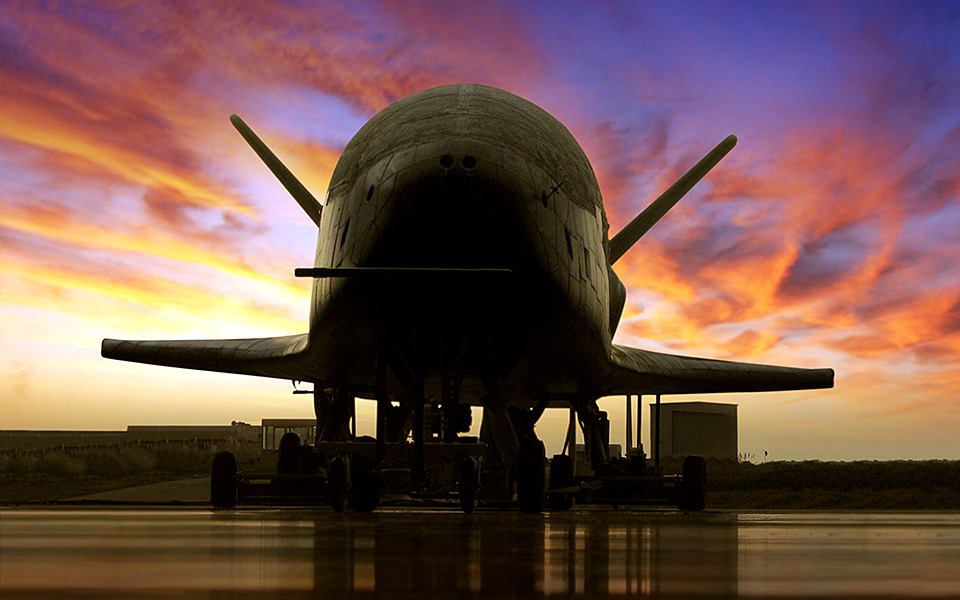

arstechnica.com

A sleuthing enthusiast says he found the US military’s X-37B spaceplane

Officials didn't disclose details about the X-37B's orbit after its December launch.
arstechnica.com arstechnica.com

Flyaway said:
a Molyniya type orbit
Click to expand...
Had to go look that up, even with as much as I like space stuff it was a thing I did not know.

The Molniya orbit combines high inclination (63.4°) with high eccentricity (0.722) to maximize viewing time over high latitudes. Each orbit lasts 12 hours, so the slow, high-altitude portion of the orbit repeats over the same location every day and night. Russian communications satellites and the Sirius radio satellites currently use this type of orbit. (Adapted from Fundamentals of Space Systems by Vincent L. Pisacane, 2005.)
Click to expand...

Catalog of Earth Satellite Orbits

Different orbits give satellites different vantage points for viewing Earth. This fact sheet describes the common Earth satellite orbits and some of the challenges of maintaining them.
earthobservatory.nasa.gov earthobservatory.nasa.gov

The hunt for OTV-7:

skyriddles.wordpress.com

The Hunt for OTV-7

On a dark late December winter night the United States military launched its secretive X-37B spaceplane atop a Falcon 9 heavy rocket from Kennedy Space Center. After watching the rocket slip from s…
skyriddles.wordpress.com skyriddles.wordpress.com

So the X-37B is in Molniya orbit ? what it does here is anybody guess. I would hazard that Molniya orbit are a soviet / russian thing. Which brings THE question:
What kind of assets do the russians have in Molniya orbit that would be worth the X-37B "interacting" with them ?

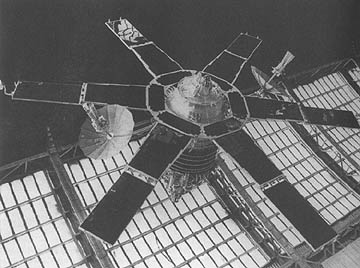

en.wikipedia.org

Molniya (satellite) - Wikipedia

en.wikipedia.org en.wikipedia.org

By the way the Soviets have satellites spying the GEO belt comsats: so maybe the X-37B is doing something similar with russian comsats, which have often been in Molniya orbit for geographical reasons (makes more sense for Russia being a giant country north of the equator)

I think that the ellipsoidal orbit is more about maneuvering in the fast portion of it.
You need that kind of of trajectory to get low enough to use aerodynamics effects.
The slow portion give more time for Hall thrusters to alter the trajectory.
In effect, the heterogeneous characteristics of the X-37 are maximized that way.

TomcatViP said:
I think that the ellipsoidal orbit is more about maneuvering in the fast portion of it.
You need that kind of of trajectory to get low enough to use aerodynamics effects.
The slow portion give more time for Hall thrusters to alter the trajectory.
In effect, the heterogeneous characteristics of the X-37 are maximized that way.
Click to expand...
Not really. What Hall thrusters? That was just a test on a previous mission. Also, they would be too weak for setting up and ending dip into the atmosphere.

Anyways, the X-37 needs to have its payload bay open and its solar array deployed. These are not meant for repeat operations on orbit. it can only operate for a limited time with payload bay closed.

Last edited:
Archibald said:
So the X-37B is in Molniya orbit ? what it does here is anybody guess. I would hazard that Molniya orbit are a soviet / russian thing. Which brings THE question:
What kind of assets do the russians have in Molniya orbit that would be worth the X-37B "interacting" with them ?

en.wikipedia.org

Molniya (satellite) - Wikipedia

en.wikipedia.org en.wikipedia.org

By the way the Soviets have satellites spying the GEO belt comsats: so maybe the X-37B is doing something similar with russian comsats, which have often been in Molniya orbit for geographical reasons (makes more sense for Russia being a giant country north of the equator)
Click to expand...
The US uses Molniya orbit too. There is no equivlent to the GEO belt for Molniya

The orbits are too diverse to follow unless launched specifically in the same orbit as the "single" satellite that is to be monitored.

Byeman said:
Not really. What Hall thrusters? That was just a test on a previous mission. Also, they would be too weak for setting up and ending dip into the atmosphere.

Anyways, the X-37 needs to have its payload bay open and its solar array deployed. These are not meant for repeat operations on orbit. it can only operate for a limited time with payload bay closed.
Click to expand...
Nobody mentioned firing the thruster in the atmosphere but during coast-up and down leg from the apogee.

Archibald said:
So the X-37B is in Molniya orbit ?
Click to expand...

I see people arguing that it's not a Molniya because it isn't frozen; it processes slowly over the surface, which the true Molniya doesn't. I think. This is beyond my full comprehension but sharing for others.


Edit: this link should point to a comment by theradicalmoderate on the first page of comments.

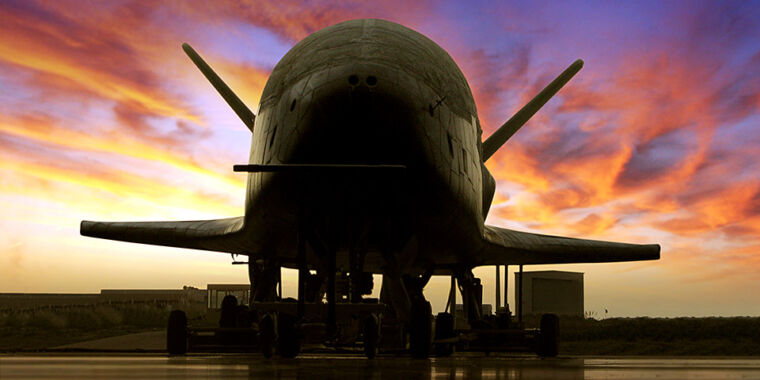

arstechnica.com

A sleuthing enthusiast says he found the US military’s X-37B spaceplane

Officials didn’t disclose details about the X-37B’s orbit after its December launch.
arstechnica.com arstechnica.com

Last edited:
I think a true Molniya orbit maintains an apogee over a specific geographic location. It was first used by communications satellites of the same name IIRC, with three satellites in the same orbit, with one on station in the high end of orbit. The Russians based the orbit over their country for relay. The U.S. uses the same orbit for ELINT satellites over Asia (TRUMPET series).

TomcatViP said:
Nobody mentioned firing the thruster in the atmosphere but during coast-up and down leg from the apogee.
Click to expand...
Neither did I. To dip in the atmosphere at perigee requires a delta V at apogee, not during the "legs" before and after. A Hall thruster is too weak for this.

We are not requiring a Voodoo like 50ft fly by ;)

The delta E gained extending the leg up and increasing the speed down (yes, elevating the Apogee) can be traded for skiming the high layer of the atmosphere and use the delta V to change the orbit.

That's it. I am not suggesting any amplitude here. It's only basic physics


Not that yet(?!)

Last edited:
TomcatViP said:
We are not requiring a Voddoo like 50ft fly by ;)

The delta E gained extending the leg up and increasing the speed down (yes, elevating the Apogee) can be traded for skiming the high layer of the atmosphere and use the delta V to change the orbit.

That's it. I am not suggesting any amplitude here. It's only basic physics
Click to expand...
wrong, that is not how orbital mechanics work. Delta V affects an orbit at point 180 degrees from the point of application. To raise and lower the orbit into the atmosphere at perigee requires the delta V be applied at apogee. Once the orbit is lowered into the atmosphere, braking will occur and the apogee will be lowered.

Last edited:
Question: does the X-37 have enough fuel to recover from a GTO? I would think a huge amount of breaking would be necessary to slow to a survivable re-entry speed. Is the vehicle counting on atmospheric drag at perigee over time to allow it to recover? Is it possibly being expended?

Josh_TN said:
Question: does the X-37 have enough fuel to recover from a GTO? I would think a huge amount of breaking would be necessary to slow to a survivable re-entry speed. Is the vehicle counting on atmospheric drag at perigee over time to allow it to recover? Is it possibly being expended?
Click to expand...

Discussed here:

sattrackcam.blogspot.com

Imaging the X-37B robotic spaceplane mission OTV 7

classified military Space (spy satellites) and Missiles
sattrackcam.blogspot.com sattrackcam.blogspot.com

tl;dr Orbit will be circularized to LEO first, possibly by aerobraking at perigee

X-37B OTV-7 to aerobreak.

www.twz.com

Homepage

Welcome to The War Zone. We cover the air, sea, land, space & cyber domains of warfare & wrap it all up in a geopolitical bow. We take the world's most complex & opaque technological topics & convey them in a way that anyone can understand.
www.twz.com www.twz.com

Josh_TN said:
X-37B OTV-7 to aerobreak.

www.twz.com

Homepage

Welcome to The War Zone. We cover the air, sea, land, space & cyber domains of warfare & wrap it all up in a geopolitical bow. We take the world's most complex & opaque technological topics & convey them in a way that anyone can understand.
www.twz.com www.twz.com
Click to expand...
So interesting :oops:

@Byeman :

From the link above...
In the meantime, just what we know about the X-37B OTV-7 mission, including the newly disclosed planned aerobraking maneuvers and the previously announced novel high elliptical orbit, continues to be especially interesting in of itself.
Click to expand...

www.defensenews.com

Secret X-37B spaceplane maneuvers could impact future space operations

The Space Force offered a rare glimpse into the X-37B’s latest endeavor, revealing that the spaceplane will conduct an aerobraking maneuver.
www.defensenews.com www.defensenews.com

www.twz.com

Bolt-M Aims To Make Kamikaze Drone Attacks More User Friendly, Effective

In the next six months the U.S. Marine Corps will start testing the advanced quadcopter loitering munition, designed to put easy-to-use aerial firepower into the infantry's hands. In the next six months, the U.S. Marine Corps will start testing the quadcopter, designed to put easy-to-use...
www.twz.com www.twz.com

Last edited:
Josh_TN said:
I do wonder if Starship might be capable of the same some day.
Click to expand...
A. It is regularly done with Mars orbiters and could be done* with any spacecraft that has propulsion capability.
B. Starship is an entry vehicle. It already uses drag and lift to adjust its path during entry.

* only orbital altitude changes. Inclination changes require the ability to produce lift.

Byeman said:
A. It is regularly done with Mars orbiters and could be done* with any spacecraft that has propulsion capability.
B. Starship is an entry vehicle. It already uses drag and lift to adjust its path during entry.

* only orbital altitude changes. Inclination changes require the ability to produce lift.
Click to expand...

Fair enough. In my mind the military significance would aerobreaking to change inclination, which requires more air and control surfaces to achieve. X-37 and Starship would be unique in that regard. It seems like the USAF may be attempting this, though we shall see.

Last edited:
Josh_TN said:
Fair enough. In my mind the military significance would aerobreaking to change inclination, which requires more air and control surfaces to achieve. X-37 and Starship would be unique in that regard. It seems like the USAF may be attempting this, though we shall see.
Click to expand...
No, X-37 and Starship are different in this regard. X-37 generates lift and this is used to change inclination. Starship does not create lift.
