US Supersonic Transport (SST) Program 1960-1971

[Triton]

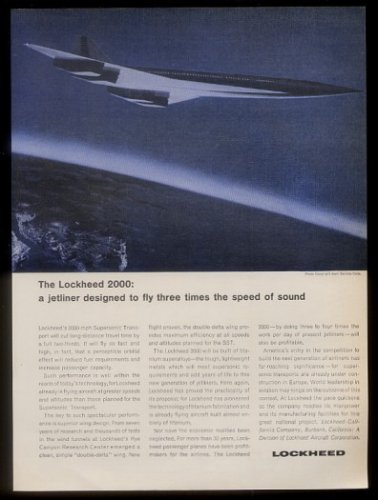

Lockheed 2000 SST ad on eBay.

Source:
http://www.ebay.com/itm/1964-Lockheed-SST-2000-U-S-supersonic-plane-VERY-COOL-art-vintage-print-ad-/140757385762?pt=LH_DefaultDomain_0&hash=item20c5cb4222



[Triton]

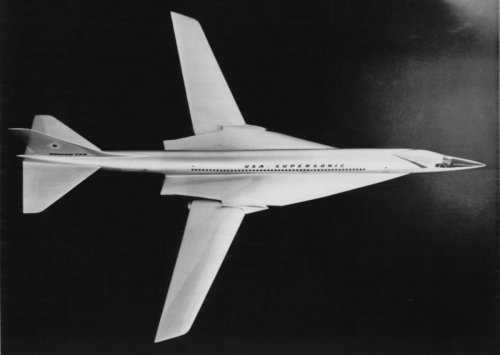

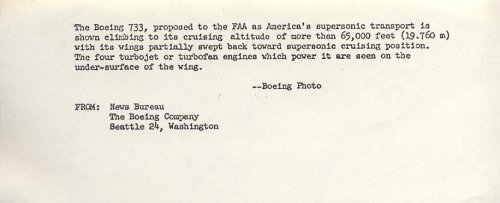

And another

Source:
http://www.ebay.com/itm/BOEING-733-SST-SUPERSONIC-TRANSPORT-CLIMBING-CRUISING-ALTITUDE-Photo-1964-/370691934682?pt=LH_DefaultDomain_0&hash=item564ef609da



[hesham]

From my dear Scott's site;

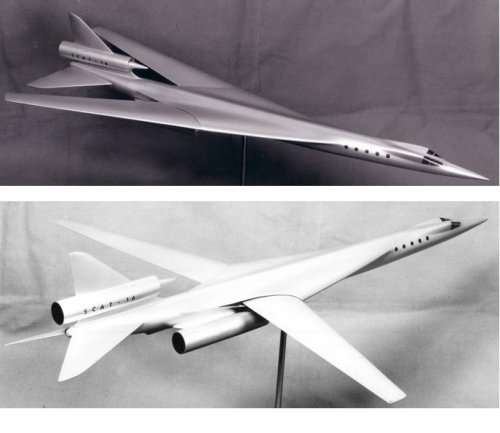

the Convair SST Model,based on generic NASA SCAT-16.


http://up-ship.com/blog/?p=1439



[hesham]

Hi,

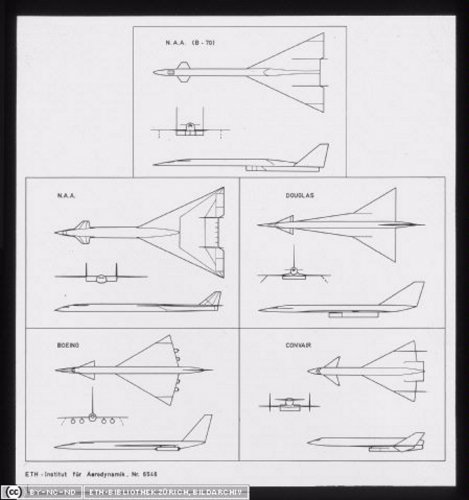

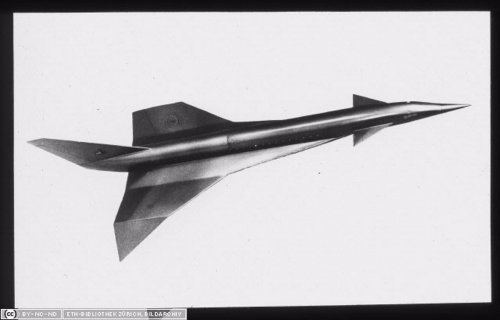

from that site,the civil section;

http://www.e-pics.ethz.ch/index/ETHBIB.Bildarchiv/index-000079.html



[Orionblamblam]

Hi,


from that site,the civil section;
http://www.e-pics.ethz.ch/index/ETHBIB.Bildarchiv/index-000079.html

"Civil section?" All I see are Pacific islanders.



[hesham]

Hi,

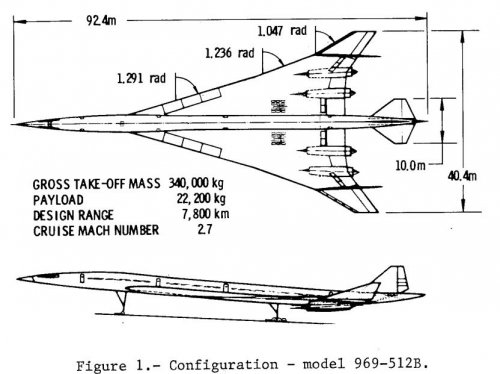

anther variant,the Boeing Model 969-512B.


http://www.dtic.mil/cgi-bin/GetTRDoc?AD=ADA302169#page=382



[Mark Nankivil]

Hi All -

Interesting looking aircraft - really SST?

http://www.ebay.com/itm/airline-mcdonnell-douglas-memorabilia-paintings-/281070424858?pt=LH_DefaultDomain_0&hash=item41711a531a

Enjoy the Day! Mark



[hesham]

New concept for me,thank you Mark,


it looks like Lockheed pre-ATF fighter.



[Triton]

Interesting concept. Thanks for sharing, Mark.



[Mark Nankivil]

Greetings All -

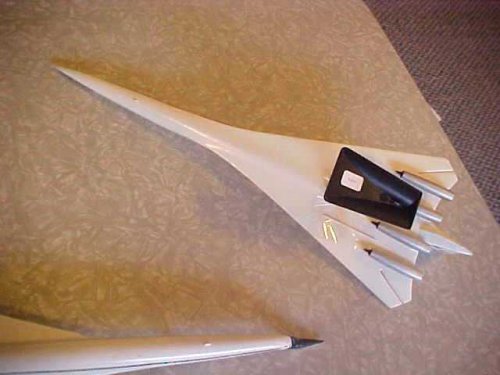

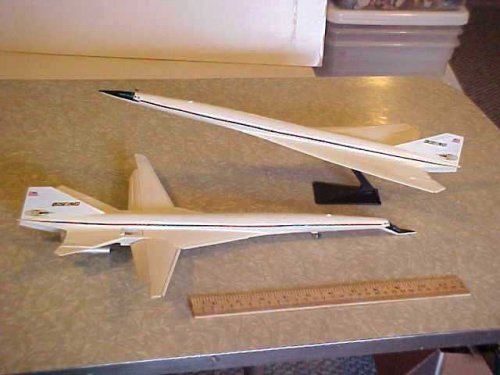

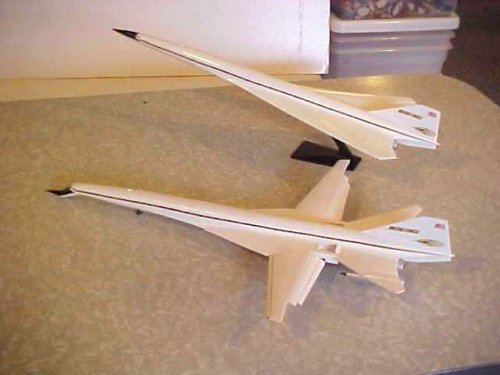

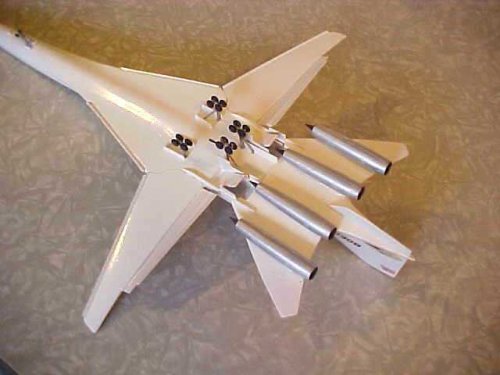

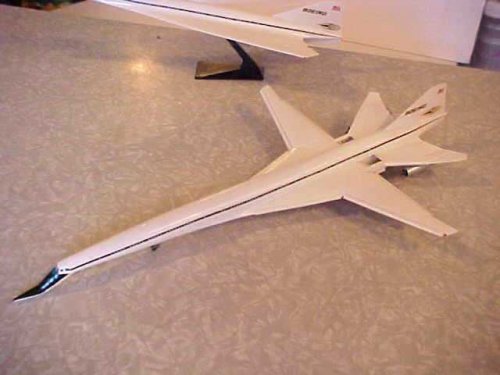

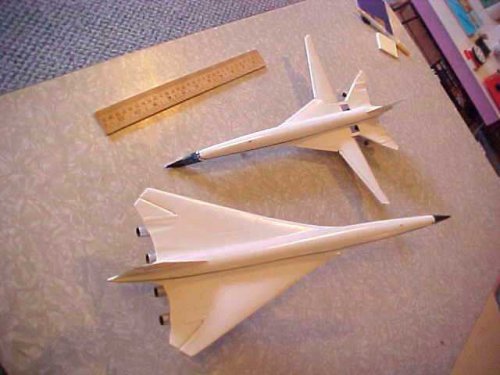

A pair of Boeing SST models on EPay:

http://www.ebay.com/itm/Vtg-PAIR-Boeing-SST-Desk-Display-Models-Seattle-Estate-Find-Unknown-Maker-/360612369143?pt=LH_DefaultDomain_0&hash=item53f62c12f7

Enjoy the Day! Mark



[flateric]

you can buy them slightly cheaper...
http://www.ebay.com/itm/REVELL-1-200-BOEING-SST-SUPERSONIC-CLIPPER-NEU-H-263-/130864858722?pt=Standmodelle_Baus%C3%A4tze&hash=item1e78274662



[Triton]

Revell did issue a model kit in 1967 with two 2707-200 models with Boeing prototype marking decal sheets:
http://www.oldmodelkits.com/index.php?detail=16496

Wow, $306.25 bid so far for a Revell model kit completed in the 1960s.



[Triton]

Boeing 2707-100 artist's impression postcards found on eBay.


URL:

http://www.ebay.com/itm/Boeing-Pan-Am-Supersonic-SST-Artist-Concept-4x6-Postcard-/200908488608?pt=LH_DefaultDomain_0&hash=item2ec7143fa0

http://www.ebay.com/itm/Delta-Airlines-Boeing-2707-SST-Artist-Concept-4x6-Postcard-/200909722584?pt=LH_DefaultDomain_0&hash=item2ec72713d8

http://www.ebay.com/itm/Delta-Airlines-Boeing-2707-SST-Artist-Concept-Straight-Wings-4x6-Postcard-/200909947918?pt=LH_DefaultDomain_0&hash=item2ec72a840e



[Stargazer]

I could be wrong, but these seem more like modern-day collages than actual period postcards...



[PlanesPictures]

Third picture - totally bad. Photo of old model on new background, wrong lights, wrong direction of engine smoke... But lot of you don't see difference beetween similar "art" and very hard done pictures - handly made good art or good rendered pictures.



[Jemiba]

I could be wrong, but these seem more like modern-day collages than actual period postcards...

Could well be kit box art, or screenshots from a flight sym printed on a slug postcard.
The seller doesn't indicate it as "actual period postcards", I think !

Well Jozef, you're certainly right and pointed to those errors, I see them, too. But it probably
is the same, as telling, say, our wives, that all those aircraft are different. We'll always get the
answer " they are all looking the same !".
Never mind and keep on the good work !



[Triton]

Sold for $306.25



[hesham]

Hi,

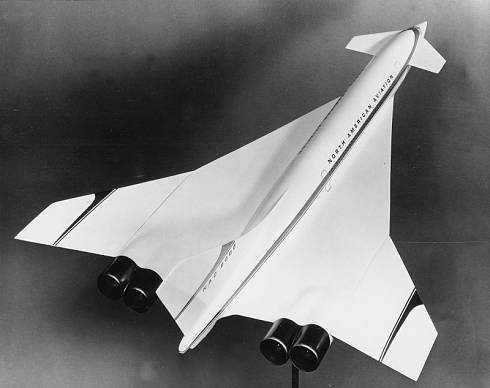

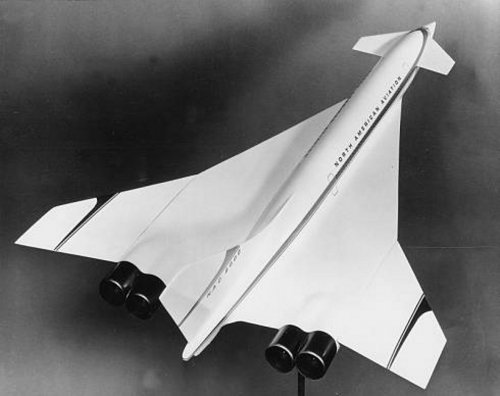

anther model to North American NAC-60 SST.



[blackkite]

Thamnks my dear hesham. Super!
Please enjoy larger image.



[blackkite]

Next larger images.

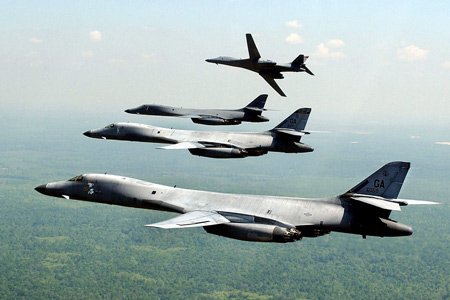

Almost same as Blackjack or B-1B. ;D
If this SST had a high position horizontal tail stabilizer like Blackjack.....



[hesham]

Thank you my dear Blackkite.



[bigvlada]

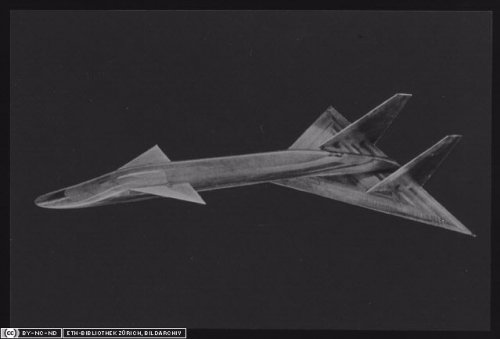

ETHBIB_Bildarchiv_Dia_240-348_29512.jpg looks like Firefox



[blackkite]

Hi! Enjoy.



[Jemiba]

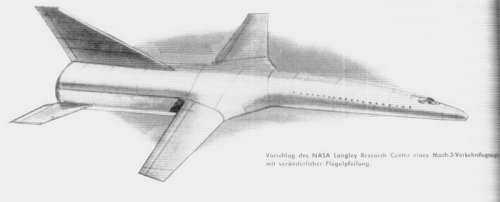

A blunt nosed swing wing MACH 3 airliner proposal from NASA. Shown in"Der Flieger", May 1962.



[Triton]

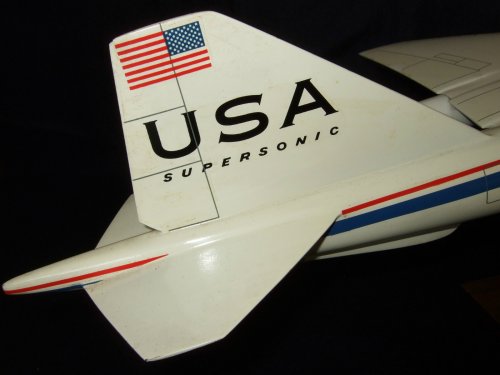

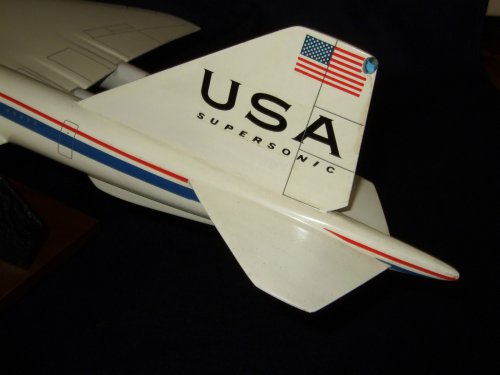

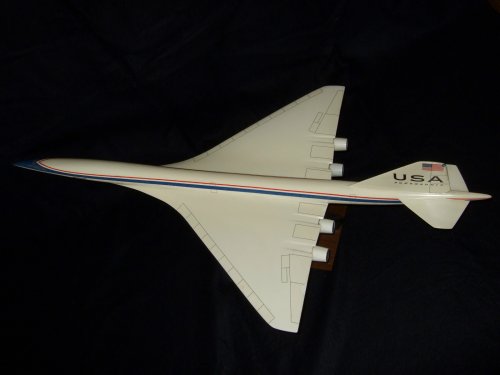

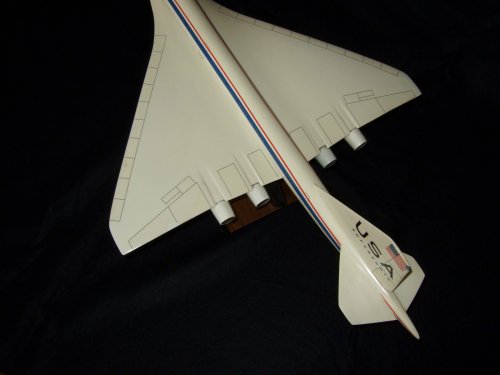

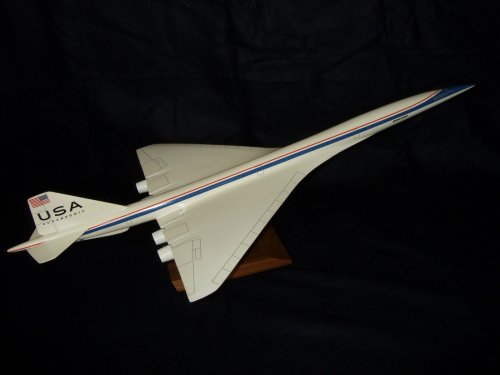

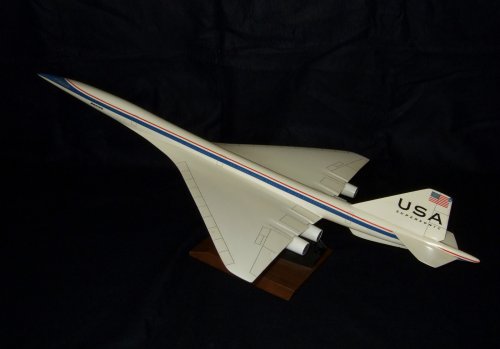

Model of Boeing 2707-300 by Pacific Miniatures (Pacmin) found on eBay.

Source:
http://www.ebay.com/itm/PACMIN-RARE-BOEING-SST-AIRPLANE-PROTOTYPE-DESKTOP-MODEL-ON-STAND-33-LONG-/190833939236?pt=LH_DefaultDomain_0&hash=item2c6e96d324



[blackkite]

Hi!
http://www.diecastaircraftforum.com/1-400-scale-model-aircraft/63548-braniff-boeing-2707-300-just-recd-2.html
http://sstuff4u.blogspot.jp/2009/11/boeing-2707-300-photos-by-ray-plekker.html
http://www.diecastaircraftforum.com/1-400-scale-model-aircraft/79766-1-400-boeing-2707-300-sst.html



[blackkite]

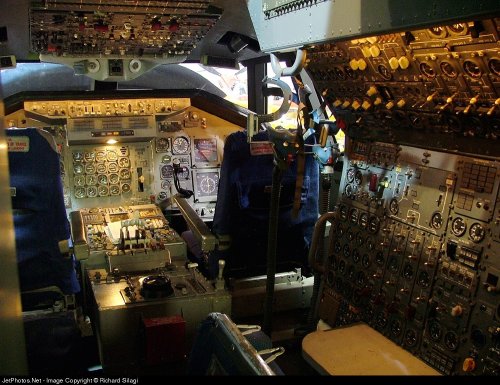

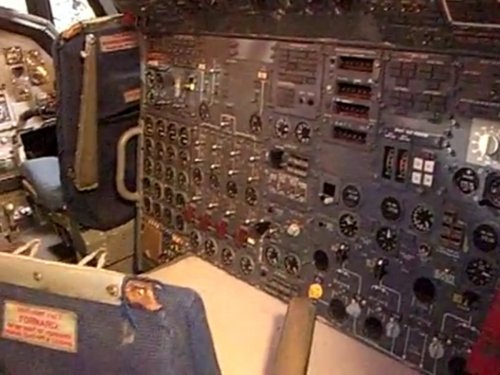

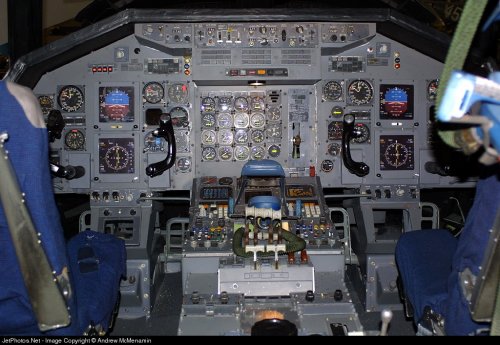

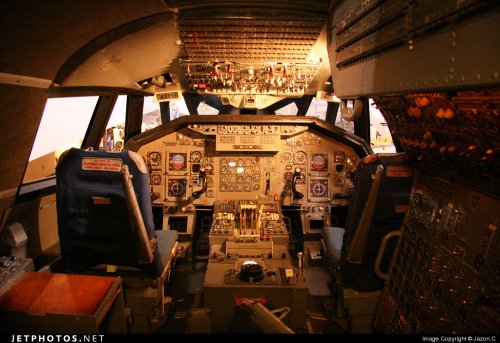

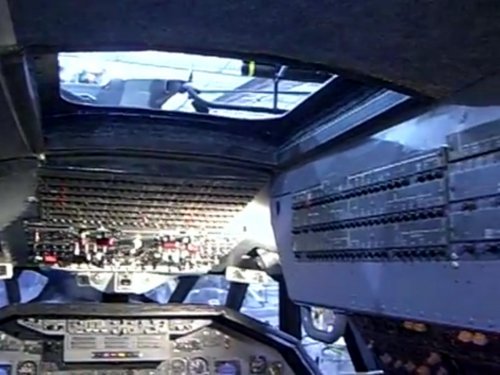

Hi! Video for Boeing 2707-300 mockup cockpit.
http://blondesearch.ru/play/33z_DxD-SBw/Boeing_2707_SST_%2528Super_Sonic_Transport%2529_Inside_the_Original_Mock_up_-5.html#scr
http://www.youtube.com/watch?v=Bc118GJ2L4Q



[blackkite]

Hi!
http://www.flickr.com/photos/jillclardy/8233111439/sizes/k/in/photostream/
And
The News Tribune2013-04-12: A mockup of the sexiest airplane that Boeing never built returns to the Puget Sound area after a 40-year absence Saturday. Look for the mockup of Boeing’s stillborn Supersonic transport or SST, carried aboard a big, over-the-road trailer, to pass through Tacoma on Interstate 5 either late Friday or early Saturday. The plane is bound from a San Francisco-area aviation museum to Everett’s Paine Field where it will be stored. The mockup’s newer owner is Seattle’s Museum of Flight. The museum is transporting it to its Everett restoration center...
Restoration center!!?



[Mark Nankivil]

Greetings All -

This past Saturday I visited the TWA Museum in Kansas City which moved a year ago into the building that TWA occupied at the Kansas City Downtown Airport from the '30s to the '60s. They had a party to celebrate the move and if you ever are in Kansas City, I highly recommend you make it a point to visit. On the other side of the airport is the Airline History Museum so be sure to make the time to visit them too as they have a beautiful Model 1049 Connie, a Martin 404, Douglas DC-3 and an L-1011.

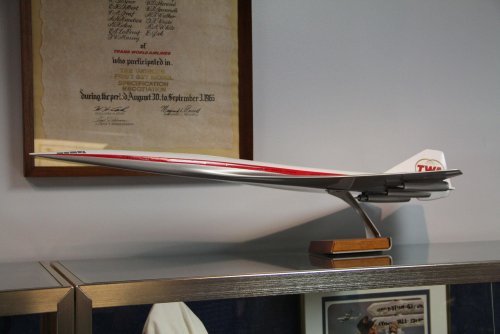

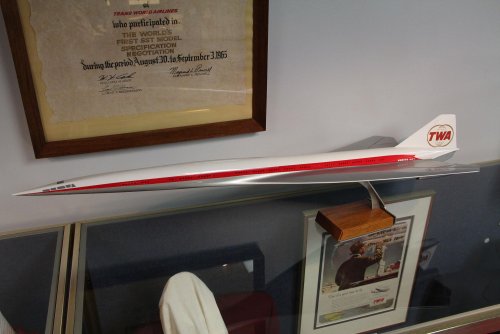

On display at the TWA Museum was this Boeing 2707 model along with a proclamation regarding TWA's participation in the design process.

I will be going back later this Summer to spend a few days scanning photos in their collection and will make a point of seeing what else they may have on the SST programs.

Enjoy the Day! Mark



[circle-5]

I believe that's a Boeing 2707-200 (nice model by Pacific Miniatures), while the sketch on the award shows a Boeing 733-290.

Thank you for the photos, Mark.



[blackkite]

Greetings All -

This past Saturday I visited the TWA Museum in Kansas City which moved a year ago into the building that TWA occupied at the Kansas City Downtown Airport from the '30s to the '60s. They had a party to celebrate the move and if you ever are in Kansas City, I highly recommend you make it a point to visit. On the other side of the airport is the Airline History Museum so be sure to make the time to visit them too as they have a beautiful Model 1049 Connie, a Martin 404, Douglas DC-3 and an L-1011.

On display at the TWA Museum was this Boeing 2707 model along with a proclamation regarding TWA's participation in the design process.

I will be going back later this Summer to spend a few days scanning photos in their collection and will make a point of seeing what else they may have on the SST programs.

Enjoy the Day! Mark

Thanks! Very good news.



[blackkite]

Hi!

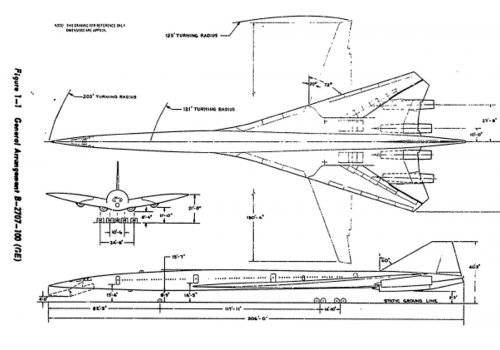

Boeing B2707-100 specification.
http://www.dtic.mil/dtic/tr/fulltext/u2/827442.pdf



[Orionblamblam]

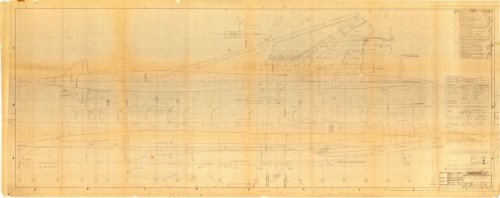

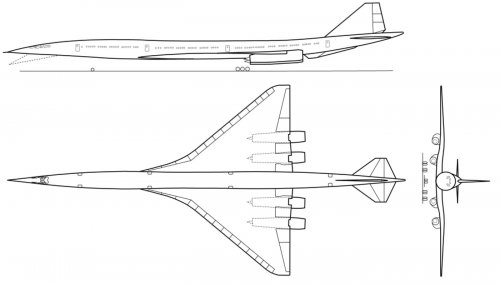

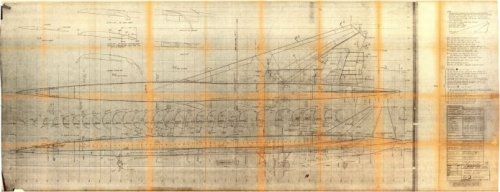

Diagrams of the 2707 and 2707-200. Anyone interested in large format cyanotypes?

http://up-ship.com/blog/?p=20292



[blackkite]

Diagrams of the 2707 and 2707-200. Anyone interested in large format cyanotypes?

http://up-ship.com/blog/?p=20292

Of course. It's a great drawing!



[sferrin]

Diagrams of the 2707 and 2707-200. Anyone interested in large format cyanotypes?

http://up-ship.com/blog/?p=20292

I'd be interested in electronic versions if you put them up in your drawings-for-sale section.



[blackkite]

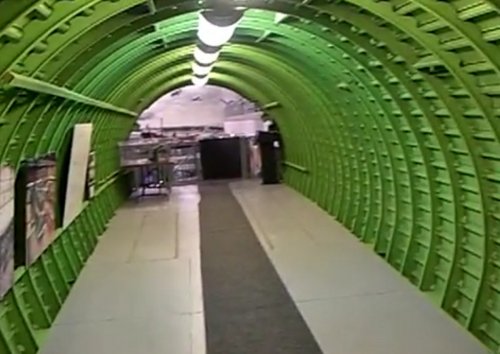

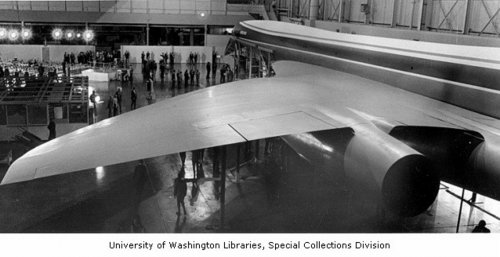

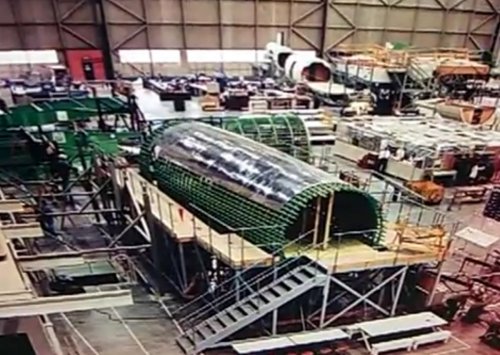

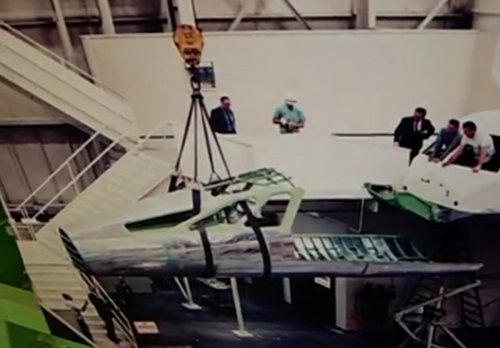

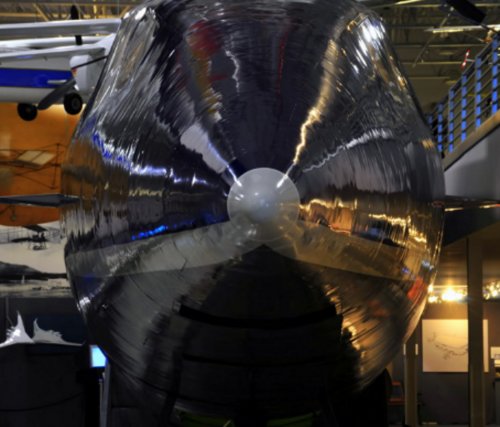

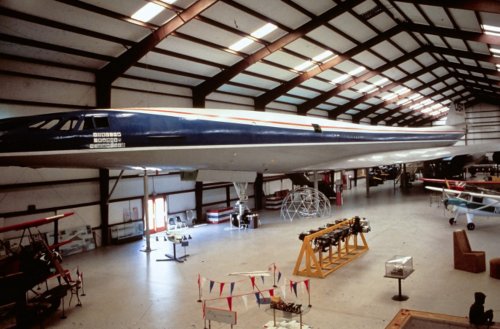

More pictures of B2707-300 mock up.
B2707-300 had a warp trailing edge wing.



[blackkite]

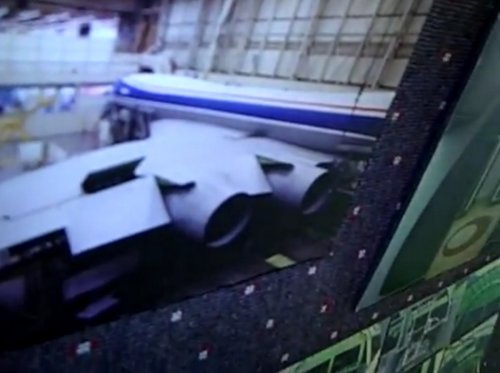

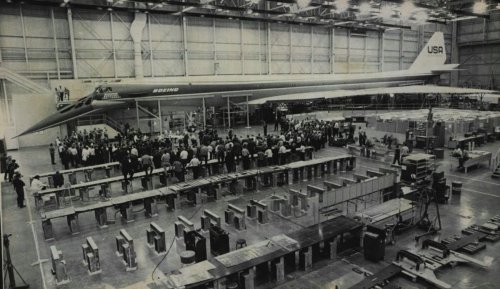

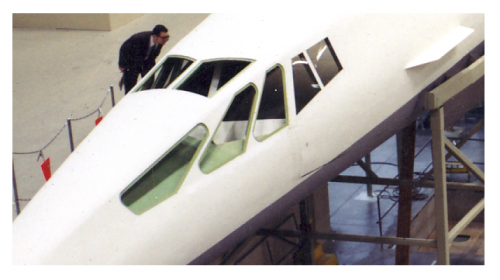

Another 2707-300 mock-up picture.



[blackkite]

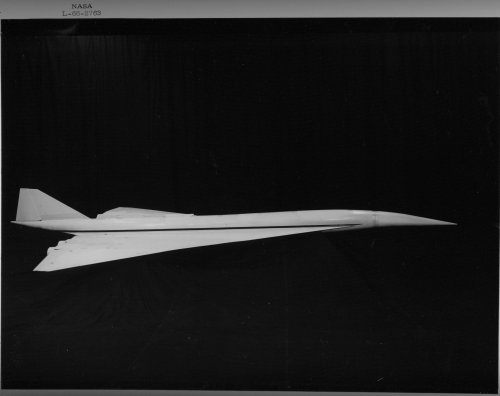

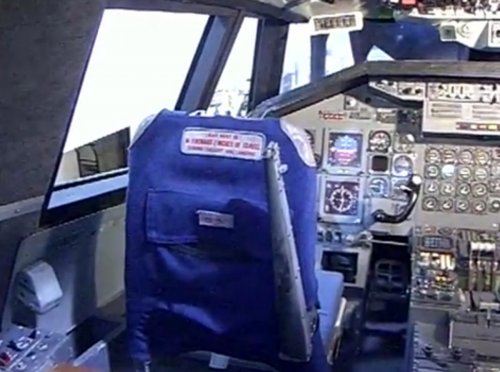

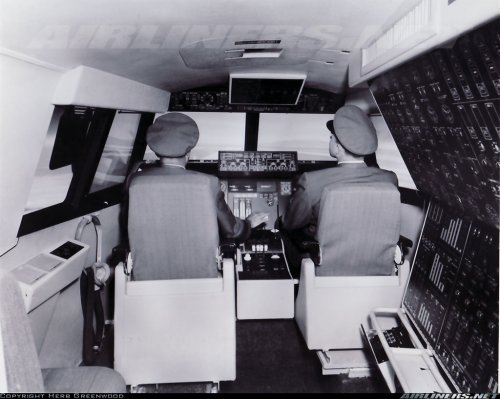

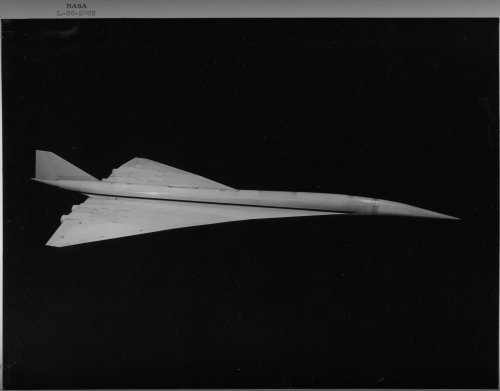

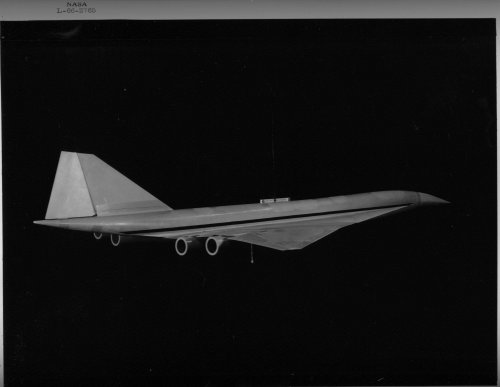

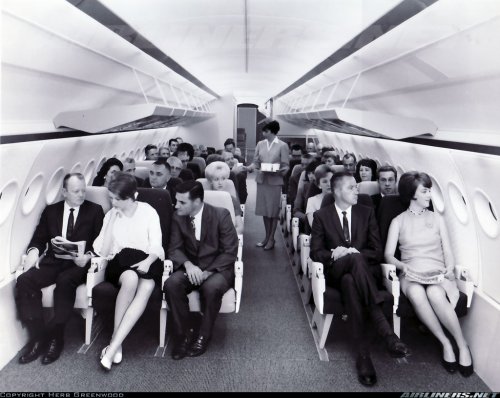

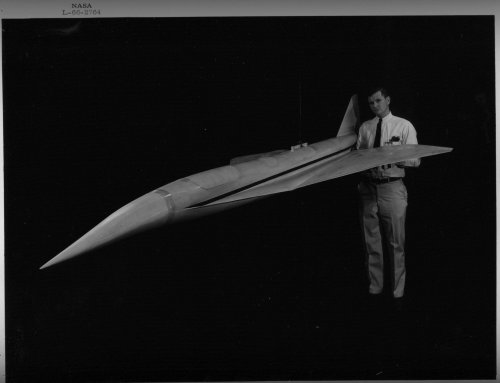

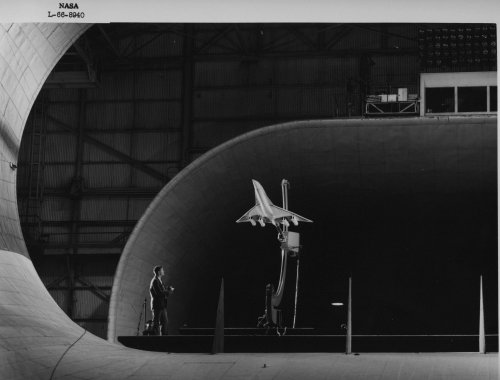

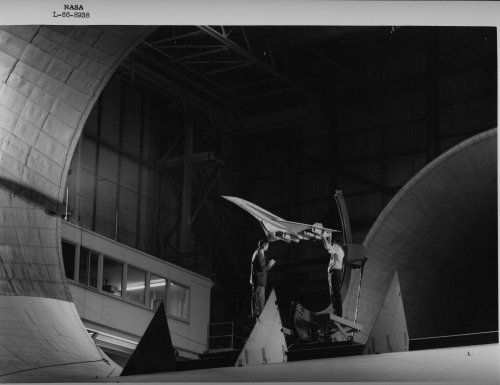

Hi! L-2000 mock-up cockpit and cabin larger image and L-2000-7 wind tunnel test model.
You can see wing leading edge flap down and nose up shape when after take off and before landng.
Of course nose and landing gear down shape test changing the nose shape and adding landing gear was necessary.
This model's nose was changeable. ;D
L-2000 cockpit seems to be more simple than B2707-300 cockpit. Why? ???
http://crgis.ndc.nasa.gov/historic/643_Models:H-P#Lockheed_Models
Also you can see WS-110(XB-70 project) early wind tunnel test model in this site.



[blackkite]

Hi! ;D
http://www.youtube.com/watch?v=roIhEfISjZM



[NERVA]

Just wanted to thank everyone who has posted on this topic. A great read!
