Forest Green said:
The quote range seems optimistic for a glider, "much greater than 100km."

100km maybe, 'much greater' than that would require an engine though.
Click to expand...

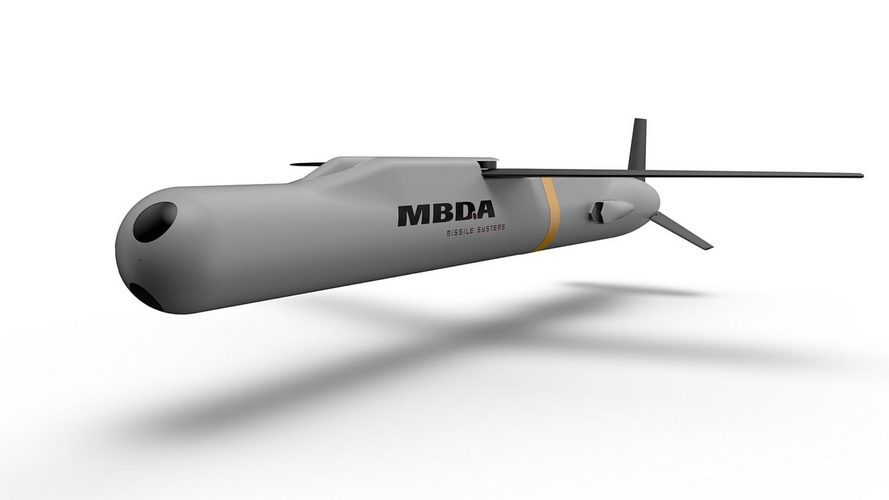

It is more likely referring to the MBDA France "SmartCruiser" concept which literally is reinventing SPEAR3


Attachments

  • 1668030279833.png
    176 KB · Views: 24
Forest Green said:
www.mbda-systems.com

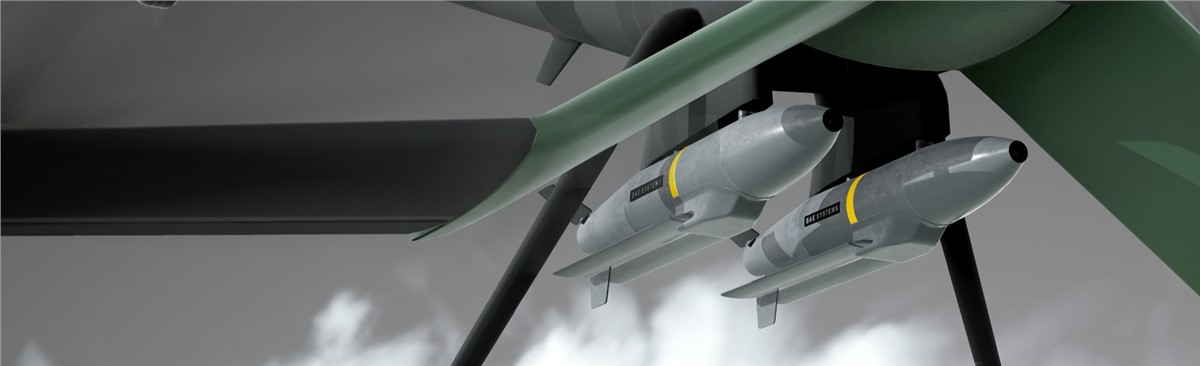

SMARTGLIDER | Air Dominance, TACTICAL STRIKE | MBDA

SMARTGLIDER Air Dominance, TACTICAL STRIKE | LONG RANGE, MULTI-TARGET PRECISION GLIDE MUNITION | High precision and flexible multi-mode terminal guidance
www.mbda-systems.com www.mbda-systems.com

  • Weight: Light 120kg / Heavy 1,300kg
  • icon-length.png

    Length: Light < 2m / Heavy 4m
  • icon-diameter.png

    Warhead: Light 80kg multi-effect unitary charge / Heavy 1,000kg class with combined high blast and penetration effects
  • icon-max-intercept-range.png

    Max range: Light and Heavy much greater than 100 km

View attachment 686910
Click to expand...
Blast is ok, but i honestly wonder how much penetration you'll get after gliding on a wing like this.

Probably works like the penetration warhead in tomahawk. With some sort of shaped charge directed blast precursor.

Any word as to the speed of the Saber missile? That is one mean looking missile, I certainly would not want to be on the wrong side of one that is for sure.

That is a pity Forest Green, I would have thought that the UAE would have designed a hypersonic missile? But I suppose that they will be looking into that field later on once that the Saber enters service in large numbers.

FighterJock said:
That is a pity Forest Green, I would have thought that the UAE would have designed a hypersonic missile? But I suppose that they will be looking into that field later on once that the Saber enters service in large numbers.
Click to expand...

No else has an air launched hypersonic air breathing missile; I can’t imagine the UAE even has research in this field. I’m impressed they can put together a JASSM clone.

FighterJock said:
Any word as to the speed of the Saber missile? That is one mean looking missile, I certainly would not want to be on the wrong side of one that is for sure.
Click to expand...
Mach 0.8 but it will have advanced guidance including TERCOM and a terminal IR seeker. Altitude is claimed to be 5 meters which is fairly hard to intercept especially with its low observable airframe.

This is to supplement Storm Shadow/SCALP on the Mirages, and likely will be integrated on the Rafales.

Last edited:
Josh_TN said:
FighterJock said:
That is a pity Forest Green, I would have thought that the UAE would have designed a hypersonic missile? But I suppose that they will be looking into that field later on once that the Saber enters service in large numbers.
Click to expand...

No else has an air launched hypersonic air breathing missile; I can’t imagine the UAE even has research in this field. I’m impressed they can put together a JASSM clone.
Click to expand...
Hypersonics are extremely difficult you're correct, but unneeded for their needs either way. They likely plan on using this against Iran if push comes to shove but it would most likely be apart of a larger American strike package. Iran doesn't have the necessary anti CM infrastructure to defend against mass(100+) cruise missile strikes against HVTs.

If integrated on the Mirage it will be a missile per plane, and on the Rafale it would be a pair of Sabers per plane. They are a hundred kilos lighter than the Storm Shadow/SCALP. Mixed strike package of F-16s with SLAM-ER, and Mirages with Storm Shadow and Saber would be extremely effective not to mention that in a real conflict the USAF and USN would be supporting any action.

Below are pics with Storm Shadow/SCALP on the Rafale and Mirage

FsVNUHbWIAA05b6



If the UAE are not capable of designing and building a hypersonic missile then maybe they could join forces with a country that has experience. France and the UK for example are currently working on a new cruise missile that will be replacing the Storm Shadow/SCALP and that is rumoured to be hypersonic.

The Dutch have announced they are buying JASSM-ER for their F-35's, PULS MLRS for the army and Tomahawks for the navy.

In Dutch
www.defensie.nl

Defensie versterkt vuurkracht met raketartillerie en langeafstandswapens

Defensie versterkt de vuurkracht van de krijgsmacht. Dat gebeurt met de aanschaf van raketartillerie voor de landmacht en langeafstandswapens voor de marine en luchtmacht. Deze systemen kunnen over langere afstand met grote precisie en kracht doelen bereiken. Dat schrijft staatssecretaris...
www.defensie.nl www.defensie.nl

Last edited:
That is some shopping spree for The Netherlands, JASSM-ER, PULS MLRS and Tomahawks. One question that I have is how many JASSM-ER are they expected to buy?

muttbutt said:
The Dutch have announced they are buying JASSM-ER for their F-35's, PULS MLRS for the army and Tomahawks for the navy.

In Dutch
www.defensie.nl

Defensie versterkt vuurkracht met raketartillerie en langeafstandswapens

Defensie versterkt de vuurkracht van de krijgsmacht. Dat gebeurt met de aanschaf van raketartillerie voor de landmacht en langeafstandswapens voor de marine en luchtmacht. Deze systemen kunnen over langere afstand met grote precisie en kracht doelen bereiken. Dat schrijft staatssecretaris...
www.defensie.nl www.defensie.nl
Click to expand...
Some reporting on same in English:


FighterJock said:
That is some shopping spree for The Netherlands, JASSM-ER, PULS MLRS and Tomahawks. One question that I have is how many JASSM-ER are they expected to buy?
Click to expand...
-The 'Deep Strike Capacity, Air' (JASSM-ER) project is expected to cost between €250 million and €1 billion. The budget is made up of investments, a risk reserve and operating costs for the next fifteen years

If previous DSCA sales are any indication it should between 80-250 purchased

Australia – Joint Air-to-Surface Standoff Missiles - Extended Range (JASSM ER) | Defense Security Cooperation Agency

www.dsca.mil www.dsca.mil

It will be interesting to see if it turns out to be the higher figure for JASSMs bought for The Netherlands.

@FighterJock

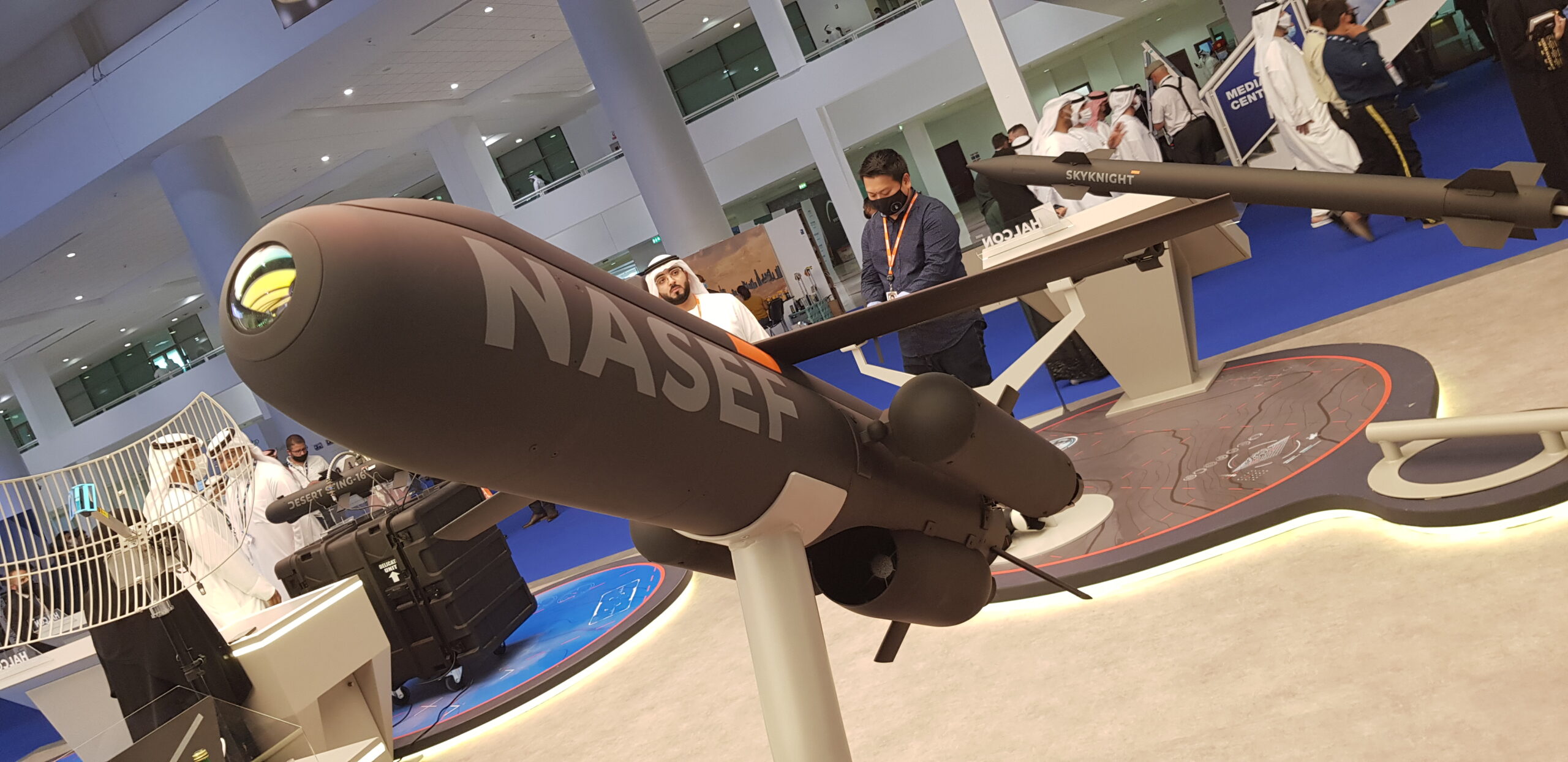

More about the UAE standoff weapons, they also have the Nasef ground and air launched cruise missile. It’s claimed to be “low cost” but that could mean a bunch of things.

Range is 90km launched from ground and 120km launched from air and it has a 50kg warhead and with total weight 100kg without booster.

Guidance currently is GNSS+SAL but an engineer associated with EDGE said it will receive a infrared seeker in the future in February.

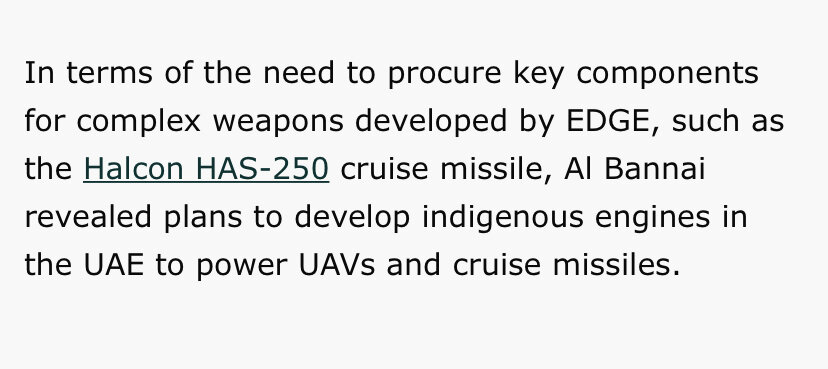

Surprisingly they are actually trying to develop indigenous turbojets and turbofans for these programs which means that range limitations would be moot for missiles like the Saber I mentioned earlier. They could achieve missiles like the JASSM-ER without having to worry about MTCR limitations.

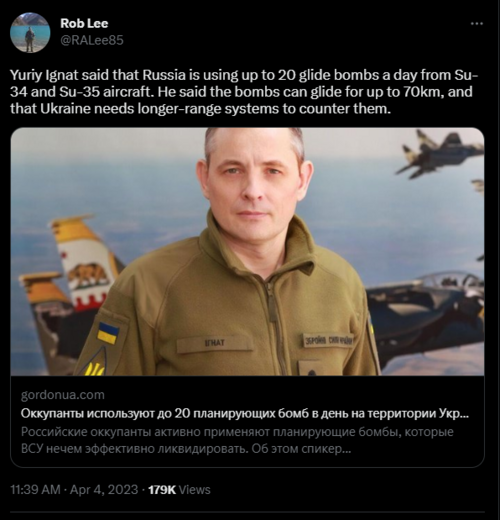

The Russian's have started putting wing kits on their bombs and gliding them in from 50-70km. This is allowing them to drop off outside of Ukrainian AD range which is causing some consternation for the Ukrainians who lack point defence counters. Supposedly GPS (GLONASS?) guided.

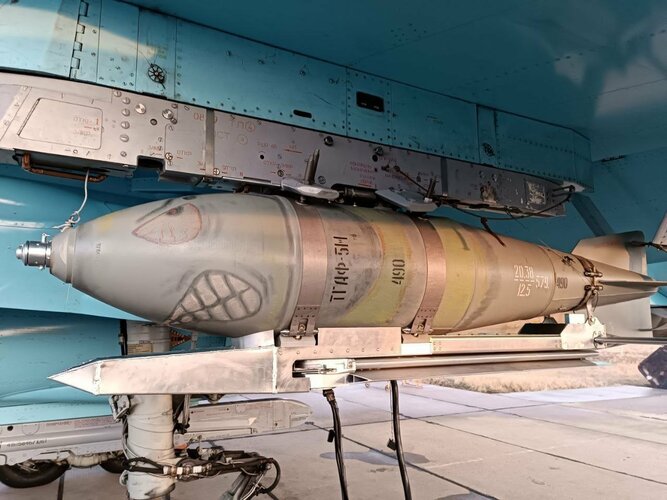

That glide bomb kit was based on FAB-500-M62 low drag bomb. If the range figure is correct then it shows some decent Lift to Drag ratio. About in order of 7 assuming drop altitude of 10000 meter.

I don't see any data cable connecting bomb/kit to the plane. Is it can only be set by ground crew?

Anduriel said:
I don't see any data cable connecting bomb/kit to the plane. Is it can only be set by ground crew?
Click to expand...

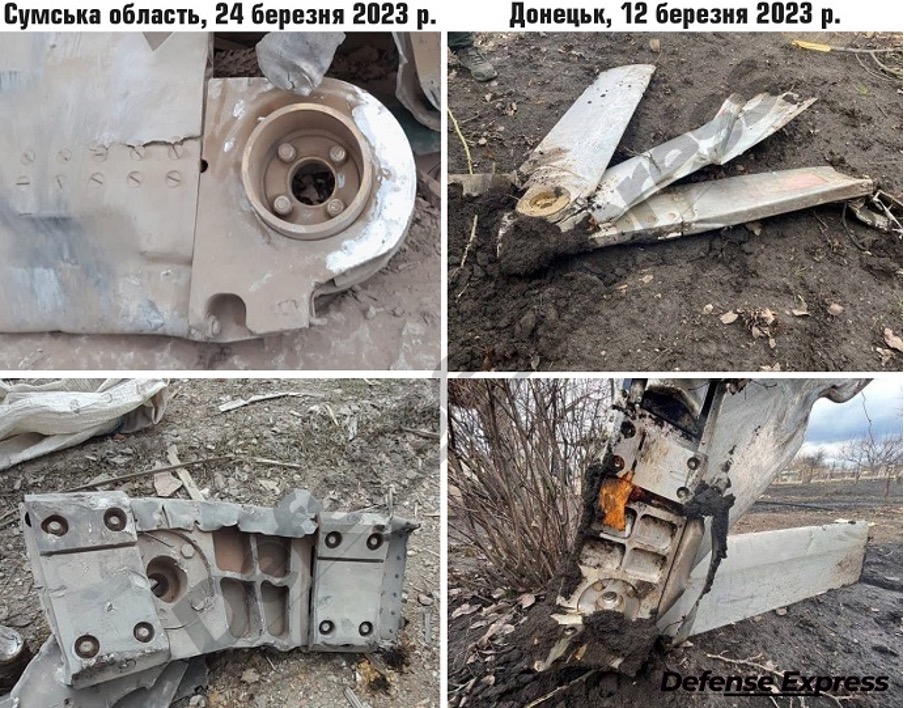

we haven't seen how the actual thing looks (only remains of wing - which isn't the same wing we see here).
The thing on photo, as far as we know, is only a crude development prototype.

Josh_TN said:
FighterJock said:
That is a pity Forest Green, I would have thought that the UAE would have designed a hypersonic missile? But I suppose that they will be looking into that field later on once that the Saber enters service in large numbers.
Click to expand...

No else has an air launched hypersonic air breathing missile; I can’t imagine the UAE even has research in this field. I’m impressed they can put together a JASSM clone.
Click to expand...

They had/have a large amount of South African technical help and expertise...

tyrin said:
@FighterJock
More about the UAE standoff weapons, they also have the Nasef ground and air launched cruise missile. It’s claimed to be “low cost” but that could mean a bunch of things.

Range is 90km launched from ground and 120km launched from air and it has a 50kg warhead and with total weight 100kg without booster.

Guidance currently is GNSS+SAL but an engineer associated with EDGE said it will receive a infrared seeker in the future in February.



Surprisingly they are actually trying to develop indigenous turbojets and turbofans for these programs which means that range limitations would be moot for missiles like the Saber I mentioned earlier. They could achieve missiles like the JASSM-ER without having to worry about MTCR limitations.
View attachment 697245
Click to expand...

It's a range of South African designed mini turbojets which they are using (they paid for most of the IP). They have also poached a large amount of South African Denel Dynamics employees to go work for them in the UAE (can't blame them though - Denel was fairly behind on paying them their monthly salaries...). They also poached some South African CSIR engineers, who were specifically working on the Turbojet projects - the results of which can be seen in the picture at a previous IDEX show below the link.



1621310503794-png.657401

Last edited:
@Graugrun
You’re right, but also they have been sending Emirati national engineers overseas to study in Western universities in gas turbine mechanics. I’m sure in the next 5-10 years they will be able to design a turbojet in house without relying on South Africans.

Their propulsion team isn’t huge but it probably has at least 10-20 Emirati national engineers with as well as other foreign national junior engineers and South African senior engineers involved at the very top. I’m not sure the mix between Gas turbine and rocket propulsion but they are working on both.

They’ve done something really smart, and instead of just letting South Africans make everything they have their own engineers learning from bright minds.

Also sending engineers to Turkish institutions to study rocket propellant production.

www.zawya.com

EDGE entity HALCON sign contract with TÜBİTAK SAGE for chemical engineering training

EDGE entity HALCON will send employees to TÜBİTAK SAGE for training in formulating composite propellants
www.zawya.com www.zawya.com

Last edited:
@tyrin

Yes - you are correct - I'm just highlighting that many of their current offerings are actually South African designs. Our current totally inept and corrupt government just doesn't have neither the funds nor inclination to fully fund the development and production of these and many other weapons, so Denel and other defence industries in South Africa were forced to find other avenues of funds for such.

Some of their UAV offerings are also South African designs.

This article explains some of the different South African weapons developments that are being sold by the UAE Edge/Halcon/Al-Tariq groups - IIRC the Al-Tariq company is a joint venture with Denel (51-49%). They are being a little polite in this article, all these weapons were complete South African designs and developed. they may well have had UAE money to complete/assist in that development, but all the experties etc is definately South African.

https://www.defenceweb.co.za/featured/multiple-new-guided-munitions-orders-for-edge/

There is also their SkyKnight missile which was completely developed in South Africa at the behest (and payment) of Germany's Rheinmetall Group (as the 'Cheetah' low cost C-RAM missile). It's actually a further development of Denel's Mongoose 3 active protection missile for armoured vehicles. The entire group of Cheetah developmental engineers moved over recently to the Edge group.

@Graugrun
I was aware of most of this in detail but I’m wondering about the drones. Which drones are you speaking about?

Oh and EDGE also contracts Incomar for consulting work.

The problems with the JDAMs were kept hidden, including their poor detonation rate. The JDAM relies heavily on GPS signals, these signals override any IMU information, which explains why spoofing the satellite communications can cause the bombs to veer off course.

www.politico.com

Russia jamming U.S. smart bombs in Ukraine, leaked docs say

A separate technical problem, since fixed, had been causing the munitions to fail.
www.politico.com www.politico.com

www.af.mil

Joint Direct Attack Munition GBU- 31/32/38

The Joint Direct Attack Munition is a guidance tail kit that converts existing unguided free-fall bombs into accurate, adverse weather "smart" munitions.
www.af.mil
Once released from the aircraft, the JDAM autonomously navigates to the designated target coordinates. Target coordinates can be loaded into the aircraft before takeoff, manually altered by the aircrew before weapon release, or automatically entered through target designation with onboard aircraft sensors. In its most accurate mode, the JDAM system will provide a weapon circular error probable of 5 meters or less during free flight when GPS data is available. If GPS data is denied, the JDAM will achieve a 30-meter CEP or less for free flight times up to 100 seconds with a GPS quality handoff from the aircraft.
Click to expand...

aonestudio said:
www.af.mil

Joint Direct Attack Munition GBU- 31/32/38

The Joint Direct Attack Munition is a guidance tail kit that converts existing unguided free-fall bombs into accurate, adverse weather "smart" munitions.
www.af.mil
Once released from the aircraft, the JDAM autonomously navigates to the designated target coordinates. Target coordinates can be loaded into the aircraft before takeoff, manually altered by the aircrew before weapon release, or automatically entered through target designation with onboard aircraft sensors. In its most accurate mode, the JDAM system will provide a weapon circular error probable of 5 meters or less during free flight when GPS data is available. If GPS data is denied, the JDAM will achieve a 30-meter CEP or less for free flight times up to 100 seconds with a GPS quality handoff from the aircraft.
Click to expand...
Click to expand...
30 meters may not be accurate enough even with large bombs.

Graugrun said:
tyrin said:
@Graugrun
I was aware of most of this in detail but I’m wondering about the drones. Which drones are you speaking about?

Oh and EDGE also contracts Incomar for consulting work.
Click to expand...


This one is confirmed - https://www.secretprojects.co.uk/th...types-projects-concepts-etc.23149/post-351028
Click to expand...
Yeah I forgot, the odd thing about that drone was they imported a lot of parts from Serbia for drone that including the seeker and warhead. A lot of intersection in the defense industry.
