http://www.hisutton.com/Posiedon_revealed.html

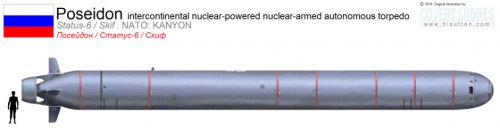

Russian 'Status-6' nuclear attack system
- Thread starter covert_shores
- Start date
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246
bobbymike said:
What do you want to bet SPECTRE steals one of these things during a trial?
Brickmuppet
ACCESS: Secret
sferrin said:
W-56 had a weight of 680 pounds and a one megaton yield in a physics package 18 inches wide, so, presumably, a two megaton yield warhead could fit in a 650mm torpedo and possibly a 21 inch one.
Given the size of this thing is about the same size as the old T-15, which was one of the delivery mechanisms that was supposed to cary the "Tsar Bomba"I'd bet on a much higher yield, otherwise there wouldn't seem to be much point.
- Joined
- 3 June 2011
- Messages
- 17,885
- Reaction score
- 10,946
Avimimus said:
I don't think a 2 Mt device is as apocalyptically huge as you think it is. Even Spartan had a 5 MT warhead. Also, it's not as though these would be 1st strike weapons, or that there would be hundreds of them. These would be pure "revenge" weapons. 20 - 30 of them, each with 100+ MT targeted at large ports such as Norfolk, San Fransisco, San Diego, etc.
Brickmuppet
ACCESS: Secret
There might be a point to a 2 megaton warhead, but there isn't a point in putting a 2 megaton warhead in a torpedo the size of a WW2 japanese midget submarine when one can put pretty much the same warhead on a standard torpedo. I have no info on the warhead of the Russian 650mm torpedoes, but the Japanese type 93 of WW2 carried over a thousand pounds of explosive.
Beyond some point, I think its a bit under a Megaton, bigger bombs give diminishing returns in mayhem and woe compared compared to multiple smaller weapons. However, if one goes for a ground or subsurface burst, the cratering and fallout effects of a really big weapon do give a unique capability,
According to Nukemap, a 2 megaton warhead ground burst will result in an 1600 foot wide 300 foot deep crater, which in practice is going to be a circular reef made of radioactive trinitite blocking the shipping channel. The blast wave will create a big wave out of what doesn't get evaporated and in a harbor the seiche effects will likely be nasty. Both effects, exclusive of radiation, are sufficient to shut down a port except maybe New York (which might require two) for months or years. 5psi blast radius is listed as 3.58 miles, and in practice would be much less with an underwater explosion. The water wave might travel farther inland. However the short term fallout from even a 'Plowshare' charge added to that (let alone a salted warhead) and one has a quite nasty weapon...that could be fired in salvo from 80 or so miles off the coast using existing torpedo tubes and likely much farther if a nuclear waterjet is in fact used.
So why the supergigantic torpedo?
A 100 Megaton warhead leaves a 1440 foot deep crater nearly 8 miles across. Your whole harbor is now a radioactive lagoon surrounded by an obsidian atoll. The FIREBALL radius is nearly 5 miles so water in a 30-50foot deep channel is not going to be much of a mitigating factor. 200 psi pressures will be experienced about 2 miles away, and the 5 psi pressures that we see exploding houses in the Apple-2/Operation Cue footage would be happening as much as 13 miles from ground zero. Really big bombs cause severe heat effects on clear days farther than their blast can blow the fires out. #rd degree burns, dry leaves igniting and hair catching on fire would be happening as far away as 39 miles and dry wood would burst into flames at more than 30. The fires alone would cause all sorts of chaos. There would be an earthquake effect too. Tsar Bomba, at "only"50MT registered at over 5 on the richter scale despite being detonated more than 4 clicks up. A 4.9 earthquake here in Virginia knocked over chimneys and wrecked a bank a few years back, the effects of a 100 megaton blast at ground level over a wide area would be...bad. Fallout, depending on prevailing winds, time of year and the position of the jet stream at the time of blast could subject vast swaths of North America to what the crew of FV Lucky Dragon experienced.
6 to 12 of these weapons could end the United States by eliminating its biggest coastal cities and rendering the heartland poisonous for a decade or more. (And no one would be able to eat Maine or Canadian lobsters ever again).
That would be worth the hassle of fielding a torpedo the size of a small submarine.
Attached picture is an example of 5psi.
Beyond some point, I think its a bit under a Megaton, bigger bombs give diminishing returns in mayhem and woe compared compared to multiple smaller weapons. However, if one goes for a ground or subsurface burst, the cratering and fallout effects of a really big weapon do give a unique capability,
According to Nukemap, a 2 megaton warhead ground burst will result in an 1600 foot wide 300 foot deep crater, which in practice is going to be a circular reef made of radioactive trinitite blocking the shipping channel. The blast wave will create a big wave out of what doesn't get evaporated and in a harbor the seiche effects will likely be nasty. Both effects, exclusive of radiation, are sufficient to shut down a port except maybe New York (which might require two) for months or years. 5psi blast radius is listed as 3.58 miles, and in practice would be much less with an underwater explosion. The water wave might travel farther inland. However the short term fallout from even a 'Plowshare' charge added to that (let alone a salted warhead) and one has a quite nasty weapon...that could be fired in salvo from 80 or so miles off the coast using existing torpedo tubes and likely much farther if a nuclear waterjet is in fact used.
So why the supergigantic torpedo?
A 100 Megaton warhead leaves a 1440 foot deep crater nearly 8 miles across. Your whole harbor is now a radioactive lagoon surrounded by an obsidian atoll. The FIREBALL radius is nearly 5 miles so water in a 30-50foot deep channel is not going to be much of a mitigating factor. 200 psi pressures will be experienced about 2 miles away, and the 5 psi pressures that we see exploding houses in the Apple-2/Operation Cue footage would be happening as much as 13 miles from ground zero. Really big bombs cause severe heat effects on clear days farther than their blast can blow the fires out. #rd degree burns, dry leaves igniting and hair catching on fire would be happening as far away as 39 miles and dry wood would burst into flames at more than 30. The fires alone would cause all sorts of chaos. There would be an earthquake effect too. Tsar Bomba, at "only"50MT registered at over 5 on the richter scale despite being detonated more than 4 clicks up. A 4.9 earthquake here in Virginia knocked over chimneys and wrecked a bank a few years back, the effects of a 100 megaton blast at ground level over a wide area would be...bad. Fallout, depending on prevailing winds, time of year and the position of the jet stream at the time of blast could subject vast swaths of North America to what the crew of FV Lucky Dragon experienced.
6 to 12 of these weapons could end the United States by eliminating its biggest coastal cities and rendering the heartland poisonous for a decade or more. (And no one would be able to eat Maine or Canadian lobsters ever again).
That would be worth the hassle of fielding a torpedo the size of a small submarine.
Attached picture is an example of 5psi.
Attachments
Russia's enemies have plenty of Coastline, so yet another example of good Russian practicality. Doing things the simple and effective way as cheaply as possible.
Whats going to happen to the ones they lose though? I guess when cancer rates skyrocket in Florida and Maine we might find out. Or would they only be deployed during a shooting war, or on a status mode patrol all the time?
Whats going to happen to the ones they lose though? I guess when cancer rates skyrocket in Florida and Maine we might find out. Or would they only be deployed during a shooting war, or on a status mode patrol all the time?
Brickmuppet
ACCESS: Secret
Good points.
I wonder if we're looking at this thing wrong. Rather than hitting economic and military centers, the costal versions of which are on the east and gulf coasts in the U.S., the fallout might be the bigger goal here. Thus Belgorod and the soon to be comissioned Khabarovsk would be able to alternate with each other and keep 6 of these things at sea most of the time

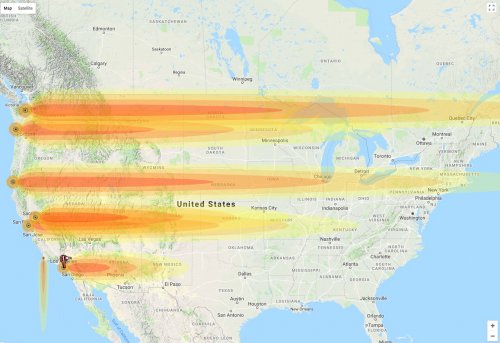

Attached is a framegrab from the Nukemap online nightmare facillitator.
https://nuclearsecrecy.com/nukemap/
This is 6 x 100Megaton groundbursts in 5 deepwater ports and a Fishing harbor (Bangor, Astoria, Crescent City, San Fransisco, Sacramento, Long Beach) plus a 2 megaton groundburst for perspective in a salt marsh at Vandenburg AFB. I had the fallout pattern from the smaller blast go south to make it stand out.
Note that the orange circles are the zone of burnination. At the outer edge of those circles, on a clear day people outside go blind, get third degree burns, leaves, hair and dark clothing can catch fire, everything inside of that gets more combustable. the light grey bit just inside that is the outer limit of smashed windows and associated lacerations of people who might already be blind and on fire . Damage, gets worse in from that, the darker grey circle on each blast pattern is the 5 PSI limit seen in the .gif in the post above. Everything inside that circle gets progressively more unpleasant. None of those effects save the outer burn limit are visible at this scale on the 2mt bomb, though I very much would not want to be at Vandenburg in this instance.
The fallout contours vary because I varied the wind speed. The mushroom cloud from a full yield RDS220 is estimated to get over 30 miles high so it's going to be blown east by high speed upper level winds, especially if it intersects the jet stream(s). The wind speeds in this image vary from 10mph to 180mph. In practice such fallout patterns would follow a lazy s curve well into Canada...I would not want to be in Saskatoon or Winnipeg...before arcing down into our breadbasket and possibly (depending on wind speed) looping up through the northeast and poisoning New England & the Maritimes. This is, of course highly dependent on the time of year (things like is the subtropical jet stream active as well as effects of North America's comparatively mild Monsoon pattern).
The 2MT weapon is positively hideous, but a 1 or 2 megaton weapon should be fireable from a standard torpedo tube. Here a full spread of 6 high yield weapons from Belgorod killed or poisoned at least half the country. Given the size and complexity of this project, 2MT just doesn't seem right. I strongly suspect that IF this is not a Potempkin torpedo, that the yield is much higher, between 50 and 150 megatons.
Note too that 150MT was according to The Johnston Archive, the final maximum design yield for the RDS220 physics package...see here:
http://www.johnstonsarchive.net/nuclear/multimeg.html#S2
Even given space and weight restrictions in the weapon, 100 MT doesn't seem unreasonable.
In any event, if you take the parachute, and casing off the old, 1963 Tsar Bomba the actual 'splody bits should just fit into a Poseidon. 1963 was 55 years ago. I'm sure the Russians have made some progress in the intervening years.
I wonder if we're looking at this thing wrong. Rather than hitting economic and military centers, the costal versions of which are on the east and gulf coasts in the U.S., the fallout might be the bigger goal here. Thus Belgorod and the soon to be comissioned Khabarovsk would be able to alternate with each other and keep 6 of these things at sea most of the time
Attached is a framegrab from the Nukemap online nightmare facillitator.
https://nuclearsecrecy.com/nukemap/
This is 6 x 100Megaton groundbursts in 5 deepwater ports and a Fishing harbor (Bangor, Astoria, Crescent City, San Fransisco, Sacramento, Long Beach) plus a 2 megaton groundburst for perspective in a salt marsh at Vandenburg AFB. I had the fallout pattern from the smaller blast go south to make it stand out.
Note that the orange circles are the zone of burnination. At the outer edge of those circles, on a clear day people outside go blind, get third degree burns, leaves, hair and dark clothing can catch fire, everything inside of that gets more combustable. the light grey bit just inside that is the outer limit of smashed windows and associated lacerations of people who might already be blind and on fire . Damage, gets worse in from that, the darker grey circle on each blast pattern is the 5 PSI limit seen in the .gif in the post above. Everything inside that circle gets progressively more unpleasant. None of those effects save the outer burn limit are visible at this scale on the 2mt bomb, though I very much would not want to be at Vandenburg in this instance.
The fallout contours vary because I varied the wind speed. The mushroom cloud from a full yield RDS220 is estimated to get over 30 miles high so it's going to be blown east by high speed upper level winds, especially if it intersects the jet stream(s). The wind speeds in this image vary from 10mph to 180mph. In practice such fallout patterns would follow a lazy s curve well into Canada...I would not want to be in Saskatoon or Winnipeg...before arcing down into our breadbasket and possibly (depending on wind speed) looping up through the northeast and poisoning New England & the Maritimes. This is, of course highly dependent on the time of year (things like is the subtropical jet stream active as well as effects of North America's comparatively mild Monsoon pattern).
The 2MT weapon is positively hideous, but a 1 or 2 megaton weapon should be fireable from a standard torpedo tube. Here a full spread of 6 high yield weapons from Belgorod killed or poisoned at least half the country. Given the size and complexity of this project, 2MT just doesn't seem right. I strongly suspect that IF this is not a Potempkin torpedo, that the yield is much higher, between 50 and 150 megatons.
Note too that 150MT was according to The Johnston Archive, the final maximum design yield for the RDS220 physics package...see here:
http://www.johnstonsarchive.net/nuclear/multimeg.html#S2
Even given space and weight restrictions in the weapon, 100 MT doesn't seem unreasonable.
In any event, if you take the parachute, and casing off the old, 1963 Tsar Bomba the actual 'splody bits should just fit into a Poseidon. 1963 was 55 years ago. I'm sure the Russians have made some progress in the intervening years.
Attachments
Brickmuppet said:
Good arguments, I suppose. But I am skeptical.
I doubt that the Russians have made a lot of progress with very high-yield bombs. The USSR was already entering the initial stages of its decline in the late '60s. It remained seriously behind in computing for the rest of its existence and had little or no opportunity to test. With neither tests nor supercomputer simulations, I don't see a lot of advance being likely. Since the collapse, the economic resources required for major nuclear development have simply been unavailable.
In addition, status-6 looks more like a warmed over 1950s idea than a new concept--like something concocted as a fall-back when bombers and missiles were not going well.
The doomsday weapon concept is likewise pretty '50s retro. As a tactic, it offers no military advantage, because it destroys purely civilian lives and installations. Craters in seaboard harbors and massive irradiation of the heartland don't affect ballistic missile silos, bombers, and submarines at sea. But they would really provoke a response. So a status-6 attack would not preempt massive nuclear retaliation against civilian AND military targets in Russia.
All in all, I suspect that this status-6 thing, like the recent nuclear-powered cruise missile and the original Tsar Bomba, is less a serious weapon system than a publicity/propaganda stunt intended to draw attention away from Russia's long-term economic crisis and growing military weakness.
- Joined
- 6 September 2006
- Messages
- 4,605
- Reaction score
- 8,577
Every time I read about this weapon I can't get Dr Strangelove out my mind!
I think its development, alongside the hypersonic efforts, is simply a reaction to modern and potential future ABM developments. With the development of laser and particle beam technologies the chances of successful destruction of the warhead or missile remains higher than an underwater weapon that no A/S weapon can currently deal with and which no adequate early warning sensor exists.
I wonder if the development of this weapon didn't start out back in the late 1980s as a counter to Reagan's Star Wars and was dusted off the shelf? Certainly modern navigation systems make this a more feasible system today than during the Cold War.
I think its development, alongside the hypersonic efforts, is simply a reaction to modern and potential future ABM developments. With the development of laser and particle beam technologies the chances of successful destruction of the warhead or missile remains higher than an underwater weapon that no A/S weapon can currently deal with and which no adequate early warning sensor exists.
I wonder if the development of this weapon didn't start out back in the late 1980s as a counter to Reagan's Star Wars and was dusted off the shelf? Certainly modern navigation systems make this a more feasible system today than during the Cold War.
I read the entire thread this morning, plus the best links. Now shaking my head in disbelief. As noted in one of the link (and somewhere on this thread) this looks like a pre- ICBM delivery system of the 50's. Really. A bit like Project PACER for civilian fission / fusion: a Teller brute force approach.
Seriously: submarine + drone + torpedo + H-bomb + colbalt, all poured into a single doomsday vehicle. Which takes two days to reach its target, with a huge noise, in an ocean filled with USN SOSUS (or whatever it is called today) networks.
Somebody also mentioned Vought SLAM, that other doomsday weapon. Spot on: once again, SLAM was typical 50's "Tellerian madness", pre - MAD and pre - ICBM.
And then of course, is this https://en.wikipedia.org/wiki/Burevestnik_(missile) Putin toying with SLAM.
Overall, considering the economic state of Russia those days, ithttps://www.secretprojects.co.uk/forum/index.php?action=post;msg=333462;topic=26054.135 looks like Putin brickmanship to mask issues with a declining ICBM force facing U.S ABM system (even a limited one).
On a least serious note... somebody noted Putin had found a radical way to fry fishes. Reminds me of that line in Ang Lee much maligned Hulk. At the beginning of the movie they are testing the Hulk thing on frogs... which invariably explode. At some point a frustrated Jennifer Connally (those eyes !!) tell his friend
Seriously: submarine + drone + torpedo + H-bomb + colbalt, all poured into a single doomsday vehicle. Which takes two days to reach its target, with a huge noise, in an ocean filled with USN SOSUS (or whatever it is called today) networks.
Somebody also mentioned Vought SLAM, that other doomsday weapon. Spot on: once again, SLAM was typical 50's "Tellerian madness", pre - MAD and pre - ICBM.
And then of course, is this https://en.wikipedia.org/wiki/Burevestnik_(missile) Putin toying with SLAM.
Overall, considering the economic state of Russia those days, ithttps://www.secretprojects.co.uk/forum/index.php?action=post;msg=333462;topic=26054.135 looks like Putin brickmanship to mask issues with a declining ICBM force facing U.S ABM system (even a limited one).
On a least serious note... somebody noted Putin had found a radical way to fry fishes. Reminds me of that line in Ang Lee much maligned Hulk. At the beginning of the movie they are testing the Hulk thing on frogs... which invariably explode. At some point a frustrated Jennifer Connally (those eyes !!) tell his friend
generally agree with Hood on these aspects of the system.Hood said:
Have been considering writing an article covering the ways of countering this weapon but a bit of a sensitive topic. The short answer is that Russia is diversifying its deterrence which will cost $$$$ to build counters for. Likely only US and UK will try to build counters; the US might be limited by existing investments and the U.K. Political process simply cannot cope with commen sense defence investments, especially if it involves new nuclear weapons. So the weapon will likely go un-countered for many years.
Archibald said:
I think that knowing where it is is one thing and deploying a weapon actually capable of intercepting it is completely another. Current torpedoes in US arsenal can't hit targets beyond a certain depth. Then there are mines and depth charges with nuclear warhead. Not sure if they can guarantee success though. Aiming and timing would need to be ridiculously precise and the target would need to NOT change its course. Is there anything else?
- Joined
- 21 January 2015
- Messages
- 11,545
- Reaction score
- 14,799

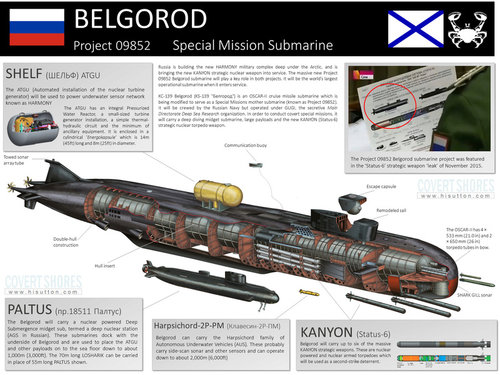

Russia Launches Belgorod, the World’s Longest Submarine
The Belgorod will carry out underwater spy missions and launch Poseidon nuclear torpedoes.
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246
For those of us who may not be familiar with the Poseidon: https://www.secretprojects.co.uk/threads/russian-status-6-nuclear-attack-system.26054/
- Joined
- 11 February 2010
- Messages
- 1,545
- Reaction score
- 2,321
imagine what's inside its ginormous hull. So far we know that It will carry Losharik. but i wonder what else it could do.
panzerfeist1
ACCESS: Secret
Since I am too lazy to post here all the drone options here is just a list of those options. http://www.russiadefence.net/t4232p25-underwater-drones-of-the-russian-navy. Does anyone have a final confirmation as to what drones the Belgorod will carry or if more drone options have been added to the table yet of what the submarine can carry?
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246
I was originally highly skeptical about the Putin administration really fielding this weapon and on (apparently another thread) wrote as much. It's still as illogical and redundant as then in its potential in ruining everyone's couple of millennia but hey, they've embarked on a number of comparable projects (and other senseless adventures) nonetheless. Not to worry, we'll just place a Virginia-class submarine with their newfangled lasers every couple of nautical miles over the GIUK-gap and zap them as they come, right? Yee-haw ...
panzerfeist1
ACCESS: Secret
Cant tell if you are drunk right now or being serious. But an airborne laser with 1 megawatt can destroy a ballistic from 10kms away. The atmosphere causes more attenuation for the laser than it does being used in a vacuum of space. How much energy loss does seawater contribute compared to the atmosphere regarding half of that power being used on a sub even though it sounds as cool as the army introducing a 1000 mile railgun. They are also building SONAR arrays with nuclear reactors so some confrontation can occur.
[admin -removed off-topic and inappropriate video]
Last edited by a moderator:
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246
Kanyon’s Reach: Rethinking the Nuclear Triad in the Autonomous Age
The United States must decide on a response to Russia’s new port-killing nuclear-tipped unmanned underwater vehicle.www.usni.org
SUT (Society for Underwater Technology) did a recorded Webinar on Kanyon/Poseidon today.
- Joined
- 21 April 2009
- Messages
- 13,560
- Reaction score
- 7,183

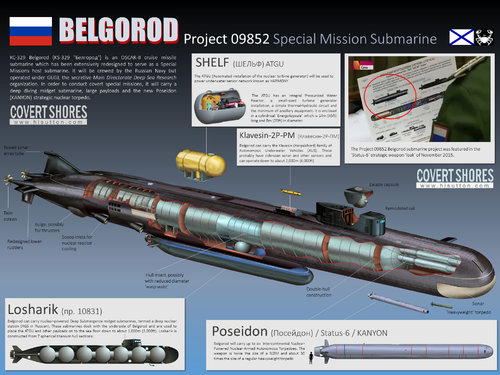

New Details of Russian Belgorod 'Doomsday' Submarine Revealed - USNI News
Russia’s latest super-sized submarine, Belgorod, has been a conundrum for interested observers. While its existence is far from secret, Moscow has gone to great pains to keep certain key details out of the public domain. While navies traditionally hide the screw, or propeller, from the cameras...
news.usni.org
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246

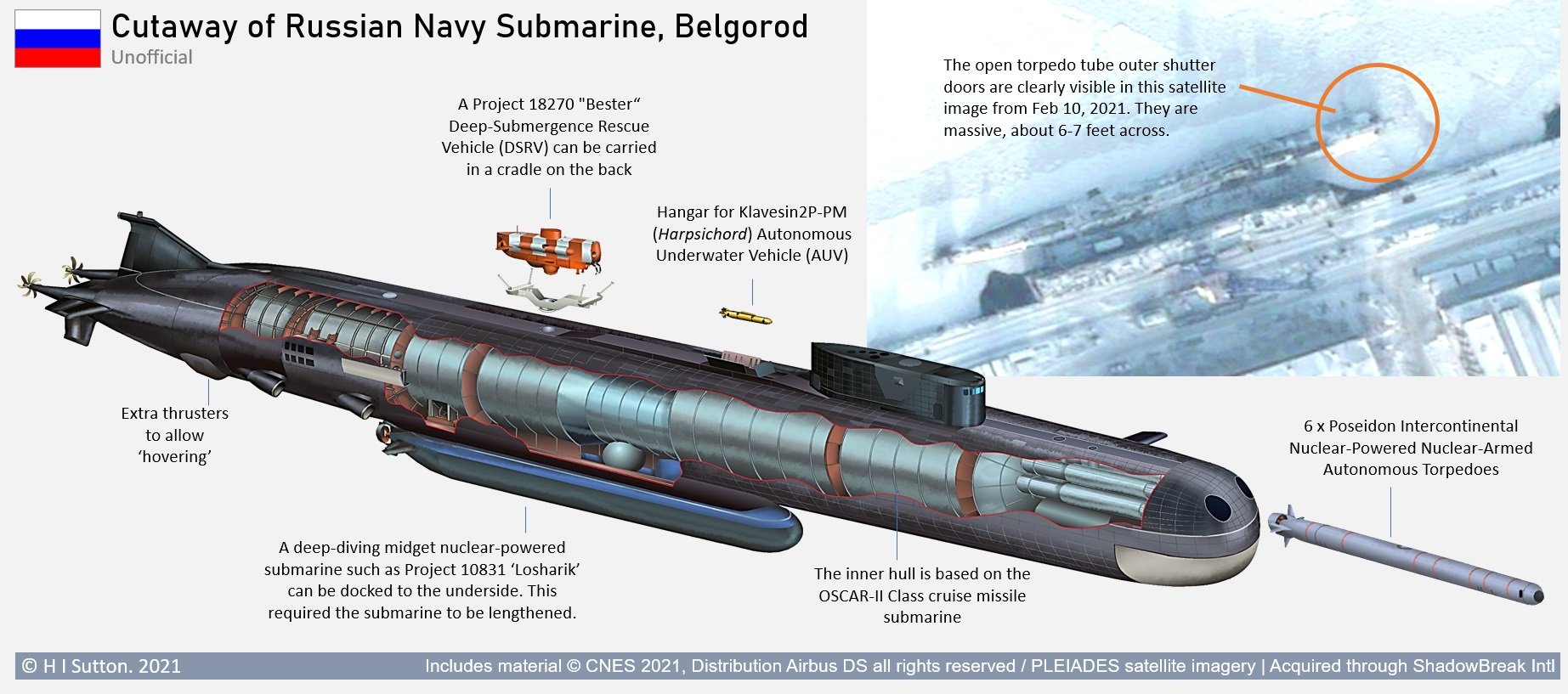

New Details of Russian Belgorod 'Doomsday' Submarine Revealed - USNI News
Russia’s latest super-sized submarine, Belgorod, has been a conundrum for interested observers. While its existence is far from secret, Moscow has gone to great pains to keep certain key details out of the public domain. While navies traditionally hide the screw, or propeller, from the cameras...
- Joined
- 11 February 2010
- Messages
- 1,545
- Reaction score
- 2,321
kinda think or rotating mechanism similar as Swedes Submarines.
New Details of Russian Belgorod 'Doomsday' Submarine Revealed - USNI News
Russia’s latest super-sized submarine, Belgorod, has been a conundrum for interested observers. While its existence is far from secret, Moscow has gone to great pains to keep certain key details out of the public domain. While navies traditionally hide the screw, or propeller, from the cameras...
This article reads like the beginning of a whacky techno-thriller novel.
As for the weapon itself, it looks like a submarine / undersea Vought-SLAM "flying crowbar" (swimming crowbar ?) - nuclear-propulsion included.
In fact the nuclear propulsion system IS a weapon by itself - just like SLAM killed you, not only dropping nuclear bombs on you, but also with its noise and shockwave plus crashing itself at the end of the trip, spewing radioactivity all over the final resting site.
Whacky crazy doomsday weapon, really.
Testing will be... interesting. Even without the nuclear warhead, that thing is nuclear powered.
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,246
Interesting times indeed!
Dilandu
I'm dissatisfied, which means, I exist.
Er, SLAM was powered by open-cycle nuclear ramjet, that pumped air right through the reactor active zone. And the Poseidon did not have open-cycle reactor. She is powered by fairly usual closed-cycle reactor that powered her screws. She did not left any radioactive trail behind.
Dilandu
I'm dissatisfied, which means, I exist.
I seriously doubt that small low-power reactor could add much to 100+ megaton warhead...
Dilandu
I'm dissatisfied, which means, I exist.
Well, since it's torpedo, and unable to jump out of water, its reasonable to assume that it's armed with as big warhead as practically possible to install. After all, making big fusion bombs isn't exactly hard - if you are not limited with weight and size of the charge.
