Raytheon RIM-161 SM-3 News & Development

https://twitter.com/x/status/1594833267718385664

On Wednesday, Maya fired an SM-3 Block IIA missile, successfully intercepting the target outside the atmosphere in the first launch of the missile from a Japanese ship. The SM-3 Block IIA has two distinct new features: larger rocket motors that will allow the missile to defend broader areas from ballistic missile threats and a larger kinetic warhead.
Click to expand...


Last edited:
I wonder if we'll see the US army or other NATO armies deploying the SM-3 Block-IIA?

NMaude said:
I wonder if we'll see the US army or other NATO armies deploying the SM-3 Block-IIA?
Click to expand...
There's no US Army requirement for a Midcourse interceptor. There are those in the Navy who would happily hand over Aegis Ashore to the Army for budgetary reasons, but I'd rate that as "unlikely." Terminal defense and hypersonic defense are Army priorities, but those are not SM-3 roles.

Well it looks like the US Army might buy the SM-3 Block-IIA if they're looking for a mid-range missile in the near future.

bobbymike said:
www.armytimes.com

Army seeks mid-range missile to cover operational gaps

The mid-range missile could help with mobile missile launches on complex battlefields.
www.armytimes.com www.armytimes.com
Click to expand...
From text, it looks like maybe that MRC might turn into a mobile SAM, unless it's THAAD-ER, but I'm not really sure that counts as mid-range.

But a changing adversary means the service must develop further its own capabilities. The service is looking toward a more mobile architecture, one that can use mobile launchers.

One of those new technologies is the Mid-Range Capability missile. The missile will be fielded in 2023, more than two years since the Army announced that the service would pursue the capability.

The Army chose Lockheed Martin to integrate the Navy’s SM-6 and Tomahawk missiles with a launcher and battery operations center to create an MRC prototype back in November 2020.
Click to expand...

Forest Green said:
bobbymike said:
www.armytimes.com

Army seeks mid-range missile to cover operational gaps

The mid-range missile could help with mobile missile launches on complex battlefields.
www.armytimes.com www.armytimes.com
Click to expand...
From text, it looks like maybe that MRC might turn into a mobile SAM, unless it's THAAD-ER, but I'm not really sure that counts as mid-range.

But a changing adversary means the service must develop further its own capabilities. The service is looking toward a more mobile architecture, one that can use mobile launchers.

One of those new technologies is the Mid-Range Capability missile. The missile will be fielded in 2023, more than two years since the Army announced that the service would pursue the capability.

The Army chose Lockheed Martin to integrate the Navy’s SM-6 and Tomahawk missiles with a launcher and battery operations center to create an MRC prototype back in November 2020.
Click to expand...
Click to expand...

I think the author may be a bit confused. The MRC that is coming into service in 2023 is a coast artillery antiship missile capability. It includes SM-6 as a strike weapon, not a SAM.

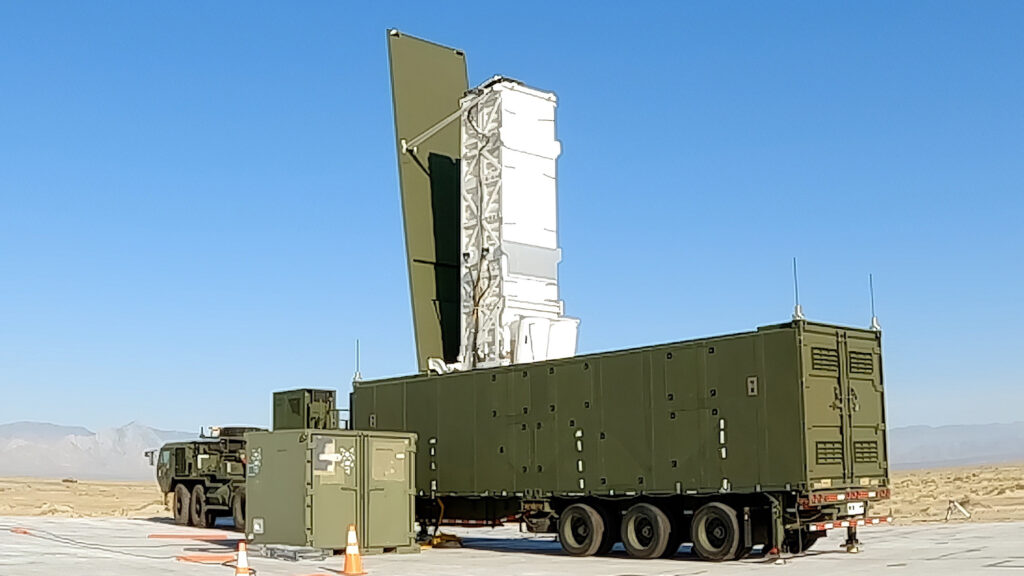

Given that it's basically a transportable Mk41 launcher, there's no fundamental reason MRC couldn't also fire SM-3. But I think the current references to SM-3 in the Guam TBMD architecture probably are about AEGIS ships operating around the island.

Last edited:
TomS said:
I think the author may be a bit confused. The MRC that is coming into service in 2023 is a coast artillery antiship missile capability. It includes SM-6 as a strike weapon, not a SAM.

GI ven that it's basically a transportable Mk41 launcher, there's no fundamental reason MRC couldn't also fire SM-3. But I think the current references to SM-3 in the Guam TBMD architecture probably are about AEGIS ships operating around the island.
Click to expand...
It could easily form part of mobile launch architecture for a SAM though.

I’m not sure how those will be stored/launched but I’d thought an Aegis Ashore installation was rejected; perhaps I’m mistaken. Some kind of relocatable system like the MRC makes more sense to me but I realize it doesn’t have an anti air capability integrated.

Josh_TN said:
I’m not sure how those will be stored/launched but I’d thought an Aegis Ashore installation was rejected; perhaps I’m mistaken. Some kind of relocatable system like the MRC makes more sense to me but I realize it doesn’t have an anti air capability integrated.
Click to expand...

You are correct about AEGIS Ashore for Guam.

www.defensenews.com

Congress mandates more oversight on Pentagon plans for defending Guam

Lawmakers also want more oversight from the Missile Defense Agency's mission to defend the U.S. territory — a top priority.
www.defensenews.com www.defensenews.com

The architecture will not be a fixed missile defense site like Aegis Ashore in Romania and Poland, Hill said during a Pentagon budget briefing. “Think of it as a distributed system.” He added that the agency is interested in using mobile launchers.
Click to expand...

TomS said:
You are correct about AEGIS Ashore for Guam.

www.defensenews.com

Congress mandates more oversight on Pentagon plans for defending Guam

Lawmakers also want more oversight from the Missile Defense Agency's mission to defend the U.S. territory — a top priority.
www.defensenews.com www.defensenews.com

The architecture will not be a fixed missile defense site like Aegis Ashore in Romania and Poland, Hill said during a Pentagon budget briefing. “Think of it as a distributed system.” He added that the agency is interested in using mobile launchers.
Click to expand...
Click to expand...
So mobile Aegis? Be interesting to see what radar it uses. Maybe the radars will still be fixed.

Forest Green said:
So mobile Aegis? Be interesting to see what radar it uses. Maybe the radars will still be fixed.
Click to expand...
We've had mobile AEGIS for decades, on ships. ;)

But land-based mobile SPY radars? Probably not.

Remember this is an architecture, not a system. So don't look for one-to-one alignment between radars and missiles/launchers. If they do adopt a mobile launcher for SM-3 (likely the same basic launcher as MRC) you'd expect it to be cued by other TBMD radars, like THAAD's TPY-2, nearby shipboard SPY-1 or -6, or anything else suitable in the area. There is talk about some sort of long-range radar on Palau, which could cover Guam, for example. Maybe SBX if it ever works properly. Etc.

Last edited:
Forest Green said:
TomS said:
You are correct about AEGIS Ashore for Guam.

www.defensenews.com

Congress mandates more oversight on Pentagon plans for defending Guam

Lawmakers also want more oversight from the Missile Defense Agency's mission to defend the U.S. territory — a top priority.
www.defensenews.com www.defensenews.com

The architecture will not be a fixed missile defense site like Aegis Ashore in Romania and Poland, Hill said during a Pentagon budget briefing. “Think of it as a distributed system.” He added that the agency is interested in using mobile launchers.
Click to expand...
Click to expand...
So mobile Aegis? Be interesting to see what radar it uses. Maybe the radars will still be fixed.
Click to expand...
Hoping Guam gets a 50 silo dense pack filled with IRBMs armed with HBGV.

bobbymike said:
Hoping Guam gets a 50 silo dense pack filled with IRBMs armed with HBGV.
Click to expand...

Yeah, that's absolutely not in the cards.

For starters, what IRBM? I suppose there's the Army LRHW, which appears to fall just short of the range requirement to be called an IRBM. But that's definitely going to be mobile/transportable. Fixed silos are just too easy to hit now.

bobbymike said:
Forest Green said:
TomS said:
You are correct about AEGIS Ashore for Guam.

www.defensenews.com

Congress mandates more oversight on Pentagon plans for defending Guam

Lawmakers also want more oversight from the Missile Defense Agency's mission to defend the U.S. territory — a top priority.
www.defensenews.com www.defensenews.com

The architecture will not be a fixed missile defense site like Aegis Ashore in Romania and Poland, Hill said during a Pentagon budget briefing. “Think of it as a distributed system.” He added that the agency is interested in using mobile launchers.
Click to expand...
Click to expand...
So mobile Aegis? Be interesting to see what radar it uses. Maybe the radars will still be fixed.
Click to expand...
Hoping Guam gets a 50 silo dense pack filled with IRBMs armed with HBGV.
Click to expand...

Probably never, though it would be a logical place to base LRHW batteries.

TomS said:
If they do adopt a mobile launcher for SM-3 (likely the same basic launcher as MRC) you'd expect it to be cued by other TBMD radars, like THAAD's TPY-2, nearby shipboard SPY-1 or -6, or anything else suitable in the area. There is talk about some sort of long-range radar on Palau, which could cover Guam, for example.
Click to expand...
www.thedrive.com

U.S. Building Advanced Over-The-Horizon Radar On Palau

The long-range radar could be critical for keeping an eye on Chinese activities and is another sign of growing U.S. vigilance in the Pacific.
www.thedrive.com www.thedrive.com

Called the Tactical Mobile Over-the-Horizon Radar, or TACMOR, the sensor station will be installed on the increasingly strategic island of Palau to enhance air and maritime domain situational awareness for U.S. and allied forces in the region. The Department of Defense announced on Dec. 28 that it had awarded a $118.4 million contract to Gilbane Federal for the construction of reinforced concrete pads and foundations in support of the installation of TACMOR equipment on the island. The contracting activity for what’s being called the TACMOR infrastructure project is the Naval Facilities Engineering Systems Command Pacific, and work is expected to be completed by June 2026.
Click to expand...

1672514774367-png.25811

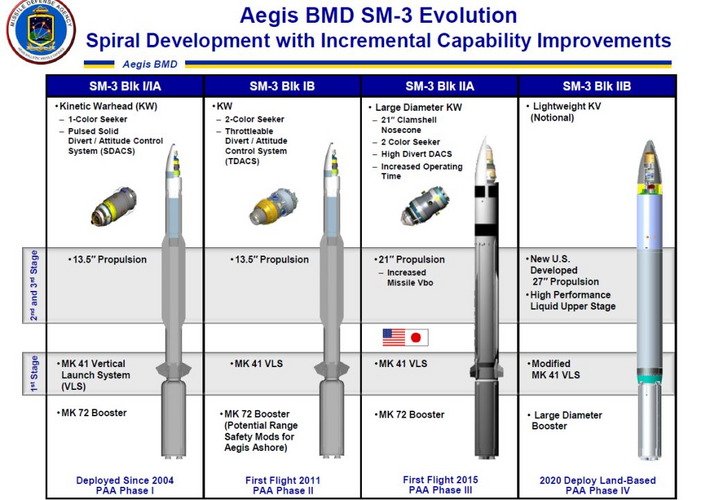

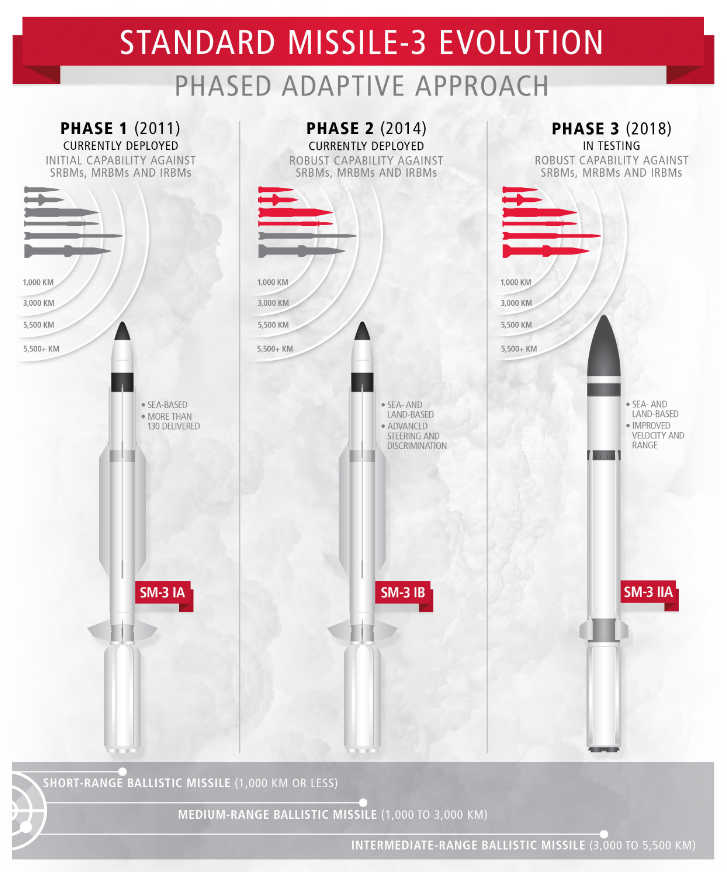

I've tried searching on Google but haven't had any luck finding the designations for the SM-3 Block II's second and third stage rockets (In the SM-3 Block I/IA/IB they're the Mk-104 DTRM and Mk-136 TSRM) or do the still use the Mk-104 and Mk-136 designations with a "Mod" suffix?

Thanks:).
In regards to the SM-3 Block II's nosecone design does it still use a one-piece radome type design like the Block I or does it use the two-piece clamshell design?

Last edited:
NMaude said:
In regards to the SM-3 Block II's nosecone design does it still use a one-piece radome type design like the Block I or does it use the two-piece clamshell design?
Click to expand...

I don't like to quote myself however does anyone know if the SM3 Block-II use a single-piece ejected nose-cone like the Block-I or does it use the two-piece clamshell type nose-cone to protect the EKV?

bobbymike said:
Hoping Guam gets a 50 silo dense pack filled with IRBMs armed with HBGV.
Click to expand...
Revisiting this thread this turns out to me to be the best choice of armanent for arming Guam.
Just recently I got clobbered on a Chinese defense forum and learned of the revelation that DF-26 is an IRBM armed to the teeth with decoys and penaids and even a BGV, and no current US target missile is representative of such capability.
It seems like nuclear MAD is the only option.

jsport said:
View: https://www.youtube.com/watch?v=N_H8QATr_g8


If one is investing in large TELs like Typhon why not into MNMS?
Click to expand...
I'd suppose the low-cost space launch offered by MNMS is very different from MRC which is a rapid fielding strike system that covers the gap between PrSM (500+ km) and LRHW (2875+ km BGV-tipped IRBM). Tomahawk fills the medium-range strike role with its proven capability as a cruise missiles while SM-6 BLK IA is being used as an AShBM with a range guesstimate of 450km, and the new IB will leverage the SM-3 BLK IIA 21in motor for an speculative increase in range of up to 1000km ballistic.

Affordable LEO sat launch is a novel capability by itself and in future conflicts where the US Army envisages enemy offensive ASAT, a system akin to MNMS will be highly desired. A modular missile architure rapidly reconfigurable for LRPF/ISR/test target across a broad spectrum of range, payload and size.

Last edited:
news.northropgrumman.com

Northrop Grumman’s Ballistic Missile Target Successfully Launched for Aegis Weapon System Test

CHANDLER, Ariz. – March 29, 2024 – Northrop Grumman Corporation (NYSE: NOC) successfully launched a ballistic missile target vehicle to support the Missile Defense Agency’s Flight Test Aegis Weapon System 32 (FTM-32), in cooperation with the U.S....
news.northropgrumman.com news.northropgrumman.com

https://twitter.com/x/status/1773802312760279420
View: https://x.com/northropgrumman/status/1773802312760279420?s=20

EDIT: Turns out this was an SM-6 test:
https://twitter.com/x/status/1773816896477077986
View: https://x.com/AirPowerNEW1/status/1773816896477077986?s=20

Last edited:
asVAL said:
Affordable LEO sat launch is a novel capability by itself and in future conflicts where the US Army envisages enemy offensive ASAT, a system akin to MNMS will be highly desired. A modular missile architure rapidly reconfigurable for LRPF/ISR/test target across a broad spectrum of range, payload and size.
Click to expand...
Affordable LEO sat launch is also affordable LEO ASAT launch. Either some flavor of explosive party favor or simply an opposing orbital kinetic impact.

Scott Kenny said:
Affordable LEO sat launch is also affordable LEO ASAT launch. Either some flavor of explosive party favor or simply an opposing orbital kinetic impact.
Click to expand...

The U.S. is winning the affordable launch war hands down, and I think it likely has adopted a policy of no first use or even no use when it comes to kinetic direct ascent weapons. Probably because it has the luxury of non kinetic options and within several years, a prolific ISR and communications constellation that could not be practically attacked by direct ascent.

Josh_TN said:
The U.S. is winning the affordable launch war hands down, and I think it likely has adopted a policy of no first use or even no use when it comes to kinetic direct ascent weapons. Probably because it has the luxury of non kinetic options and within several years, a prolific ISR and communications constellation that could not be practically attacked by direct ascent.
Click to expand...
Kinetic direct ascent? Like SM-3?

Josh_TN said:
The U.S. is winning the affordable launch war hands down, and I think it likely has adopted a policy of no first use or even no use when it comes to kinetic direct ascent weapons. Probably because it has the luxury of non kinetic options and within several years, a prolific ISR and communications constellation that could not be practically attacked by direct ascent.
Click to expand...
My image for the "new orbital ASAT" is a pop-down attack pattern. ASAT gets placed in a slightly higher orbit so that the collision energy is all aimed towards earth.

Scott Kenny said:
My image for the "new orbital ASAT" is a pop-down attack pattern. ASAT gets placed in a slightly higher orbit so that the collision energy is all aimed towards earth.
Click to expand...

That's what India did when the ISRO conducted an ASET test a few years ago.
