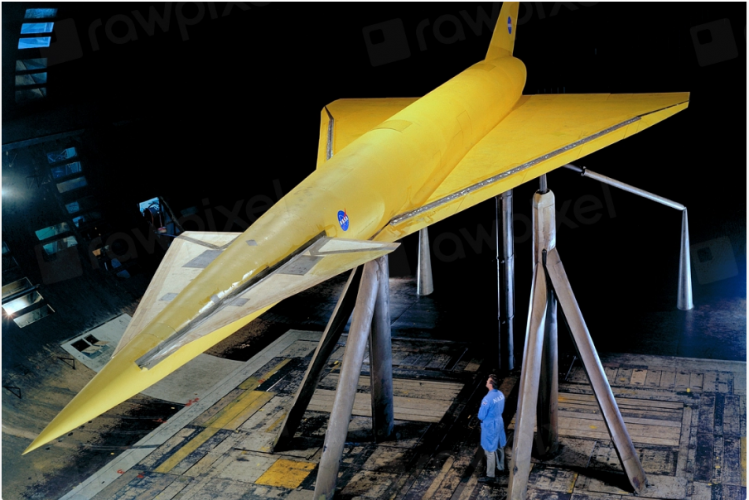

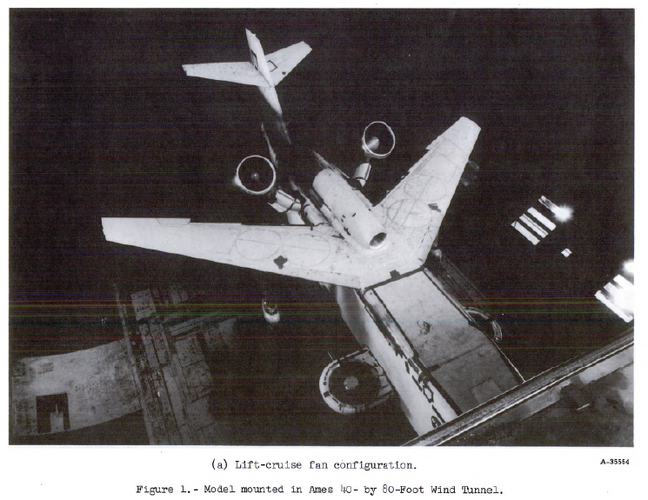

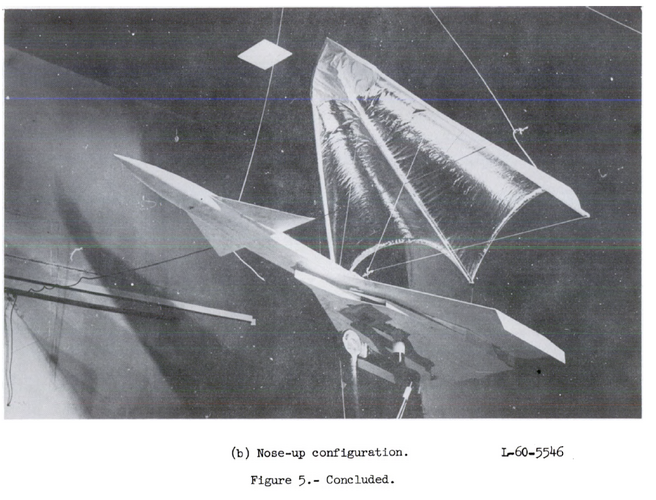

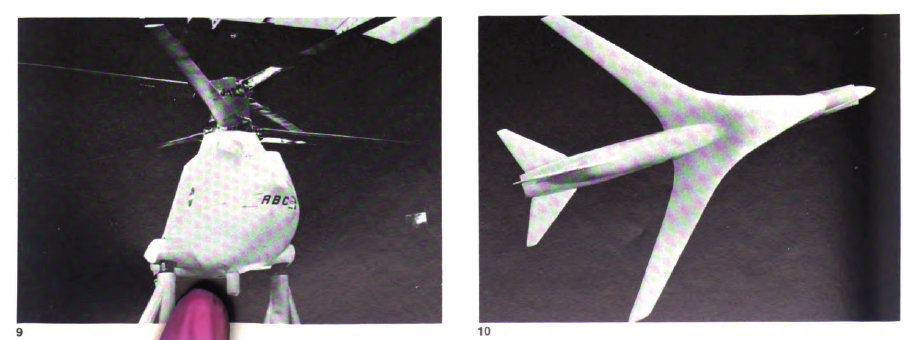

I think that's just a test set-up, the fuselage and tail look like the Avro Canada Jetliner . . .

cheers,
Robin.



[Apophenia]

I think that's just a test set-up, the fuselage and tail look like the Avro Canada Jetliner . . .

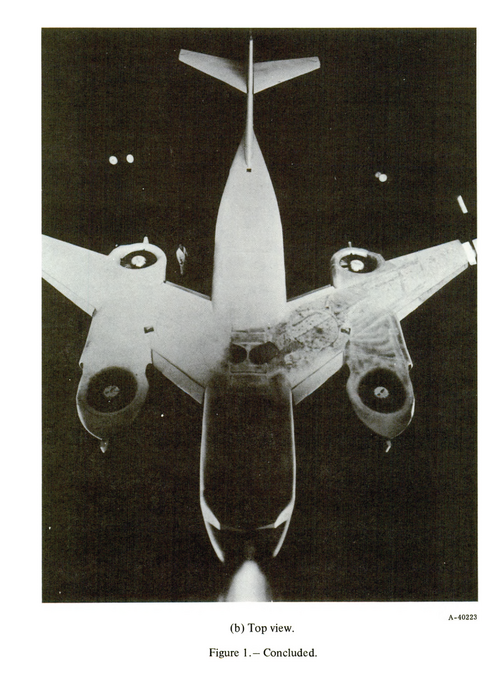

Exactly, NASA modified that surplus C102 model a number of times. Why waste an already-built model's fuselage and tail when only the new wings need to be represented accurately in the wind tunnel tests?



[hesham]

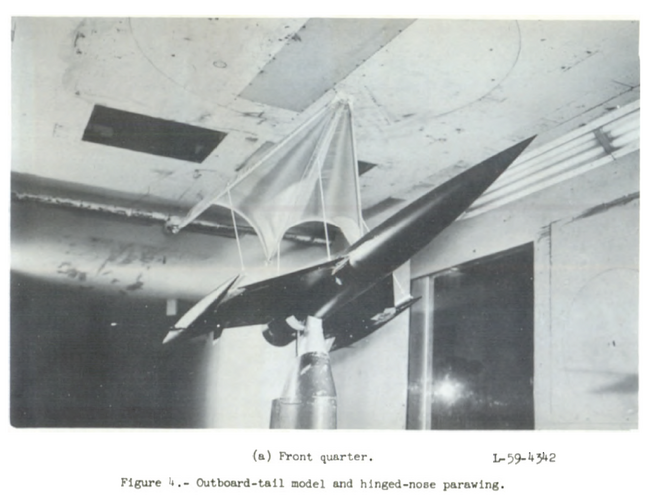

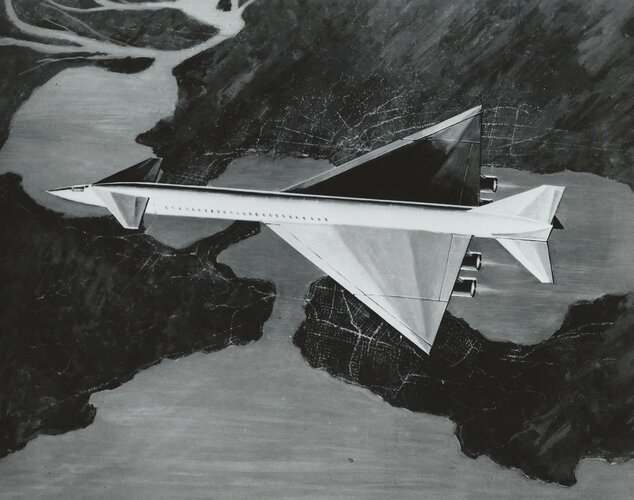

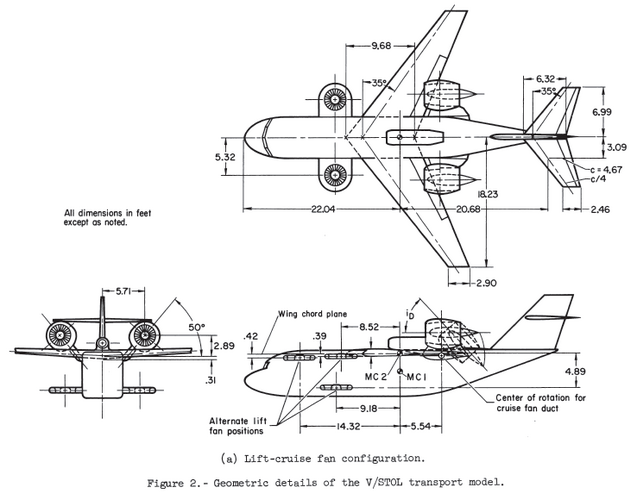

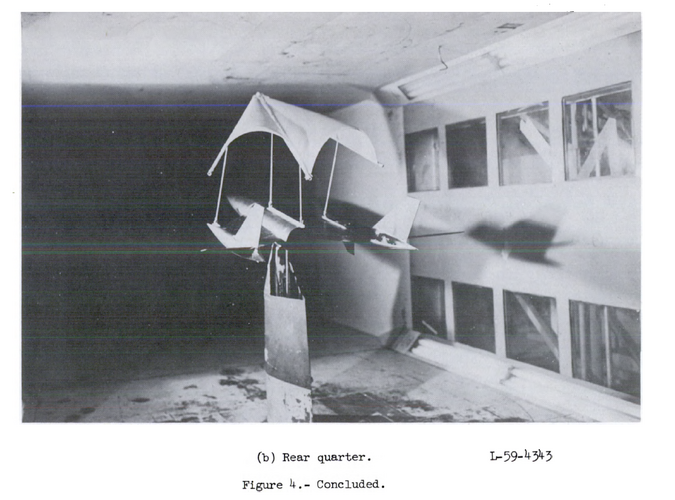

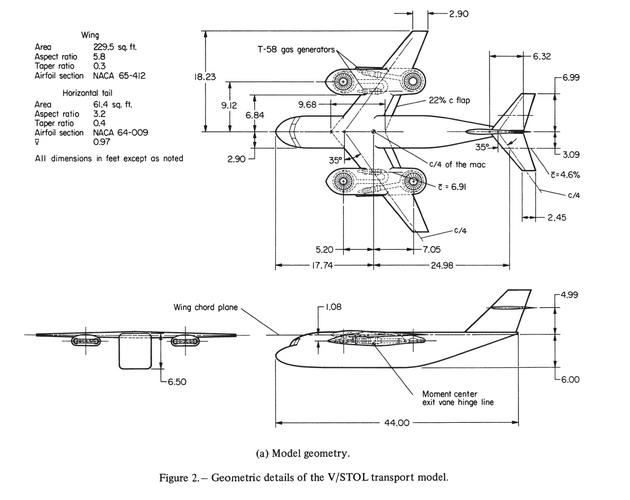

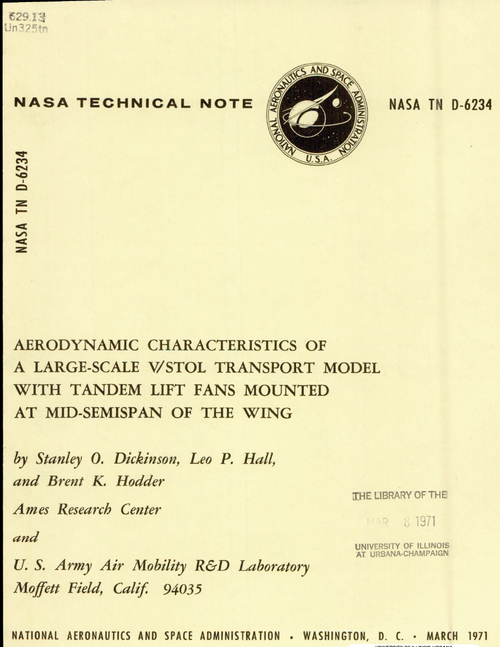

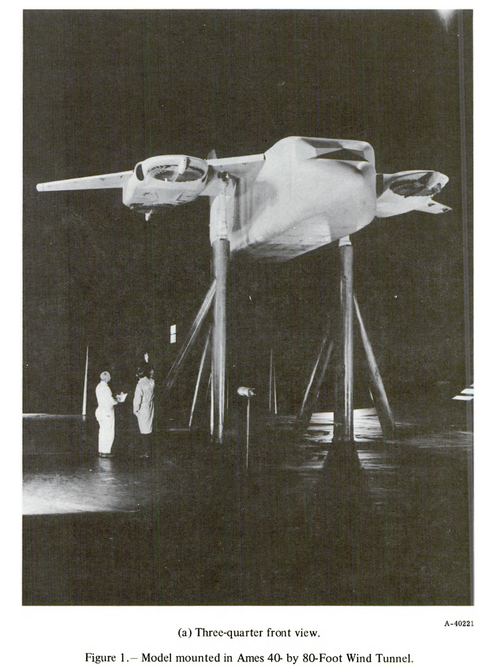

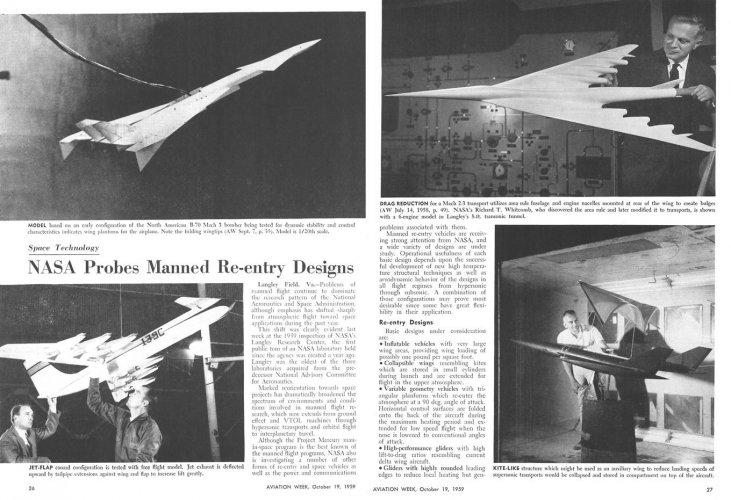

From this report.



[hesham]

From this report.

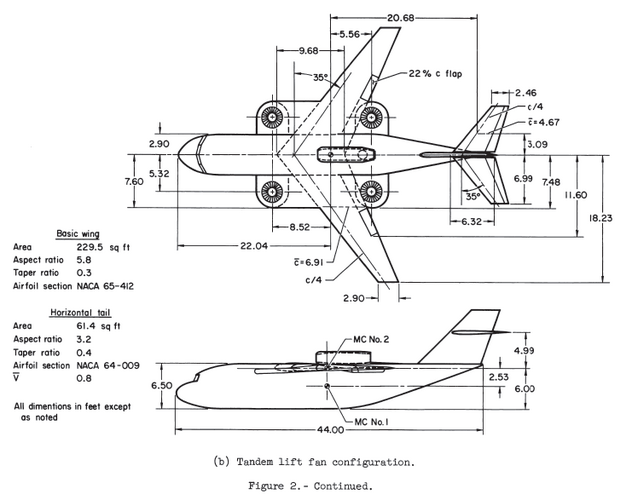

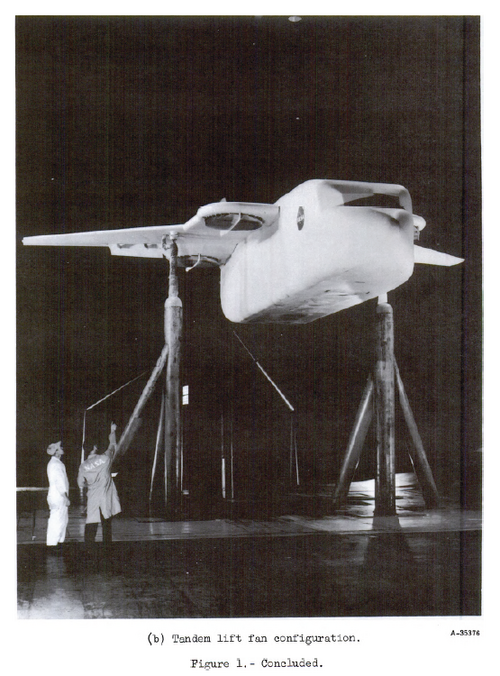

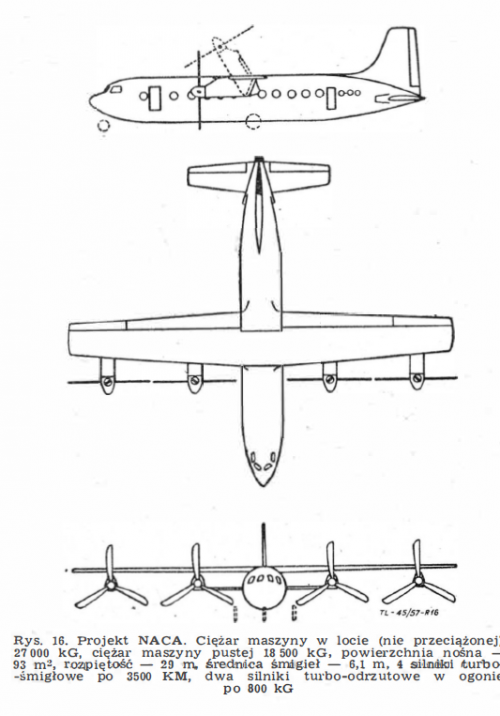

It's very similar to Vertol project in the book, ASP:3 ?.



[Stargazer]

It's very similar to Vertol project in the book, ASP:3 ?.

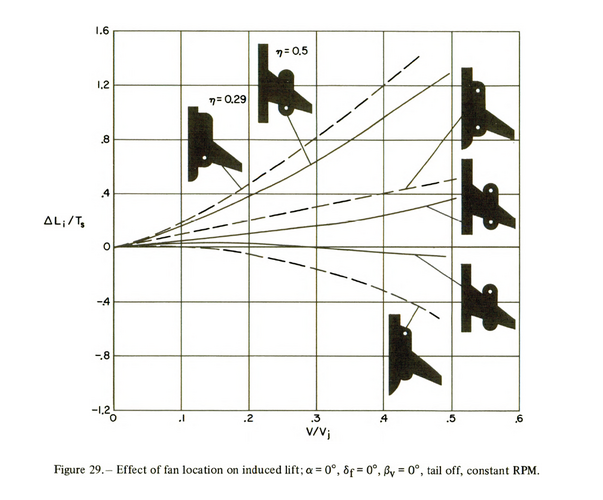

Don't forget that the technology here is the fan-in-wing "Vertifan", patented by Ryan Aeronautical, so it could be an early Ryan design (perhaps only notional, not an actual project) or a NASA drawing inspired by Ryan's "Vertifan" technology.



[southwestforests]

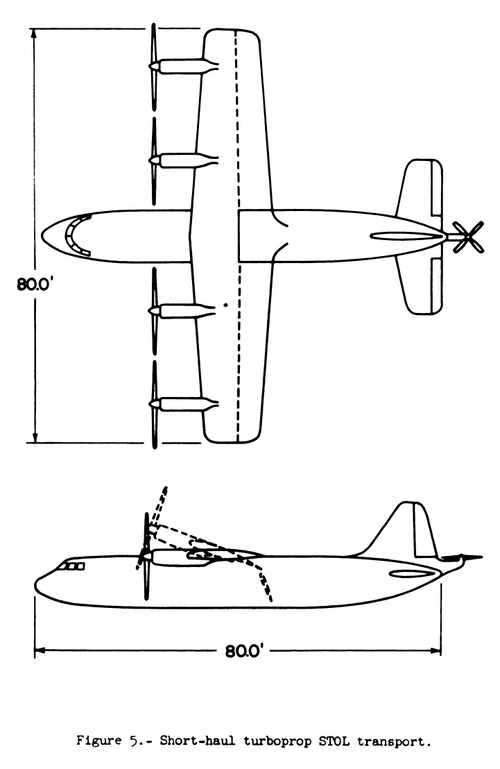

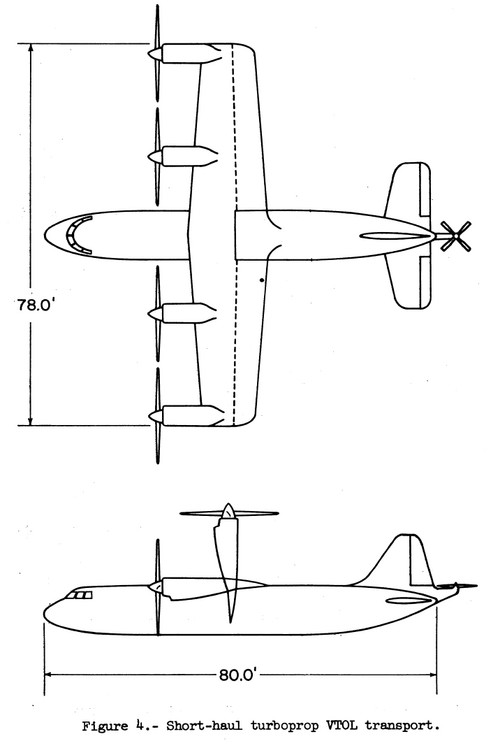

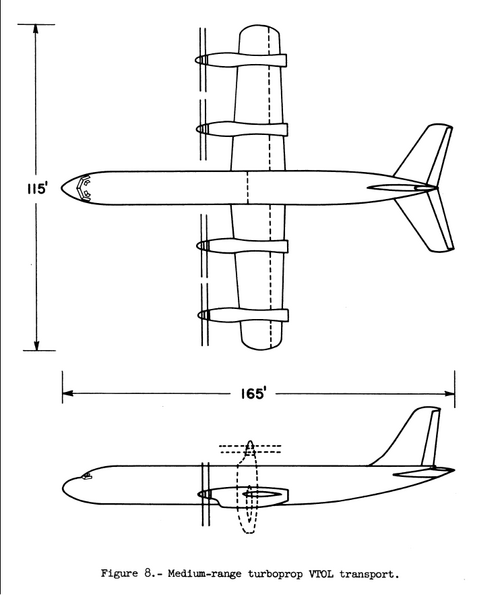

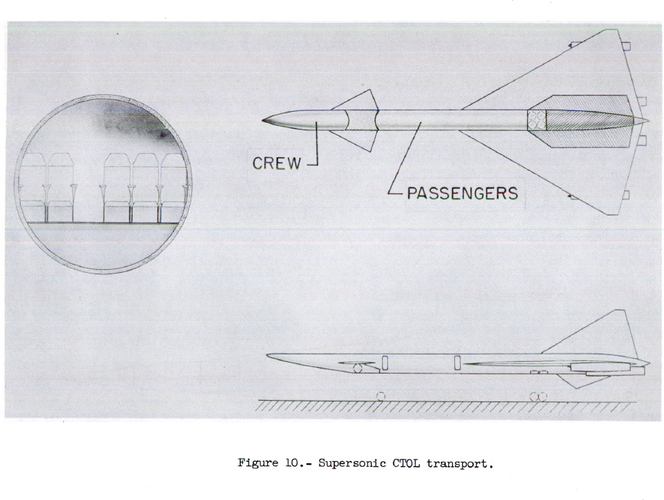

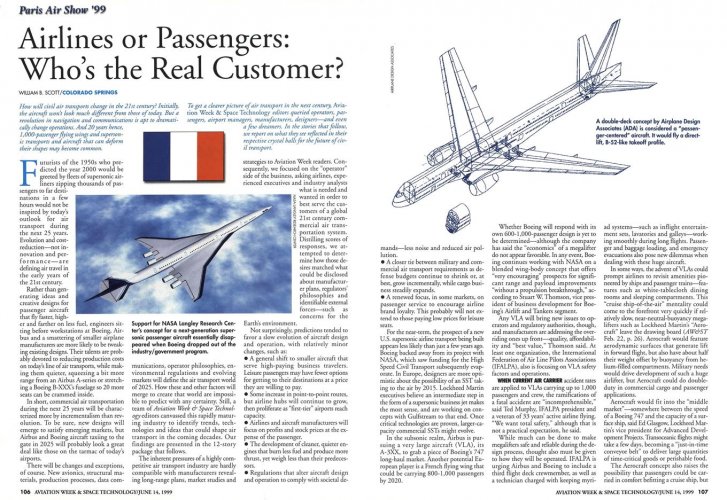

From this report.

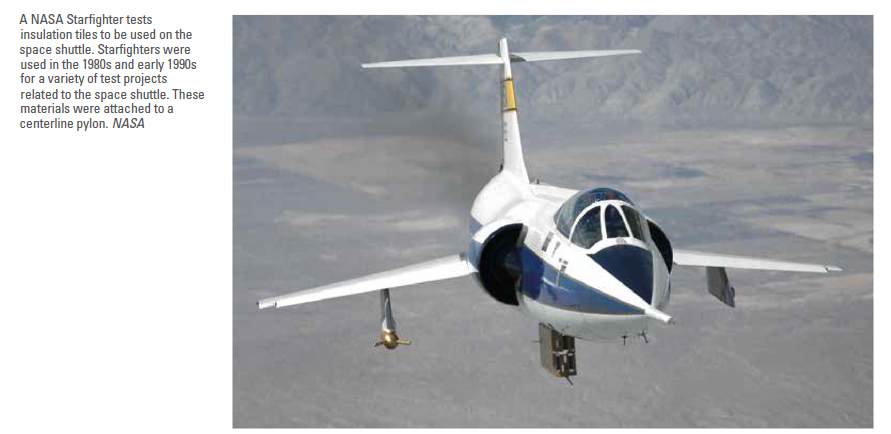

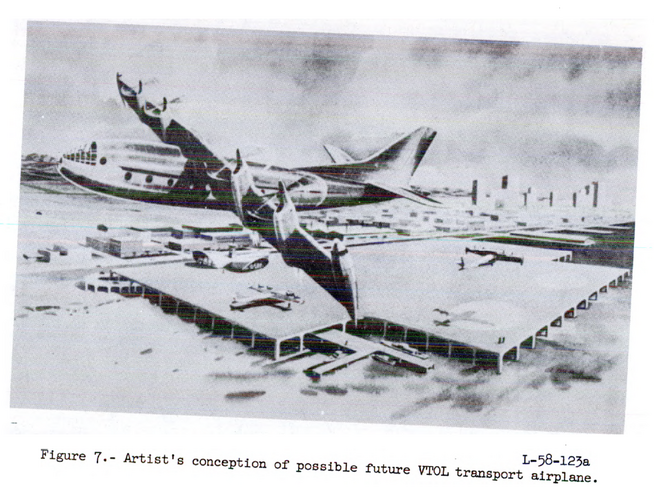

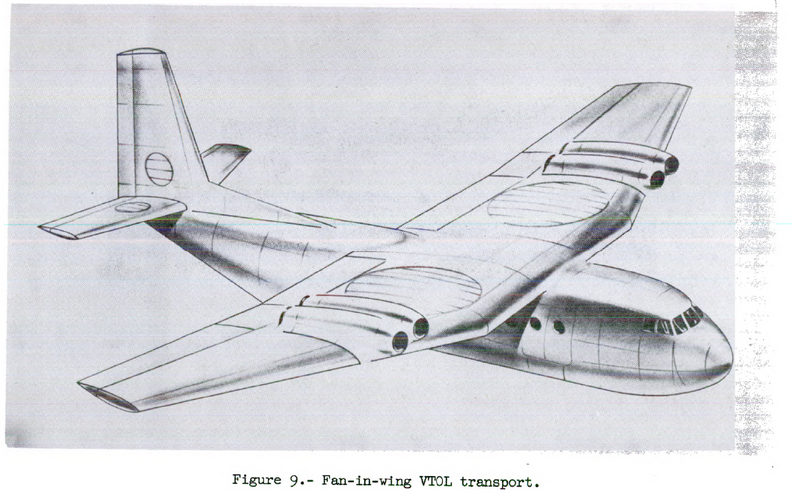

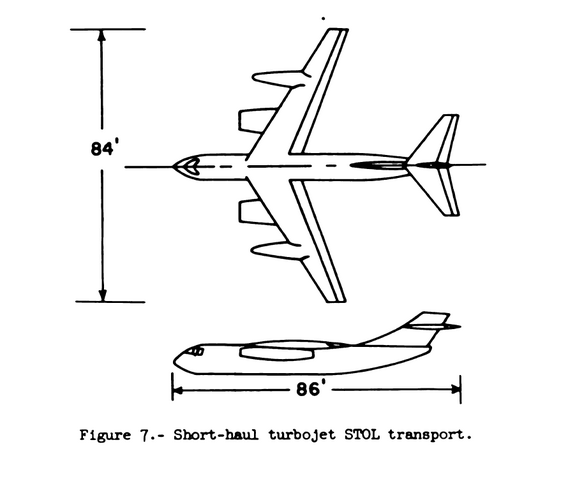

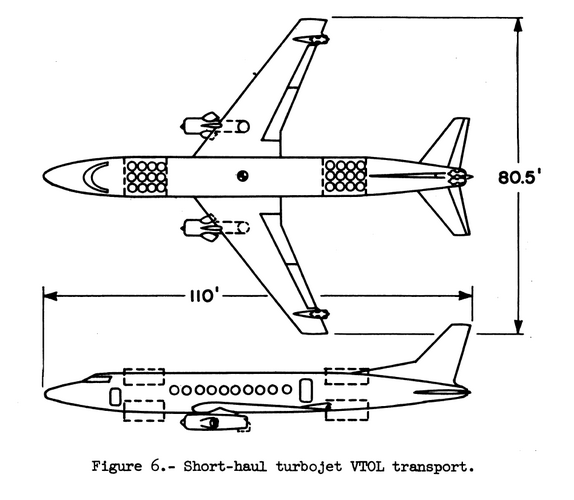

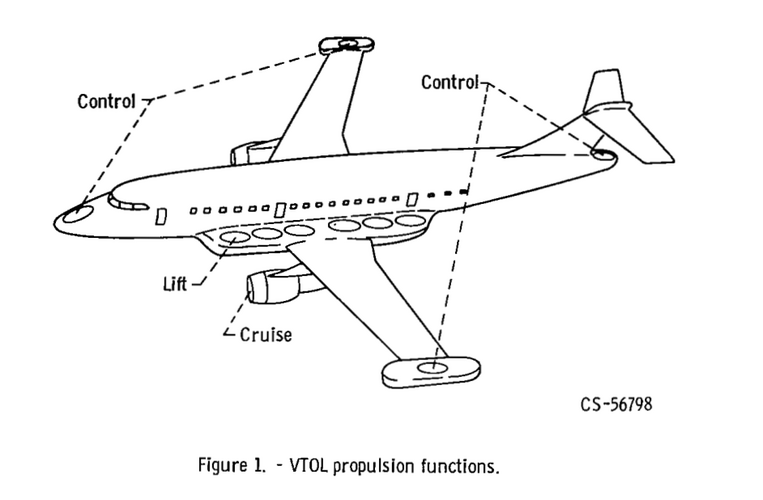

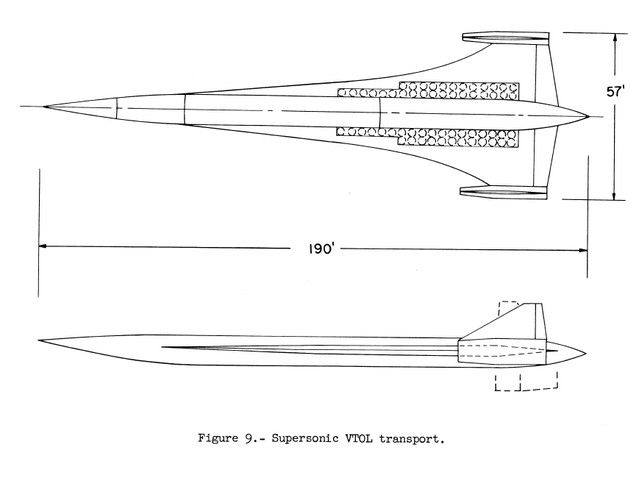

Image 34, the short haul VTOL passenger jet - would be interested in seeing a cabin noise report/study when those clusters of lift jets were operating.
On the up side, cockpit security is perfectly inviolable.

Main engines are interesting, sort of like having a mini-Harrier under each wing.



[hesham]

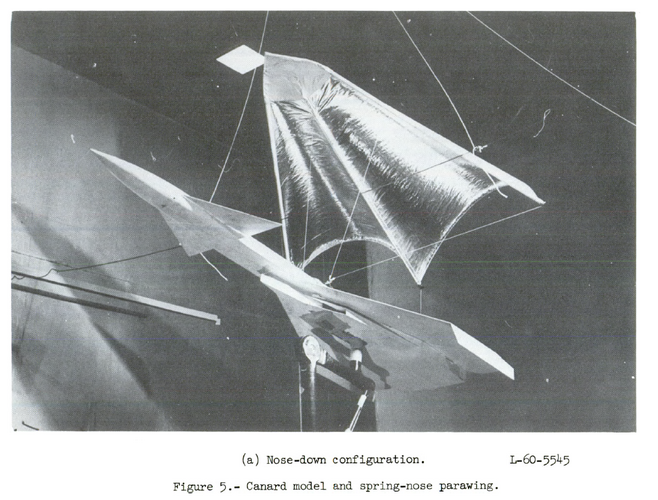

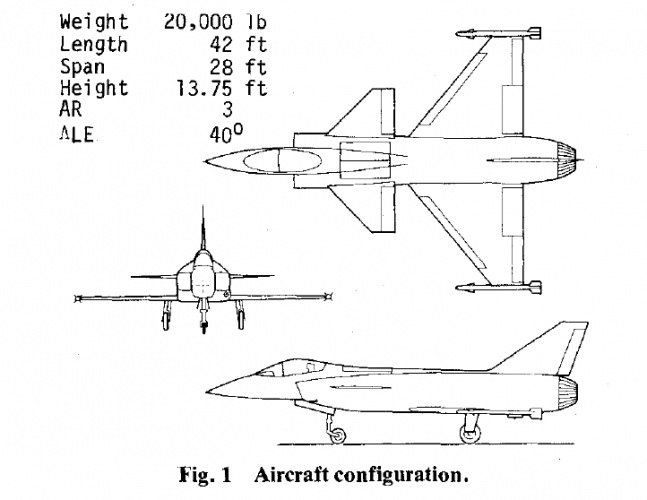

From this report.



[hesham]

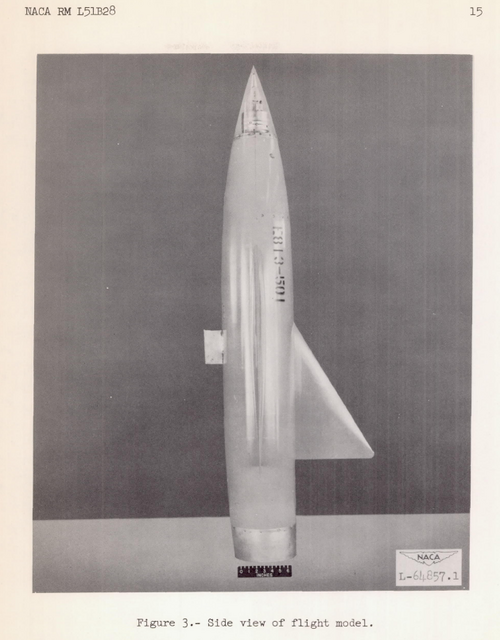

From this report.



[hesham]

Hi,

https://ntrs.nasa.gov/api/citations/19710029291/downloads/19710029291.pdf



[hesham]

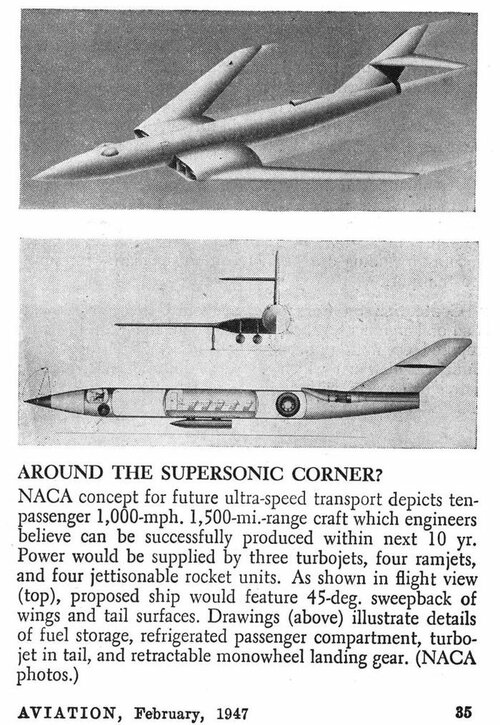

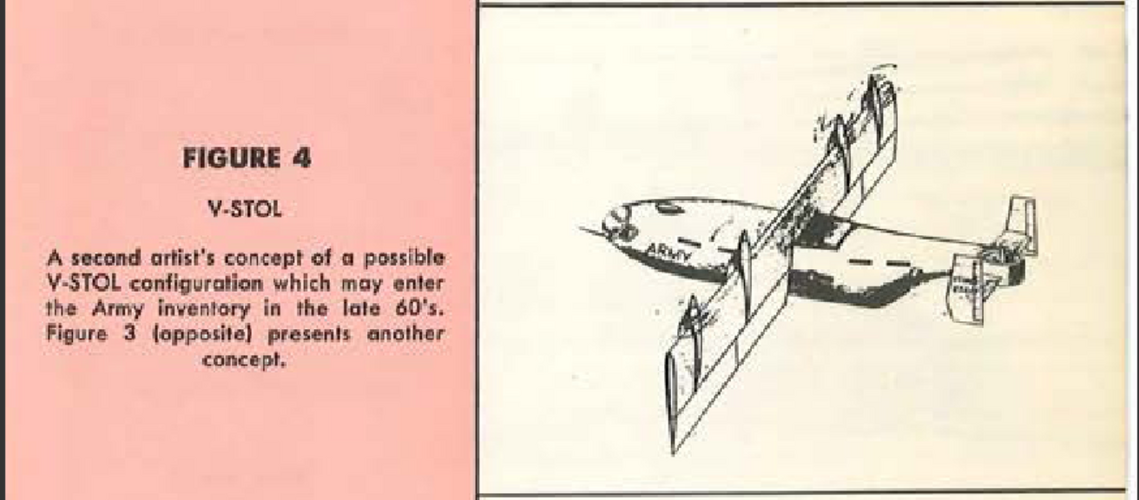

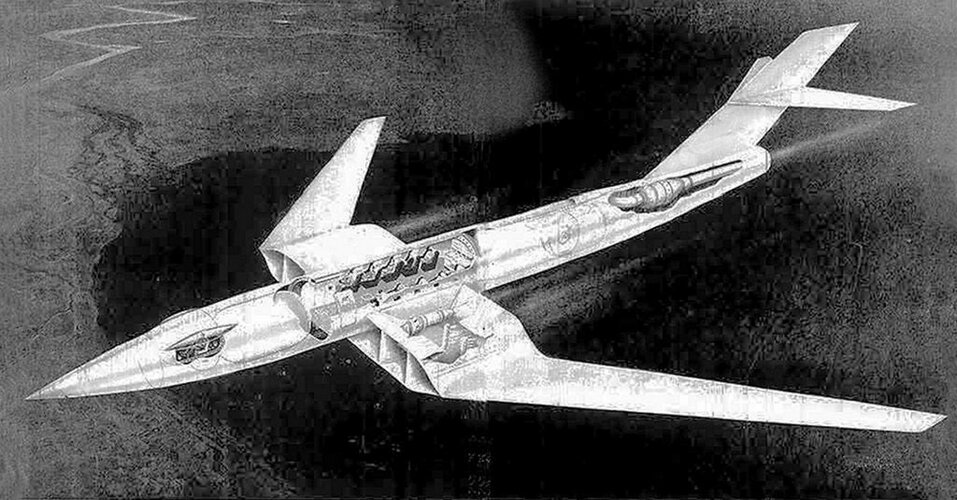

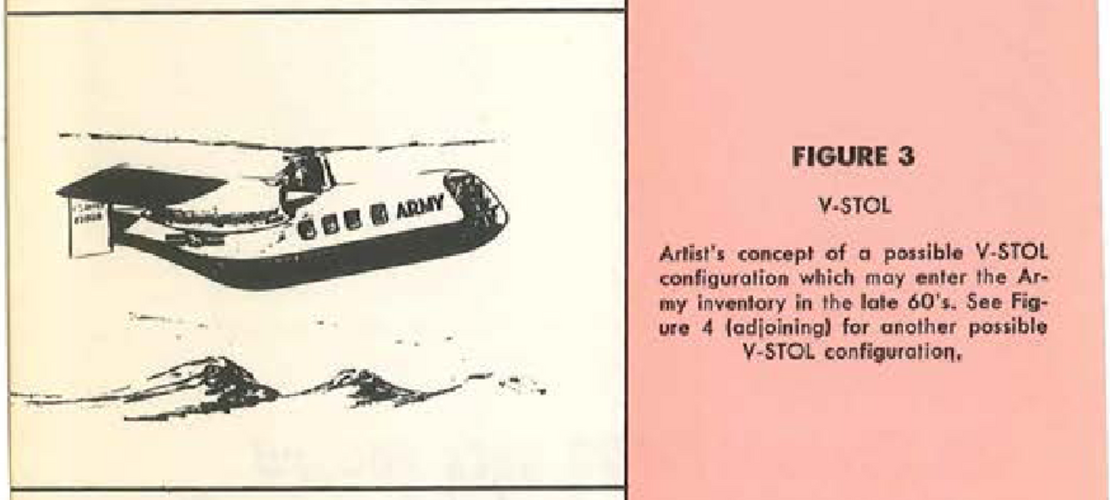

From Army Aviation 1960/9,

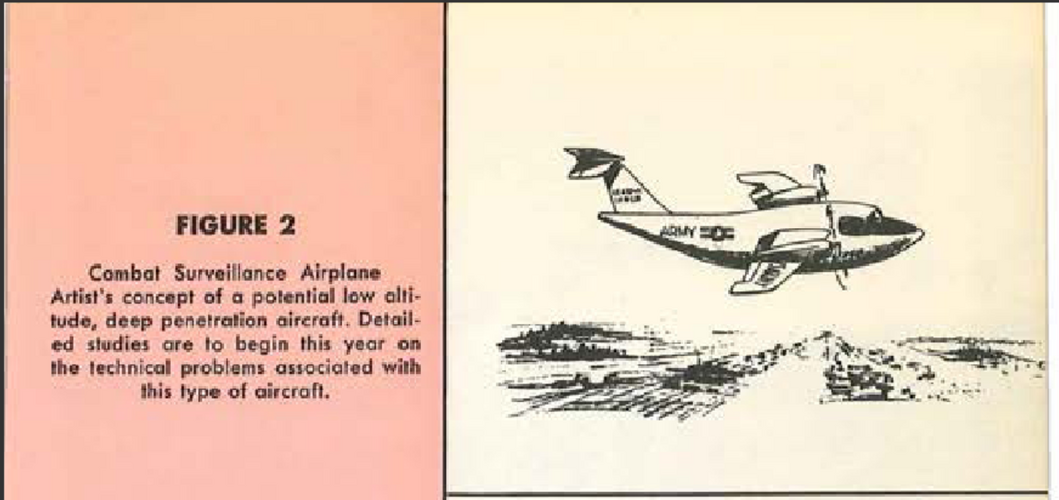

I don't know if they were just a hypothetical designs,or may related to
a real concepts ?



[Grey Havoc]

The Space Review: The ongoing triumph of Ingenuity



[Grey Havoc]

After Ingenuity, presentations at the 2024 Transformative Vertical Flight conference devoted to helicopter research.

NASA’s Plans for Next-Generation Mars Helicopters Are Up in the Air

After the spectacular success of the first-ever “Marscopter,” mission planners have soaring ambitions for follow-up flying machines

www.scientificamerican.com

You may hit a paywall, so...

Ingenuity’s achievements have sparked something of a renaissance in helicopter science, and NASA has developed lists of specifications for several more planetary helicopters, most of which will never be built. But each new configuration helps NASA to learn and iterate, with the hope of identifying the best possible designs for a range of challenging conditions.
The most developed plans include Dragonfly, which recently received the green light to head for Saturn’s largest moon, and the Sample Recovery Helicopter (SRH), which faces an unclear future as a potential part of the space agency’s troubled Mars Sample Return (MSR) program. Other possibilities include a few concept helicopters—for instance, the Mars Science Helicopter, which wouldn’t need a rover or lander as a “mothership,” and the Planetary Telemetric Helicopter for Investigation and Analysis (PYTHIA), designed to travel down the Red Planet’s giant lava tubes.

[...]

On a more mundane but equally important note, Warmbrodt says the Ingenuity team was elated to confirm that consumer electronics could handle interplanetary exploration. Ingenuity’s brains came from the equivalent of a simple mobile phone processor, which was able to withstand the extremes of a rocket launch and a Mars landing, as well the low pressure and variable temperatures of the alien world’s surface—a fact that came up a few times during talks at the conference.Previously, NASA had only used custom hardware which required costly testing to prove spaceworthiness. The ability to use commercially available components, Warmbrodt says, would provide a huge cost benefit in future designs.

[...]

At the moment, NASA’s Science Mission Directorate has updated the MSR [Mars Sample Return] design specifications in a way that “does not allow accommodation of helicopters.” It also included a back door, however, that would allow NASA to potentially squeeze in a helicopter “for added risk reduction,” albeit with a tighter budget. The answer to the question of when helicopters will once again fly through Mars’s not-so-friendly skies is up in the air.

[Some stuff about Dragonfly - nothing specifically new in this article]

Proposed Mars Science Helicopter:

Model of Proposed Mars Science Helicopter - NASA Science

A model of NASA’s Mars Science Helicopter concept is shown in this photo.

science.nasa.gov

https://rotorcraft.arc.nasa.gov/Publications/files/MSH_ARC_MYR_Mar2020rev.pdf

In late 2023 Grip left the Ingenuity program to become chief engineer for the Mars Science Helicopter (MSH). He said the design for the MSH hasn’t been completely settled yet, but it is likely to be the first Mars-bound mission to abandon the stacked rotor blade configuration and instead use a hexacopter design that will space six rotor blades around the craft’s body. Standing a little more than four feet tall and weighing just five pounds, it will also be larger and heavier than Ingenuity and able to carry a gross weight of around 68 pounds, including about 18 pounds of payload.

“The best way to think about it is that it’s one concept that has received a fair bit of attention and study over several years,” Grip says, “but it’s not an approved mission.”

Another promising concept is PYTHIA, designed to navigate Mars’s caves. In the past, active volcanoes on Mars pushed hot lava to the surface via tunnels. After the volcanoes cooled, the tunnels hardened into large lava tubes.

At the conference, a NASA team presented PYTHIA’s proposed design of a smaller drone body with four rotors and eight blades. A prospective landing site has already been selected: Arsia Mons, Mars’s third-highest point of elevation, at around 38,000 feet. Thanks to Ingenuity’s flight data, engineers know the extremely low air pressure that PYTHIA will face and have modeled how to compensate so it can navigate such heights.

View attachment 728470

More on Martian helicopters. A basic overview.

View: https://www.youtube.com/watch?v=ZdqhuPfpyUg



[publiusr]

On the up side, cockpit security is perfectly inviolable.

Ha!



[Grey Havoc]

NASA Is Developing a Mars Helicopter That Could Land Itself From Orbit - Slashdot

Longtime Slashdot reader MattSparkes writes: NASA is working on plans to send another, much larger helicopter to Mars than Ingenuity. The "Chopper" craft would land itself after "screaming into" the planet's atmosphere at speed, before covering several kilometers a day while carrying scientific...

science.slashdot.org



[hesham]

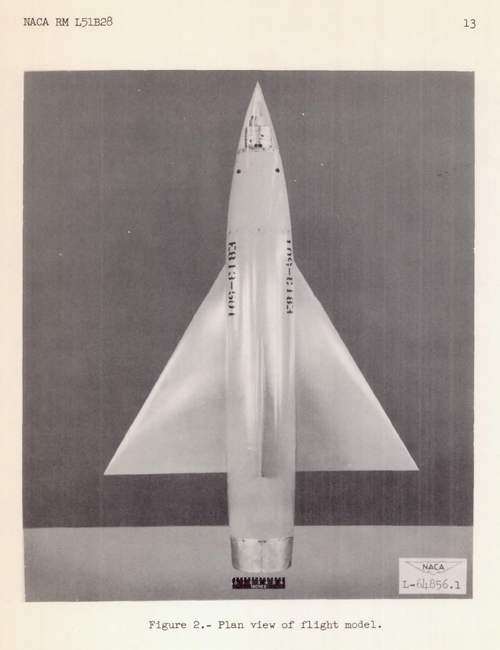

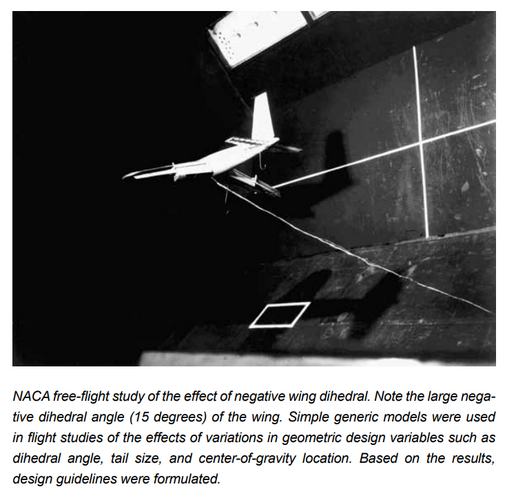

From Nasa report; Modelling Flight



[hesham]

Hi,

https://home.engineering.iastate.edu/~shermanp/AERE355/lectures/Flight_Stability_and_Automatic_Control_N.pdf



[Stargazer]

https://home.engineering.iastate.edu/~shermanp/AERE355/lectures/Flight_Stability_and_Automatic_Control_N.pdf

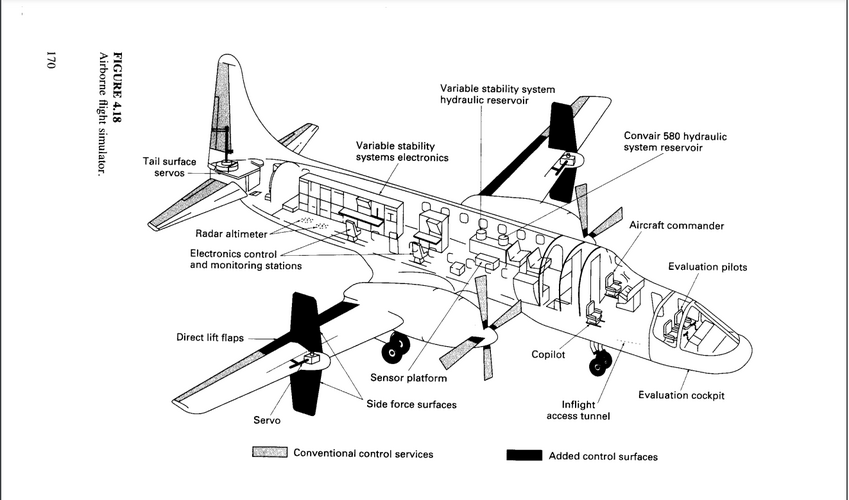

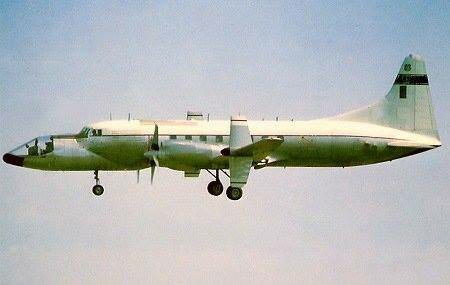

That's just the Convair NC-131H with its original front extension.
