Mogami/DEX/30FFM class frigate
- Thread starter Grey Havoc
- Start date
Forest Green
ACCESS: Above Top Secret
- Joined
- 11 June 2019
- Messages
- 8,256
- Reaction score
- 13,976
- Joined
- 9 October 2009
- Messages
- 21,149
- Reaction score
- 12,289
Japan Considering Bid to Join Australia’s Frigate Project; Boost to Domestic Defense Industry Expected
<p>The government is considering launching a bid to jointly develop new frigates with Australia, The Yomiuri Shimbun has learned.</p>
japannews.yomiuri.co.jp
Scott Kenny
ACCESS: Above Top Secret
- Joined
- 15 May 2023
- Messages
- 9,219
- Reaction score
- 10,297

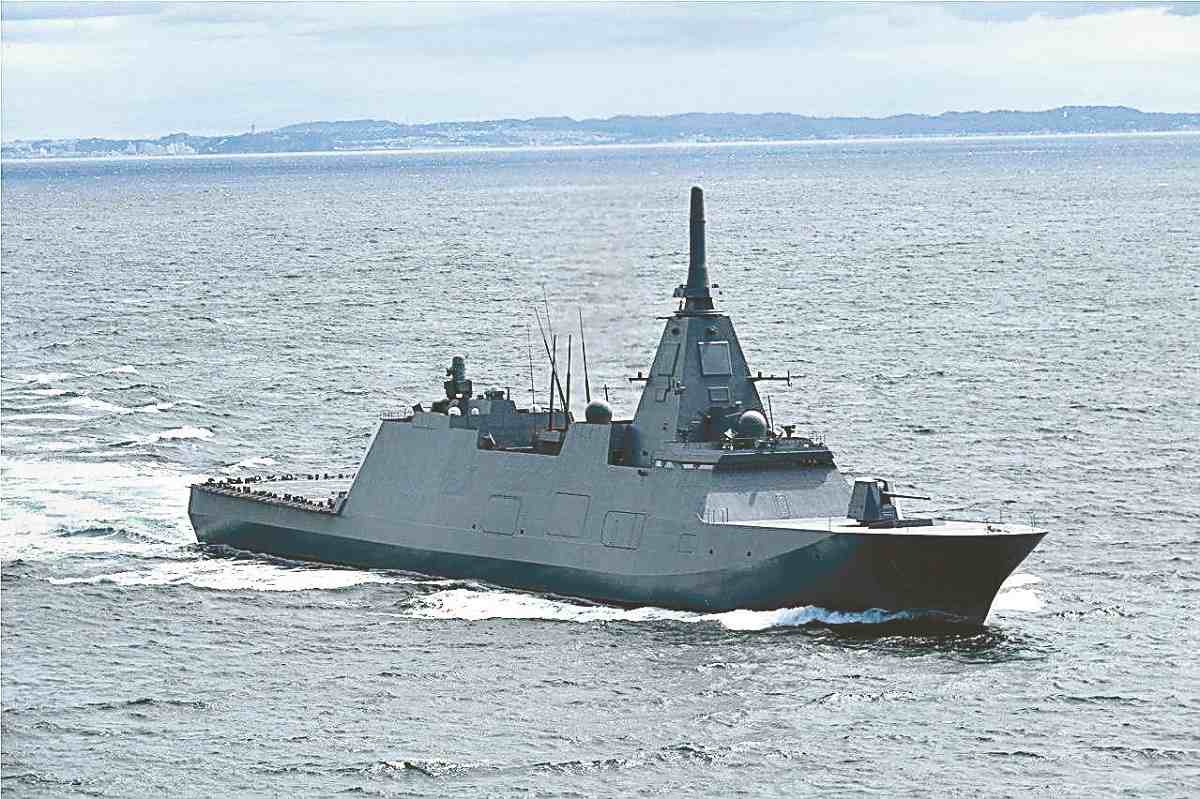

The shape of that upper mast/antenna is so unfortunate... Poor ship floating around with an "adult novelty" stuck to the top of the bridge...
Hope that goes better than their Submarine bid. I still think a modified Soryu class (longer for more fuel tanks and batteries) would have been just about perfect for the Aussies and they'd have half a dozen of them delivered by now. Granted, it's a diesel/AIP boat not a nuclear boat. But at the time Oz was very anti-nuclear.Japan Considering Bid to Join Australia’s Frigate Project; Boost to Domestic Defense Industry Expected
<p>The government is considering launching a bid to jointly develop new frigates with Australia, The Yomiuri Shimbun has learned.</p>
aonestudio
I really should change my personal text
- Joined
- 11 March 2018
- Messages
- 2,881
- Reaction score
- 7,123
When procurement starts. Asahi's were 25DD (2013), but construction didn't start until 2015
Attachments
Forest Green
ACCESS: Above Top Secret
- Joined
- 11 June 2019
- Messages
- 8,256
- Reaction score
- 13,976

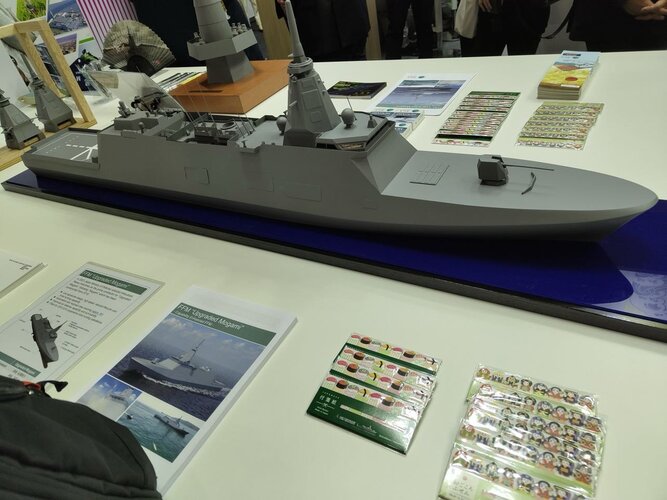

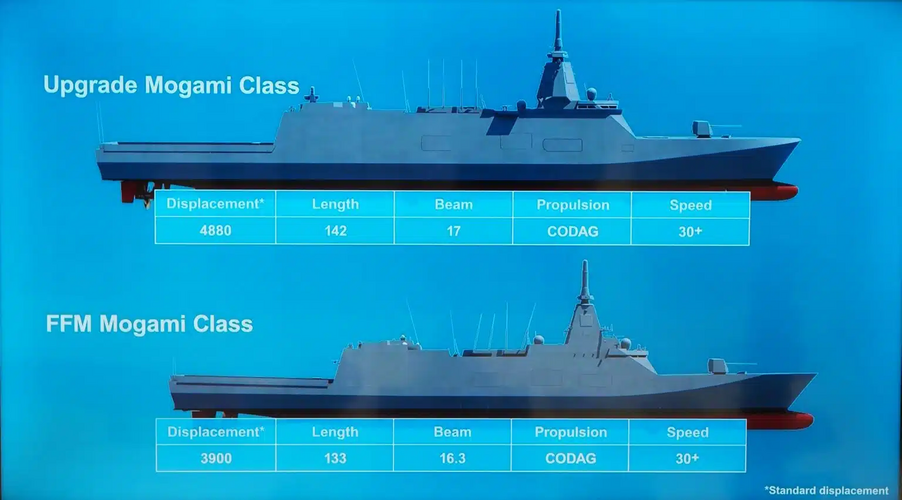

"Upgraded Mogami" Is The New "New FFM", Looking At Australia
Japanese builder MHI redesignates the Mogami FFG successor as "Upgraded Mogami", seemingly positioning the design for Australian contract.
www.navalnews.com

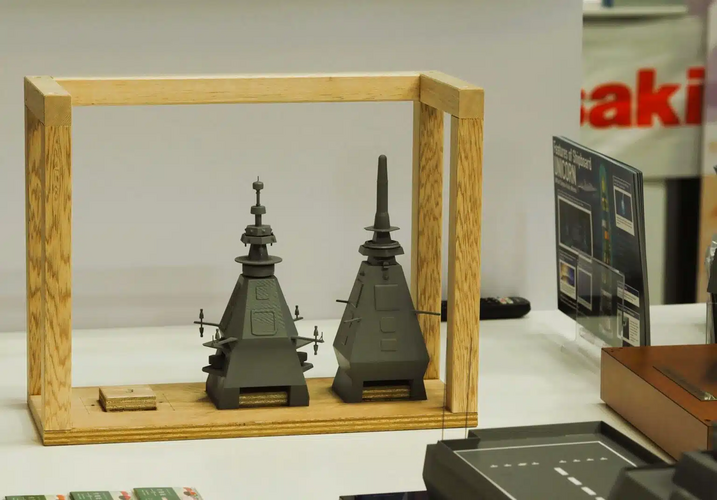

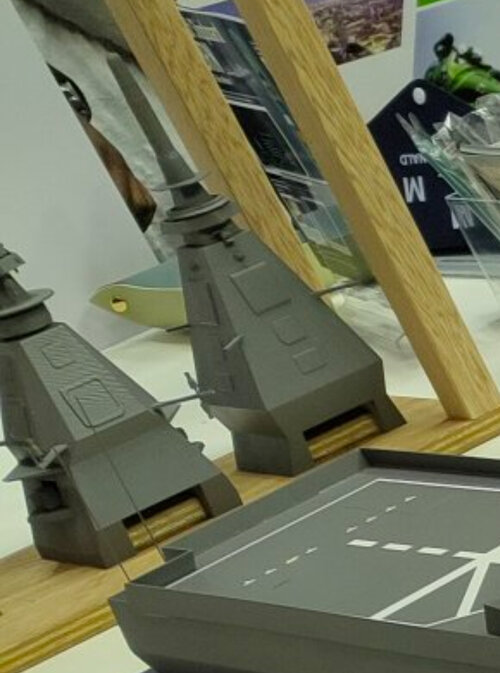

New mast proposal for export customers of “Upgraded Mogami” to the left, an alternate configuration also featuring the prominent “Unicorn” integrated mast to the right.
Faster and stealthier: Japan's pitch to clinch $10bn Australian warship prize
Japanese officials claim their Mogami frigate is faster, stealthier and better suited to operate alongside the United States than a rival warship offering from Germany.
www.abc.net.au
The gov participation for the program is really crazy and was absent for literally every other defense export proposal from Japan.
View: https://x.com/ModJapan_en/status/1868938391007776824
Just goes to show how serious they are. I believe the new FFM will form the basis, which means Japan is trying to give Australia all the latest advancements in the design.
Now if only the P-1 had the same level of support …
Now if only the P-1 had the same level of support …
Last edited:
In other news, Mogami-class #10; Nagara just launched.
news.yahoo.co.jp
海上自衛隊の最新鋭もがみ型護衛艦10番艦「ながら」進水 艦名は長良川に由来 旧海軍軽巡洋艦の名を継承（高橋浩祐） - エキスパート - Yahoo!ニュース
海上自衛隊の最新鋭もがみ型護衛艦（FFM）10番艦の命名・進水式が12月19日、三菱重工業長崎造船所（長崎市）で行われた。「ながら」と名付けられた。海上幕僚監部広報室によると、艤装（ぎそう）やさまざま
TeourdBeourglaer
ACCESS: Restricted
- Joined
- 8 August 2022
- Messages
- 22
- Reaction score
- 18
I think we have a winner!

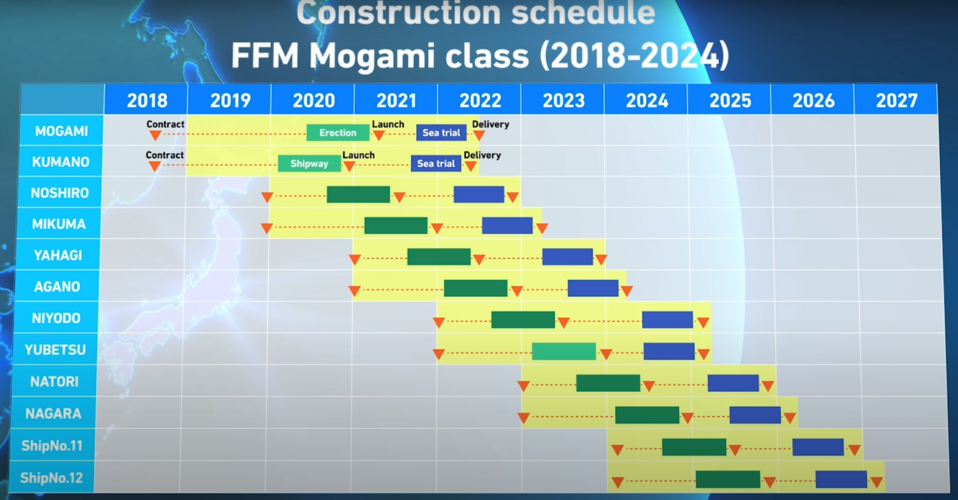

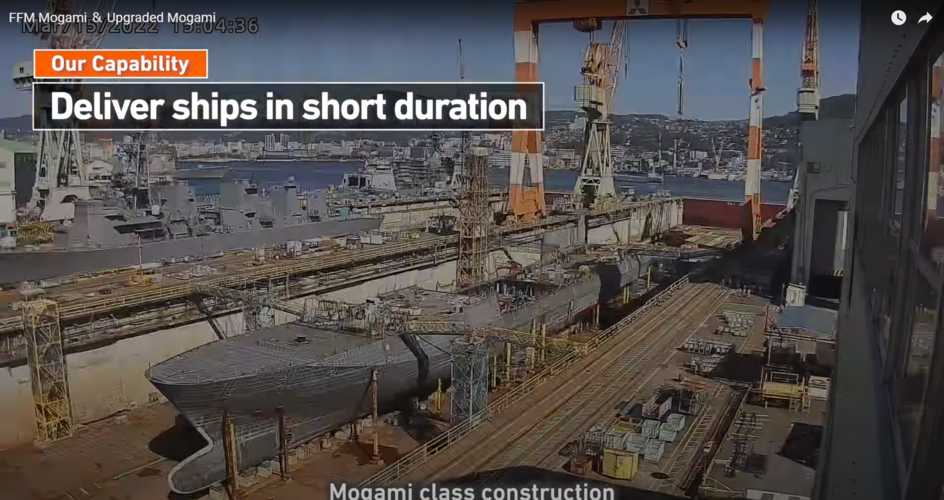

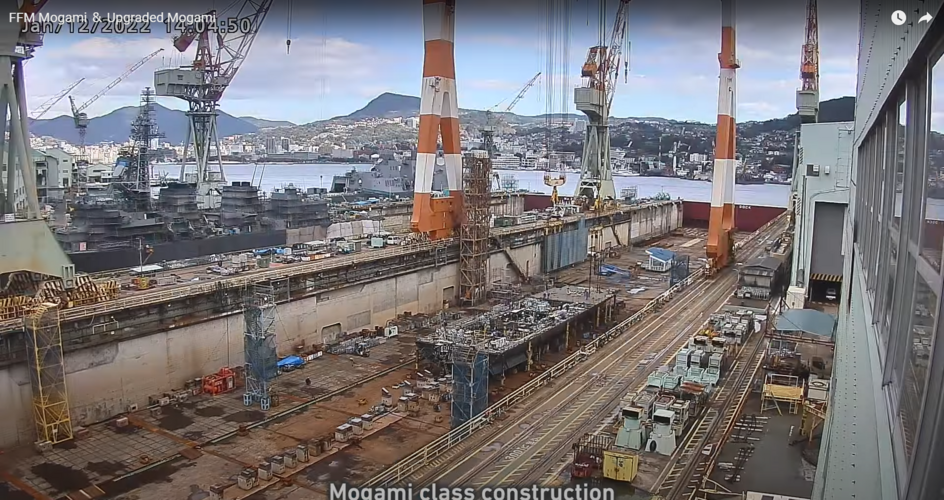

Not to mention, the first JMSDF Mogami hull launched in I think 2018? And they just launched their 10th today?
10 hulls built in 6-7 years?
But, just change the CEAFAR section of the mast only!
Whatever you do, don't completely gut-out and redesign the interior, then tell your government it's a "mature design that can immediately be mass produced", only to backtrack a year into production and decide that the first hull is actually going to take at least 9 years to complete. Then act confused as to why everyone's so pissed off....
Don't do that^^^
Not to mention, the first JMSDF Mogami hull launched in I think 2018? And they just launched their 10th today?
10 hulls built in 6-7 years?
But, just change the CEAFAR section of the mast only!
Whatever you do, don't completely gut-out and redesign the interior, then tell your government it's a "mature design that can immediately be mass produced", only to backtrack a year into production and decide that the first hull is actually going to take at least 9 years to complete. Then act confused as to why everyone's so pissed off....
Don't do that^^^
kqcke for you
PUMA PUMA PUMA
- Joined
- 3 November 2022
- Messages
- 1,123
- Reaction score
- 1,431
Then you break the ship as the CMS can't communicate with it (if you even can fit it).
The thing is RAN said minimal changes to an active duty design for the first hulls. Now both mogami and meko A200 would be close to completly new system with new weapon system where FFM in theory can't even follow those requierments. Its just too 85% an mogami. Thats not minimal changes (or even in service for that matter).
Hi,
Although it is probably a highly laudable approach to try and not change much, in practice that may not always be possible. For instance,it appears that the Magami classuses the MT30 GasTurbine engine. However, the Anzac and Hobart classes appearto use LM-2500 gas turbines. While a new gas turbine can be taken into use, it willcome with an added logistics burden that includes not only a completely different chain of spare parts, but will also require additional/partially different training requirements which willmean that the RAN will have to try and ensure that they have sufficient engineersn triained for both systems. This clearly isn't an impossible task at all, but for a small navy its anothr cost and impact that has to be taken into consideration.
Additionally, while the Hobart class appears to use Caterpillar type dieselcruise engines, while the Anzacs appearto use MTU dieselcruise engines, it appears that the Mogami uses MAN Diesel engines. Once again, it is clearly not impossible to support all three different type engines in service but youcan also see that from a maintenance,supportand life cycle cost point of view there could be some desire to see if any new ship could use cruise engines that are moresimilarto those already in use on the other ship'sin the navy.
This also goeson to other less glamourous things like A/C Plants, desalination systems, electrical system components, interior and exteriorcomms systems and even pieces of outfit and furnishing, where it might be easier/more cost effective to see if there may be stuff that can be more locally sourced than possibly having to rely on stuff that may have to be shipped in from over seas.
Other than thatb there are also issues as to whether the Mogami'sdesign specs fully fit with what the RAN'smission may be. There probably are big differences between the two, but since the RAN has to patrol the Souther Sea, you will probably need to ensure that the desing's range, operating temperatures and possibly ice/cold weather protection levelsfullymeet the environment that the RAN intends to operate in. As noted above, these may not be too different between the two navies but it needs tobe checked and there may be needs for some changes if there are any differences.

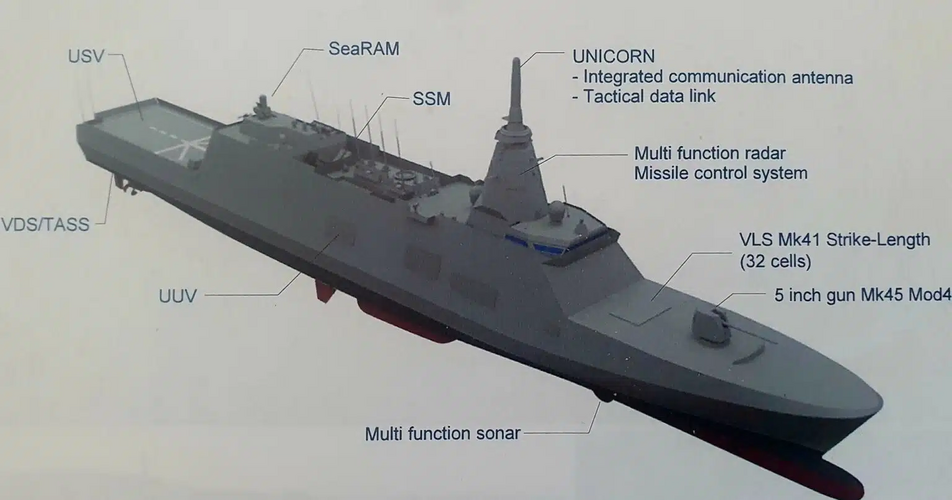

As for weapons systems and sesnors, you have already mentioned fitting CEAFAR, but I also see that the Magami's are fitted with something called the Type 18 surface to surface missiles, type 12 torpedoes, and a range ofother electronics systems,that may be different to what the RAN currently uses, and as with the other systems above a decision would have to be made as to whether toadopt those systems, and instead fit systems the same as or similar to what is already in use in the RAN.
As such, in the endwhile there may be a lotof desire to not change much, any such decision would have to be balanced off with the potential additional costs, manning, training,and other logisiticsimpacts that adopting a new system may entail.
- Joined
- 11 February 2007
- Messages
- 2,240
- Reaction score
- 3,423
Commonality isn't an issue as the Hunter class also use MT30 and MAN diesels.
