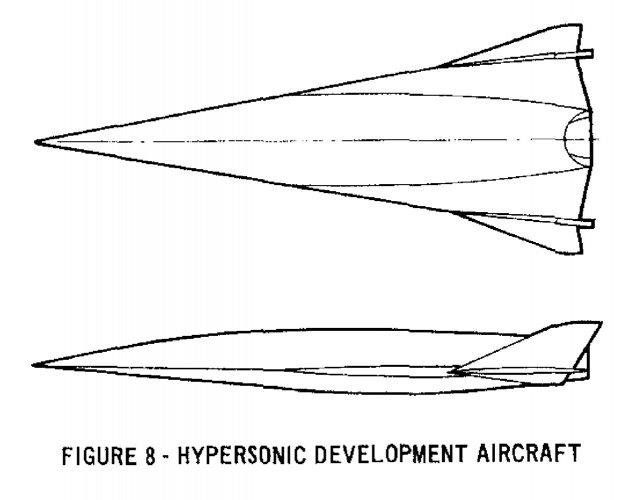

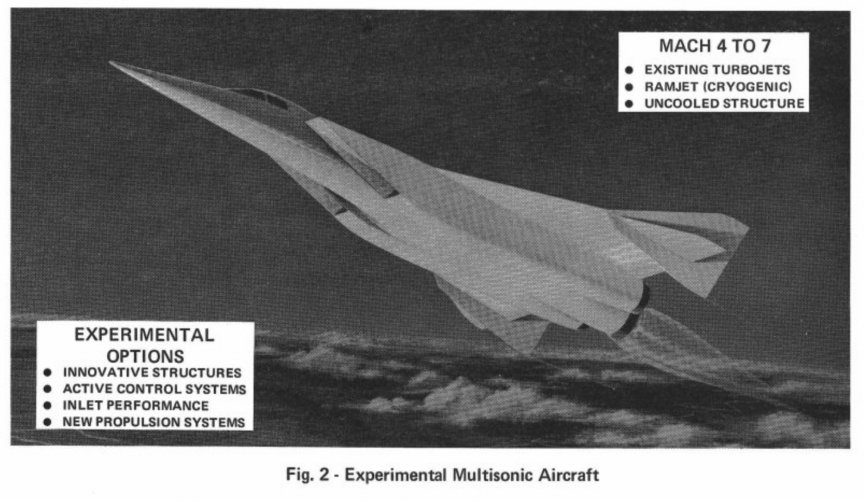

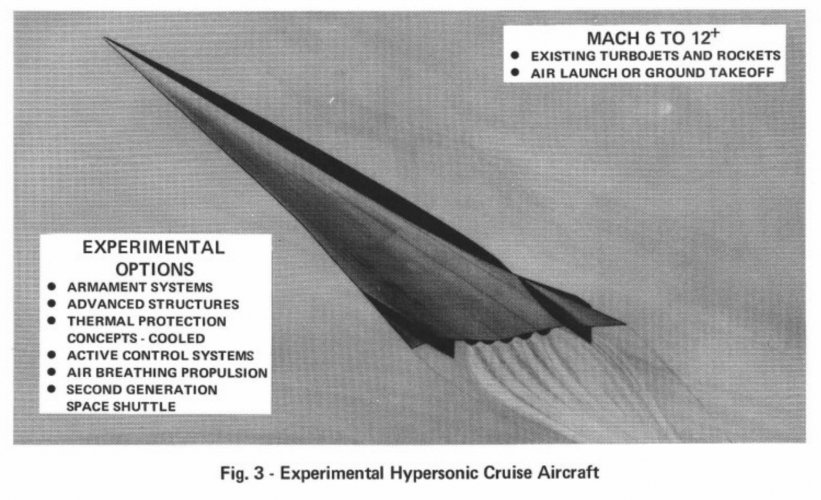

McDonnell-Douglas Hypersonic projects from the 60s and 70s

[flateric]

Bernd Chudoba cabinet treasures



[Tuomasn]

Bernd Chudoba cabinet treasures

I spy a MAS-H-022N (the original early 1990s Mach 10 cruiser, ancestor of DF-7/9 and X-43) scale model in the last three pictures, never seen one of that configuration before (see here).

Edit: On closer look at the two later pictures I think its actually the 022I variant (based on rear control surface configuration).



[bobbymike]

I wonder if these older engineers/model makers/scientists sadly look back at what might have been.



[Tuomasn]

Bernd Chudoba cabinet treasures

It looks like two more pictures were added? What I can ID, clockwise from bottom left:
1. Mostly looks like a very crude variant of Lockheed SR-72 designs?
2. Can't quite identify this though looks somewhat familiar, anyone have ideas?
3. McDonnell Douglas MAS-H-022I Mach 10 cruiser.
4. Boeing X-51A.
5. McDonnell Douglas hypersonic boost-glide vehicle from late 1960s (same model as this one?) Also in the first picture.
6. X-30 Copper Canyon duPont baseline with added canards.
7. Boeing X-51 again.
8. German Sänger 2/Horus TSTO (is this the Revell model actually?)
9. McDonnell Douglas Model 176/FDL-7 variant (and on the poster on the wall which also appears here).



[flateric]

2. Looks like one of AFRL Road Runner GHVs
8. Yes, this is apparently Revell 1:288 Saenger 2 kit



[Mark Nankivil]

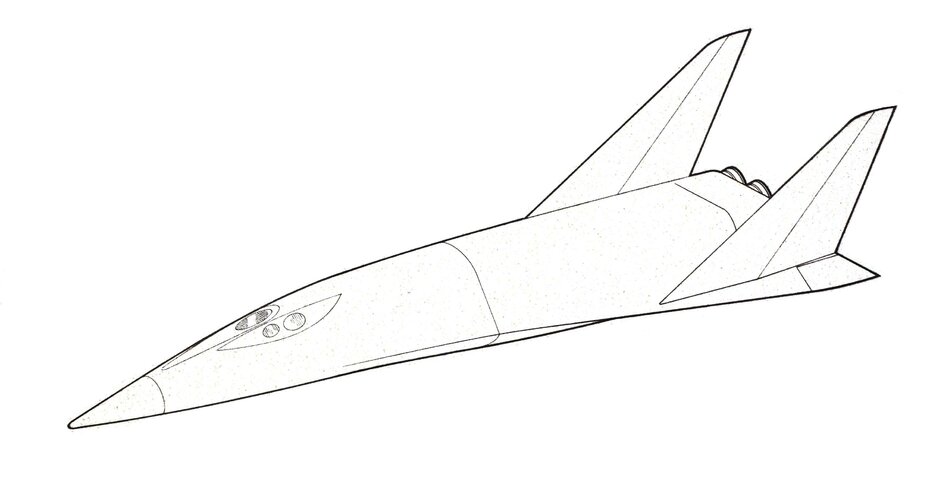

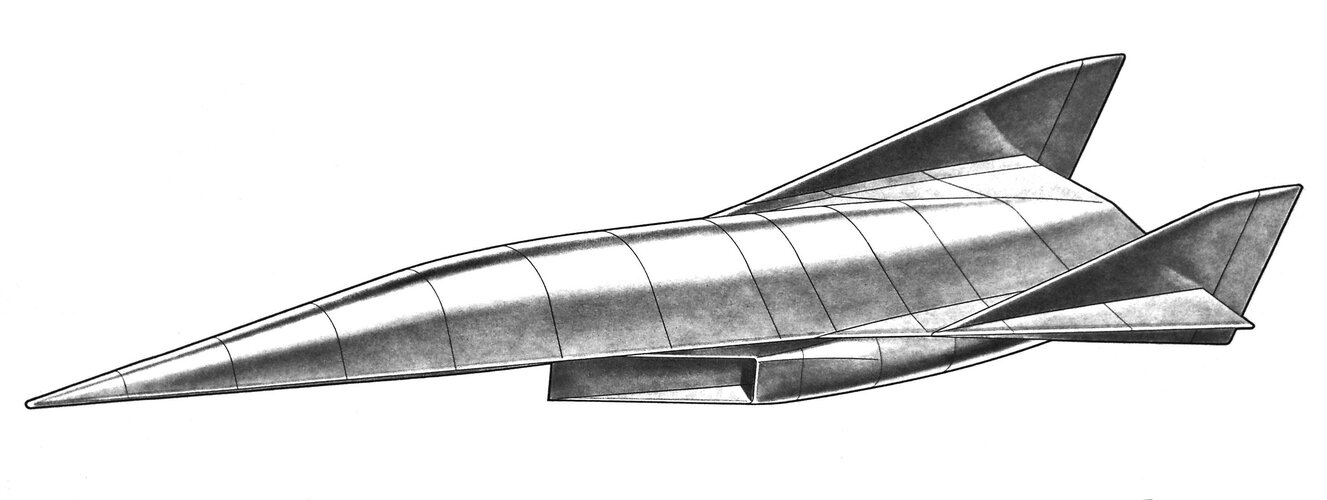

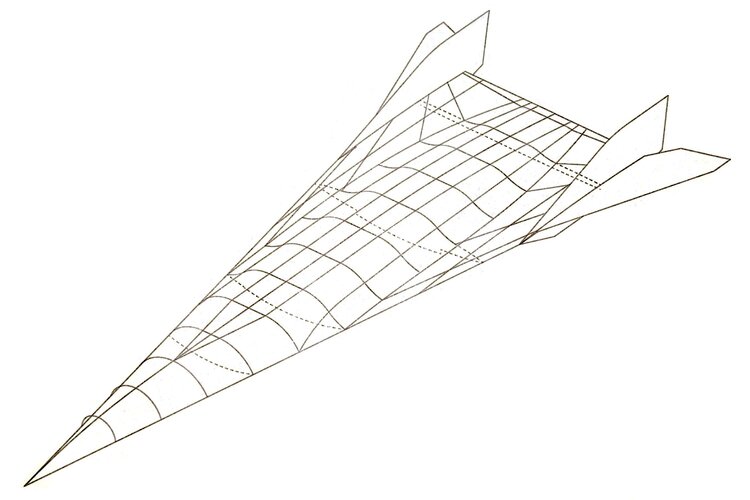

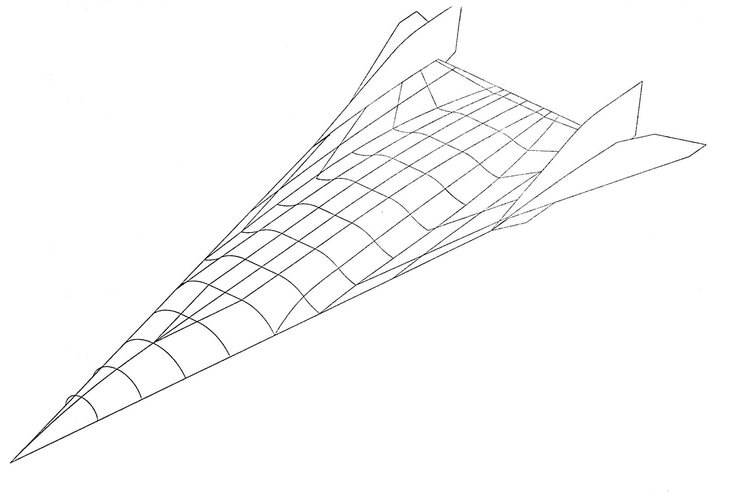

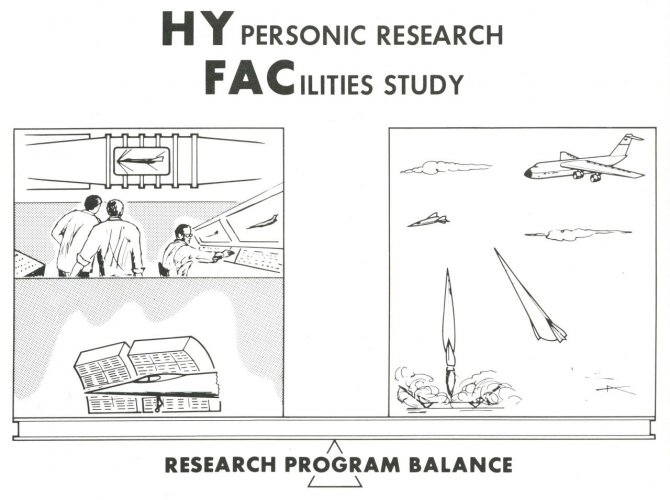

Seems appropriate to this thread, McAir drawings courtesy of the Gerald Balzer Collection.

Enjoy the Day! Mark



[Scott Kenny]

Seems appropriate to this thread, McAir drawings courtesy of the Gerald Balzer Collection.

Enjoy the Day! Mark

2298 has much bigger tail fins than I expected...



[Tuomasn]

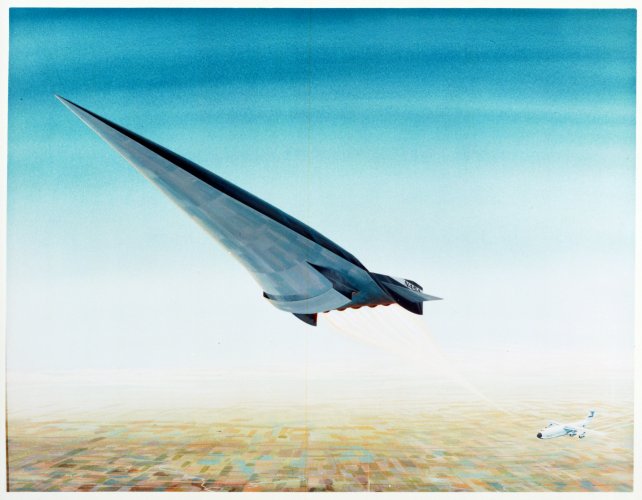

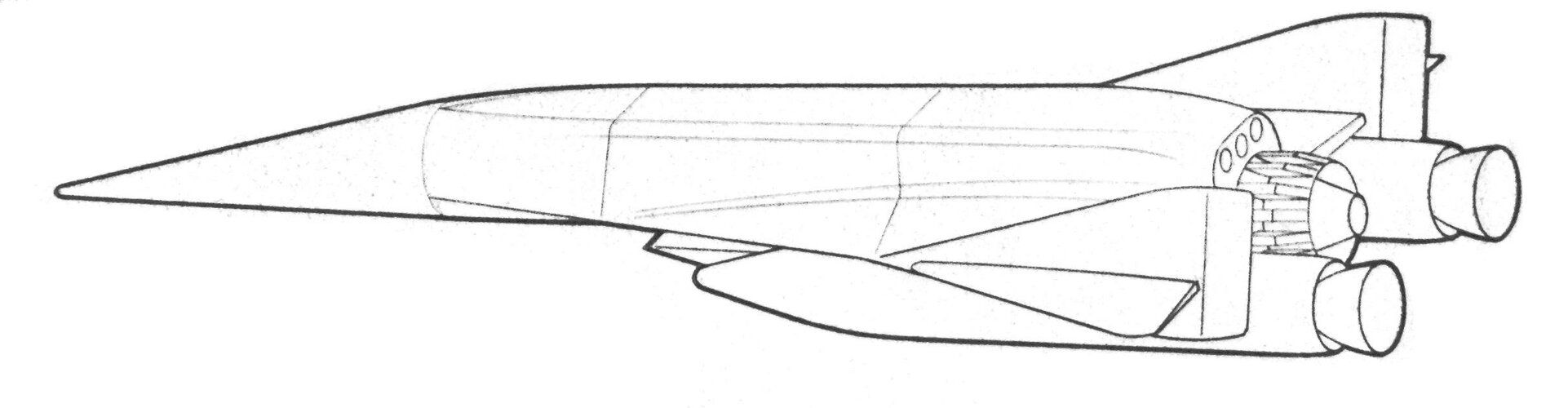

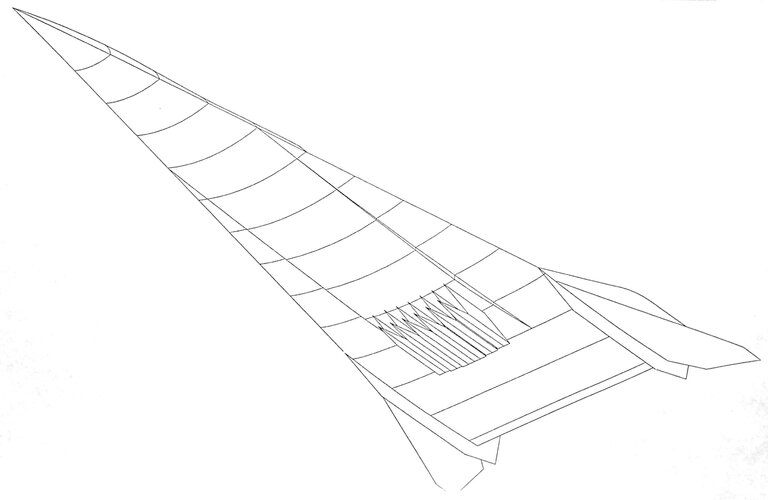

First, second and fifth images are McDonnell Douglas "Orient Express".

Also, all the images had already been posted in the McDonnell-Douglas Advanced Design Proposals - Name That Design Game thread a bit over a year ago, however unfortunately the mods apparently never had time to move the identified ones to appropriate topics. But this is not meant as a criticism towards Mark, huge thanks for all the gems from the archives you are sharing with us!
