LTV/Vought V-505 and V-507 Navy fighters to VFX requirement

[NoBarrelRolls]

As I understand it the V-505 was a proposal which predated the VFX (F-14) requirement. The V-507 was a development of the V-505 to fully address the VFX requirements.

Thanks @overscan (PaulMM)



[bercr]

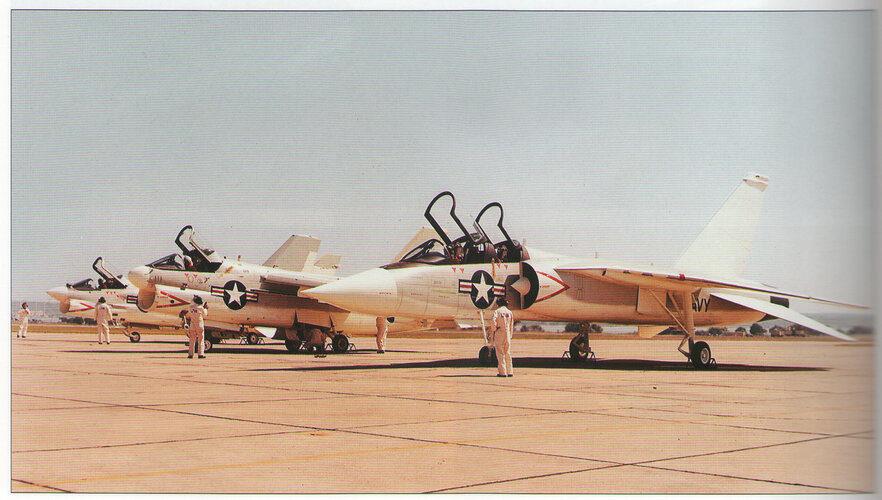

Another nice view found on the net of V-507 mockup with Corsair and Crusader in background. Love this aircraft.
Seems to be scanned from a book or a magazine, do you know which one?
