LTV/Vought V-505 and V-507 Navy fighters to VFX requirement

Mark Nankivil said:
Greetings All -

From the Vought Archives, V507-22. The drawing in the report did not have the top view :(

Enjoy the Day! Mark


Look at reply #13 of this Subject Mark. :)

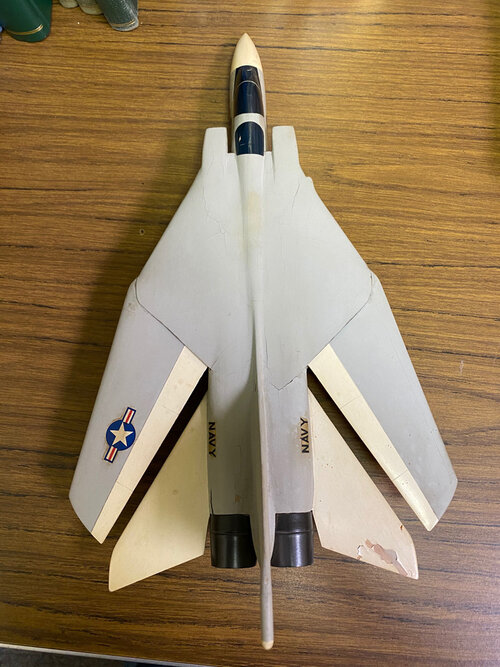

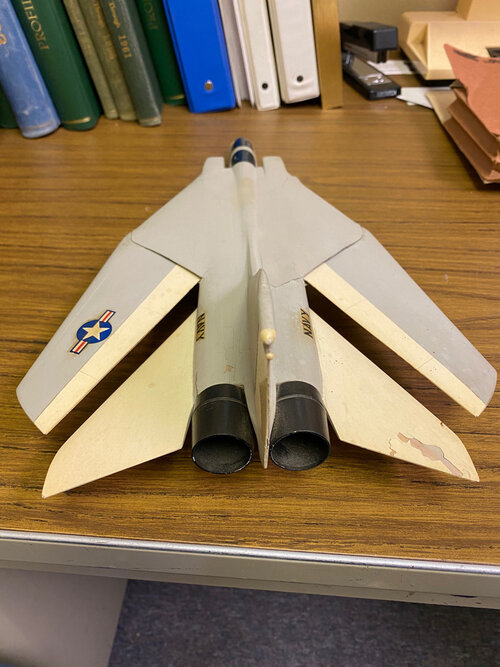

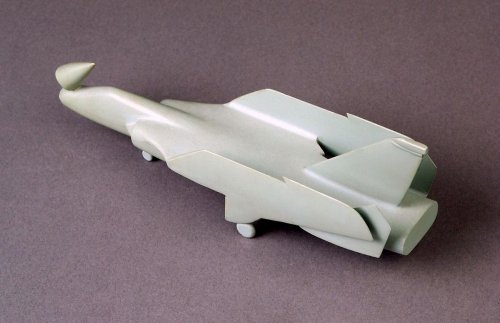

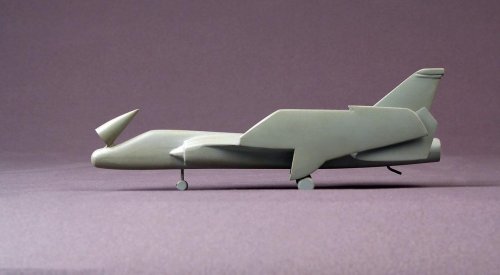

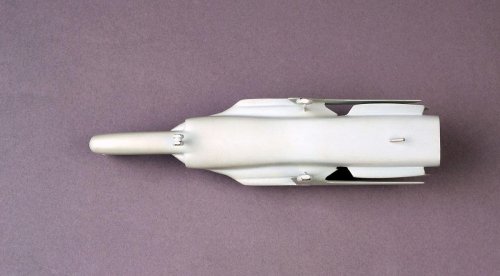

Here's an aircraft carrier spotting model from Vought. I don't know what type it represents, but maybe one of you graphics wizards can unfold the wings, stabs and radome which might help visualize the overall shape.

I'm impressed by the wing fold being so close to the root, which makes the airframe fit in a very compact area.

Many thanks to whomever can figure this one out.


Attachments

  • Vought Spotting Model 01.jpg
    Vought Spotting Model 01.jpg
    106.3 KB · Views: 1,408
  • Vought Spotting Model 02.jpg
    Vought Spotting Model 02.jpg
    52 KB · Views: 1,333
  • Vought Spotting Model 03.jpg
    Vought Spotting Model 03.jpg
    108.4 KB · Views: 1,203
  • Vought Spotting Model 04.jpg
    Vought Spotting Model 04.jpg
    93.5 KB · Views: 1,219
Great find Circle-5,


I suggest that aircraft was for VFAX competition,but I can't ID it.

Closest to V-507 which had several iterations.

Possibly an inboard pivot iteration? Folding glove (but that would be insane!)?

Last edited:
I would concur with the V-507. There is another jet with a similar configuration, but the 507 went further towards possible production.


Bill

Yes, I think the V-507 might indeed be the answer. As for the folding glove, I can't decide if that idea is wickedly forward-thinking or just plain wrong.

If these models were meant, say, to simulate the general arrangement of a squadron of V-507 on the deck of an aircraft carrier in scale model form (to give some officials a better idea of how compact they were once folded and how many aircraft could fit there) then not only the markings and details would be unnecessary on these models, but the folding of the wing wouldn't really have to be accurate so long as the dimensions were correct. Just my two cents.

circle-5 said:
Here's an aircraft carrier spotting model from Vought. I don't know what type it represents, but maybe one of you graphics wizards can unfold the wings, stabs and radome which might help visualize the overall shape.

I'm impressed by the wing fold being so close to the root, which makes the airframe fit in a very compact area.

Many thanks to whomever can figure this one out.

Here's how I think the folding works. The wing sweep pivot is in the part of the wing that folds up. To unfold, the wing is first unswept, i.e. it swings up vertically. That moves the semicircle that is hanging down in the swept and folded position so the wing can be unfolded. When the wing is swept back in flight, that semicircle slides into a cavity in the fixed inboard section of the wing.

Tailspin Turtle said:
Here's how I think the folding works. The wing sweep pivot is in the part of the wing that folds up. To unfold, the wing is first unswept, i.e. it swings up vertically. That moves the semicircle that is hanging down in the swept and folded position so the wing can be unfolded. When the wing is swept back in flight, that semicircle slides into a cavity in the fixed inboard section of the wing.

I tried it, but I don't think I got it right...


Attachments

  • Vought V-507 VG Guess.jpg
    Vought V-507 VG Guess.jpg
    107 KB · Views: 1,160
you need to split that surface into glove and wing sections, attach the glove section in place, and then move out and rotate the remaining wing panels. If you send me the component parts I can do that. There will be guesswork involved as to where the glove ends and how much overlap of course.

I think a combined fold/rotate is part of the wingfold mechanism. That, and a folding wing glove.

index.php

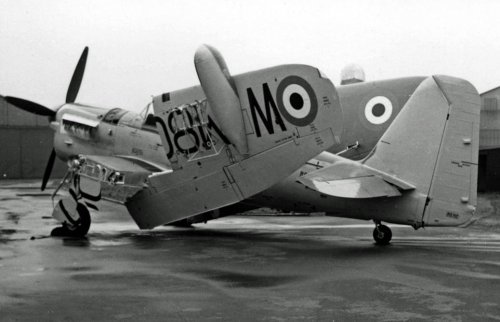

During/just before WW2, Fairey and Grumman designed several aircraft with backward folding wings that also rotated on folding. I think Vought borrowed that idea for this spotting model.

Many laborious hours were spent over sketches and with models trying to figure out a way to twist the wings to a vertical position and then fold them back along the fuselage. Finally, Roy Grumman, a fine engineer, found the steps. He saw in all probability that the solution revolved around a pivot. So he took a soap eraser, such as those used in drafting, and used that to represent the fuselage of the plane. Then he took two paper clips for the wings and bent out the short end of each of the clips so that it was normal or perpendicular to the body of the clip. Then he began sticking these short ends into the eraser until he found the proper angle and position at which the clip, when twisted to a vertical position, would also fold back snugly against the eraser. Eureka! It was as simple as that. Once the principle of the “STO-Wing” (as it came to be called) was established, all that remained was some hard engineering work by Grumman’s fine team of engineers to make the mechanism strong and fail-safe.
The STO-Wing was applied to the Wildcat, the Hellcat and the TBF Avenger. The Grumman folding wing is still in use today, notably on the larger carrier-based aircraft built by Grumman
Source: https://www.asme.org/getmedia/2d64abc8-3fa3-4d29-92d4-40db4777e8b2/238-Grumman-Wildcat-Sto-Wing-Wing-folding-Mechanism.aspx

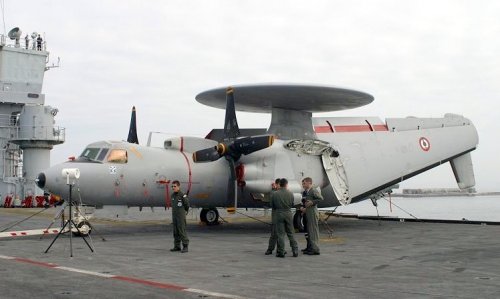

Grumman's folding mechanism is still in use today. Firefly and Hawkeye images from Wiki.


Attachments

  • Grumman Hawkeye.jpg
    Grumman Hawkeye.jpg
    55 KB · Views: 556
  • Fairey Firefly T7.jpg
    Fairey Firefly T7.jpg
    72.6 KB · Views: 509

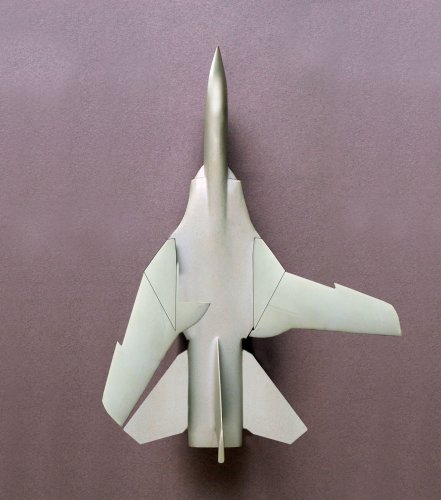

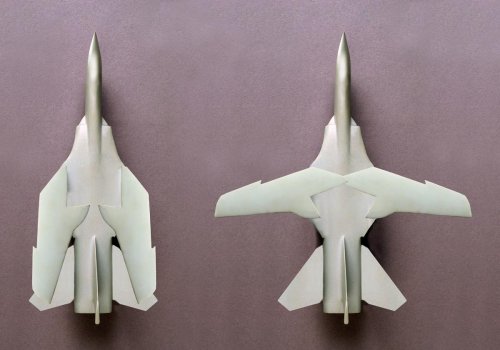

So - here's my take - I agree with Tommy, I believe. The fold is inboard of the pivot so there is a section of glove as well as the wing. While still folded vertically, the wing sweeps fully forward (upwards). Then the glove section folds down - as on right hand side. Once it is down, you can see that rearward sweep will tuck the projecting section of wing into a rear slot on the glove - as shown here on left hand side.


Attachments

  • Vought-V-507-Spotting-Model.jpg
    318.1 KB · Views: 592
Thank you Overscan. Though you and Tommy are probably correct, the decision to articulate a portion of the glove sections upward, with the wing pivots contained inside, seems like a particularly heavy, complex and fragile arrangement to save a bit of carrier deck space. It would not surprise me if Vought engineers intended to top off this challenge with pivoting underwing hardpoints as well...

If we all agree this is a V-507 model, perhaps this topic could be merged ? Or perhaps add "V-507" to the title ?

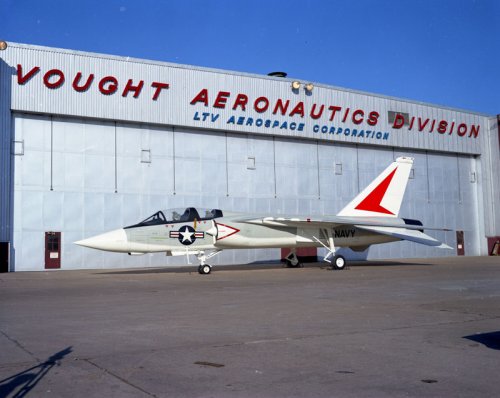

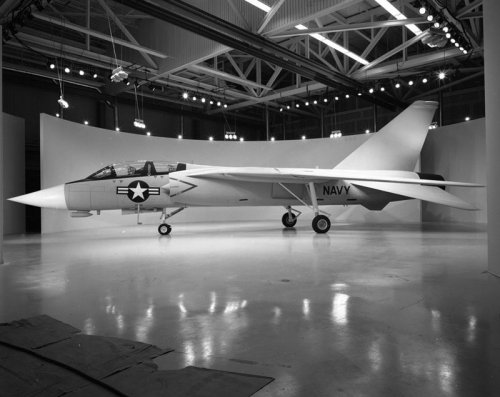

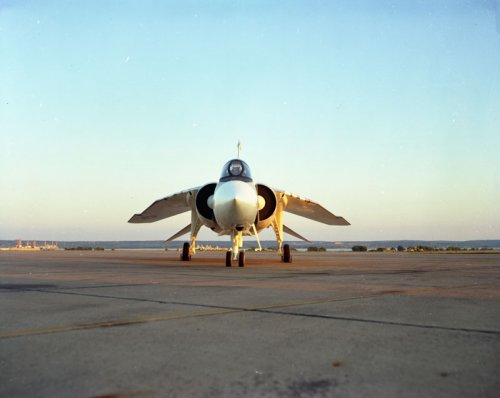

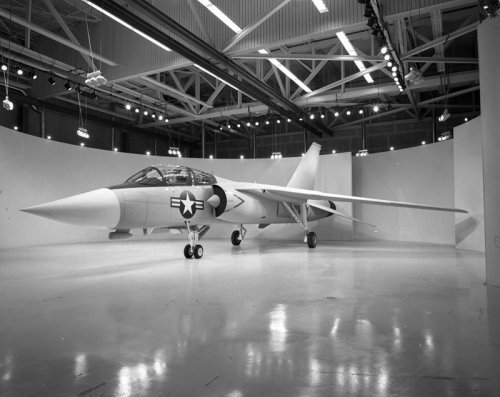

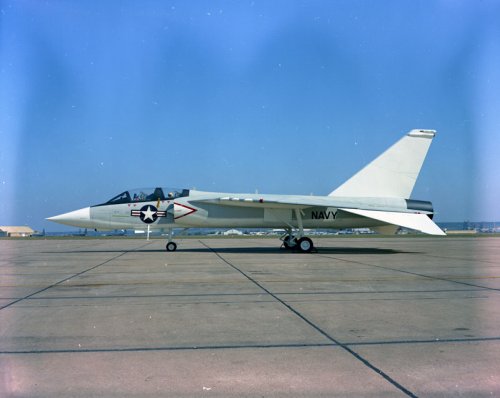

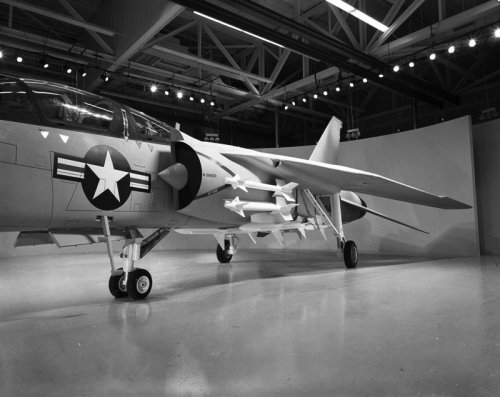

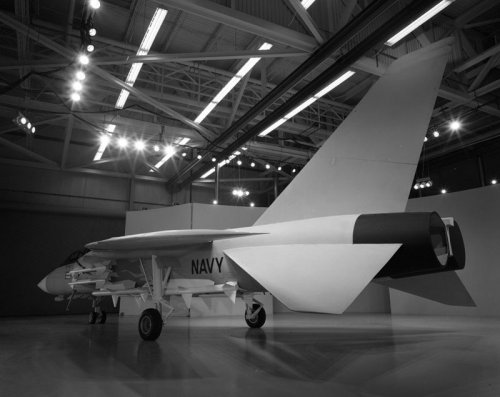

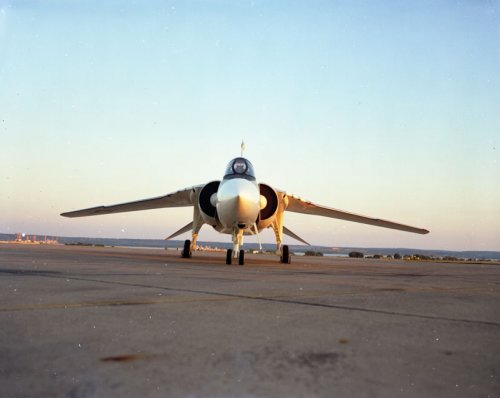

Here are some images of the V-507 mockup at various times in it's life.
VAHF material, my scans.


bill


Attachments

  • V-507WingsSweptForward-VAHF.jpg
    51.6 KB · Views: 583
  • V-507WingsSweptAft-VAHF.jpg
    52.4 KB · Views: 605
  • V-507OutsideWithCrewSideView-VAHF.jpg
    71.6 KB · Views: 656
  • V-507LowFrontWithSparrows-VAHF.jpg
    55.9 KB · Views: 831
  • V-507FinalConfigOutsideHangarDoor-VAHF.jpg
    94.5 KB · Views: 1,842

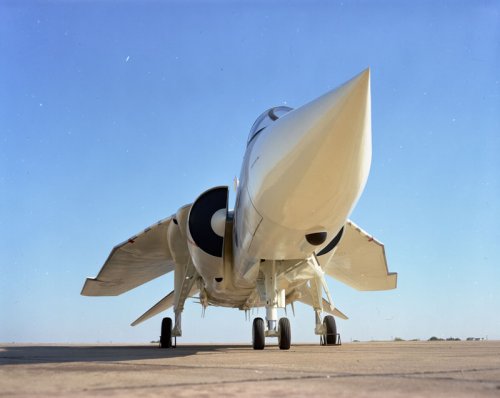

I found some images of the V-507 mock up as first revealed.
Other than paint scheme the large IRST pod under the nose
is quite prominent. VAHF images.


Attachments

  • V-507_Mockup_Early_Version_Left_Front.jpg
    101.8 KB · Views: 483
  • V-507_Mockup_Early_Version_Left_Side.jpg
    96.5 KB · Views: 468
  • V-507_Mockup_Early_Version_Left_Rear.jpg
    86.7 KB · Views: 431

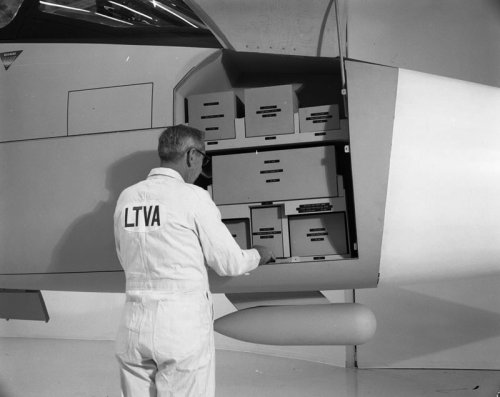

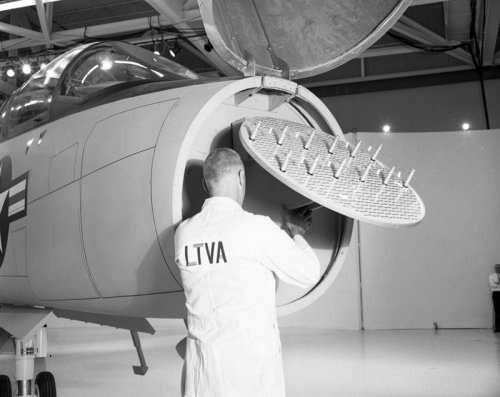

Here are some avionics bay, radar and weapons
load out photos of the V-507. VAHF images.


Attachments

  • V-507_Mockup_Early_Version_Right_Avionics.jpg
    72 KB · Views: 372
  • V-507_Mockup_Early_Version_Radar.jpg
    94.3 KB · Views: 408
  • V-507_Mockup_Early_Version_Sparrows_Sidewinders.jpg
    102 KB · Views: 472

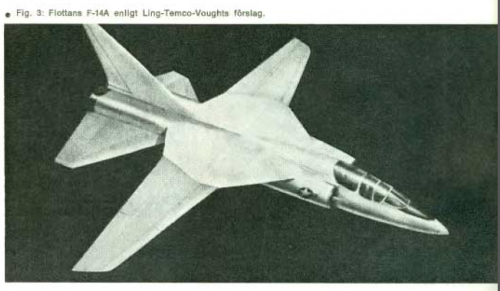

Hi,


the Vought VFX.

[font=verdana, arial, helvetica, sans-serif]Flygapennytt 1-1969[/font]


Attachments

  • Vought 1-1969.png
    Vought 1-1969.png
    583.1 KB · Views: 1,216
Vought VFX materials in the J Russell Clark collection at UT Dallas:

Box 38

1 Agreement of Understanding between LTV Aerospace 1966 for its LTV Vought Aeronautics Division and Lockheed Aircraft Corporation for its Division Lockheed- California Co.

V507 “Rough Order of Magnitude” 1968

Method of Determining Prices for Varying Lot Quantities nd

Departmental Correspondence 1968

Three photographs of Avions Marcel Dassault 1967

Aviation Magazine nd

2 VFX Pricing, V-507B Configuration 1968

Departmental Correspondence 1968

3 Space/Aeronautics, Article: Tactical Air Superiority 1968

Handwritten notes belonging to Clark on the Config VFX 1968

Report: Avionics, Armament & Engine Tradeoffs nd

Special Agreement between Dassault International and 1968

LTV Aerospace Corporation

Report: VFX Wing Package proposal CALAC vs VAD nd

Report: LTVAC-Dassault Agreements 1968

Lockheed/LTV/Univac Management Meeting 1968

4 VFX Mockup and Display Area 1968

5 Report No. 2-50000/8R-1A, Vought Model V-507 nd

Conference with Professor Courtland 1968

6 VSX Selling Prices - Telephone Discussion 1969

Technical Debriefing of VFX 1969

CVA 59 A/C Elevator Compatibility Study

Box 39

1 Vought Projects Fixed Wing VFX nd

2 Pentagon FX Presentation 1968

NASA debriefing comments relative to the VFX-1 1970

Powerplant Analysis

Highlights of Dassault - LTA Agreement on 1970

Co-operation re: Interchange, Tactical Aircraft
Know-how - VFX Program

Correspondence 1968

Memorandum 1968, 70


Attachments

  • 13418527_10209981132673663_4798544561256780879_o.jpg
    249.5 KB · Views: 2,379
  • 13433230_10209981131993646_378589029062936388_o.jpg
    540.9 KB · Views: 2,266
  • 13412122_10209981131953645_7001789951577761363_o.jpg
    503.9 KB · Views: 2,064

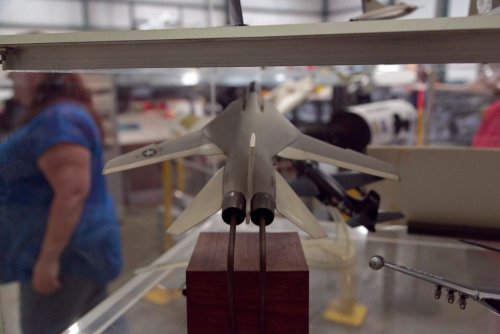

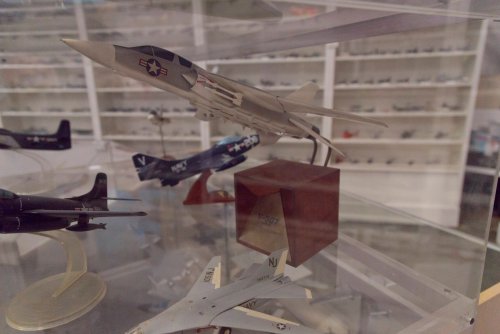

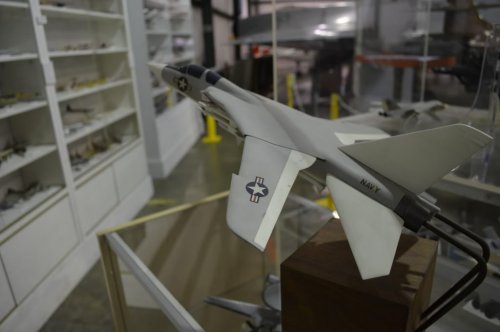

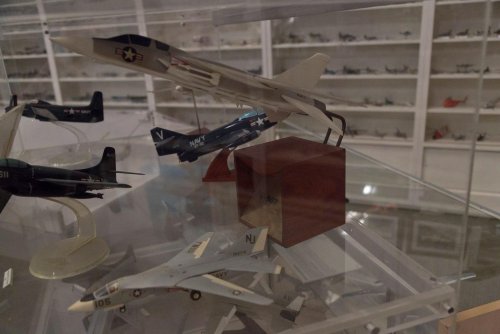

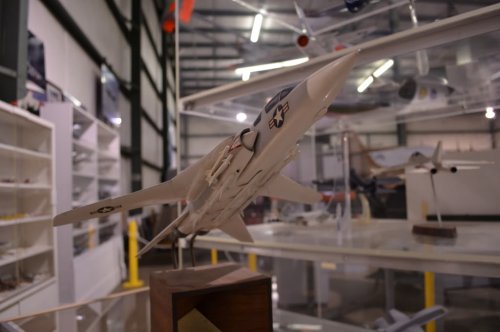

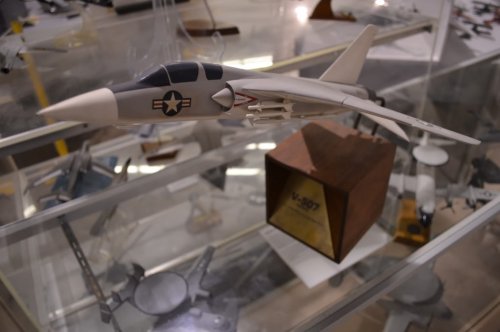

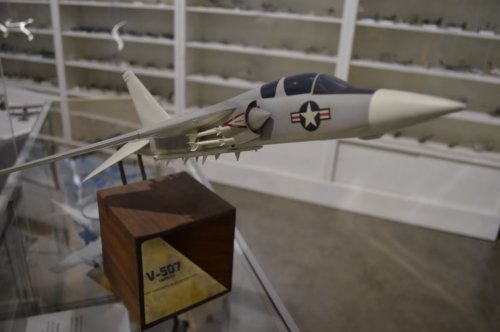

Some nice photos of the same model from modelling forum http://zone-five.net/showthread.php?t=22450


Attachments

  • DSC_0010-3.jpg
    65.4 KB · Views: 484
  • DSC_0009-3.jpg
    59.2 KB · Views: 464
  • DSC_0008-3.jpg
    50.1 KB · Views: 463
  • DSC_0007-3.jpg
    55.2 KB · Views: 1,559
  • DSC_0006-2.jpg
    69.8 KB · Views: 1,752

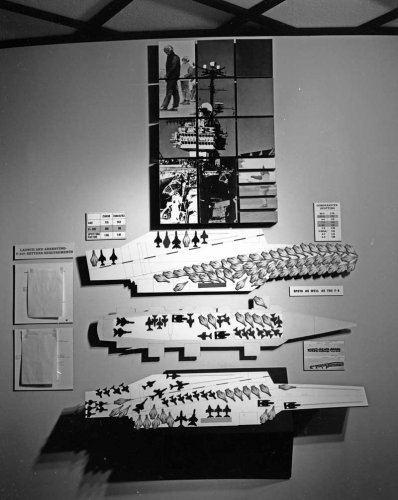

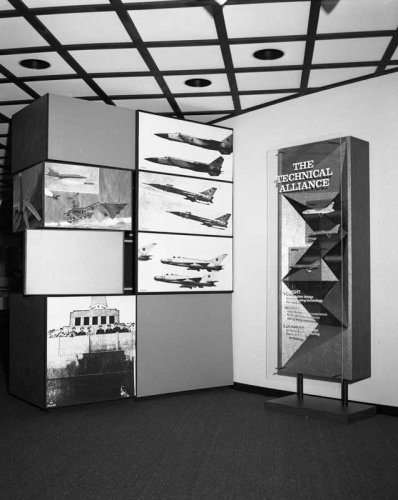

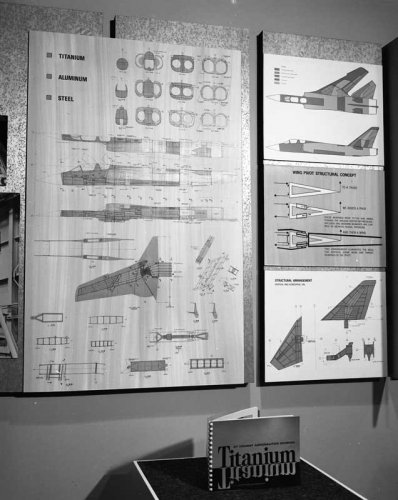

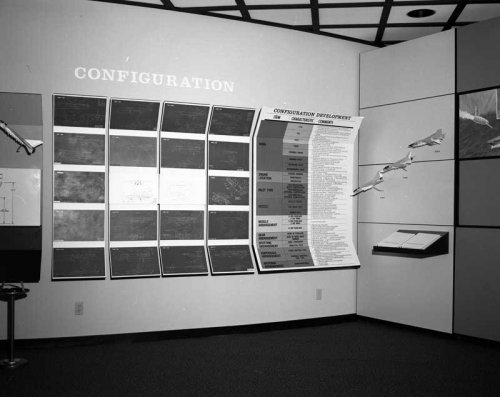

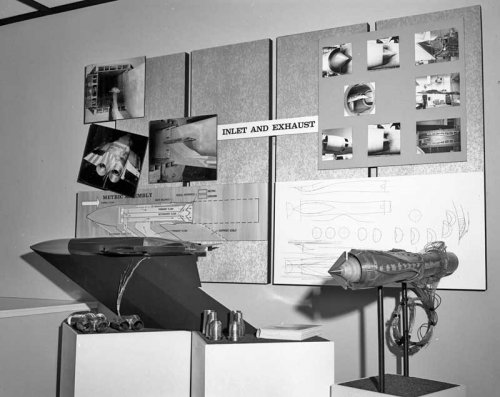

Posted by Bill at his Voughtworks blog - Info boards.



Attachments

  • V507-Technical-Alliance.jpg
    46.5 KB · Views: 480
  • V507-Spotting.jpg
    71.7 KB · Views: 475
  • V507-Materials.jpg
    55.6 KB · Views: 394
  • V507-Configuration-Display.jpg
    39.4 KB · Views: 353
  • V507-Inlet-Display.jpg
    49.6 KB · Views: 391
It wouldn't be too hard to build a 1/72 scale model of that wonderful aircraft. What you need is a Tomcat (thank you, Captain Obvious ::) ) some Mirage IV air intakes, and a F-111 vertical tail.

I'd be happy with just one of those ... ;D

Good Day All -

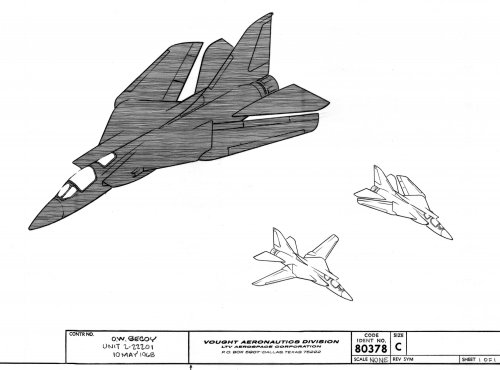

Vought drawing - possibly V-505.

Enjoy the Day! Mark


Attachments

  • zVought - possibly V-505 May-10-68.jpg
    zVought - possibly V-505 May-10-68.jpg
    315.4 KB · Views: 1,427

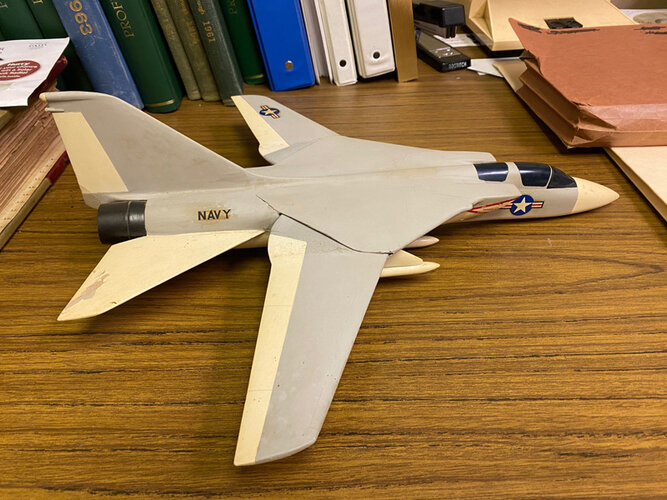

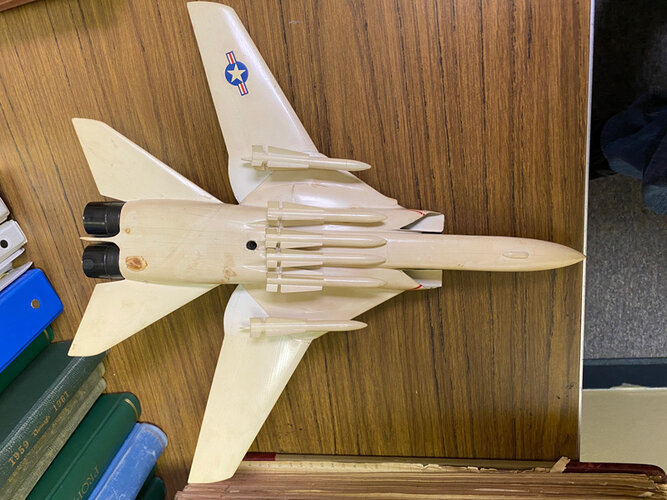

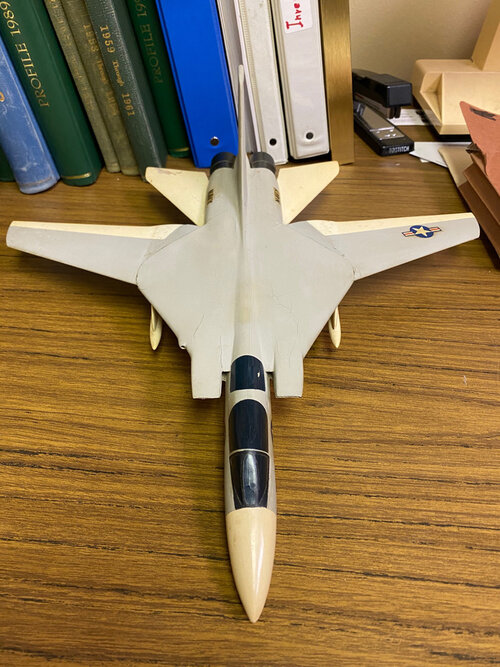

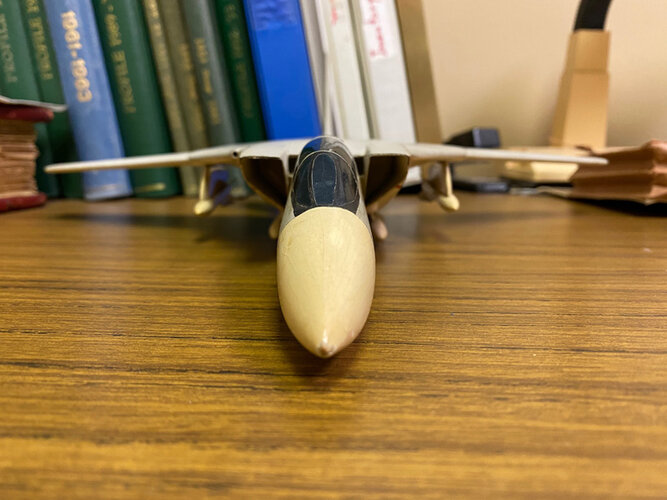

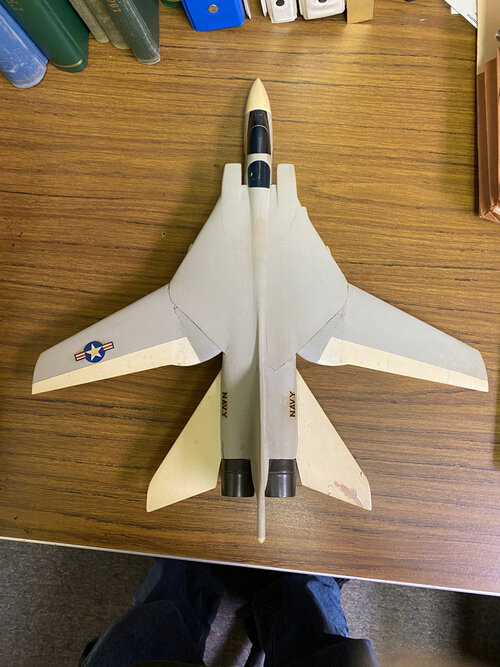

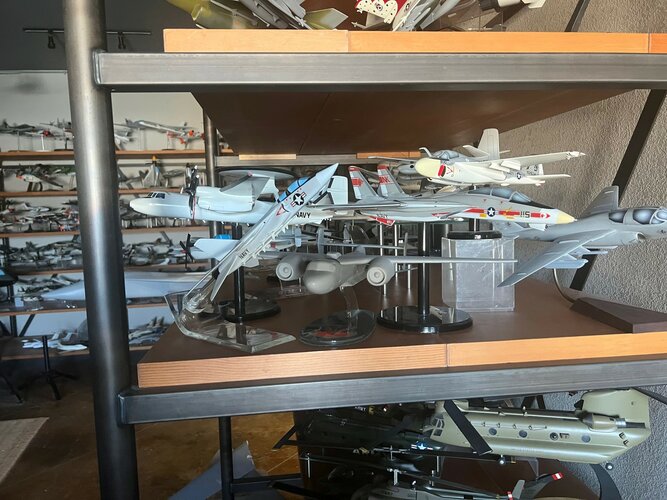

Ran across this little jewel of a find recently. V-505 model.


Attachments

  • IMG_0837.jpg
    298.9 KB · Views: 255
  • IMG_0838.jpg
    354.7 KB · Views: 228
  • IMG_0842.jpg
    235.4 KB · Views: 224
  • IMG_0840.jpg
    369 KB · Views: 225
  • IMG_0844.jpg
    380 KB · Views: 221
  • IMG_0846.jpg
    164.6 KB · Views: 237
  • IMG_0848.jpg
    237.1 KB · Views: 261
  • IMG_0850.jpg
    221.6 KB · Views: 317

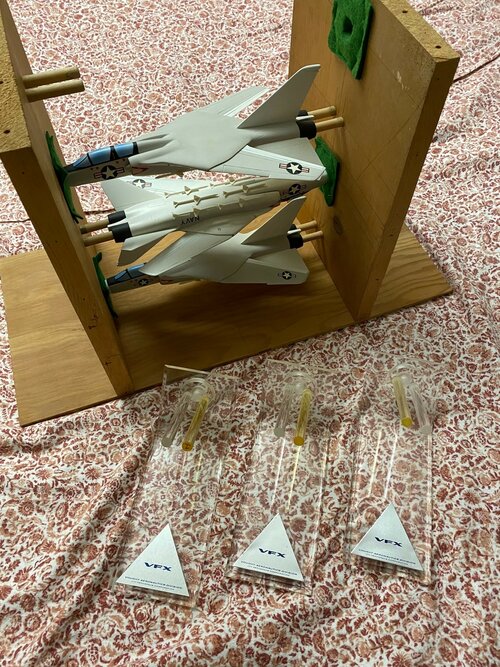

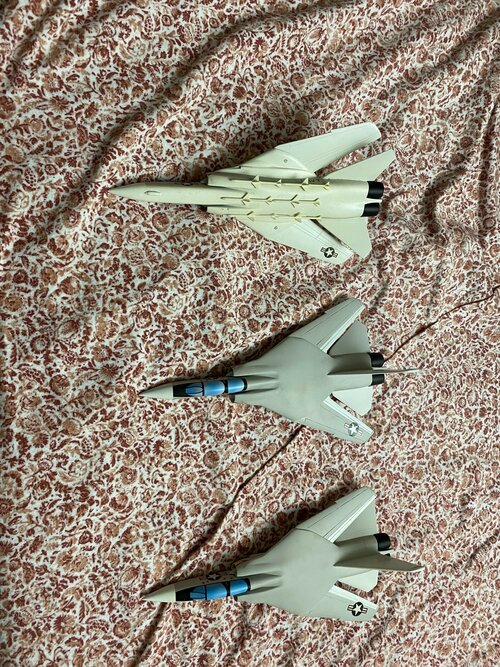

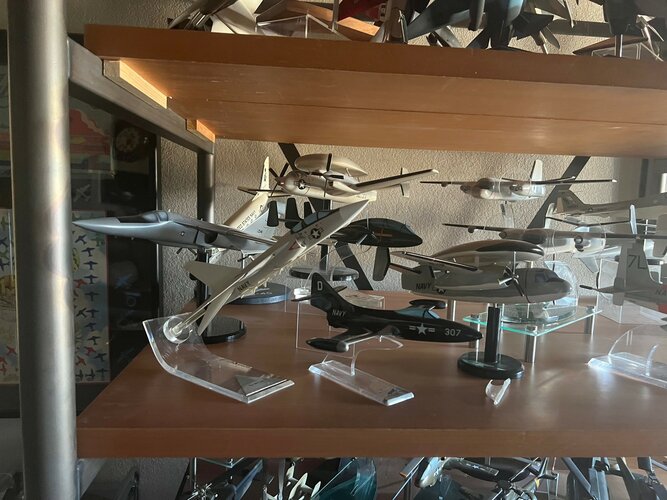

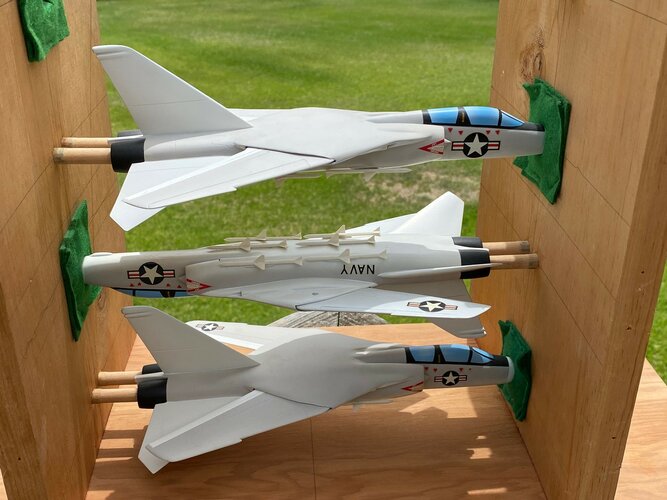

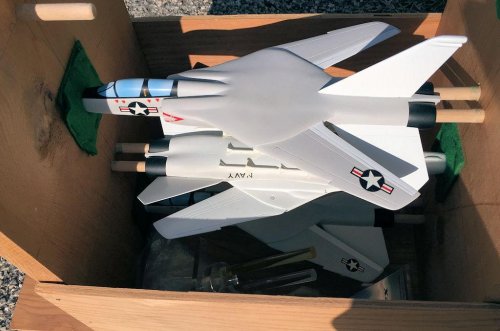

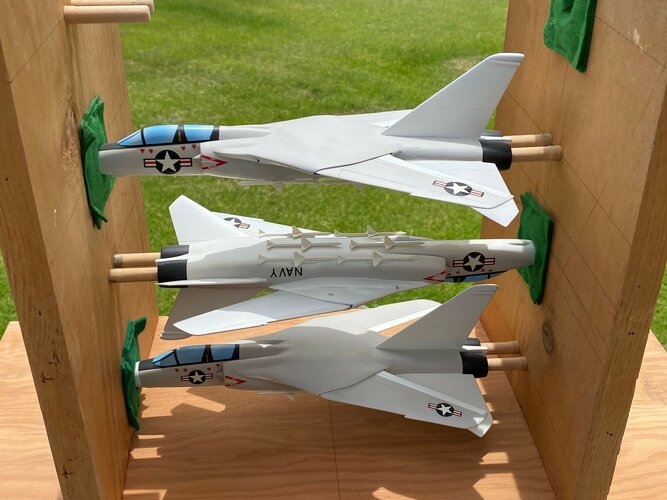

Traded a couple of these to a friend and took a couple of shots before they left for their new home. I'm guessing they were 1/72 scale.


Attachments

  • Vought VFX Models 04.jpg
    Vought VFX Models 04.jpg
    1.4 MB · Views: 218
  • Vought VFX Models 03.jpg
    Vought VFX Models 03.jpg
    1.1 MB · Views: 210
  • Vought VFX Models 02.jpg
    Vought VFX Models 02.jpg
    576.7 KB · Views: 221
  • Vought VFX Models 01.jpg
    Vought VFX Models 01.jpg
    587.4 KB · Views: 251
