German WW1 Fighters and Recce Aircraft Prototypes and Projects

hesham said:
From Czech Museum,

here is some mysteries,for LFG & LVG companies,B.III,C.IX,E.II,E.III,P.II & P.III,who can help
to recognize them ?.
Click to expand...

There is nothing in many German sources ?.

hesham said:
There is nothing in many German sources ?.
Click to expand...

I don't know any L.F.G. BIII;CIX;EII.EIII.PII.PIII .

For L.V.G. :
BIII is the well known 1917 training biplane .
I don't know a CIX (the last "C"seems to have been the CVIII)
The only "E"seems to have been the EI
The L.V.G. PII was a CVIII with cabine . No PIII known to me

Hi,

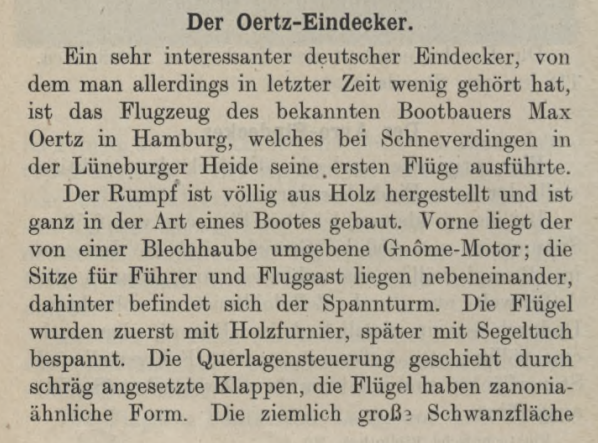

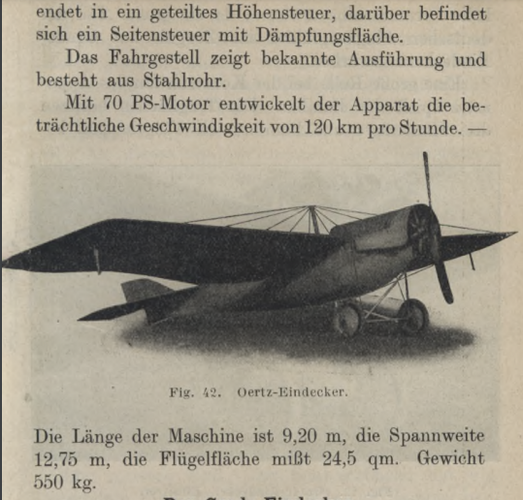

what was the Oertz Military Monoplane I & II ?!,that's all I found..


Attachments

  • 11.png
    492.3 KB · Views: 102
  • 12.png
    460.8 KB · Views: 72
The D.4 of 1913 is the B.I, an unarmed trainer aircraft. The C.I had the factory designation D.4K and was merely an armed version of the D.4 (B.I).

D.XV/1 with Daimler D.III
D.XV/2 with Daimler D.IIIa
D.XV/3 with B.M.W.IIIa
D.XV/4 with Benz Bz.IIIa

Maveric said:
The D.4 of 1913 is the B.I, an unarmed trainer aircraft. The C.I had the factory designation D.4K and was merely an armed version of the D.4 (B.I).
Click to expand...

No,the D4 of 1913 was powered by Mercedes D.I,and D4 of 1914,was powered by Benz engine.

For the Schütte-Lanz,two projects,

They planned further development into the D.II with a more powerful 100 hp Mercedes
in-line engine was therefore canceled,it was based on D.I.

The planned further development into the D.V was abandoned because the overcompressed Mercedes D IIIavü was not available.

Last edited:
From, 46 Hannover Aircraft of WWI,

what were these two types ?.


Attachments

  • 1.png
    165.2 KB · Views: 78
hesham said:
For the Schütte-Lanz,two projects,

They planned further development into the D.II with a more powerful 100 hp Mercedes
in-line engine was therefore canceled,it was based on D.I.

The planned further development into the D.V was abandoned because the overcompressed Mercedes D IIIavü was not available.
Click to expand...

Now we can say about the list of this company;

C.I,C.II,D.I,D.II,D.III,D.IV,D.V,D.VI,D.VII,Dr.I,G.I,G.II,G.III.G.IV,G.V,G.VI,
Giant,R.I,R.I/II,R.I/III,Seaplane twin hull,R 27,28,29,84,85 & 86

hesham said:
My dear Tuizentfloot,

after you explained that,there was three Pheonix companies,and one of them was
from Germany,please can I ask you about those mysteries designations,maybe
they related to Germany one,and they called Pheonix aircraft;

- Biplane with 350 hp engine
- Monoplane (no other details)
- Type-13 recce biplane
- Fighter with rotary engine
- Parasol Fighter with rotary engine
Click to expand...

What about Pheonix C.I.C.II,D.I,D.II,D.III,D.IV,B.I,Dr.I and KDW ?!.

hesham said:
Now we can say about the list of this company;

C.I,C.II,D.I,D.II,D.III,D.IV,D.V,D.VI,D.VII,Dr.I,G.I,G.II,G.III.G.IV,G.V,G.VI,
Giant,R.I,R.I/II,R.I/III,Seaplane twin hull,R 27,28,29,84,85 & 86
Click to expand...

Of that list, we have already established that the so-called Schütte Lanz 'C.II' was a mis-identified Ago C.VIII in a non-too-reliable source.

R.27, R.28, R.29 weren't designations, they were construction numbers for Staaken R.VI bombers built by Schütte-Lanz. Likewise, R.84, R.85, and R.86 were Baunummern for Staaken R.XIVa partially completed by Schütte-Lanz (with R.84 being completed as a civil aircraft sometime after the Armistice).

hesham said:
What about Pheonix C.I.C.II,D.I,D.II,D.III,D.IV,B.I,Dr.I and KDW ?!.
Click to expand...

If by 'Pheonix', you mean Phönix, then none of these are German designations - they were all Austro-Hungarian KuKLFT-assigned role designators.

The Phönix B.I was a licensed Albatros B.I. The C, D, Dr, and KDW designations were all derived from Hansa-Brandenburg designs.

More or less a crapshot, but the only dedicated source I found about Schütte-Lanz aircraft is an article in the FliegerRevue X, N°80 from 2019. It says, that, besides license productions, there also were the in-house developments of the D.I to VII, and the C.I. Then there was a break with regards to fixed wing aircraft, until early summer 1915, when the Idflieg demanded the development of an armed recce aircraft with pusher prop and a gun in the nose, because French aircraft with this layout had achieved some success. In very short time, a similar aircratf was built, powered by a 160 ho Benz III engine, showing very good speed of 160 km/h and maneuverability, but somehow disappointing climbing power. But this type was already outdated, when testing was over, so there was no series production.
No designation is explicitely mentioned, but judging the full article, it was built after the C.I, so could (!) have been the C.II, and wouldn't have been just a project then.

Last edited:
hesham said:
My dear Apophenia,

the C.II in Czech museum was a project,and nor related to Ago C.VIII
Click to expand...

I didn't say that this 'C.II' was "related to" the Ago. I said that the Czech Museum "mis-identified" the Ago in their image purporting to be the Schütte Lanz 'C.II'. And, as noted before, the Czech Museum has a history with garbled information.

Perhaps the aircraft Jens describes was a "C.II" but we have no actual evidence of that. We do have evidence that the Czech Museum has 'issues' with accuracy, however.

And what of your 'Pheonix' query? Did the Phönix Flugzeugwerke explanation answer that question?

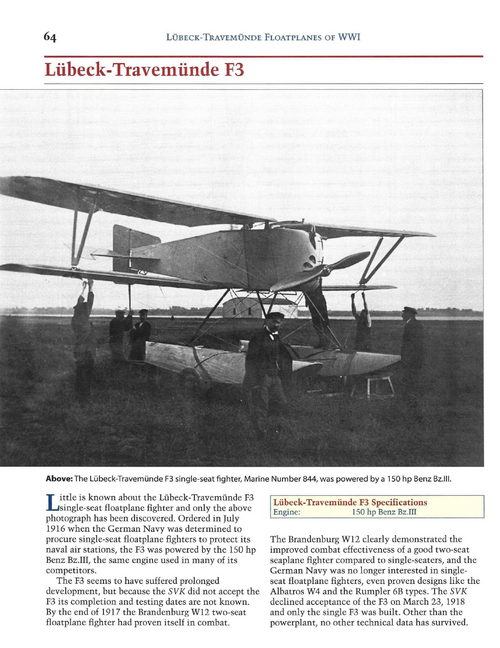

From, 15 German Seaplanes of WWI Sablatnig, Kaiserliche Werften, Lubeck-Travemunde, LTG, & Oertz.


Attachments

  • 1.png
    2.1 MB · Views: 64

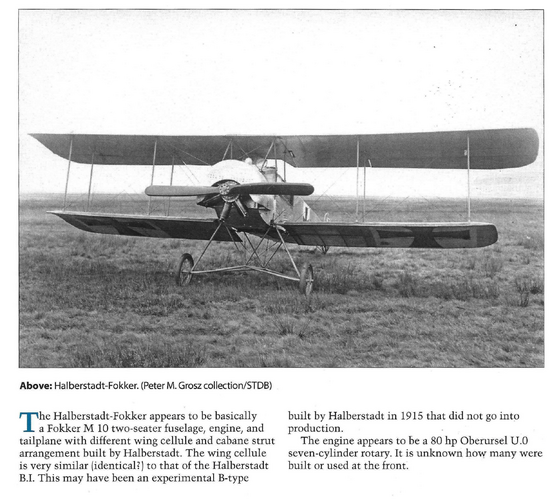

Interesting. This hybrid Halberstadt-Fokker has a rather more sensible looking cabane arrangement than that on the standard Fokker M 10Z.

Thank you my dear Apophenia,

and a strange thing in my files,a project for Halberstadt D.VI fighter ?!.

From Flugsport,

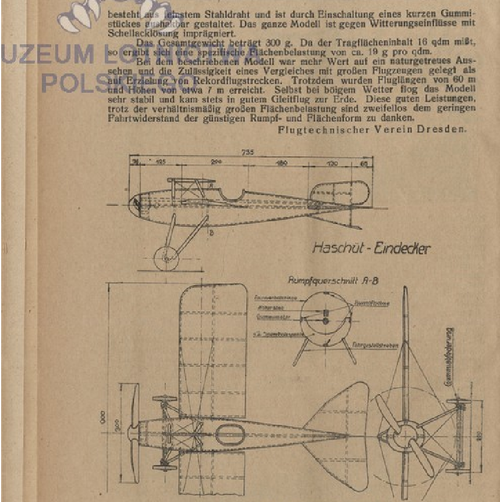

what was this Haschut fighter ?.


Attachments

  • 20.png
    513.7 KB · Views: 25
  • 21.png
    244.5 KB · Views: 30
  • 22.png
    544 KB · Views: 36
Maveric said:
It's just a model airplane, nothing more.
Click to expand...

Yes, the word "Gummimotor" in '21.png' should have been the tip-off.

Maveric: Any idea of the significance of that name - „Haschüt“-Eindecker? With this model having a Dresden connection, I wondered about the short-lived Haschüt motorcycle brand ... but that was Motorradbau Hans Schütze, not "Joh. Schütze".

Apophenia said:
Yes, the word "Gummimotor" in '21.png' should have been the tip-off.

Maveric: Any idea of the significance of that name - „Haschüt“-Eindecker? With this model having a Dresden connection, I wondered about the short-lived Haschüt motorcycle brand ... but that was Motorradbau Hans Schütze, not "Joh. Schütze".
Click to expand...
Unfortunately, there are no references in the text that suggest a connection to a real aircraft or project.

The article was written by the Flugtechnische Verein Dresden, which is possible that there is a connection to real aircraft construction.

hesham said:
The source is NTM archive.
Click to expand...

Typos. The sequence "Hawa CV, Hawa CVI, CIVa-CVIe" was obviously a sloppy attempt to type 'Hawa CV, Hawa CIV, CIVa-CIVe'. (Or more correctly, Hawa CL V, Hawa CL IV, CL IVa-CL IVe.)

Beyond the typos, the Národní technické muzeum also has some understandable ESL issues. (Even the link to the NTM Archive's list of fonds reads "List of all funds in czech is at the link below".)
