to be honest i did initially write it down as AEK-918G but rewrote it as R for some odd reason as i do know somewhat about the Cryllic alphabet
Firearms secret projects
- Thread starter Firefly 2
- Start date
to be honest i did initially write it down as AEK-918G but rewrote it as R for some odd reason as i do know somewhat about the Cryllic alphabet
the reason i have become so interested in these experimental Soviet Unicorn Guns is that i intend on building some of them as P.O.Cs when i finally open up shop i mean i am sure any patents pertaining to them except maybe the AEK971/972/973 are expired.. id create them for study purposes and to test their abilities once ive completed my S.O.T. licensing processes..
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
You mean, "Was there a 5.45mm cartridge in 1891 or 1952?" The earliest Russian small-bore cartridge known to me is the 1890 Privalov 6mm cartridge (.42 Berdan parent case). Between 1891 and 1899, Russian generals discussed the prospects for 5.6 mm and 6.5 mm rifle cartridges. In addition, for Tsarevich Alexei, a copy of the M1891, reduced by 1/3, was made for a 5.08 mm cartridge (7.62 mm Nagant parent case). According to my calculations, the energy of this cartridge should be about 800-1100 Joules. It is believed that the 5.45x39 (or a very similar cartridge) was developed between 1939 and 1941, and only the war prevented its implementation. In general, for Russians, "remembering" old projects was the norm. For example, I heard that the 14.5x114 was developed in the WW1 period, because of the revolution they forgot about the cartridge, and "remembered" in 1938.
Stenda G
ACCESS: Restricted
- Joined
- 17 December 2018
- Messages
- 28
- Reaction score
- 69
От Nagant до «Нагана» - Мир увлечений: Охота&Оружие
Как отмечалось в предыдущем материале, принятие на вооружение Российской императорской армии револьверов системы Нагана и со ответствующих патронов заложило основы долголетия данного боеприпаса и широкое развитие его номенклатуры, а также создание новых типов патронов на его базе. Все...
gunmag.com.ua
Use Google translate
5,6x38R and 6,5x38R Blume cartriges with 7,62x38R Nagant parent were presented in 1955.
Another 5,6x40R - 22 EXTRA in early 30s
Another unknown 5,6x45R.
Вот, что называется - смотрю в книгу, вижу фигу ((
Короче, коллеги, вынужден перед всеми извиниться, так как сослепу не туда смотрел на штангеле... Патрон, про который я аж три поста налабал, вовсе не 6,5 мм, а 5,6х45R... Все фоты перенес сюда, а те посты - потер, чтобы никого в заблуждение не вводили. Неизвестный слева, в сравнении с 6,5х54R
papkin1.livejournal.com
It seems this one was developed for Shpitalny experimental MG.
i am sorry i structured my question wrong
what i was trying to ask was
" Was there any Russian or Soviet attempt to create a 5.45 cartridge along the lines of the 7.62x54R?"
to which i meant a cartridge such as 5.45x54R, 5.6x54R, 5.45x54, 5.6x55....etc.
i think that the soviets who had captured more of the details about German metallurgy and barrel making would've been more likely to have made a cartridge such as maybe 5.45x54R work.
i myself and in the process of having a few Barrels made for wildcats i am making which are 5.45 or 5.6 mm bullets in 7.62x54R or .308 Cases both necked down and fitted with four piece sabots ( i am also doing the same with 7.62x39 and as an added "what would" experiment i am putting the 7.62 projectiles in cases for 5.45
Cutaway
ACCESS: Restricted
Last edited:
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
Small known Soviet weapons (from guns.ru):
Pre-WW2:
- MEO-60 (Rus. МЭО-60), "Electrosila" plant, 1930s
- 35 mm light electric anti-aircraft gun, 1935
- ShVAK-25 project (maybe, 25 mm variant of ShVAK autocannon)
Cold war period:
Autocannons
in 23x115 - TKB-495, TKB-505, TKB-532, TKB-577
in 23x152 - TKB-494
in 30x165 - TKB-644, TKB-686
in 37 mm caliber - Silin TKB-504, Volkov, Yartsev and Afanasyev TKB-508, Slostin KB-P-775
TKB-499 - autocannon in experimental cartridge, created by TsKB-14
TKB-776 - 57 mm autocannon, muzzle velocity 500 mps, 900 rpm (!)
TKB-700 - 45 mm automatic rocket cannon
Also, 23 mm 210-P, 30 mm TKB-529, TKB-539, TKB-540, 57 mm 113-P and 500-P
Yartsev TKB-0105 - maybe, in 23x115
KBK-33 - experimental autocannon with caseless telescoped ammunition
KBK-80 - 45 mm autocannon
KBK-145 - autocannon with rocket-assisted projectile
KBK-162 - Bogdanov multiple barrel 14.5 mm compact machine gun (quadriple barrel?)
KBK-164 - Bogdanov 14.5 mm machine gun to replace of Vladimirov KPV
KBK-165 and KBK-166 - experimental multiple barrel assault rifles
KBK-167 - 12.7 mm machine gun to replace of Nikitin-Sokolov-Volkov NSV-12.7
Pre-WW2:
- MEO-60 (Rus. МЭО-60), "Electrosila" plant, 1930s
- 35 mm light electric anti-aircraft gun, 1935
- ShVAK-25 project (maybe, 25 mm variant of ShVAK autocannon)
Cold war period:
Autocannons
in 23x115 - TKB-495, TKB-505, TKB-532, TKB-577
in 23x152 - TKB-494
in 30x165 - TKB-644, TKB-686
in 37 mm caliber - Silin TKB-504, Volkov, Yartsev and Afanasyev TKB-508, Slostin KB-P-775
TKB-499 - autocannon in experimental cartridge, created by TsKB-14
TKB-776 - 57 mm autocannon, muzzle velocity 500 mps, 900 rpm (!)
TKB-700 - 45 mm automatic rocket cannon
Also, 23 mm 210-P, 30 mm TKB-529, TKB-539, TKB-540, 57 mm 113-P and 500-P
Yartsev TKB-0105 - maybe, in 23x115
KBK-33 - experimental autocannon with caseless telescoped ammunition
KBK-80 - 45 mm autocannon
KBK-145 - autocannon with rocket-assisted projectile
KBK-162 - Bogdanov multiple barrel 14.5 mm compact machine gun (quadriple barrel?)
KBK-164 - Bogdanov 14.5 mm machine gun to replace of Vladimirov KPV
KBK-165 and KBK-166 - experimental multiple barrel assault rifles
KBK-167 - 12.7 mm machine gun to replace of Nikitin-Sokolov-Volkov NSV-12.7
Forest Green
ACCESS: Above Top Secret
- Joined
- 11 June 2019
- Messages
- 7,914
- Reaction score
- 13,368
900rpm 57mm autocannon?
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
Yes
Maybe, it's a double-barrel Gast gun.
Tested 57 mm double-barrel AO-16 gun for self-propelled AA gun, also, engineers Gryazev and Shipunov projected 57 mm with 2000 rpm naval anti-missile gun, it was a quadriple barrel Gatling gun or two double-barrel Gast guns in one turret.

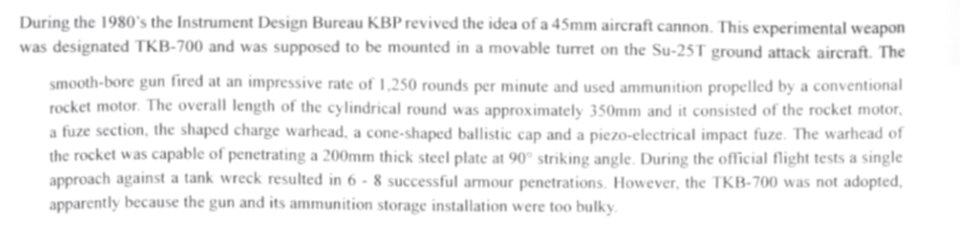

Also, maybe, it was a rocket gun. In other Soviet gun, TKB-700, 45 mm with 1250 rpm, use a rockets (HEAT with 200 mm armour penetration):
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,252
When you want something really dead in a hurry...
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
The Russians just loved everything big and fast-firing.
Americans: We projected a automatic loading system for our tanks, but, in our 60-ton 120 mm Abrams we use a hand-operational reloading
Russians: We use a automatic loading system in our 45-ton 125 mm tanks... We didn't have the money to use the 130 mm full-auto gun with caseless cartridges and 152 mm full-auto rocket gun... And even earlier, we didn't have enough money for a 55-ton 140 mm tank...
Americans: We projected the great 16"/50 24-gun battleship, rate of fire of ship - 48 rpm, 45.9 tons of projectiles per minute to 41 km, 63 500 ton monster...
Russians: We projected 16"/45 12-gun battleship, rate of fire of ship - 48 rpm (or more), 53.6 tons (or more) of projectiles per minute to 45 km (or more), 35 600 ton monster... And, also, We projected 16"/50, 16"/52, 16"/54 and 18"/45 guns...
Americans: We built a 30 000 rpm .60 cal electric Gatling gun...
Russians: We built a 16 000 rpm 30 mm jet Gatling gun...
Americans: We built the Desert Eagle... .357, .44 and .50 cal semi-auto pistol... The most powerful ever...
Russians: We built 7.62x54R pistol, but, We lost it... And, we didn't have the money to built the 25 mm full-auto pistol, .357 and .44 full-auto pistols, 9x33 and .60 cal semi-auto pistols... But, we built a 5.45x39 assault rifle in Desert Eagle size...
It seems to me that this is a national trait. Coming up with something super-gigantic, or just gigantic, but very fast. Guns, planes, cars, ships and so on.
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,252
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235

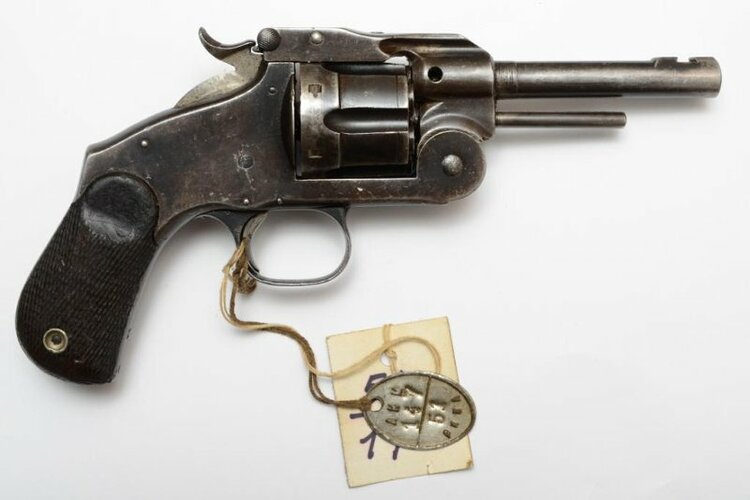

Russian 1890s experimental 7.62 mm S&W revolver. I heard about Rachkov revolver, based on S&W No.3 in 7.62x38R Nagant. Barrel lenght 108 mm, overall lenght 248 mm.
goskatalog.ru
Also, experimental air gun:
goskatalog.ru

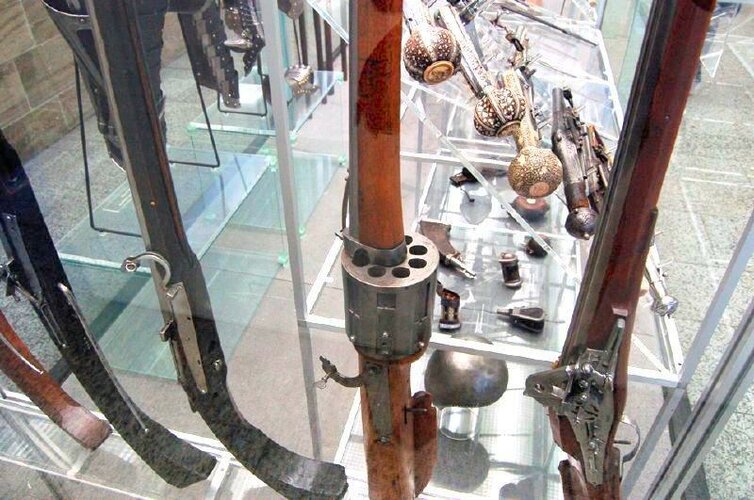

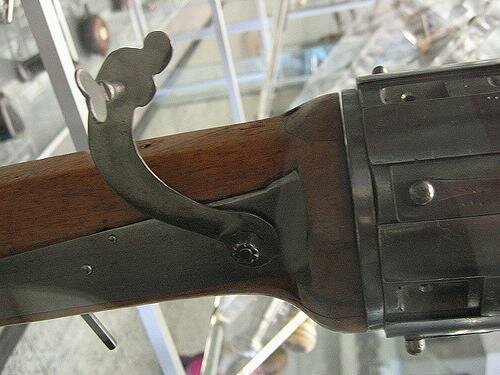

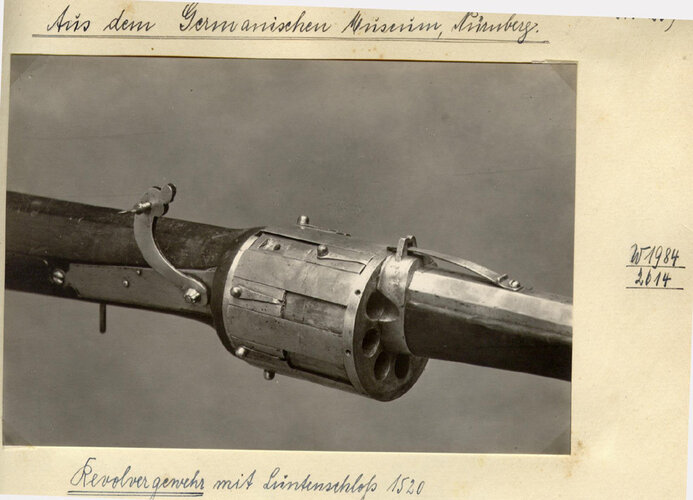

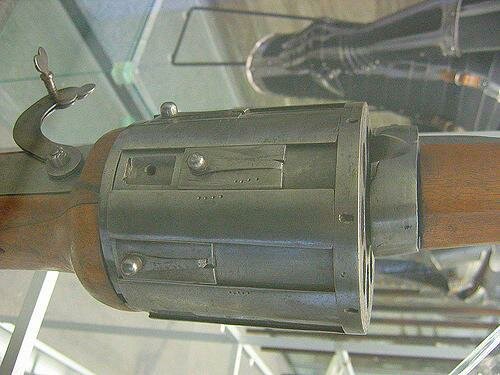

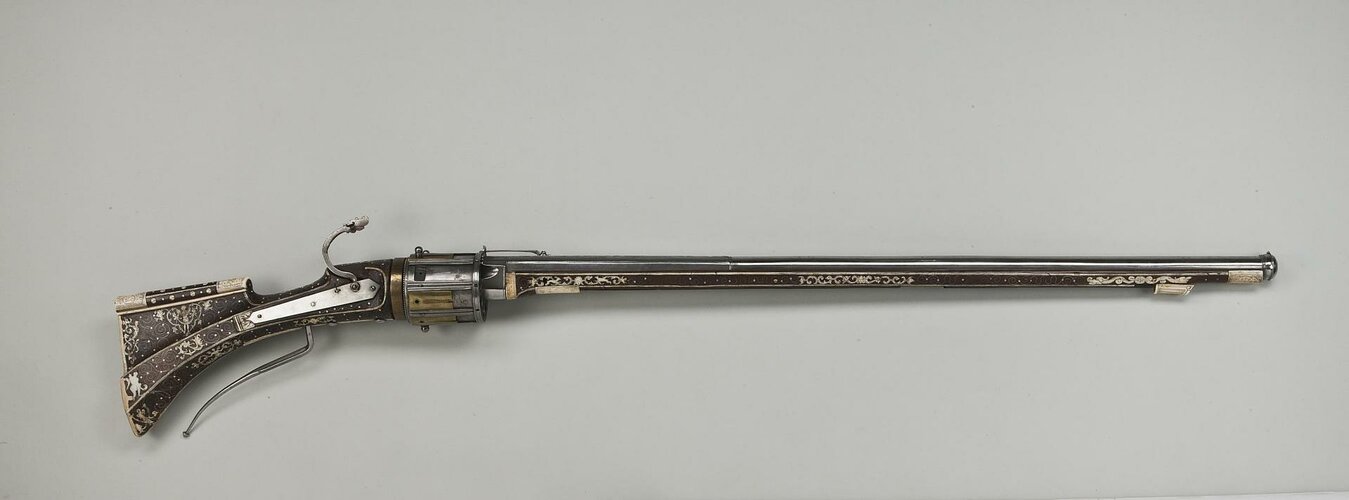

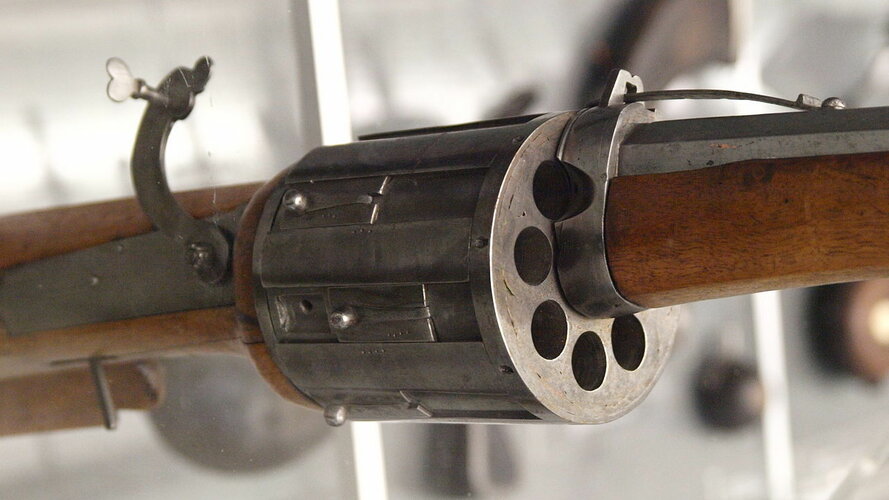

XVIII century revolving guns:
goskatalog.ru
goskatalog.ru

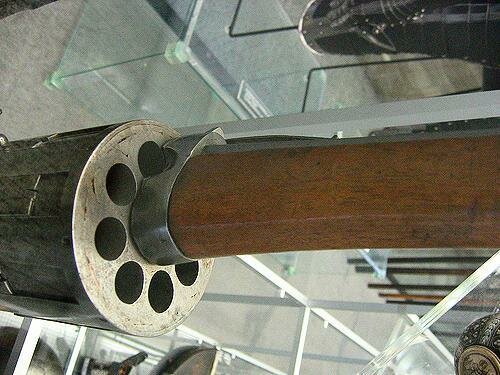

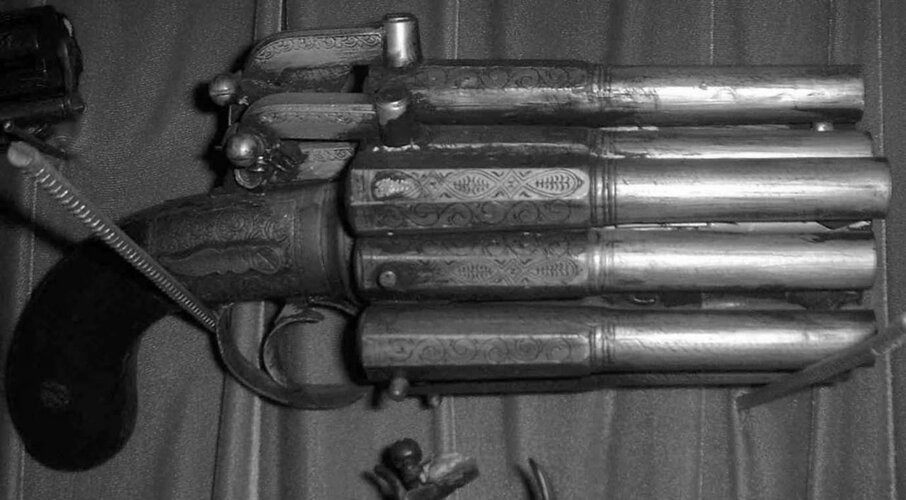

XVIII century six-barrel gun:
goskatalog.ru
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30
Are you sure the Frolov was a submachine gun? The only information I've been able to find is that it trialed alongside several self-loading rifles, which would imply it was semi-automatic only. I've never seen anything about it having a full-auto function - it seems to be more akin to the early Dreyse and de Falletans self-loading carbines that were developed around the same time.
Also, source on the Hellriegel beginning development in 1908?
The only WW1-era SMGs I know of were as follows:
Italy:
- Revelli/Villar Perosa (1915)
- FIAT (1916)
- Revelli O.V.P. (1917)
- Cei-Rigotti (1917)
- Ansaldo Crocetti (1918)
- Savoia (1918)
- A.N. (1918)
- MIDA (1918)
Austria-Hungary:
- Hellriegel (1915)
- Steyr M.12/P16 (1916)
- Frommer M.17 (1917)
- Sturmpistole (1917)
- Steyr (1918???)
- Schwarzlose (1916?)

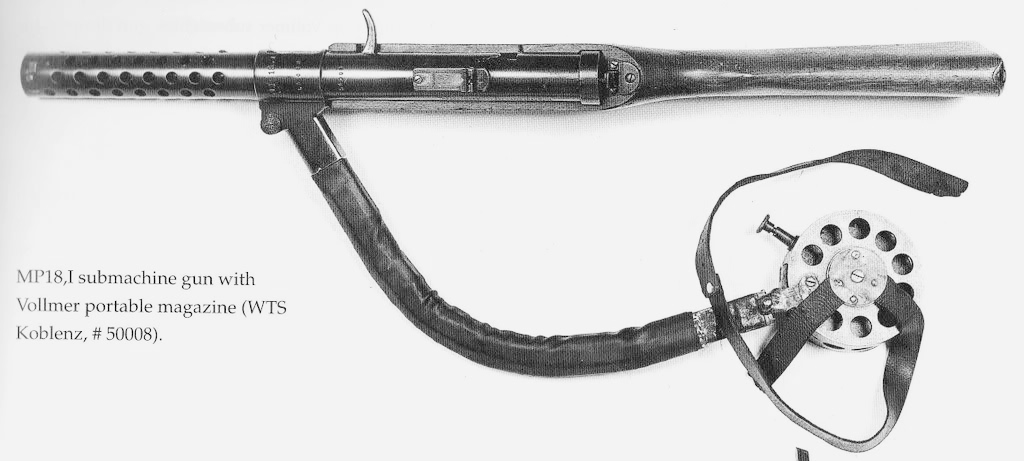

- Bergmann M.P.18,I (1917)
- Hoffman (1918)
- Walther (1918)
- Dreyse/Rheinmetall (1918)
- Simson (1918???)
- From (1917)
- Thompson Persuader (1917)
- Thompson Annihilator (1918)
- Andrews (1918)
Last edited:
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,252
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
About Frolov carbine, V. E. Markevich, "Hand firearms":
"for this to become a full-fledged sub-machine gun, need to remove the bolt rotation and shorten the barrel." (Markevich's phrase about the need to remove the bolt rotation is controversial. Judging by the proportions, the automation in the Frolov carbine is very compact.)
Images of Frolov carbine from goskatalog.ru:
No.1
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
In Fedorov "Gunmaking..." mention of testing the Frolov rifle, with delayed blowback. This weapon fired special cartridges with a reduced charge (2000 atm pressure) and wooden bullets. That is, it was rather a test sample to test something. Fedorov writes that "the rate of fire of the Frolov rifle depends on the amount of lubricant." That is, if the rifle is better oiled, then the shutter speed is higher. But, if this is just a self-loading rifle, then how can the shutter speed affect the rate of fire? In a self-loading rifle, the rate of fire is determined by the frequency of pressing the trigger. What is the difference for the finger on the trigger, does the automation cycle take 0.05 seconds, 0.1 seconds, 0.2 seconds? This only affects if full-auto firing is present. That is, apparently, the Frolov rifle was also fully automatic.
Information about other Russian SMGs:
General N. I. Yurlov in 1915 suggest the "Small machine gun "Jakob"" (yes, it's a weird name for Russian weapon), based on construction of Nagant M1895 revolver, with belt. (book: "All pistols and revolvers of USSR and Russia", S. Fedoseev)
Workman ("masterovoy") of Kuban cossack army M. K. Molokov suggest in 31 Jule 1915 full-auto pistol or small SMG, "Hand machine gun "Kubanets"" layout like a Mauser C96, 33-round magazine, 7.62x38R Nagant. (book: "Machine guns of Russian army in battle", S. Fedoseev)
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30
This is all basically speculation. Is there anything that actually confirms it was fully-automatic? If not, I feel it is dubious to call it an SMG.
About Frolov carbine, V. E. Markevich, "Hand firearms":
"for this to become a full-fledged sub-machine gun, need to remove the bolt rotation and shorten the barrel." (Markevich's phrase about the need to remove the bolt rotation is controversial. Judging by the proportions, the automation in the Frolov carbine is very compact.)
Images of Frolov carbine from goskatalog.ru:
No.1
No.2Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Overall lenght - 98 cm, barrel lenght by proportions - ~450 cm. You can see, first - looks like a experimental model, second - looks like a production or pre-production model. Frolov most likely knew about the experiments of 1908 ("All pistols and revolvers ..."). Then they tried to remake the Luger pistol and Mauser C06 pistol to full-auto. On tests, the weapon showed a very high recoil and low reliability, the ammunition was fired almost instantly, it was difficult to hold such a pistol in your hand, and it was also difficult to hit the target. These experiments were initiated by the military, there is no information about their continuation. But the Russians seem to be interested in the idea of SMG. The Frolov SMG looks like an attempt to eliminate the shortcomings of the full-auto Luger and full-auto Mauser pistols. Here 20-rd magazine (versus 8-rd), there is a slowdown in the rate of fire. Yes, I do not think that Frolov would use a slowdown for a self-loading gun without full-auto firing. But, according to Fedorov's materials ("Gunmaking on the verge of two eras", I), the military wanted to use 9-mm cartridges in pistols, and perhaps that is why the Frolov SMG did not get into the troops. But, in photo # 2, you can see that the weapon was made in good quality, it looks like a weapon for hunters or perhaps the police.Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
In Fedorov "Gunmaking..." mention of testing the Frolov rifle, with delayed blowback. This weapon fired special cartridges with a reduced charge (2000 atm pressure) and wooden bullets. That is, it was rather a test sample to test something. Fedorov writes that "the rate of fire of the Frolov rifle depends on the amount of lubricant." That is, if the rifle is better oiled, then the shutter speed is higher. But, if this is just a self-loading rifle, then how can the shutter speed affect the rate of fire? In a self-loading rifle, the rate of fire is determined by the frequency of pressing the trigger. What is the difference for the finger on the trigger, does the automation cycle take 0.05 seconds, 0.1 seconds, 0.2 seconds? This only affects if full-auto firing is present. That is, apparently, the Frolov rifle was also fully automatic.
Information about other Russian SMGs:
General N. I. Yurlov in 1915 suggest the "Small machine gun "Jakob"" (yes, it's a weird name for Russian weapon), based on construction of Nagant M1895 revolver, with belt. (book: "All pistols and revolvers of USSR and Russia", S. Fedoseev)
Workman ("masterovoy") of Kuban cossack army M. K. Molokov suggest in 31 Jule 1915 full-auto pistol or small SMG, "Hand machine gun "Kubanets"" layout like a Mauser C96, 33-round magazine, 7.62x38R Nagant. (book: "Machine guns of Russian army in battle", S. Fedoseev)
It seems most sources refer to it as the "Frolov automatic carbine" - "automatic carbine" usually meaning self-loading i.e. semi-automatic.
Also, it seems implausible that a sporter version of the gun would be made if it were an SMG, whereas it would make sense for a self-loading carbine.
In fact the links you attached even say "Frolov self-loading carbine".
Using a delayed blowback action in a self-loading carbine is not unheard of. The Beretta 1918 used a friction delay action even though it fired in semi-auto only.
I would still be interested in any in-depth details of early SMGs.
Last edited:
If you guys want to discuss this topic further, me and Get_Em_Puppy have a discord server focused on researching these subjects - https://discord.gg/xJMK3qx9cg
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235

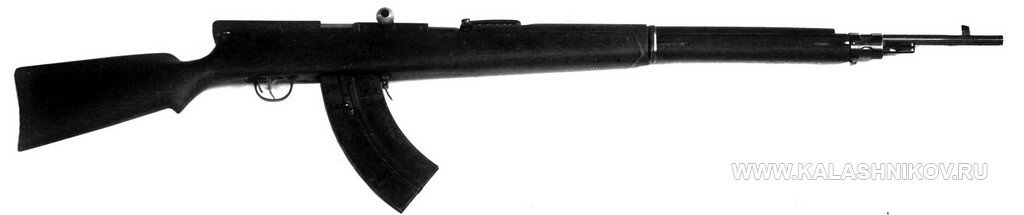

This Fedorov rifle is attributed as "self-loading", although historian Ruslan Chumak points out that it had the full-auto capability:
Another example. The Rudnitsky 1886-1887 rifle is referred to as "self-loading" or as "automatic". It makes sense that this is just a self-loading rifle. But there are also references to the presence of a full-auto mode and a bipod. And the "self-loading rifle" turns out to be a "light machine gun".
At this time, "knyaz" ("prince") Chegodaev developed a 19-barrel hunting machine gun. Later, in the 1940s, the Russians had a project for a .22 LR hunting submachine gun - the author considered that a burst of bullets was more effective than buckshot from a shotgun. In addition, I remind you that the first idea about a submachine gun in Russia was not later than 1908, in 1915 there was a project of a full-fledged submachine gun. I see no reason why the Russians could not have made a submachine gun in 1912.
...
John Walter, "The Hand Gun Story: A Complete Illustrated History" - information about Borchardt C/93 in full-auto variant, builted in 1896, "eight rounds in three-tenths of a second", it's a ~1600 rpm. That is, 12 years before the Russians' experiments, Borchardt tried to make a full-auto pistol.
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235

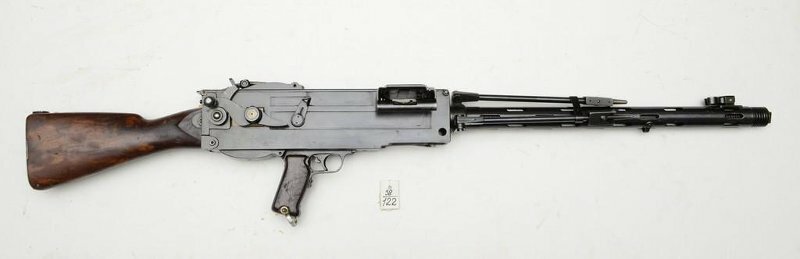

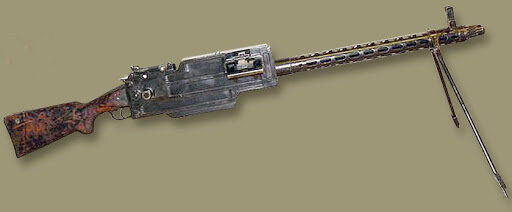

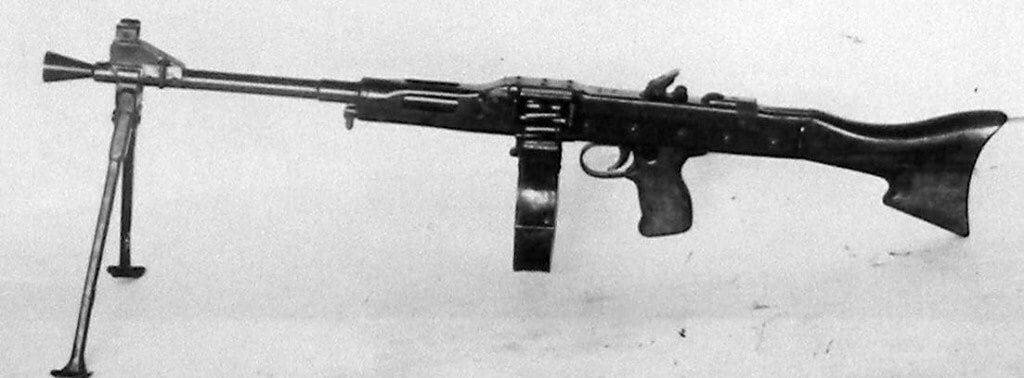

One of Maxim-Tokarev 1920s LMG:

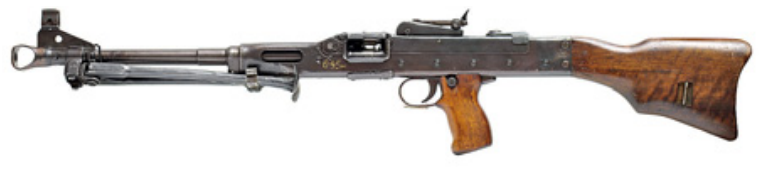

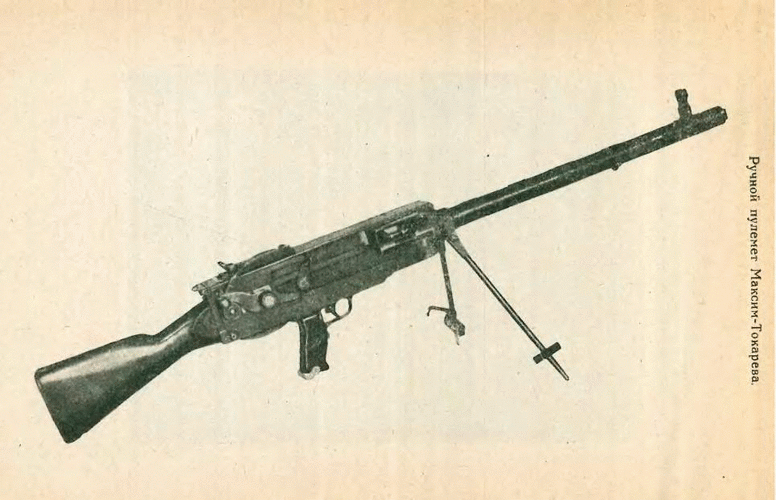

"Standart" Maxim-Tokarev LMG:
First LMG is very weird. Looks like a Russian variant of MG.08/18 or LMG.15. It is similar in description to the Maxim-Kabakov 1913 project, also with a pistol grip.
...
Weird Korovin 1922 pistol
goskatalog.ru
...

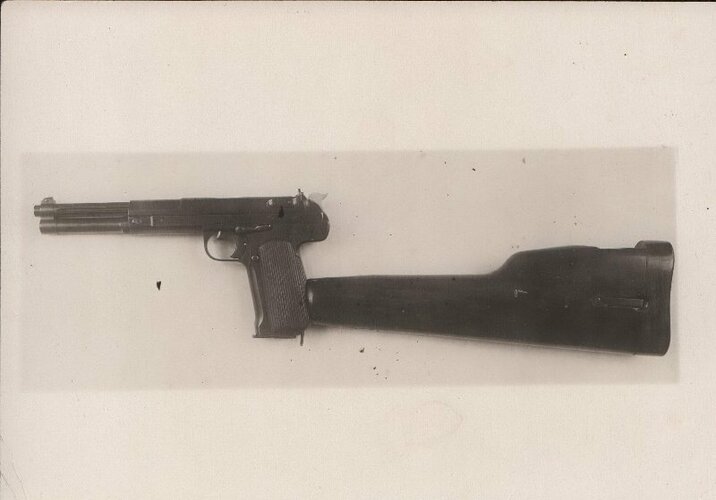

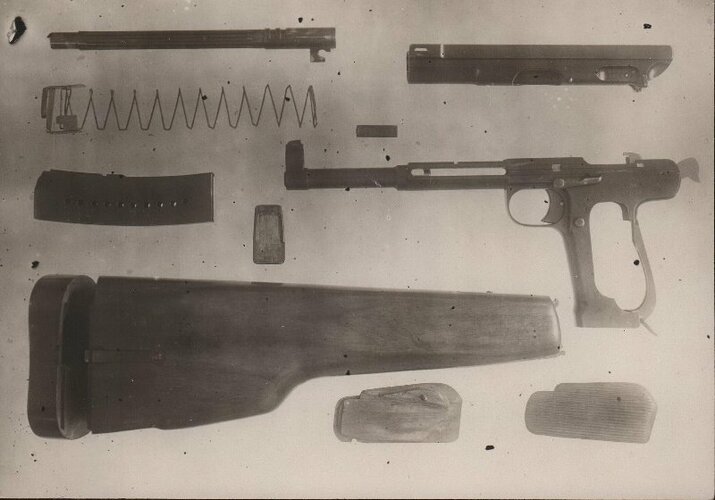

Also, from goskatalog.ru - Tokarev 1930 pistol photos (7.62x25, 22-rd magazine, only semi-auto firing):
"Standart" Maxim-Tokarev LMG:
First LMG is very weird. Looks like a Russian variant of MG.08/18 or LMG.15. It is similar in description to the Maxim-Kabakov 1913 project, also with a pistol grip.
...
Weird Korovin 1922 pistol
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Also, from goskatalog.ru - Tokarev 1930 pistol photos (7.62x25, 22-rd magazine, only semi-auto firing):
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30
But you haven't presented any actual evidence that it was a submachine gun, and pretty much all the sources I've read call it a self-loading or automatic carbine. I have to assume it was semi-automatic unless any evidence of a full-auto capability is shown.
The Fedorov was first and foremost a self-loading rifle, but the fact that it had automatic fire capability is well-documented. In the case of the Frolov carbine, it isn't.
The question is not whether the Russians could have developed an SMG by 1912 - it's whether they actually did.
Also, I think you're misreading sources about the Hellriegel. I can't find any mention of the weapon by Friedrich Merkatz, however he did describe the development of the MG08/15 from 1908 - 1915. Are you sure you're not just mixing it up with that?
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235

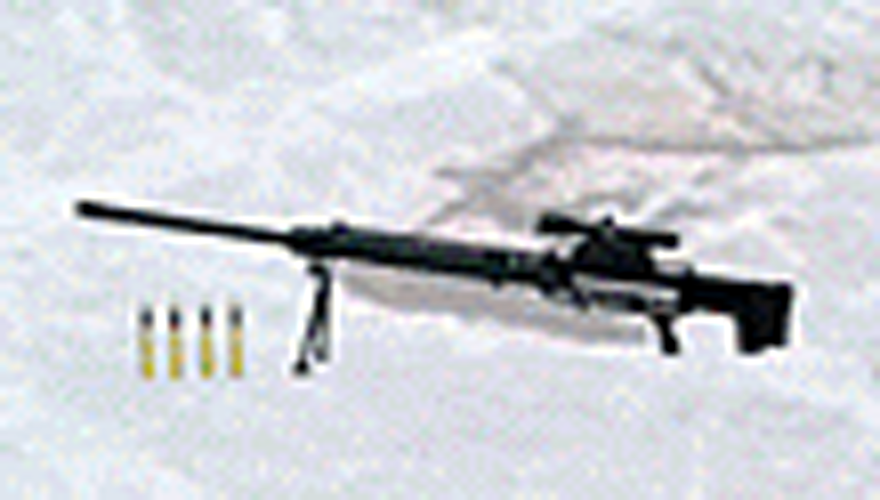

Unknown Russian rifle, created by NPO "Pribor":
Cartridges - looks like a 23x152 (?)
I heard about other rifle, created by KBP, in 23 mm special cartridge...

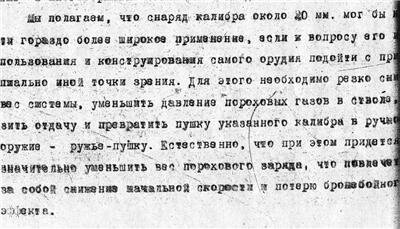

Also, one of the Russian WW2 suggestions. 20 mm "hand cannon" with reduced pressure, recoil and muzzle velocity (not anti-tank gun):
"More Dakka!!!"
Cartridges - looks like a 23x152 (?)
I heard about other rifle, created by KBP, in 23 mm special cartridge...
Also, one of the Russian WW2 suggestions. 20 mm "hand cannon" with reduced pressure, recoil and muzzle velocity (not anti-tank gun):
"More Dakka!!!"
Last edited:
- Joined
- 9 October 2009
- Messages
- 21,147
- Reaction score
- 12,252
Countermeasure against the threat of Nazi supersoldier programs? Or just intended for use by combat engineers against field fortifications and the like?
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30

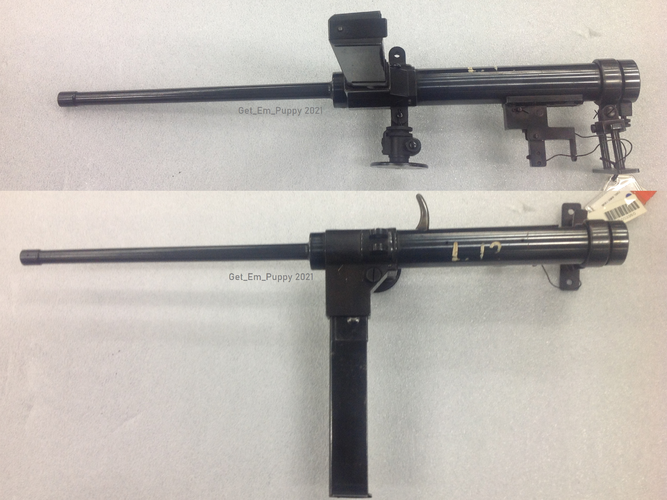

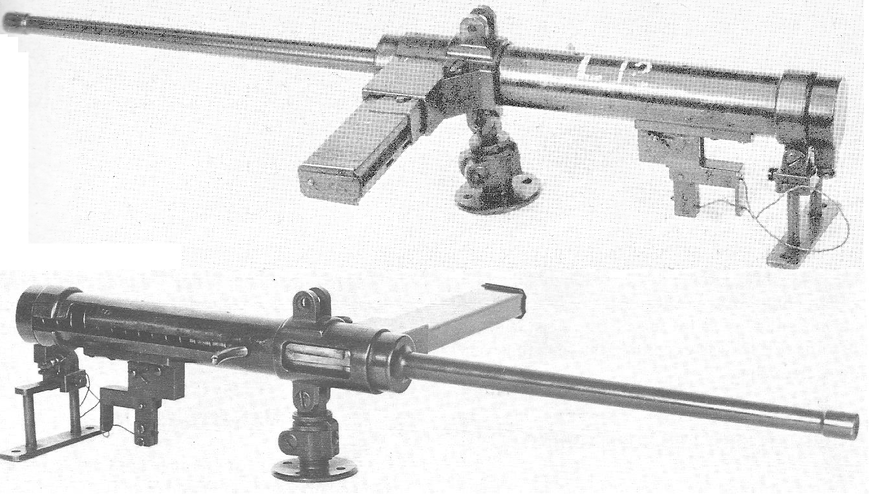

An old lesser-known Nazi project: the FMP-1 remote-controlled turret (Festung Maschinenpistole). This was an attempt by the Germans to create an electronically-fired submachine gun for fortification defence. It was considered that a 9mm submachine gun, due to its lesser accuracy, could create a wider field of fire than a conventional MG, thus making it ideal for suppressive blind-firing from a defensive position. The Czechs tried this concept (albeit not remotely-fired) with their Vz.38 submachine gun before the war.
The FMP-1 is, for all intents as purposes, a stripped-down M.P.28,II with an electronically-primed trigger mechanism. It has two hinged mounts allowing it to be fitted to a flat surface or a ceiling. It takes standard 20 or 32-round Schmeisser-pattern magazines, which limits its firepower somewhat - a larger magazines was possibly intended. The gun pictured is the only example I know of in existence, but it is serial number 07 implying that other examples were made. Allegedly they were used - or intended to be used - on German fortifications at the Siegfried Line.
The FMP-1 is, for all intents as purposes, a stripped-down M.P.28,II with an electronically-primed trigger mechanism. It has two hinged mounts allowing it to be fitted to a flat surface or a ceiling. It takes standard 20 or 32-round Schmeisser-pattern magazines, which limits its firepower somewhat - a larger magazines was possibly intended. The gun pictured is the only example I know of in existence, but it is serial number 07 implying that other examples were made. Allegedly they were used - or intended to be used - on German fortifications at the Siegfried Line.
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30
Hypothetically yes, although I suppose Schmeisser magazines were already in wide circulation and cheaper to use than converting the M.P.28,II into belt-feed. It would be more efficient to make a large-capacity drum magazine for the gun though.
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30

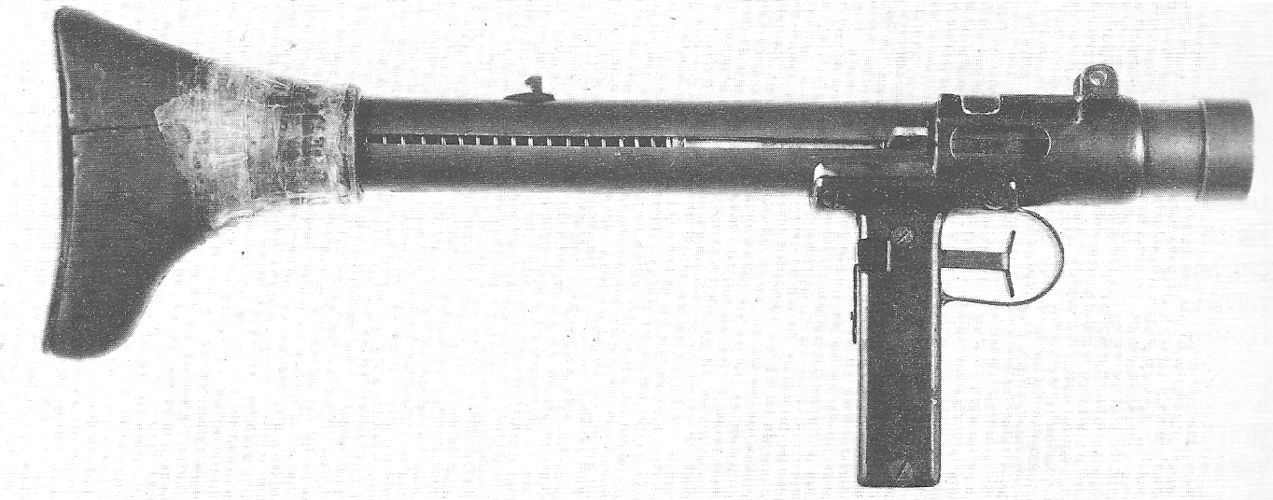

Yes, another German gun, the Cönders SMG. It was found in an incomplete state by US troops and repaired at the Aberdeen Proving Grounds. However it was a one-off pet project of the designer (August Cönders) and I don't think there was ever any official consideration given to adopting it.
The Russians had a belt-feed SMG too, the LAD. Chambered in 7.62mm Tokarev with a fire rate of about 600rpm. However only two prototypes were ever made.
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
1921, Russia, inventions of E. E. Gorin:
Number 42:
"Project of electric steel man-automat"
About Russian 1910-1920s "superhuman" and "supersoldier" projects:
Тайные опыты доктора Иванова: Кому понадобился гибрид обезьяны и человека
Биолог Илья Иванов. Почему он стал прототипом повести Булгакова "Собачье сердце"? Для чего Иванов пытался скрестить обезьяну и человека? Зачем Стране Советов понадобился такой гибрид? И чем закончились эти опыты? Читайте в сюжете канала "Москва Доверие"
www.m24.ru
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
From book "Киселев А.М. "Умельцы военной поры"", 1986, page 84 - "PPSh with MG-42 belt-fed mechanism, 300-round belt"
I think, PPSh with 900 rpm and 300-rd belt is more interesting than LAD with 600 rpm and 150-250-rd belt...

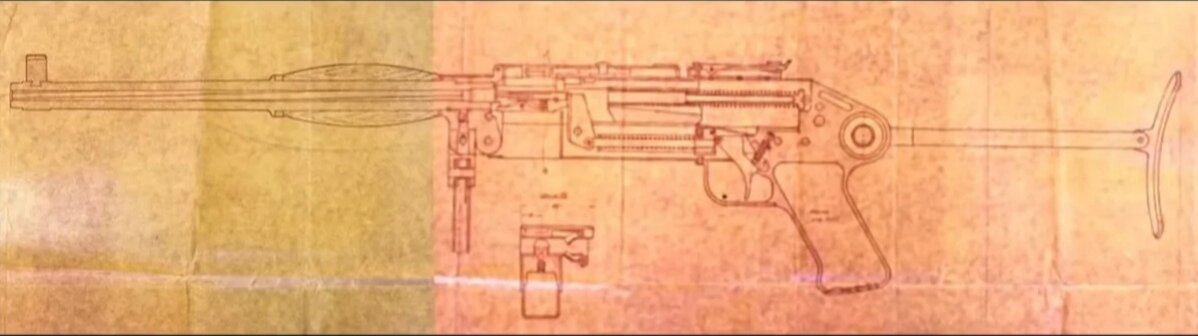

Other belt-fed SMG, TKB-340:
Last edited:
Get_Em_Puppy
ACCESS: Restricted
- Joined
- 19 February 2021
- Messages
- 14
- Reaction score
- 30
From book "Киселев А.М. "Умельцы военной поры"", 1986, page 84 - "PPSh with MG-42 belt-fed mechanism, 300-round belt"
I think, PPSh with 900 rpm and 300-rd belt is more interesting than LAD with 600 rpm and 150-250-rd belt...
Other belt-fed SMG, TKB-340:
View attachment 655079

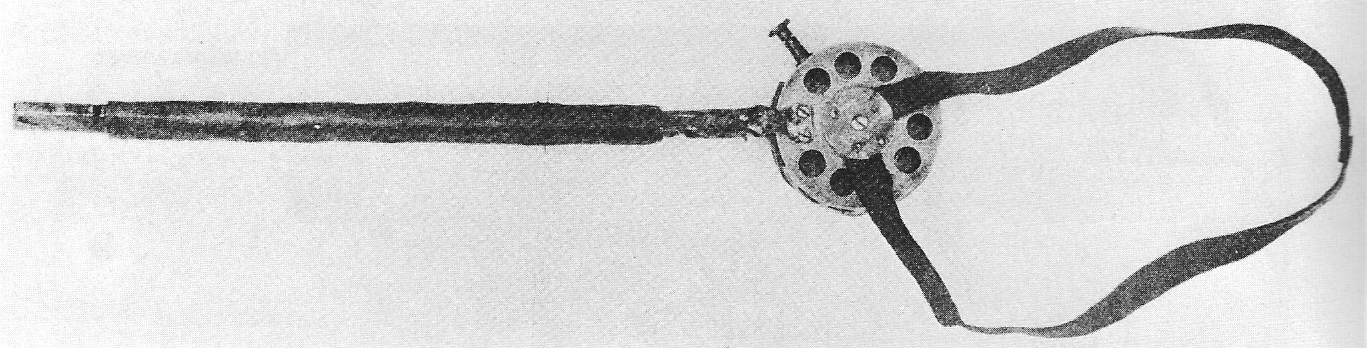

Talking of weird feed systems, here's a chute-feed developed by Heinrich Vollmer for the M.P.18,I...
Seems like the rotary drum at the end of the chute was supposed to be strapped onto the user's belt. Needless to say, this was never adopted.
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
One of the first revolviong guns, German 8-round musket, 1520 (?):
Other 8-rd musket, 1597:
Other 8-rd musket, 1597:
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
Russian XVII century experimental firearms:
- Rogatina ("bear spear"), combined with carbine barrel
- Musket inside spear
- Bardiche-gun
- Knife-gun
- Air gun
- Triple-barrel musket
- Double-barrel musket (one rifled and one smooth-bore barrels)
- Double-barrel pistols
- "Vybornije streltsy" (elite streltsy), three 300-man regiments, with spears, rifles and cannons
docplayer.ru
- Two airguns, 1641 and 1651
- Light field breeach-loading cannons, with cartridges in tinplate cases - 3/4 pound (307 g, 0.677 British lbs), 3 pounds (2.7 lbs), and buckshot cannon
- Leather cannons, 1-pound (0.9 lbs) ball, "reiter cannons", for shooting from horses (Russian "zamburak"?)
- Light portable mortar, for 5-pounder grenades, 40 kg barrel weight, 32 kg base weight, and other mortars, 4, 6, 10 pounder grenades ("10-pdr grenade" here is a grenade with 10 pounds of gunpowder inside)
- Wooden "ground" mortar
- Metal "ground" mortar, 2 cubit caliber (~0.9-1.5 m), lenght of barrel - 4 calibers (8 cubits, ~3.6-6 m), lenght of chamber - 2 calibers (~1.8-3 m).
- Project of huge collapsible mortar
- Rogatina ("bear spear"), combined with carbine barrel
- Musket inside spear
- Bardiche-gun
- Knife-gun
- Air gun
- Triple-barrel musket
- Double-barrel musket (one rifled and one smooth-bore barrels)
- Double-barrel pistols
- "Vybornije streltsy" (elite streltsy), three 300-man regiments, with spears, rifles and cannons
ИССЛЕДУЯ ИСТОРИЮ Оружейной палаты XVII в., мы неизбежно - PDF Free Download
С.П. Орленко (Москва) ОРУЖЕЙНОЙ ПАЛАТЫ ДВА «ПЕРВЫХ МАСТЕРА». НИКИТА ДАВЫДОВ, ГРИГОРИЙ ВЯТКИН 1 ИССЛЕДУЯ ИСТОРИЮ Оружейной палаты XVII в., мы неизбежно столкнемся с необходимостью рассмотрения вопроса о
Неизвестные образцы русской артиллерии 1660–1670-х годов, Лобин А.Н. (Санкт-Петербург)
Неизвестные образцы русской артиллерии 1660–1670-х годов, Лобин А.Н. (Санкт-Петербург) посмотреть на сайте в 3D. Неизвестные образцы русской артиллерии 1660–1670-х годов, Лобин А.Н. (Санкт-Петербург) в полном описании и фото, выставки где можно увидеть.
memo-randum.net
- Leather cannons, 1-pound (0.9 lbs) ball, "reiter cannons", for shooting from horses (Russian "zamburak"?)
- Light portable mortar, for 5-pounder grenades, 40 kg barrel weight, 32 kg base weight, and other mortars, 4, 6, 10 pounder grenades ("10-pdr grenade" here is a grenade with 10 pounds of gunpowder inside)
- Wooden "ground" mortar
- Metal "ground" mortar, 2 cubit caliber (~0.9-1.5 m), lenght of barrel - 4 calibers (8 cubits, ~3.6-6 m), lenght of chamber - 2 calibers (~1.8-3 m).
- Project of huge collapsible mortar
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
From "Firearms curiosa", Lewis Winant
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
Large-caliber volley pepperbox
Forest Green
ACCESS: Above Top Secret
- Joined
- 11 June 2019
- Messages
- 7,914
- Reaction score
- 13,368
Bottleship
ACCESS: Secret
- Joined
- 30 June 2019
- Messages
- 488
- Reaction score
- 1,235
Государственный каталог Музейного фонда Российской Федерации
Все музеи России, шедевры и коллекции музеев: живопись, графика, фотографии, скульптура, археология. Карта музеев.
Similar threads
-
-
Civilian based bomber ( or bomb carrier) projects: request for info
- Started by Firefly 2
- Replies: 17
-
-
-
