F-117 Developments ??

UpForce said:
flateric said:
...
Click to expand...

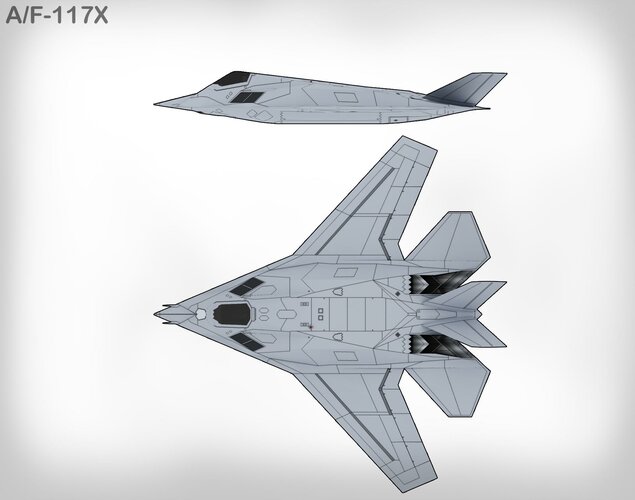

The best picture of this model I could find is on chadslattery.com. Other than that, there doesn't seem to be much information on A/F-117X or F-117N (or whatever) since 2007 or so.
Click to expand...
I think I have a pretty good memory and have been around internet for a long time, a lot of images I've seen in the early 2000s I have never seen again. If they got scrubbed back then I doubt they'll ever surface again given the time elapsed and I suspect whoever was posting them have since departed us due age/health.

Lockheed made multiple attempts to pitch a navalized version of the F-117A but it never gained any traction with NAVAIR leadership. By the early 1990s advances in low observables had already made the Nighthawk seem somewhat dated. I also have to believe that maintainability was a significant factor. Radar absorbent materials (RAM) were applied to the airframe as spray-on coatings and sheets attached with adhesives. These were notoriously easy to damage under the best of circumstances; even ordinary flexing of the airframe in flight could result in chipping and peeling. The abuse caused by carrier operations would only have exacerbated the problem, and constant exposure to salt spray would have resulted in significant oxidation. The A/F-117N would have been a nightmare for the maintainers.

Its' to bad the USN did not buy the AF-117X, this aircraft would have given the Navy a nice strike platform with some LO capabilities, something the USN needed badly. The A-12 was a joke, fixed-priced FSD, over-specified, constant scope creeped and over-weight disaster. As Ben Rich liked to state, the AF-117X was a UFO (Unfunded Opportunity). The F-117 design (including the AF-117X) has a full-length structural keel beam which would allow the aircraft handle the arrested landing loads.

I just discovered that the F-117A had the technical capability to carry air-to-air missiles ! o_O
“Yes, his primary role was attack but having said that, it could actually carry every munition in the inventory at the time of its insertion, with the exception of the Sparrow missile, which was radar-guided, so we could carry air-to-air missiles,” Maj. Robert “Robson” Donaldson said of the F-117.
Click to expand...
“Our secondary role was to shoot down the Soviet AWACS. So yeah, we were invisible to their radar and we didn’t want them controlling their airspace so, either on the way in or on the way out you could add a Soviet AWACS paint it to the side of your aircraft.”
Click to expand...
www.sandboxx.us

F-117 Stealth Fighter? The truth about air-to-air combat in the Nighthawk

The Lockheed F-117 Nighthawk, often referred to as the "stealth fighter," was the world's first operational stealth aircraft, born out of a program so
www.sandboxx.us www.sandboxx.us

GTX said:
F.L. said:
I just discovered that the F-117A had the technical capability to carry air-to-air missiles ! o_O
Click to expand...
I thought this was well known already
Click to expand...

There's a lot of dispute about whether Donaldson meant what he said, how literally to take it, and what that translated to operationally, if anything.

Dueling columns in The Aviationist and The War Zone, for example:

theaviationist.com

"F-117s Had An Air-To-Air Capability With Secondary Mission To Shoot Down Soviet AWACS" Former Stealth Pilot Says

A former Stealth Jet pilot provided some details about a previously unknown role of the F-117 during a recent interview at the Fighter Pilot Podcast. And
theaviationist.com theaviationist.com

www.thedrive.com

No, The F-117 Never Had Air-To-Air Capability, But One Did Get A Radar

The "Black Jet" never got the ability to shoot down other aircraft, but not due to a lack of creativity on behalf of the Skunk Works team.
www.thedrive.com www.thedrive.com

TomS said:
There's a lot of dispute about whether Donaldson meant what he said, how literally to take it, and what that translated to operationally, if anything.

Dueling columns in The Aviationist and The War Zone, for example:
Click to expand...

Yeah, all of these articles are a bit misleading or misinformed.
The F-117 was indeed looked at for a counter-SuAWACS role. "Have Blue and The F-117" lists a number of memos about this as references, and quotes one:

Air-to-air combat capability was also initially desired by some members of the user community. As late as May 1983, the system operational concept for the ATA stated that, "As a collateral task, the F-117 can be used as a clear air interceptor against selected, high-value targets such as [Soviet Union] AWACS and airborne jammers."78 This reflects the gap that can exist be- tween the expectations of the user and what is technically feasible. The F- 117A program successfully focused on achieving the essential basic capabil- ity and resisted pressure to add multimission capabilities that were not supported by the available technology. This focus was a key element to the program's success. Later versions of the system operational concept were progressively more realistic in their assessment of the aircraft's capabilities in several areas.79.8
Click to expand...

The F-117 did conduct a single ground static test with an AIM-9 on the trapeze (sometime between 1980-1983). That was all, and was as far as the air-to-air mission ever progressed. Pilots never trained for it, missions were never designed for it, etc.

Originally the F-117 was designed to carry forward firing (i.e. powered) weapons on the trapeze. This was actually much of the reason for the trapeze itself. Those weapons included the AGM-45, AGM-65, and AIM-9. None of those weapons, however, were certified for use by the F-117 by the time it became operational. The move to guided bombs and the development of the GBU-27 removed the need for forward firing weapons, and in practice weapons were almost always dropped with the trapeze up rather than extended. I do not believe that any forward-firing weapons were ever certified for use on the F-117, but I have no evidence to support that.

The radar projects that have been mentioned in some of these articles were exclusively for air-to-ground radars. They would not have been physically capable of any useful air-to-air mode. Originally the ATA/A3 was planned to have a stealthy, LPI radar and fire control system. Lockheed, Northrop, and others worked the problem very hard but could not make it work and the ATA ended up getting a FLIR system. Later in the F-117 program more than one radar solution was tested but the benefits did not outweigh the advantages. The technology of the time and the existing design of the F-117 did not allow for a viable system.

Has there been any revelations as to the Navy program that was underdevelopment at the same time as the Lockheed Have Blue in the late 1970's (circ 1976)? General Bobby Bond of the USAF was infuriated that the Navy had a program that he thought was siphoning designs or technology from his stealth fighter program and busted down a door at Lockeed's building 83C to find out what it was.

I assumed that it was AMSS or something else. Obviously it was not AF-117X, but possibly another aircraft program? Ben Rich, in his memoir Skunkworks, recounts the event.

Dynoman said:
Has there been any revelations as to the Navy program that was underdevelopment at the same time as the Lockheed Have Blue in the late 1970's (circ 1976)? General Bobby Bond of the USAF was infuriated that the Navy had a program that he thought was siphoning designs or technology from his stealth fighter program and busted down a door at Lockeed's building 83C to find out what it was.

I assumed that it was AMSS or something else. Obviously it was not AF-117X, but possibly another aircraft program? Ben Rich, in his memoir Skunkworks, recounts the event.
Click to expand...

Wasn’t that Sea Shadow?

Very likely as Ben Rich describes it as a 'weapons system.' However, I thought that Sea Shadow was designed or developed at Lockheed's Redwood City Facility.

Dynoman said:
Very likely as Ben Rich describes it as a 'weapons system.' However, I thought that Sea Shadow was designed or developed at Lockheed's Redwood City Facility.
Click to expand...

It was designed by the skunk works, built at Redwood City.

F-14D said:
Empire said:
Does anyone have information or pictures on the F-117 B model? This was the design that was in F-111 class but lost to the F-117 A model because the military thought the A model was a lower risk to take.
Click to expand...

There were at least four proposals that carried this designation, that I'm aware of. One was simply a second production run of F-117As, but with LPI radar, GPS and the ability to use HARM.

The second F-117B was proposed to have a larger weapons bay, reduced sweep on the wings and tail and all flying horizontal stabilizers. They were also shooting for a 40% increase in range. The third F-117B envisioned taking the changes proposed for the second version and adding afterburning to the F-117s, an undercarriage more like that of the F-15, an 8,8000 lb. payload and range would be further increased.

The fourth "F-117B" was a model proposed to Great Britain. It was also called the "F-117C", and a host of other names. In this case, the "B" stood for "British". I'm attaching an illustration of that model I got from somewhere I can't remember
Click to expand...
Do you have any pictures of that second F-117B proposal? It sounds similar to the F-117N and I'm wondering if the two are directly connected (beyond both being derivatives of the F-117).

The F-117B was similar to the USAF F-117A but without the faceted canopy. The F-117N had horizontal tails added, non faceted canopy, a beer gut belly for additional weapons and after-burning engines. It's interesting, the UK was part of F-117 from the beginning but never wanted to buy any aircraft, their complaint was that it was first-gen LO tech from info I had garnered, plus the UK had nothing at all nor had they developed anything. The UK's first LO aircraft is the F-35B.

Hydroman said:
The F-117B was similar to the USAF F-117A but without the faceted canopy. The F-117N had horizontal tails added, non faceted canopy, a beer gut belly for additional weapons and after-burning engines. It's interesting, the UK was part of F-117 from the beginning but never wanted to buy any aircraft, their complaint was that it was first-gen LO tech from info I had garnered, plus the UK had nothing at all nor had they developed anything. The UK's first LO aircraft is the F-35B.
Click to expand...
I have seen a claim from an RAF officer involved in this area that 80% of the RAM material used by the USAF at this time was made in the UK.
Source: An RAF Historical Society symposium on the 1990s, Journal 80, 2023.

Last edited:
Hydroman said:
The UK had RAF test pilots involved in the F-117 flight test program from the beginning, but to my knowledge, not involved in Have Blue.
Click to expand...

To my recollection the cooperation with the UK started during the Reagan administration and there are papers documenting that in the presidential library

TomcatViP said:
I think it's documented in Ben Rich book or the one from Miller.
Click to expand...
The video linked above is an interview with THE RAF Test Pilot who first flew the F-117 in order to assess & write a report for the MoD. Once submitted he didn't have sufficiently high clearance to read that report (he recalls only 5 people with sufficient clearance, from PM down).

Last edited:
Hydroman said:
The USN should have bought some of these, it was a mistake not to do so.
Click to expand...

The challenge would have been how to deploy them. You can't really just fly a squadron out to a carrier on short notice when you think you might need it. Which means that you need at least a detachment in every deployed air wing. Even accepting a small sliver-bullet force, that's probably more than 200 aircraft (for one 8-plane det in 13 CVW plus one in each RAG for training, plus ones in long-term maintenance...)

Also, maintaining a first-gen stealth fighter on a carrier would be interesting to say the least. For starters, you're adding yet another aircraft type to the wing, complete with specialized maintenance shops. Maintaining the coatings in a salt water environment sounds like a nightmare. And you can't isolate it from other aircraft, so good luck with the security precautions seen on land even after the F-117 went public.

The Navy was probably right to hold out for something that could live better on the carrier and be bought in sufficient numbers to completely replace the A-6. Pity it took until the F-35 for that to happen.

TomS said:
The challenge would have been how to deploy them. You can't really just fly a squadron out to a carrier on short notice when you think you might need it. Which means that you need at least a detachment in every deployed air wing. Even accepting a small sliver-bullet force, that's probably more than 200 aircraft (for one 8-plane det in 13 CVW plus one in each RAG for training, plus ones in long-term maintenance...)

Also, maintaining a first-gen stealth fighter on a carrier would be interesting to say the least. For starters, you're adding yet another aircraft type to the wing, complete with specialized maintenance shops. Maintaining the coatings in a salt water environment sounds like a nightmare. And you can't isolate it from other aircraft, so good luck with the security precautions seen on land even after the F-117 went public.

The Navy was probably right to hold out for something that could live better on the carrier and be bought in sufficient numbers to completely replace the A-6. Pity it took until the F-35 for that to happen.
Click to expand...
I think the USN could have lived with a lower-level of LO as a trade-off against maintenance and supportability. You can get decent RCS reduction based upon shaping alone, that is also here it starts in the first place, the LO shaping of the aircraft then the other materials are looked at for addressing bandwidth as an example. The F-117N had a full-length keel beam great for transferring loads and for the hook installation. It may have not been perfect but it would have given the USN a capability they did not have, I still think it was a poor decision plus Lockheed was going to give them a good deal as well and lots of support. The 117N could have evolved with block upgrades over time as well.

Case in point, the UK was involved in Senior Trend from the beginning and through the flight test program. When the US offered the UK the 117, they complained it was first gen LO tech so they didn't want the aircraft, they did not have anything and they could not develop there own LO platform during that time period, another poor decision, why go through all the trouble.

Dynoman said:
Has there been any revelations as to the Navy program that was underdevelopment at the same time as the Lockheed Have Blue in the late 1970's (circ 1976)? General Bobby Bond of the USAF was infuriated that the Navy had a program that he thought was siphoning designs or technology from his stealth fighter program and busted down a door at Lockeed's building 83C to find out what it was.

I assumed that it was AMSS or something else. Obviously it was not AF-117X, but possibly another aircraft program? Ben Rich, in his memoir Skunkworks, recounts the event.
Click to expand...
That’s how F-19 rumors get started!

Hydroman said:
I think the USN could have lived with a lower-level of LO as a trade-off against maintenance and supportability. You can get decent RCS reduction based upon shaping alone, that is also here it starts in the first place, the LO shaping of the aircraft then the other materials are looked at for addressing bandwidth as an example. The F-117N had a full-length keel beam great for transferring loads and for the hook installation. It may have not been perfect but it would have given the USN a capability they did not have, I still think it was a poor decision plus Lockheed was going to give them a good deal as well and lots of support. The 117N could have evolved with block upgrades over time as well.

Case in point, the UK was involved in Senior Trend from the beginning and through the flight test program. When the US offered the UK the 117, they complained it was first gen LO tech so they didn't want the aircraft, they did not have anything and they could not develop there own LO platform during that time period, another poor decision, why go through all the trouble.
Click to expand...
The problem was that the Navy (and MDD) didn't understand that stealth starts with shaping, they thought it was RAM panels alone.

Did the US Navy even know that Lockheed and Northrop were working on stealth shaping at the time? I certainly don't think so.
