F-104 Starfighter Projects

Clioman said:
An XF5V-1?

By great coincidence, the winter '08 issue of The Hook magazine (pub'd by the US Navy's Tailhook Association) has mention of what is claimed to be an XF5V. (Copy below) Yes, there were several F-104As at NAS China Lake; their website has photos of 3 different airplanes in the 1958-1960 timeframe, including pics of this aircraft (56-0757). But the website makes no mention of it being modified, let alone to the extent mentioned in the article. This is a new one to me, and I can find no other reference to it. Anybody have further info/confirmation. And, as the Hook editor asks, 'what happened to the F2V, F3V and F4V?' I've never heard of them, either...

Gentlemen:
Not to put too fine a point on this but the XF5V-1 information as published in winter '08 edition of The Hook appears to be based on an article I wrote for the April, 2004 edition of Internet Modeler. The XF5V-1 is a total work of fiction and even though the Navy flew a few F-104's they were never designated as the XF5V-1. No F-104's were modified. No extended wings, no twin ventral fins, no aft opening canopy, no heavier arresting hook. The only F-104 so modified was a Hasegawa 72nd scale kit that I built for the article. Do a google search for April 2004 Internet Modeler/Lockheeds for the Navy. One of the giveaways that this is an April Fools joke are the pilots "associated" with the project: I.B. Fulinya, A. P. Rilfool and so on. Funny, a similar thing happened on a subsequent April issue of IM about the P-47's that Israel flew...Oh well

Terry D. Moore

Thanks for the heads-up. Link: http://www.internetmodeler.com/2004/april/aviation/f-104e.php

See, this is why I've never done an "April Fools" article for APR, even though I've been occasionally tempted. The closest I came was in the very last issue of the original run, where I discussed - briefly - the mythology of the Nazi Flying Saucers and Nazi missions to the moon and Mars. Hopefully my repeated use of the word "bullshit" helped get across my view of the factual basis of those myths...

LOL!! Thanks for the INSIDE story on the XF5V -- I wonder if anyone (besides me) will tell the Hook editor, and what he'll do with the info.

When I was a little kid, about 9 or 10 & just starting building models, I started on Hawk's 1/48 kits & one a/c that had me fascinated was the F-104 & Hawk's kit. At some point then I stumbled upon a pic of a German Navy (IIRC) F-104 model & of course it had had "Marine" on its side. Naturally, since the F-104s had arrestor hooks & it had Marine on the side, I figured they were carrier a/c too!



Clioman said:
LOL!! Thanks for the INSIDE story on the XF5V -- I wonder if anyone (besides me) will tell the Hook editor, and what he'll do with the info.

NF-104 for tourism:
www.gkllc.com/home/AIAA-2007-5839_Rocket_Starflyer-Modified_NF-104_for_Space_Tourism.pdf

Not an unknown project, but I've unearthed some brief data on the F-104H.

A proposed export variant of the F-104G without the NASARR, optical gunsight and simplified equipment. Empty equipped weight was 13,492lbs and overload 28,440lbs. The TF-104H was 13,750lbs empty and 24,800lbs in overload condition. The F-104H was offered to Saudi Arabia in 1964.
In December 1965 Saudi Arabia ordered BAC Lightnings, I wonder whether the offer a year earlier was an attempt to gain an export order away from the Lightning or whether it was the poor equipment of the F-104H that put them off ordering the F-105G had it been available to them?

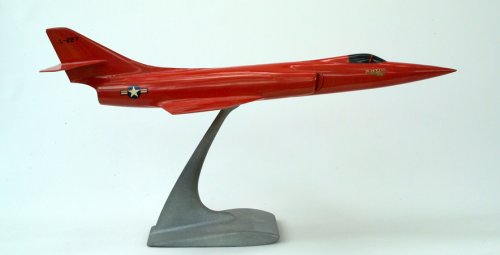

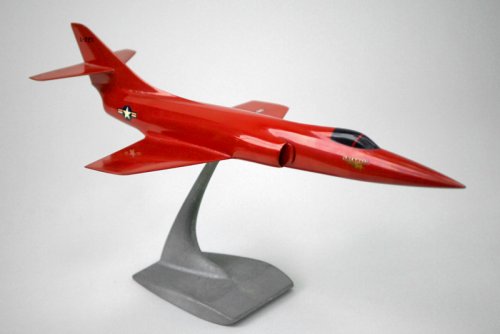

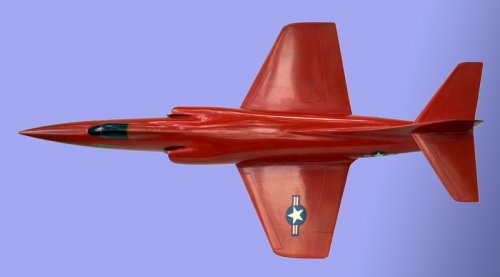

Manufacturer's concept model of the Lockheed L-227 supersonic fighter, in its original Ferrari red racing color.


Attachments

  • Lockheed L-227 01 sml.jpg
    Lockheed L-227 01 sml.jpg
    89.2 KB · Views: 1,855
  • Lockheed L-227 02 sml.jpg
    Lockheed L-227 02 sml.jpg
    85.1 KB · Views: 1,691
  • Lockheed L-227 04 sml.jpg
    Lockheed L-227 04 sml.jpg
    64.1 KB · Views: 1,639
Color it gone! I don't think the Luftwaffe would like it even if it was beer-colored. My opinion... -SP

circle-5 said:
Manufacturer's concept model of the Lockheed L-227 supersonic fighter, in its original Ferrari red racing color.

Supercool.
Indeed still remain some resemblance with XF-90.

Somwhere in Italy, Maranello (home of Ferrary plants) if I remember well, there is an actual F-104S painted with Ferrari livery...

circle-5 said:
Manufacturer's concept model of the Lockheed L-227 supersonic fighter, in its original Ferrari red racing color.

Glamorous Glennis

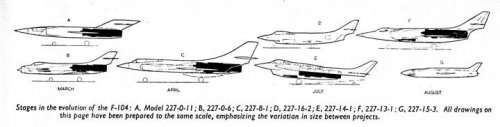

I found these in Flight 19 Oct 1961


Attachments

  • F-104 Concepts 1S.jpg
    F-104 Concepts 1S.jpg
    24 KB · Views: 1,514
  • F-104 Concepts 2S.jpg
    F-104 Concepts 2S.jpg
    20 KB · Views: 1,548
Fascinating - some of these designs are even creepier than the VTOL starfighter!

Orionblamblam said:
Wait till you see the swing-wing and three-engine/five-seater versions. Or the *really* big long range interceptor....
Waiting...

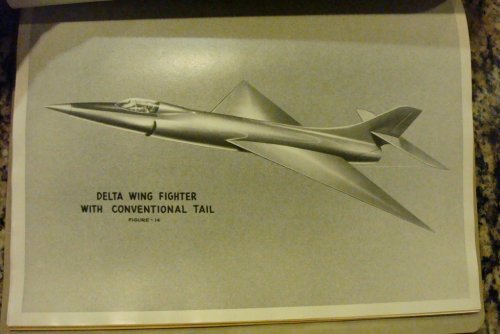

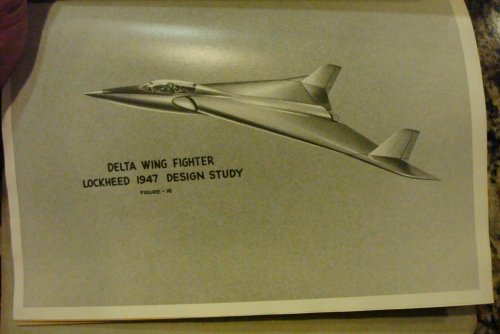

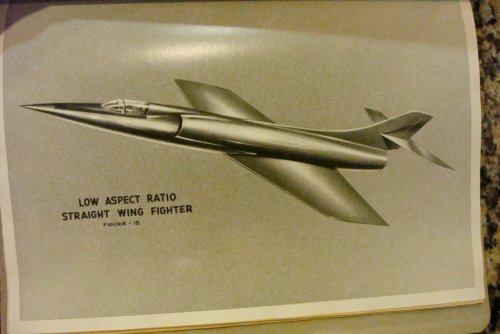

"Airplane Configurations for High Speed Flight" by Clarence L. Johnson, Lockheed Aircraft Corporation found on eBay.

Source:
http://www.ebay.com/itm/AIRPLANE-CONFIGURATIONS-FOR-HIGH-SPEED-FLIGHT-/290759198384?pt=LH_DefaultDomain_0&hash=item43b29946b0

SELECTED IMAGES


Attachments

  • $T2eC16NHJIIE9qTYI1O(BQJ,6Fv4Nw~~60_57.JPG
    149.8 KB · Views: 294
  • $T2eC16FHJIIE9qTYI4O(BQJ,6IUI5Q~~60_57.JPG
    148.7 KB · Views: 269
  • $T2eC16FHJHEE9ny2pwkgBQJ,6K5R4!~~60_57.JPG
    141.4 KB · Views: 309
Another copy of this just sold for $125.00 instead of $175.00 in the other
PaulMM/Stargazer2006 thread.

This one is probably in better condition.

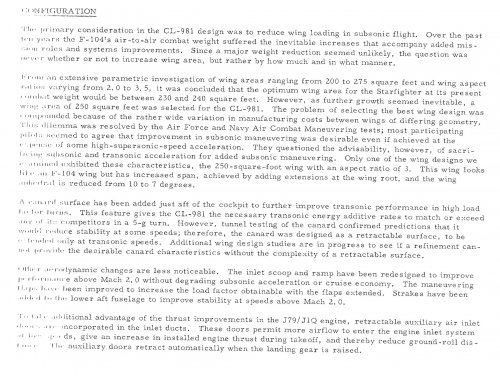

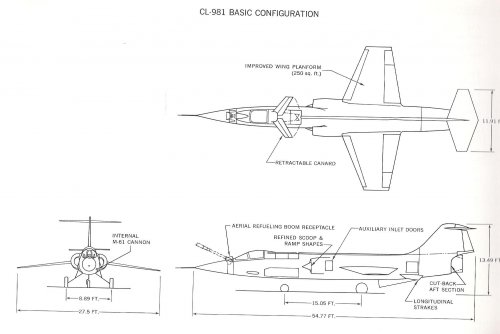

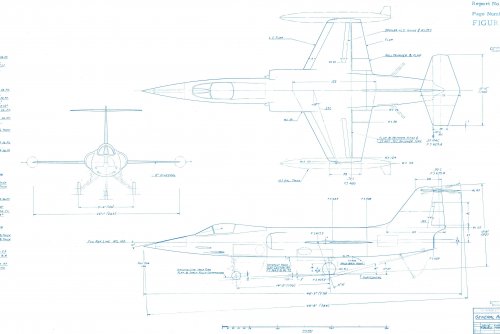

Drawing and some data for the CL-981.


Attachments

  • CL981 data.JPG
    CL981 data.JPG
    498.8 KB · Views: 693
  • CL981.jpg
    158.4 KB · Views: 734
From my dear Scott's site,

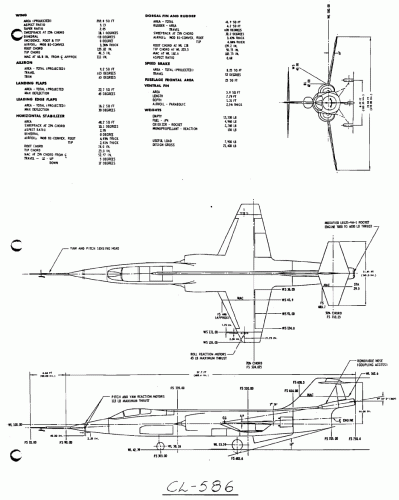

the Lockheed NF-104 was called CL-586;


http://up-ship.com/blog/?p=401


Attachments

  • CL-586.gif
    106.9 KB · Views: 610
Triggered by the thread about the F-104 twin (http://www.secretprojects.co.uk/forum/index.php/topic,18149.0.html, think,
we should merge them), I looked through, but apart from the picture in #15, it seem, that it wasn't mentioned still yet.

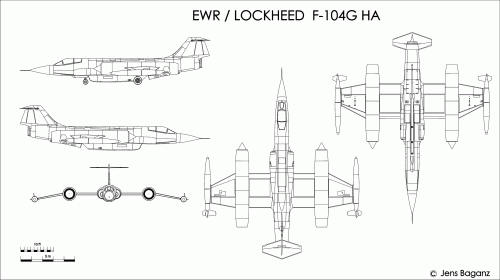

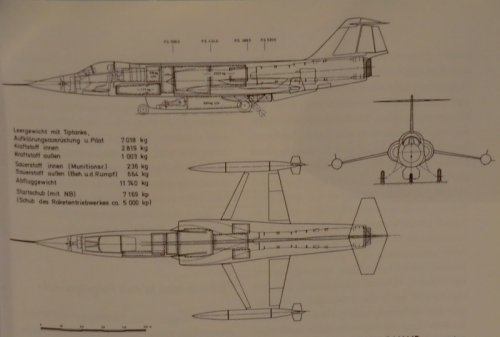

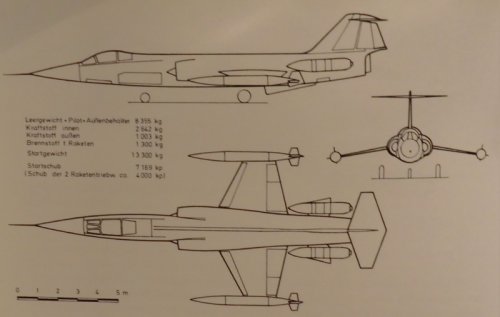

Starting in 1964, the Entwicklungsring Süd GmbH (EWR) started studies for using the F-104G as basis for a high altitude
reconnaissance aircraft. The first layout (G HA) was for a modified aircraft fitted with two additional ramjets, carried by a new
center wing. The predicted maximun ceiling was 35 km on a ballistic flight over a distance of 60 to 70 km. this solution was
judged to offer "reasonable" flight characteristics, but much too high fuel consumption.
The next variant (G HAR)should carry two additional hybrid rocket engines, using a combination of solid and liquid fuel.
This configuration was deemed to be easier, but the considerable weight of the rocket engines at the tail was regarded as
being prone to problems, flight characteristics were not studied.
The last variant should use a "Hauptstromtriebwerk" (Main stream engine ?) rocket engine developed by Bölkow, fitted below
the fuselage. It should enable flights with phases of up to 40 km length above a height of at least 20 km, max. height 32 km.
All flight profiles would have included phases without propulsion, that could have led to uncontrollable situations, so a reaction
control, similar to the NF-104A was proposed, but in the end all those studies were stopped.
(Information and drawings of the HAR and HAHR from Fliegerkalender 2011)


Attachments

  • F-104GHAR.jpg
    73.5 KB · Views: 614
  • F-104GHAHR.jpg
    79.2 KB · Views: 670
  • F-104GHA.gif
    278.9 KB · Views: 793
GTX said:

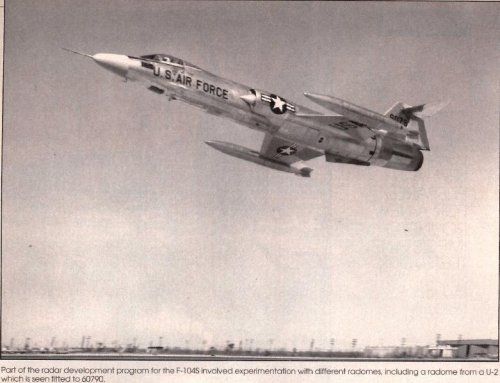

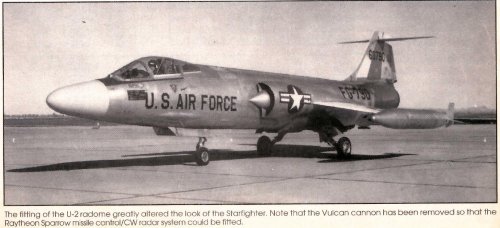

A small addition to the F-104 stable: F-104 with U2 radome.

Nice find Greg!
I wonder how it effected over all speed?
Such a radome would afford a slightly larger radar dish I guess!!

Regards
Pioneer

Hi,


although those drawings is not new,and must of us know them very well,but
they are still keeping on their mighty profiles.

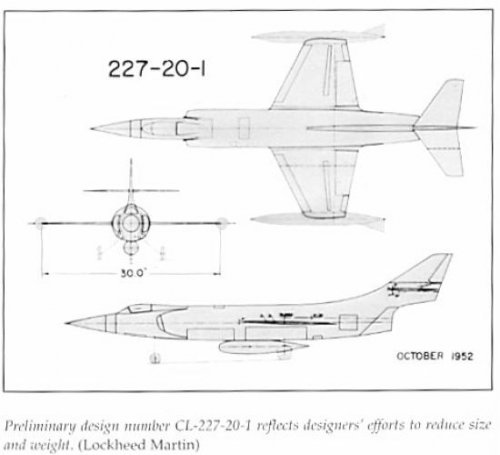

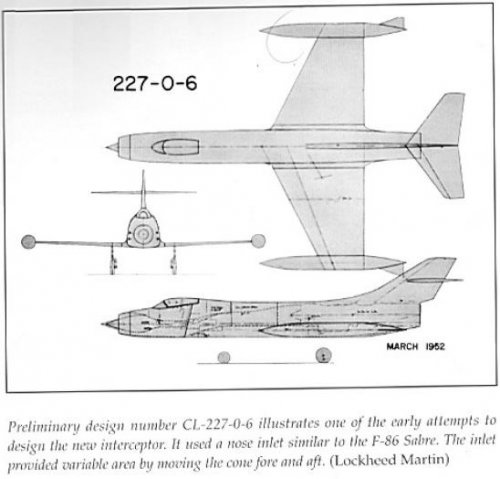

Warbird Tech; Lockheed F-104 Starfighter


Attachments

  • L-227-20-1.JPG
    24 KB · Views: 497

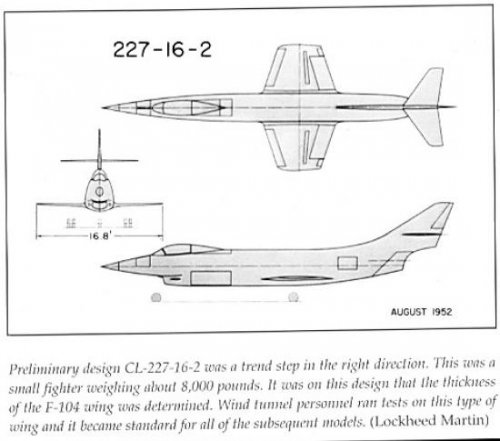

  • L-227-16-2.JPG
    33.3 KB · Views: 455

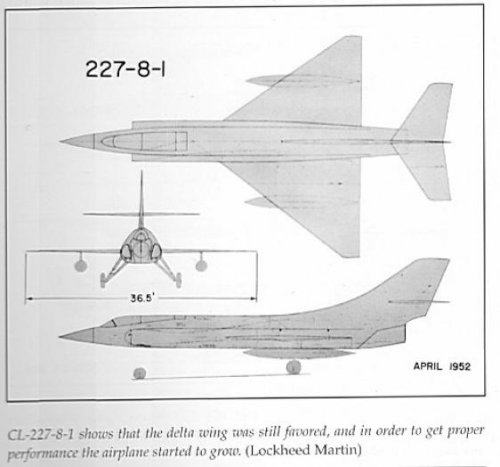

  • L-227-8-1.JPG
    30.2 KB · Views: 1,508

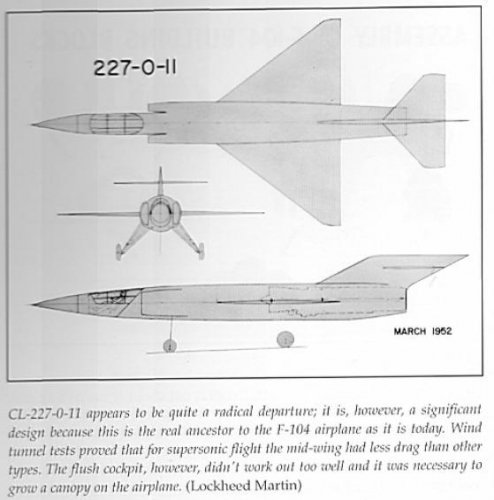

  • L-227-0-11.JPG
    36.4 KB · Views: 1,556
  • L-227-0-6.JPG
    33.9 KB · Views: 1,585

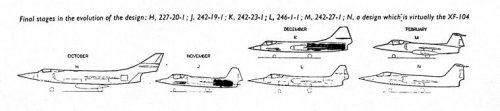

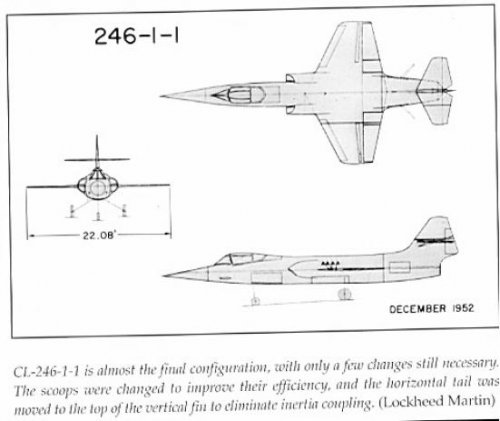

And;


Attachments

  • CL-246-1-1.JPG
    28.4 KB · Views: 456

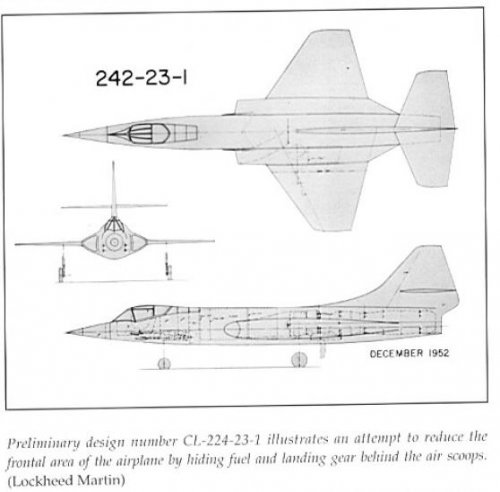

  • CL-242-23-1.JPG
    30.7 KB · Views: 431

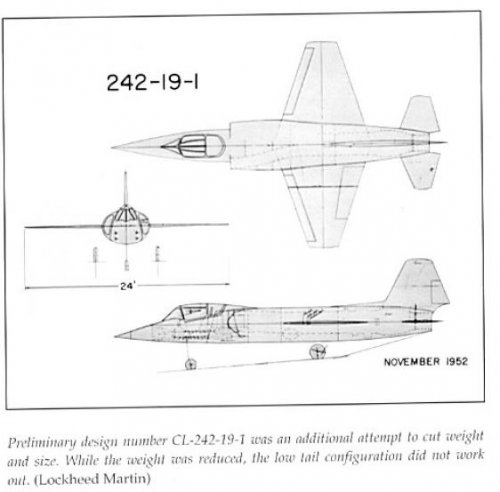

  • CL-242-19-1.JPG
    29.3 KB · Views: 411

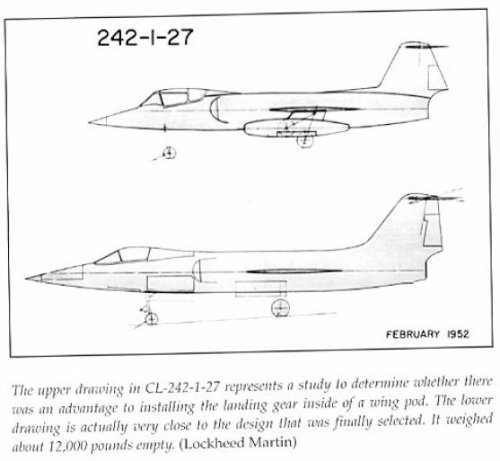

  • CL-242-1-27.JPG
    32.1 KB · Views: 416
Orionblamblam said:

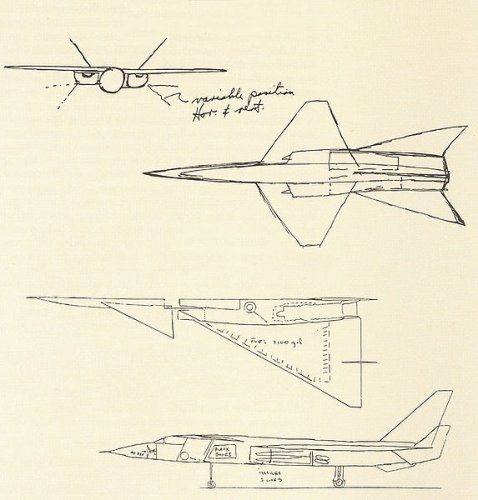

Incorrect. The top view is an early "Archangel" sketch; the lower drawing is the North American F-108.


My dear Scott,


of course I spoke about upper drawing of the sketch,but do you have a drawing to it
(early Archangel)?.

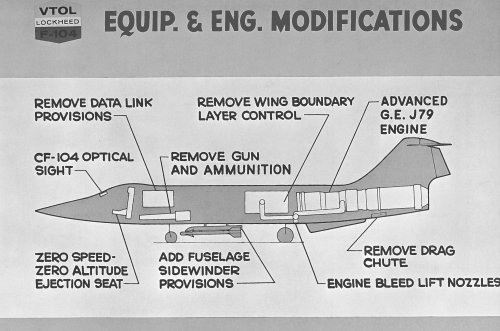

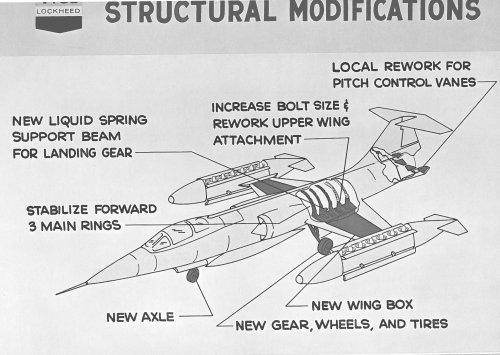

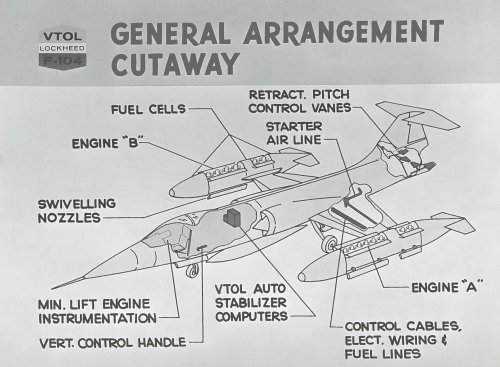

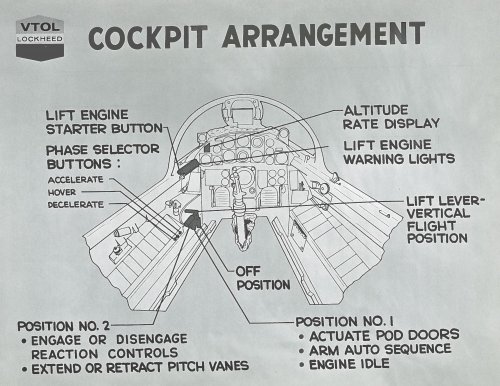

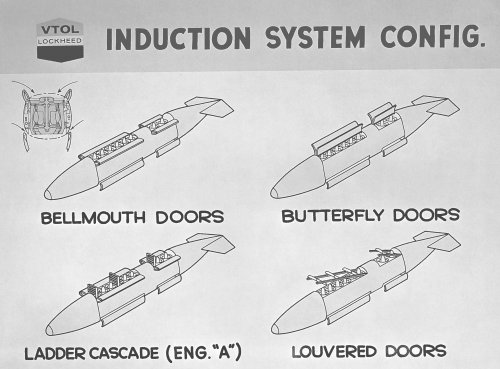

Drawings of the VSTOL F-104, Model CL-521.


Attachments

  • VSTOL 104 6 copy.jpg
    VSTOL 104 6 copy.jpg
    703.4 KB · Views: 407
  • VSTOL 104 5 copy.jpg
    VSTOL 104 5 copy.jpg
    538.3 KB · Views: 382
  • VSOL 104 4 copy.jpg
    VSOL 104 4 copy.jpg
    540.6 KB · Views: 378
  • vstol 104 3 copy.jpg
    vstol 104 3 copy.jpg
    602.9 KB · Views: 388
  • vstol 104 2 copy.jpg
    vstol 104 2 copy.jpg
    604.4 KB · Views: 432
  • vstol 104 1 copy.jpg
    vstol 104 1 copy.jpg
    382.7 KB · Views: 476
THX RAF, for the scan
here additional Picture

here 1960's Lookheed advertise
index.php


The Lockheed CL-704 Model
index.php

index.php

index.php


Source
http://www.secretprojects.co.uk/forum/index.php/topic,431.15.html

index.php


index.php


From the looks of things, the Model CL-521 was intended primarily as a tactical nuclear delivery platform (laydown/delayed action), with a secondary role as a forward point defense interceptor.

Splendid, RAP! My favorite contribution to this forum for today! :D

Hi everybody

Here the RF-104G1 and RTF-104G1 advanced reconnaissance versions of the F-104G.
http://commons.wikimedia.org/wiki/File:RF104G-1.jpg
http://www.flightglobal.com/pdfarchive/view/1968/1968%20-%200979.html
http://www.i-f-s.nl/f-104-types/
http://www.916-starfighter.de/Large/eb121.htm
http://www.rolfferch.de/F104G/html/body_projekte.html

Someone knows more about the RTF-104G1 two seat version ? A drawing ?
Thanks for any help.
Many greetings

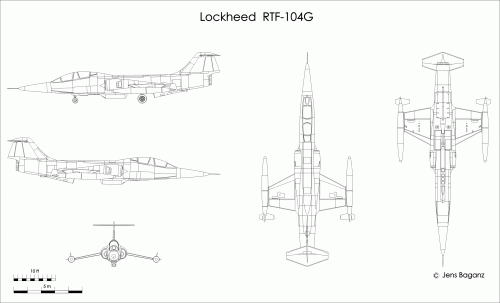

More or less guesswork, a combination of the RF-104G and the TF-104 G:


Attachments

  • Lockheed_RTF-104G.gif
    164.7 KB · Views: 2,260
Hi,

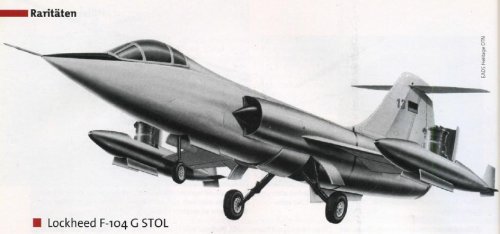

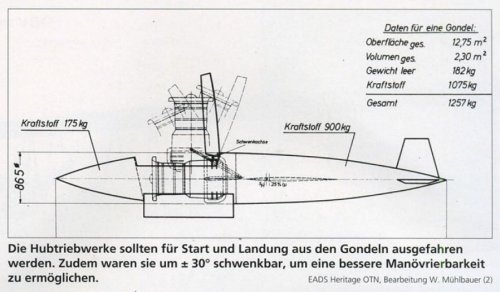

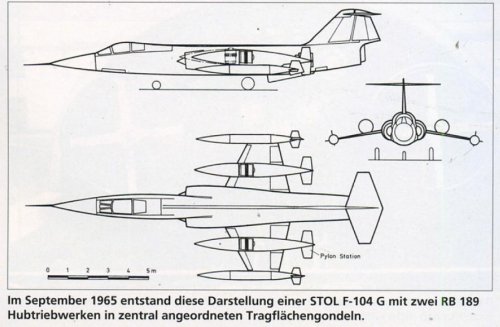

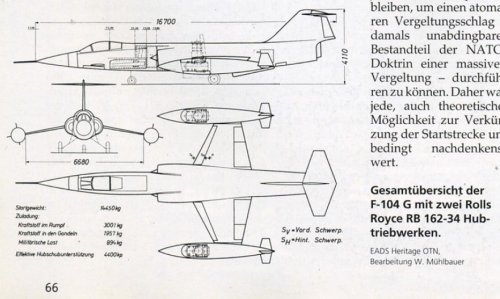

here is the Lockheed F-104G STOL aircraft project,I saw a VTOL Starfighter,but
STOL never seen,for me only.


Flugzeug Classic 5/2006


Attachments

  • F-104 STOL-1.JPG
    F-104 STOL-1.JPG
    41.8 KB · Views: 1,841
  • F-104 STOL-2.JPG
    F-104 STOL-2.JPG
    75.3 KB · Views: 1,787
  • F-104 STOL-3.JPG
    F-104 STOL-3.JPG
    64.9 KB · Views: 1,728
  • STOL.JPG
    60.2 KB · Views: 1,689
