Douglas XB-42 Mixmaster and XB-43 Jetmaster

The multiple-nose idea was popular back then. It disappeared through the early Jet Age and re-emerged in the form of the idea of different mission pods for the B-58, although that was never done in practice. Might be an interesting way to configure things today.

Wasn't such a system used for IAI Kfir recce versions ? I remember having seen photos
of such camera equipped noses on cradles, implying that they could relatively easily be changed.

LowObservable said:
The multiple-nose idea was popular back then. It disappeared through the early Jet Age and re-emerged in the form of the idea of different mission pods for the B-58, although that was never done in practice. Might be an interesting way to configure things today.

You also had the FAST Packs on the F-15E that ended up just being CFTs.

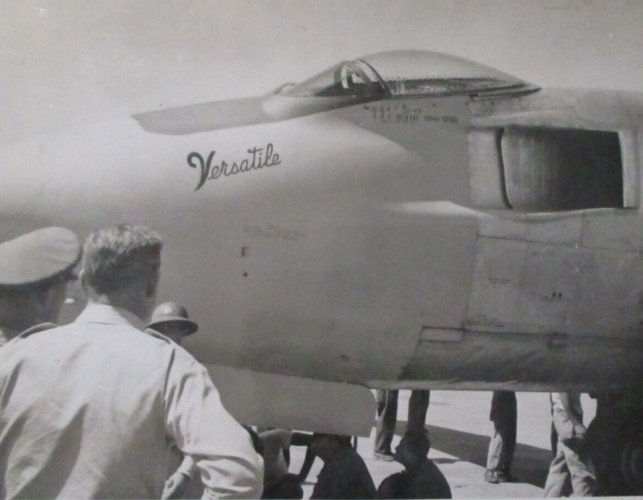

Nice footage about XB-43 :


https://www.youtube.com/watch?v=w9dwr8PRpcY

Last month's issue of AIR CLASSICS and the current one feature good articles by Michael O'leary on the XB-42 and 43.


Attachments

  • 0104162109.jpg
    777.9 KB · Views: 567
  • 0104162102-1.jpg
    297 KB · Views: 115

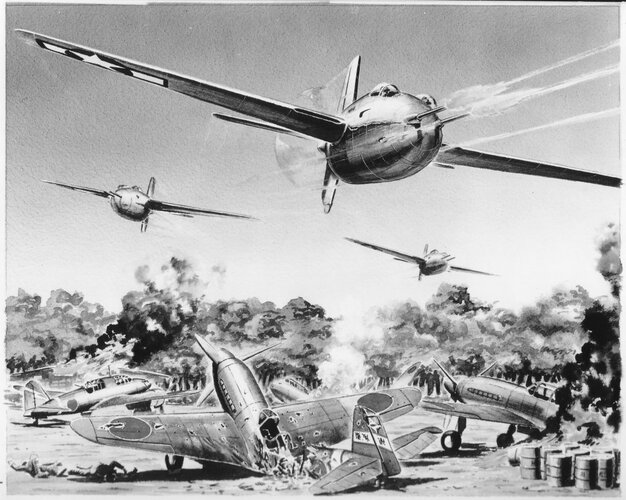

Is there anyone of the U.S. bomber specialist who haves more info
about the unbuilt attack version shown to us by Sienar in his rep#76.
The illustration is part of an article written by Lloyd S. Jones.

(belly airscoop,wheels retracting in the wing,installation for the wing tanks and jets)

B)


Attachments

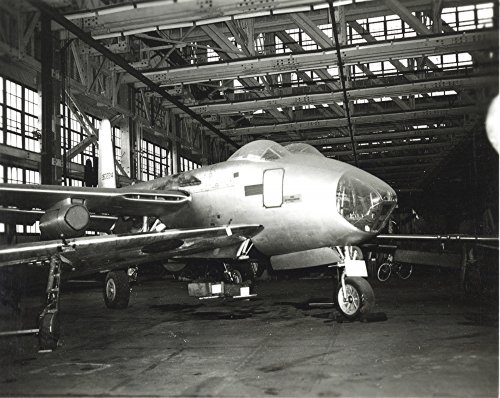

  • Douglas XB-42A Mixmaster.jpg
    Douglas XB-42A Mixmaster.jpg
    1.1 MB · Views: 146
  • Douglas XB-42A Mixmaster front.jpg
    Douglas XB-42A Mixmaster front.jpg
    1.1 MB · Views: 200

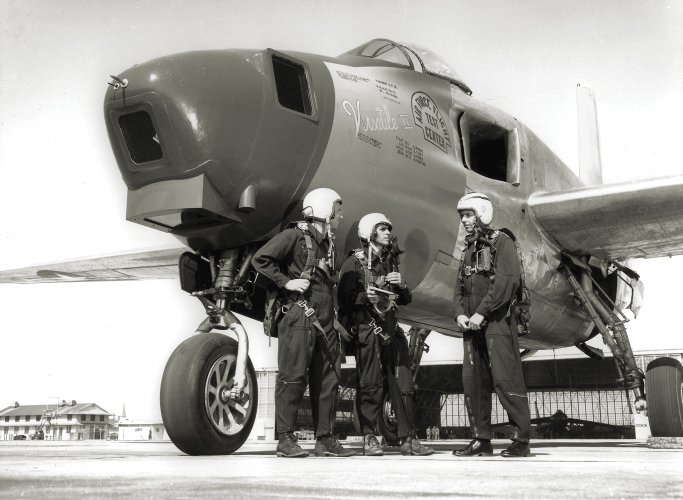

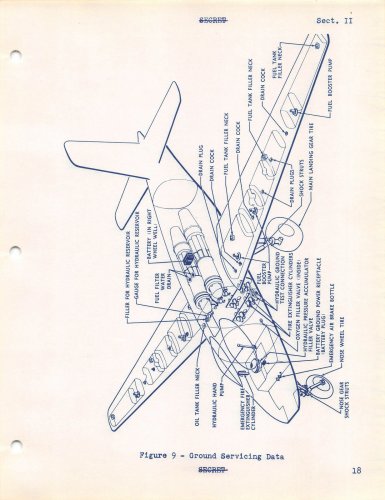

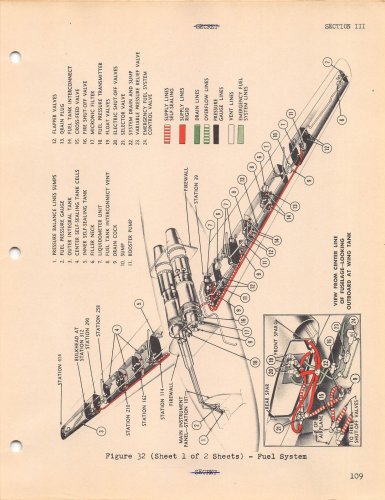

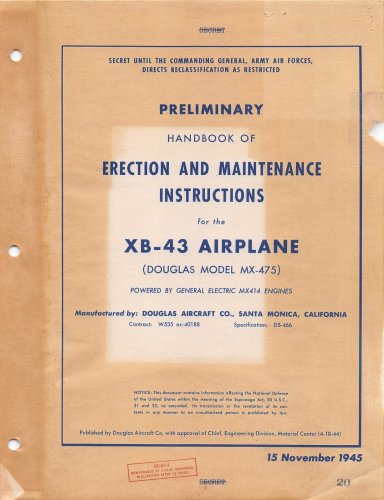

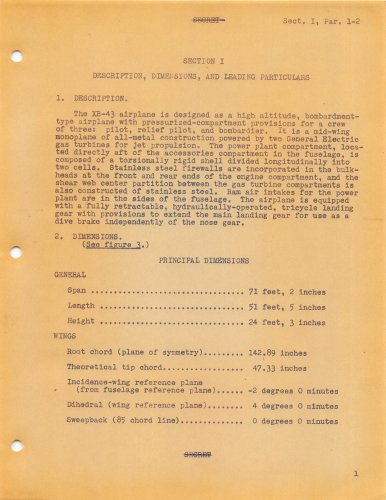

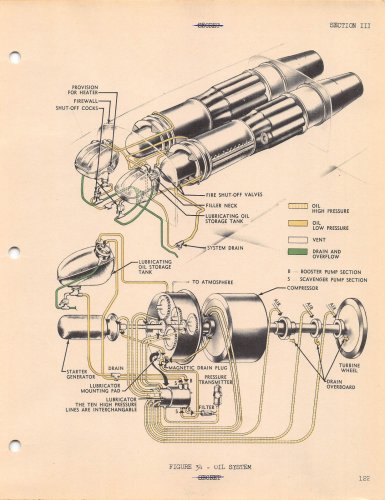

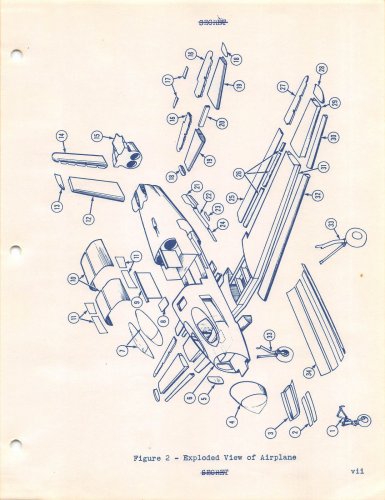

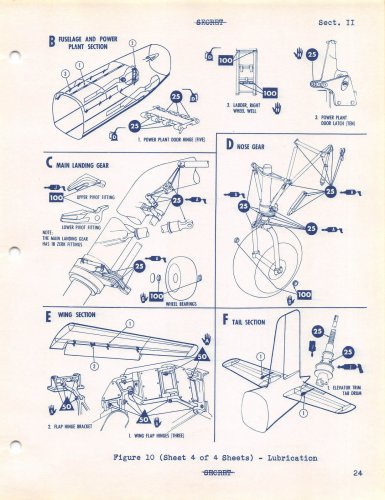

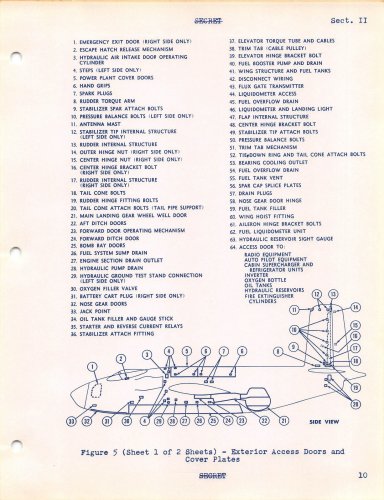

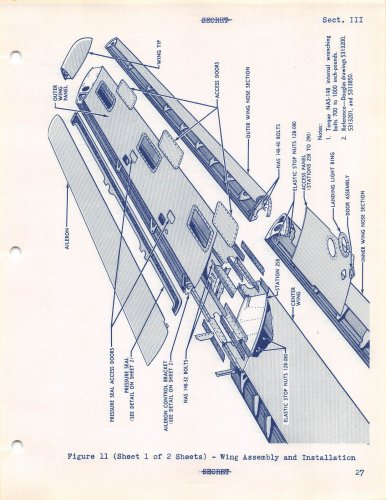

https://www.ebay.com/itm/XB-43-Preliminary-Erection-Maintenance-Insts-Flight-Manual-CD-version/221967473513


Attachments

  • s-l1600 (9).jpg
    s-l1600 (9).jpg
    415.2 KB · Views: 182
  • s-l1600 (8).jpg
    s-l1600 (8).jpg
    400.6 KB · Views: 157
  • s-l1600 (7).jpg
    s-l1600 (7).jpg
    503 KB · Views: 142
  • s-l1600 (6).jpg
    s-l1600 (6).jpg
    391.1 KB · Views: 153
  • s-l1600 (5).jpg
    s-l1600 (5).jpg
    335 KB · Views: 157
  • s-l1600 (4).jpg
    s-l1600 (4).jpg
    404.1 KB · Views: 420
  • s-l1600 (3).jpg
    s-l1600 (3).jpg
    276 KB · Views: 454
  • s-l1600 (2).jpg
    s-l1600 (2).jpg
    357.6 KB · Views: 445
  • s-l1600 (1).jpg
    s-l1600 (1).jpg
    349.2 KB · Views: 457
  • s-l1600.jpg
    372.4 KB · Views: 520

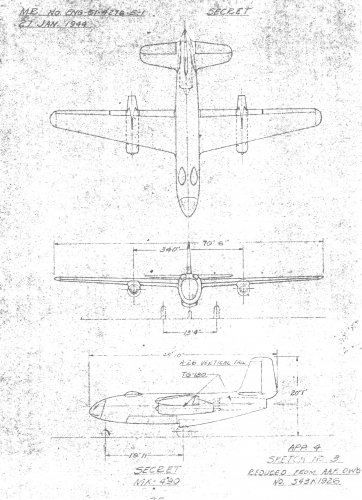

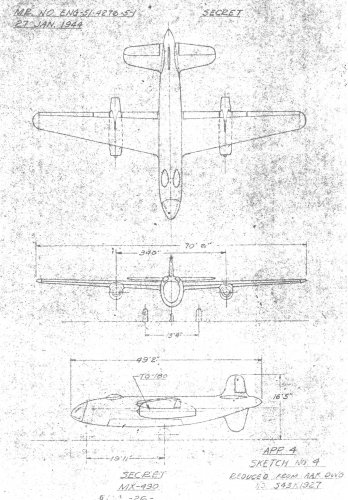

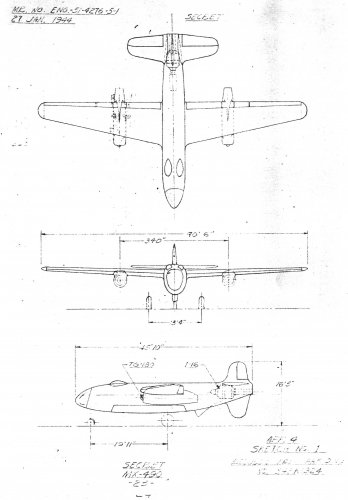

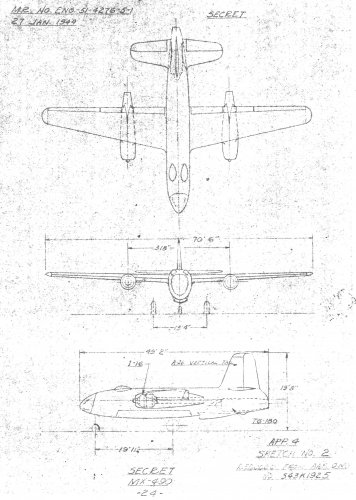

From a report on a jet powered XB-42 dated 2/27/44. Study was to upgrade the XB-42 with the least amount of alterations to production jigs. Engines were:

Drawing no. 1 - 2 TG-180's and 1 I-16

Drawing no. 2 - 1 TG-180 and 2 I-16's

Drawiing no. 3 - 3 TG-180's

Drawing no. 4 - 2 TG-180's


Attachments

  • MX490 no. 4.jpg
    MX490 no. 4.jpg
    1.8 MB · Views: 212
  • MX490 no. 3.jpg
    MX490 no. 3.jpg
    1.9 MB · Views: 203
  • MX490 no. 2.jpg
    MX490 no. 2.jpg
    1.7 MB · Views: 206
  • MX490.jpg
    737.9 KB · Views: 202
Amazing my dear Mark,

and I had them from long time ago in my files,and maybe more,but where ?.

I just found something while reading about the Douglas ROC:

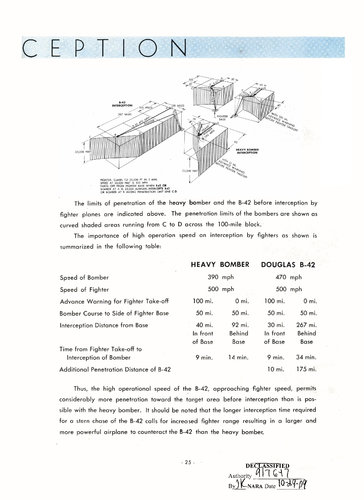

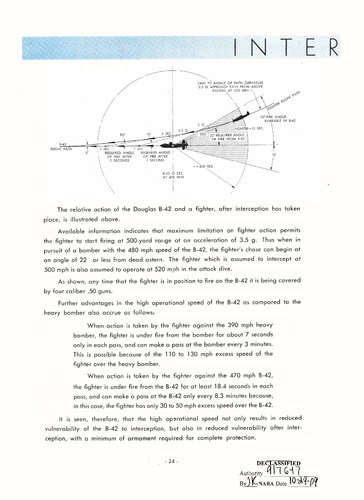

Preliminary design work was undertaken by W. B. Klemperer, who had come to Douglas from the Goodyear-Zeppelin Corporation. One of his early contributions had been an esoteric study of pursuit curves, a study pertinent to the Roc problem, but primarily applied to the interception of bombing planes. It was the philosophy expounded in this study which is exemplified in the latest Douglas bomber, the XB-42, familiarly known as the “Mixmaster.”


Attachments

  • B-42_Intercept_1.jpg
    963.1 KB · Views: 111
  • B-42_Intercept_2.jpg
    978.2 KB · Views: 113
Hi again,

Since the link doesn't work anymore, does anyone have some clues on how to find this NACA report?

By a freak coincedence, I just discovered that the NASA server can actually do permalinks, even though the feature has been absent from its user interface as long as I remember ... so here is the report:


Just to be on the safe side:

MR No. A5J12

ORIGINALLY ISSUED October 1945 as

Memorandum Report A5J12

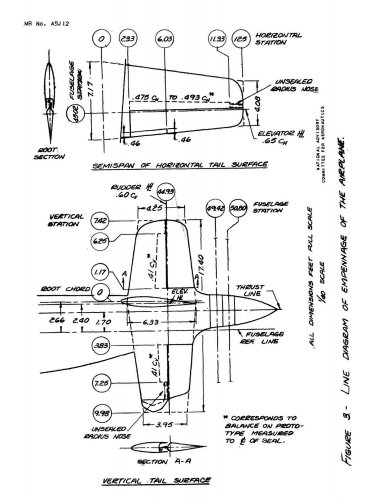

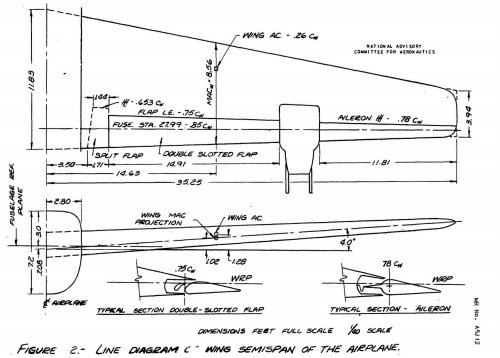

AERODYNAMIC CHARACTERISTICS OF A 1/8-SCALE POWERED MODEL OF A HIGH-SPEED BOMBER WITH A DUAL PUSHER PROPELLER AFT OF THE EMPENNAGE
By James A. Weiberg and Alfred W. Schnurbusch

The official download link from the site is:


Not sure they're not going to break the latter sooner or later, though.

That's what the inventor of the WWW thought about breaking links: https://www.w3.org/Provider/Style/URI.html

Regards,

Henning (HoHun)

Hi,



Attachments

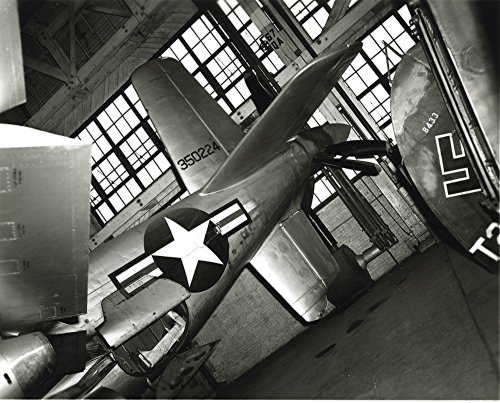

  • 13.jpg
