Triton said:
Where is the flight crew on Icarus?

look on cockpit of Shuttle go left on Icarus
there are four littel windows that's there Cockpit

odd the they sitting in a escape capsule for case something goes wrong
a option the passengers don't have !

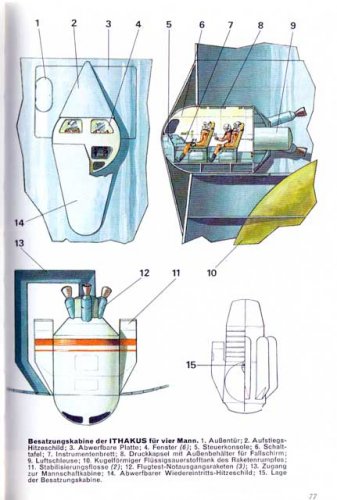

WHEEEEE!!!! in detail

legend

1. Access door to cockpit module
2. Ascend heatshield
3. jettison cover
4. windows (6 in total)
5. Controls panel
6. switch panel
7. instrument panel
8. Pressure hull with parascute
9. Airlock
10. LOX tank of Ithacus
11. Stabiliser
12. flighttest emergency rockets
13. Access to cockpit
14. descent heatshield
15. postion of Cockpit in ithacus

source:
the swiz edition's of "Frontiers in Space"
page 77


Attachments

  • Ithacus_cockpit.jpg
    37.1 KB · Views: 320
edition's of "Frontiers in Space"
page 77
[/quote]

Hi,
The idea seemed brilliant and influenced others this side of the pond. There is a detailed cutaway drawing of a recoverable Blue Streak variant powered by RZ12 modified with plug nozzle / shield.

OM said:
Triton said:
Orionblamblam said:
Woo! Was just informed that the documents have been reviewed and are no longer ITAR controlled.

V2N6 will have a whole lot of goodies.

Great news! It seems absurd that declassified technical reports are available under the Freedom of Information Act (FOIA) and then they run afoul of International Traffic in Arms Regulations (ITAR).

...Does sound pretty ITARded, donnit? :p

"ITARded", I like that. :D

i think wat is about this Rombus payload
index.php


it look like earth depart stage from Douglas UMPIRE study
Unfavorable Manned Planetary - Interplanetary Roundtrip Expedition
http://www.astronautix.com/craft/umpuglas.htm

Michel, thank you for the illustrations. Very interesting.

They really illustrate the astronaut accommodation problems faced by the Grumman engineers on the Apollo LM. How to accommodate the pilots so that they have visibility for launch/docking (forward visibility), and landing (rearward/downward visibility), but since ROMBUS would launch from Earth the G-forces on the pilots also have to be accounted for. According to the illustrations, the pilots would be crushed down into their seats, versus pushed into the back of their seats (as on Apollo / Shuttle). Seated as they are in the illustrations, it looks like they would actually have little forward/downward visibility, only lateral.

For a pilot, vertically landing something as large as ROMBUS (not to mention finding a suitable landing spot) would have been quite "exciting" I would think.

SAustin16 said:
Seated as they are in the illustrations, it looks like they would actually have little forward/downward visibility, only lateral.

For a pilot, vertically landing something as large as ROMBUS (not to mention finding a suitable landing spot) would have been quite "exciting" I would think.

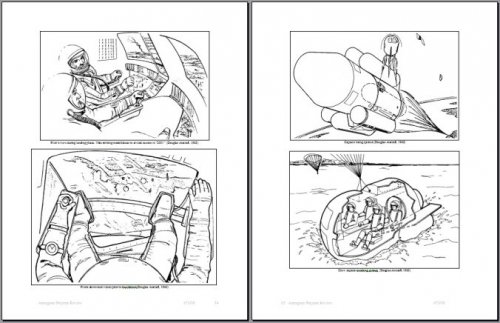

A screenshot of the relevant page of illustrations from the forthcoming APR article...


Attachments

  • cockpit.jpg
    61.8 KB · Views: 446
Rombus is from 1963, so I guess they used what they knew.

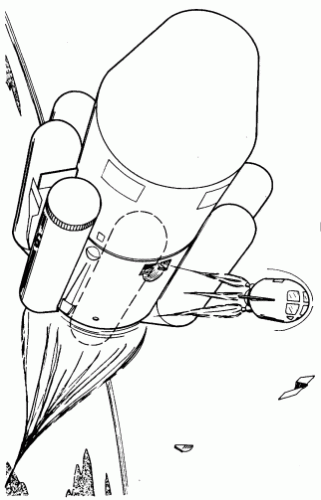

...Looks to me more like crew compartment emergency ejection system drawings than landing. One assumes from the last two panels - if read from left-right-top-down - the compartment had some degree of maneuverability so as to ensure a water landing.

Yeeesh. Just broke the 130 page mark with issue V2N6... and I'm still awaiting another few pages of stuff from a source.

The ROMBUS/ICARUS article starts on page 12, ends on page 94. Anybody complains that this article doesn't have enough info, Imagonnasmackm.

82 pages of glorious ROMBUS Family
that more as in "Frontiers of Space" by Philip Bono / Kennneth Gatland ! ! !

issue V2N6 gonna be Ultra subzero Cool

Orionblamblam said:
OM said:

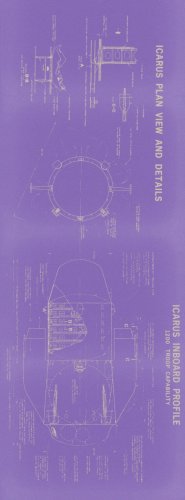

...Looks like a purple print to me :p

Not one of my better efforts, admittedly.

Hey, you're alive. There was specualtion on SSH that you are dead. Aided in no small part due to OMblog vanishing.

...I've actually been near death for the past few months with a liver condition known as coleostatic hepatitis, a condition that's contracted either by a negative interaction between two or more medications, or more rarely by contracting a parasite from a pet. In typical OM fashion, in my case it turned out to be both, which is why it's taken so long to treat. I've still been a little active online, but off of usenet due to financial reasons - the same ones that have OMWorld offline. I'd love to get both back up and running, but I need a) a decent *free* usenet provider that has a decent retention span, and b) a blog service that will allow me to transfer and repost my old OMBlog entries with the dates set to when they were actually posted. So far, b) appears to not exist in any way, shape or form.

...Still, as for my being "dead", I'd be curious as to how many of the trolls popped up to wish me a swift journey to Hell :p :p

OM said:
[...Still, as for my being "dead", I'd be curious as to how many of the trolls popped up to wish me a swift journey to Hell :p :p

You think too highly of yourself

found in this blog, Info about Space Book "Book of Space"
http://dreamsofspace.blogspot.com/2010/06/book-of-space-adventures-1963-1964-1965.html


It has littel section about Pegasus and Ithacus Concept, with this Picture
I think its official art from Douglas Pegasus proposal


the Module for the space station are in size of Skylab


Attachments

  • 1965bookofspaceadventures2.jpg
    35.5 KB · Views: 658
Found on NTRS a PDF
ROMBUS - An Integrated Systems Concept for a Reusable Orbital Module (Booster and Utility Shuttle)
by Bono, Phillip
http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19630007932_1963007932.pdf

Artist's impression of Douglas Ithacus.

Source:
http://www.themodellingnews.com/2011/12/latest-news-from-fantastic-plastic.html


Attachments

  • Icarusillustration.jpg
    96.4 KB · Views: 370

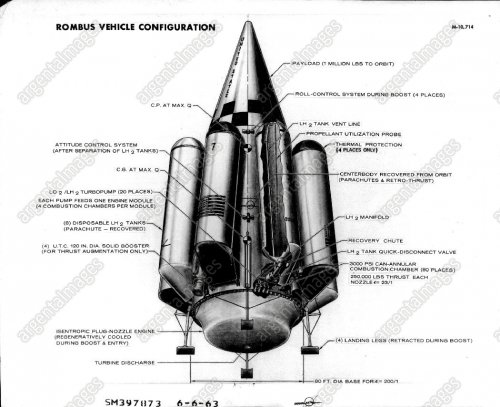

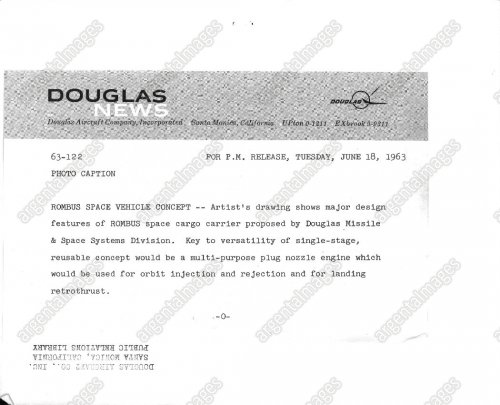

Douglas ROMBUS press photo found on eBay.

URL:
http://www.ebay.com/itm/1963-Missile-Space-Future-SPACE-VEHICLE-CONCEPT-Press-Photo-/200887482758?pt=Art_Photo_Images&hash=item2ec5d3b986


Attachments

  • 1_14_454_9-10012012-10000611A.jpg
    357 KB · Views: 986
  • 1_14_454_9-10012012-10000611B.jpg
    289 KB · Views: 827
Hi,

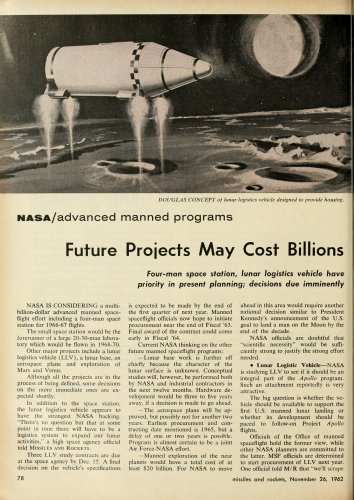

here is a Douglas LLV or Lunar Logistics Vehicle.


https://archive.org/stream/missilesrockets1119unse#page/78/mode/2up


Attachments

  • Douglas.png
    746.5 KB · Views: 730
  • missilesrockets1119unse_0756.jpg
    1.1 MB · Views: 696
Hi,

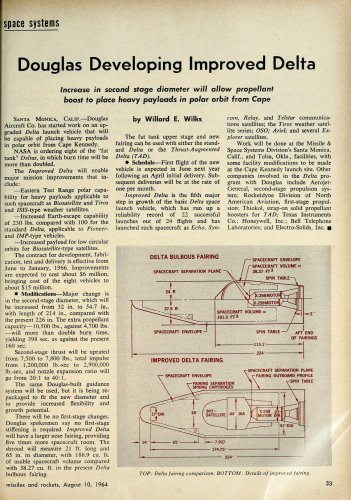

I don't know if that Douglas improved Delta launch vehicle is proper in this topic
or not.


Missile and Rockets


Attachments

  • missilesrockets1415unse_0893.jpg
    465.8 KB · Views: 589
