Dornier Project Designations

[Wurger]

in reply # 14.my dear Richard explained that,the Do P.350 was a transport aircraft not a fighter,what
is your source about your Info ?.

See post #17.



[newsdeskdan]

Do P.350 Heavy night-fighter

It's still no more Info or drawing ?.

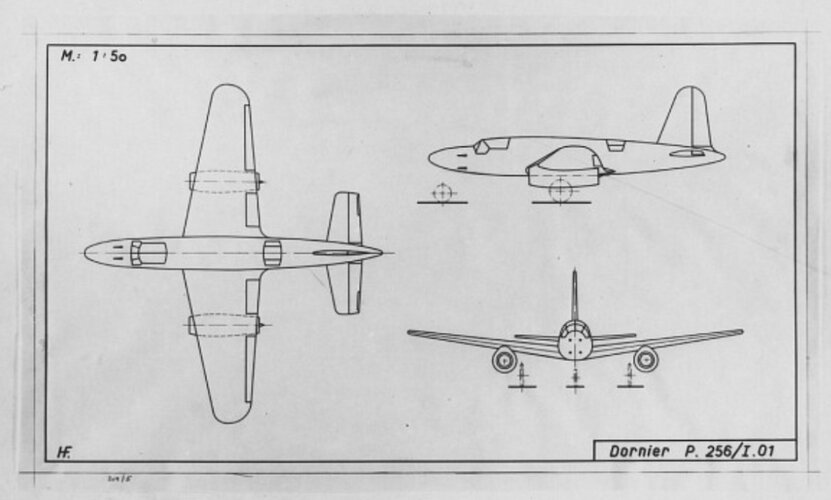

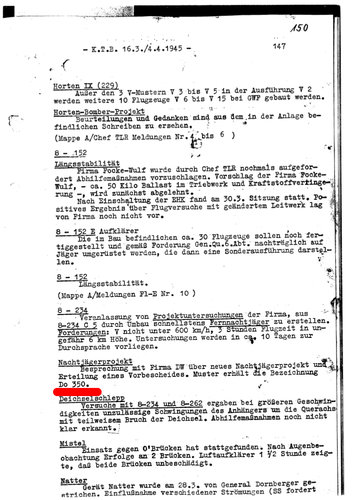

This is the only known mention of the Do 350 in any surviving wartime document - from the war diary of the Chef TLR (effectively the RLM's development section at this time). Given the timing, which coincides neatly with the 2-TL-Jaeger, aka Nacht- und Schlechtwetterjaeger competition, I would guess that this is the official RLM designation for the Do P 256. More details of this competition, entirely based on contemporary documents, are given in my book Secret Projects of the Luftwaffe Volume 1: Jet Fighters 1939-1945.



[hesham]

Thank you my dear Dan,

and as I expected before,it's Do.350 and not Do P.350,and who was the tenders ?.



[newsdeskdan]

Thank you my dear Dan,

and as I expected before,it's Do.350 and not Do P.350,and who was the tenders ?.

It's all in the book.



[Maveric]

Can you name Dornier project?



[richard B]

Can you name Dornier project?

Very interesting , never seen before ! Thanks for sharing ;
a bigger Do 212 ... What is the source ?



[Maveric]

Stiftung Deutsches Technikmuseum Berlin - Viewer



[Bazinga]

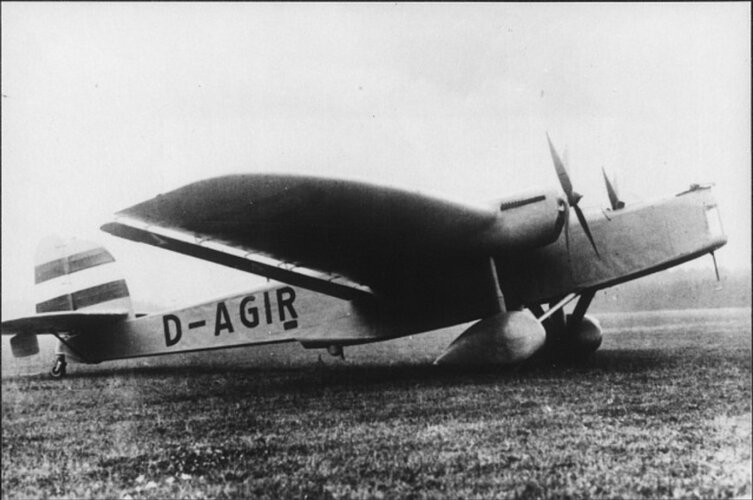

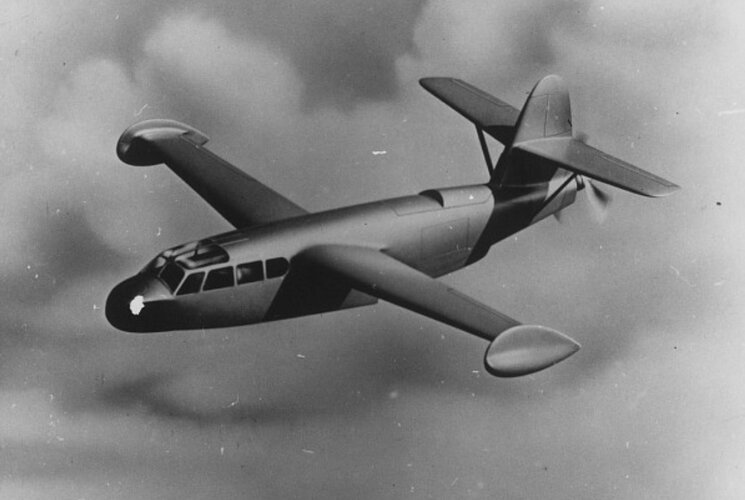

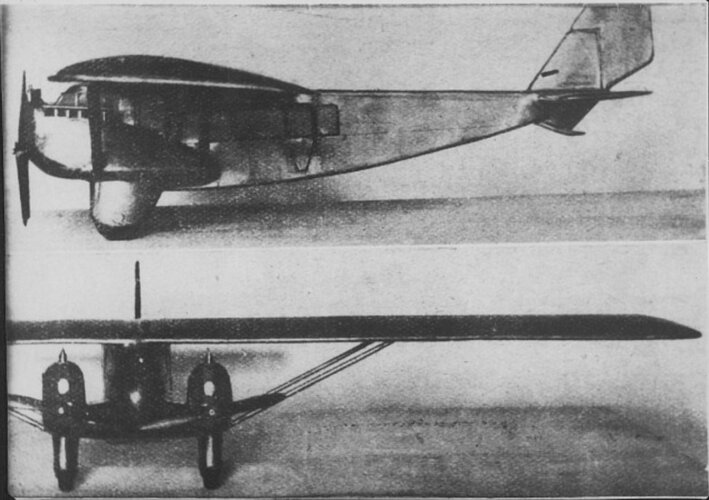

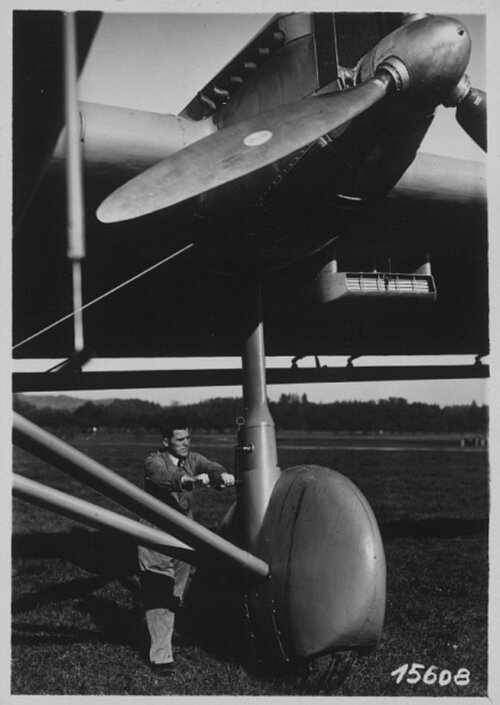

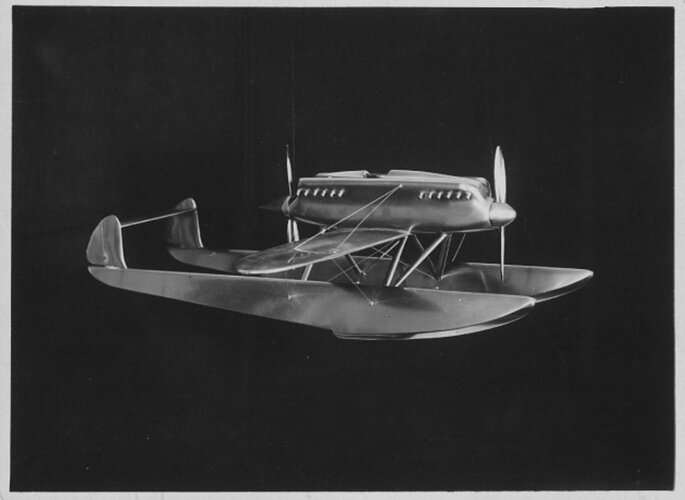

I took the trouble of snapping some pics from the source above



[Bazinga]

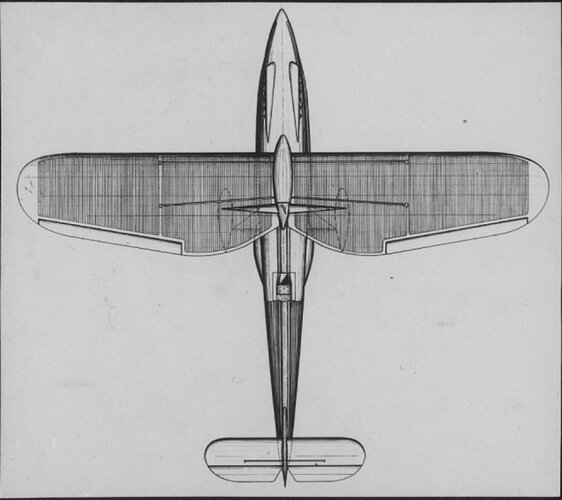

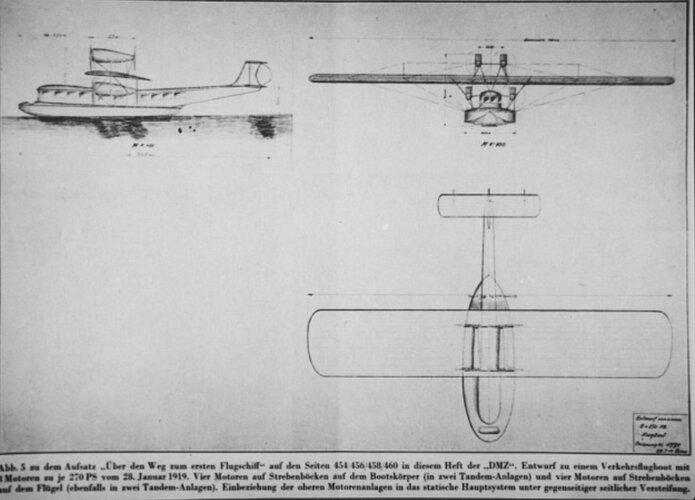

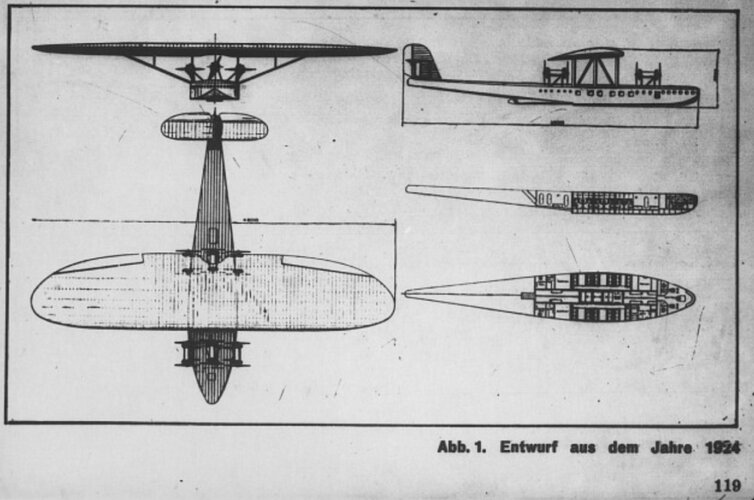

And more descriptive ones



[Vahe Demirjian]

Is there any information available regarding the project number P.235, given that Dan Sharp considers it likely that the entry "Dornier Do 235" listed in the Air Material Command's Glossary of German Aeronautical Codes, Models, Project Numbers, Abbreviations, Etc. Final Edition is a typo for P.235 because Dornier's project numbers used both 'Do' and a three digit number?



[hesham]

Is there any information available regarding the project number P.235, given that Dan Sharp considers it likely that the entry "Dornier Do 235" listed in the Air Material Command's Glossary of German Aeronautical Codes, Models, Project Numbers, Abbreviations, Etc. Final Edition is a typo for P.235 because Dornier's project numbers used both 'Do' and a three digit number?

There is not more Info,unfortunately.



[hesham]

Hi,

P.169 was a glide bomb carrier,it was developed from Do.217 and
powered by two DB603R engines ?.



[boxkite]

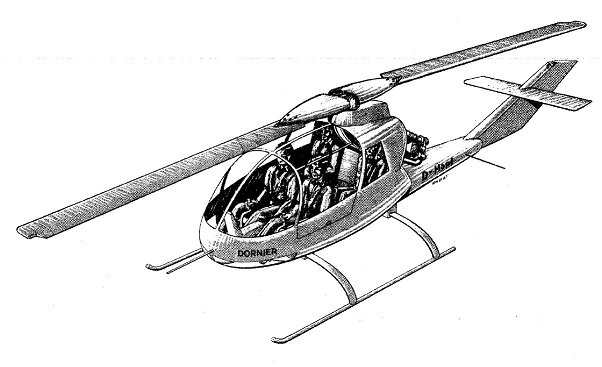

Dornier helicopter project Do P 408, which was to be powered by a MAN 6022 hot gas generator.





designed in 1966
pilot + three passengers
Vmax: 211 km/h

Source: scanned during a visit at Dornier archives Immenstaad in July 2005 together with @vstol and @Jemiba



[JYB]

The picture of Dornier Do P.340 in this article.
https://www.secretprojects.co.uk/threads/nato-basic-military-requirements-nbmr.758/post-5931



[Maveric]

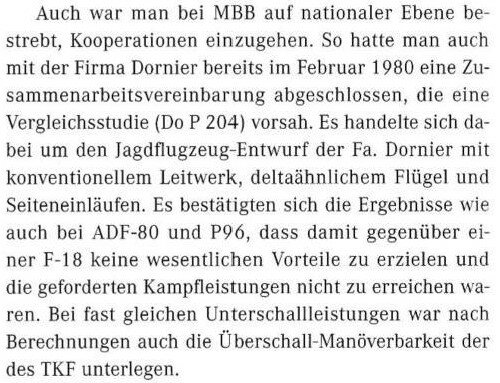

In the book "Eurofighter" (Vetter/Vetter - Motorbuchverlag) I found the designation Dornier DoP.204 in the text, unfortunately without a drawing. I am a little confused, since Dornier projects with the 2xx designation were already in use before or during World War II. Since this is a project from the 1980s, it should have a designation DoP.4xx or DoP.5xx.Perhaps one of you knows more about it....



[hesham]

In the book "Eurofighter" (Vetter/Vetter - Motorbuchverlag) I found the designation Dornier DoP.204 in the text, unfortunately without a drawing. I am a little confused, since Dornier projects with the 2xx designation were already in use before or during World War II. Since this is a project from the 1980s, it should have a designation DoP.4xx or DoP.5xx.Perhaps one of you knows more about it....

That's right,abd series 400s was from late 1960s,so may it was P.506 ?.



[Maveric]

Speculation is not helpful!



[boxkite]

Pure speculation is not only unhelpful - it harms the endeavours of this forum to shed light on the darkness.



[boxkite]

Hi,

P.378 was a civilian V/STOL plane.Design based on the Do 31.
Start and stop of the project 1966.

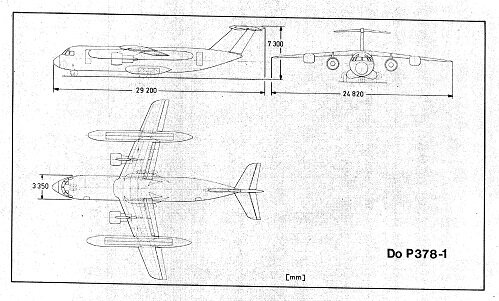

Dornier P 378-1 - short-haul VSTOL passenger aircraft proposal (2 x General Electric GE1-6 for cruise & 14 x lift engines of unknown type)



Source: Advertising brochure Dornier Do P378 - Vorschläge für ein ziviles VSTOL-Passagierflugzeug
(Thanks to @Jemiba and @vstol for accompanying on the 2005 Dornier Archive tour to Immenstaad/Lake Constance)



[boxkite]

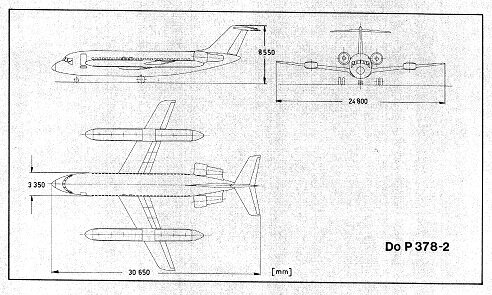

Dornier P 378-2 - short-haul VSTOL passenger aircraft proposal (2 x Rolls-Royce RB.207-03 for cruise & 14 x lift engines Rolls-Royce RB.202)


Source: see above



[boxkite]

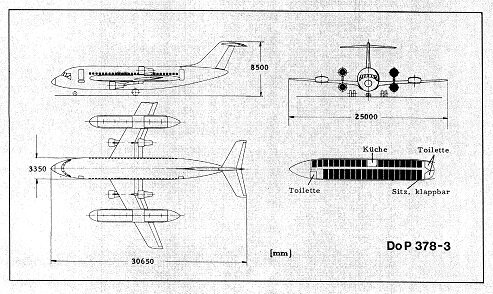

Dornier P 378-3 - short-haul VSTOL passenger aircraft proposal (4 x Rolls-Royce RB.207-03 for cruise & 10 x lift engines Rolls-Royce RB.202)


Source: see above (# 59)



[boxkite]

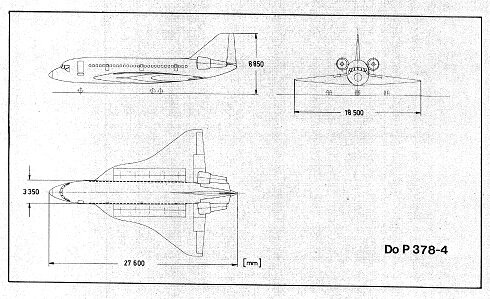

Dornier P 378-4 - VSTOL passenger aircraft proposal (2 x Rolls-Royce RB.207-03 for cruise & 10 x lift engines Rolls-Royce RB.202)


Source: see above (# 59)



[boxkite]

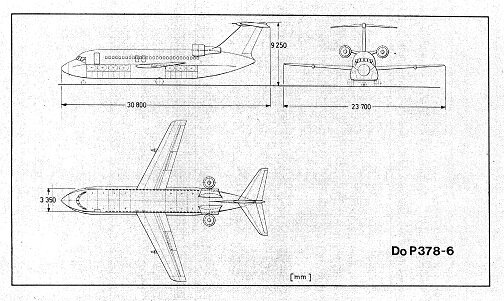

Dornier P 378-6 - VSTOL passenger aircraft proposal (2 x Rolls-Royce RB.207-03 for cruise & 14 x lift engines Rolls-Royce RB.202)


Source: see above (# 59)

And to pre-empt questions as to why I don't show the P378-5 before the -6: There is no -5 in the (complete) brochure! So please don't speculate, if the P378-5 did exist. We have no proof of their existence, so for us there is only -1, -2, -3, -4 and -6.
