Chinese Stealth bomber program - XAC H-X (H-20)

Last edited:
It all depends on how things are getting on in terms of ground testing as to whether we see the H-20 getting revealed this year or next, it is possible that the PLAAF may reveal and get it into the air first before the B-21 gets unveiled.

Sounds like an exciting race to the unveiling line now.

H-20 is now neck and neck with B-21, with PAK-DA now in 3rd place (unless Russia can crack the whip for a sudden burst of speed. Unlikely as it's distracted by events off the course).

piginapoke said:
Sounds like an exciting race to the unveiling line now.

H-20 is now neck and neck with B-21, with PAK-DA now in 3rd place (unless Russia can crack the whip for a sudden burst of speed. Unlikely as it's distracted by events off the course).
Click to expand...

I personally don't think that we will see the PAK-DA until the end of the current decade because the Russians are still going with the Tu-160M at present.

piginapoke said:
Sounds like an exciting race to the unveiling line now.

H-20 is now neck and neck with B-21, with PAK-DA now in 3rd place (unless Russia can crack the whip for a sudden burst of speed. Unlikely as it's distracted by events off the course).
Click to expand...
But is the H-20 a B-2 equivalent or a B-21 equivalent?
FighterJock said:
I personally don't think that we will see the PAK-DA until the end of the current decade because the Russians are still going with the Tu-160M at present.
Click to expand...
Last I heard they cut annual government by 7% as well, that's on top of the 'extra costs' currently being taken out of the annual budget.

Forest Green said:
Last I heard they cut annual government by 7% as well, that's on top of the 'extra costs' currently being taken out of the annual budget.
Click to expand...

Things are not looking all that great for PAK-DA.

Forest Green said:
But is the H-20 a B-2 equivalent or a B-21 equivalent?
Click to expand...

I think that the H-20 will be more of a B-21 equivalent than the B-2.

I tend to think that the H-20 will be equal to the B-21 in some areas and less in others. It will be interesting to see what happens when it is revealed.

What would be interesting is to see if that giant step forward isn't at the end possible even with all the resources and dedication of China. It would serve as a metering unit for all the projects worldwide that claim to pop out a 6th gen systems like a devil in a box with a complete disregard of the building block nature of stealth technology.

TomcatViP said:
What would be interesting is to see if that giant step forward isn't at the end possible even with all the resources and dedication of China. It would serve as a metering unit for all the projects worldwide that claim to pop out a 6th gen systems like a devil in a box with a complete disregard of the building block nature of stealth technology.
Click to expand...
Judging by their progress in spaceflight I’d say the odds are against this being the outcome. They’ve literally eaten up the gaps in the area much faster than many expected. Yes they still lag in a number of areas but the gap is much smaller now. Also some areas they lag in such as reusable launchers is the same for ESA for example.

TomcatViP said:
What would be interesting is to see if that giant step forward isn't at the end possible even with all the resources and dedication of China. It would serve as a metering unit for all the projects worldwide that claim to pop out a 6th gen systems like a devil in a box with a complete disregard of the building block nature of stealth technology.
Click to expand...
The real proof lies in the performance of the platform/system which affects everyone who develops new aircraft, how good is your mousetrap in real-world application.

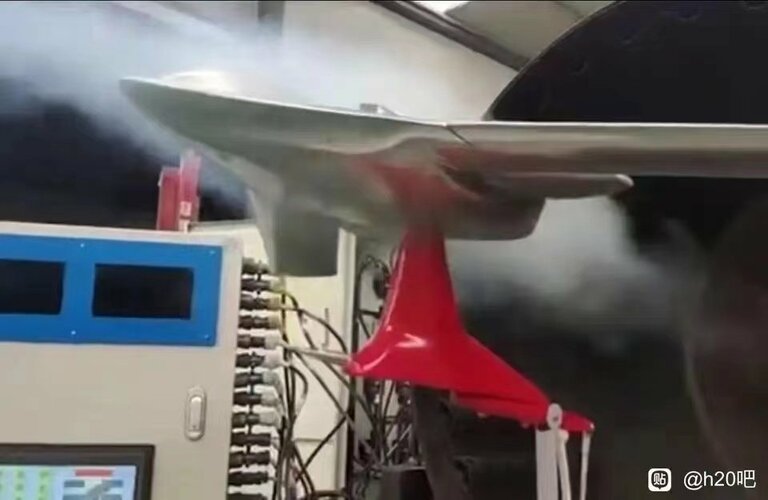

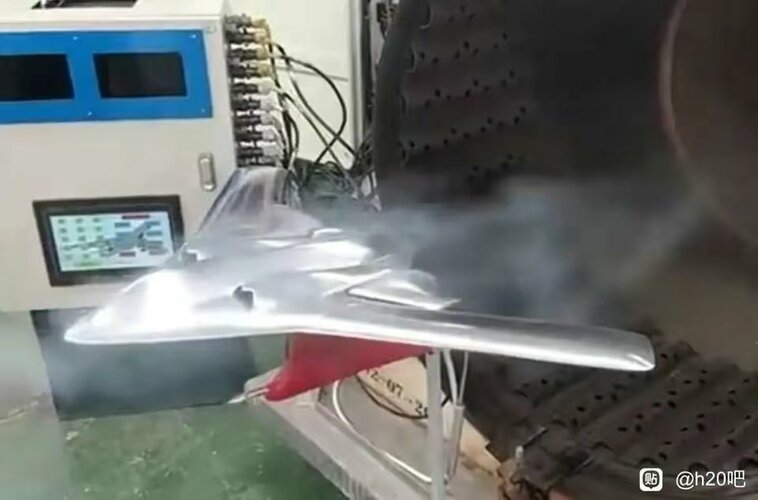

Well, now it’s getting interesting… a few days ago a strange tweet again posted that unique model we’ve seen some time ago and now this!

So either this is all a campaign of disinformation well laid out to confuse us enthusiasts and analysts or is there actually something to this configuration and the H-20 actually looks like or similar to it? ... maybe a first leak similar to the first painting of the B-2 back then and in retrospect, one of the very first wind tunnel images of the J-20 looked also exactly like the final type and at least I didn’t care much back then.

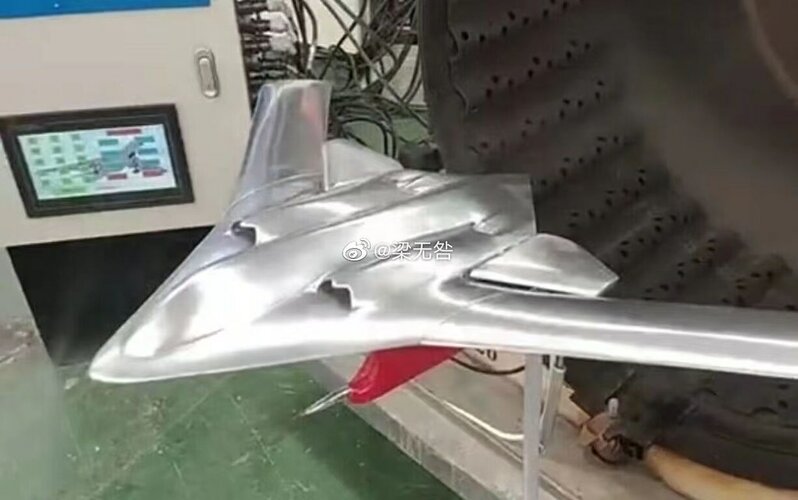

Interesting that already three slightly different images of the same image popped up almost simultaneously… just for completeness here are all three!

620C7D0D-74B4-4F24-9E11-A5E8C89D5D67.jpeg 956AE6C1-0A76-40BA-834E-0D7832402756.jpeg 7FEF44C0-9156-4EBA-A3B9-9E8110890A5C.jpeg

just in case

H-20 bomber (with H-X, JH-XX)

B-52 always was meant to strike the most defended airspace on Earth - and even if it long lost its capability to penetrate these defenses personally, it is still meant to. Even if it has lost its ability to do pre-strike/post-strike survey due to the need to use stand-off munitions - it is still...
www.sinodefenceforum.com

H-20 bomber (with H-X, JH-XX)

^^^ Why do I feel it is to a H-6 like a Su-57 is to Su-27 so you mean... H-20 = H-6Z?
www.sinodefenceforum.com

Last edited:
Deino said:
Well, now it’s getting interesting… a few days ago a strange tweet again posted that unique model we’ve seen some time ago and now this!

So either this is all a campaign of disinformation well laid out to confuse us enthusiasts and analysts or is there actually something to this configuration and the H-20 actually looks like or similar to it? ... maybe a first leak similar to the first painting of the B-2 back then and in retrospect, one of the very first wind tunnel images of the J-20 looked also exactly like the final type and at least I didn’t care much back then.

Interesting that already three slightly different images of the same image popped up almost simultaneously… just for completeness here are all three!

View attachment 683010View attachment 683011View attachment 683012
Click to expand...

Let’s just wait and see what happens if this is the actual design, I am not getting excited just in case someone has photoshopped this photo we have all been at that point before.

who 'all'?
have you ever seen real WT model? does _this one_ have any resemblence to WT models in terms of quality and precision (apart of idiot aerodynamics)?

I particularly like the serrated inlets.

The aft part of the model in Deino's post #161 looks like there might be a shadow on the wing from a folding tail.

I guess we'll find out when we find out. I doubt the Chinese will release any preliminary illustrations like we do in the US.

sferrin said:
No way it's going to have a separate tail, even if only for political reasons.
Click to expand...
Granted that it gives a short moment arm, I could see it if their flight control hardware and/or software isn't up to what Northrop did with the B-2A. Alternatively, they could be equivalent to the B-2A's GLAS (Gust Load Alleviation System) on it's aft center section.

Hydroman said:
I guess we'll find out when we find out. I doubt the Chinese will release any preliminary illustrations like we do in the US.
Click to expand...
they did for j-20, back when it was only known as j-xx. Models that have very minor differences from when the real thing appeared on taxi runway.

donnage99 said:
Hydroman said:
I guess we'll find out when we find out. I doubt the Chinese will release any preliminary illustrations like we do in the US.
Click to expand...
they did for j-20, back when it was only known as j-xx. Models that have very minor differences from when the real thing appeared on taxi runway.
Click to expand...
yup

some of these models appeared before the J-20 debut, many of which were on Hui Tong's website

like this one when it was a Triplane

and then this one when it moved to delta canard


likewise I think it was the same with the J-10 as well. you saw some earlier models that appeared before the actual J-10

Once more if you didn't read it

Anyway, the model is nothing official. The company (Xi'an Meilian Aviation/西安美联航空技术有限责任公司) behind the concept is not affiliated with AVIC. Its major area of expertise is producing flight simulators for the civil aviation market, which explains the guy in an airline pilot uniform in one of the images, which is itself a dead giveaway that this has nothing to do with H-20. There's no way XAC would let a mere civilian pilot near the project.

So nothing to see here, but as usual, that stupid fanboy is trying to put a sensationalist spin on it. I still can't get over the fact how someone can be so stupid and dishonest at the same time.
Click to expand...

Literally they are even not behind the _concept_ as this poorly made model is just a representation of famous what-if CGI from a Modern Weaponry magazine, drawn on basis of less famous patent.


Attachments

  • main-qimg-0251f94591b6c5403614cab69613da18.png
    639.8 KB · Views: 570
Is the length between the inlets and exhaust a bit short to accommodate an engine and 'twisty' intakes to conceal the fan blades.

Regards
Robert


飞行模拟器，航空模拟器，飞机模型模拟器制造，西安美联航空技术有限责任公司

西安美联航空技术有限责任公司坐落在著名的中国航空城，西安阎良。是在阎良国家航空高技术产业基地注册的从事航空高新技术产、学、研一体的高新技术企业。公司业务包括：航空航天先进复合材料；航空、动车模拟仿真训练设备；航空实训教学设备；无人机系统；航空航天仿真模型研制，生产和市场推广手机：13991935607
web.archive.org

Xi'an Midian Aviation Technology Co., Ltd. is located in the famous China Aviation City, Yanliang, Xi'an. It is a high-tech enterprise registered in Yanliang National Aviation High-tech Industrial Base, which is engaged in aviation high-tech production, study and research. The company's business includes: aerospace advanced composite materials; aviation and motor vehicle simulation training equipment; aviation training and teaching equipment; unmanned aerial vehicle systems; aerospace simulation model development, production and marketing.

Xi'an Meilian Aviation Technology Co., Ltd. has been committed to tracking the world's advanced aviation manufacturing technology since its establishment. Adopting the dual-engine propulsion strategy, firstly, relying on the industrial advantages, manufacturing technology, and cluster advantages of China Aviation City and the National Aviation High-Tech Industrial Base, and actively transforming into aviation high-tech. The second is to strengthen international cooperation and exchanges, digest and introduce the world's advanced aviation manufacturing technology, and enhance the company's technological advantages and competitiveness. After more than ten years of rapid development, the company has taken a leading position in the fields of aerospace composite materials and aviation simulation training systems.

Xi'an Meilian Aviation Technology Co., Ltd. has gathered a group of aviation professionals with ideals, aspirations and careers, including aircraft designers, aircraft manufacturing engineers, aviation maintenance engineers, aircraft test pilots, captains, and flight attendants. Wait. There are also a group of R&D teams with high professional quality, sophisticated technology, strong sense of responsibility and courage to fight tough battles. The company has more than 20 design and process technicians in composite materials, virtual simulation, mechanical, structural, electrical, hydraulic, aircraft interior decoration and other majors, including one senior engineer and 16 senior engineers. 6 professional technicians. More than 100 technicians. In order to meet the requirements of digitization, precision and flexibility, the company adopts a large number of advanced software technologies; CATIA, UG, SOLIWORK, AUTO CAD, and adopts advanced digital processing parallel technology CAD/CAM/CAN machining center to serve customers.

Xi'an Meilian Aviation Technology Co., Ltd. also adopts the advanced molding technology RIM for composite material molding. The company has passed the national military standard GJB9001C-2017 and ISO9001-2015 quality system certification. The company has provided a large number of qualified aviation high-tech products for the General Armament Department, the Air Force System, AVIC, civil aviation companies, general aviation companies, and aviation vocational and technical colleges. Its leading products have been exported to Europe, the United States, Hong Kong, Singapore, the United Arab Emirates, Bolivia, Namibia and other countries and regions.

Xi'an Meilian Aviation Technology Co., Ltd. has branches and R&D centers in Xi'an, and offices in the United States and Canada. Xi'an Meilian Aviation Technology Co., Ltd. warmly welcomes customers and dealers from all over the country and the world to negotiate business and establish mutually beneficial and win-win partners.
Click to expand...

ML Aviation website

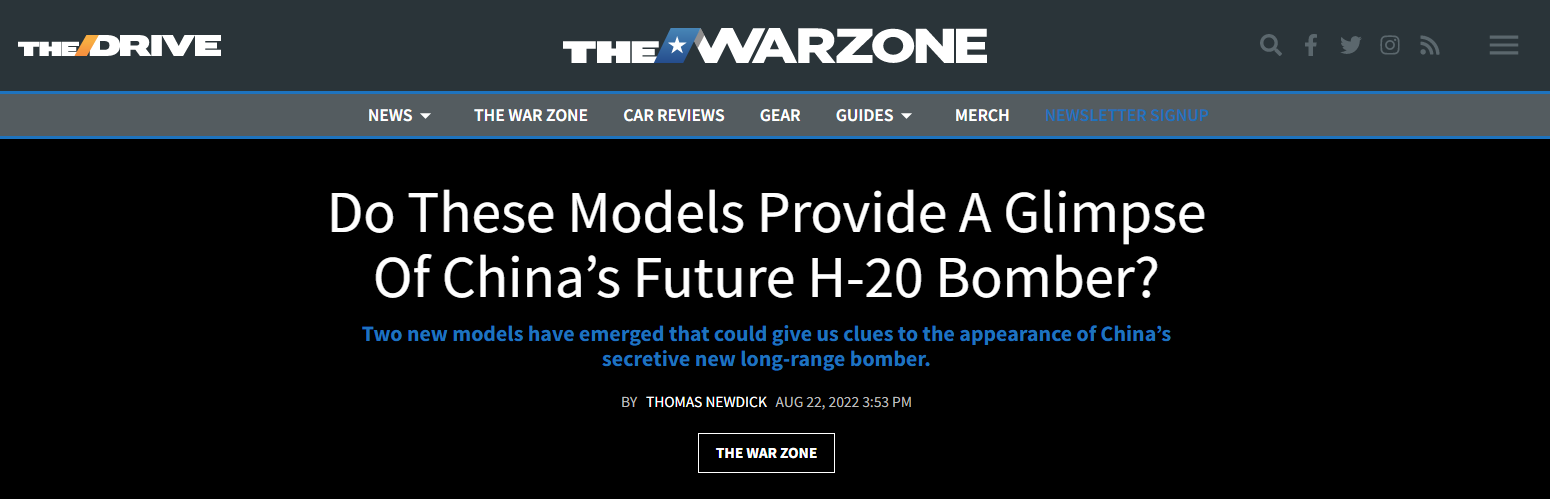

Some news …

https://twitter.com/x/status/1561972223530999809
View: https://mobile.twitter.com/RupprechtDeino/status/1561972223530999809


My current overall conclusion, as it seems, my first impressions is correct or much likely: it is some sort of PR stunt to gain attention and even more to distract from the real thing grows stronger and stronger … so let’s wait for the real one.
helmutkohl said:
donnage99 said:
Hydroman said:
I guess we'll find out when we find out. I doubt the Chinese will release any preliminary illustrations like we do in the US.
Click to expand...
they did for j-20, back when it was only known as j-xx. Models that have very minor differences from when the real thing appeared on taxi runway.
Click to expand...
yup

some of these models appeared before the J-20 debut, many of which were on Hui Tong's website

like this one when it was a Triplane
Click to expand...


But that triplane type was not the J-20, but SAC‘s contender

J-XX contenders from SAC (integrated triplane) and CAC (canard, future J-20)

That would be surprising:
1. Chinese industry has no experience with high subsonic flying wings
2. Chinese industry has not yet reached parity with the US in term of stealth. Hence their RCS requirements might leave more room for a less complex shape in term of control governs
3. Chinese AF might have a request for the aircraft to operate from a larger number of airfields, hence from shorter runways. Let's not forget that there isn't geographically any point in China that the USAF bombers can't reach themselves.
