Boeing X-20 Dyna-Soar and alternate projects

Archibald said:
When one hear of DynaSoar for the first time, three questions come to mind

(past the "whoaaa, they planned a shuttle before the shuttle!" excitation)

- Would Dynasoar have worked, considering all the problems with the current shuttle, and the fact DynaSoar was imagined 15 years before ?

- What about DynaSoar in USAF service ? how difficult to fly ? how difficult to maintain ?

- What influence on the Shuttle if it had entered service ?

Well, this article is the FIRST, in many readings, that give me CLEAR answers to these questions...

that a good question and here some aswer
(i know this is not a Wat if Forum...)

Dynasoar had work, the Main frame design had some flaw but can get solved
it had fly even better as shuttle aka the "flying brick"

after Astronautix - http://www.astronautix.com/craft/dynasoar.htm
Dyna-Soar as hypersonic research vehicle first flight in March 1963 to 1965
with first unmanned Orbital flight in 1965
Dyna Soar as hypersonic reconnaissance vehicle would deployed in mid-1969.
with first Orbital flight in 1967 December 1 - Dynasoar 9
Dyna Soar as hypersonic, global, strategic bombardment and reconnaissance system, operational in mid-1974.
after this very slow development there will be a
Dyna Soar as Space Shuttle with 5 Astronauts on board for 1978

Cost ?
maintenance is cheaper than shuttle ! No SSME, SRMB, ET etc.
i guess the cost are low around $ 5-10 (1965 value) million on Dyna Soar alone
(NOT including buildings, facilities, training, salaries, etc)
expensive is the Titan-IIIC Flyaway Unit Cost $: 20 million. (1965 value )

total cost in 1965 dollar would be around $40-50 million per mission

DynaSoar could have worked for sure, but it would likely be grounded after an initial series of missions due to the flaws in the concept. The biggest virtue of DynaSoar would have been proving that lifting re-entry is not optimal for a dense re-entry body.

XP67_Moonbat said:
McNamara was a hater.

...It wasn't that he was a hater, it was that he was a schmuck. You should hear some of his lectures and read some of his writings trying to defend his decisions as SecDev. Only Symington's decision on the Flying Wing and Dickhead's over the YF-23 make less sense, and that's an understatement.

Hi flateric!

If you can write about Dyna Soar/X-20:

Martin Report Number ?
Northrop Report Number ?
Lockheed Report Number ?
Republic Report Number ?

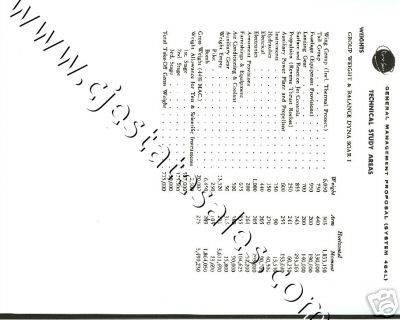

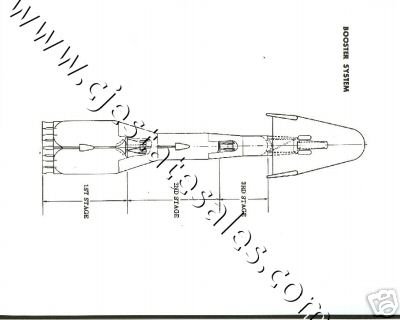

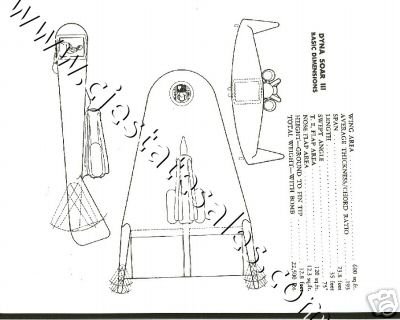

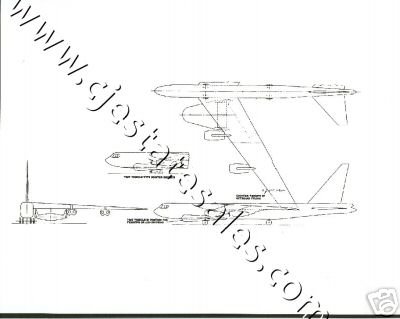

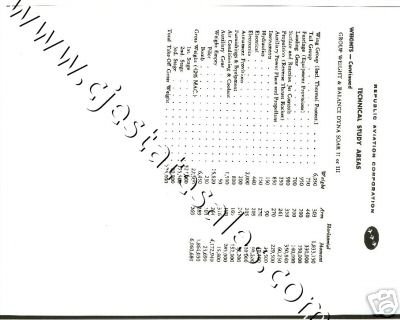

Nugo, if you have read my post, you'll note that I was posting thumbnail images from eBay lots. To my sorrow, I don't have there reports, except Martin's submission - you can see direct link to the paper in my older post.

Triton said:
OM said:
XP67_Moonbat said:
McNamara was a hater.

...It wasn't that he was a hater, it was that he was a schmuck. You should hear some of his lectures and read some of his writings trying to defend his decisions as SecDev. Only Symington's decision on the Flying Wing and Dickhead's over the YF-23 make less sense, and that's an understatement.

Is it that he was a schmuck or was it that the Soviets believed that it was nuclear weapon delivery platform? McNamara did believe that Mutually Assured Destruction (MAD) kept the peace between the United States and the Soviet Union.

...No, he was a schmuck. You'll find that a lot of Cold War history courses are starting to include this fact in their lectures.

Michel Van said:
Archibald said:
total cost in 1965 dollar would be around $40-50 million per mission

Perhaps, but on the other hand the payload would have been close to zero, as opposed to the Shuttle's payload of 25 tonnes or so.

Hi,

(Artist's imprtition of the X-20 Dyno-Soar spacecraft in the process of jettisoning
the cockpit heat-shield for orbital flight. Dyna-Soar plans were discussed last month
at the US Air Force Association Convention in Las Vegas).
http://www.flightglobal.com/pdfarchive/view/1962/1962%20-%202275.html


Attachments

  • untitled.JPG
    27.2 KB · Views: 329
Proponent said:
Perhaps, but on the other hand the payload would have been close to zero, as opposed to the Shuttle's payload of 25 tonnes or so.

Payload would have been five astronauts (six if they wanted to be uncomfortable and skip a few kind of important componants). Probably easier, more cost effective ways to launch five astronauts, but claims that the DS was useless are so much ill-informed bunk.

http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720063130_1972063130.pdf

U.S. AIR FORCE -
NATIONAL AERONAUTICS
AND SPACE ADMINISTRATION
JOINT CONFERENCE
ON
LIFTING MANNED HYPERVELOCITY
AND REENTRY VEHICLES

A COMPILATION OF THE PAPERS PRESENTED

PART II

April 13-1 4,1960



Guys this is 394 pages long. So it will take a bit to open. Enjoy.

Moonbat


http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19720063130_1972063130.pdf

Dyna-Soar launched on an Atlas-Centaur.

http://renax.club.fr/sharkit/altlas-centaur/altlas-centaur.htm

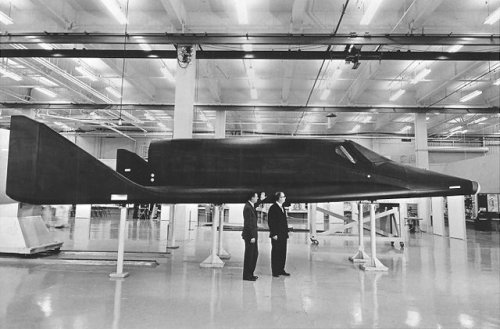

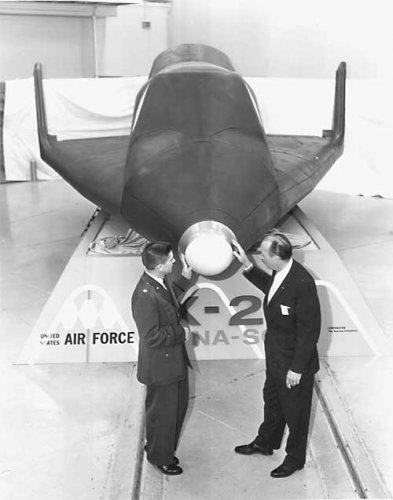

Full-size Dyna-Soar mock-up.

Dyna-Soar launch.


Attachments

  • Dyna-Soar_on_Titan_booster.jpg
    163.4 KB · Views: 166
  • 2719588779_101b117a4f.jpg
    91.1 KB · Views: 139
  • x20early.jpg
    59.2 KB · Views: 267
  • titan_dynasoar.jpg
    13.8 KB · Views: 288
  • x20_24.jpg
    146.1 KB · Views: 326
  • dyna-soar-1.jpg
    65.1 KB · Views: 309
First image of from a Boeing advertisement appearing in Time magazine November 17, 1961.

Sixth image is of Capt Edward J Dwight Jr, the first black man selected as a potential astronaut in 1963 and one of 16 candidates at the Air Force Aerospace Research Pilot School, holding a model of the X-20 during a visit to Washington DC. The winged vehicle would have been launched by a Titan IIIC, a model of which is to Dwight’s right. (Photo, UPI).

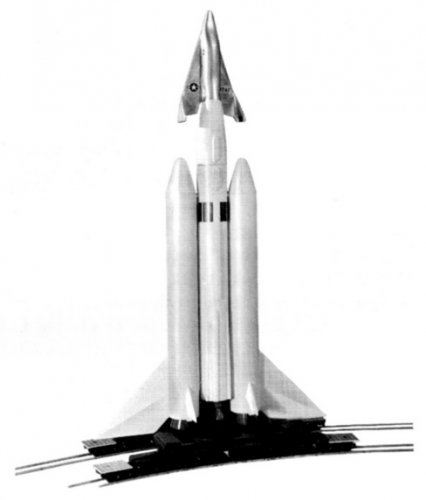

Seventh image is of a model of Dyna-Soar, atop Titan booster rockets, being displayed by Sen. Barry M. Goldwater while show it off to visitors in his office. Taken July 1963 and appearing in Life magazine.

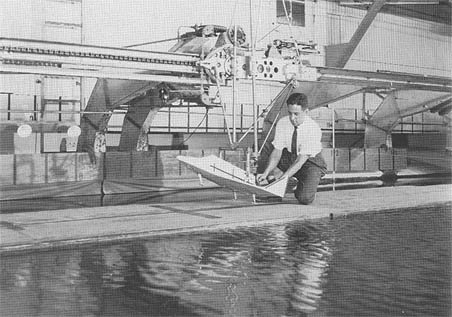

Eighth image is a Langley engineer prepares a model of the proposed air force X-20 Dyna-Soar aerospace plane for testing in Tank No. 2 in 1961 (NASA)


Attachments

  • p96a.jpg
    38.9 KB · Views: 142
  • d5f52166515065f6_landing.jpg
    20.4 KB · Views: 132
  • FEB-03-scan0071.jpg
    20.8 KB · Views: 125
  • FEB-02-scan0003.jpg
    24.5 KB · Views: 160

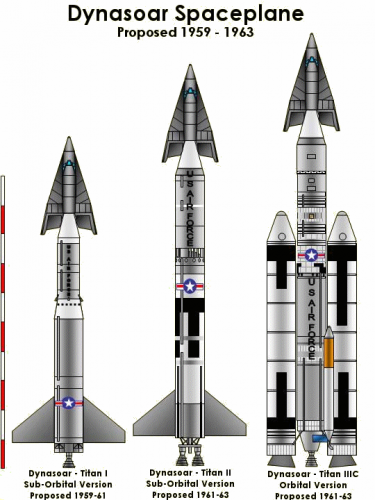

  • Dyna_Soar_launchers.png
    74.7 KB · Views: 222
  • Ysdyn_1m.jpg
    31.3 KB · Views: 145
  • bf8dc01fc654a7da_landing.jpeg
    34 KB · Views: 137
  • boeing-time-11-17-1961-095-a.jpg
    209.9 KB · Views: 139
Triton,

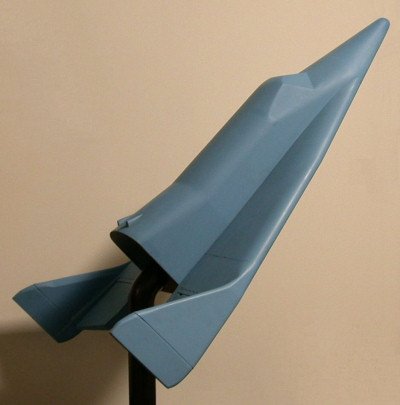

You have no idea how much I'd love to have that model. I made a Dyna-Soar model of my own last year but it's probably nowhere near as good a contractor model.

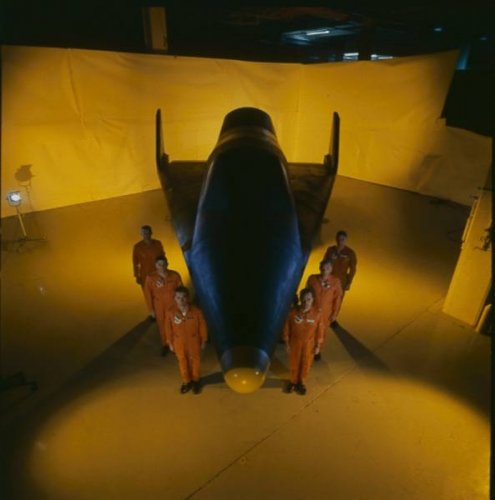

First image is of Dyna-Soar model photograph by Ralph Crane, part of the Life magazine archives (1962).

Second image by Ralph Crane, part of the Life magazine archives (1962). Individuals are not named.

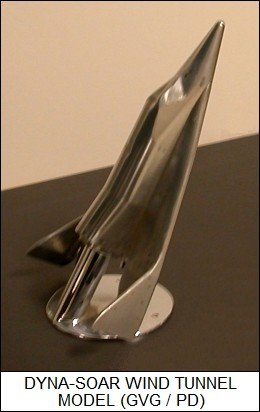

Dyna-Soar wind tunnel model.


Attachments

  • tamrc_09_6.jpg
    25.2 KB · Views: 140
  • 1ffe43c0ab16a609_landing.jpg
    37.8 KB · Views: 140
  • ddf7a580420ebf79_landing.jpg
    25 KB · Views: 155
The Dyna-Soar not only was a beautiful design, but it was also a sound design. Everything I see in this thread and elsewhere seems to indicate it would have been a success if completed. To think teams of engineers at NASA and Boeing (not to mention Martin, Lockheed and others) spent years perfecting the project for naught is just so annoying (in fact, every time that happens it bugs me...). Politicians and financiers have the final say and can topple over a good project on a whim.

What killed Dyna-Soar, ultimately? Was it because the race to the Moon that Kennedy initiated in 1961 devoured most of the money that could be allocated to space programs? Was it because of its size, which made it impossible for it to place modules in orbit or carry space labs up there, like the later Space Shuttle orbiters did?

If there are any valuable sources on the subject available for reading (on the web would be a good start) then I'm willing to know more about that. And sorry to all those who are very knowledgeable on the subject and may be irritated by such naive questions!

Not on-line but an interesting book:

http://www.amazon.com/Dyna-Soar-Hypersonic-Strategic-Weapons-System/dp/1896522955/ref=sr_1_1?ie=UTF8&s=books&qid=1251321216&sr=1-1

Thanks for the tip! With the DVD included, it really sounds like great value for the price.

Artwork: "Dyna-Soar Hypersonic Glider" Artist: Gordon Phillips


Attachments

  • DF-SC-85-01758.JPEG
    878.8 KB · Views: 405
Looks like the other vehicle in the illustration is the Lenticular Apollo design:

http://www.astronautix.com/craft/apocular.htm

http://www.friends-partners.org/partners/mwade/craft/apocular.htm

I always wondered how much inspiration the variable incidence wing for reentry attached to a body of resolution of that concept may have provided for Rutan's SpaceShipOne...

Martin

Hi All!

If you can write about Dyna Soar/X-20:

Boeing/Vought Model 844/Vought Model 4??
Convair Model ?
Douglas Model 1???
Lockheed Model CL-4??
Martin/Bell Model 3??/Bell Model D-1?? or D-2??
McDonnell Model 1??
North American X-15B (Model ?)
Northrop Model 1?? or Model 2??
Republic Model AP-??

Nugo, I've noticed that in your various posts, you use the "?" to indicate a missing figure in your designations. However, this is misleading because it could indicate a designation you're not sure about.
For example, when you write "Lockheed Model CL-4??" my first impression is that you are questioning the fact that it was called Model CL-4... when in fact you simply want to indicate the fact that the missing designation was in the 400 to 499 range...

May I suggest you replace the question marks by asterisks as follows:

Boeing/Vought Model 844/Vought Model 4**
Convair Model **
Douglas Model 1***
Lockheed Model CL-4**
Martin/Bell Model 3**/Bell Model D-1** or D-2**
McDonnell Model 1**
North American X-15B (Model ***)
Northrop Model 1** or Model 2**
Republic Model AP-**

Hi Stargazer2006!

Model CL-4??---Yes, designation was in the 400 to 499 range and so on...

Hi,

who heard about a studying from X-20,as secret Dyna Soar bomber ?.

From Wikipedia:

"The original intention for Dyna-Soar, outlined in the Weapons System 464L proposal, called for a project combining aeronautical research with weapons system development."

Also, when you think about it, the X-20 was a descendant of the BOMI, ROBO, and Brass Bell programs. So a bomber variant wouldn't be too far-fetched.

Phase I Dyna Soar applications, including bombing missions can be found in the document:

Boost Glide Weapons Application Study June 30, 1959

http://www.dtic.mil/srch/doc?collection=t3&id=AD0311156

XP67_Moonbat said:
From Wikipedia:

"The original intention for Dyna-Soar, outlined in the Weapons System 464L proposal, called for a project combining aeronautical research with weapons system development."

Also, when you think about it, the X-20 was a descendant of the BOMI, ROBO, and Brass Bell programs. So a bomber variant wouldn't be too far-fetched.

My dear XP67_Moonbat,

that was not my words,it was for Mr. Jay Miller from The X-Planes book;
he said; the X-20 proposed capabilities included a secret Dyna Soar bomber,a Dyna
Soar military payloads transportation vehicle (i.e.,a recce platform carrying ultra-high-
resolution optical sensors and sophisticated electromagnetic spectrum sensors),and
a Dyna Soar military space missions support vehicle.

A question - do anyone knows more of X-20 landing gears? Any detailied drawings (just in case, I have full 3 set from Scott already)?
Anyone can get rid on this paper?

http://www.dtic.mil/srch/doc?collection=t3&id=AD0603703
Accession Number : AD0603703
Title : X-20 (DYNA-SOAR) LANDING GEAR DEVELOPMENT AND QUALIFICATION PROGRAM,
Corporate Author : SYSTEMS ENGINEERING GROUP WRIGHT-PATTERSON AFB OHIO
Personal Author(s) : HOWARD,H. W.
Report Date : JUN 1964
Pagination or Media Count : 41
Abstract : A description of the X-20 landing gear and performance requirements are presented. The yielding metal energy absorption system and the all skid concept is discussed. A summary is presented of the 'energy strap' and skid development programs. The qualification program, which had not been initiated at the time of program termination, is discussed, and conclusions and recommendations are presented. (Author)

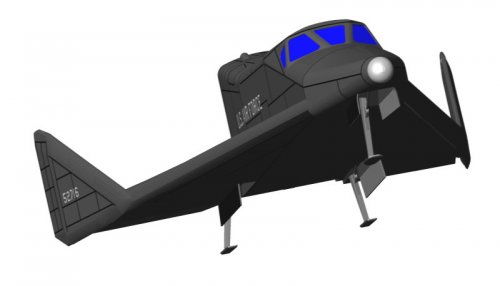

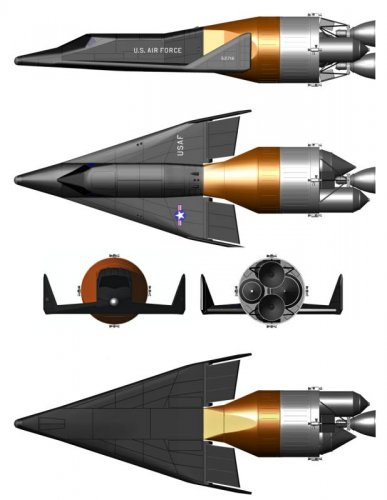

Alexander Shlyadinsky wants to improve 3D model he made for Space Wings book...

Thanks in advance!


Attachments

  • DS_landing_res.jpg
    28.4 KB · Views: 303
  • Dyna-3view_resized.jpg
    52.9 KB · Views: 366

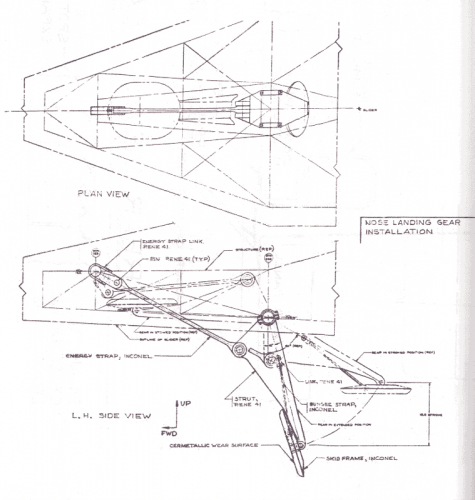

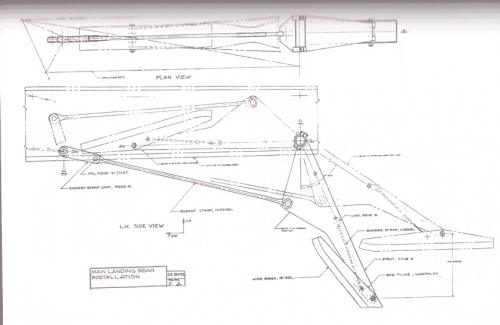

Michel come to rescue
I hope this wat Alexander Shlyadinsky looking for


Source:
Dyna-Soar: Hypersonic Strategies Weapon Systems
Apogee Books
Page 178 & 179
Art Copyright: Boeing


Attachments

  • X-20-noselandinggear.png
    110.3 KB · Views: 309
  • X-20-mainlandinggear.png
    54.7 KB · Views: 296
Michel - thanks! Actually, I need look at my bookshelf more often)))

If, like me, you have vague memories of the lenticular concept, here's a good link...
http://www.astronautix.com/craftfam/lenicles.htm

And, yes, Bono & al. really, really did propose a 100 metre diameter lenticular SSTO that would have delivered a million pounds of payload (~450 tonnes !!) to Low Earth Orbit...

Plus FantasticPlastic's take on the orbital 'loiter' bomber...
http://www.fantastic-plastic.com/LenticularRe-EntryVehiclePage.htm

Nik said:
And, yes, Bono & al. really, really did propose a 100 metre diameter lenticular SSTO that would have delivered a million pounds of payload (~450 tonnes !!) to Low Earth Orbit...

"Propose" insofar as it was a strawman design to show that it *wasn't* a particularly good design when compared to more conventional cylindrical configurations.

Well,in front at this pictures of "advanced" Dyna Soar
i have ever asked to me:
1-where are go all these guys (maybe a space station)?
2-Were is the docking port for transfer ?
On the cockpit or on the crew compartment?
How the pilot can go to the crew compartment?
A hatch behind the seat,in Gemini-B style?
but the X-20 cockpit is more small of the Gemini capsule,and remove the ejection seat is impossible.
For passengers to the cockpit we have the same problem.
So?



Was Dynasoar considered for enemy satellite or spacecraft rendezvous, inspection, and then, if necessary, destruction missions? Do we have any information about the payloads that the vehicle might carry for this purpose?
