Bloch unbuilt designs and prototypes

[sgeorges4]

so if I want to do a heller bloch 210 with the 20/21, I'll have to modify the cowling? (still have to in the original, the cowling ring diameter is wrong). Antone has a pc of n°2 before its modification? I want to know what th etial look like



[juanT]

Hi

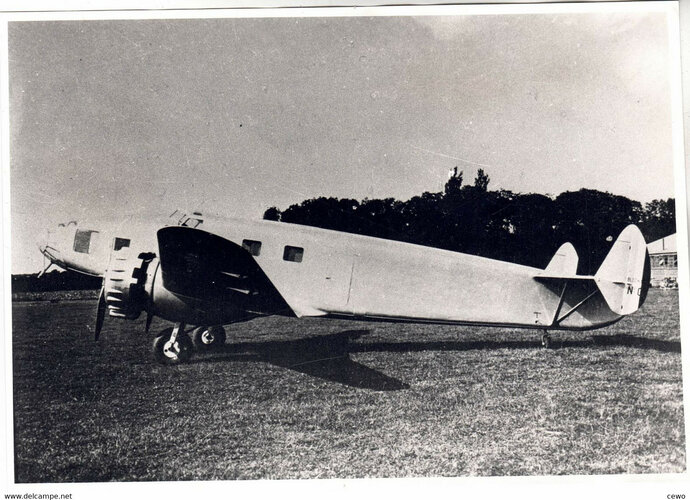

already known photo of the MB-500 T3, but I think that in this one the details are appreciated a little more....from:https://www.delcampe.net/es/colecci...o-aviation-avion-bloch-mb-500-1421523098.html



[Archibald]

I still hope that someday a lost picture of the four-engine MB-170 (the MB-140) will show up.



[PhR]

I have found a drawing

This drawing is very interesting, but it is not a Bloch Aircraft, this is a Caudron-Renault. You can find information and drawings from Harry Robinson in Docavia "Les avion Caudron Renault" p.286/287.



[PhR]

Anyone have the real flight performance data of the mb-157? The rumors that it had a top speed of 700 km/h have been proven wrong and I wondered if anyone here have its real papers?

Proven wrong? By who?



[PhR]

Also from; L'Intransigeant 1938.

For information, this is just a typo for the Bloch 500.



[blockhaj]

Proven wrong? By who?

Bruh this comment is 7 years old. I can't even remember wtf i was talking about.



[Deleted member 4286]

Proven wrong? By who?

Found these informations in the book "Le Bloch MB-152"

Proven wrong? By who?

I posted some information on the thread about the MB 157



[Stargazer]

Please folks! No hyphens on old French designations! Standard practice was [ prefix in block letters / space / number ].



[Deleted member 4286]

Please folks! No hyphens on old French designations! Standard practice was [ prefix in block letters / space / number ].

I put hyphen to repeat the title of the book but signaled some information on MB 157 on the eponym thread



[Aeroweanie]

For a long time, I've been trying to find the designations of the airfoils used in the design of the wing of Bloch aircraft, but have never found anything. Has anyone ever come across this information?



[rlucas]

Hi all,

Just received the new Lela book on Bloch, great reference!
A question, does anybody have any 3view or drawing of the Bloch 90 series and Bloch 100? Failing this, more technical dimensional info?

Regards,
Rlucas



[hesham]

Hi,


there is two Bloch MB.190 Projects,the first MB.190 was a tourist aircraft project version
of MB.80,but the second or re-allocated project is unknown to me ?,can anybody help ?.

In my files,

the Bloch MB.190 was a twin engined postal aircraft project,that's
second use of designation,need confirm of course ?,I am not sure,
also I don't remember the source.



[PhR]

In my files,

the Bloch MB.190 was a twin engined postal aircraft project,that's
second use of designation,need confirm of course ?,I am not sure,
also I don't remember the source.

The Bloch 190 was a single engine wooden tourist aircraft. It was not just a project, it flown in June 1937. (cf. https://www.secretprojects.co.uk/threads/les-avions-marcel-bloch.42831/#post-674147 p.210)
I have no trace of reuse of this designation.
