hesham said:
Tinsley's fighters seem to have rocket motors like the XS-1, but are shut off, a jet engine being in use. Yet I don't notice any air intake for a jet engine. Oh well...
Click to expand...
Note that the exhaust smoke seems to come from *below* the rockets, indicating that the jet exhaust is below and forward of the rockets. This would suggest that the inlet is also on the underside, probably under the nose. The fuselage does seem a bit deep.

Orionblamblam said:
Note that the exhaust smoke seems to come from *below* the rockets, indicating that the jet exhaust is below and forward of the rockets. This would suggest that the inlet is also on the underside, probably under the nose.
Click to expand...
Which very much brings to mind the Douglas D-558-2.

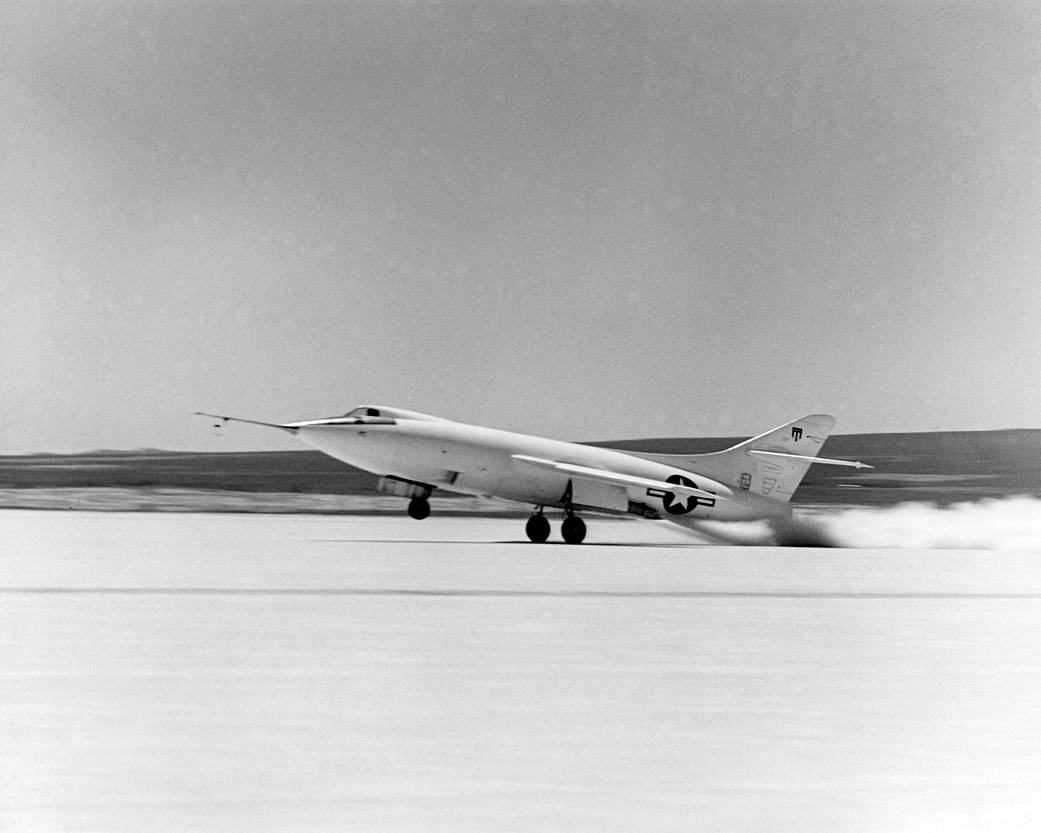

Jet inlets under nose, jet exhaust under aft fuselage,
some references,

Boeing Images - D-558-2 Skyrocket with Tow Bar

Welcome to The Boeing Company's official source for licensed aerospace photography, illustrations and videos.
secure.boeingimages.com secure.boeingimages.com

www.nasa.gov

D-558-II Skyrocket - NASA

The Douglas D-558-II "Skyrockets" were among the early transonic research airplanes like the X-1, X-4, X-5, and X-92A. Three of the single-seat, swept-wing
www.nasa.gov www.nasa.gov

www.fs2000.org

FSX – Douglas D-558-2 Skyrocket Hybrid Model v1.1

FSX – Douglas D-558-2 Skyrocket Hybrid Model v1.1. This is an update of my previous model FSXD-558-2 # 003_v1, changed to Hyblidmodel_v1.1. Fixed an issue where pilot legs were visible from t…
www.fs2000.org

Here's a video clip of D-558-2 jet engine being started,

The jet engines are fired in a Douglas D-558-2 supersonic aircraft being carried by a Boeing B-29 Superfortress on a test flight.​


www.dvarchive.com

The jet engines are fired in a Douglas D-558-2 supersonic aircraft being carried by a Boeing B-29 Superfortress on a test flight. - DVarchive

Stock footage of The jet engines are fired in a Douglas D-558-2 supersonic aircraft being carried by a Boeing B-29 Superfortress on a test flight.
www.dvarchive.com www.dvarchive.com

Sure looks like this plane is inspiration for configuration of the rocket-jets in that magazine cover art.

> and speaking of sure, I'm not sure the jet engine is actually lit off in that clip, but it gives an excellent look at where the jet engine exhaust was located.

If there were a nicely done plastic model kit of that, I'd want one.
Might also be a fun project to try if I was in to radio control models.
Am expecting that the engine pods also had pusher props in addition to the visible tractor propellors.

Sineva said:
Love those wings...
Click to expand...

The HMS M2 submarine and its reconnaissance floatplane Parnall Peto.
At the time, it sounded just like the future !
The M2 and me Peto were in service, but were lost during training when the submarine dived with the floatplane hangar door still open.
Parnall Peto Seaplane (First flight_ June 4, 1925 - only 2 built)_ Art probably by Roy Cross ...jpeg

F.L. said:
The HMS M2 submarine and its reconnaissance floatplane Parnall Peto.
At the time, it sounded just like the future !
The M2 and me Peto were in service, but were lost during training when the submarine dived with the floatplane hangar door still open.
View attachment 726390
Click to expand...
Hi


Attachments

  • 188.jpg
    1.9 MB · Views: 56
hesham said:
The aircraft there were a VTOL designs as I guess ?.
Click to expand...

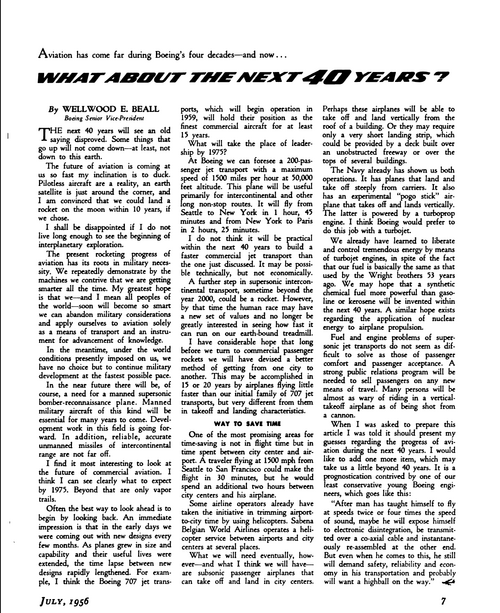

Well the article mentions VTOL specifically:

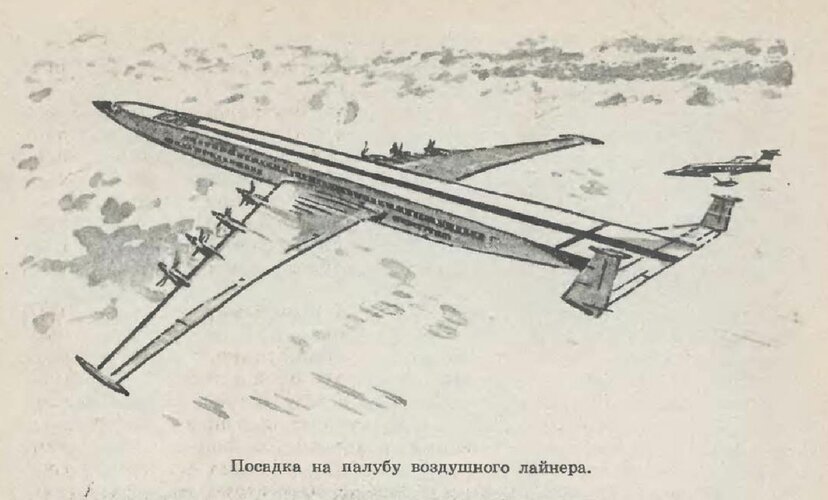

Perhaps these airplanes will be able to take off and land vertically from the rook of a building. Or they may require only a very short landing strip, which could be provided by a deck built over an unobstructed freeway or over the tops of several buildings.
Click to expand...

However, the slotted-winged airliner on approach in the illustration is clearly meant to be a STOL type - not a VTOL.

Actually that’s a bizarre version of the real HMS X1 submarine. Not far from the article about turning pre dreadnoughts into land battleships.
Everything here is a product of ignorance and non sense but, after a century, I must admit that it has adquired an unexpected appeal.

Antonio said:
Actually that’s a bizarre version of the real HMS X1 submarine. Not far from the article about turning pre dreadnoughts into land battleships.
Everything here is a product of ignorance and non sense but, after a century, I must admit that it has adquired an unexpected appeal.
Click to expand...
The origin of this legend lies in a World War I joke attributed to the German emperor who said, "English battleships have no wheels.":)


Attachments

  • Trueno Genuino211v.jpg
    Trueno Genuino211v.jpg
    206.2 KB · Views: 132
  • Trueno Genuino222a.jpg
    Trueno Genuino222a.jpg
    162.1 KB · Views: 56
  • 14762065033870.jpg
    36.1 KB · Views: 71
