Antonov Projects

ucon said:
Antonov VTOL bomber project.
Source: album with drawings and description
Click to expand...

Hi! Where is this album published? In a avico press publication?
Greetings

Hi! It is NOT bublication, it is real album, which gave me the dauther of well-known designer
who worked with Antonov at that time.
Note the text - НОВАЯ СХЕМА (new scheme). Does it means that there was "old scheme"?
I don't know yet, but try to clear

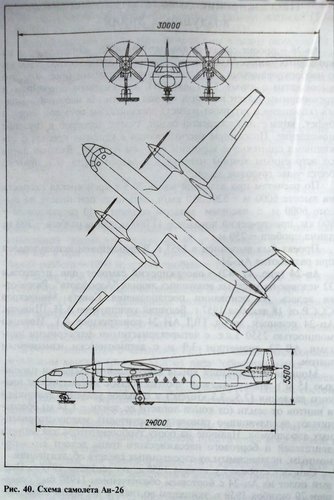

Here you've got a photocopy (unfortunately I have no access to a scaner at this time) of a drawing showing the An-26 project of 1957. It was a predecessor to what then became the An-24 and as such has nothing to do with the An-26 that was a military rear-loader derivative of the An-24 (btw the drawing may be seen in https://www.secretprojects.co.uk/threads/antonov-projects.11520/post-109586 where it is wrongly captioned as An-24). Source: 'История конструкций самолетов в СССР 1951-1965 гг.' ('A History of Aircraft Construction in the USSR 1951-1965').

Information from the Russian book:
MTOW 20.5 t
cruise speed @ 6000m: 520-550 kph
range @ 6000m with 40 pax: 800 km
service ceilign: 11000m
take-off ground run: 300m
landing ground run: 250m
two AI-20P engines

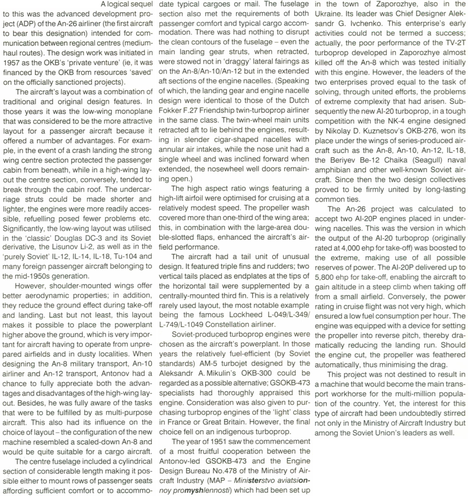

The An-26 is described in 'Antonov's Turboprop Twins' by Yefim Gordon, Dmitriy Komissarov with Sergey Komissarov. According to that book each AI-20P has a power of 5800 ehp.
Here is a cut-out from that book.

BR
Piotr


Attachments

  • An-26 (1957) drawing.jpg
    An-26 (1957) drawing.jpg
    378.5 KB · Views: 348
  • An-26 (1957) txt.png
    An-26 (1957) txt.png
    1.7 MB · Views: 320
The An-171 was a maritime patrol (MPA) version of the An-170 project, which would have been a heavily modified and larger An-70, originally intended to replace Ilyushin Il-76.
Reddit's Weird Wings said:
Unrealized replacement of the Tu-142. Visualization of the appearance of the An-171, which was presented to the USSR Ministry of Defense in December 1991
Click to expand...
Source:
https://www.reddit.com/r/WeirdWings/comments/hkou69


Attachments

  • 20200704_Antonov_AN_171_MPA.jpg
    89.2 KB · Views: 549
Last edited:
The An-171 concept is very interesting, I have always assumed that some consideration must have been given to developing a Tu-142 successor as the Soviets certainly seem to have considered an Il-38 successor in the form of the Beriev A-40 and a Tu-204 derivative. Does anyone know if Ilyushin considered a large MPA derivative of any of its airliner designs? The Il-90 might have produced a good airframe to be the basis of a very long range MPA.

I'm assuming the B-52 on the bottom is used as a size comparison. Also, has it been posted in the Ilyushin Projects page?

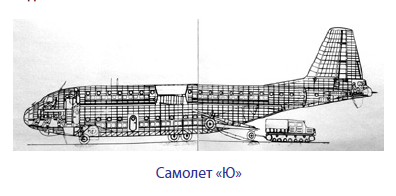

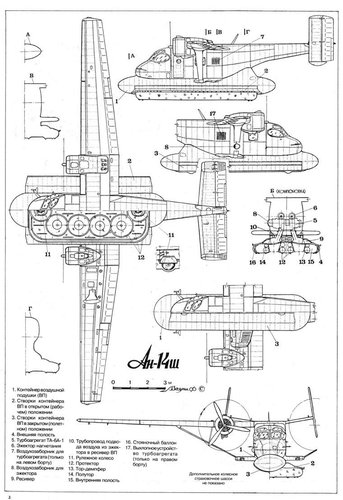

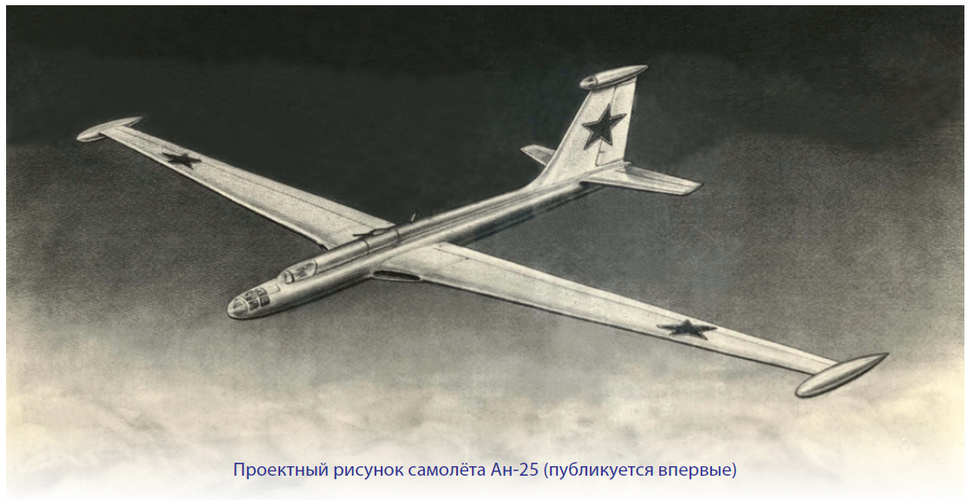

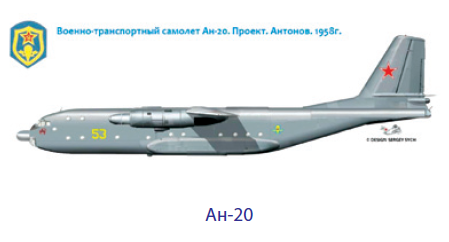

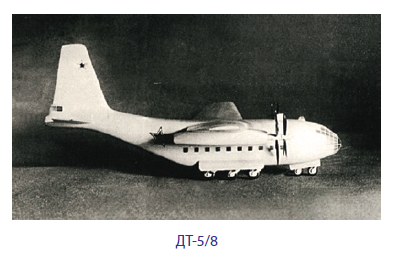

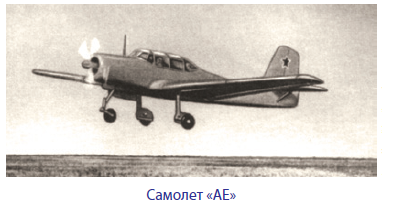

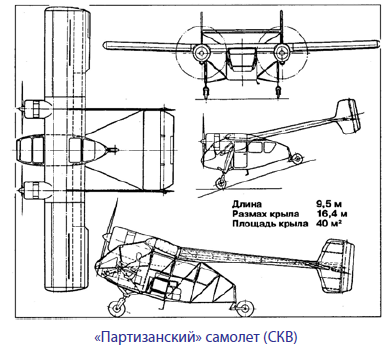

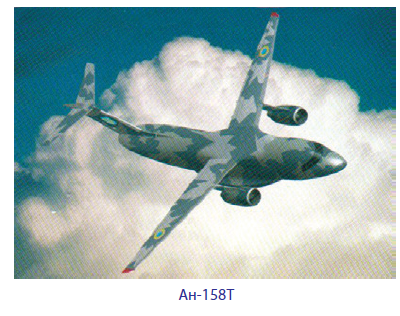

From Kryl'ya Rodine 2021-1/2,

here is some Projects,we displayed them before but in a
clearer sights.


Attachments

  • 1.png
    59.3 KB · Views: 245
  • 2.png
    67.3 KB · Views: 158
  • 3.png
    133.8 KB · Views: 156
  • 4.png
    93.9 KB · Views: 152
  • 5.png
    64.5 KB · Views: 169
  • 6.png
    46.2 KB · Views: 186
  • 7.png
    73.4 KB · Views: 190
  • 8.png
    28.9 KB · Views: 235
From kryl'ya Rodine 2021-3,

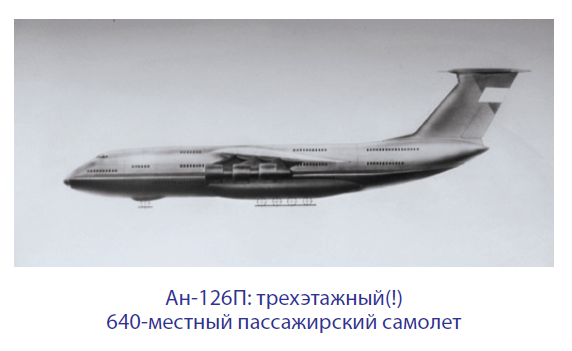

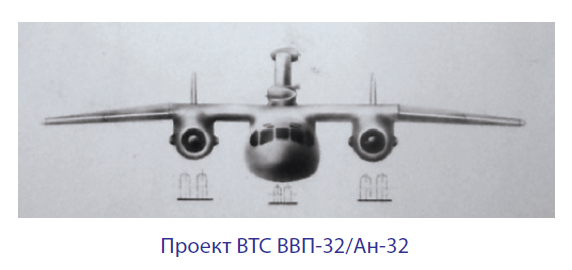

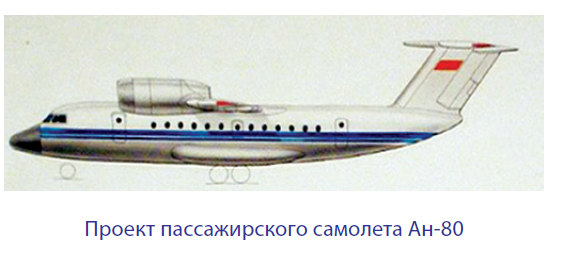

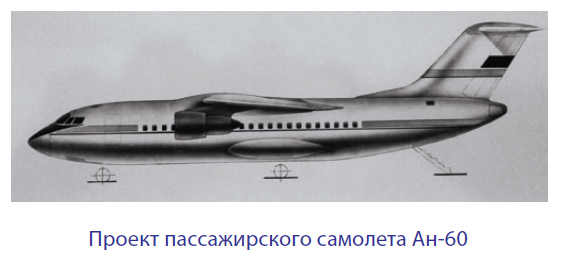

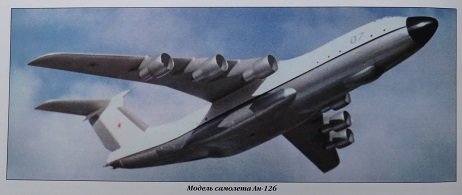

here is some Antonov Projects; An-32 VTOL,An-60,An-126 & An-80.


Attachments

  • 1.png
    121.9 KB · Views: 212
  • 2.png
    132.4 KB · Views: 240
  • 3.png
    138.4 KB · Views: 267
  • 4.png
    198 KB · Views: 324
TinWing said:
No matter the outcome of today’s festivities, it might be high time for Boeing to start costing or recosting a new C-17 production line. The days of cheap, chartered civilian An-124s might be over for good. At very least, an order of 50 or so C-17s to replace the C-5 fleet seems reasonable.
Click to expand...
Probably wouldn’t be feasible seeing that the tooling is long gone and the Long Beach production plant has been turned into an office park. There are quite a few idled 747-400s and C-5As baking in the sun however which could be reactivated.

How many ? for C-5As baking in the sun however which could be reactivated ?

bechar06 said:
How many ? for C-5As baking in the sun however which could be reactivated ?
Click to expand...

There are 57 C-5A at AMARG (Davis Monthan). How many of those could actually be made flyable again? No idea. Some have definitely been scavenged for parts.

And then there's the concern about civilian access to An-124s or equivalents. Some of that load can be taken by conventional freighters, but there is a large class of oversized cargos that will not go in via a side door.

www.francebleu.fr

Avec ses anciens Beluga, Airbus lance une compagnie de transport de marchandises - France Bleu

L'avionneur toulousain lance un service de fret aérien avec ses Beluga ST, habitués aux transports de pièces d'avions. Une première livraison commerciale a eu lieu fin 2021, entre la France et le Japon. Pendant ce temps, au sein d'Airbus, le Beluga ST est remplacé par le Beluga XL.
www.francebleu.fr www.francebleu.fr

"Airbus Beluga Transport " has just been created as an oversized cargo transportation company: by "recycling" the five A300-derived, first generation Belugas. This can haul up to 47 metric tons and, most importantly, diameter of the cargo hold is 7.1 meters - a tad more than An-124 / 225 which are around 6 meters.

Airbus did that because a brand new generation of Belugas is entering service, derived from the A330 and with a diameter extended to 8 meters.

And of course NASA is still using the Super Guppy... that Airbus used once, in their beginnings.

TinWing said:
Grey Havoc said:
www.aviacionline.com

Russian attack on Hostomel airport, AN-225 and NATO SALIS program base

A confrontation between Ukrainian and Russian troops took place at Hostomel airport in the vicinity of Kiev, in the framework of the invasion carried out by Vla
www.aviacionline.com www.aviacionline.com
Click to expand...
www.thedrive.com

Ukrainian Forces Recapture The World's Biggest Cargo Jet After Repelling Russian Assault (Updated)

The fate of the Antonov An-225 Mriya remains unknown after its home airport fell under Russian control.
www.thedrive.com www.thedrive.com

No matter the outcome of today’s festivities, it might be high time for Boeing to start costing or recosting a new C-17 production line. The days of cheap, chartered civilian An-124s might be over for good. At very least, an order of 50 or so C-17s to replace the C-5 fleet seems reasonable.
Click to expand...

At some point in the next decade the USAF will have to think about a C-5 replacement so there may very well be a new 4 engine large transport launched at some point in the future.

Archibald said:
www.francebleu.fr

Avec ses anciens Beluga, Airbus lance une compagnie de transport de marchandises - France Bleu

L'avionneur toulousain lance un service de fret aérien avec ses Beluga ST, habitués aux transports de pièces d'avions. Une première livraison commerciale a eu lieu fin 2021, entre la France et le Japon. Pendant ce temps, au sein d'Airbus, le Beluga ST est remplacé par le Beluga XL.
www.francebleu.fr www.francebleu.fr

"Airbus Beluga Transport " has just been created as an oversized cargo transportation company: by "recycling" the five A300-derived, first generation Belugas. This can haul up to 47 metric tons and, most importantly, diameter of the cargo hold is 7.1 meters - a tad more than An-124 / 225 which are around 6 meters.

Airbus did that because a brand new generation of Belugas is entering service, derived from the A330 and with a diameter extended to 8 meters.

And of course NASA is still using the Super Guppy... that Airbus used once, in their beginnings.
Click to expand...

Maybe the general conversation would be better suited for Aerospace?

alternathistory.com

Каким мог стать советский Boeing-767 или нереализованный проект пассажирского самолёта Ан-218 - Альтернативная История

Каким мог стать советский Boeing-767 или нереализованный проект пассажирского самолёта Ан-218 - Альтернативная История
alternathistory.com alternathistory.com

alternathistory.com

Проект широкофюзеляжного среднемагистрального пассажирского самолета Ан-218. Украина - Альтернативная История

Проект широкофюзеляжного среднемагистрального пассажирского самолета Ан-218. Украина - Альтернативная История
alternathistory.com alternathistory.com

Very interesting to see that had the USSR not collapsed, this would have been the Soviet Unions answer to the 767. But considering that the engines that were proposed for this aircraft were suffering from serious teething problems at the time, as well as the fact that they were being prioritized for the AN-124 program, this aircraft would not have entered service until the late 1990's.

From post 145 to post 157 we're off topic.

Please think before posting to avoid clutter and confusion.

1. Search for the appropriate section
2. Search for the appropriate thread
3. If your subject doesn't match an existing subject, start a new thread
4. If anyone missed steps 1 to 3, please don't reply to their post, avoid a "off topic" string expansion.

Post 145 to 157 section options:

Military:

Aviation&Space:

But never on Unbuilt Projects

Thanks for your help!
