AkelaFreedom's Missile and UAV artwork

[AkelaFreedom]

ASN4G (Air-sol Nucleaire de 4e Generation)
This is a concept of a French nuclear air-launched cruise missile.
Missile capable of high supersonic (Mach 4-5) and have range much greater than 1000 kilometers.





The full set can be seen here -

https://www.artstation.com/artwork/qA8OG2



[pedrospe]

ASN4G (Air-sol Nucleaire de 4e Generation)
This is a concept of a French nuclear air-launched cruise missile.
Missile capable of high supersonic (Mach 4-5) and have range much greater than 1000 kilometers.

View attachment 634050

View attachment 634051

The full set can be seen here -

https://www.artstation.com/artwork/qA8OG2

Amazing, i love it



[yasotay]

Brilliant work Sir. Thank you for continuing to share your talent with us.

Honestly I am amazed at all of the artistry here on this Forum.



[AkelaFreedom]

Brilliant work Sir. Thank you for continuing to share your talent with us.

Honestly I am amazed at all of the artistry here on this Forum.

Thanks!



[AkelaFreedom]

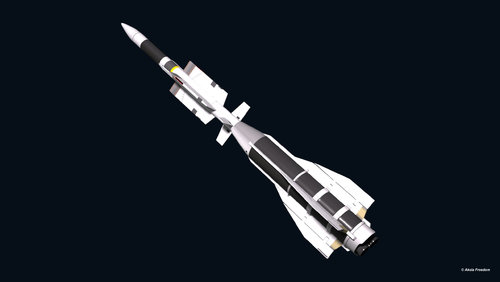

Aster 30 Block 1NT
The missile is designed to intercept and destroy a wide range of air threats wide area defence (1500 km), such as supersonic anti-ship cruise missiles at very low altitude and fast flying, high performance aircraft or missiles.
Aster is primarily operated by France, Italy, and the United Kingdom and is an integrated component of the PAAMS air-defence missile system, known in the Royal Navy as Sea Viper. Aster 30 has been successfully incorporated into a land based SAM system SAMP/T (Surface-to-Air Missile Platform/Terrain)





The full set can be seen here -

https://www.artstation.com/artwork/B1oyxr



[AkelaFreedom]

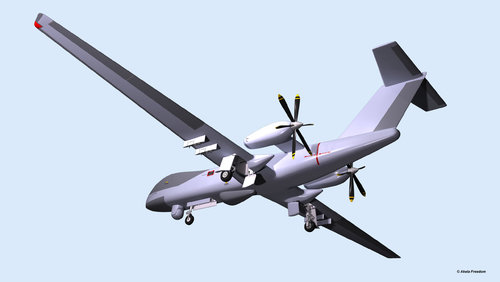

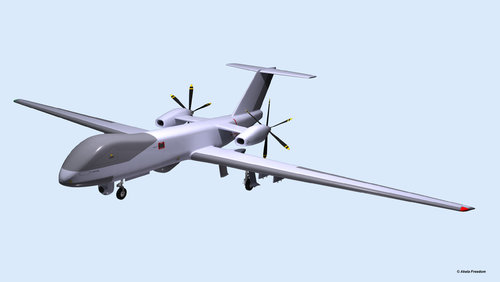

The European Medium Altitude Long Endurance Remotely Piloted Aircraft System (MALE RPAS).





The full set can be seen here -

https://www.artstation.com/artwork/v2AmDE



[AkelaFreedom]

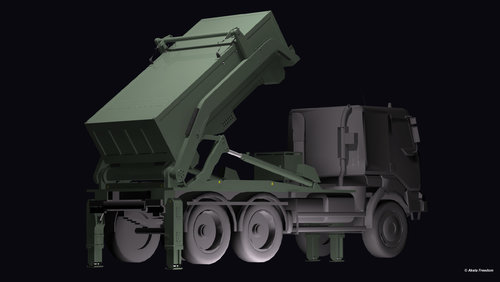

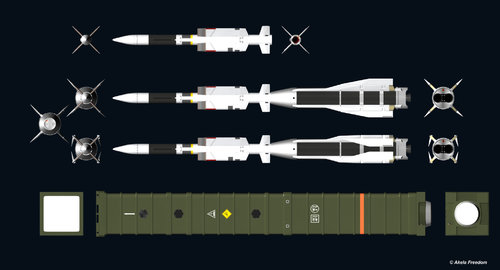

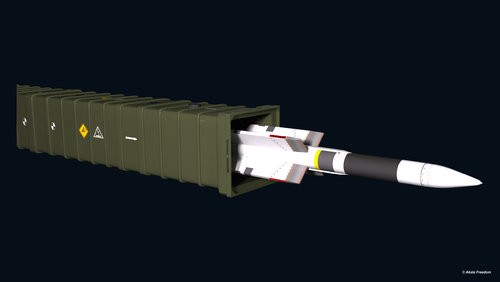

VL-MICA (Vertical Launch MICA)
A truck-mounted box launcher for short-range surface-to-air missile system MICA.
(Please note that the truck model is not mine, it is only to show how it should look on the platform)



The full set can be seen here -

https://www.artstation.com/artwork/ea0aK3



[AkelaFreedom]

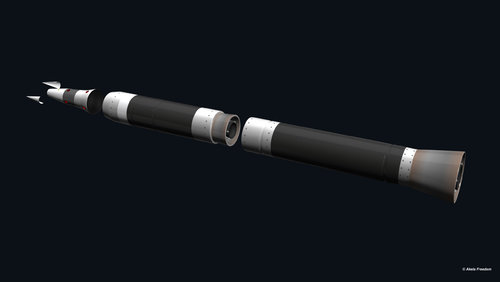

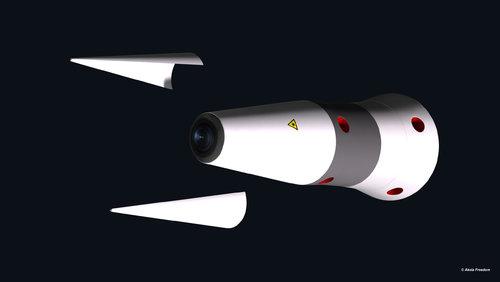

Aster 30 Block 2 BMD (Ballistic Missile Defense)
Currently being developed for anti-ballistic defense against 3000 km-range maneuvering missiles.





The full set can be seen here -

https://www.artstation.com/artwork/zOAPrZ



[AkelaFreedom]

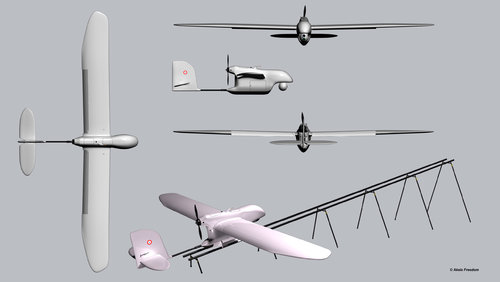

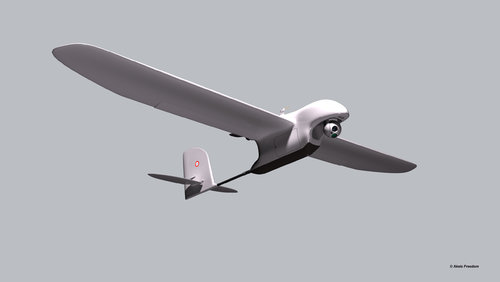

Spy Ranger - Mini surveillance and recognition UAV designed on Thales specifications.
This drone is part of the SMDR (Mini Recognition Drone Recognition System) tender to equip the French army.



The full set can be seen here -

https://www.artstation.com/artwork/8elKDq



[AkelaFreedom]

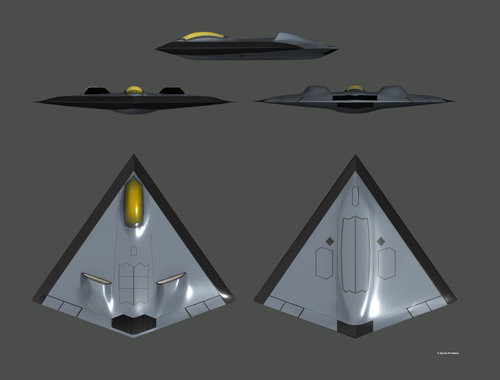

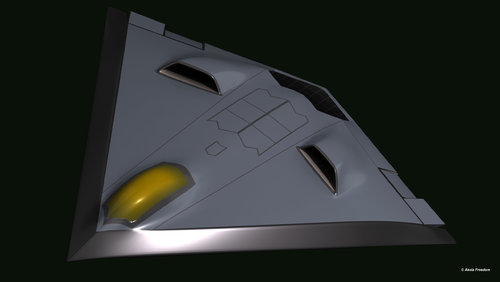

Low Observable UAV Testbed (LOUT).
This is a mysterious program from Airbus designed to a better understanding of cutting-edge very low-observable design, material and manufacturing sciences.





The full set can be seen here -

https://www.artstation.com/artwork/8eeenR



[pedrospe]

Low Observable UAV Testbed (LOUT).
This is a mysterious program from Airbus designed to a better understanding of cutting-edge very low-observable design, material and manufacturing sciences.

View attachment 636323

View attachment 636324

The full set can be seen here -

https://www.artstation.com/artwork/8eeenR

Amazing



[AkelaFreedom]

Amazing

Thanks! But there’s nothing special



[flateric]

Low Observable UAV Testbed (LOUT).

may be of help



[AkelaFreedom]

may be of help

Thank you, I have already seen these documents. As far as I understand, there were two realizations in the metal of these projects - this is the "Sagitta" project, on which aerodynamics were tested and the one that I depicted, based on photos from the echo camera. I believe that in the end there will be nothing more based on them.



[AkelaFreedom]

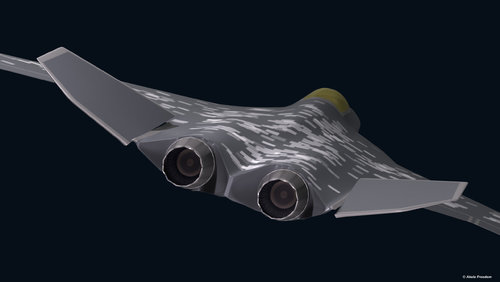

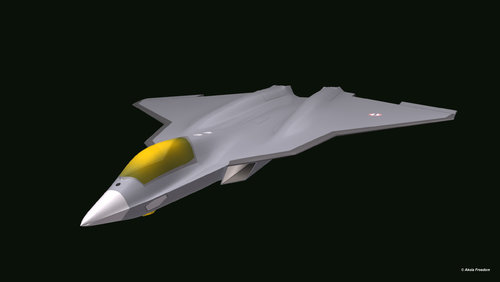

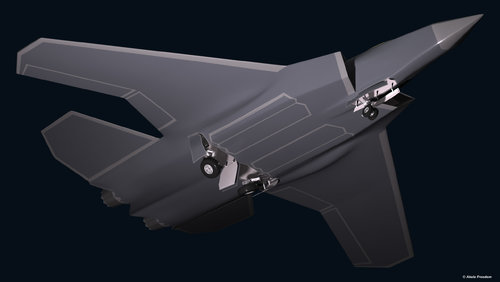

Future Combat Air System (FCAS)
(Systeme de combat aerien futur - SCAF)







The full set can be seen here -

https://www.artstation.com/artwork/lxxzKk



[flateric]

may be of help



[AkelaFreedom]

may be of help

Sorry, but I didn’t quite understand what this picture was for. I made this model for a VR simulator for French military pilots. And since they approved it, then I guessed with the form



[flateric]

I don't think they know of SCAF more than Dassault, but OK. It sounds like 'your attempts to send me references are boring.'



[AkelaFreedom]

I don't think they know of SCAF more than Dassault, but OK. It sounds like 'your attempts to send me references are boring.'

No, I didn’t mean to offend you. It's just that the model was created on the basis of the layout that was presented at the 2019 exhibition in Paris. And I think my customers work directly with Dassault, and are up to date with upcoming developments. Although it should be noted that there was another tailless layout from the same Dassault. But they preferred exactly the one on the basis of which I made my model.



[AkelaFreedom]

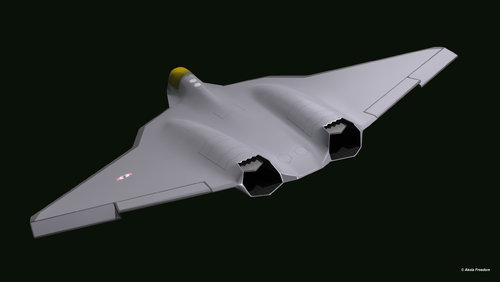

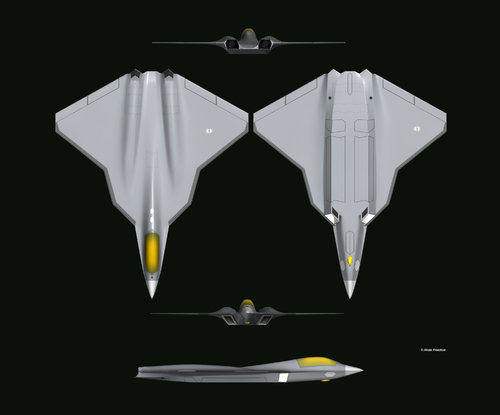

Next Generation Fighter (NGF) is a concept from Dassault carrier-based fighter.





The full set can be seen here -

https://www.artstation.com/artwork/lxxWmo



[pedrospe]

Next Generation Fighter (NGF) is a concept from Dassault carrier-based fighter.

View attachment 636946
View attachment 636947
View attachment 636948

The full set can be seen here -

https://www.artstation.com/artwork/lxxWmo

cool work, i like it



[AkelaFreedom]

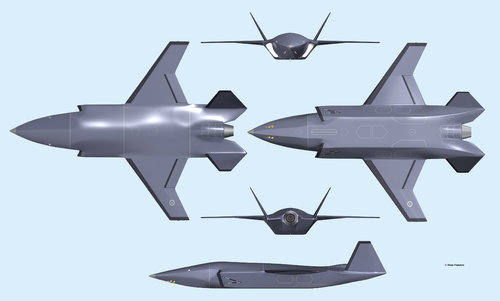

I updated the Airpower Teaming System model due to new data.
The Boeing Airpower Teaming System, also known as the Loyal Wingman project, is an unmanned aerial vehicle in development,
whose role will be to support manned Royal Australian Air Force aircraft.

The full set can be seen here -

https://www.artstation.com/artwork/ELaVbq



[yasotay]

Good heavens! Do you never sleep? The number of wonderful projects you share here is astounding and awesome.



[AkelaFreedom]

Good heavens! Do you never sleep? The number of wonderful projects you share here is astounding and awesome.

Thanks! Sometimes I sleep Just recently, projects have been going one after another without respite.



[Grey Havoc]

Mind your health!



[AkelaFreedom]

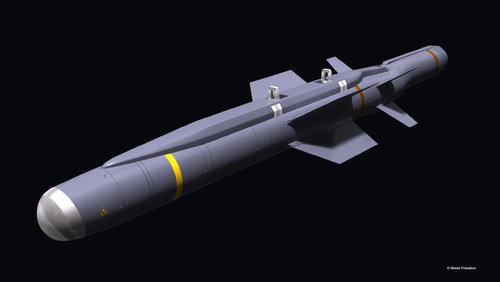

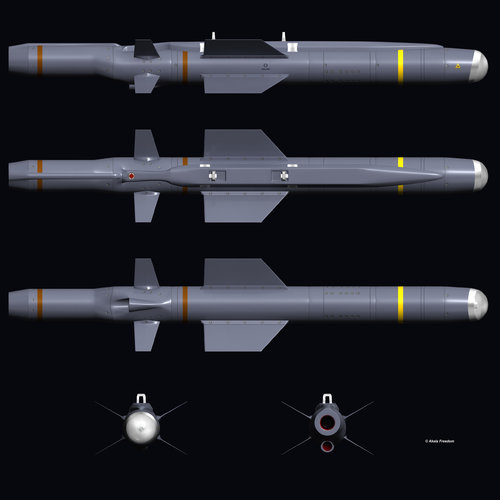

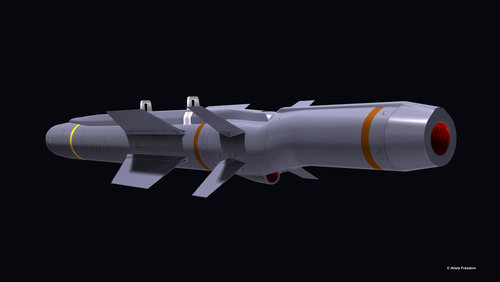

Sea Venom is an Anglo-French lightweight anti-ship missile developed by MBDA to equip the French Navy and the Royal Navy.

The full set can be seen here -

https://www.artstation.com/artwork/Vgyl95



[AkelaFreedom]

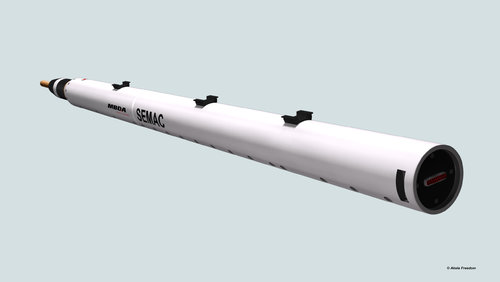

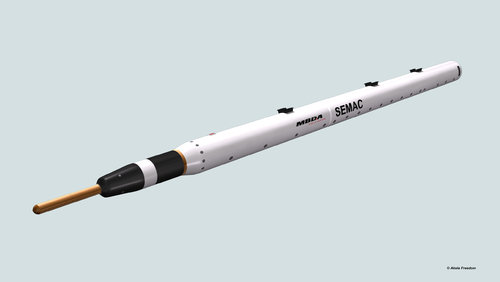

ACMI SEMAC
ACMI - Air Combat Maneuvering Instrumentation.
SEMAC - Systeme d'Entrainement aux Missions Aeriennes Complexes.

The full set can be seen here -

https://www.artstation.com/artwork/lxDVZG



[AkelaFreedom]

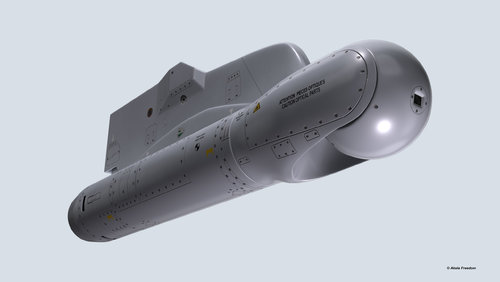

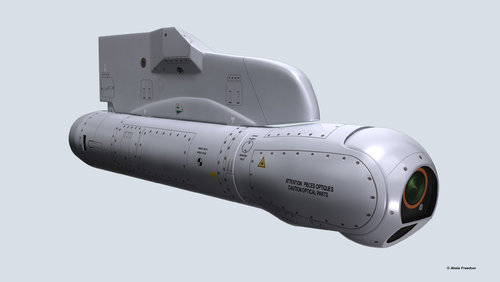

The Damocles is a 3rd generation targeting pod.
Damocles features a long-range laser designator, an integrated navigation FLIR and high-resolution imagery.
It also features a reconnaissance capability with instant transmission of imagery to ground stations.

The full set can be seen here -

https://www.artstation.com/artwork/Aql5WV



[Foo Fighter]

Great images mate.



[AkelaFreedom]

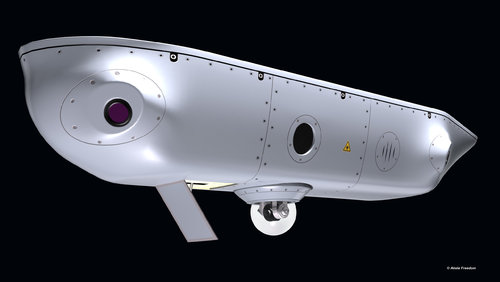

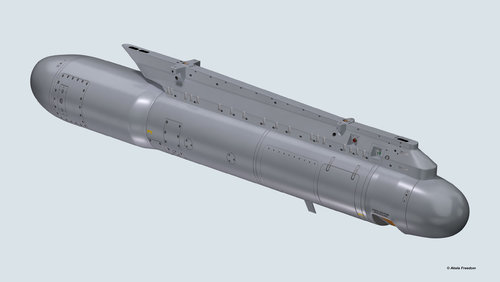

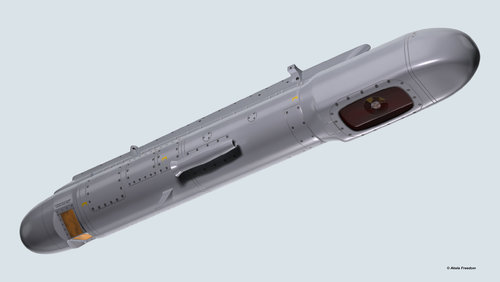

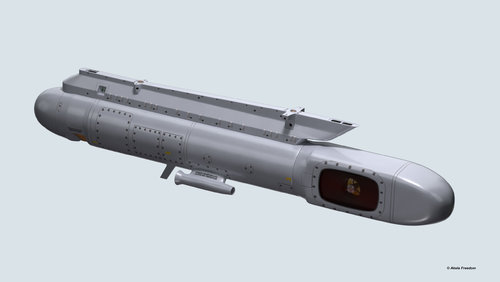

Recon NG (Reco New Generation).
AREOS - (Airborne REconnaissance Observation System).
Stand-off optronic reconnaissance system for day & night and adverse weather conditions and across a range of tactical and strategic mission scenarios.

The full set can be seen here -

https://www.artstation.com/artwork/18x938



[yasotay]

I hope the DCS team is seeing your work!



[AkelaFreedom]

I hope the DCS team is seeing your work!

Unfortunately my models are completely indifferent for the DCS team. I have published my works on their forum many times - no reaction. Apparently they don't need designers.



[AkelaFreedom]

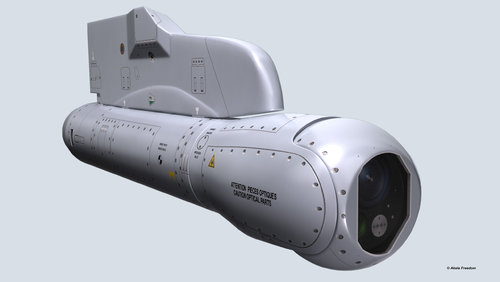

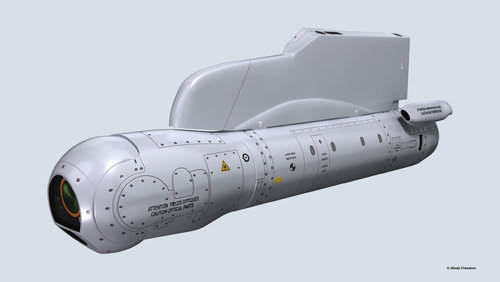

TALIOS (Targeting Long-range Identification Optronic System)
New generation multi-function targeting pod to replace "Damocles" pod.

The full set can be seen here -

https://www.artstation.com/artwork/kDQ55x



[yasotay]

I hope the DCS team is seeing your work!

Unfortunately my models are completely indifferent for the DCS team. I have published my works on their forum many times - no reaction. Apparently they don't need designers.

That is shockingly disappointing.



[AkelaFreedom]

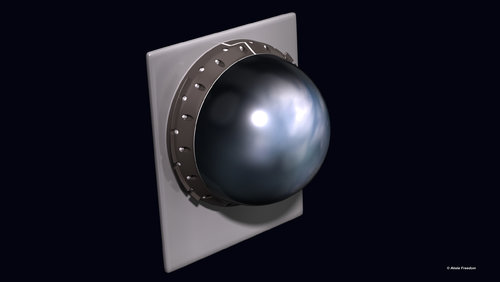

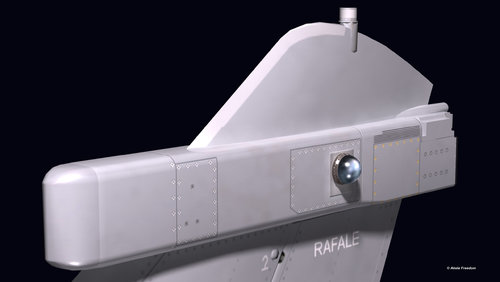

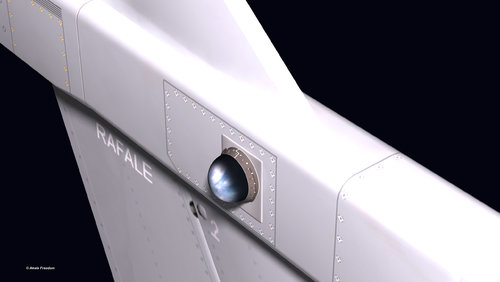

DDM-NG is a passive, imaging infrared Missile Warning System using the latest advances in sensor technology and processing algorithms.
(Part of the "Rafale" tail model shown in the illustrations is not mine and is shown only for clarity of the location of the "DDM NG")



[AkelaFreedom]

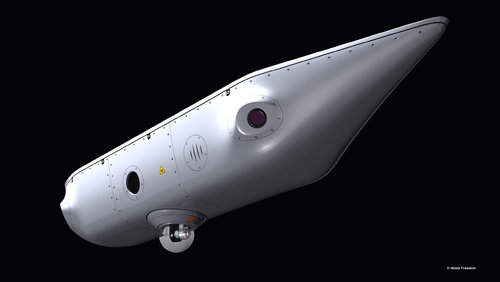

MUSIC Pod
Electro-optics Multi Spectral Infrared Countermeasure (MUSIC) systems are high-performance, fiber-laser based DIRCM (Directed IR Countermeasures) solutions for protecting aircraft against heat seeking ground to air missiles (MANPADS). These systems integrate advanced fiber laser technology together with a high rate thermal camera and a small, highly dynamic mirror turret to provide effective, reliable and affordable protection. The Pod mounted DIRCM system specifically designed to defend large jet aircraft.

The full set can be seen here -

https://www.artstation.com/artwork/9m8Lmv



[AkelaFreedom]

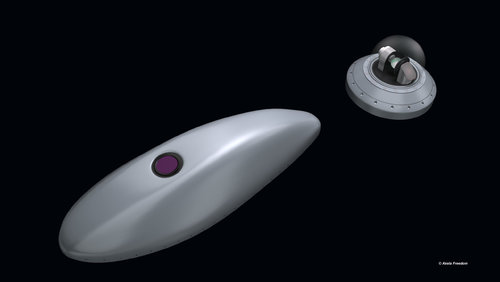

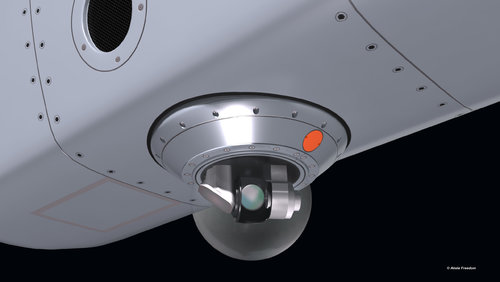

J-MUSIC
J-MUSIC is a DIRCM system intended for distributed installation on medium to large size jet platforms. It can be integrated with various missile warning systems (MWS).

The full set can be seen here -

https://www.artstation.com/artwork/XnJvR0



[AkelaFreedom]

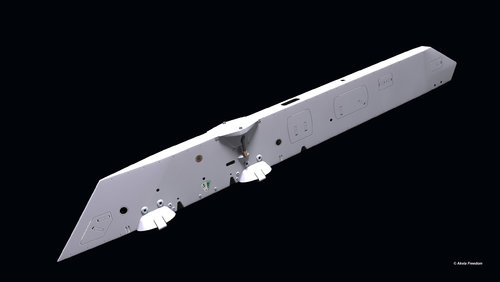

The PU 708 pylon is a universal pylon able to carry 30" standard armaments such as SCALP cruise missile, GBU24 bombs, RAFAUT AT730triple store rack and RAFALE additional fuel tanks.

The full set can be seen here -

https://www.artstation.com/artwork/WKXwBv



[AkelaFreedom]

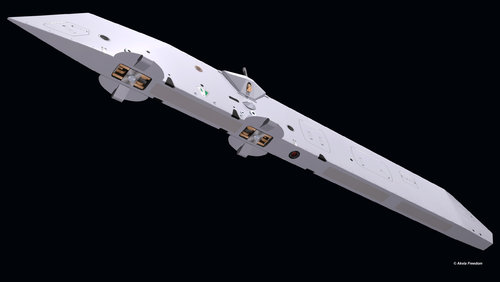

AT730 triple store rack which has been designed for RAFALE. This rack is able to release a wide range of bombs based on the Mk82 and Mk83.

The full set can be seen here -

https://www.artstation.com/artwork/xJdm94



[AkelaFreedom]

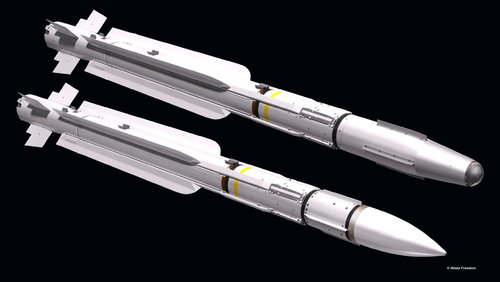

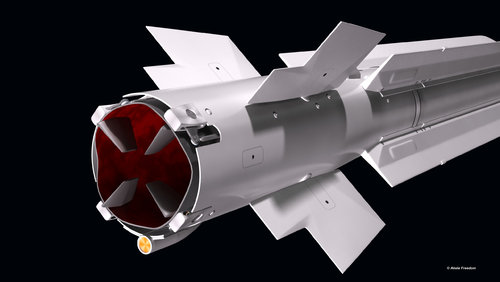

The MICA (Missile d'interception, de combat et d'autodefense, - Interception, Combat and Self-defence Missile) is an anti-air multi-target, all weather, fire-and-forget short and medium-range missile system. MICA RF has an active radar homing seeker and MICA IR has an imaging infra-red homing seeker.

The full set can be seen here -

https://www.artstation.com/artwork/d8aJLe
