AGM-158 JASSM

[TomS]

An AESA radar is a dramatic improvement in an F/A-18C's capability over its' original AN/APG-73 radar so I think that such a change in its' designation is warranted.

DoD disagrees. Sorry.



[bring_it_on]

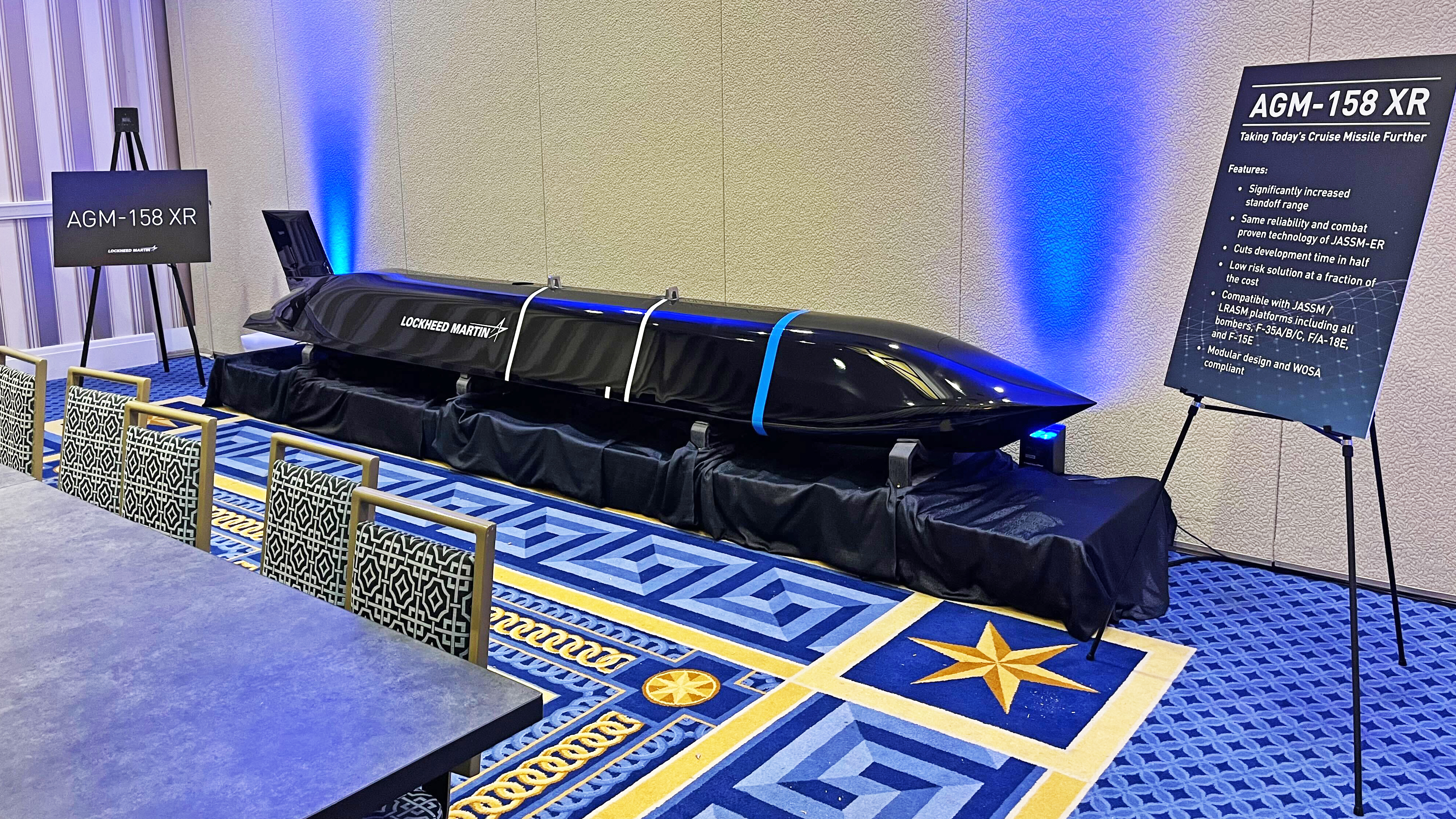

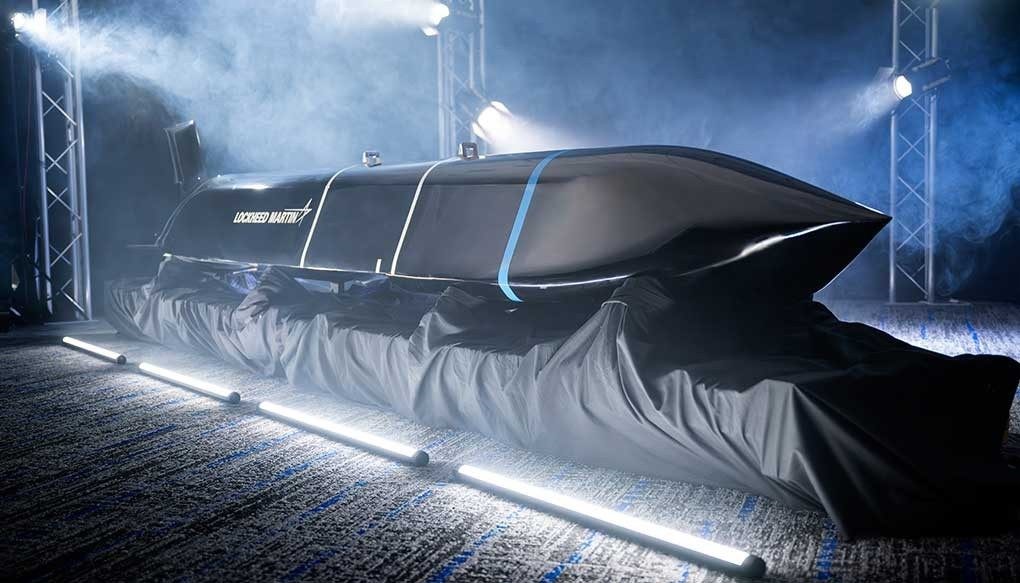

Back on the JASSM topic, I'm getting something like a 5.5 ft. length increase from the current JASSM-ER for the XR configuration using the below reference image. Anyone come up with a different estimate (or an actual source for current iteration of XR's length?)

https://www.twz.com/wp-content/uploads/2024/09/JASSMXR.jpg



[Scott Kenny]

Back on the JASSM topic, I'm getting something like a 5.5 ft. length increase from the current JASSM-ER for the XR configuration using the below reference image. Anyone come up with a different estimate (or an actual source for current iteration of XR's length?)

https://www.twz.com/wp-content/uploads/2024/09/JASSMXR.jpg

So, right about 20 feet long?

That'd be the same rough size as CALCMs.



[zjz]

I estimated it to be around 17ft in length ....

https://www.secretprojects.co.uk/threads/jassm-xr-extra-extended-range.30782/page-2#post-710600



[zjz]

Info of the JASSM that might be interesting can be found in this report :

https://apps.dtic.mil/sti/tr/pdf/ADA605361.pdf

FINAL ENVIRONMENTAL ASSESSMENT of the JOINT AIR-TO-SURFACE STAND-OFF MISSILE
(JASSM) DEVELOPMENT AND EVALUATION TESTING
WHITE SANDS MISSILE RANGE, NEW MEXICO



[zjz]

Back on the JASSM topic, I'm getting something like a 5.5 ft. length increase from the current JASSM-ER for the XR configuration using the below reference image. Anyone come up with a different estimate (or an actual source for current iteration of XR's length?)

https://www.twz.com/wp-content/uploads/2024/09/JASSMXR.jpg

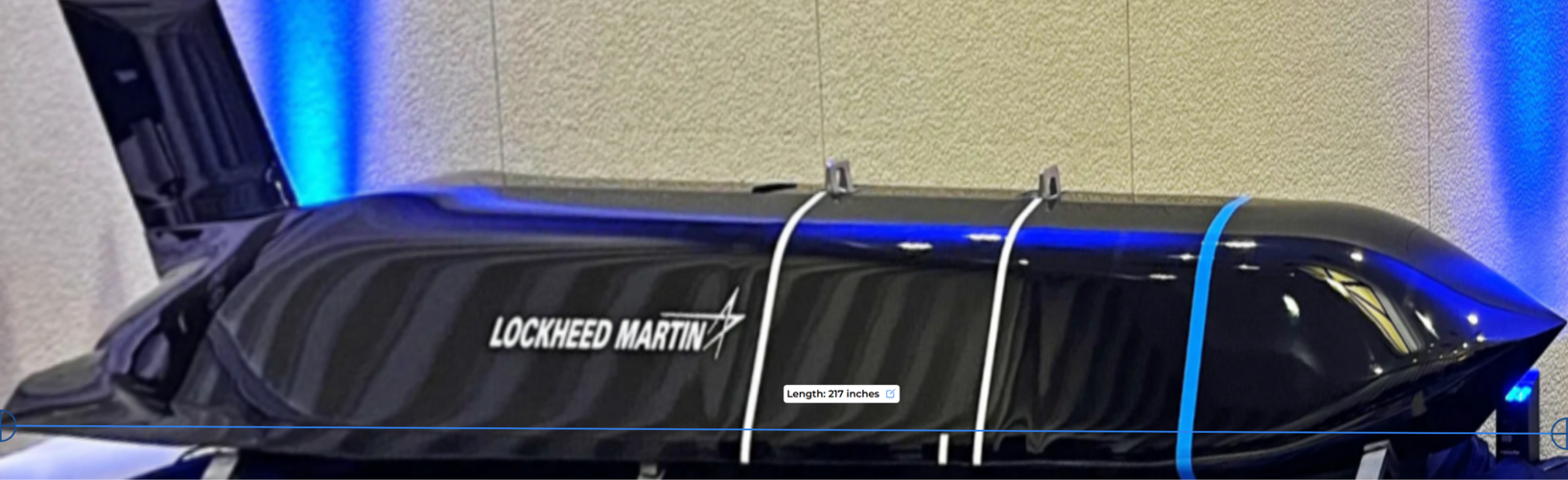

OK, I re-estimate using the posted photo, and using lug spacing of 30inch, the airframe is closer to 18ft in length .....



[bring_it_on]

OK, I re-estimate using the posted photo, and using lug spacing of 30inch, the airframe is closer to 18ft in length .....

Thanks, I was getting a tad bit over 19 ft using the same but mine was a very quick and dirty estimate..so probably off.



[zjz]

I decided to use the lug spacing as it is a known entity .... the posted photo's perspective is pretty fully "side" view, so any distortion is minimal ....

Previously I attempted using the painted stripes, but soon realised the spacing distances are visually different between the JASSM and the XR .....



[Forest Green]

I guess it may be sized to fit the B-1's internal bays despite the B-1 being phased out and also to make it fighter carriable. The width may also be larger than regular JASSM.



[Josh_TN]

I guess it may be sized to fit the B-1's internal bays despite the B-1 being phased out and also to make it fighter carriable. The width may also be larger than regular JASSM.

AGM-86 needs a specific pylon on the B-52; I expect XR is sized to use a MIL 1760 HBSA (the -86 compatible pylon allows for PAL but is not 1760, though the YSAF did do an RFI asking for it to be reworked as such).



[bring_it_on]

I decided to use the lug spacing as it is a known entity .... the posted photo's perspective is pretty fully "side" view, so any distortion is minimal ....

Previously I attempted using the painted stripes, but soon realised the spacing distances are visually different between the JASSM and the XR .....

Yes, I'm now getting closer to 18 ft as well.

Image Measurement

Image Measurement is the service for measurement of your objects.

imagemeasurement.online



[zjz]

Yes, I'm now getting closer to 18 ft as well.

Image Measurement

Image Measurement is the service for measurement of your objects.

imagemeasurement.online

Thats a sophisticated software .... I did it in MS Paint, and counted the number of pixels to get my estimation



[Forest Green]

Yes, I'm now getting closer to 18 ft as well.

Image Measurement

Image Measurement is the service for measurement of your objects.

imagemeasurement.online

Can't get that to work, which image did you use?



[bring_it_on]

Can't get that to work, which image did you use?

This one with the lugs as reference - https://www.twz.com/wp-content/uploads/2024/09/JASSMXR.jpg



[Forest Green]

This one with the lugs as reference - https://www.twz.com/wp-content/uploads/2024/09/JASSMXR.jpg

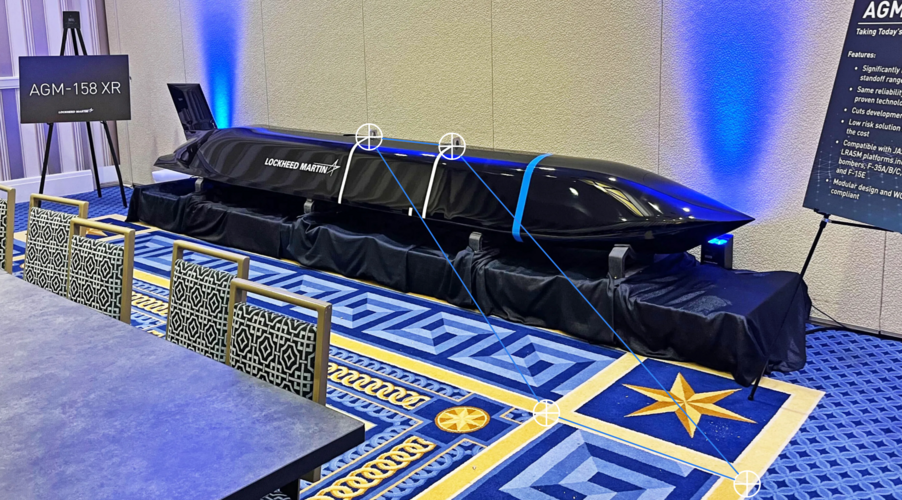

Where did you set the crosses on step 1? Scale setting on step 2?



[bring_it_on]

Those are 30 inch lugs so you set that and measure the length of the weapon using that as a reference.



[NMaude]

Those are 30 inch lugs so you set that and measure the length of the weapon using that as a reference.

The problem with that photograph is that it is at an angle and not side on.



[bring_it_on]

The problem with that photograph is that it is at an angle and not side on.

That's fine as it still allows for a decent estimate and you are not going to be wildly off.



[Forest Green]

Those are 30 inch lugs so you set that and measure the length of the weapon using that as a reference.

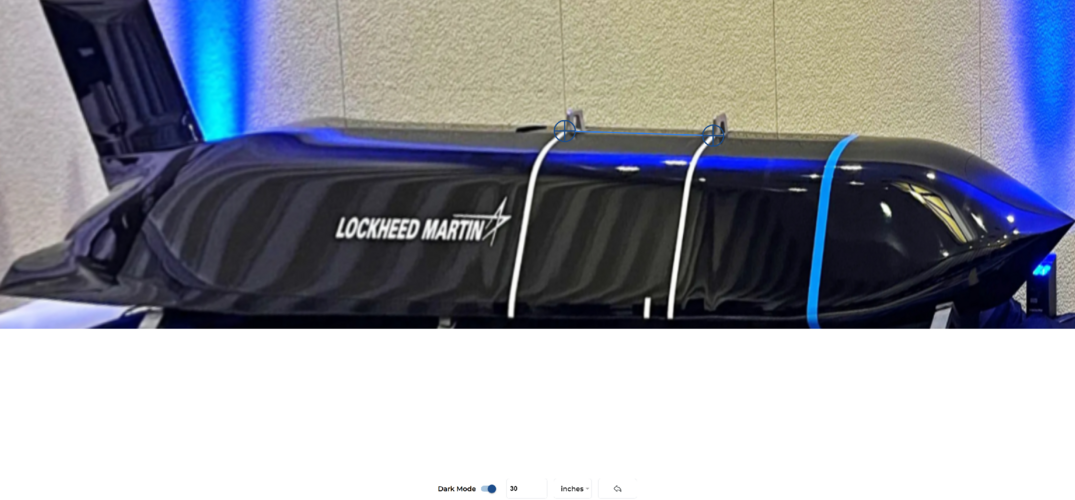

So do you set 2 markers at either end of the lugs and two at the ends of the missile, and set scale to 30 inches? I do that but it blocks moving to step 3. Don't know what I'm doing wrong??



[bring_it_on]

So do you set 2 markers at either end of the lugs and two at the ends of the missile, and set scale to 30 inches? I do that but it blocks moving to step 3. Don't know what I'm doing wrong??

No, just two markers at lug for reference and set them at 30 inches. Then the next step is where you estimate the length of the missile using a different set of markers.



[Forest Green]

So just leave the other 2 where they are in step 1 and set 30 inches on step 2? Still getting not reaching step 3??



[bring_it_on]

Not sure what you are doing wrong. Set the scale at 30 inches with two markers in step 2 and move to step 3 and try to estimate the length.



[Forest Green]

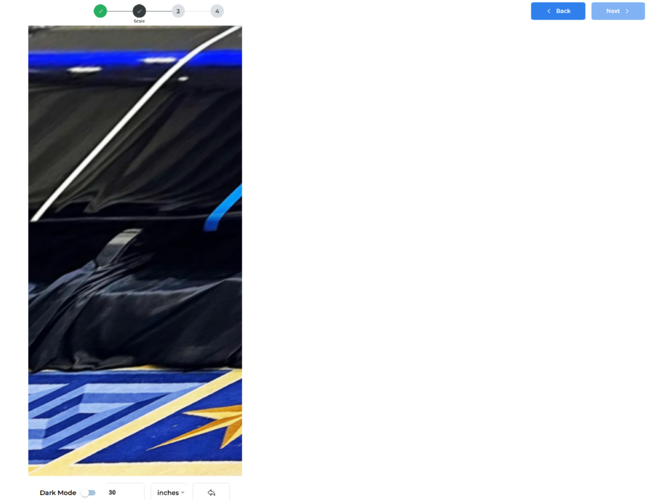

I always start with 4 markers in step 1? Have you a shot of what you do in step 1?



[bring_it_on]

I always start with 4 markers in step 1?

Step 1 is to crop the image.
