WW1 and WW2 Never Built Warship Designs

Off the top of my head, I can verify the 72,000 ton fast battleship. It is one of the two "Maximum Battleships of 1934". It is documented in Friedman's "U.S. Battleships: An Illustrated Design History" pg. 235. If there is a drawing of the fast version, I have never seen it.

I'll have to look up the cruiser.

DRW
Another interesting one I found:

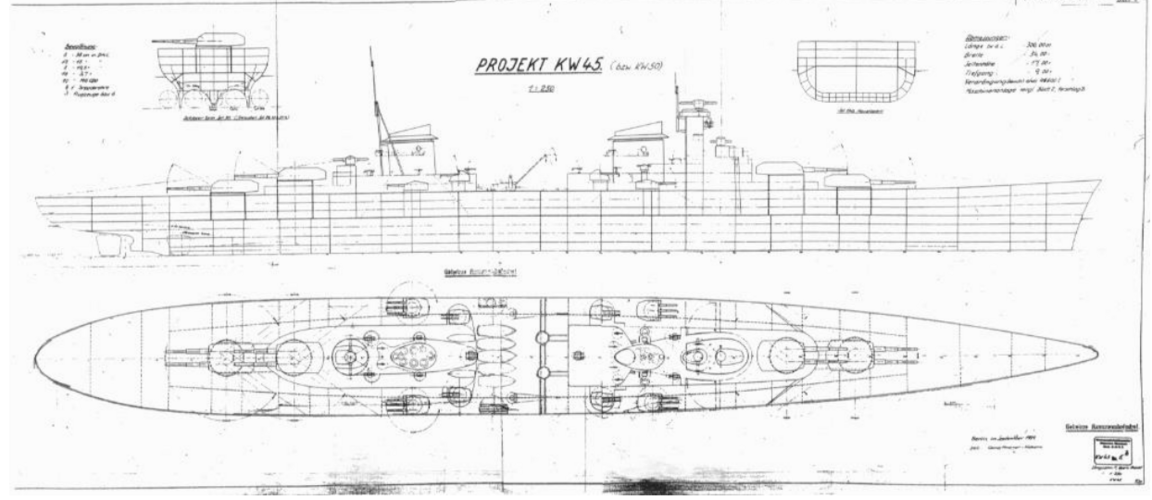

Projekt KW45 Displacement: 45,000 tons Length: 984’ Width: 111’ Speed: 36-37 knots Armament: 8-15”/47 (4x2), 12-5.9”/55 (4x3), 8-4.1” (4x2) and 8-21” TT Armor: 8"
Opera Snapshot_2024-05-20_224522_alnavco.com.png
Prokjet KW50 is basically the same as KW45 but with Displacement: 50,000 tons Width: 121' Speed: 35 knots Armor: 11.8"

Another interesting one I found:
Projekt KW45 Displacement: 45,000 tons Length: 984’ Width: 111’ Speed: 36-37 knots Armament: 8-15”/47 (4x2), 12-5.9”/55 (4x3), 8-4.1” (4x2) and 8-21” TT Armor: 8"
View attachment 729604
Prokjet KW50 is basically the same as KW45 but with Displacement: 50,000 tons Width: 121' Speed: 35 knots Armor: 11.8"
It's not a new thing, basically everything that you get in the wows fans group has been discussed,

It's not a new thing, basically everything that you get in the wows fans group has been discussed,
There's nothing like this in any WOWS "fan group" the only thing in WOWS similar to it is the premium tier IX cruiser Admiral Schröder which has 4x2 305 mm guns, 3x3 150 mm secondaries and 10x2 128 mm secondaries.

You can go search for Projekt KW45 in whatever WOWS fan group you are talking about.

I'll have to look up the cruiser.

OK, I looked up the cruiser. It is mentioned in Friedman's U.S. Cruisers: An Illustrated Design History, pg 297, but there is no illustration. If a drawing exists, I haven't seen it. Friedman doesn't even provide tabular data for it, though it might be reasonable to assume that the hull was similar to Type MM.

DRW

There's nothing like this in any WOWS "fan group" the only thing in WOWS similar to it is the premium tier IX cruiser Admiral Schröder which has 4x2 305 mm guns, 3x3 150 mm secondaries and 10x2 128 mm secondaries.

You can go search for Projekt KW45 in whatever WOWS fan group you are talking about.
Well,You're even looking for the wrong thing, this is Weimar Germany's 1928 cruiser killer , has nothing about KW45
Stop playing World of Warships

There's nothing like this in any WOWS "fan group" the only thing in WOWS similar to it is the premium tier IX cruiser Admiral Schröder which has 4x2 305 mm guns, 3x3 150 mm secondaries and 10x2 128 mm secondaries.

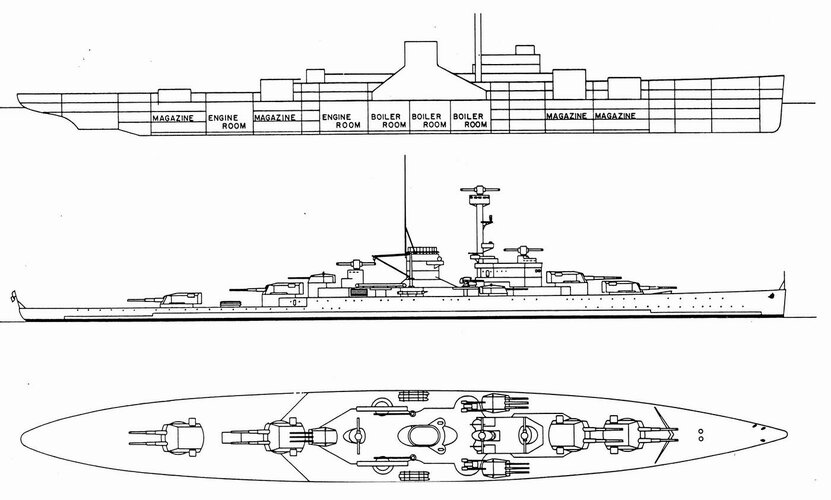

That looks like an evolution of the 1928 "Zenker" battlecruiser, which never got off the drawing board. It is also quite well known.

DRW

Another interesting one I found:
Projekt KW45 Displacement: 45,000 tons Length: 984’ Width: 111’ Speed: 36-37 knots Armament: 8-15”/47 (4x2), 12-5.9”/55 (4x3), 8-4.1” (4x2) and 8-21” TT Armor: 8"

Prokjet KW50 is basically the same as KW45 but with Displacement: 50,000 tons Width: 121' Speed: 35 knots Armor: 11.8"

IIRC, these two were designed by a private shipyard rather than the Warship Construction Office (K-Amt), and were never seriously considered for construction.

They are notable for their 5-shaft propulsion system.

DRW

Well,You're even looking for the wrong thing, this is Weimar Germany's 1928 cruiser killer , has nothing about KW45
Stop playing World of Warships
View attachment 729607
That's still Admiral Schröder. Check https://alnavco.com/content/modeling_historic_notes/pdfs/alnavco_the_fleet_that_never_was.pdf for Projeckt KW45 it's there.
Here is an excerpt from page 56: "More intriguing were projects KW45 and KW50 designed between June and September 1939. These plans were found by Capt (Ret) Ken Johnson and placed in the National Archives. Reports issued by the Director of Naval Intelligence on 8/29/45 contained capture documentation of submarines, cruisers, destroyers, battleships and carriers. Discussed by the “Neubauausschuss” during the 1939 time period, no other previous or subsequent mention of these ships have been found in the German archives. Immense, fast, under-armed and under-armored battlecruisers had advanced designs completed but were never approved. These would have suffered from the same design defects as the OPQs but remain intriguing ships."

That's still Admiral Schröder. Check https://alnavco.com/content/modeling_historic_notes/pdfs/alnavco_the_fleet_that_never_was.pdf for Projeckt KW45 it's there.
Here is an excerpt from page 56: "More intriguing were projects KW45 and KW50 designed between June and September 1939. These plans were found by Capt (Ret) Ken Johnson and placed in the National Archives. Reports issued by the Director of Naval Intelligence on 8/29/45 contained capture documentation of submarines, cruisers, destroyers, battleships and carriers. Discussed by the “Neubauausschuss” during the 1939 time period, no other previous or subsequent mention of these ships have been found in the German archives. Immense, fast, under-armed and under-armored battlecruisers had advanced designs completed but were never approved. These would have suffered from the same design defects as the OPQs but remain intriguing ships."
nothing new

And read naval forums more, gamef orums less.
I haven't looked at the WOWS forums for the past 2 years and also it got shut down back in November of 2023. https://worldofwarships.com/en/news/community/forum-redirect/
Not all of the ship proposals on the WOWS were fake though there a few. Most of the designs that I found for WOWS are real. I'm creating a list of real ships that can be used as premiums because it seems like WOWS is running out of ideas and coming up with more copy-paste and imaginative ships

Last edited:
There was a KW 30 or 35 design as well, which might be connected to the O class development

Some very interesting designs I found from https://alnavco.com/content/modeling_historic_notes/pdfs/alnavco_the_fleet_that_never_was.pdf which I have never heard of before:
US Max Fast BB: Displacement: 72,500 tons Length: 975' Width: 107' Speed: 30 knots Armament: 8-20”(4x2) and 20-5”/38(10x2)
US CA Scheme M: Date: June 1940 Displacement: 17,300 tons Length: 735’ Width: 74’ 82 Speed: 33.2 knots Armament: 10-10” (2x2,2x3)

I have plenty of Alnavco's models, and many of their never-were capital ships, but some of them are not exactly historical.

CA-2D is an example; the historic concept from the Spring Styles book referenced above had a cruiser bridge like Baltimore, but the Alnavco model has more of an Alaska/Iowa look.

Another is their F3 battlecruiser, which has the layout of a Nelson with two funnels. The actual drawing of F3 (and F2 for that matter) had the Number 3 turret superfiring, not the middle turret. Those drawings can be seen here:


Regards,

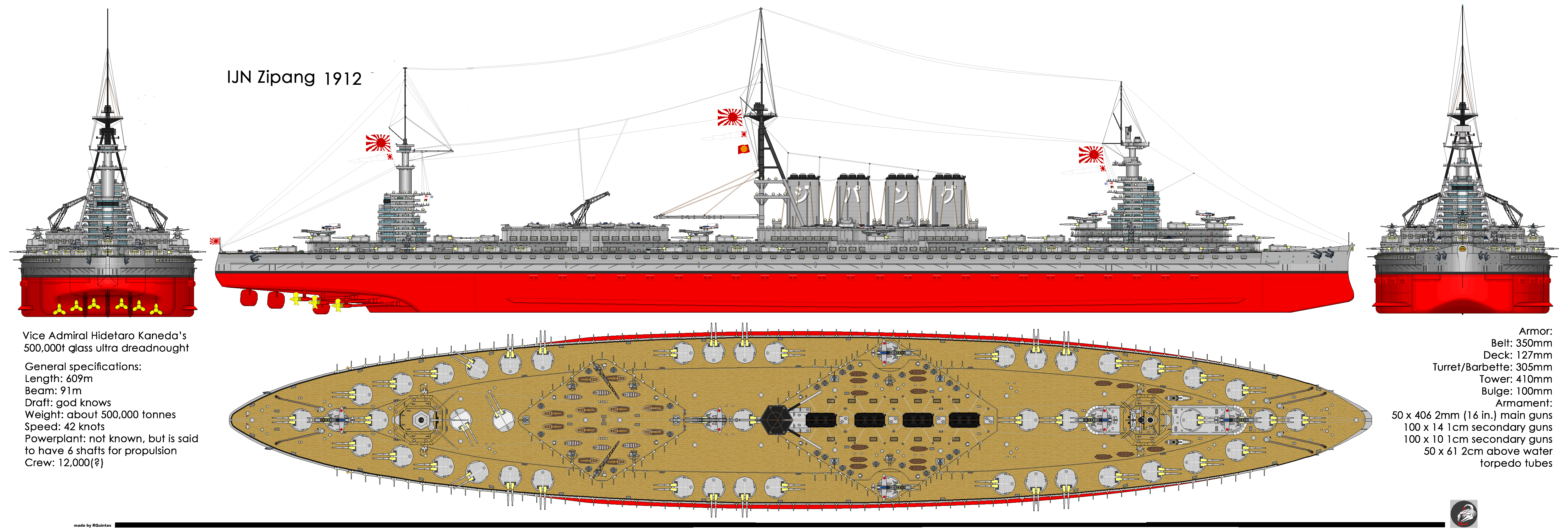

Well, we can always go full lunatic here:







Nothing quite like Japanese OCD to make things interesting!
With a turning radius measures in leagues, a cruising range measures in meters, requiring the entire fleet's personnel.

Large ships had large fuel supply so plenty of range. As for the turn rate why turn fast when you have 100 16" barrels on each side? Against torpedoes only bulkheads and compemantation helps but to sink such a large ships a ton of torpedoes are needed. See Yamato and Musashi.

Large ships had large fuel supply so plenty of range. As for the turn rate why turn fast when you have 100 16" barrels on each side? Against torpedoes only bulkheads and compemantation helps but to sink such a large ships a ton of torpedoes are needed. See Yamato and Musashi.
Well, that Japanese mega ship has some serious design flaws that weren't really known fully in 1912-ish when it was proposed. These include:

Use of casemate guns in the hull, or what I assume are casemate guns in the hull (slots in hull sides). These lower freeboard in the case of flooding and as history proved, were worthless as ranges increased. They also often couldn't be used in a seaway.

Wing turrets. These are close to the outer hull meaning there's little depth to whatever torpedo defense system that might be installed.

Given the location of the engines and boiler rooms, the shafts on this ship are going to be very long making them torque limited, but worse, giving very long shaft alleys that could be a weak spot for progressive flooding.

Not sure if coal or oil firing was planned. If coal, complete nightmare and a huge risk of coal fires due simply to the mass of coal that would have to be carried.

With a proposed crew of 12,000, fitting all of them aboard and keeping them fed etc., is going to be a Herculean task.

The most ludicrous thing is the proposed speed is 42 knots! Yea, I think somebody's finger slipped on the typewriter there and they meant 12 knots.

Any WW2 destroyer projects for European countries except for Spain, Netherlands and other major European countries during WW2?

There are already two destroyerlines for Europe

And,It is true that many European destroyers World of Warships didn't do it

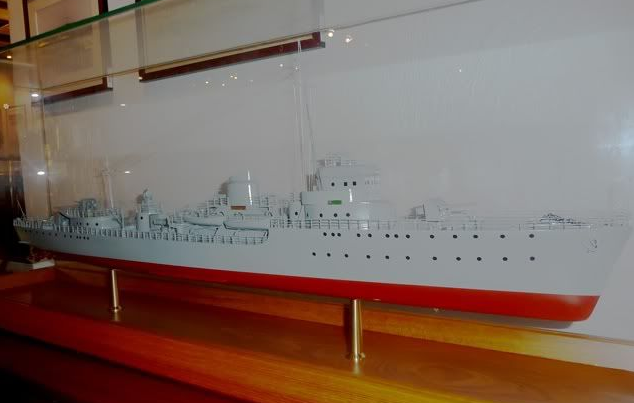

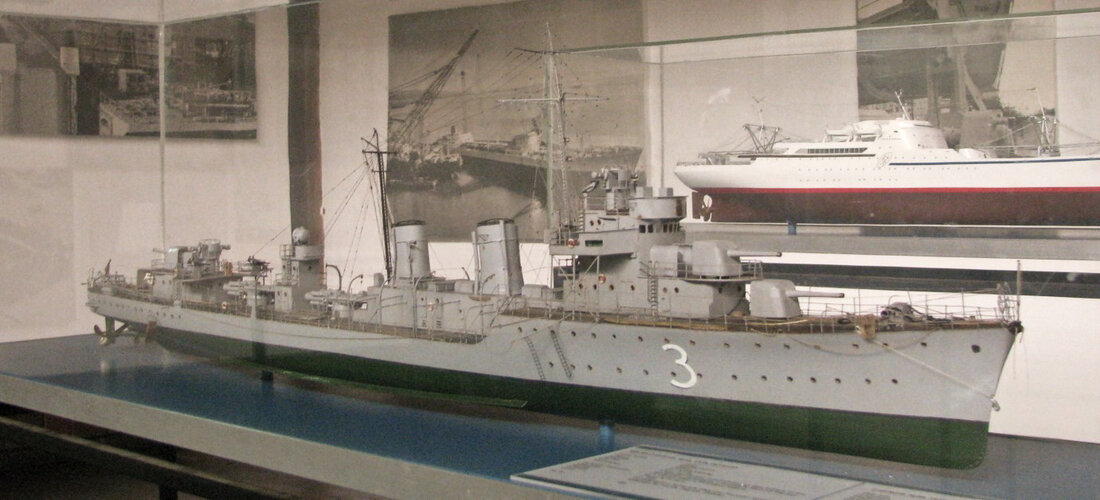

Like these Yugoslav destroyers

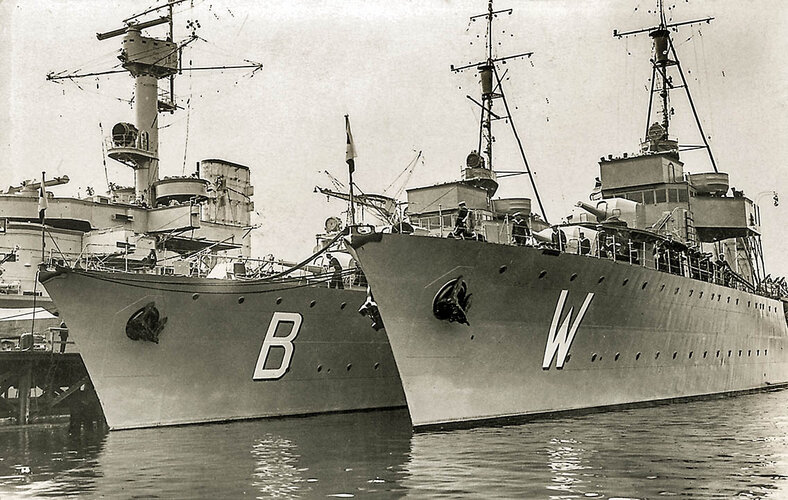

Polish destroyers

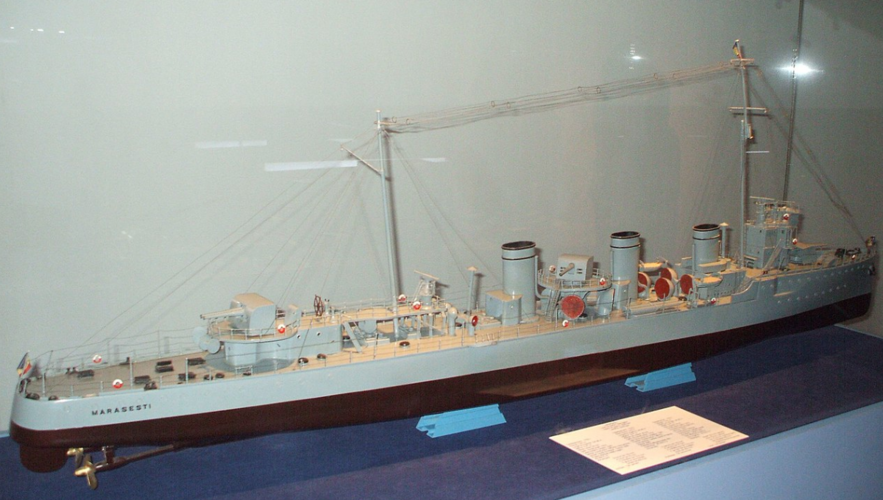

And Romania, Norway, Greece···········
10eda44a002222cc9ec92a90ad9c205a9993422b.png@1320w_748h.png 0aa059d10a3057affef35c6c7f598c62003ee8ed.png@1268w_806h.png

France:
Le Fier class Destroyer Escort - 1937
Ateliers et Chantiers de la Loire Design for Poland - 1933
Chantiers et Ateliers Augustin Normand for Poland- 1933
Ateliers et Chantiers de Bretagne Design for Poland- 1933
L'Intrepide Class - 1938
Hoche Class - 1940

Germany:
T61 class or Flottentorpedoboote Type 1940 - 1940
T37 class or Flottentorpedoboote Type 1941 - 1941
T52 class or Flottentorpedoboote Type 1944 - 1944
IvS Design 1 for China- 1929
IvS Design 2 for China / Project 174 - 1929
Z31 class or Zerstörer Type 1938A - 1938
Z40 class or Zerstörer Type 1938B - 1939
Z46 class or Zerstörer Type 1936C - 1942
Z51 class or Zerstörer Type 1942 - 1942
Z52 class or Zerstörer Type 1944 - 1944
Z57 class or Zerstörer Type 1945 - 1945

Italy:
Tosi Design 1937 Destroyer Escort - 1937
Design 1939 - 1939
Commandanti Medagile d'Oro (Series I-III) 1942/43
OTO AS 450 Design Escort Destroyer - 1942

Japan:
Matsu (Preliminary) Escort Destroyer - 1942
Mutsuki Preliminary Design F-41C - 1921
Mutsuki Preliminary Design F-41D - 1922
Mutsuki Preliminary Design F-41D1 - 1922
Mutsuki Preliminary Design F-41D2 - 1922
Mutsuki Preliminary Design F-41D3 - 1922
Mutsuki Preliminary Design F-41E - 1923
Mutsuki Preliminary Design F-41E1 - 1923
Mutsuki Preliminary Design F-41E2 - 1923
2.000ton Design - 1923
Harima Shipyard Design 1007 for China - 1931
Shimakaze (Preliminary) - 1939
Super Shimakaze / V-6 - 1942
Super Akizuki / V-7 - 1942

The Netherlands/Hollandia:
Gerard Callenburgh Class (As laid down) - 1938

Norway:
Alesund Class - 1938

Poland:
Wicher Class Modernization Proposal 1) - 1935
Wicher Class (Modernization Proposal 2) - 1935
Wicher Class (Modernization Proposal 3) - 1935
Wicher Class (Modernization Proposal 4) - 1935
Wicher Class (Modernization Proposal 5) - 1935
Grom Class (Preliminary Design 1) - 1934
Grom Class (Preliminary Design 2) - 1934
Grom Class (Preliminary Design 3) - 1935
Grom Class (Preliminary Design 4) - 1935
Huragan Class - 1939

Soviet Union:
I'm sure my list is way incomplete but:
Project 24 - 1936
Kiev Class - 1939
Project 35 - 1941
Project 47 - 1941
Project 36 - 1944
Project 40 - 1944
Project 40L - 1944
Project 40A - 1944
Project 40B - 1944
Project 40IE - 1944
Project 40IL - 1944
Project 40H - 1944

Spain:
Project 148 - 1939

Sweden:
Design 1936 Destroyer Escort - 1936
Design 1945 Destroyer Escort - 1945
Götaverken Shipyard Design for Poland / Project 84375 - 1934
Götaverken Shipyard Design for Poland / Project 85318 - 1934
2.500ton Design - 1941
1.750ton Design - 1941
2.175ton Design Variant A - 1941
2.175ton Design Variant B - 1941
2.175ton Design Variant C - 1941
2.175ton Design Variant D - 1941
2.175ton Design Variant E - 1941
2.500ton Design Variant A - 1941
2.500ton Design Variant B - 1941
1.790ton Design - 1942
1.800ton Design - 1942
2.000ton Design Variant A - 1942
2.000ton Design Varaint B - 1942
2.000ton Design Varaint C - 1942
2.000ton Design Varaint D - 1942
2.090ton Design - 1942
Destroyer Leader Design 3 - 1947
Destroyer Leader Design 5 - 1947

United Kingdom:
Thornycroft Design A for Poland - 1933
Thornycroft Design B for Poland - 1933
Thornycroft Design C for Poland - 1933
Thornycroft Design for China - 1934
Swan Hunter Shipyard Design for Poland - 1934
Design V Leader - 1934
Design A - 1935
Design B - 1935
Design C - 1935
Design D - 1935
Design E - 1935
Design L.44 - 1937
Design L.56 - 1937
Design L.60 - 1937
Design L.70 - 1937
Design L.72 - 1937
Design L.90 - 1937
Vickers Design for Thailand/Siam - 1938
Thornycroft Design for Argentina - 1947
Vickers Design for Venezuela - 1947

USA:
John C. Butler Class (Shore Bombardment Conversion Proposal) - 1943
John C. Butler Class (AA Support Conversion Proposal) - 1943
Design 1927 1 - 1927
Design 1927 2 - 1927
Design 1928 Scheme 1 - 1928
Design 1928 Scheme 3 - 1928
Design 1928 Scheme 5 - 1928
Design 1928 Scheme 6 - 1928
Design 1928 Scheme 7 - 1928
Design 1928 Scheme 8 - 1928
Design 1932 Scheme 5 - 1932
Design 1932 Scheme 6 - 1932
Design 1932 Scheme 10 - 1932
Design 1932 Scheme 11 - 1932
Design VI - 1937
Gibbs & Cox Design E - 1940
Design 1939 Scheme 1 - 1939
Design 1939 Scheme 2 - 1939
Design 1939 Scheme 2-A - 1939
Design 1939 Scheme 3 - 1939
Design 1939 Scheme 4 - 1939
Design 1939 Scheme 5 - 1939
Design 1939 Scheme 6 - 1939
Design 1939 Scheme 7 - 1939
Design 1939 Scheme 8 - 1939
Design 1939 Scheme 9 - 1939
Design 1939 Scheme 10 - 1939
Design 1939 Scheme 10-B 1939
Design 1939 Scheme 10-C - 1940
Design 1939 Scheme 10-D - 1940
Design 1939 Scheme 10-E - 1940
Design 1941 Scheme A - 1941
Design 1941 Scheme A-I - 1941
Design 1941 Scheme B - 1941
Design 1941 Scheme B-I - 1941
Design 1941 Scheme B-II - 1941
Design 1941 Scheme B-III - 1941
Design 1941 Scheme B-IV - 1941
Design 1941 Scheme B-V - 1941
Design 1941 Scheme B-VI - 1941
Design 1941 Scheme B-VII - 1941
Fast Destroyer Design - 1944
Heavy Destroyer Design - 1945
Intermediate Destroyer Design - 1945
Light ASW Design - 1945
Heavy ASW Design - 1946
Scheme A - 1946
Scheme B - 1946
Scheme C - 1946
Scheme D - 1946
Scheme E - 1946
Scheme E-12 - 1947
Scheme F - 1946
Scheme G - 1946
Scheme H - 1946
Scheme I - 1947
Scheme J - 1947
Scheme J-5 - 1947
Scheme J-7 - 1947
Scheme J-8 - 1947
Scheme J-12 - 1947
Scheme J-13 - 1947
Scheme K - 1947
Scheme L-1 - 1947
Scheme L-3 - 1947

Yugoslavia:
Split Class as Designed - 1938

Various projects and proposals from "Stalin's Superbattleships", A. Morin, A. Vasiliev
TsKBS-1:
Big cruiser "Project X" - 1934, to 16 500 ton, 240 mm main guns, 12 hydroplanes and 2 mini-submarines
Big cruisers - 1935, 15 500 and 19 500 ton, 12 x 240 mm and 9 x 250 mm guns
"Armoured ships" - 1935, 23 600 and 30 000 ton, 8 x 305 mm and 12 x 305 mm guns, 30 knots
Battleships - 1935, two variants with 400 mm guns and four variants with 450 mm guns, 380 mm belt, from 50 to 150 mm belts, 140 000 hp engines, 5000 miles range, 12 x 100 mm and 16 x 45 mm guns, smallest project - 43 000 ton, 2 x 4 x 400 mm guns, 38.5 knots, biggest project - 4 x 4 x 450 mm guns
Hybrid cruisers-carriers - from 21 500 to 28 500 ton, 305 mm guns and 50-60 planes
NIVK:
Pacific ocean battleship - three variants of fast ships with 9 - 12 x 406 - 460 mm guns, 57 000 - 68 000 ton, 31 - 33 knots, 130-152 mm secondary guns, 406 mm shells proof armour
Ship development tasks, February 1936:
Battleships with 32 x 130 mm unversal guns, 37 mm AA guns, 12,7 mm machine guns, two catapult and 4-6 hydroplanes, no less 36 knots, range on maximum speed 1500 miles, on cruiser speed 5000 miles:
Baltic fleet battleship - 35 000 ton, 9 x 406 mm guns, 350 mm belt
Pacific fleet battleship - 55 000 ton, 9 x 457 mm guns, 450 mm belt
Heavy cruiser - 18 000 - 19 000 ton, 254 mm main guns, 130 mm universal guns
Ship development tasks, may 1936:
Pacific fleet battleship - 55 000 ton, 30 knots, 420 mm belt, 152 mm secondary guns, 100 mm AA guns
Superbattleship - 80 000 ton, 2 x 3 x 530 mm or 3 x 3 x 500 mm guns, 500 mm belt, 24-28 knots
Baltic fleet battleship - 35 000 ton, 9 x 360 mm guns, 12 - 16 x 130 mm universal guns, 360-380 mm belt, 30-32 knots
Heavy cruisers - four variants, 18 000 - 22 000 ton, 254, 280 or 305 mm guns, 35 knots
Heavy cruiser, TsKBS-1, April 1936 - 29 000 ton, 9 x 305 mm, 12 x 152 mm, 16 x 100 mm, 32 x 37 mm guns, 250 mm belt, 30-125 mm decks, 200 000 hp, 33 knots, range on cruiser speed 7000 miles
Heavy cruiser, KB-4 - 26 000 ton, 9 x 305 mm, 16 x 130 mm, 12 x 37 mm guns, 250 mm belt, 30-125 mm decks, 240 000 hp.
Head of the naval forces of the Red Army V. Orlov, 1936, about "Battleship B" projection task ("Battleship A" was a early Project 23, "Battleship B" actually is heavy cruiser, early Project 69) - 26 000 ton, 3 x 3 x 305 mm, 6 x 2 x 130 mm, 4 x 2 x 100 mm, 6 x 4 x 37 mm, two catapults and four hydroplanes, 200 mm main belt, 140 mm top belt, 150 mm decks (180 mm above ammunition cellars), 35 knots.
Actually proposal of "Battleship B", appropriate to the tasks - no less 30 900 ton.
New tasks, November 26, 1936 - to 30 900 ton, 36 knots, decreased armour
Recommended variant - 32 870 ton, 230 mm belt, 125 mm deck, 300 000 hp, 35,5 knots
Tech project 25 - 35 950 ton, 268 000 hp, 33,5 knots, or 300 000 hp and 35 knots with boost
Jule 3, 1937, tasks - 36 800 ton, 35 knots
Such a ship was considered too large to fight enemy cruisers and too weak to fight enemy battleships.
A. Zukschwerdt, head observer, June 21, 1937 - "Battleship A" with 9 x 406 mm, "Battleship B" to fight enemy battleships with 9 x 356 mm and 30-32 knots, and heavy cruiser to fight enemy cruisers, with 12 x 254 - 280 mm guns, 34-35 knots, and 26 000 - 30 000 ton.
Project 64 task - to fight enemy 406 mm battleships - 3 x 3 x 356 mm, 6 x 2 x 152 mm, 4 x 2 x 100 mm, 8 x 4 x 37 mm, 406 mm shells and 500 kg bombs proof armour, 28-29 knots
Project 64 - to 53 000 ton, 385 mm belt, 40 + 20 + 150 mm decks, 29 knots, 201 000 hp, 8000 miles range
Project 64 was very close to a normal battleship, and there was no point in its construction.

Various projects and proposals from "Stalin's Superbattleships", A. Morin, A. Vasiliev
TsKBS-1:
Big cruiser "Project X" - 1934, to 16 500 ton, 240 mm main guns, 12 hydroplanes and 2 mini-submarines
Big cruisers - 1935, 15 500 and 19 500 ton, 12 x 240 mm and 9 x 250 mm guns
"Armoured ships" - 1935, 23 600 and 30 000 ton, 8 x 305 mm and 12 x 305 mm guns, 30 knots
Battleships - 1935, two variants with 400 mm guns and four variants with 450 mm guns, 380 mm belt, from 50 to 150 mm belts, 140 000 hp engines, 5000 miles range, 12 x 100 mm and 16 x 45 mm guns, smallest project - 43 000 ton, 2 x 4 x 400 mm guns, 38.5 knots, biggest project - 4 x 4 x 450 mm guns
Hybrid cruisers-carriers - from 21 500 to 28 500 ton, 305 mm guns and 50-60 planes
NIVK:
Pacific ocean battleship - three variants of fast ships with 9 - 12 x 406 - 460 mm guns, 57 000 - 68 000 ton, 31 - 33 knots, 130-152 mm secondary guns, 406 mm shells proof armour
Ship development tasks, February 1936:
Battleships with 32 x 130 mm unversal guns, 37 mm AA guns, 12,7 mm machine guns, two catapult and 4-6 hydroplanes, no less 36 knots, range on maximum speed 1500 miles, on cruiser speed 5000 miles:
Baltic fleet battleship - 35 000 ton, 9 x 406 mm guns, 350 mm belt
Pacific fleet battleship - 55 000 ton, 9 x 457 mm guns, 450 mm belt
Heavy cruiser - 18 000 - 19 000 ton, 254 mm main guns, 130 mm universal guns
Ship development tasks, may 1936:
Pacific fleet battleship - 55 000 ton, 30 knots, 420 mm belt, 152 mm secondary guns, 100 mm AA guns
Superbattleship - 80 000 ton, 2 x 3 x 530 mm or 3 x 3 x 500 mm guns, 500 mm belt, 24-28 knots
Baltic fleet battleship - 35 000 ton, 9 x 360 mm guns, 12 - 16 x 130 mm universal guns, 360-380 mm belt, 30-32 knots
Heavy cruisers - four variants, 18 000 - 22 000 ton, 254, 280 or 305 mm guns, 35 knots
Heavy cruiser, TsKBS-1, April 1936 - 29 000 ton, 9 x 305 mm, 12 x 152 mm, 16 x 100 mm, 32 x 37 mm guns, 250 mm belt, 30-125 mm decks, 200 000 hp, 33 knots, range on cruiser speed 7000 miles
Heavy cruiser, KB-4 - 26 000 ton, 9 x 305 mm, 16 x 130 mm, 12 x 37 mm guns, 250 mm belt, 30-125 mm decks, 240 000 hp.
Head of the naval forces of the Red Army V. Orlov, 1936, about "Battleship B" projection task ("Battleship A" was a early Project 23, "Battleship B" actually is heavy cruiser, early Project 69) - 26 000 ton, 3 x 3 x 305 mm, 6 x 2 x 130 mm, 4 x 2 x 100 mm, 6 x 4 x 37 mm, two catapults and four hydroplanes, 200 mm main belt, 140 mm top belt, 150 mm decks (180 mm above ammunition cellars), 35 knots.
Actually proposal of "Battleship B", appropriate to the tasks - no less 30 900 ton.
New tasks, November 26, 1936 - to 30 900 ton, 36 knots, decreased armour
Recommended variant - 32 870 ton, 230 mm belt, 125 mm deck, 300 000 hp, 35,5 knots
Tech project 25 - 35 950 ton, 268 000 hp, 33,5 knots, or 300 000 hp and 35 knots with boost
Jule 3, 1937, tasks - 36 800 ton, 35 knots
Such a ship was considered too large to fight enemy cruisers and too weak to fight enemy battleships.
A. Zukschwerdt, head observer, June 21, 1937 - "Battleship A" with 9 x 406 mm, "Battleship B" to fight enemy battleships with 9 x 356 mm and 30-32 knots, and heavy cruiser to fight enemy cruisers, with 12 x 254 - 280 mm guns, 34-35 knots, and 26 000 - 30 000 ton.
Project 64 task - to fight enemy 406 mm battleships - 3 x 3 x 356 mm, 6 x 2 x 152 mm, 4 x 2 x 100 mm, 8 x 4 x 37 mm, 406 mm shells and 500 kg bombs proof armour, 28-29 knots
Project 64 - to 53 000 ton, 385 mm belt, 40 + 20 + 150 mm decks, 29 knots, 201 000 hp, 8000 miles range
Project 64 was very close to a normal battleship, and there was no point in its construction.
Are there any drawings for the 12 240 mm cruiser, 254 mm cruisers and the 3x3 500 mm superbattleship?

You will quickly notice only a fraction of the proposed designs and preliminaries of any warship had drawings. Either not found, not made or not scanned/shared online.
That is why I became an artist to remedy this somewhat.

Also if the design proposal was made by the TTZ (Taktiko Tekhnicheskoye Zadaniye - Tactical and Technical Requirements by the Commander of Chief of the Naval Forces) like that 500mm armed battleship I highly doubt any drawings ever made.

There's nothing like this in any WOWS "fan group" the only thing in WOWS similar to it is the premium tier IX cruiser Admiral Schröder which has 4x2 305 mm guns, 3x3 150 mm secondaries and 10x2 128 mm secondaries.

You can go search for Projekt KW45 in whatever WOWS fan group you are talking about.
I beg to disagree. Vehemently.
Still, Projekt KW45 isn't Weimar Germany's 1928 cruiser killer also I didn't say that KW45 was new. I said I hadn't found a design like this before.
It's a very obscure design. No surprise there.
Well,You're even looking for the wrong thing, this is Weimar Germany's 1928 cruiser killer , has nothing about KW45
Stop playing World of Warships
Playing World of Warships isn't even remotely the issue - just that his knowledge is primarily limited to it.
I haven't looked at the WOWS forums for the past 2 years and also it got shut down back in November of 2023. https://worldofwarships.com/en/news/community/forum-redirect/
Not all of the ship proposals on the WOWS were fake though there a few. Most of the designs that I found for WOWS are real. I'm creating a list of real ships that can be used as premiums because it seems like WOWS is running out of ideas and coming up with more copy-paste and imaginative ships
Forums and chats are good for sources, but in general they're biased. I'd suggest books.

IIRC, these two were designed by a private shipyard rather than the Warship Construction Office (K-Amt), and were never seriously considered for construction.

They are notable for their 5-shaft propulsion system.

DRW
Reader expressed interest in 45,000-ton and 50,000-ton designs (this tonnage derived from the Grosser Kreuzer designs of WWI), though a 30,000-ton design such as what would evolve into the O-class was much more expedient and cost-effective. It also had the benefit of being of already adequate specifications for its role.

S. Vinogradov, "Last giants of Russian Imperial Navy" (Russian language) - projects of battleships with plans:
"1915 battleship", Main Directorate of Shipbuilding, engineer Bubnov - 3 x 4 x 16" guns
Engineer Gavrilov - 4 x 4 x 16" guns
Putilov plant - 4 x 3 x 14" battlecruiser plan, 4 x 3 x 14", 4 x 3 x 16" and 3 x 4 x 16" battleships
Engineer Kostenko - variants from 4 x 2 x 16" to 4 x 3 x 16" guns

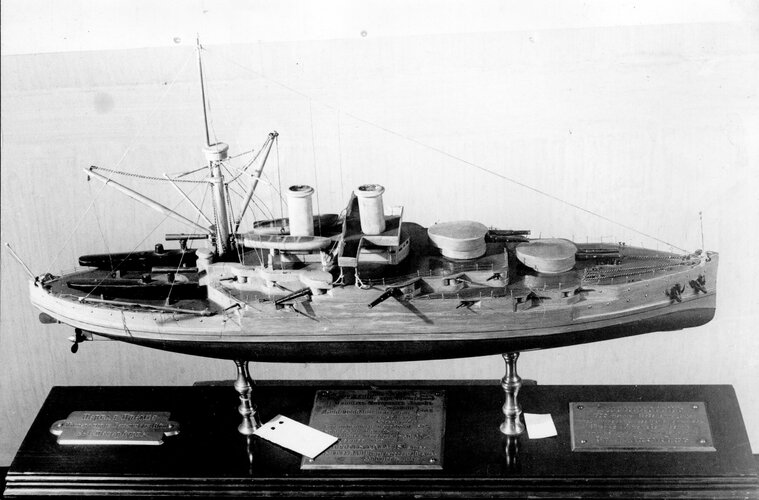

Russian project of pre-dreanouth armoured ship, engineer Achenbach (Russian German?), 1905: NVi7uiUMF2k.jpg
10 000 ton, 15 knots, 2 x 2 and 4 x 1 x 12" guns.

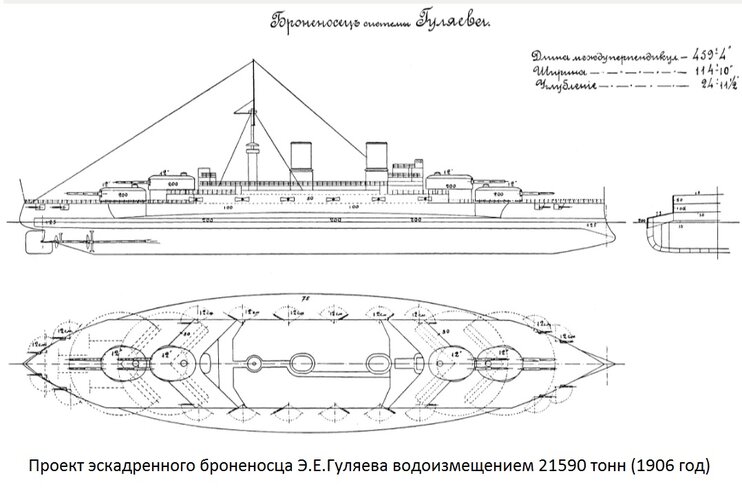

Gulyaev 1906 "all-big-guns", with big underwater protection, 21 590 ton, 4 x 2 x 12" guns:

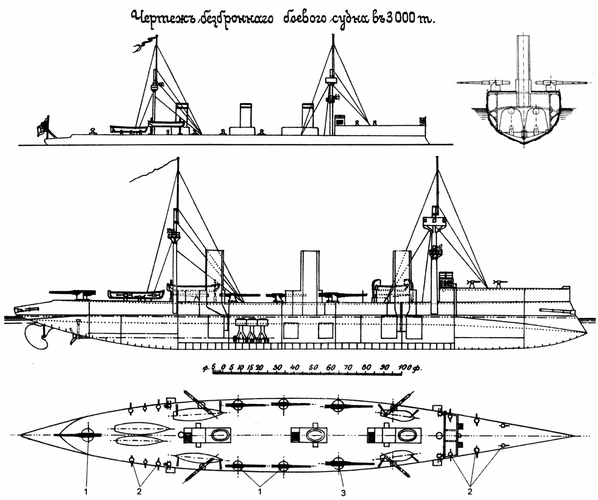

Admiral Makarov "unarmoured ship", 1895 (?):
3000 ton, 2 x 8 ", 4 x 6 " and 12 x 75 mm guns, 20 knots, range 6000 miles

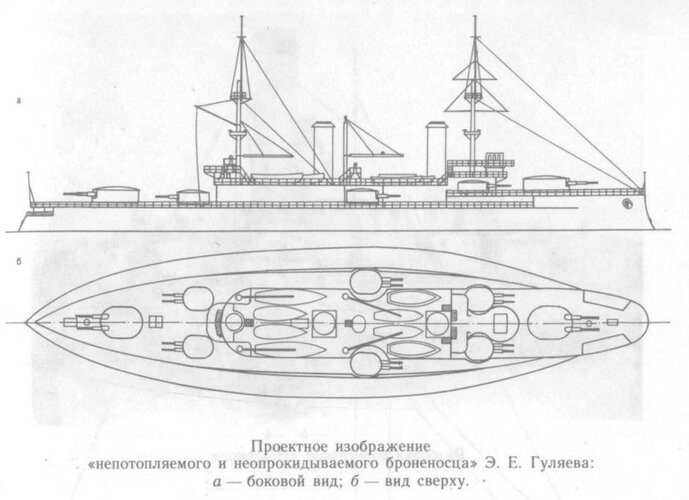

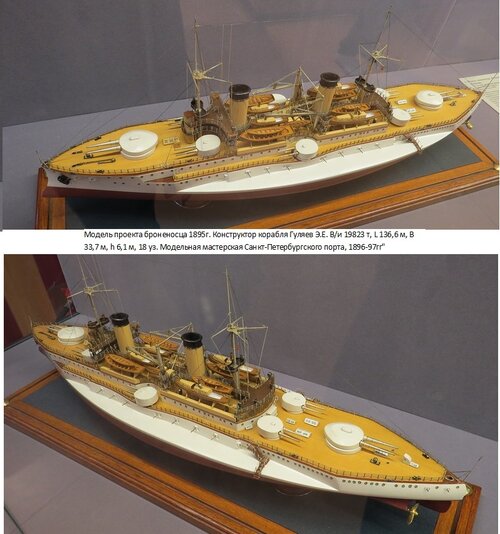

Gulyaev 1895 "unsinkable" armour vessel:
БР. Гуляева. 1895г..jpg
19 823 ton, 136.6 x 33.7 x 6.1 m, 18 knots, 2 x 2 x 12" guns and 6 x 2 x 6" (?) guns.

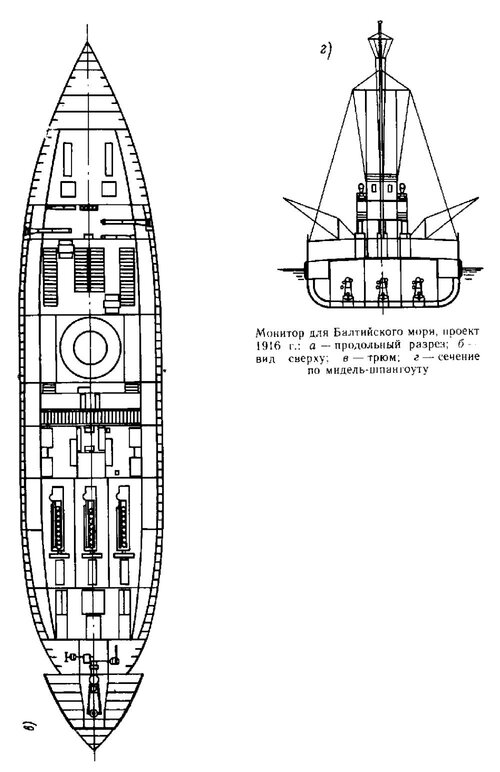

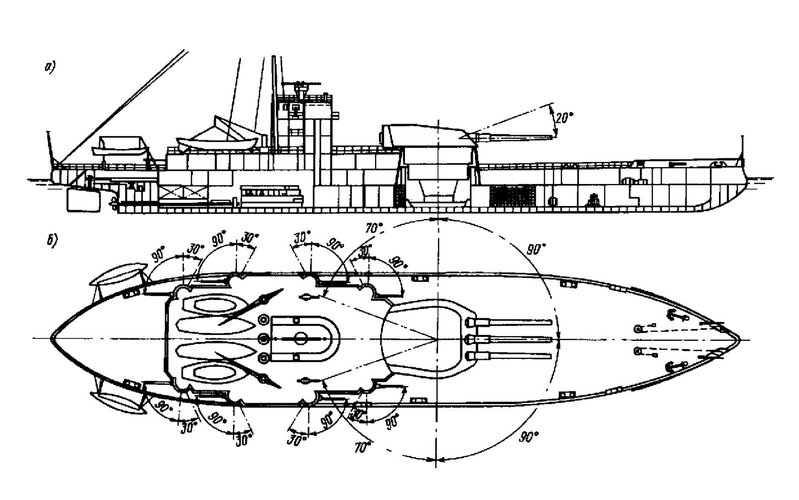

Baltic sea monitor project, 1915-1916:
7550 ton, 12 knots, 1 x 3 x 14" and 8 x 6" guns, 3 x 1000 hp diesel engines, 275 mm belt

Last edited:
I find it really sad that posting screenshots from World of Warships has become acceptable “research” on this forum.
WoW's is a source, like any other and while its credibility is often dubious or questionable, it should be refuted on the basis of better sources rather than attacked with ad hominem for being the source it is (not that I'd use or recommend it as a source). Just sayin'.

WoW's is a source, like any other and while its credibility is often dubious or questionable, it should be refuted on the basis of better sources rather than attacked with ad hominem for being the source it is (not that I'd use or recommend it as a source). Just sayin'.
I acknowledge that this is a more fair assessment.

Have you searched the other threads of this section? I'm pretty sure most of them have been covered before.

As the naval section moderator I feel like this thread is pretty non-productive, it's not really feasible to list every single design in one thread and quite frankly WoWs has become a profit-seeking arcade game, they are not interested in accuracy but gameplay. I'm sure they are more than qualified to do their own research if they were interested, but they don't seem to be, so they make up stuff that looks cool.


Similar threads

Please donate to support the forum.

Back
Top Bottom
