Vought F7U Cutlass - Developments, Variants and Related Projects

Sabrejet said:
I can't wait for Al's Cutlass book so that we can put these misconceptions behind us. It would appear that an advanced design plus entrenched attitudes were the main issue, not the aircraft.
Click to expand...
I did not know there was such a book. I have seen a vast disparity of views on the aircraft being fot for purpose and would really like to know the truth. Any pointers to the book and publication timeline please?

Foo Fighter said:
I did not know there was such a book. I have seen a vast disparity of views on the aircraft being fot for purpose and would really like to know the truth. Any pointers to the book and publication timeline please?
Click to expand...
IIRC, Al Casby (who is rebuilding an F7U to airworthiness) is writing it, possibly with input from Tommy Tomasson. Al has done a GREAT deal of background research into the F7U, analysing every incident and accident and is able to attribute most of them to their correct cause (as opposed to recent commentators who have done nothing of the sort). My understanding is that Al's book was due out (this year?) but either way, it should help to finally address the massive amount of erroneous plagiarised stuff that's been written about the Cutlass. Of interest, Al is even able to show cases where distinguished flyers have contradicted statements they'd previously made about the type, apparently in order to present their points to a different audience.

It would appear that at some point in history the tide turned against the F7U and those who had previously been in praise of it turned too. Hopefully that aspect will also be covered in Al's book, though I'm not sure even he will be able to fully explain why this aircraft became the target of so much ill-informed negativity.


Attachments

  • 20230930_233000.jpg
    251.1 KB · Views: 172
Last edited:

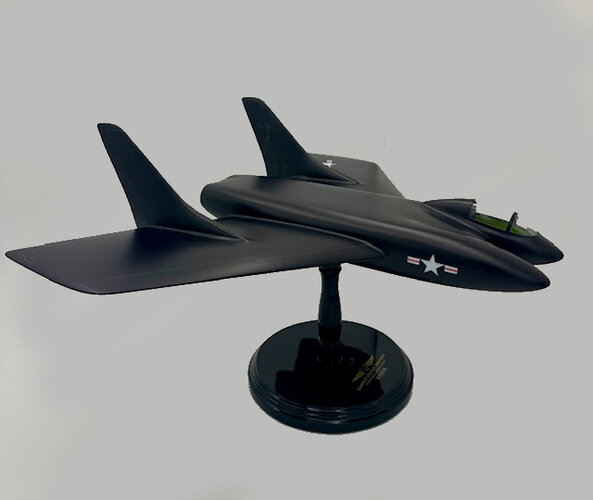

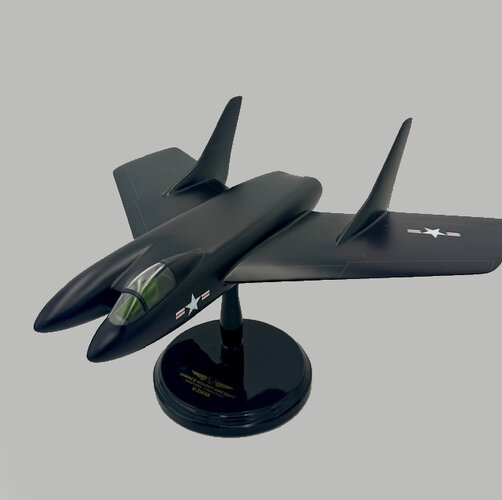

As promised, albeit late, for your enjoyment find a large scale Tandem fuselage Vought V-366H that we made for Al Casby. Wait till you see the next series that is under construction..... !


Attachments

  • IMG_0276.jpg
    72.1 KB · Views: 97
  • IMG_0275.jpg
    78.8 KB · Views: 122
Scott Kenny said:
Bumped into a guy on FB a while back that claimed to have a flying F7U. He said that the problem was how the exhaust nozzle worked on the J46. Seems the engine spins at full RPM, and thrust is varied by nozzle constriction (weird, and first I'd heard of such a control scheme). Open the nozzle too quickly and the combustion chambers blow out. No thrust, when you need it the most!
Click to expand...
Reaching 100% rpm at about 75% Mil thrust and then increasing thrust by closing the nozzle (which was there for afterburning) rather than increasing RPM was actually a feature. It meant the J46 was more responsive to throttle than other jet engines of the time, particularly the centrifugal-flow engines that had a massive compressor to spool up and down. The nozzle opening "problem" was really associated with going from Mil thrust to afterburning but that was no different than an rpm-controlled engine, since its nozzle was also closed at Mil thrust. If the nozzle opened and the afterburner didn't light, the combustion chambers didn't "blow out" but the thrust was reduced due to the increase in nozzle area. However, if the nozzle didn't open and the afterburner lit, the compressor was almost certain to stall, which significantly reduced thrust (along with loud noises and attention-getting shudder). To avoid the latter, there was a bit of a delay to insure the nozzle had opened, which resulted in a momentary reduction in thrust until the afterburner lit.

"To intentionally and repeatedly do that with a Cutlass…." We desperately need the book! I'm fed up with ill-informed, plagiarised lazy journalism!!!

For the New Year let me present the latest of my MILITARY creations to grace both my and Al Casby's collections. If Al's name sounds familiar, Al is a great guy that actually has a REAL Cutlass that he is in the process of restoring to fly, and he collects everything Cutlass.
This is a first of 8 models we did that are rendered in 1:24 scale.

Each has a tremendous amount of attention to detail in order to represent an accurate representation of what-if the Vought Factory had actually produced these models back in the 50's.

Using extensive data taken from the actual Vought produced models Al has in his personal collection, I do think we succeeded quite well.

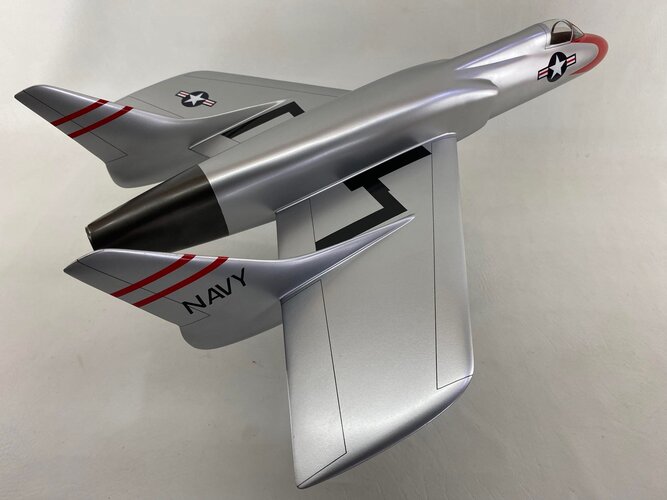

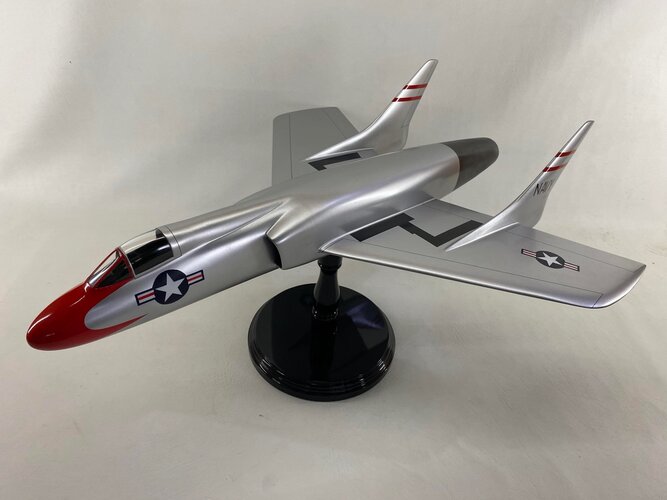

Up first is my one of my favs, the V-372 design proposal. Magnificent if I say so myself...... Enjoy!


Attachments

  • 60b62740-645f-447a-b98b-06ac6a6b3d07-1.jpeg
    276.7 KB · Views: 82
  • cc787aa7-5f9a-477d-9c68-7fff8e67474c-1.jpeg
    252.9 KB · Views: 99

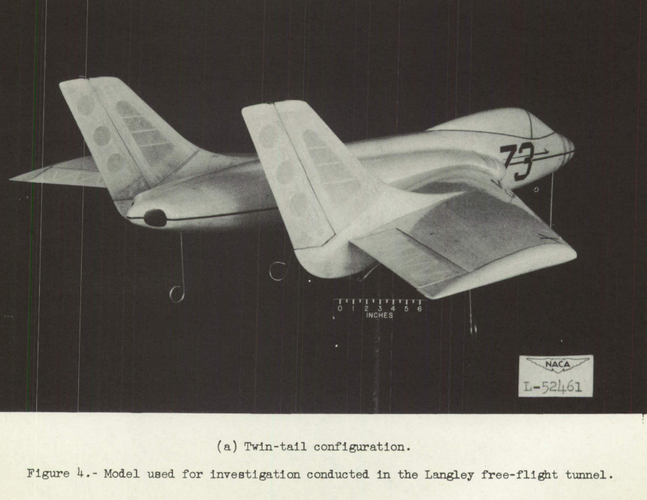

Possibly an early test model evaluation...compares twin tail to single tail.


Attachments

  • twin tail CUTLAS MAYBE PHOTO.png
    twin tail CUTLAS MAYBE PHOTO.png
    684.3 KB · Views: 49
  • 19930086067 FANTASTIC TAILESS AND TWIN TAILS COMPARE PROBABLY THE GUTLESS CUTLASS EARLY TESTS ...pdf
    1.7 MB · Views: 34

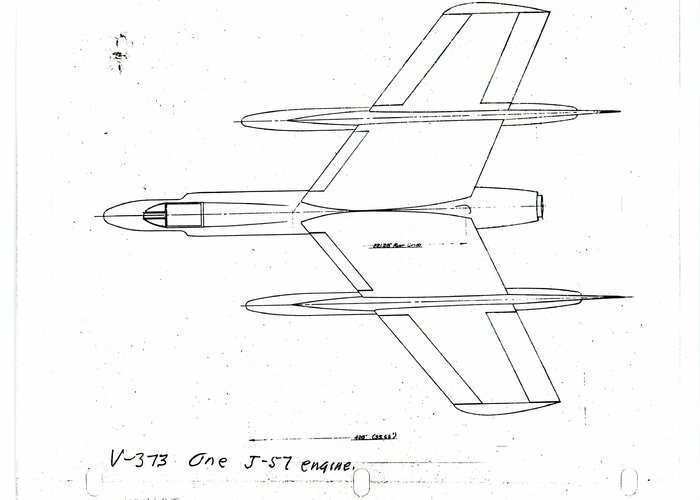

All, here is a drawing of a supersonic V-373 that Al Casby and I have that goes no further than what you see here. Bill S and Tony B are as perplexed as we are, and Bill has been looking for information for a few decades, so what the heck.......I will put it out to our collective intelligence service.... anyone out here have any more information?????

We would like to do a 3D render of this design, and although we can speculate some of the design elements, it would sure be nice if we had some additional details and hopefully even a 3 view to do our model from. Vought V-373 2.jpg

KSCARLET said:
Possibly an early test model evaluation...compares twin tail to single tail.
Click to expand...

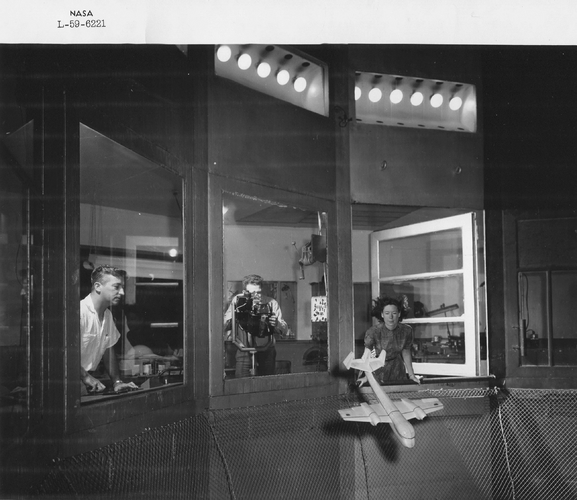

Used for spin testing in the vertical spin tunnel at NACA Langley.
www.nasa.gov

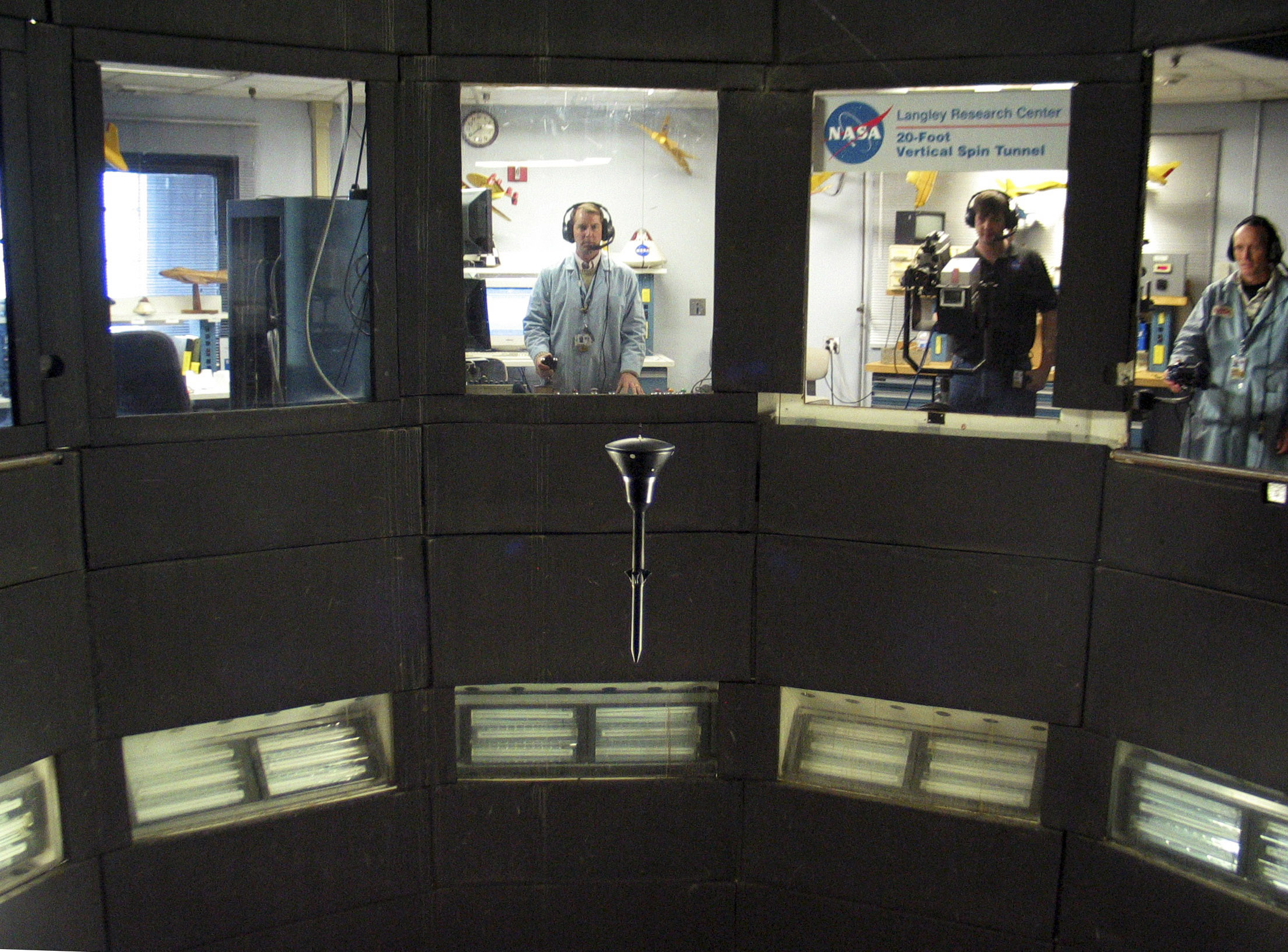

20-Foot Vertical Spin Tunnel

NASA’s 20-Foot Vertical Spin Tunnel (VST) is the only operational tunnel of its kind in the Western Hemisphere that conducts free-spin research using dynamically scaled, free-flying models.
www.nasa.gov www.nasa.gov

Enjoy the Day! Mark


Last edited:
