Vought (Chance Vought, LTV) Designations

[Stargazer]

True, Retrofit, thanks for noticing the blooper! I'll correct the list right away.



[Stargazer]

Vought V-505 (VFX)

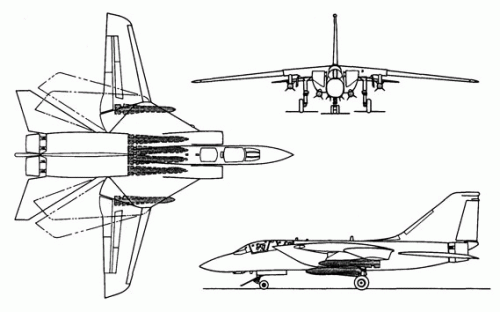

V-505: VFX defense system project for U.S. Navy, a scaled-up derivative of the final V-483-149 design (1967). See also:

LTV V-505 and Grumman G-303 for VFAX

USN VFX Competition(Alternatives to the F-14)

VFAX (1965) Competition



[Stargazer]

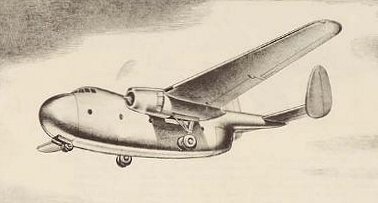

Vought V-344

V-344: twin-engined cargo transport project (1945).

More pics: https://www.secretprojects.co.uk/threads/14539



[Stargazer]

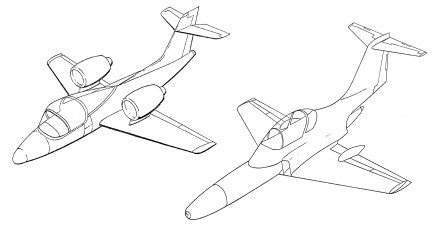

Vought V-516

V-516: Forward Air Controller project for USAF special operations; two- or four-seat; single- or twin-engine variants planned, both military and commercial (1971).

More info and pics: https://www.secretprojects.co.uk/threads/8614



[Stargazer]

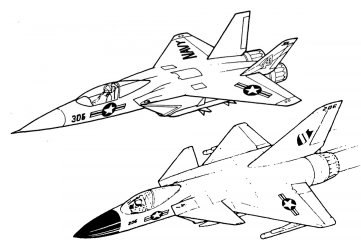

Vought V-601 (NSAA)

V-601: Naval Adversary Aircraft (NAA, NSAA); americanization of Mikoyan MiG-21; 24 new aircraft deliveries initially planned, all cancelled (1983).

More pics and info: https://www.secretprojects.co.uk/threads/1252



[Stargazer]

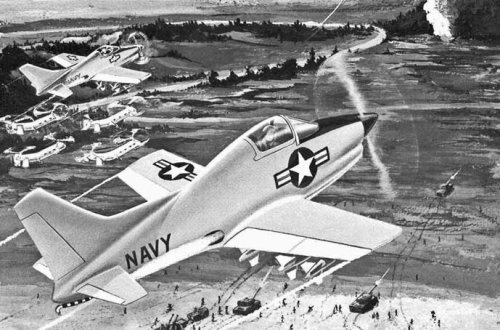

V-433: Close Support Airplane, an unsollicited low cost attack project for U.S. Navy (1959).

More pics and info: https://www.secretprojects.co.uk/threads/8468



[Stargazer]

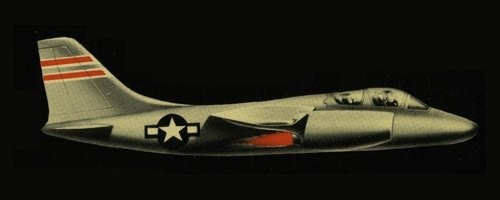

Vought V-358

V-358: high-performance turboprop-powered attack-fighter project for US Navy (1947).

More pics and info: https://www.secretprojects.co.uk/threads/12662



[Stargazer]

Vought V-416 « Vigilante »

V-416 Vigilante: low-altitude attack aircraft project entered in the U.S. Navy's TS-149 competition – eventually won by the Grumman A2F Intruder (1957).

Much more can be found here: https://www.secretprojects.co.uk/threads/8491



[Stargazer]

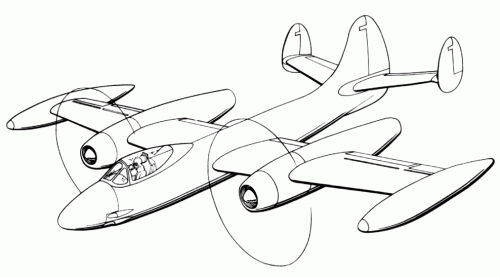

Vought V-381

V-381: carrier-based attack airplane proposal for U.S. Navy which incorporated folding wing tips and a J57-P-5 jet engine (1952).

NOTE: this is sometimes referred to as the "A3U", which is incorrect.
The XA3U-1 designation would have been sported by the V-455, a projected assault version of F8U, if procured.

More pics and info: https://www.secretprojects.co.uk/threads/8408



[Stargazer]

Vought V-404

V-404/A: electronic surveillance aircraft design for U.S. Navy's OS-139 specification, with fin-mounted radome; lost to Grumman's W2F-1 Hawkeye (1955).

More pics and info: https://www.secretprojects.co.uk/threads/8686



[Stargazer]

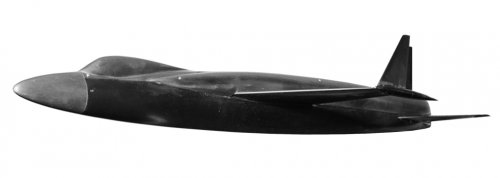

Vought V-371

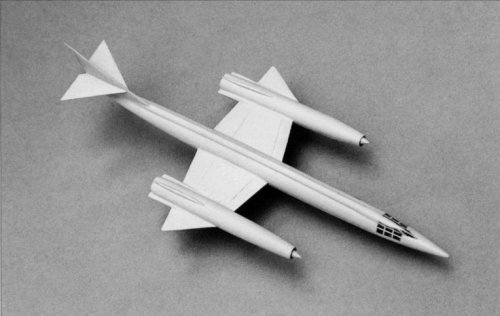

V-371: high-performance interceptor project for U.S. Air Force, possibly for MX-1554/WS-201A program (1950).

More pics and info: http://www.secretprojects.co.uk/forum/index.php/topic,1526.0



[Stargazer]

Vought V-507

V-507/B: variable-sweep wing interceptor project for the U.S. Navy's VFX-1 program; full-scale mock-up built; lost to the Grumman G-303E Tomcat (1968).

A lot more pics and information on the V-507 and the other VFX contenders: http://www.secretprojects.co.uk/forum/index.php/topic,229.0/all.html



[Stargazer]

Vought V-517

V-517: series of V/STOL combat aircraft projects with "fixed" F401 turbojet or TF30 turbofan engine (1971-72).

More info and pics: https://www.secretprojects.co.uk/th...and-v-520-sea-control-ship-scs-fighters.7829/



[Stargazer]

Vought VS-302B

VS-302B: twin-engined high performance bomber project for U.S.A.A.C., perhaps for C.P.39-640 / XC-213 (1939).

More pics and info: https://www.secretprojects.co.uk/threads/9185



[Stargazer]

Vought V-390/-396

V-390 Cutlass: attack version of the F7U with with J46/3 engines, ordered as A2U-1 (1954).
V-396 Cutlass: projected missile-carrying version of the above (1954).

More on the A2U-1: https://www.secretprojects.co.uk/threads/6044



[Stargazer]

Vought V-382

V-382: jet fighter-bomber (attack) project with articulated wing tips for U.S.A.F. (1952).

More pics and info: https://www.secretprojects.co.uk/threads/5691



[Stargazer]

Vought VS-315 « Skimmer » (XF5U-1)

VS-315 Skimmer: twin-engine circular-wing fighter project for U.S. Navy (XF5U-1) developed from the V-173 prototype (1940).

More artistic views: http://www.secretprojects.co.uk/threads/1671



[Stargazer]

Vought V-85G « Kurier »

V-85G Kurier: export variant of Corsair biplane for Germany, six built (1933).

More info and photos: http://www.voughtaircraft.com/heritage/photo/html/pv-85g_0.html



[Stargazer]

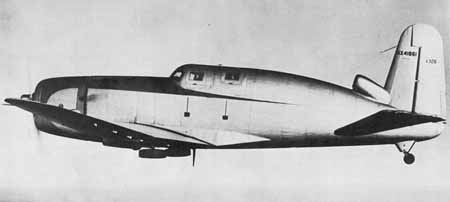

Vought VS-326 and V-326A

Vought VS-326/V-326A: high-altitude pressurized experimental aircraft for Pratt & Whitney derived from XTBU-1 to test R-4360 Wasp engine (1941).

More photos and info: http://www.voughtaircraft.com/heritage/photo/html/pv-326_0.html



[Stargazer]

Vought « Blitzfighter » and « Blitztrainer » (VB- series)

- VB-100/C, VB-103, VB-130 Blitzfighter: series of low cost attack aircraft projects (1978).
- VB-102, VB-140 Blitztrainer: trainer derivative projects, the latter a twin-boom design (1978).
- VB-200/C Blitzfighter (a.k.a. Twinblitz): twin-engine derivative of the VB-100 (1978)

More pics and info on the VB- series: https://www.secretprojects.co.uk/threads/9179



[Stargazer]

Vought « Superfly » (SF- series)

SF-106, SF-120, SF-121 Superfly: series of VATOL canard fighter projects for U.S. Navy (circa 1979-80).

More info and pics in this topic: https://www.secretprojects.co.uk/threads/783



[robunos]

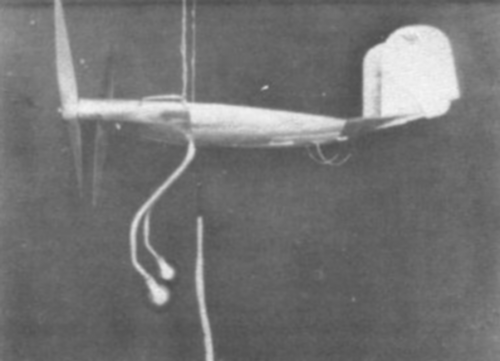

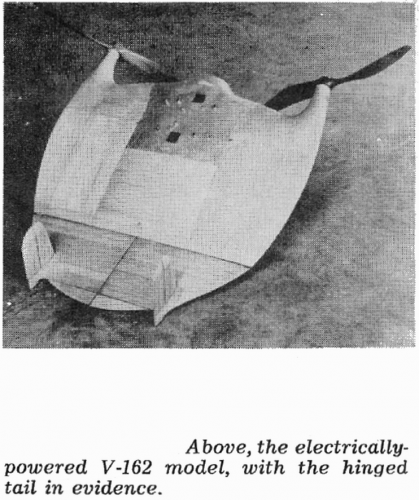

Vought V-162 :- electrically poered scale model of V-173 'skimmer', original configuration with hinged trailing edge control surfaces.
Source, 'The Flying Pancakes', 'Aeroplane Monthly, November 1975.


cheers,
Robin.



[robunos]

Another image of the vought V-162, source 'Aeroplanes Vought', page 103.


cheers,
Robin.



[overscan (PaulMM)]

Vought / LTV V- designations

V-335

1943 USAAF fighter project derived from XF5U-1


V-336

1943 US Navy F4U-1WM fighter version with Pratt & Whitney Wasp Major engine


V-337

1943 USAAF tailless fighter 'with special engine' project (led to the CUTLASS)


V-338

1944 US Navy twin-engined single-seat carrier-borne fighter


V-339

1944 US Navy twin-engined single-seat land based fighter


V-340

1944 US Navy VF Carrier Based Landplane (became XF6U-1)


V-341 Topic

1944 US Navy derivative of XF5U-1 with Special Powerplant Research


V-342

1945 US Navy variant of F4U with single stage "E" engine and compressor


V-343

1945 US Navy two-seat high-performance carrier-based night fighter (V-343-A-1 with Westinghouse 24C-4 engines, -B-1 and -B-2 with G.E. T6-100)


V-344

1945 twin-engined cargo transport project


V-345 Topic

1945 US Navy carrier-borne observation type


V-346 Topic

Different layouts proposed to 1945 US Navy High Speed Single Place Jet Fighter requirement (led to XF7U-1 Cutlass)


V-347

1945 High speed interceptor for US Navy


V-348 Topic

1945 four-seat commercial aircraft


V-349 Topic

1945 US Navy Supersonic Pilotless Aircraft (P/A VI Long Range)


V-350

1945 High Performance Search Type Aircraft for US Navy


V-351

1945 US Navy variant of F4U with "E" type engine (F4U-5)


V-352

1946 US Navy production version of XF5U-1 (became F6U-1)


V-353 Topic

1946 US Navy Studies for Pilotless Aircraft (Model P/A VI - short range)


V-354

1945 two-seat high speed trainer derived from the F4U


V-355

1946 US Navy P/A XIV unmanned concept (Model P/A XIV)


V-356 Topic

1946 VA VF Airplane Long Range Escort - heavyweight long-range fighter for US Navy.


V-357

1947 Subsonic Pilotless Aircraft for US Navy; inherited know-how and technology from the experimental V-353, (XSSM-N-8 REGULUS).


V-358 Topic

1947 US Navy Class VA High Performance Attack Aircraft.


V-359 Topic

1947 US Navy Improved F6U-1 project with afterburners. Photo recon version illustrated.


V-360 Topic

1947 US Navy remotely controlled aerial target for US Navy


V-361

1947 Variant of F4U-5 for the Netherlands with "C" type engine


V-362

1948 Class VF Interceptor Fighter for US Navy to OS-113.


V-363

1948 US Navy long-range escort fighter


V-364 Topic

1948 US Navy Long Range High Speed Jet Bomber project to specification OS-111.


V-365

1948 US Navy F7U-1 production version of XF7U-1


V-366

1949 US Navy F7U-2, F7U-3 projects. Also V-366F 1949 US Navy VF Class fighter proposal,


V-366H Topic

1949 Cutlass twin-fuselage study


V-367
1949 US Air Force Penetration Fighter project


V-368 Topic

1950 US Navy twin-engined VA Class ASW studies (XS2U-1) to specification OS-117;

V-368A Topic

1950 US Navy AEW Studies (XS2U-1W, XWU-1)


V-369

1950 US Navy High Speed (550mph) target, became X28A


V-370

1950 US Navy Tactical Missile (XSSM-N-8A Regulus)


V-371 Topic

1950 USAF high performance interceptor project (perhaps MX-1554/WS-201A)


V-372

1951 F7U-3 re-engined with Pratt & Whitney J57 engines for US Navy


V-373

1951 VF Long Range Fighter (research)


V-374

1951 USAF interceptor project derived from F7U-3


V-375

1951 US Navy land-based ASW aircraft


V-376

1951 export variant of F4U (Peru)


V-377

1951 USAF proposed fighter-bomber variant of F7U-3.


V-378 Topic

1952 US Navy Long Range Fighter.


V-379
1952 US Navy supersonic missile design (SSM-N-9 Regulus II)


V-380

1952 US Navy Carrier Based Dayfighter, became V-383/V-384


V-381 Topic

1952 US Navy carrier-based attack aircraft, A3U-1 Design Studies


V-382 Topic

1952 USAF fighter-bomber projected derivative


V-383

1953 US Navy Carrier Based Day Fighter with J57 engines, to specification OS-130. Built as F8U-1 Crusader.


V-384

Alternate design to V-383 with J65 engines.


V-385

1953 US Navy Producibility Programmer for Regulus I.


V-386

1953 USAF Strategic Fighter proposal


V-387

1953 US Navy air-to-surface missile proposal


V-388

1953 US Navy A2U-2 projected variant of F7U, an A2U-1 with larger wing


V-389 Topic

1953 US Navy A2U-2 with J57 engines


V-390

1954 US Navy A2U-1 projected variant of F7U with J46 Block III engines


V-391

1954 USAF long-range fighter proposal to LRI-X requirement


V-392

1954 US Navy F8U-1P carrier-based photo recce variant of F8U-1


V-393

1954 US Navy Limited Attack version of F8U-1


V-394

1954 US Navy All Weather Fighter with Attack (version of F8U-1?)


V-395

1954 US Navy VFA Class all-weather fighter/ground-attack F8U variant (Sep. 1954)


V-396

1954 USAF A2U-1 missile-carrying A2U-1 variant


V-397

1954 US Navy SSM-N-9 (FTM) 36 missile with J79 engine; redesignated as RGM-15A-CV REGULUS II US Navy SSM-N-9 (TM) 7 missile with J79 engine; redesignated as RGM-15A-CV


V-398

1954 adaptation of REGULUS to be carried by a B-52 bomber (A/B/C)


V-399

1955 US Navy F8U variant with missiles and special stores carrier version


V-400

1955 US Navy all-weather F8U variant with missiles and special stores carrier version


V-401

1955 US Navy XF8U-3 high performance all-weather missile-carrier


V-402

1955 USAF proposed variant of F8U-3


V-403

1955 long-range ballistic missile project


V-404

1955 US Navy Interim AEW / C & C electronic surveillance aircraft (May 1956) to OS-139 ; lost to the W2F-1 (E-2) Hawkeye


V-405

REGULUS II 1955 US Navy KD2U-1 14 VKD Class radio-controlled target project (Jan. 1956); preceded by 7 conversions; redesignated as MQM-15A-CV


V-406


1955 US Navy attack aircraft


V-407

1956 US Navy development of REGULUS II missile


V-408

1956 US Navy F8U-1T (TF-8A) VF Class carrier-based two-seat trainer version proposal


V-409

1956 short-range ballistic missile project


V-410

1957 US Navy proposed rocket-assisted F8U-1 derivative, static thrust research


V-411

1957 US Navy improvement studies of F8U-1, prefigured the F8U-2N


V-412

1957 lightweight ASM missile project to be carried by a B-52 (Hound Dog)


V-413

1957 US Navy projected "limited" all-weather variant of F8U-2, prefigured F8U-2NE


V-414

1957 US Navy X-207 development program of REGULUS under X-207 specification


V-415

1957 US Navy long-range ASM missile proposal for Eagle competition with Marquardt or Aerojet General engine (1958)


V-416

1957 US Navy VA Class low-altitude all-weather attack aircraft "Vigilante" to TS149 requirement (lost to Grumman A2F Intruder)


V-417

1957 US Navy ASW missile project, to be launched by a submarine (Subroc)


V-418

1957 US Navy F8U-3 Phase II Improvement Studies


V-419

1957 US Navy F8U-3 variant with J58 engine


V-420

1957 NASA exploratory rockets project (Project Orb)


V-421

1957 Battlefield missile project (project FIRE)


V-422

1957 Nuclear powered supersonic missile project (project SLAM)


V-423

1958 US Army Type A & B tactical missile project


V-424

1959 Transport vehicle utilizing solid fuel rocket motor for manned space vehicle (Little Joe)


V-425

1959 airframe for four-stage satellite launcher


V-426

1959 Capsule for Man-In-Space (Mercury)


V-427

1959 warhead adaption kit for LITTLE JOHN missile


V-428

1959 guidance system project for SSGM-type missions


V-429

1959 USAF advanced ASM missile


V-430

1959 US Navy adaptation of a Sperry target Drone


V-431

1959 ORB satellite family (Project ORB)


V-432

1959 Scout four-stage launcher project


V-433 Topic

1959 US Navy "close support aircraft" project


V-434 Topic

1959 Eagle Missile Carrier "Missileer" for VFMX requirement


V-435

1959 USAF adaptation of SCOUT 609A Weapon System (Blue Scout)


V-436

1959 USAF "1960 communications satellite" project


V-437

1959 US Navy carrier-borne ASW aircraft project (Project "Oasis")


V-438

1959 USAF flight simulator project for the F-108


V-439

1959 space re-entry vehicle Free-Flight Model


V-440

1959 USAF Aircraft Penetration Aid study


V-441

1959 NAA "Fingerprint" guidance development


V-442

1959 USAF tactical SSM project


V-443

Not assigned.


V-444

1959 North American "Fingerprint" guidance proposal for NAA/USAF


V-445

1959 development of Project Hummingbird (Hipshot Astro) (presumably a VTO tailsitter)


V-446

1960 USAF TERCOM (Terrain Contour Mapping) study


V-447 Topic

1960 tri-service V/STOL transport project (built as XC-142)


V-448

1960 Typhon SAM missile project


V-449

1960 projected two-seat fighter/trainer variant of F8U-2


V-450

1961 Light Attack Airplane (tri-service)


V-451 Topic

1961 turboprop-powered tactical support (Close Support) STOL aircraft project for Army and Marines.


V-452

1961 US Navy XAAM-N-11 missile project for TFX program.


V-453

1959 US Army Missile "B" (Lance) tactical missile.


V-454

Crusader for French Navy


V-455

1962 projected attack version of F8U (A3U)


V-456

1962 F8U Interim Attack Aircraft (Interim VAX)


V-457

Model 64 Missile - Tri-Service


V-458 Topic

1962 US Army COIN light aircraft project

Intra-Theatre Transport - Tilt-wing


V-460

1963 Intra-Theatre Transport - ADAM


V-461

USAF VA(L) attack variant of F8U with turbofan engine, became A-7


V-462

1963 Advanced V/STOL Tactical Fighter Weapon System


V-463 Topic

VA(L) carrier-borne attack aircraft project. Became A-7 Corsair II.


V-464

1963 Amphibian XC-142A ASW tilt-wing transport planning study


V-465

1963 Infra-Theater transport - large V/STOL transport project with lift jets


V-466

1963 proposed variant of F8U for Great Britain


V-467

1963 aircraft project for DSM program


V-468

1963 Army reconnaissance aircraft


V-469

1963 aircraft project for SBM program


V-470

1963 CLAMP - Chemical Low Altitude Missile Puny, direct precursor of "modern" cruise missiles (although supersonic)


V-471

1963 Cruise Fan - Lift Fan - study for use of turbofan in cruise and sustaining modes


V-472

1963 COIN aircraft project


V-473

1964 US Army surveillance and target acquisition aircraft


V-474

1964 proposed variant of F8U for Lebanon


V-475

1964 SOR 210 VTOL transport project (against Bell D-2022)


V-476

1964 USAF V/STOL close support aircraft


V-477

1965 development of elements for the Douglas C-5A


V-478

1965 60 passenger tilt-wing commercial transport aircraft


V-479

1965 development of elements for the Lockheed C-5A


V-480

1965 supersonic ADAM aircraft project


V-481

1965 quick reaction ASM (U) armament project


V-482

1965 ADAM II Concept Evaluation


V-483

1965 fighter project for USAF FX requirement. Possibly similar to V-484?


V-484 Topic

1965 US Navy VFAX assault aircraft project


V-485 Topic

1965 ADAM II - Forward Facing Nose Fan


V-486

1965 aircraft project for ARM program


V-487

1965 development of A-7D/SA variant



V-488 through V-499 not issued


V-500

1966 missile project, competitor for what became the Hughes AGM-65 MAVERICK


V-501

1967 CARA (new design, twin engine tilt-rotor)

V-502 Topic

1967 USAF AX aircraft project


V-503 Topic

1967 CARA (XC-142 development)


V-504

1967 "Super Crusader (F8/A7)"


V-505 Topic

1967 USN "F-111B replacement" - VFX - scaled-up derivative of the final V-483-149 VFAX design from 1967.


V-506 Topic

1968 LIT (Light Intra-Theater Transport) project


V-507 Topic

1968 USN interceptor project for VFX program, competitor of Grumman F-14 Tomcat.


V-508

1968 USN two-seater development of A-7


V-509

1968 USAF two-seater development of A-7


V-510

1968 two-seater development of A-7 for USAF special operations


V-511

1969 USAF instrument trainer 2 seat A-7 project


V-512

1969 projected "Wild Weasel" version of A-7


V-513

1969 SCAR forward air control system project

V-514 Topic

1970 projected high performance variant of USAF A-7D (F100 engine)


V-515 Topic

1970 projected high performance variant of Navy A-7E (F401 engine)


V-516 Topic

1971 USAF FAC - Forward Air Controller, aircraft project for special operations forces. V-516A - two-seat derivative for commercial use. V-516B - four-seat single-engine derivative for civilian use. V-516C - four-seat twin-engine derivative for civilian use. V-516D - two-seat single-engine derivative for military use. V-516E - four-seat twin-engine derivative for military use.


V-517 Topic

1971 Navy AV(X) V/STOL aircraft prototype with fixed lift engines and (V-517A) TF30 and (V-517B) F401 turbofan. Also V-517D.


V-518 Topic

1971 USAF QRI jet interceptor project (Quick Response Interceptor program)


V-519 Topic


1971 US Navy demo two-seat conversion of first A-7E

V-520 Topic

1971 V/STOL aircraft project with TF30 (V-520A) or F401 (V-520B) turbofan engine and swing-out lift engines.

V-521 Topic

1972 US Navy V/STOL canard aircraft project with 2 lift, 1 lift/cruise engines.


V-522 Topic

1972 US Navy proposal to build the Dassault Falcon 20E into conversion AWG-9 Trainers..


V-523 Topic

1973 Advanced Navy Fighter project (navalised V-1100 LWF), pre-VFAX.


V-524 Topic

1973 Cross-Flow Fan Sea Control Ship Fighter Attack Aircraft.


V-525 Topic

1973 US Navy sub-launched cruise-missile project. Built as the YBGM-110 Vought's design lost to General Dynamics' YBGM-109 which was built as the Tomahawk cruise missile.


V-526 Topic

1973-74 US Navy VFAX-type fighter-bomber aircraft project.


V-527

1976 Commercial Utility Cargo Transport - medium transport aircraft project


V-528

1976 A-7 VAM US Navy all-weather two-seat attack variant


V-529 Topic

1977 US Navy Single seat A-7, updated V-528. V-529D used twin F404-GE-400 engines


V-530

1977 US Navy Type A multimission ASW/AEW VOD/MA AV/STOL aircraft project


V-531 Topic

1977 projected two-seat twin F404 engine rebuild of A-7D, similar to V-529D but twin seat.

V-532 Topic

1978 Undergraduate Pilot Trainer System proposal - Navy (V-532B submitted to VTX-TS). Joint proposal with Northrop.


V-533 Topic

1978 Undergraduate Pilot Trainer System proposal - USAF


V-534 Topic

1978 Type A CTOL US Navy Study ( conventional baseline for V-530)


V-535

1979 USAF projected night attack variant of A-7 ('Nightstriker')


V-536 Topic

1979 US Navy Type B series flow tandem fan powered V/STOL aircraft project


V-537 Topic

1979 US Navy Type A V/STOL aircraft project with Stopped rotor


V-538 Topic

1980 USAF NGT "Fully Responsive to Req's" - two-seat single trainer project based on VFW/RFB FANTRAINER principle.



V-539 Topic

1980 USAF NGT "Alternate (Optimised Version)" alternate version of V-538 with twin engines.


V-540

"Black-Hole Project (Secret)" - classified project (related to Northrop/Boeing/LTV "SENIOR ICE"?)


V-541 Topic

1981 USAF NGT configured with high wing.


V-550 Topic

1982 cheap multi-mission fighter-bomber project


V-585

1981 MPWS - mobile defensive weapon system project for the Marines


V-600 Topic

1983 US Navy VMX study - derivative of the ATLAS

V-601 Topic

1983 US Navy NAA/NSAA Naval Adversary Aircraft; americanization of Mikoyan MiG-21; 24 new aircraft deliveries initially planned.

Out of sequence designations

V-1000 Topic

Simplified and lightened Crusader proposed for International Fighter competition and several other countries' requirements.

V-1100 Topic

Lightweight fighter project designed for the USAF LWF requirement. Later developed as Naval fighter under V-523 designation.

V-1600

V-1601

V-1602

V-2000 Topic

1973 Advanced Tactical Fighter



[overscan (PaulMM)]

Re: Vought (Chance Vought, LTV)

Added quite a few images and links.



[Stargazer]

Re: Vought (Chance Vought, LTV)

Great work! I think we also have the picture of the V-343, V-356, V-362, V-382, V-404 and V-434 on the forum.

Also you seem to have omitted the X-100 (FAX) and the V-1000.



[Stargazer]

Re: Vought (Chance Vought, LTV)

Forgot also the V-358 V-368, V-378, V-406, which all appear on this forum.



[Mark Nankivil]

Re: Vought (Chance Vought, LTV)

The V-521 can also now be added.

Thanks for what you're doing - great visual reference!

Enjoy the Day! Mark



[Pioneer]

Great job!!Please keep up the good and well appreciated work!! RegardsPioneer



[Grey Havoc]

T-22: Vought's entry in the Assault Breaker program. Based on the Lance missile but incorporating advances such as a low CEP ring-laser gyro navigation system and solid fuel propulsion. The T-22 was apparently directly derived from Vought's LANCE II and ILANCE / I LANCE proposals for the preceding U.S Army Corps Support Weapons System program. As with those designs the T-22 utilised a version of the 'certified round' concept. The T-22 is sometimes incorrectly referred to as the T-22 Lance II.

(h/t sferrin)



[sferrin]

Nice Vought page right here:

http://celticowboy.com/V-LIST.html



[Sandy22]

Much appreciated.
I see that the thread is not exactly recent, however, here and there, i find quotation of "visual reference" and "pictures", while I see only text.
Also the link to http://celticowboy.com/V-LIST.html is dead.
Thank you a lot!



[overscan (PaulMM)]

I linked the project number to the relevant topic and added a thumbnail picture from the topic, but these all broke when the thumbnails got regenerated a while ago.



[Sandy22]

Some more ...

VE-7 1918 "Bluebird" Biplane powered by 1 180hp Wright-Hispano E-3. 14 built for USAAS, 39 for USN
VE-7F 1921 built for USN
VE-7G 1921 conversion from VE-7 for USN/USMC
VE-7GF 1921 conversion from VE-7
VE-7H 1924 built for USN
VE-7S 1925 conversion from VE-7
VE-7SF 1925 built for USN
VE-7SH conversion from VE-7SH to floatplane
VE-8 1918 VE-7 derivative, powered by 1 340hp Wright-Hispano H engine
VE-9 1921 VE-7 conversion
VE-9H 1927 Unarmed observation float seaplanes
VE-9W Canceled
VE-10 Short-hull pusher biplane Flying boat, powered by 1 XP-5 Curtiss 90hp engine
VE-11 Single-seat pursuit, powered by 1 Hall-Scott 200hp engine
VE-14 Single-seat shipboard floatplane, powered by 1 Lawrance J-1 engine.
VE-15 Single-seat flying boat, powered by 1 60hp Lawrance air-cooled 3-cycle engine (pusher).
VE-17 Single-seat pursuit, powered by 1 Lawrance J-1 engine.
VE-18 Fighter armed with 2*.50 Browning MG and powered by a Wright E-2 Alert engine
VE-19 Biplace powered by a Wright T-2 water-cooled engine
V-146 Imperial Japanese Navvy's AXV (Type V Interceptor Fighter)
V-166 Design, precursor of rhe F4U Corsair
V-166 XF4U-1 Corsair prototype
VS-316A H-4 helicopter
VS-316B H-6 helicopter
VS-327 H-5 helicopter



[hesham]

Nice work Sandy.



[snark]

https://en.wikipedia.org/wiki/Vought_V-141#Specifications_(V-143_%E2%80%93_final_layout)


http://1000aircraftphotos.com/Contributions/PippinBill/10687.htm


Seems the IJN "AXV" is actually the Vought V-143, the final iteration (via the V-141) of Northrop's 3-A single-seat fighter design

Harry



[overscan (PaulMM)]

I'm going to redo this post as the new Xenforo software means linked images should not break when topics are merged etc.



[Archibald]

Was looking for J79 variants of Crusader in the late 50's, long before V-1000 and similar to the "final" Skylancer and Super Tiger. Looks like Vought never thought about it, electing to leap from J57 to J75 Crusader III instead. Shame.

And then I stumbled on V-474... Crusader for LEBANON. I mean, Lebanon. Same year the French Navy procured Crusaders, too. Could have made 1983 even more interesting.



[acegeek9992]

Vought V-358, V-381, V-390/-396, VS-302B, V-371, SF-series, VB-series, VS-315 have broken links for their pages



[airman]

Is Vought Avions Docavia book by Bernard Millot contain projects ?
