Various Post-War Yakovlev (Yak) Projects & Prototypes

[Vasily41]

Beautiful work Zizi !



[hesham]

As I know there was two Yak-U variants,

the first had twin engined and the second gad single engine.



[Vasily41]

Really? This I did not know.
Are there any illustrations or descriptions regarding the design?



[hesham]

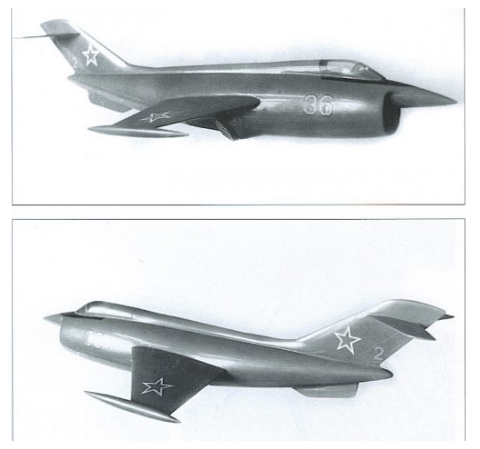

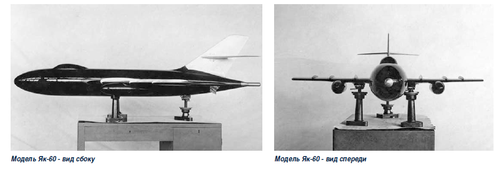

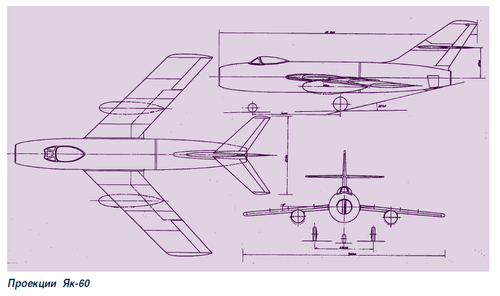

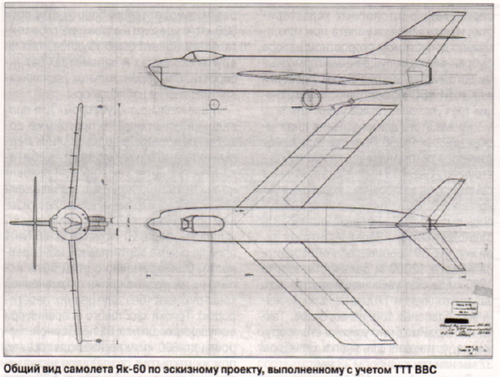

From Аэрокосмическое обозрение 2012-3,

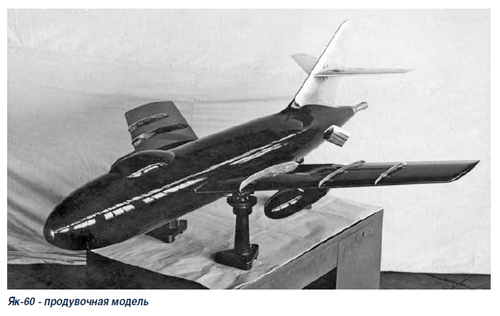

very strange,you feel there was early drawing to Yak-60 and later one was different ?.



[Zizi6785]

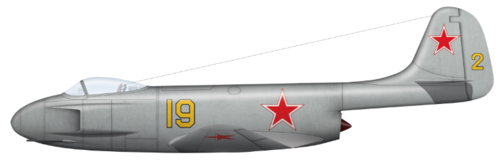

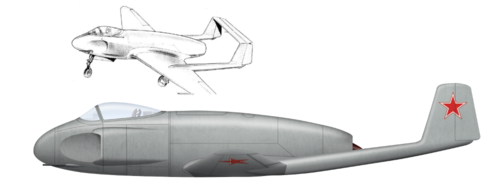

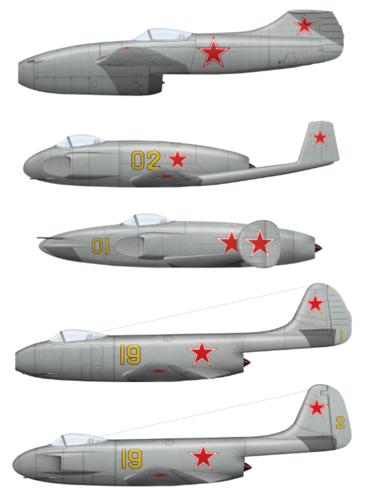

Early pod and boom Yak-19



[Zizi6785]

WIP next one:



[Zizi6785]

WIP:



[Zizi6785]

One more:



[Vasily41]

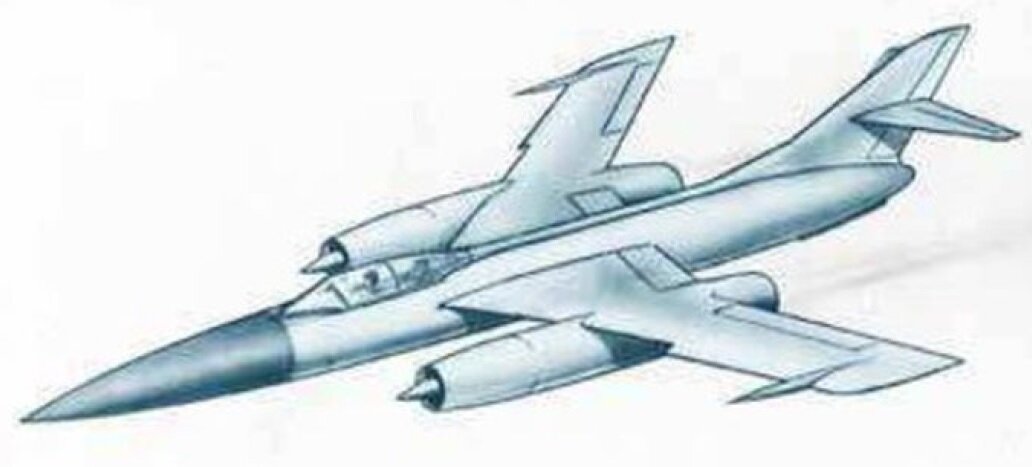

Unknown Yak-30 project with T-tail

A twin-engine Yak-30? I have never heard account of this.



[Vasily41]

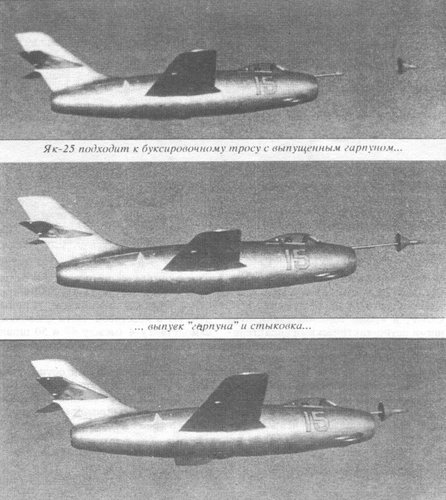

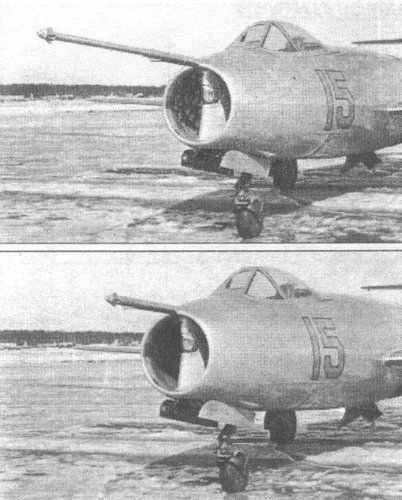

Yak-25 “Burlaki” for the concept of a parasite fighter. Was planned to be hooked to a Tu-4, but problems like an unpressurized cockpit while the engine was off killed the idea.

Яковлев Як-25 (первый)



[hesham]

Hi,

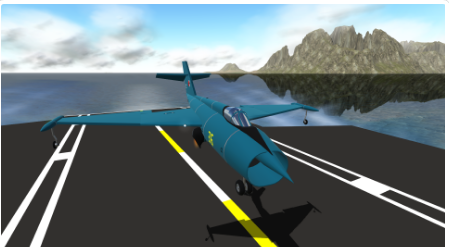

SimplePlanes | Yak-36 VTOL prototype 2

PC and mobile game about building airplanes.

www.simpleplanes.com



[Grey Havoc]

View: https://www.youtube.com/watch?v=KhXhjClIxEw



[FighterJock]

View: https://www.youtube.com/watch?v=KhXhjClIxEw

Nice find Grey Havoc. Let’s hope that Yakovlev gets the necessary funding for their new VSTOL supersonic fighter that is currently being designed.



[blackkite]

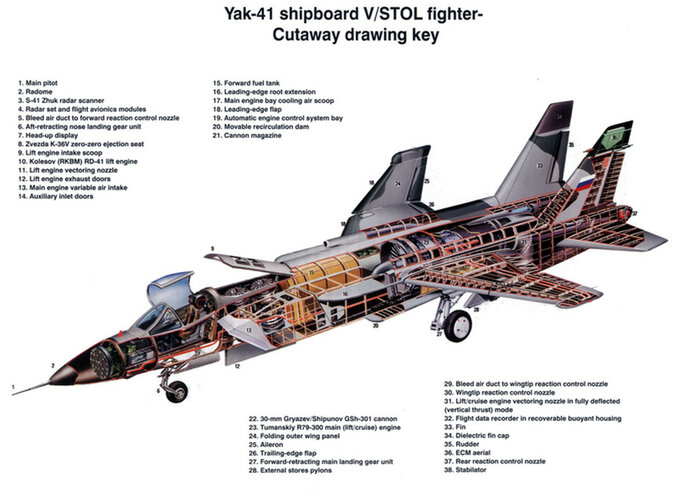

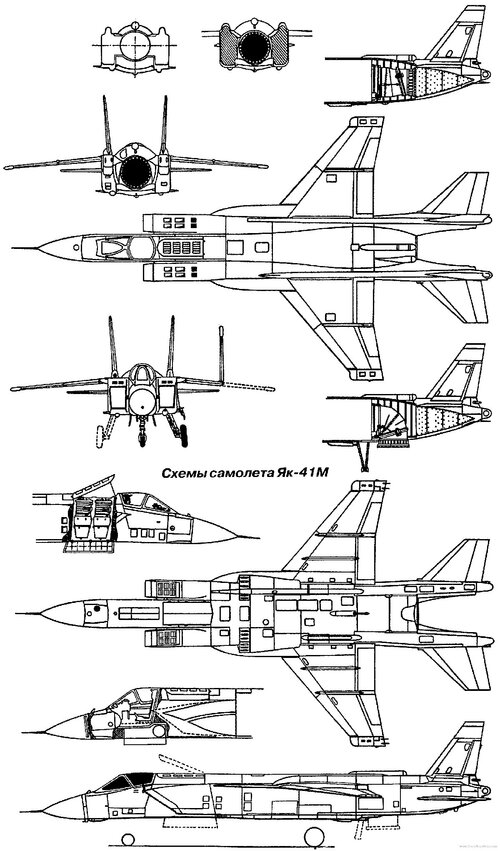

Hi! Yak-141.
https://thelexicans.wordpress.com/2013/09/19/cutaway-thursday-yakovlev-yak-141/
https://www.sas1946.com/main/index.php?topic=40325.0

View: https://www.youtube.com/watch?v=s-lIgK29H1A



[hesham]

From Flying 1950-6,

I can't ID this Yak Project exactly,maybe it looks like Yak-60 ?,could be
anther thing,MiG design for example ?,but why they insisted it was
developed from DFS-346 !.

Also possible it is just a hypothetical concept ?.

Flying Magazine

books.google.com.eg



[Apophenia]

I can't ID this Yak Project exactly,maybe it looks like Yak-60 ?,...

Maybe just their interpretation of the Yak-30/Yak-30D?



[TheOmnimercurial]

Hello!

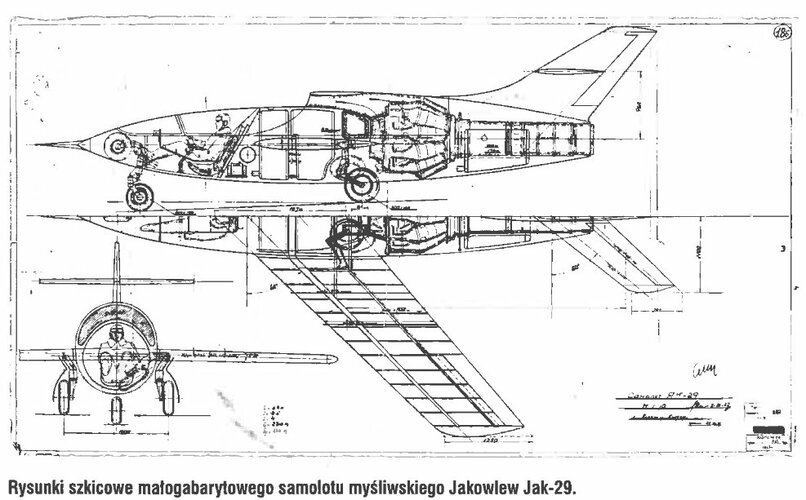

I hope, that this small pictures from Polish magazine "Lotnictwo" 2015-06 could be a good teaser to Wiktor Druszlakov article about little-known Yakovlev fighter projects.
Types, mentioned: Yak-29, -30; Yak-40, -41; Yak-60; Yak-50.


The images was absolutely new to me!


All copyright belongs to author and magazine.

Yak-29 there seems very similar to one of the PVRD Ramjet Project Designs.

See Attached....



[famvburg]

I can't ID this Yak Project exactly,maybe it looks like Yak-60 ?,...

Maybe just their interpretation of the Yak-30/Yak-30D?

There is a

From Flying 1950-6,

I can't ID this Yak Project exactly,maybe it looks like Yak-60 ?,could be
anther thing,MiG design for example ?,but why they insisted it was
developed from DFS-346 !.

Also possible it is just a hypothetical concept ?.

Flying Magazine

books.google.com.eg

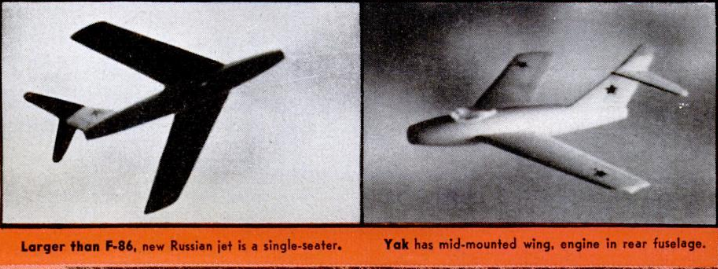

That same design is on the cover of Popular Science magazine from January 1951, I think it is in the discussion of Western artists concepts of Soviet Aircraft. IIRC it is marked Yak-25. I think it is an artist concept of what was ultimately the MiG-15.



[hesham]

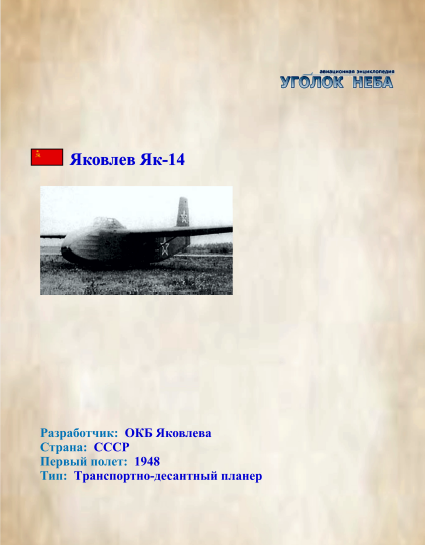

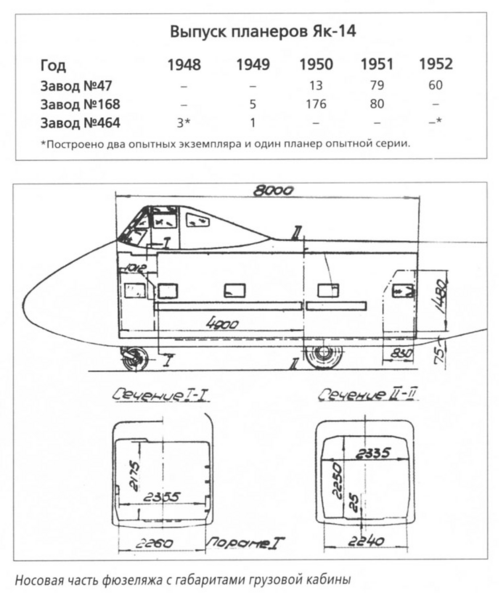

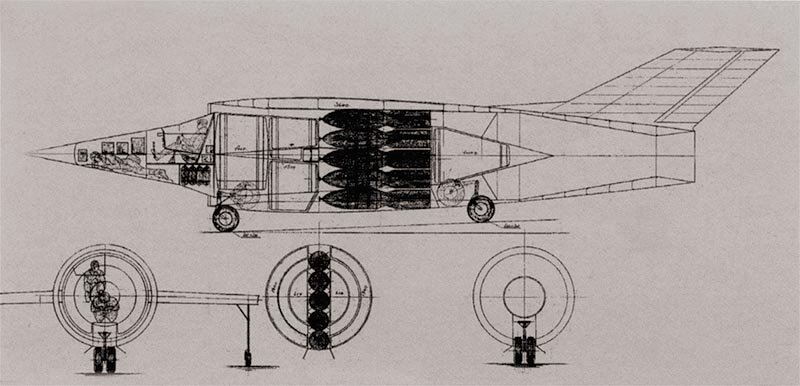

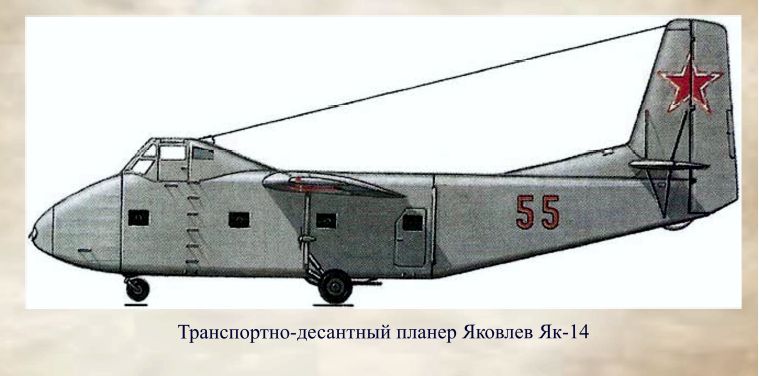

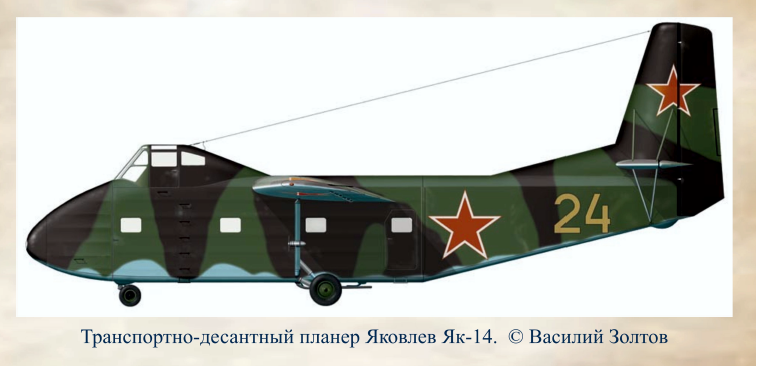

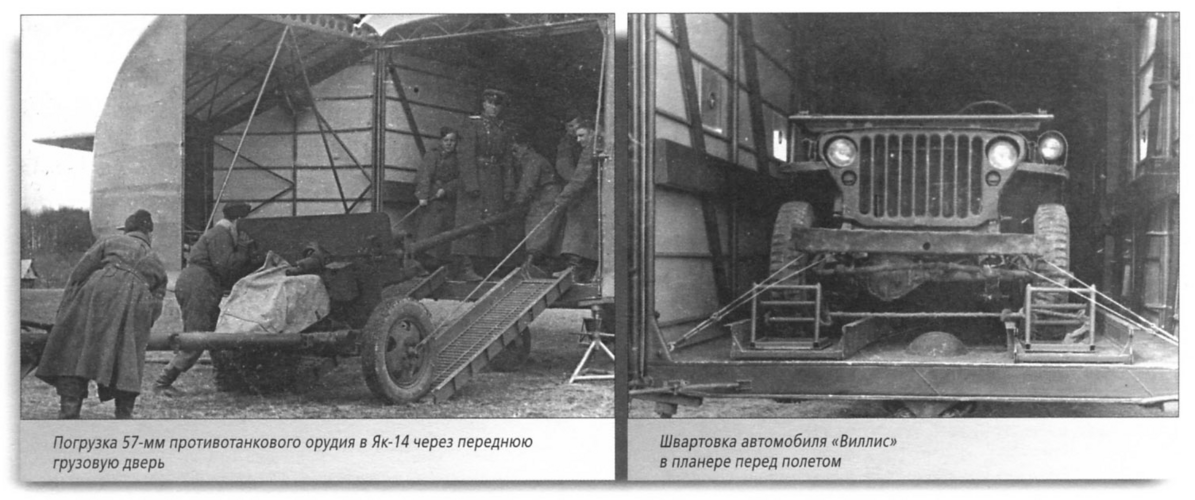

The Yak-14.



[hesham]

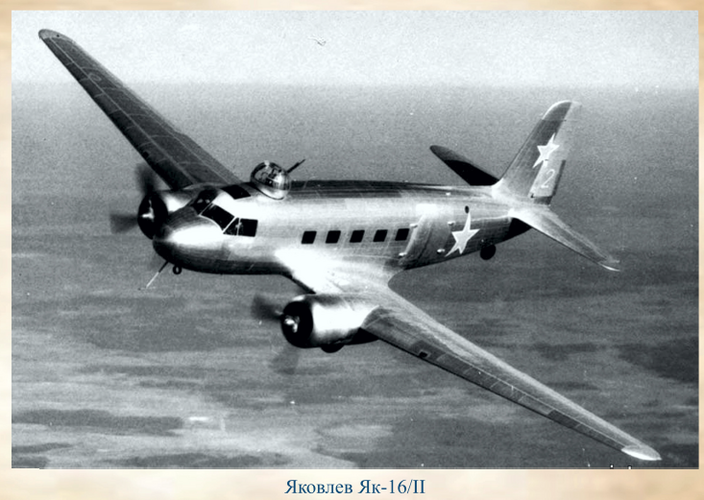

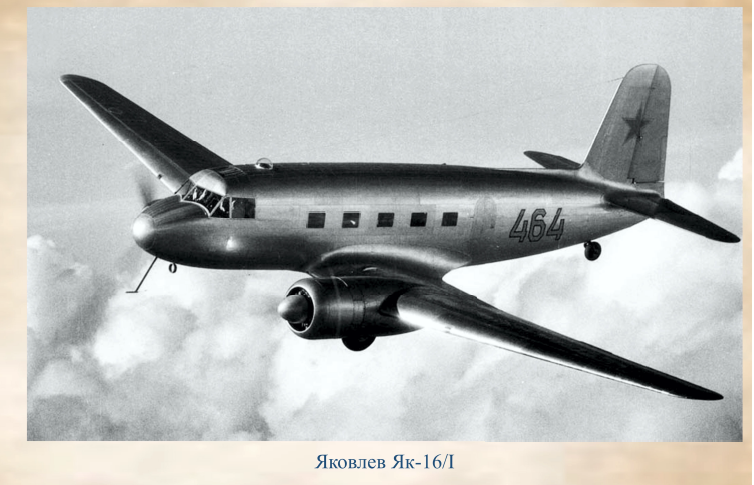

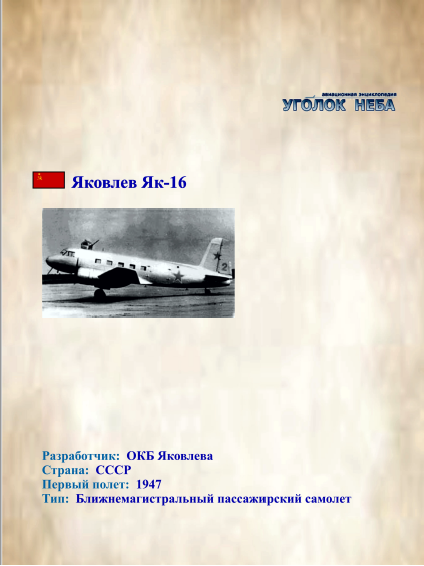

The Yak-16.



[bloody sky]

Hi! Yakovlev LFI.

Programy MFI/LFI (Mnogofunkcionalnyj/Ljogkij frontovoj istrebitel) MiG 1.42 MFI, Yak MFI, MiG 412 LFI, MiG izdelije 33

Programs MFI/LFI (Mnogofunkcionalnyj/Ljogkij frontovoj istrebitel) MiG 1.42 MFI, Yakovlev MFI, MiG 412 LFI and MiG izdelije 33

translate.google.fr

Paralay-san's super site.

http://paralay.com/lfsyak.html

Google Traduction

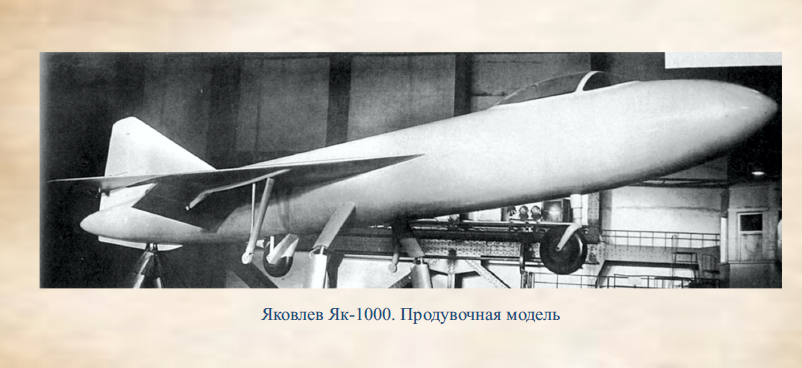

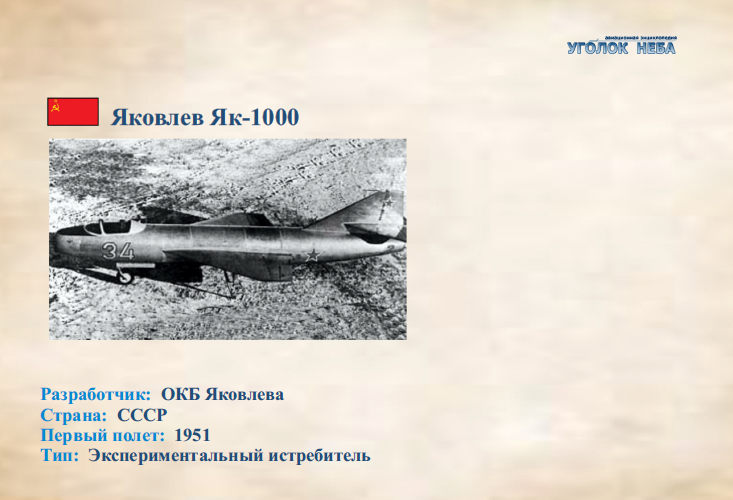

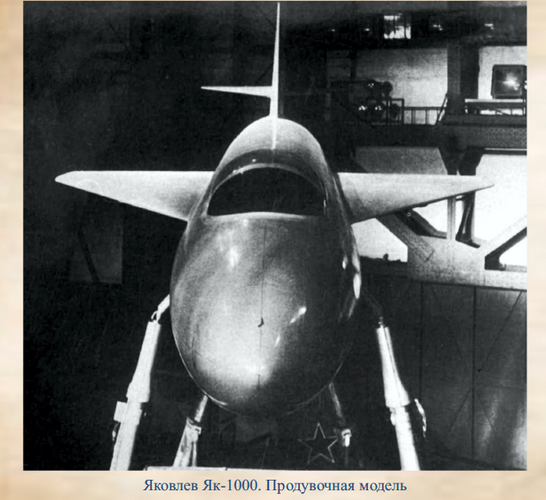

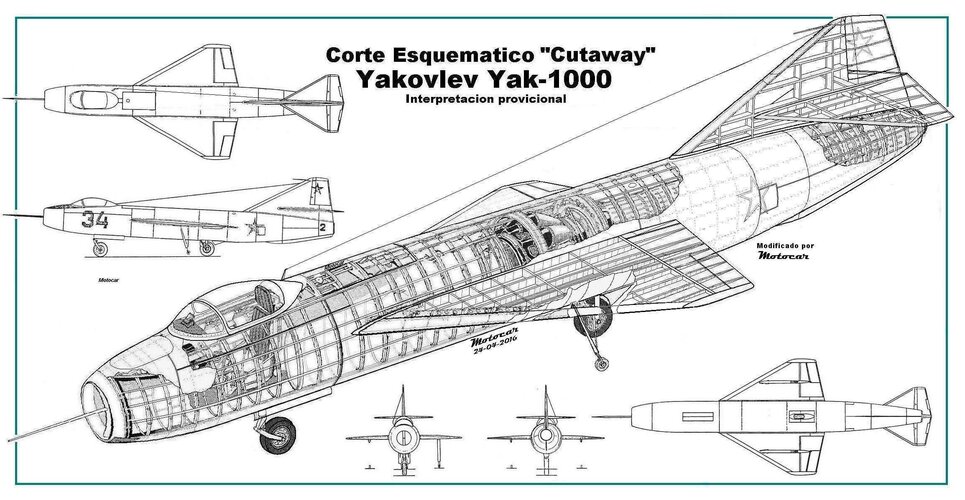

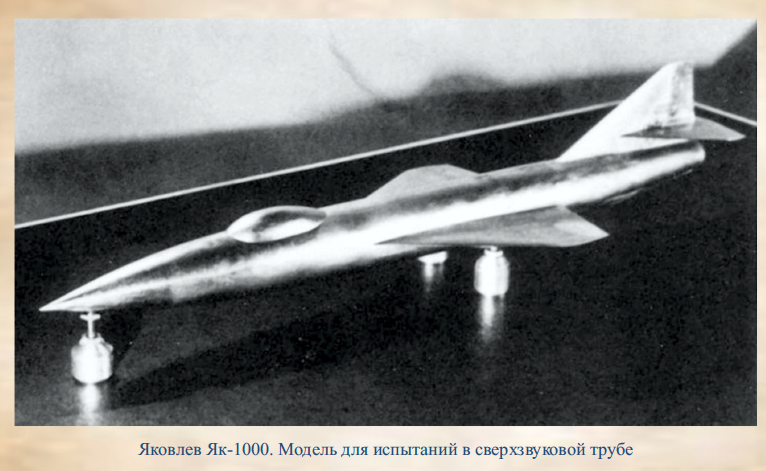

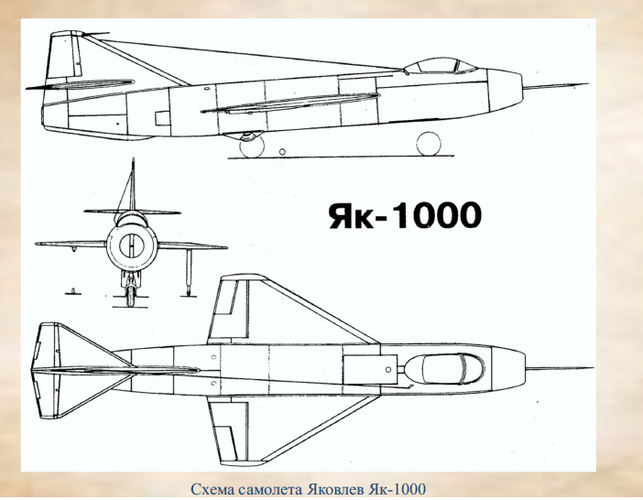

I have the Yak-1000 cutaway drawing...! thread Arwork "Motocar's Cutaway drawings" Post #352

http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=23005.0;attach=555314;image

Motocar,It's disappear,I feel very sad……



[Motocar]

¡Hola! Yakovlev LFI.
[URL unfurl = "true"] http://translate.google.fr/translate?hl=fr&sl=auto&tl=en&u=http://www.hitechweb.genezis.eu/fightersSF02.htm [/ URL]

El super sitio de Paralay-san.
[URL unfurl = "true"] http://paralay.com/lfsyak.html [/ URL]
[URL unfurl = "true"] http://translate.google.fr/translate?hl=fr&sl=ru&tl=en&u=http://paralay.com/lfsyak.html&sandbox=1 [/ URL]

¡Tengo el dibujo recortado del Yak-1000 ...! hilo Arwork "Dibujos recortados de Motocar" Publicación # 352
[URL unfurl = "true"] http://www.secretprojects.co.uk/forum/index.php?action=dlattach;topic=23005.0;attach=555314;image [/ URL]

Motocar, ha desaparecido, me siento muy triste ……

Ready



[hesham]

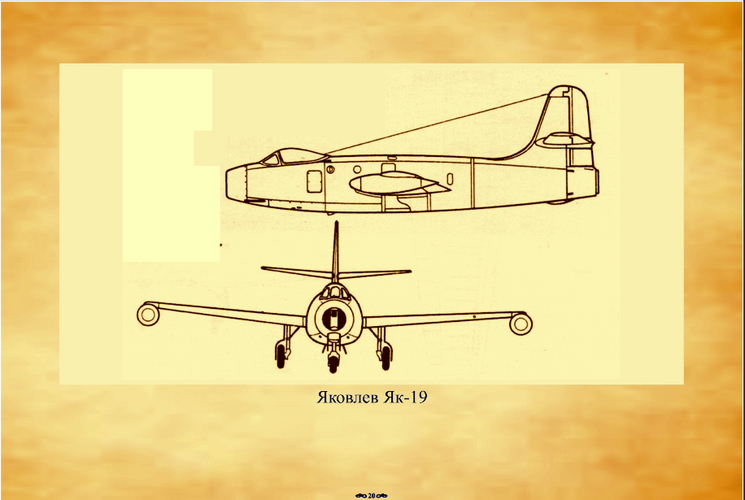

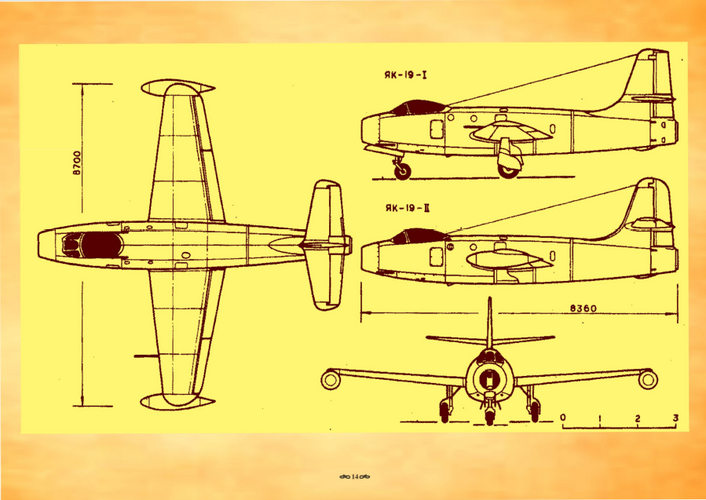

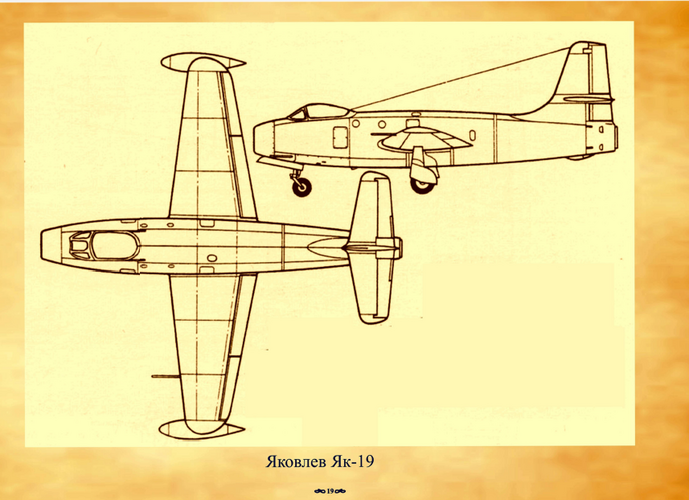

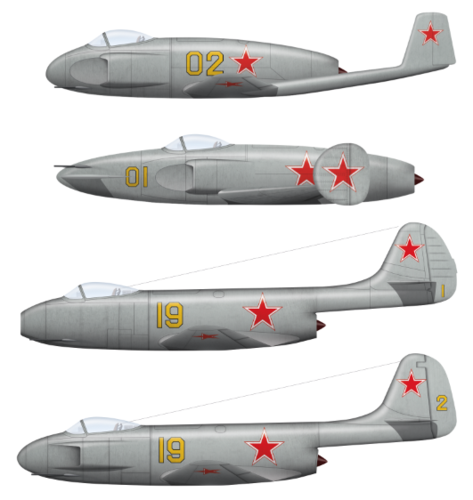

From a Russian book,

the Yak-19.



[hesham]

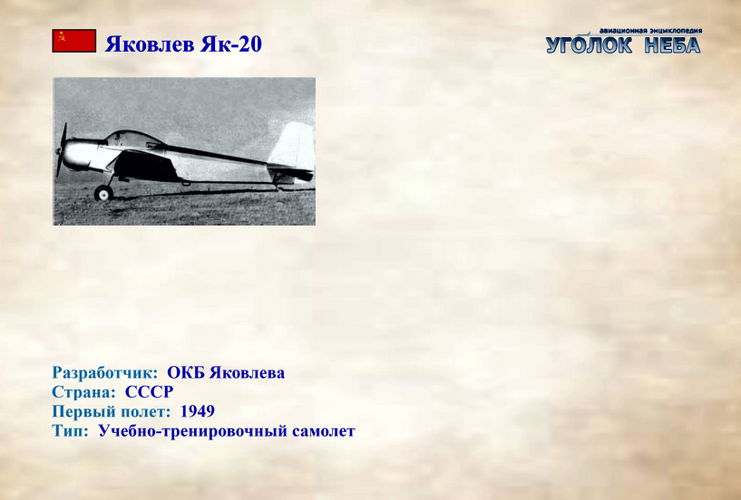

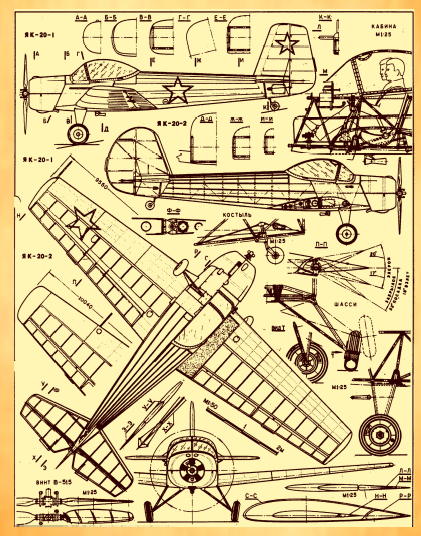

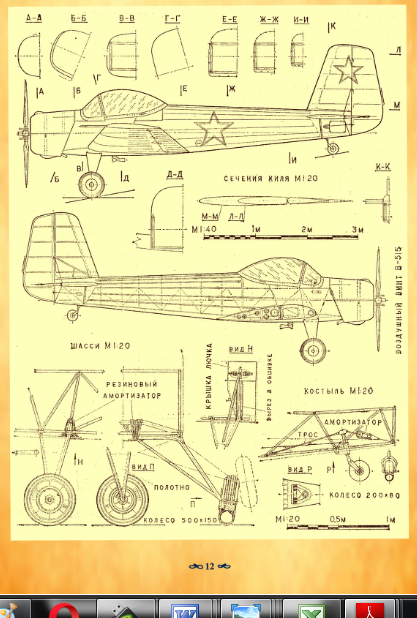

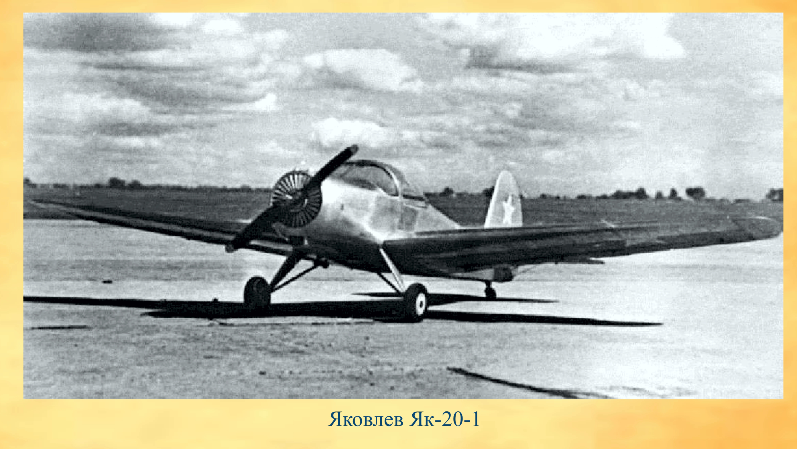

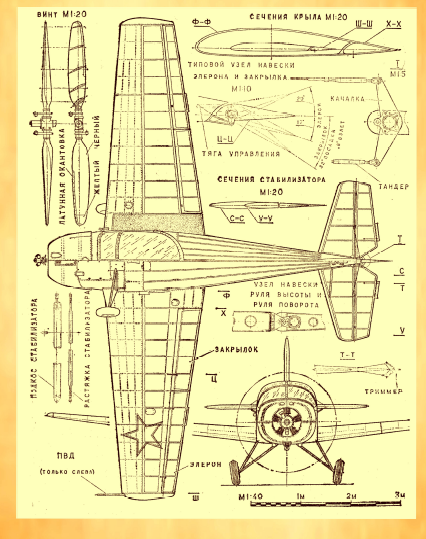

From a Russia book,

the Yak-20.



[hesham]

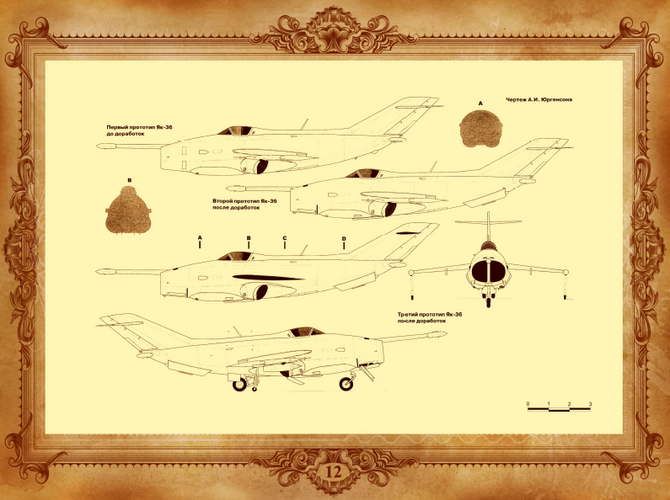

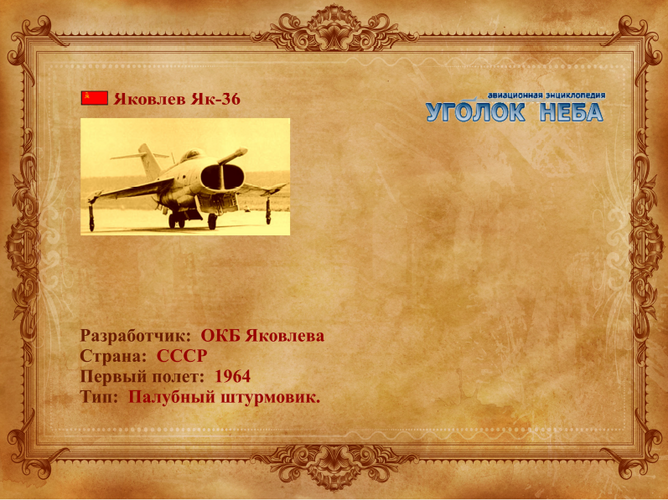

The Yak-36.



[foiling]

The Yak-36.

Terrific drawings, if only they had been bigger.



[nuuumannn]

Hi,

SimplePlanes | Yak-36 VTOL prototype 2

PC and mobile game about building airplanes.

www.simpleplanes.com

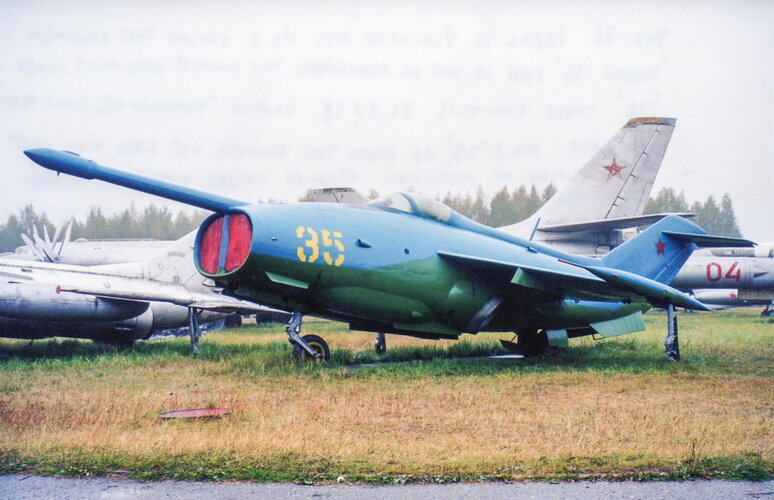

Be aware that the information on this page is slightly incorrect as the aircraft referred to in the text in French references the Yak-36 VTOL prototype, yet the illustrations are for the Yak-36-70 light strike concept based around the same engine configuration as the Yak-36. In the text, the engine is stated as "a vertically mounted fixed engine, rotary nozzles and a conventional fuselage", which is not strictly correct, as the Yak-36 had two horizontally mounted R21M-300 engines with vectoring thrust nozzles and no vertically mounted jet-lift engines. One of the prototypes survives at Monino and, in common with other aircraft there, it is depicted in a scheme that was not worn by the type at all during testing and resembles the in-service scheme applied to Yak-38s.

The Yak-36-70 was drawn up in a couple of different variants, the light strike variant and a light fighter variant, both of which resembled each other. I have seen a photo of the heavy cruiser Kiev with models of these on the flight deck, instead of the Yak-38s that it went on to receive. The Yak-38 differed in that the engine configuration was changed completely and a single engine was mounted horizontally in the fuselage fitted with vectoring thrust nozzles, and two vertically mounted jet-lift engines aft of the cockpit. Oddly, the pre-production prototypes of the Yak-38 were designated Yak-36M, even though their configuration was different to the Yak-36 testbed and the Yak-36-70 concept.

Excuse the photo, I took it during a rainsoaked visit to Monino years ago and I wrote on the back of the prints to identify them.



[KHambsch]

Hi,


in the article of Polish magazine,they mentions the Yak-41,and there is two Yak-40 &
two Yak-41 designs;

http://www.secretprojects.co.uk/forum/index.php/topic,4180.msg33059.html#msg33059

Major cool that the dimensions of the ramjet engine were finally given: L = 2.5 meters, D = .55 meters.



[KHambsch]

Hi,


in the article of Polish magazine,they mentions the Yak-41,and there is two Yak-40 &
two Yak-41 designs;

http://www.secretprojects.co.uk/forum/index.php/topic,4180.msg33059.html#msg33059

Major cool that the dimensions of the ramjet engine were finally given: L = 2.5 meters, D = .55 meters.

It was your post where I found the information, so thank you once again!!!
Best to you, best buddy! Kevin



[hesham]

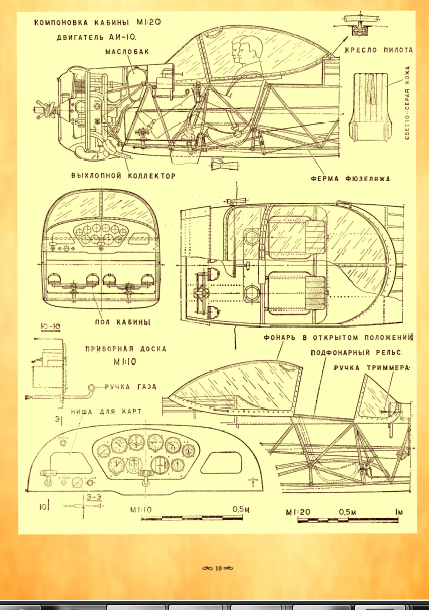

From my dear Ucon's book.



[igor-mich]

This PDF file is not Ucon's. This is a translation into PDF file of information from the site http://www.airwar.ru/



[hesham]

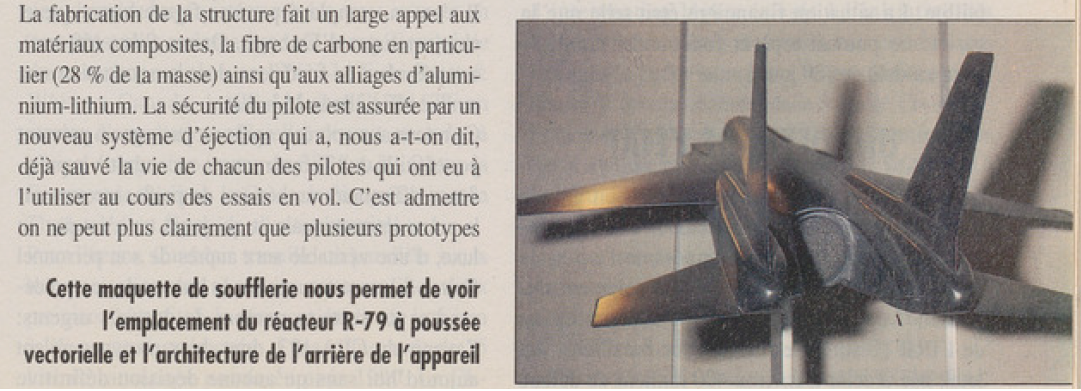

From Aviation magazine 1991.



[fightingirish]

Yak-125B

Never knew about this version.

https://twitter.com/x/status/1695815934680920145

View: https://twitter.com/PAVE_naught/status/1695815934680920145?t=fsN4wu5aRycT8tBheQI5PQ&s=09



[boxkite]

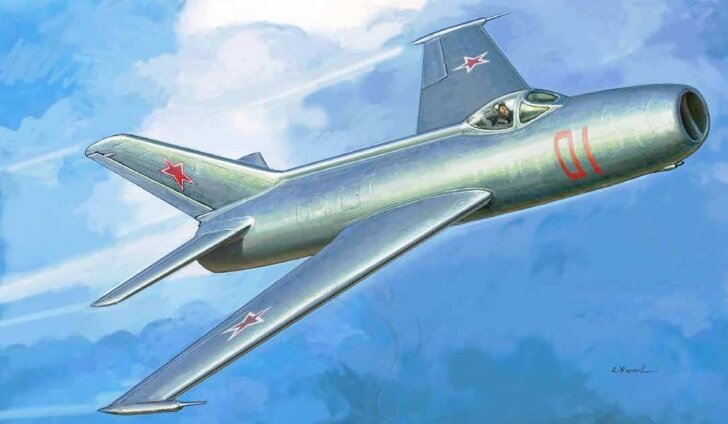

Yak-U (Як-У)
illustration by Andrey Zhirnov

Source: AKO 6/2022 p22



[boxkite]

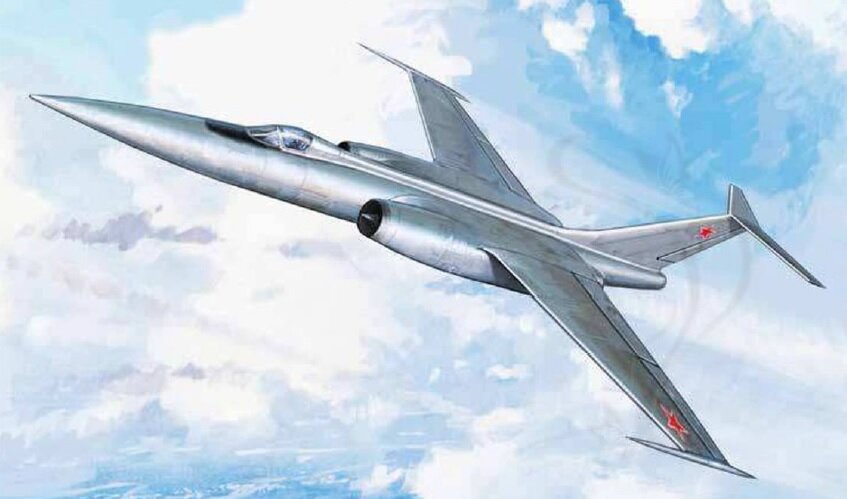

Yak-EI (Як-ЭИ)
illustration by Andrey Zhirnov

Source: AKO 5/2021 p54



[boxkite]

No, it's not a Yak-28 - it's the Yak-32 (Як-32) recce project with a length of 24.60 metres (compared with 20.xx m of the Yak-28).
illustration by Andrey Zhirnov

Source: AKO 4/2023 p84

======================================================================================================



Yak-34 (Як-34)

Source: AKO 4/2023 p87



[KHambsch]

View attachment 724307

No, it's not a Yak-28 - it's the Yak-32 (Як-32) recce project with a length of 24.60 metres (compared with 20.xx m of the Yak-28).
illustration by Andrey Zhirnov

Source: AKO 4/2023 p84

======================================================================================================

View attachment 724308

Yak-34 (Як-34)

Source: AKO 4/2023 p87

Turbojet engines? Or combo TJ/RJ?



[boxkite]

proposed for Yak-32: Klimov VK-13 or Lyulka AL-7F-1

proposed for Yak-34R: Tumanski R21-300 (R21A-300)



[Stargazer]

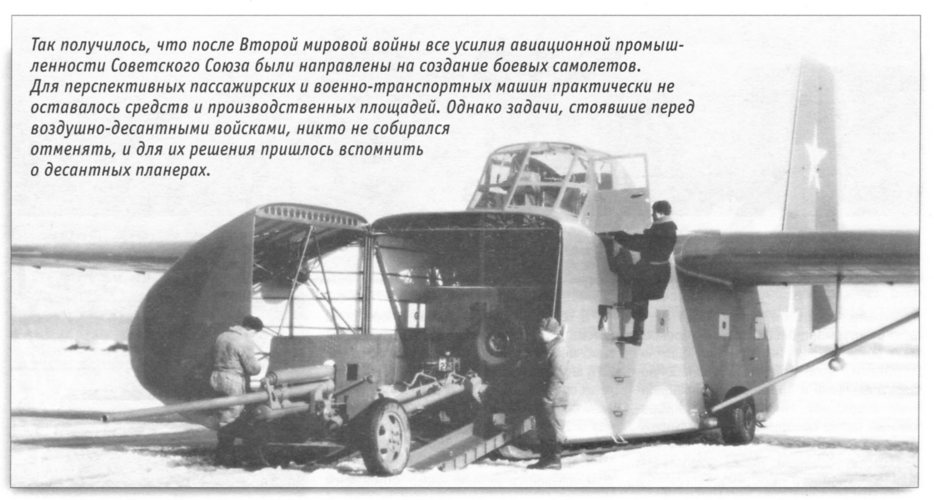

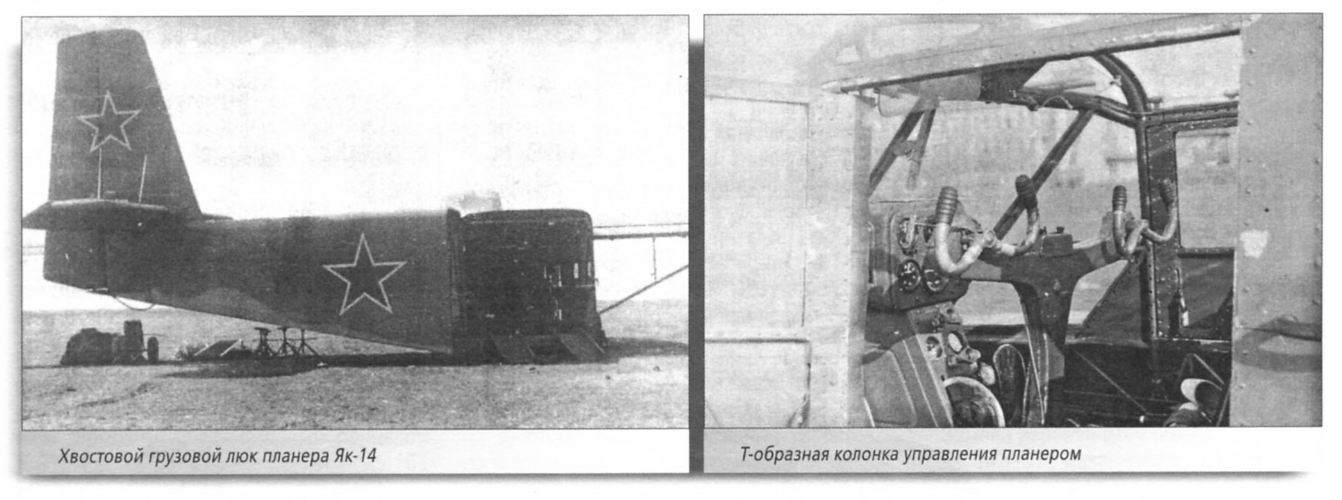

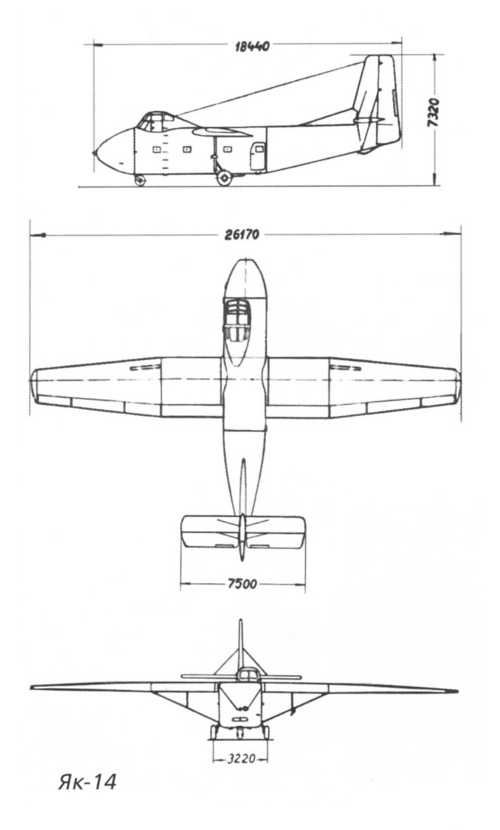

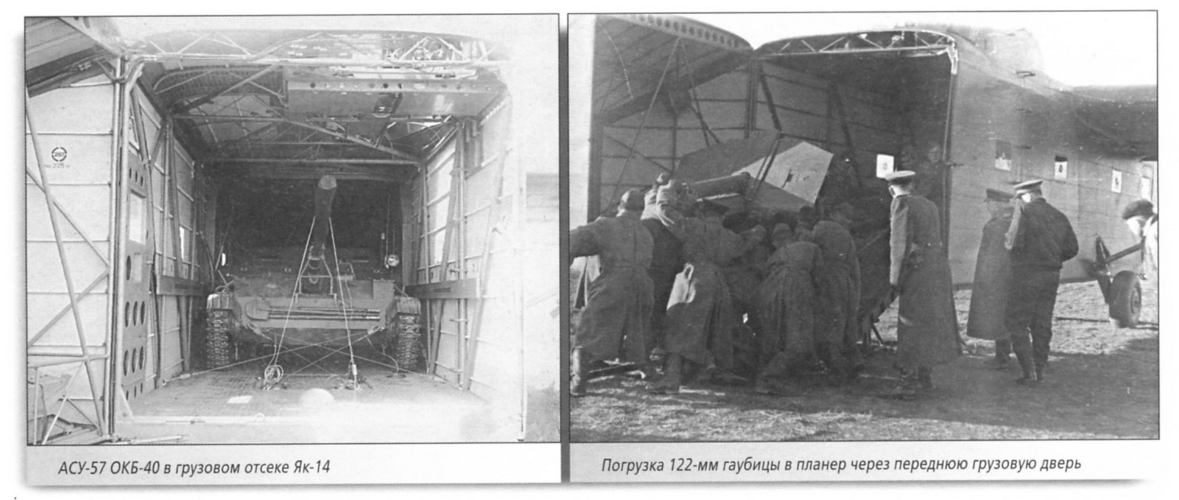

Yak-14 from AviaArkhiv №2 (January 2010):
