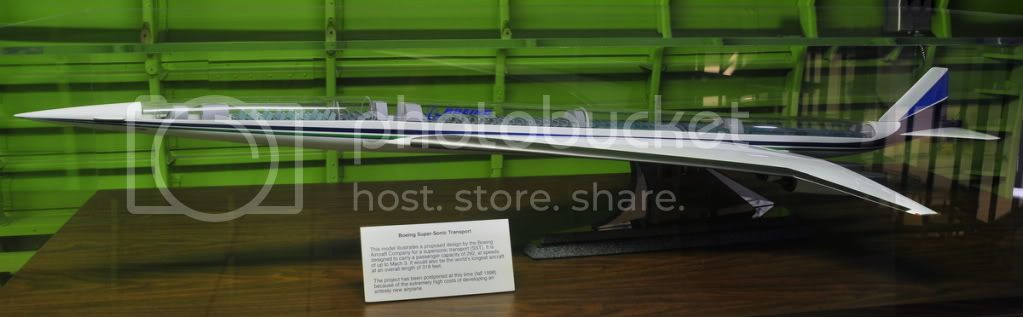

US Supersonic Transport(SST) Program post-1971

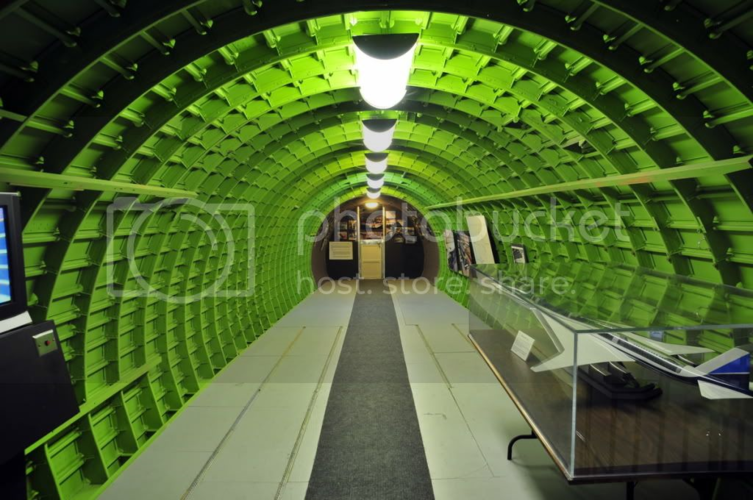

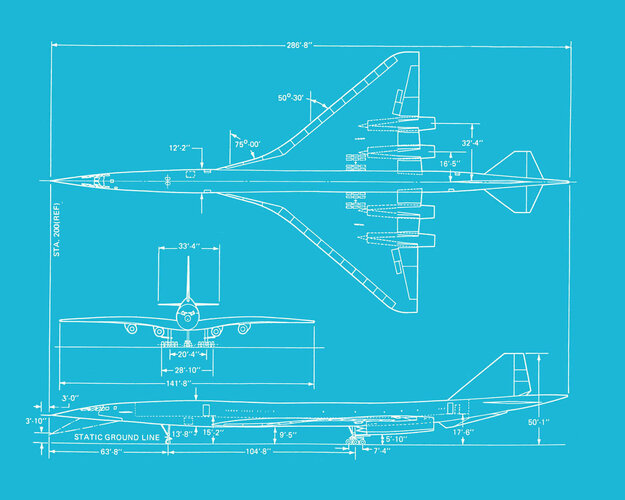

Boeing Model 2707-100 print

Source:
http://www.ebay.com/itm/Boeing-Model-2707-100-SST-16-x20-Print-/111807524573?hash=item1a083f6edd:g:XxwAAOSwl9BWLuU9


Attachments

  • s-l1600a.jpg
    243.3 KB · Views: 234
Good Day All -

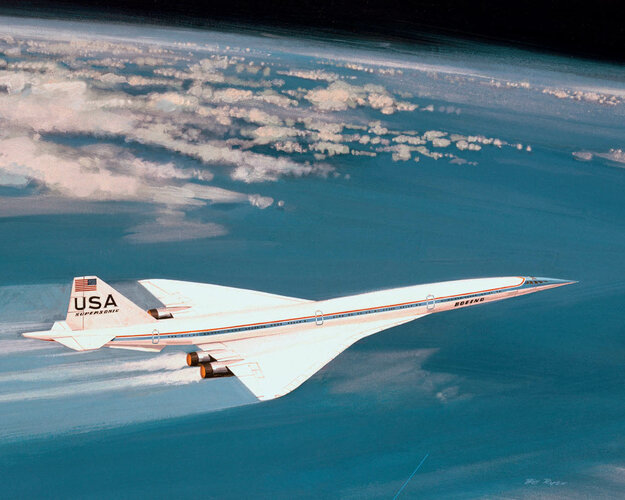

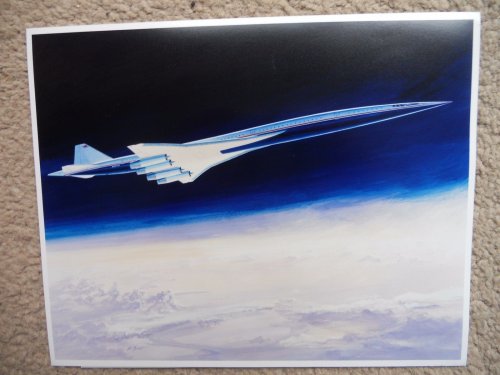

Yet another piece of Boeing SST Artwork on EPay:

http://www.ebay.com/itm/Boeing-vintage-SST-official-photo-Washington-DC-1966-/321918778257?hash=item4af3dabb91:g:hloAAOSwlV9WRAWP

Enjoy the Day! Mark


Attachments

  • Boeing SST Artwork.jpg
    Boeing SST Artwork.jpg
    228.7 KB · Views: 239
Hi,

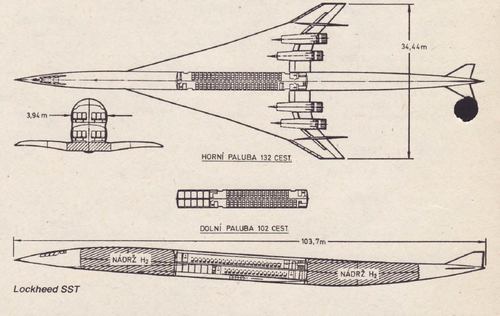

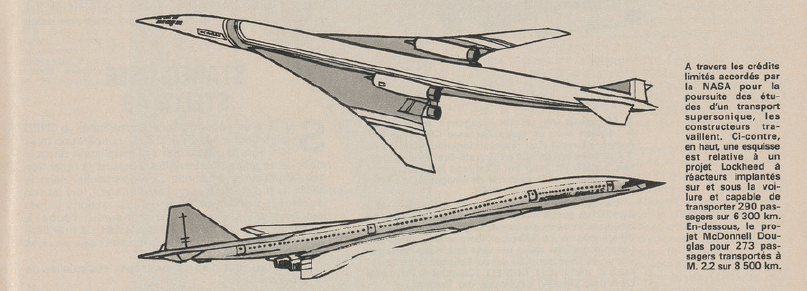

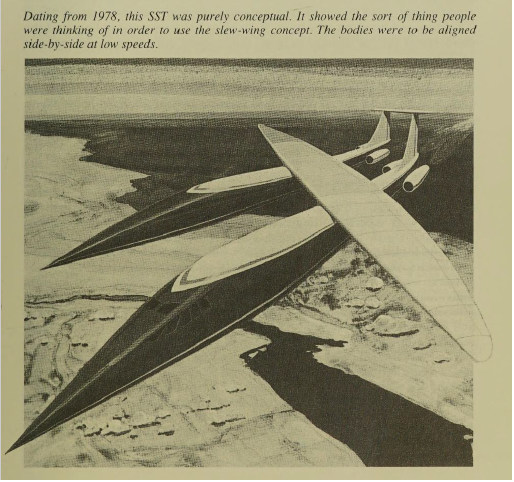

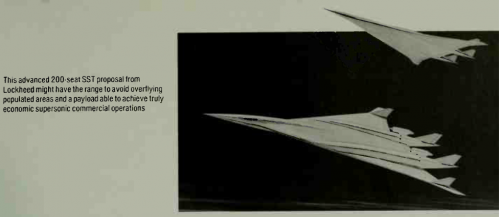

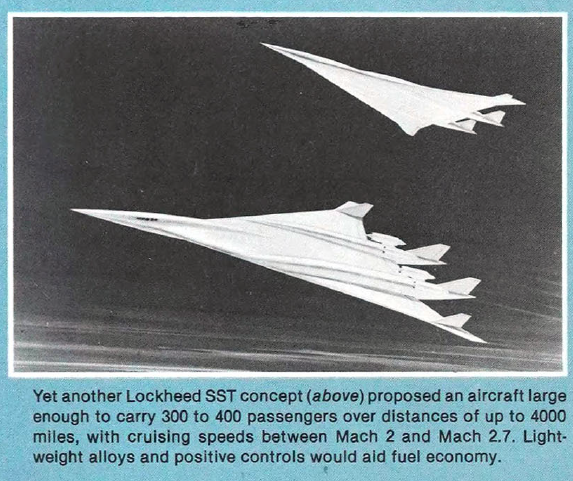

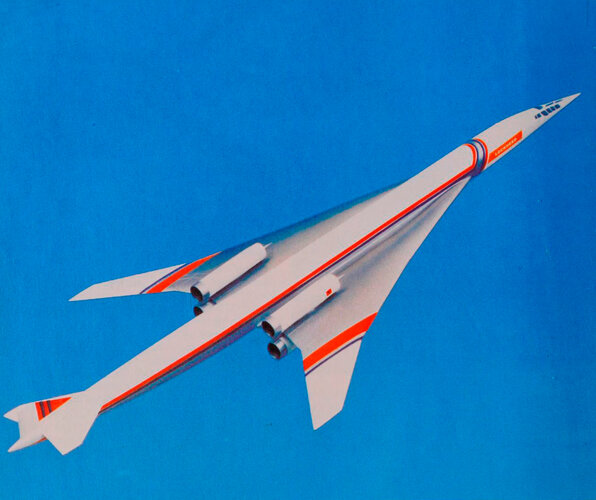

here is a strange Lockheed SST concept,never saw like it before ?.

Aircraft 2000, Bill Sweetman


Attachments

  • Lockheed SST.png
    Lockheed SST.png
    133.6 KB · Views: 240

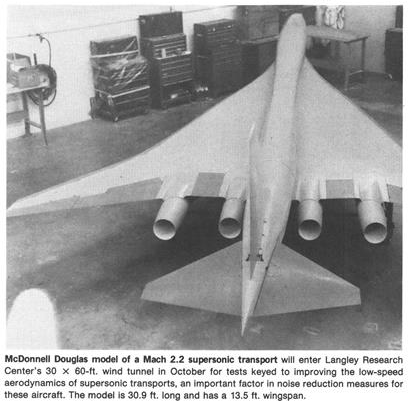

Hi,

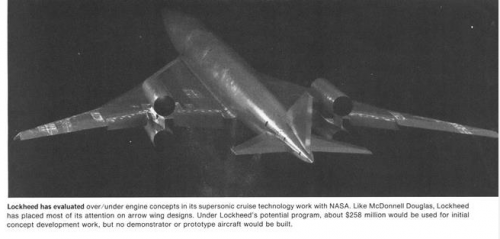

http://archive.aviationweek.com/image/spread/19771017/17/2
http://archive.aviationweek.com/image/spread/19771017/18/2


Attachments

  • 1.png
    146 KB · Views: 198
  • 2.png
    283.1 KB · Views: 228
Hi,

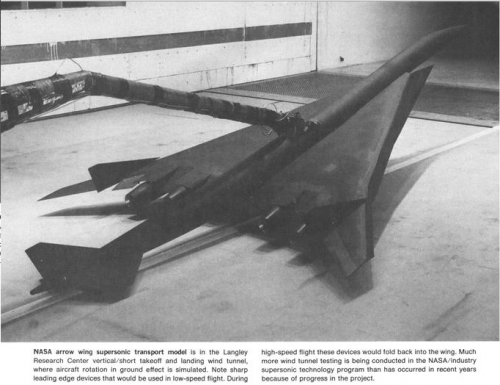

http://archive.aviationweek.com/image/spread/19780911/53/2
http://archive.aviationweek.com/image/spread/19780911/55/2


Attachments

  • 1.png
    317.4 KB · Views: 934
  • 2.png
    160.6 KB · Views: 885

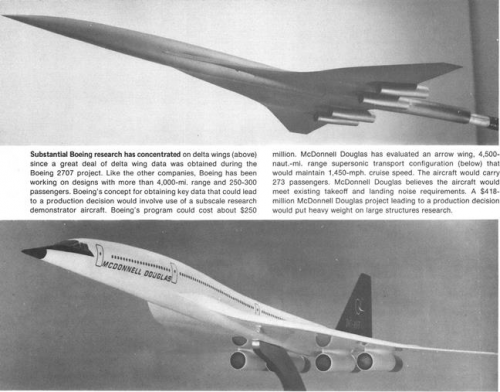

Hi,

http://archive.aviationweek.com/image/spread/19720117/20/2
http://archive.aviationweek.com/image/spread/19720117/21/2
http://archive.aviationweek.com/image/spread/19720117/22/2


Attachments

  • 3.png
    218.9 KB · Views: 725
  • 2.png
    136.8 KB · Views: 736
  • 1.png
    226.9 KB · Views: 787
Good Day All -

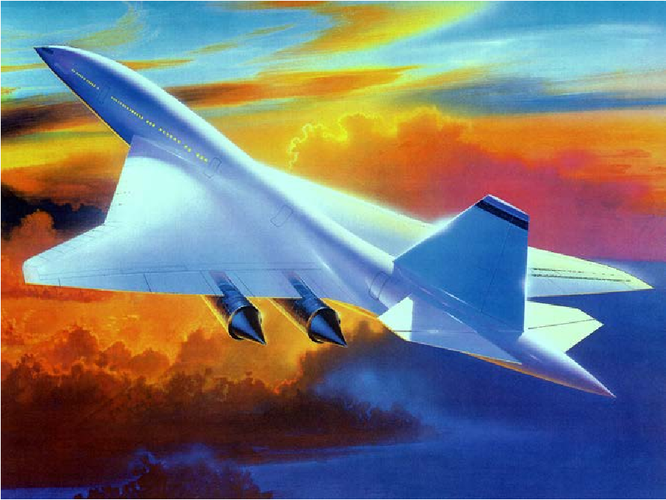

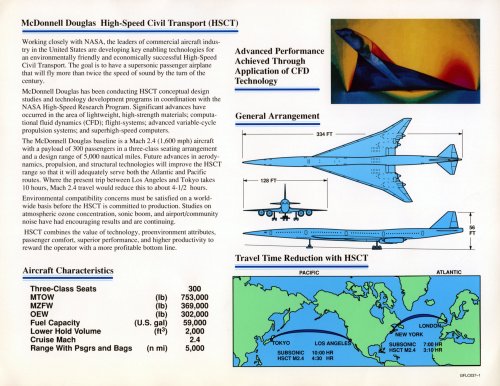

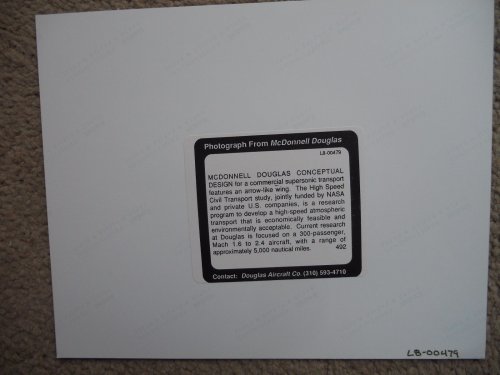

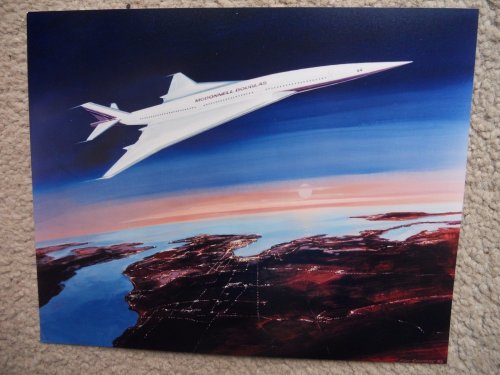

I recently acquired a product card for the proposed McDonnell Douglas HSCT. Nice artwork!

Enjoy the Day! Mark


Attachments

  • zMcDonnell Douglas HSCT Artwork.jpg
    zMcDonnell Douglas HSCT Artwork.jpg
    427.3 KB · Views: 280
  • zMcDonnell Douglas HSCT Info.jpg
    zMcDonnell Douglas HSCT Info.jpg
    465.2 KB · Views: 323

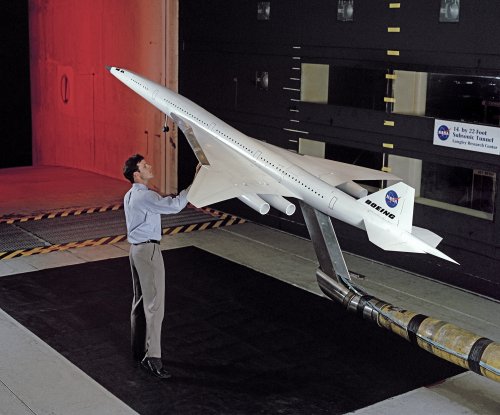

Attachments

  • BI220707.jpg
    61.9 KB · Views: 191
  • lrc-kemmerly-hsct-1993-l04901.jpg
    2 MB · Views: 209

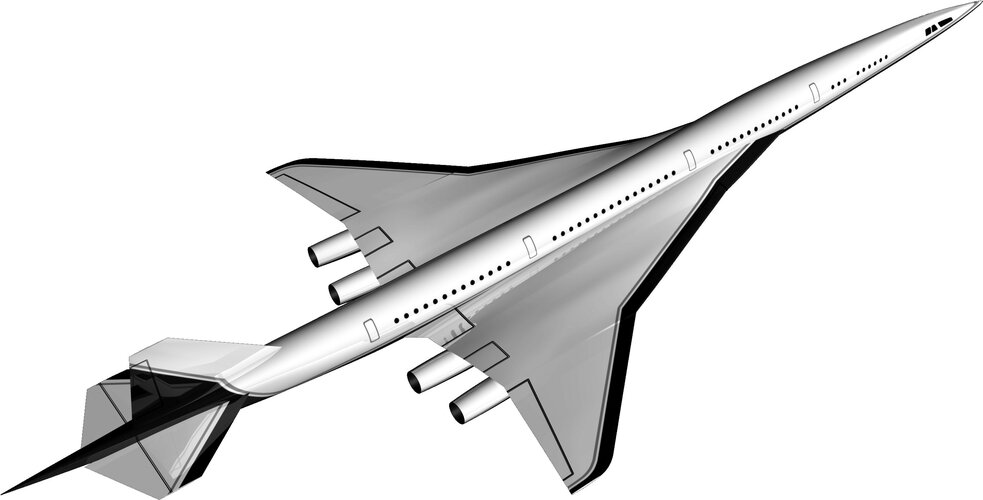

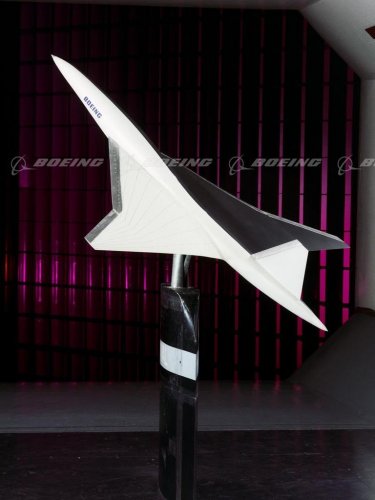

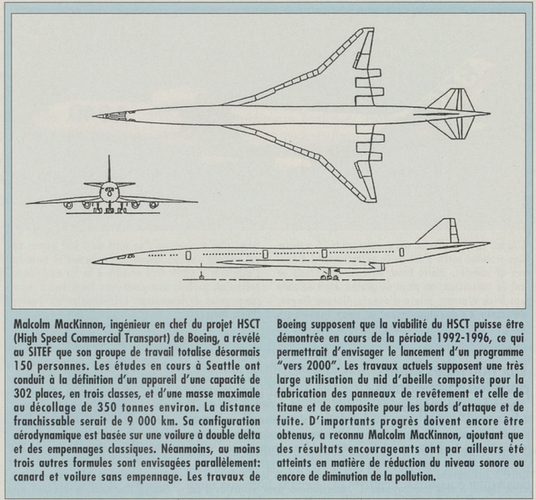

Attachments

  • BoeingHCST.jpg
    195.2 KB · Views: 208
  • BoeingHCST-02.jpg
    195.7 KB · Views: 196

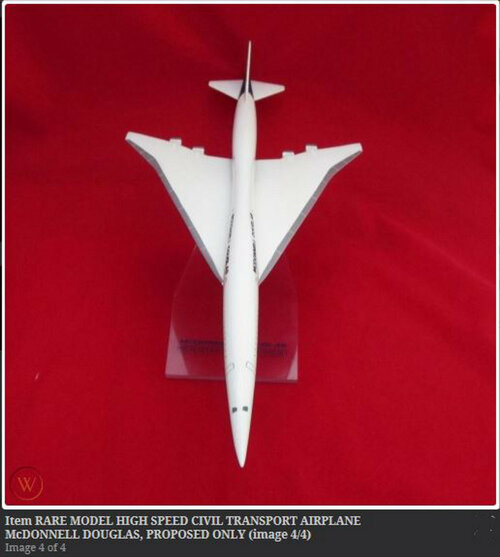

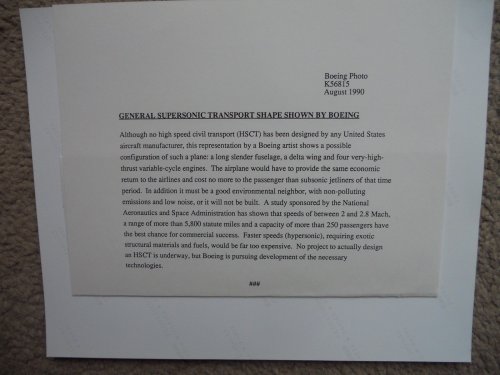

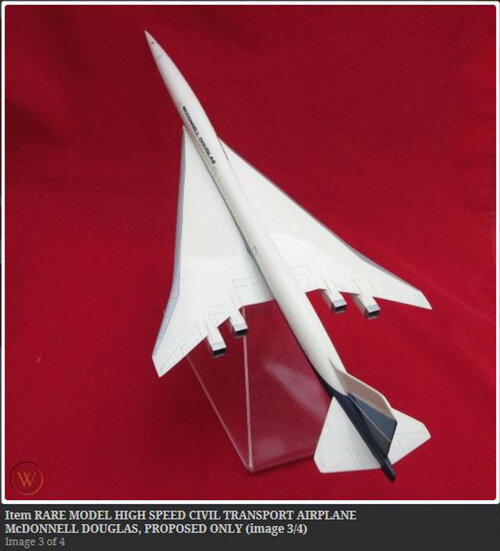

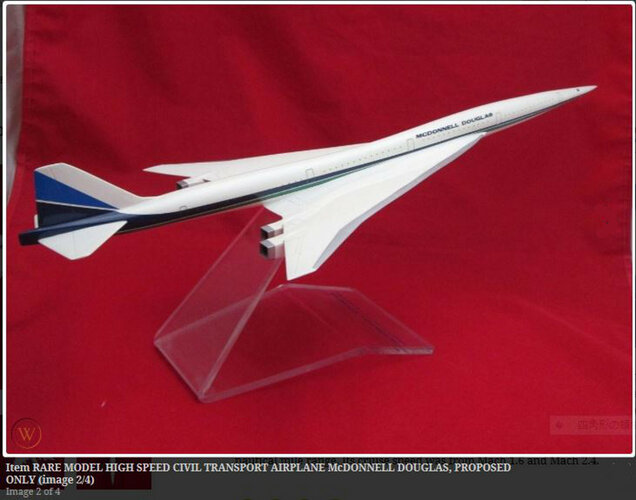

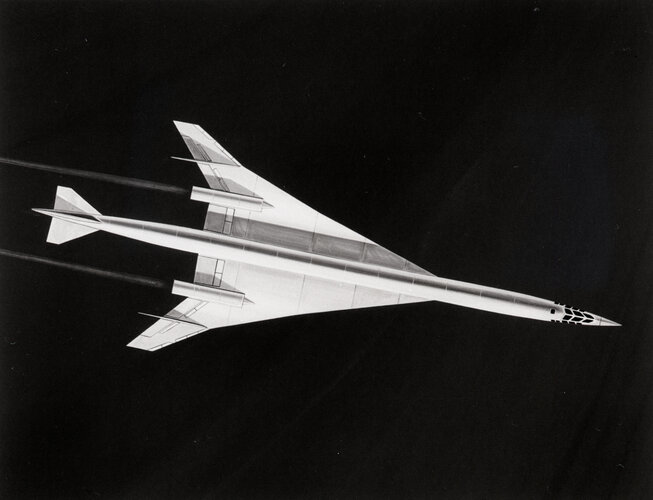

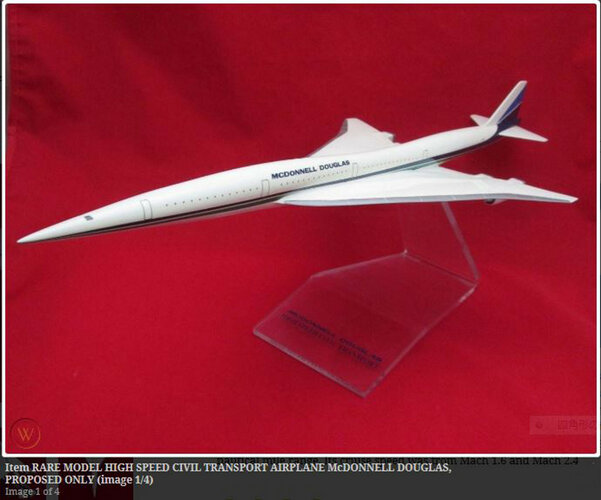

McDonnell Douglas HCST concept photo found on eBay.

Source:
http://www.ebay.com/itm/McDonnell-Douglas-Supersonic-SST-Concept-Boeing-Official-Aircraft-Photograph/352148228647?_trkparms=aid%3D111001%26algo%3DREC.SEED%26ao%3D1%26asc%3D41376%26meid%3D372c7df140824ac1b6f6c844721a0be2%26pid%3D100033%26rk%3D1%26rkt%3D8%26sd%3D352148228647&_trksid=p2045573.c100033.m2042


Attachments

  • HCST-02.jpg
    168.5 KB · Views: 195
  • MDHCST.jpg
    250.5 KB · Views: 189

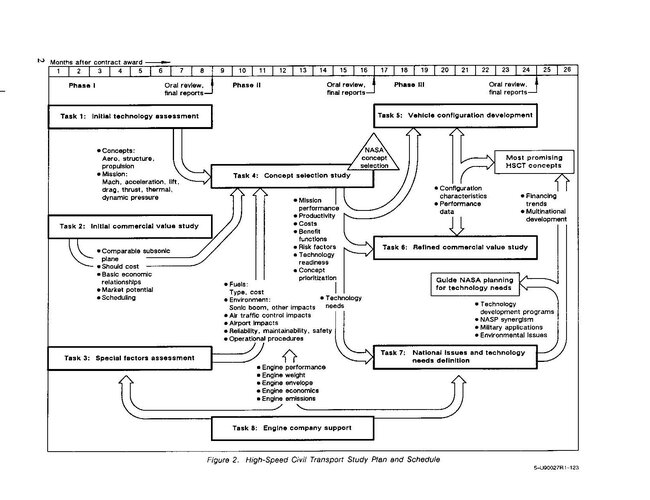

That report made for some interesting reading, just skimming through it. I was taking note of the composite layouts, and imagining what it'd be like to repair it.

It's also a good thing to download the report before they change the system for storing these materials online...again.

With some of the broken urls deleting "apps." will get the link to work.

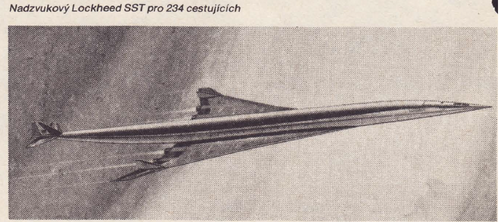

From L+K 8/1981,


Attachments

  • 4    8-1981.png
    4 8-1981.png
    471.2 KB · Views: 152
  • 5    8-1981.png
    5 8-1981.png
    614.3 KB · Views: 169

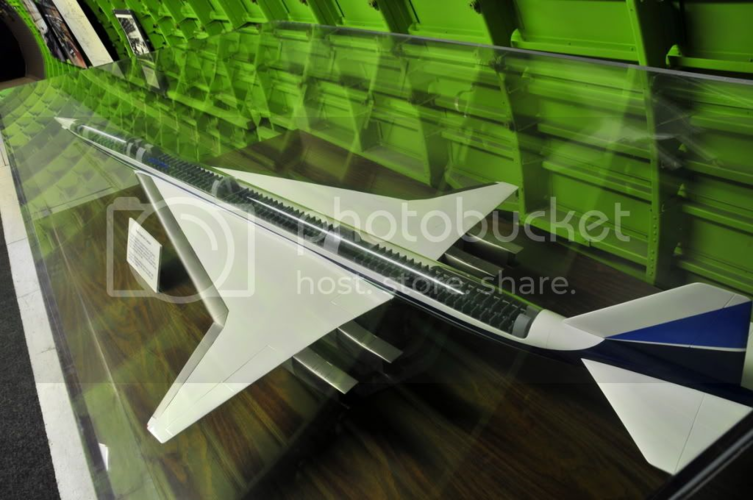

Currently on Ebay from Japan is this 1966 tin toy battery powered working model of the Boeing 2707 in JAL colours made by the firm Daiya.
Similar models were issued for the US market in TWA, American and Pan American and in Europe in Lufthansa colours

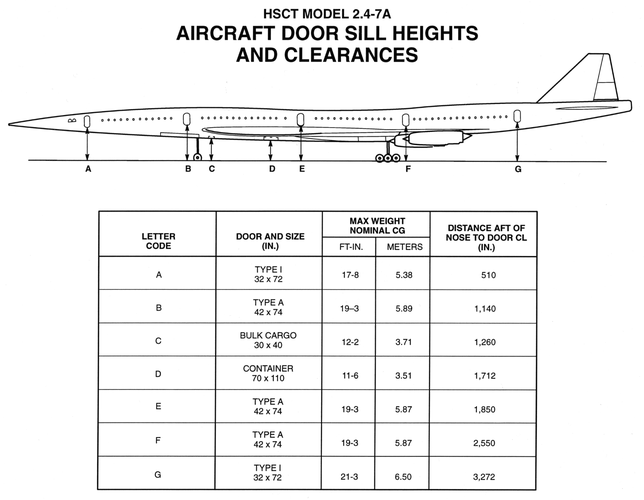

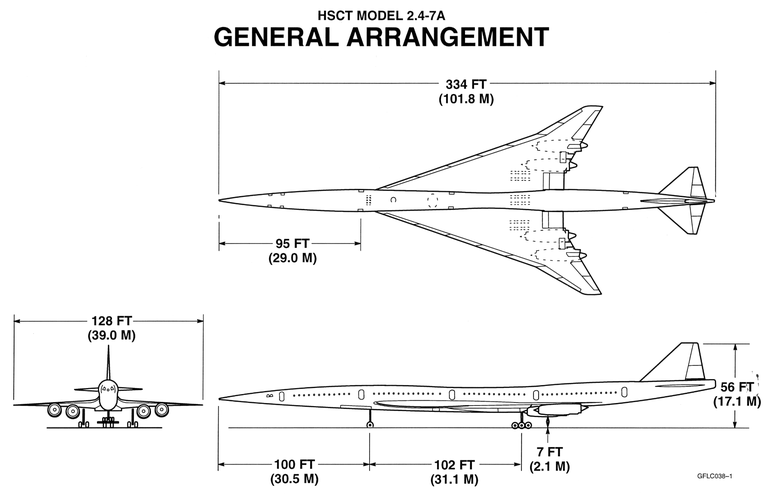

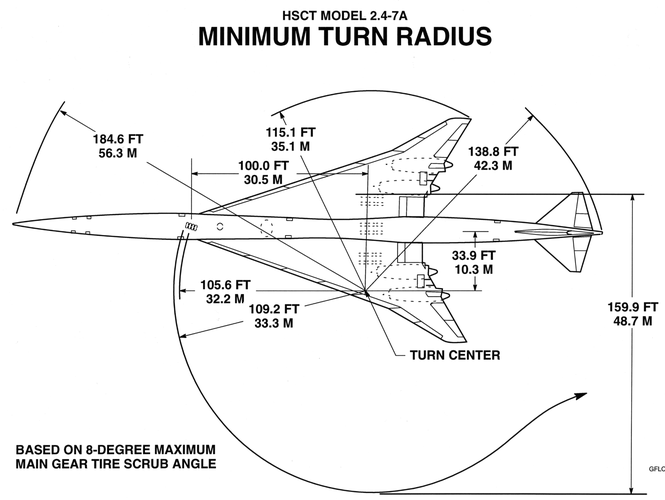

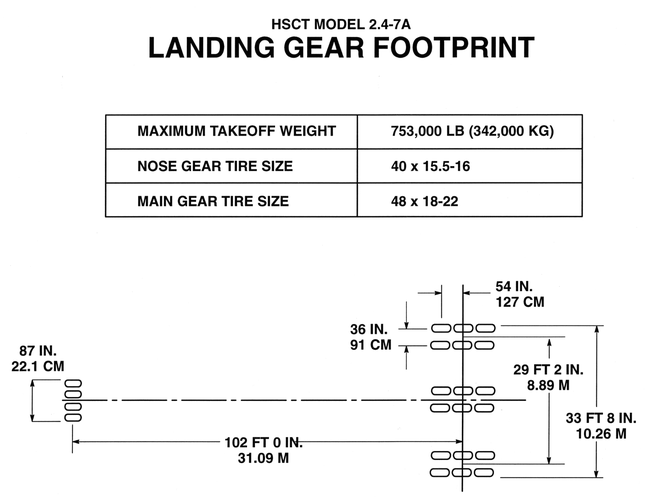

Boeing né McDonnell-Douglas HSCT, from an airport planning document.

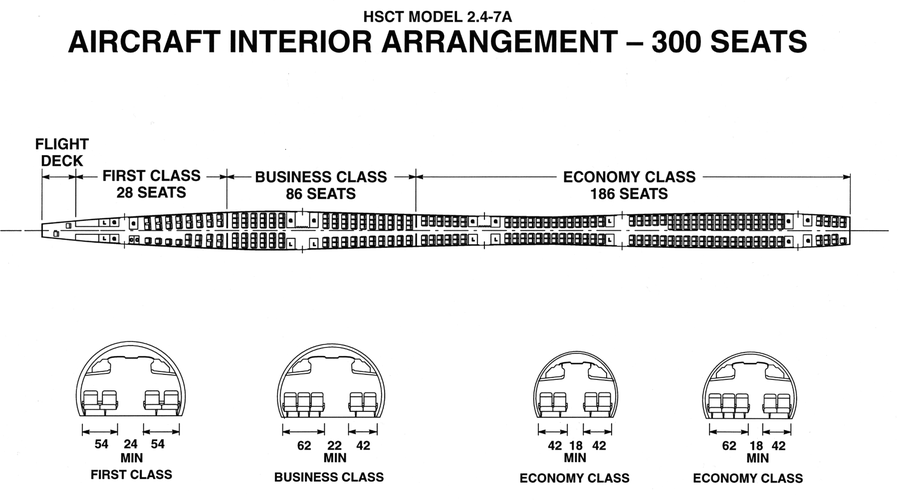

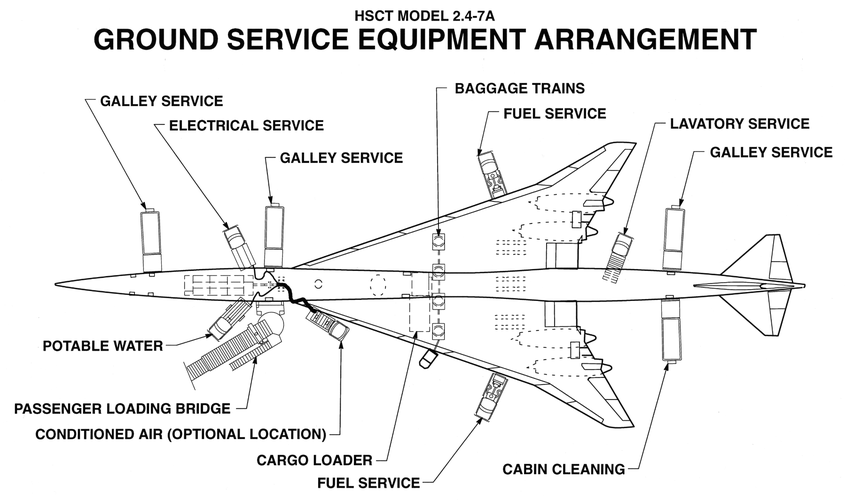

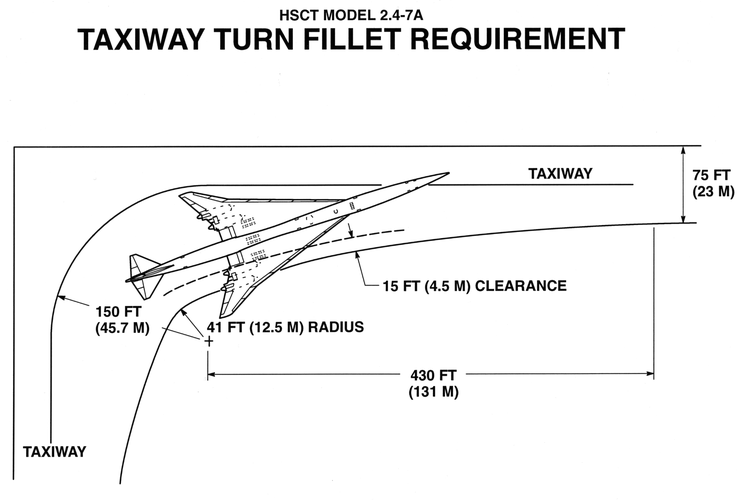

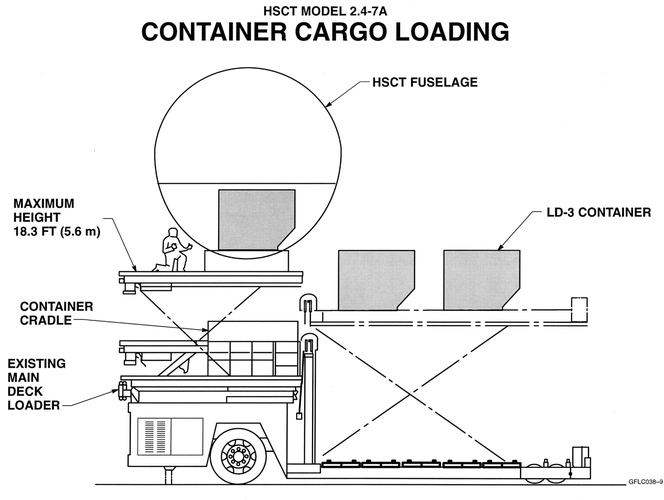

Attachments

  • HSCT_001.png
    144.8 KB · Views: 129
  • HSCT_002.png
    219.3 KB · Views: 124
  • HSCT_003.png
    229.9 KB · Views: 126
  • HSCT_004.png
    243.5 KB · Views: 132
  • HSCT_005.png
    117.6 KB · Views: 127
  • HSCT_006.png
    308.2 KB · Views: 116
  • HSCT_007.png
    184.5 KB · Views: 98
  • HSCT_008.png
    221.3 KB · Views: 103
  • HSCT_009.png
    160.3 KB · Views: 135

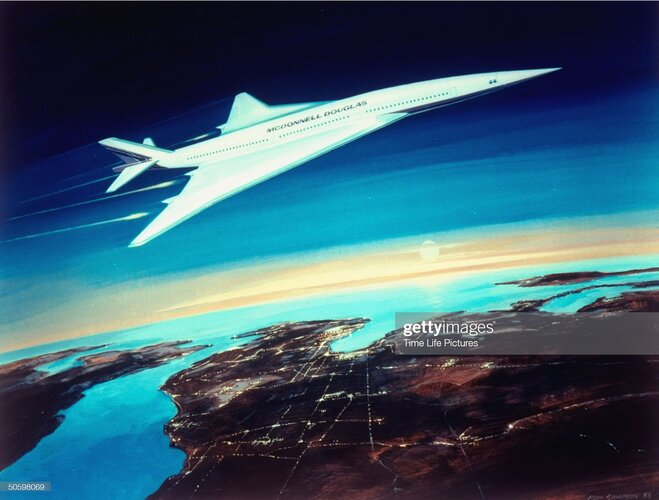

Hi! Mcdonnell Douglas design SST.


Attachments

  • gettyimages-50598069-2048x2048.jpg
    1.1 MB · Views: 112

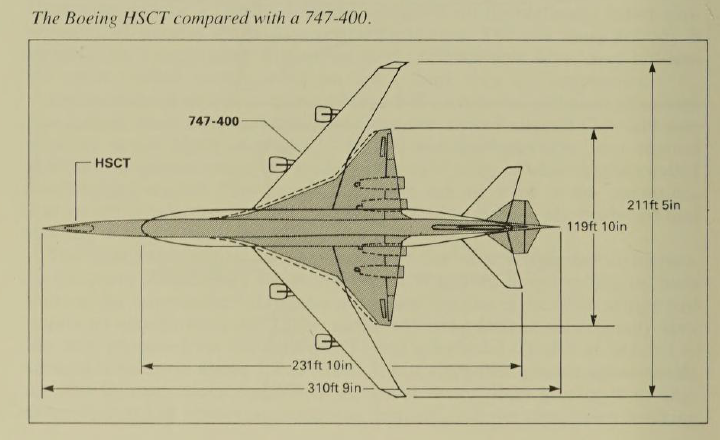

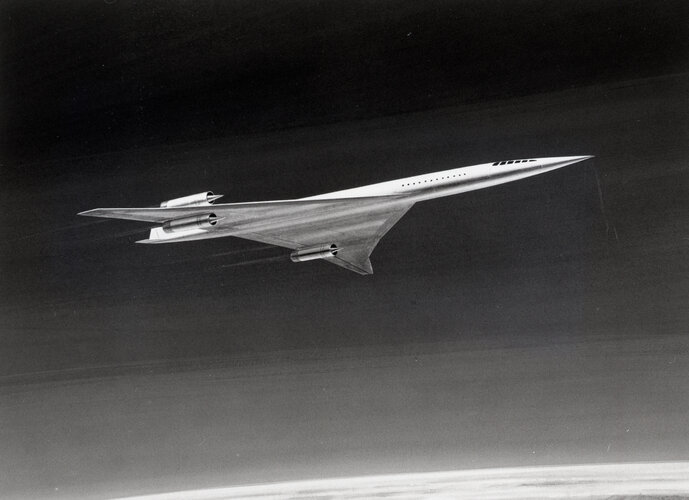

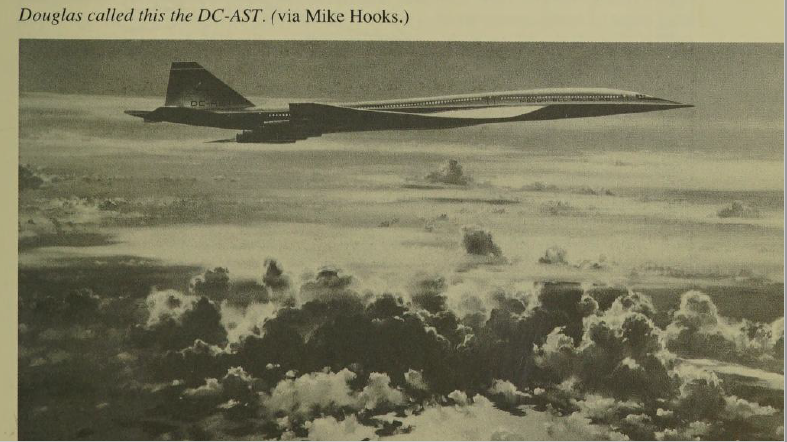

From, Faster Than Sound The Story of Supersonic Flight.


Attachments

  • 6.png
    449.3 KB · Views: 113
  • 7.png
    274.4 KB · Views: 107
  • 8.png
    617.5 KB · Views: 109

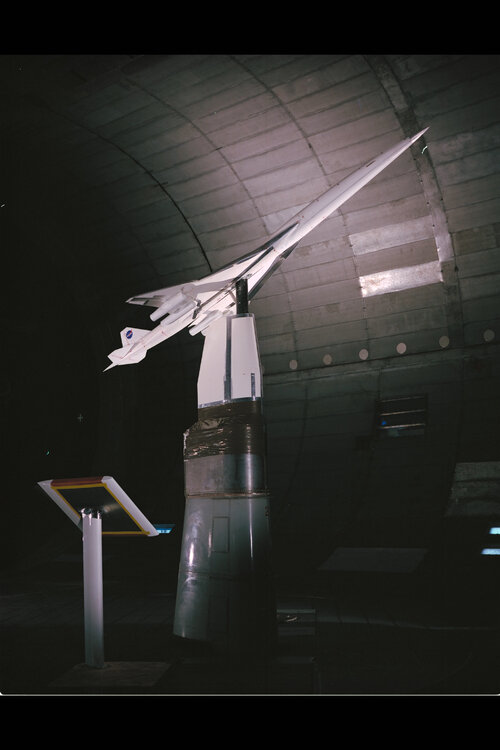

Attachments

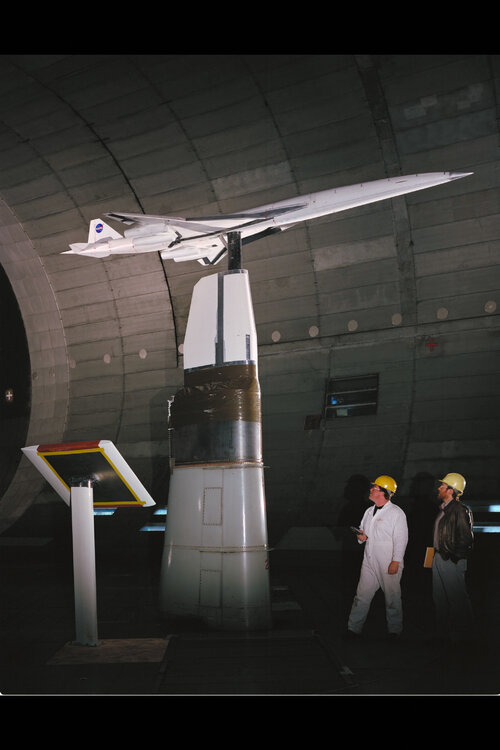

  • ARC-1994-AC94-0034-51~orig.jpg
    2.7 MB · Views: 79
  • ARC-1994-AC94-0034-52~orig.jpg
    2.6 MB · Views: 83
  • Boing HSCT.jpg
    Boing HSCT.jpg
    204.7 KB · Views: 87
  • 211-Figure6-5-1.png
    530.6 KB · Views: 85
  • ARC-1994-AC94-0034-53~orig.jpg
    2.4 MB · Views: 97
Last edited:

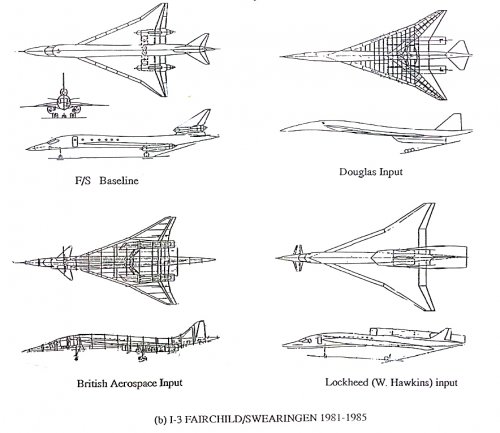

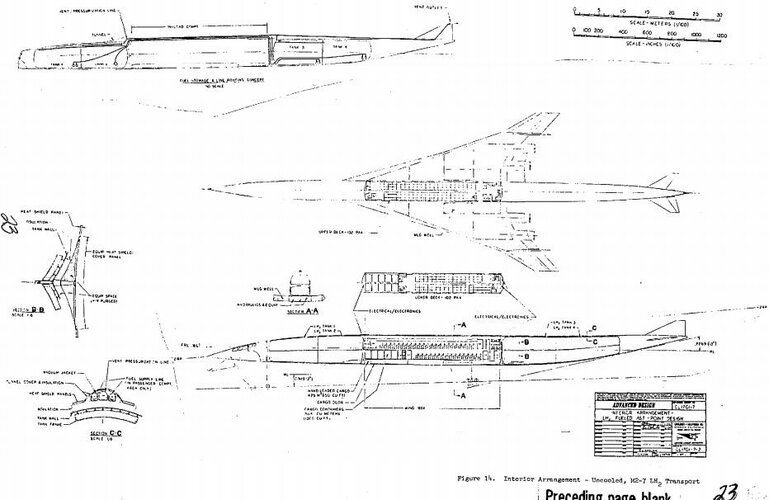

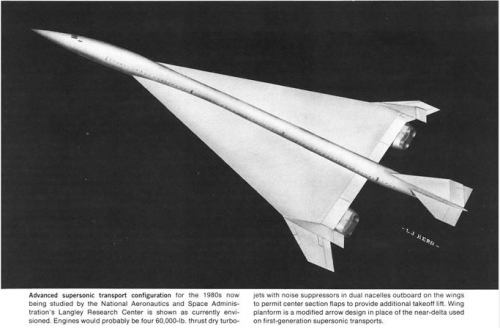

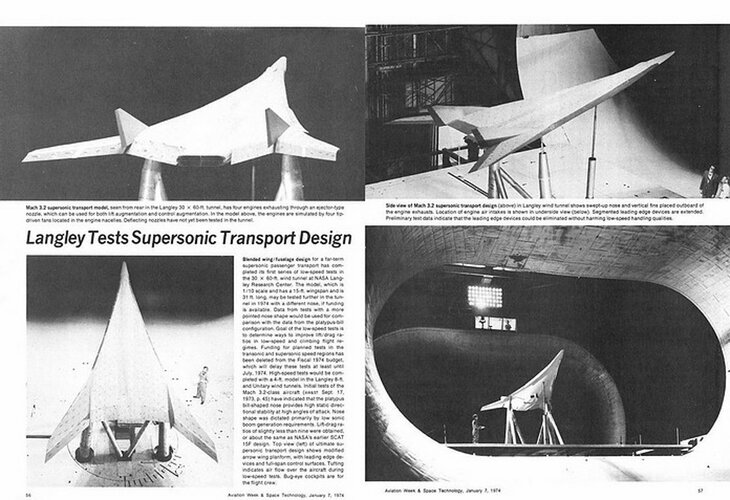

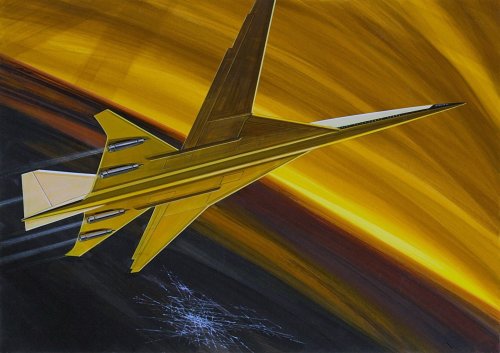

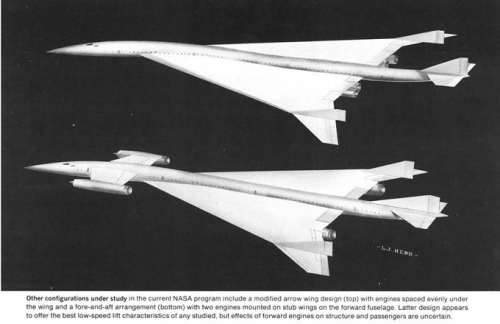

And now, for going graphical. These are some of the concepts developed by NASA (Langley) and contractors (Boeing, MDD, Lockheed, Kentron) in the frame of the SCAR/SRC research program, expecially in late '70s-early80's.
Of great interest is the business jet concepts, that was meant as a double-use configuration, i.e. supersonic cruise long range interceptor armed with guided missile. Both NASA/Kentron and Boeing worked on the concept (you'll recognize a well known pre-ATF Boeing concept...) . The Boeing blended depicted here was a further evolved configuration, ended in 1977. It had a 733 series designation, a 750.000 lbs MTOW and was meant for transpacific routes. I have a report on that. Will post detailed drawing and inboard details (new landing gear, too).

The source;


blackkite said:
Hi dear Skybolt and chornedsnorkack!(Is this OK? What a surprising long name same as Scotte!)
I'm very happy to receive your excellent comments. I can understand what you mean. I used to discuss with Japanese SST engineer(!!), I asked him how do you think of Boeing 2707-300 and Lockheed L2000-7. He answered me that 2707-300 and L2000-7 could succeed technically but failed economically. Of course American SST was more ambitious than Concorde and Tu-144. But once she fly, improvement go forward rapidly as you know. Please imagine improvement from Boeing 707 to Boeing 747.

But where was the space for improvement?

How much was Concorde B supposed to be better than Concorde A?

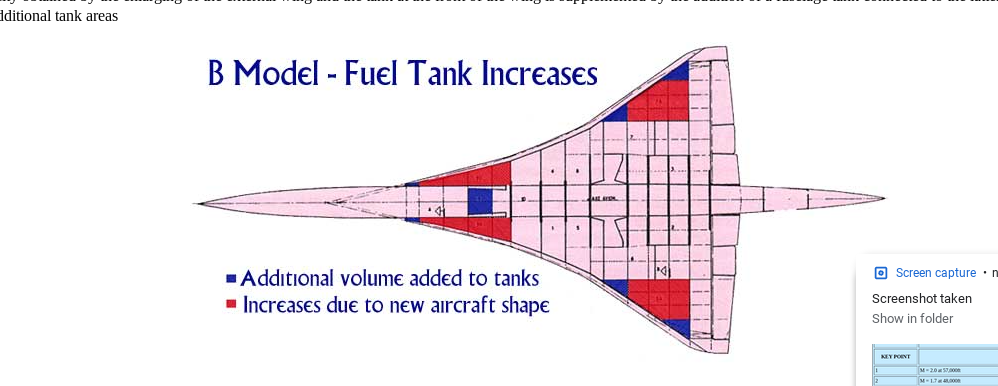

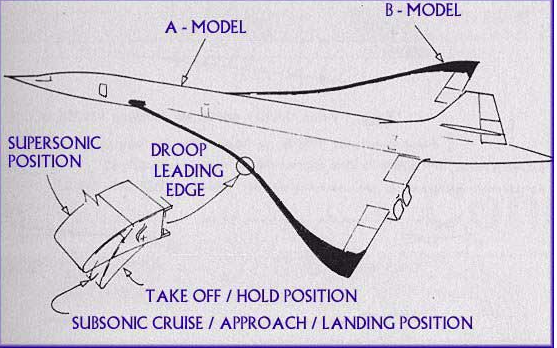

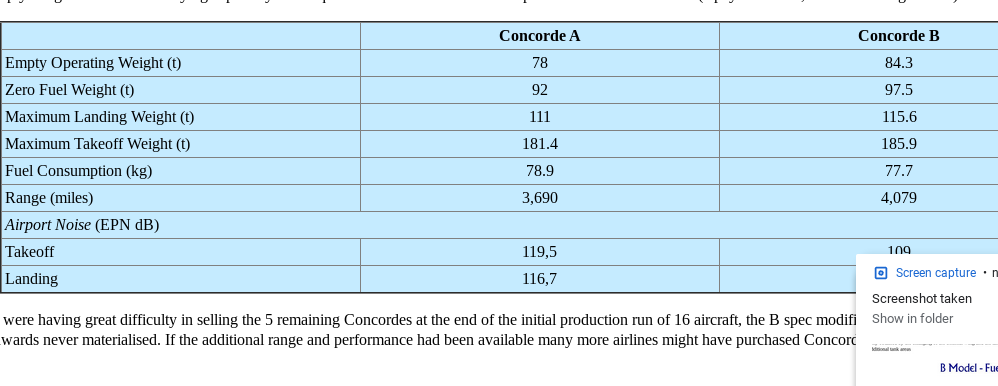

the concorde type b was supposed to have lengthed wing tips, afterburnless super-sonic speed, more fuel and slats


Attachments

  • Screenshot 2022-04-12 1.42.03 PM.png
    Screenshot 2022-04-12 1.42.03 PM.png
    303.5 KB · Views: 87
  • Screenshot 2022-04-12 1.42.24 PM.png
    Screenshot 2022-04-12 1.42.24 PM.png
    52.7 KB · Views: 76
  • Screenshot 2022-04-12 1.42.19 PM.png
    Screenshot 2022-04-12 1.42.19 PM.png
    226.5 KB · Views: 101

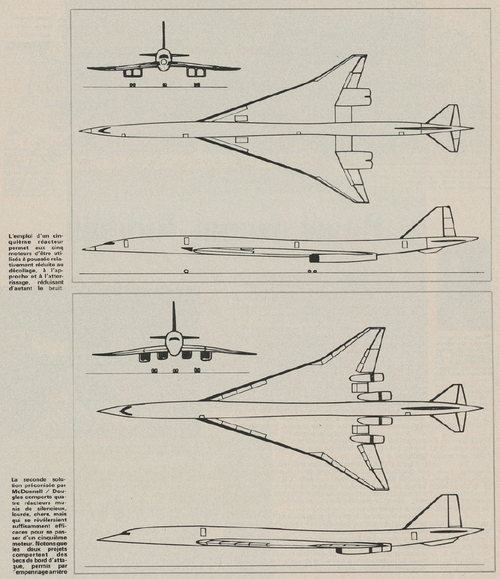

From Aviation magazine 1977.


Attachments

  • 2.png
    688.7 KB · Views: 95

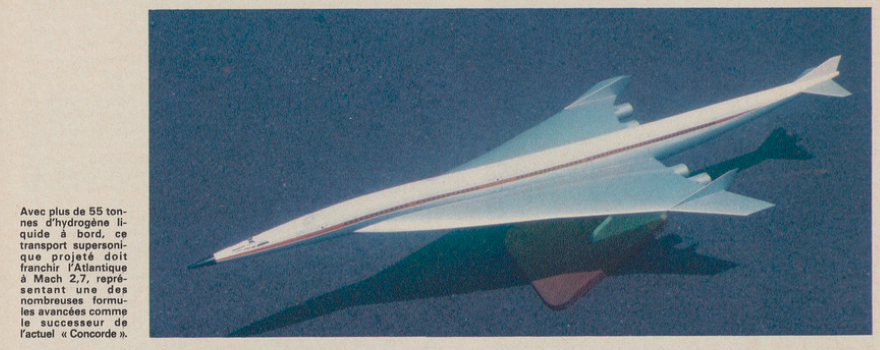

From Aviation magazine 1977.


Attachments

  • 1.png
    459.3 KB · Views: 91

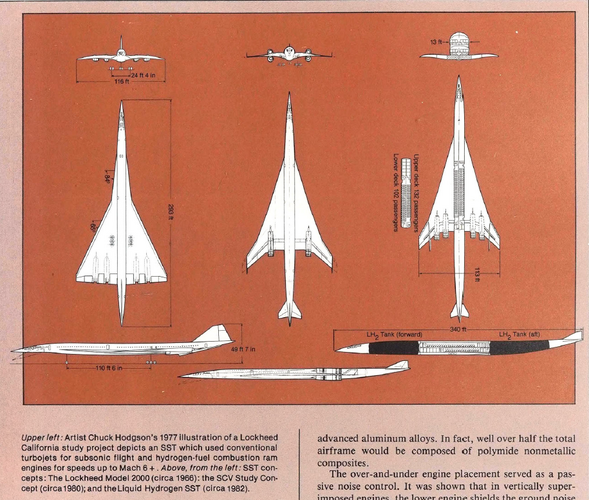

From Bill Yenne's book.


Attachments

  • 2.png
    1.1 MB · Views: 208
  • 5.png
    526.7 KB · Views: 162
  • 0.png
    2.1 MB · Views: 172
...


Attachments

  • 1701.jpg
    1.1 MB · Views: 102
From Bernard Collection,

the Quiet Supersonic Transport propulsion was developed from 1973 by Lockheed-California ?!.


Attachments

  • 1.png
    15.1 KB · Views: 99
